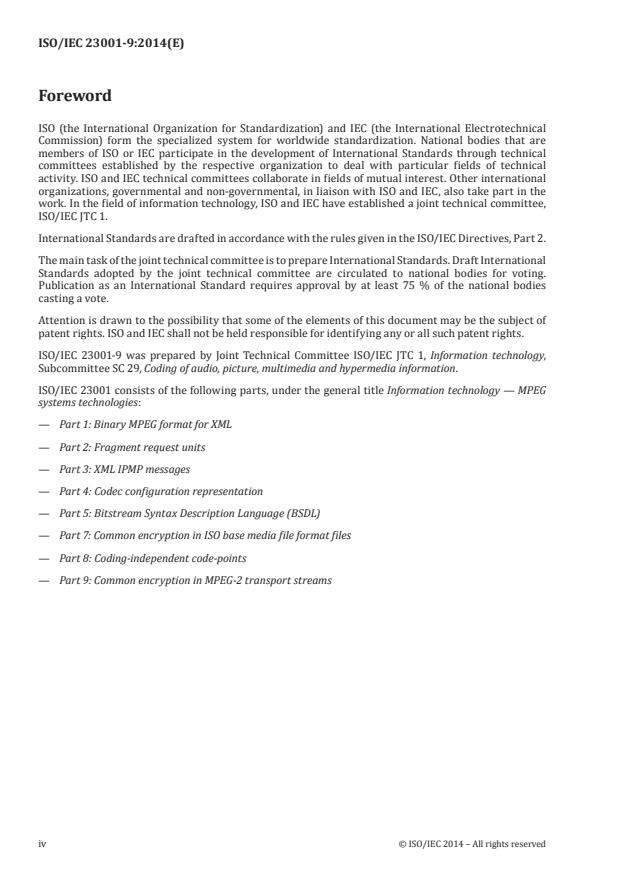

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the national bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 23001-9 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia information.
ISO/IEC 23001 consists of the following parts, under the general title Information technology — MPEG
systems technologies:
— Part 1: Binary MPEG format for XML
— Part 2: Fragment request units
— Part 3: XML IPMP messages
— Part 4: Codec configuration representation
— Part 5: Bitstream Syntax Description Language (BSDL)
— Part 7: Common encryption in ISO base media file format files
— Part 8: Coding-independent code-points
— Part 9: Common encryption in MPEG-2 transport streams
iv © ISO/IEC 2014 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO/IEC 23001-9:2014(E)
Information technology — MPEG systems technologies —
Part 9:
Common encryption of MPEG-2 transport streams
1 Scope
This part of ISO/IEC 23001 specifies a common media encryption format for use in MPEG-2 transport
streams. This encryption format is intended to be used in an interoperable way with media encrypted
using the format described by ISO/IEC 23001-7. This part of ISO/IEC 23001 allows conversion between
encrypted MPEG-2 transport streams and encrypted ISO base media file format files without re-
encryption.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
Rec. ITU-T H.222.0 | ISO/IEC 13818-1, Information technology — Generic coding of moving pictures and
associated audio information — Part 1: Systems
ISO/IEC 13818-7, Information technology — Generic coding of moving pictures and associated audio
information — Part 7: Advanced Audio Coding (AAC).
ISO/IEC 14496-10, Information technology — Coding of audio-visual objects — Part 10: Advanced Video
Coding (technically aligned with Rec. ITU-T H.264)
ISO/IEC 14496-3, Information technology — Coding of audio-visual objects — Part 3: Audio
ISO/IEC 23001-7, Information technology — MPEG systems technologies — Part 7: Common encryption in
ISO base media file format files
ISO/IEC 23008-2, Information technology — High efficiency coding and media delivery in heterogeneous
environments — Part 2: High efficiency video coding
IETF RFC 1321, The MD5 Message-Digest Algorithm , April 1992
Advanced Encryption Standard, Federal Information Processing Standards Publication 197, FIPS-197
Recommendation of Block Cipher Modes of Operation, NIST, NIST Special Publication 800-38A
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
Encrypted AU
part of elementary stream containing one access unit
Note 1 to entry: In case of ISO/IEC 14496-10 and ISO/IEC 23008-2, these are comprised of one or more NAL units.
© ISO/IEC 2014 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO/IEC 23001-9:2014(E)
4 Abbreviations
AES Advanced Encryption Standard (FIPS-197)
AU Access Unit
CAT Conditional Access Table (ISO/IEC 13818-1)
CBC Cipherblock Chaining (NIST 800-38A)
CENC Common Encryption (ISO/IEC 23001-7)
CETS Common Encryption of MPEG-2 Transport Streams
CTR Counter Mode (NIST SP 800-38A)
DTS Decoding Time Stamp (ISO/IEC 13818-1)
EAU Encrypted Access Unit
ECM Entitlement Control Message (ISO/IEC 13818-1)
ISO-BMFF ISO Base Media File Format (ISO/IEC 14496-12)
IV Initialization Vector (NIST SP 800-38A)
KID Key Identifier (ISO/IEC 23001-7)
MD5 MD5 Message-Digest Algorithm (IETF RFC 1321)
MPEG-2 TS MPEG-2 Transport Stream (ISO/IEC 13818-1)
NAL Network Access Layer (ISO/IEC 14496-10, ISO/IEC 23008-2)
PAT Program Association Table (ISO/IEC 13818-1)
PES Packetized Elementary Stream (ISO/IEC 13818-1)
PID Packet Identifier (ISO/IEC 13818-1)
PMT Program Map Table (ISO/IEC 13818-1)
PTS Presentation Time Stamp (ISO/IEC 13818-1)
RAP Random Access Point
VCL Video Coding Layer (ISO/IEC 14496-10, ISO/IEC 23008-2)
5 Introduction
5.1 General
An interoperable container-independent encryption scheme allows container format changes for
encrypted content in the network without the need for the processing node to be able to support for and
interoperate with multiple DRM’s. Given the need to support clients that use different container formats,
such capability allows end-to-end content protection from the content preparation stage till the content
consumption by the authorized end user.
If the encrypted parts of elementary streams are the same, and parameters needed to do re-encapsulation
are in the clear, it is possible to do re-encapsulation without re-encryption. Partial bitstream encryption
specified in ISO/IEC 23001-7 makes such re-multiplexing of ISO-BMFF files possible. ISO/IEC 23001-7
2 © ISO/IEC 2014 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/IEC 23001-9:2014(E)
is specific to ISO-BMFF, while this part of ISO/IEC 23001 provides an MPEG-2 TS framework which
provides same functionality for MPEG-2 TS. A combination of ISO/IEC 23001-7 and ISO/IEC 23001-9
allows re-encapsulation
...
