ISO/TS 18614:2016
(Main)Packaging — Label material — Required information for ordering and specifying self-adhesive labels
Packaging — Label material — Required information for ordering and specifying self-adhesive labels
ISO/TS 18614:2016 provides guidelines for users and suppliers providing the required information for requesting and specifying self-adhesive labels. It provides what to consider when defining and specifying label materials to be used for a given application. It will ensure that the relevant information is provided so that the right material for the intended application can be requested or recommended, as well as ensure that label parameters and characteristics are specified in a similar format to permit label materials to be requested, specified and compared in a consistent manner. It applies to labels with adhesive (also named as self-adhesive or pressure-sensitive). How to work and specify with other types of labels and marking are not addressed in ISO/TS 18614:2016, but may be the topic of subsequent documents. Also excluded is the information related to regulatory compliance.
Emballage — Matériau d'étiquetage — Informations exigées pour la commande et la spécification des étiquettes autocollantes
General Information
Relations
Buy Standard
Standards Content (Sample)

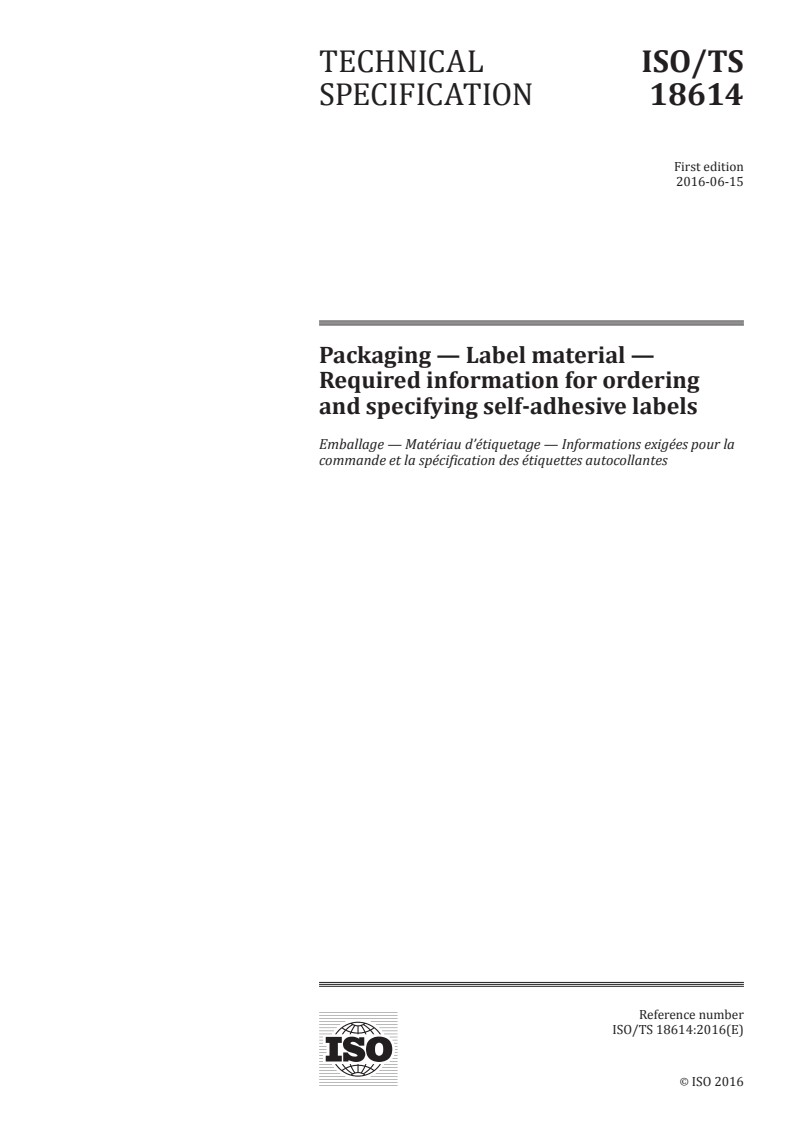

TECHNICAL ISO/TS
SPECIFICATION 18614
First edition
Packaging — Label material —
Required information for ordering
and specifying self-adhesive labels
Emballage — Matériau d’étiquetage — Informations exigées pour la
commande et la spécification des étiquettes autocollantes
PROOF/ÉPREUVE
Reference number
©
ISO 2016
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved

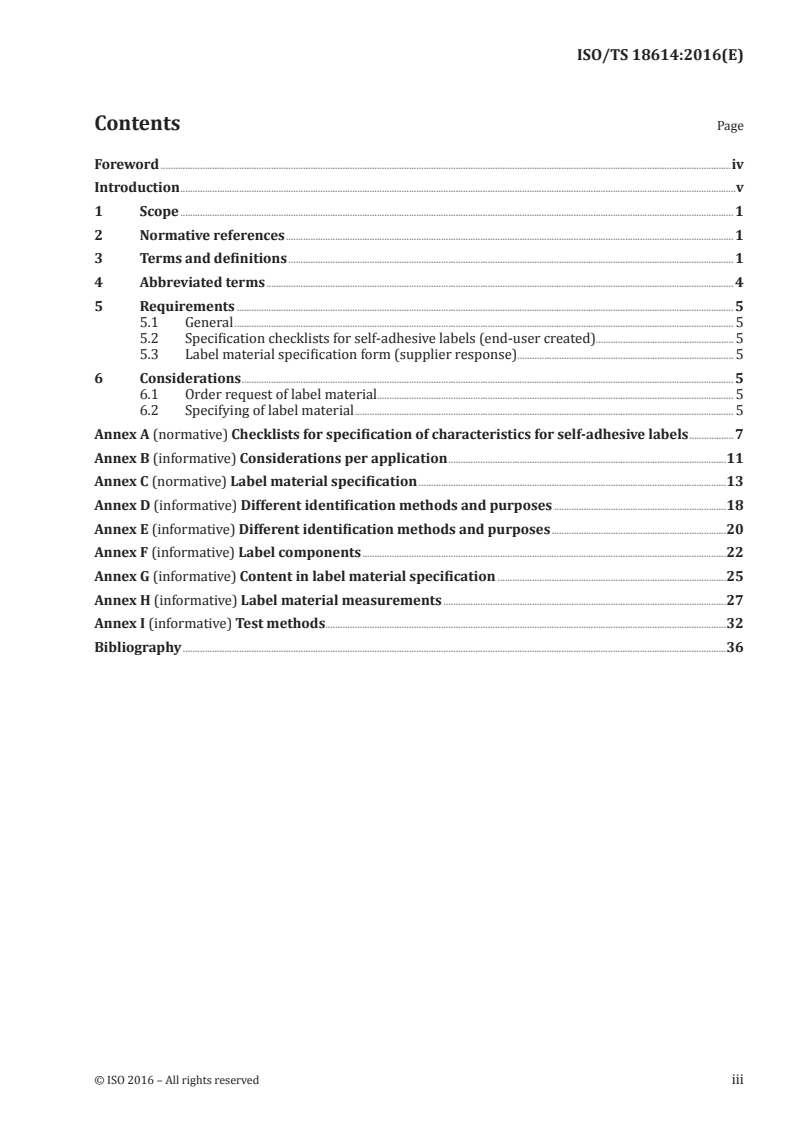

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Abbreviated terms . 4
5 Requirements . 5
5.1 General . 5
5.2 Specification checklists for self-adhesive labels (end-user created). 5
5.3 Label material specification form (supplier response). 5
6 Considerations . 5
6.1 Order request of label material. 5
6.2 Specifying of label material . 5
Annex A (normative) Checklists for specification of characteristics for self-adhesive labels .7
Annex B (informative) Considerations per application .11
Annex C (normative) Label material specification .13
Annex D (informative) Different identification methods and purposes .18
Annex E (informative) Different identification methods and purposes .20
Annex F (informative) Label components .22
Annex G (informative) Content in label material specification .25
Annex H (informative) Label material measurements .27
Annex I (informative) Test methods .32
Bibliography .36

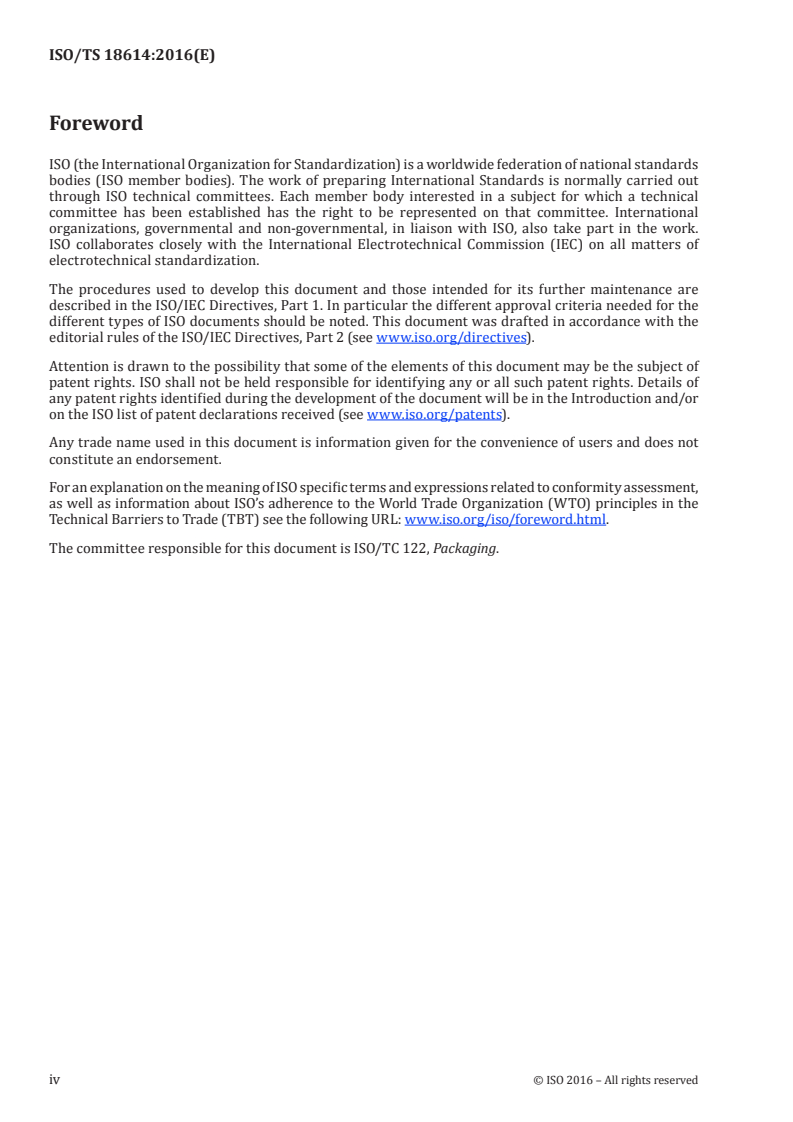

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,
as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the
Technical Barriers to Trade (TBT) see the following URL: www.iso.org/iso/foreword.html.
The committee responsible for this document is ISO/TC 122, Packaging.
iv PROOF/ÉPREUVE © ISO 2016 – All rights reserved
Introduction
Using and ordering label material of different kinds is not an easy task as what to use and how to use it
depends on so many things, e.g. type of marking, surface, environment, treatment, information, printing
technologies, etc.
Each label application is therefore unique and requires its own combination of ink, top coating, facestock
and adhesive to serve its purpose. The label is to be seen as a vital and important part (component) of
the product and there could be multiple labels on one product to serve different needs.
As there does not exists any standards in how to specify label materials, a two-part guide is being
developed in order to provide useful information for those that are in need of a label material and those
that are to supply the relevant label material.
This document can be used by both suppliers and users.
It provides guidance on what a supplier and user need to discuss and agree upon when specifying
requirements of a label for a given application possibly to use as a request for a quote.
It also provides a harmonized template for specifying the parameters and characteristics of the label to
enable information to be evaluated on common ground, possibly to use as a product specification.
TECHNICAL SPECIFICATION ISO/TS 18614:2016(E)
Packaging — Label material — Required information for
ordering and specifying self-adhesive labels
1 Scope
This document provides guidelines for users and suppliers providing the required information for
requesting and specifying self-adhesive labels. This document provides what to consider when defining
and specifying label materials to be used for a given application.
It will ensure that the relevant information is provided so that the right material for the intended
application can be requested or recommended, as well as ensure that label parameters and
characteristics are specified in a similar format to permit label materials to be requested, specified and
compared in a consistent manner.
This document applies to labels with adhesive (also named as self-adhesive or pressure-sensitive).
How to work and specify with other types of labels and marking are not addressed in this document,
but may be the topic of subsequent documents. Also excluded is the information related to regulatory
compliance.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
adhesive
substance capable of holding materials together by surface attachment
[SOURCE: ISO 19952:2005, 3]
3.2
adhesive strength
sum total of the forces of attachment between a dry film and a substrate
[SOURCE: ISO 4618:2014, 2.8, modified]
3.3
facestock
paper that is used for making self-adhesive labels
Note 1 to entry: It is called “facestock” because it is the top or “face” of the laminate from which these labels are
produced.
Note 2 to entry: Specialized companies laminate the facestock paper to a release liner after the latter has been
coated first with an ultra-thin layer of silicon and then with an adhesive.
Note 3 to entry: When the ready label is peeled off from the backing paper (=release liner), the adhesive transfers
to the label because it is easily separated from the release liner because of the “non-stick” silicon.
3.4
final adhesion
force required to peel a strip of adhesive tape from a specified substrate at a specified angle and speed
Note 1 to entry: The force after at least 24 h.
3.5
imprint
local indentation caused by a foreign matter being pressed into a surface
[SOURCE: ISO 2074:2007, 6.5]
3.6
infringement
encroachment or trespass on a right
Note 1 to entry: Includes unauthorized use, use that exceeds the limitations stipulated in a licence, use that
exceeds the parameters established for an exception, etc.
[SOURCE: ISO 2074:2007, 6.7]
3.7
ink
material, which may or may not include colorant, designed for liquid state deposition on a substrate
[SOURCE: ISO/IEC 29142-1:2013, 3.28]
3.8
ink-jet
text and images formed on a substrate by electronically controlled formation and propulsion of liquid
ink droplets
3.9
label
sign carrier made from flexible material
Note 1 to entry: The purpose of a label is to convey the necessary information (text or graphics) to the user.
Note 2 to entry: Information on other identification methods in relation to labels, such as tag, ticket, tape, mark
and marking, are given in Annex D.
[SOURCE: ISO 9244:2008, 3.11]
3.10
mark
inscription, name, stamp, label (3.9), or seal placed on an article to signify ownership, quality,
manufacture, or origin
3.11
marking
act of making marks (3.10), signs (3.20), texts, etc., visible on a surface of something
EXAMPLE Using a ribbon, label, tag, tape or other printing technology.
3.12
maximum application temperature
highest temperature at which the label (3.9) may be applied to the surface of the product, in order for
the label material, in particular the adhesive (3.1), to perform to its given specification and correctly
adhere to the product
2 PROOF/ÉPREUVE © ISO 2016 – All rights reserved
3.13
minimum application temperature
lowest temperature at which the label (3.9) may be applied to the surface of the product, in order for the
label material, in particular the adhesive (3.1), to perform to its given specification and correctly adhere
to the product
3.14
multilayer product
multiple layers attached to each other
3.15
peel adhesion
force required to peel a strip of adhesive tape from a specified substrate at a specified angle and speed
[SOURCE: ISO 29862:2007, 3.1]
Note 1 to entry: The force after minutes or hours.
3.16
pressure-sensitive adhesive
adhesive (3.1) applied to create a bond between two surfaces by a simple application of pressure
[SOURCE: ISO 17398:2004, 3.4]
3.17
print direction
orientation of the printed information (text and graphics) on the label (3.9)
Note 1 to entry: Printing “with the web” is image production in the same direction as web movement.
Note 2 to entry: Printing “across the web” is image production at a 90° angle to the direction of web movement.
3.18
printer
output unit that produces a hard copy record of data mainly in the form of a sequence of discrete graphic
characters belonging to one or more predetermined character sets
[SOURCE: ISO/IEC 2382:2015, 2125683]
Note 1 to entry: Graphic characters can also represent graphic elements.
3.19
remaliner
sprocket hole punching
3.20
sign
message conveyed utilizing pictorial or textual media or both
[SOURCE: ISO 6707-1:2014, 5.5.67]
3.21
storage temperature
recommended temperature (range) at which the label material and/or finished labels should be held
before usage, in order to retain their specif
...
TECHNICAL ISO/TS
SPECIFICATION 18614
First edition
2016-06-15
Packaging — Label material —
Required information for ordering
and specifying self-adhesive labels
Emballage — Matériau d’étiquetage — Informations exigées pour la
commande et la spécification des étiquettes autocollantes
Reference number
©
ISO 2016
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Abbreviated terms . 4
5 Requirements . 5
5.1 General . 5
5.2 Specification checklists for self-adhesive labels (end-user created). 5
5.3 Label material specification form (supplier response). 5
6 Considerations . 5
6.1 Order request of label material. 5
6.2 Specifying of label material . 5
Annex A (normative) Checklists for specification of characteristics for self-adhesive labels .7
Annex B (informative) Considerations per application .11
Annex C (normative) Label material specification .13
Annex D (informative) Different identification methods and purposes .18
Annex E (informative) Different identification methods and purposes .20
Annex F (informative) Label components .22
Annex G (informative) Content in label material specification .25
Annex H (informative) Label material measurements .27
Annex I (informative) Test methods .32
Bibliography .36
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,
as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the
Technical Barriers to Trade (TBT) see the following URL: www.iso.org/iso/foreword.html.
The committee responsible for this document is ISO/TC 122, Packaging.
iv © ISO 2016 – All rights reserved
Introduction
Using and ordering label material of different kinds is not an easy task as what to use and how to use it
depends on so many things, e.g. type of marking, surface, environment, treatment, information, printing
technologies, etc.
Each label application is therefore unique and requires its own combination of ink, top coating, facestock
and adhesive to serve its purpose. The label is to be seen as a vital and important part (component) of
the product and there could be multiple labels on one product to serve different needs.
As there does not exists any standards in how to specify label materials, a guide was developed in order
to provide useful information for those that are in need of a label material and those that are to supply
the relevant label material.
This document can be used by both suppliers and users.
It provides guidance on what a supplier and user need to discuss and agree upon when specifying
requirements of a label for a given application possibly to use as a request for a quote.
It also provides a harmonized template for specifying the parameters and characteristics of the label to
enable information to be evaluated on common ground, possibly to use as a product specification.
TECHNICAL SPECIFICATION ISO/TS 18614:2016(E)
Packaging — Label material — Required information for
ordering and specifying self-adhesive labels
1 Scope
This document provides guidelines for users and suppliers providing the required information for
requesting and specifying self-adhesive labels. This document provides what to consider when defining
and specifying label materials to be used for a given application.
It will ensure that the relevant information is provided so that the right material for the intended
application can be requested or recommended, as well as ensure that label parameters and
characteristics are specified in a similar format to permit label materials to be requested, specified and
compared in a consistent manner.
This document applies to labels with adhesive (also named as self-adhesive or pressure-sensitive).
How to work and specify with other types of labels and marking are not addressed in this document,
but may be the topic of subsequent documents. Also excluded is the information related to regulatory
compliance.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 21067-1 and ISO/IEC 19762-
1:2016 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
adhesive
substance capable of holding materials together by surface attachment
[SOURCE: ISO 19952:2005, 3]
3.2
adhesive strength
sum total of the forces of attachment between a dry film and a substrate
3.3
facestock
paper that is used for making self-adhesive labels
Note 1 to entry: It is called “facestock” because it is the top or “face” of the laminate from which these labels are
produced.
Note 2 to entry: Specialized companies laminate the facestock paper to a release liner after the latter has been
coated first with an ultra-thin layer of silicon and then with an adhesive.
Note 3 to entry: When the ready label is peeled off from the backing paper (=release liner), the adhesive transfers
to the label because it is easily separated from the release liner because of the “non-stick” silicon.
3.4
final adhesion
force required to peel a strip of adhesive tape from a specified substrate at a specified angle and speed
Note 1 to entry: The force after at least 24 h.
3.5
imprint
local indentation caused by a foreign matter being pressed into a surface
[SOURCE: ISO 2074:2007, 6.7]
3.6
infringement
encroachment or trespass on a right
Note 1 to entry: Includes unauthorized use, use that exceeds the limitations stipulated in a licence, use that
exceeds the parameters established for an exception, etc.
3.7
ink
material, which may or may not include colorant, designed for liquid state deposition on a substrate
[SOURCE: ISO/IEC 29142-1:2013, 3.28]
3.8
ink-jet
text and images formed on a substrate by electronically controlled formation and propulsion of liquid
ink droplets
3.9
label
sign carrier made from flexible material
Note 1 to entry: The purpose of a label is to convey the necessary information (text or graphics) to the user.
Note 2 to entry: Information on other identification methods in relation to labels, such as tag, ticket, tape, mark
and marking, are given in Annex D.
[SOURCE: ISO 9244:2008, 3.11, modified, Note 1 to entry and Note 2 to entry added]
3.10
mark
inscription, name, stamp, label (3.9), or seal placed on an article to signify ownership, quality,
manufacture, or origin
3.11
marking
act of making marks (3.10), signs (3.20), texts, etc., visible on a surface of something
EXAMPLE Using a ribbon, label, tag, tape or other printing technology.
3.12
maximum application temperature
highest temperature at which the label (3.9) may be applied to the surface of the product, in order for
the label material, in particular the adhesive (3.1), to perform to its given specification and correctly
adhere to the product
2 © ISO 2016 – All rights reserved
3.13
minimum application temperature
lowest temperature at which the label (3.9) may be applied to the surface of the product, in order for the
label material, in particular the adhesive (3.1), to perform to its given specification and correctly adhere
to the product
3.14
multilayer product
multiple layers attached to each other
3.15
peel adhesion
force required to peel a strip of adhesive tape from a specified substrate at a specified angle and speed
Note 1 to entry: The force after minutes or hours.
[SOURCE: ISO 29862:2007, 3.1, modified, Note 1 to entry added]
3.16
pressure-sensitive adhesive
adhesive (3.1) applied to create a bond between two surfaces by a simple application of pressure
[SOURCE: ISO 17398:2004, 3.4]
3.17
print direction
orientation of the printed information (text and graphics) on the label (3.9)
Note 1 to entry: Printing “with the web” is image production in the same direction as web movement.
Note 2 to entry: Printing “across the web” is image production at a 90° angle to the direction of web movement.
3.18
printer
output unit that produces a hard copy record of data mainly in the form of a sequence of discrete graphic
characters belonging to one or more predetermined character sets
Note 1 to entry: Graphic characters can also represent graphic elements.
[SOURCE: ISO/IEC 2382:2015, 2125683, modified, Note 1 to entry added]
3.19
remaliner
sprocket hole punching
3.20
sign
message conveyed utilizing pictorial or textual media or both
[SOURCE: ISO 6707-1:2014, 5.5.67, modified, Note 1 to entry removed]
3.21
storage temperature
recommended temperature (range) at which the label material and/or finished labels s
...
TECHNICAL ISO/TS
SPECIFICATION 18614
First edition
2016-06-15
Packaging — Label material —
Required information for ordering
and specifying self-adhesive labels
Emballage — Matériau d’étiquetage — Informations exigées pour la
commande et la spécification des étiquettes autocollantes
Reference number
©
ISO 2016
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Abbreviated terms . 4
5 Requirements . 5
5.1 General . 5
5.2 Specification checklists for self-adhesive labels (end-user created). 5
5.3 Label material specification form (supplier response). 5
6 Considerations . 5
6.1 Order request of label material. 5
6.2 Specifying of label material . 5
Annex A (normative) Checklists for specification of characteristics for self-adhesive labels .7
Annex B (informative) Considerations per application .11
Annex C (normative) Label material specification .13
Annex D (informative) Different identification methods and purposes .18
Annex E (informative) Different identification methods and purposes .20
Annex F (informative) Label components .22
Annex G (informative) Content in label material specification .25
Annex H (informative) Label material measurements .27
Annex I (informative) Test methods .32
Bibliography .36
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,
as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the
Technical Barriers to Trade (TBT) see the following URL: www.iso.org/iso/foreword.html.
The committee responsible for this document is ISO/TC 122, Packaging.
iv © ISO 2016 – All rights reserved
Introduction
Using and ordering label material of different kinds is not an easy task as what to use and how to use it
depends on so many things, e.g. type of marking, surface, environment, treatment, information, printing
technologies, etc.
Each label application is therefore unique and requires its own combination of ink, top coating, facestock
and adhesive to serve its purpose. The label is to be seen as a vital and important part (component) of
the product and there could be multiple labels on one product to serve different needs.
As there does not exists any standards in how to specify label materials, a guide was developed in order
to provide useful information for those that are in need of a label material and those that are to supply
the relevant label material.
This document can be used by both suppliers and users.
It provides guidance on what a supplier and user need to discuss and agree upon when specifying
requirements of a label for a given application possibly to use as a request for a quote.
It also provides a harmonized template for specifying the parameters and characteristics of the label to
enable information to be evaluated on common ground, possibly to use as a product specification.
TECHNICAL SPECIFICATION ISO/TS 18614:2016(E)
Packaging — Label material — Required information for
ordering and specifying self-adhesive labels
1 Scope
This document provides guidelines for users and suppliers providing the required information for
requesting and specifying self-adhesive labels. This document provides what to consider when defining
and specifying label materials to be used for a given application.
It will ensure that the relevant information is provided so that the right material for the intended
application can be requested or recommended, as well as ensure that label parameters and
characteristics are specified in a similar format to permit label materials to be requested, specified and
compared in a consistent manner.
This document applies to labels with adhesive (also named as self-adhesive or pressure-sensitive).
How to work and specify with other types of labels and marking are not addressed in this document,
but may be the topic of subsequent documents. Also excluded is the information related to regulatory
compliance.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 21067-1 and ISO/IEC 19762-
1:2016 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
adhesive
substance capable of holding materials together by surface attachment
[SOURCE: ISO 19952:2005, 3]
3.2
adhesive strength
sum total of the forces of attachment between a dry film and a substrate
3.3
facestock
paper that is used for making self-adhesive labels
Note 1 to entry: It is called “facestock” because it is the top or “face” of the laminate from which these labels are
produced.
Note 2 to entry: Specialized companies laminate the facestock paper to a release liner after the latter has been
coated first with an ultra-thin layer of silicon and then with an adhesive.
Note 3 to entry: When the ready label is peeled off from the backing paper (=release liner), the adhesive transfers
to the label because it is easily separated from the release liner because of the “non-stick” silicon.
3.4
final adhesion
force required to peel a strip of adhesive tape from a specified substrate at a specified angle and speed
Note 1 to entry: The force after at least 24 h.
3.5
imprint
local indentation caused by a foreign matter being pressed into a surface
[SOURCE: ISO 2074:2007, 6.7]
3.6
infringement
encroachment or trespass on a right
Note 1 to entry: Includes unauthorized use, use that exceeds the limitations stipulated in a licence, use that
exceeds the parameters established for an exception, etc.
3.7
ink
material, which may or may not include colorant, designed for liquid state deposition on a substrate
[SOURCE: ISO/IEC 29142-1:2013, 3.28]
3.8
ink-jet
text and images formed on a substrate by electronically controlled formation and propulsion of liquid
ink droplets
3.9
label
sign carrier made from flexible material
Note 1 to entry: The purpose of a label is to convey the necessary information (text or graphics) to the user.
Note 2 to entry: Information on other identification methods in relation to labels, such as tag, ticket, tape, mark
and marking, are given in Annex D.
[SOURCE: ISO 9244:2008, 3.11, modified, Note 1 to entry and Note 2 to entry added]
3.10
mark
inscription, name, stamp, label (3.9), or seal placed on an article to signify ownership, quality,
manufacture, or origin
3.11
marking
act of making marks (3.10), signs (3.20), texts, etc., visible on a surface of something
EXAMPLE Using a ribbon, label, tag, tape or other printing technology.
3.12
maximum application temperature
highest temperature at which the label (3.9) may be applied to the surface of the product, in order for
the label material, in particular the adhesive (3.1), to perform to its given specification and correctly
adhere to the product
2 © ISO 2016 – All rights reserved
3.13
minimum application temperature
lowest temperature at which the label (3.9) may be applied to the surface of the product, in order for the
label material, in particular the adhesive (3.1), to perform to its given specification and correctly adhere
to the product
3.14
multilayer product
multiple layers attached to each other
3.15
peel adhesion
force required to peel a strip of adhesive tape from a specified substrate at a specified angle and speed
Note 1 to entry: The force after minutes or hours.
[SOURCE: ISO 29862:2007, 3.1, modified, Note 1 to entry added]
3.16
pressure-sensitive adhesive
adhesive (3.1) applied to create a bond between two surfaces by a simple application of pressure
[SOURCE: ISO 17398:2004, 3.4]
3.17
print direction
orientation of the printed information (text and graphics) on the label (3.9)
Note 1 to entry: Printing “with the web” is image production in the same direction as web movement.
Note 2 to entry: Printing “across the web” is image production at a 90° angle to the direction of web movement.
3.18
printer
output unit that produces a hard copy record of data mainly in the form of a sequence of discrete graphic
characters belonging to one or more predetermined character sets
Note 1 to entry: Graphic characters can also represent graphic elements.
[SOURCE: ISO/IEC 2382:2015, 2125683, modified, Note 1 to entry added]
3.19
remaliner
sprocket hole punching
3.20
sign
message conveyed utilizing pictorial or textual media or both
[SOURCE: ISO 6707-1:2014, 5.5.67, modified, Note 1 to entry removed]
3.21
storage temperature
recommended temperature (range) at which the label material and/or finished labels s
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
