TECHNICAL ISO/TR
REPORT 12471
First edition
2004-11-15
Computational structural fire design —
Review of calculation models, fire tests
for determining input material data and
needs for further development
Conception de calcul des feux de structures — État des travaux des
modèles de calcul et d'essais au feu pour la détermination des données
de base requises et des besoins du développement ultérieur
Reference number
ISO/TR 12471:2004(E)
ISO 2004
---------------------- Page: 1 ----------------------
ISO/TR 12471:2004(E)
PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but

shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In

downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat

accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation

parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In

the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

© ISO 2004

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,

electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or

ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2004 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TR 12471:2004(E)
Contents Page

Foreword............................................................................................................................................................ iv

Introduction ........................................................................................................................................................ v

1 Scope...................................................................................................................................................... 1

2 Internationally applied methods for structural fire engineering design ......................................... 1

2.1 Models for thermal exposure............................................................................................................... 2

2.2 Models for structural behaviour .......................................................................................................... 6

[56]

3 Characteristics of a reliability-based structural fire engineering design ................................. 7

3.1 Structural fire engineering design based on FORM approximation................................................ 7

3.2 Structural fire engineering design based on practical design format........................................... 10

[56]

4 Predictive model capabilities: uncertainties of design components ...................................... 13

5 Main components of structural fire engineering design................................................................. 17

5.1 Design fire exposure........................................................................................................................... 17

5.2 Thermal material properties and transient temperature state........................................................ 25

5.3 Mechanical material properties and structural behaviour.............................................................. 29

6 Need for further development of calculation models and related computer programs

for structural fire design: Examples ................................................................................................. 40

6.1 Complete process of structural fire design ..................................................................................... 40

6.2 Main components of structural fire design ...................................................................................... 41

6.2.1 Fire exposure....................................................................................................................................... 41

6.2.2 Thermal and mechanical behaviour.................................................................................................. 41

7 Need for fire tests to determine input material data for structural fire design............................. 42

7.1 Properties related to fire load density and fire exposure ............................................................... 42

7.2 Thermal material properties............................................................................................................... 43

7.3 Mechanical material properties ......................................................................................................... 44

Bibliography ..................................................................................................................................................... 46

© ISO 2004 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/TR 12471:2004(E)

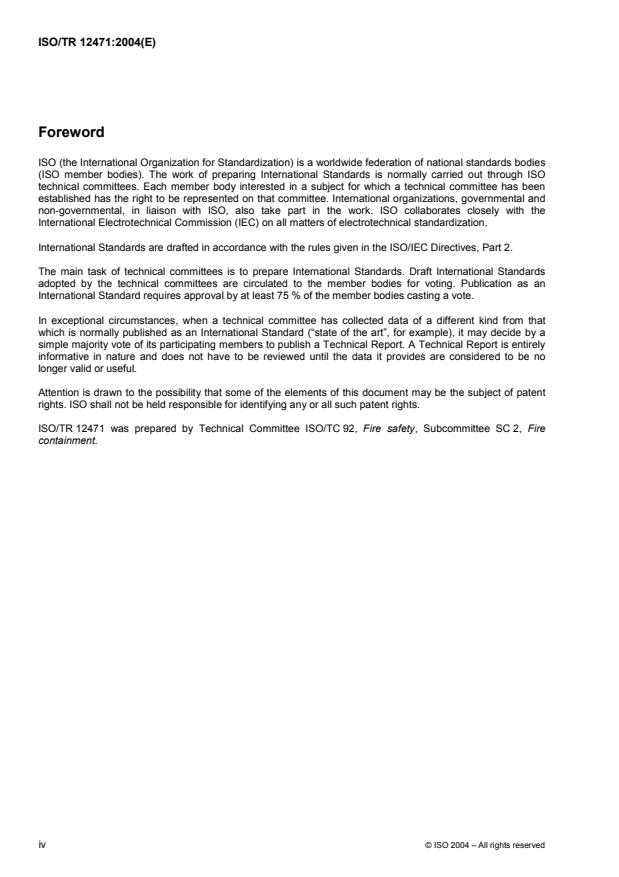

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies

(ISO member bodies). The work of preparing International Standards is normally carried out through ISO

technical committees. Each member body interested in a subject for which a technical committee has been

established has the right to be represented on that committee. International organizations, governmental and

non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the

International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International Standards

adopted by the technical committees are circulated to the member bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the member bodies casting a vote.

In exceptional circumstances, when a technical committee has collected data of a different kind from that

which is normally published as an International Standard (“state of the art”, for example), it may decide by a

simple majority vote of its participating members to publish a Technical Report. A Technical Report is entirely

informative in nature and does not have to be reviewed until the data it provides are considered to be no

longer valid or useful.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO/TR 12471 was prepared by Technical Committee ISO/TC 92, Fire safety, Subcommittee SC 2, Fire

containment.
iv © ISO 2004 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TR 12471:2004(E)
Introduction

Considerable advances have been made in recent years in understanding the behaviour of fires in their

development and impact upon buildings. Coupled with developments in computational techniques, it is now

possible to predict how structures will behave at the fire limit state (i.e. under fire conditions).

As a result of the high level of international fire research in recent decades, more and more components and

systems are becoming amenable to analytical and computer modelling. Considerable progress has been

made concerning such phenomena and procedures as:
 reaction of materials to fire;
 fire growth in a compartment;
 fully developed compartment fire;
 fire spread between buildings;
 fire behaviour of load-bearing and separating building structures;

 smoke filling in enclosures and smoke movement in escape routes and multi-storey buildings;

 interaction of sprinklers and fire, including sprinkler and fire venting interaction;

 process of escape; and

 systems approach to the overall fire safety of a building, in its most general form comprising fire

development models interacting with human response models.

This progress in fire research has led to consequent changes in the field of codes, specifications, and

recommendations for fire engineering. Some characteristic trends in these changes are:

a) improved connection to real fire scenarios;

b) increase in extent of design, based on functional requirements and performance criteria;

c) development of new test methods, that are, as far as possible, material-independent and related to well-

defined phenomena and properties;
d) increase in application of reliability-based analytical design;
e) extended use of integrated assessments; and

f) introduction of goal-oriented systems of analysis of total, active and passive fire protection for a building.

The most manifest verification of these developing trends probably relates to the fire engineering design of

load-bearing and separating structures. An analytical determination of the fire resistance of structural

elements is being approved by authorities in more and more countries as an alternative to the internationally

predominant design that is based on the results of the standard fire resistance test and connected

classification. The further step to permit a general practical application of an analytical design, based on a

natural compartment fire concept, was taken by Swedish authorities as early as 1967. Since then, a few other

countries have been officially open to the possibility of structural fire design.

A significant contribution was made by the Fire Commission of the Conseil International du Bâtiment, CIB

W14, in the form of a state-of-the-art report, in 1983. The report presented a conceptual approach towards a

© ISO 2004 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/TR 12471:2004(E)
[1]

probability-based design guide on structural fire safety , supplemented in 1986 by a model code/design

[2]

guide . These design guides are important aids in drafting corresponding national regulations and

recommendations. For European countries, the Eurocodes (see references [3] to [10] in the Bibliography)

issued as European Prestandards and supplemented with national application documents, certainly will

contribute to increased practical use of analytical structural fire design methods.

A problem arises between material-related codes and the general code. The material-related codes focus very

strongly on the fire design, based on thermal exposure according to the standard fire resistance test.

However, the general code, specifying the basis of design and mechanical and thermal actions on

fire-exposed structures, also gives some guidance, in the form of informative annexes, regarding the

alternate structural fire design, based on a parametric fire exposure determined by fire models or specified

temperature-time curves.

An analytical fire engineering design can now be performed in most cases for steel structures. Validated

material models for the mechanical behaviour of concrete under transient high-temperature

[11] to [13] [14] to [16]

conditions and thermal models for a calculation of the charring rate in wood exposed to fire ,

developed in recent decades, have significantly enlarged the area of practical application of an analytical

structural fire design. To support this application, design diagrams and tables have been computed and

published, giving directly, on the one hand, the temperature state of the fire-exposed structure, and on the

other, a further transfer to the corresponding load-bearing capacity of the structure, for instance see

references [17] to [47] in the Bibliography.

The following clauses begin with a summary of internationally applied methods for a structural fire engineering

design. With this survey as general background, the characteristics of a reliability-based approach are

described. In order to review the need for further development of calculation models and for fire tests to get

the input data required for the design, the design alternative, based on a simulated fire exposure, has been

chosen for presentation. For other design alternatives, applied in practice, the need for calculation models and

related input data is less comprehensive than for the more general approach being dealt with. The

presentation is followed by a discussion about uncertainty in the design process.

Following this background presentation of the reliability-based design process and its inherent uncertainties,

the remaining document is devoted to related deterministic models, comprising the fire exposure and the

thermal and mechanical behaviour of the structure. These models are supplemented with a survey of the

material input data required for the structural fire engineering design. Finally, conclusions are drawn regarding

the need for further development of calculation models and tests to determine the input material data required

for the structural fire design.
vi © ISO 2004 – All rights reserved
---------------------- Page: 6 ----------------------
TECHNICAL REPORT ISO/TR 12471:2004(E)
Computational structural fire design — Review of calculation
models, fire tests for determining input material data and needs
for further development
1 Scope

This Technical Report gives a review of the advances that have been made in measuring and understanding

how structural materials respond to fire in terms of changes in their elevated temperature, and physical and

mechanical characteristics, and to identify areas where further work is necessary to generate the data

required. Analytical methods for heat transfer are combined with mechanical models to calculate structural

behaviour from single elements up to complete frames under real fire and ISO Standard furnace heating

conditions. This Technical Report reviews advances in computational analysis and indicates how these can be

used with probabilistic analysis to provide a risk-based approach to structural fire engineering design.

2 Internationally applied methods for structural fire engineering design

The methods available at present for a structural fire engineering design can systematically be characterized

[1] [2] [37]
with reference to the matrix according to Table 1 .

The matrix is based on two types of models for the thermal exposure of the structure (H1 and H2) and three

types of models for the mechanical behaviour of the structure (S1, S2 and S3).

Table 1 — Matrix of thermal exposure and structural behaviour models, characterizing available

methods for structural fire engineering design
Model for structure
S1 S2 S3
Element Substructure Complete structure
Model for thermal exposure
Nominal temperature-time curves
Calculation
Test or calculation
H1 exceptionally testing
(deterministic)
(deterministic)
Real fire
Calculation
Calculation Calculation (probabilistic) in
(probabilistic) (probalistic) special cases and for
research
© ISO 2004 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO/TR 12471:2004(E)
2.1 Models for thermal exposure

Model H1 describes the thermal exposure according to the standard fire resistance test of structural elements

[48]

as specified in the ISO 834 and in corresponding national standards, or according to some other nominal

[3]

temperature-time curve . A fire design, based on this thermal exposure, represents the internationally

prevalent situation for load-bearing and separating structural elements.

In the standard fire resistance test, the specimen is exposed in a furnace to a temperature rise that is

controlled so as to vary with time within specified limits according to the standard temperature-time curve

TT−= 345 log 8t+1 (1)
( )
to10
where
t is the time, in minutes;
T is the furnace temperature at time t, in °C;
T is the furnace temperature at time t = 0, in °C.

For calculations, it is normally more favourable to use the following expression for the standard temperature-

time curve
−−−0,2tt1,7 19t
TT−= 1025 1− 0,324e − 0,204e − 0,472e (2)
t o

that describes Equation (1) to a fairly high degree of accuracy, as shown in reference [49] in the Bibliography.

In Equation (2), then t is time, in hours.
Other nominal temperature-time curves are the hydrocarbon curve
−−0,167tt2,5
TT−= 1080 1− 0,325e − 0,675e (3)
t o()

representing thermal exposure on structural members due to hydrocarbon type fires, and the external fire

curve
−−0,32tt3,8
TT−= 660 1− 0,687e − 0,313e (4)
t o()

representing thermal exposure on the outside of external walls and on other external members as beams and

[3]
columns . See Figure 1.

In the test, the time to reach the decisive limit state with respect to the load-bearing and/or separating function

of the structural element defines its fire resistance, normally expressed in minutes. As an alternative, the fire

resistance can be determined by calculation.

Internationally, the standard fire resistance test is considered to be one of the fire test methods most

thoroughly dealt with. In spite of this, the test can be criticized. In its present form, the test procedure is

insufficiently specified in several respects, such as the heating and restraint characteristics, the environment

of the furnace, and the thermocouples for measuring and regulating the furnace temperature. The

specification of the test load is practically related to national building codes and regulations, which can vary

considerably with respect to the load level required from country to country. Current activities within CEN and

ISO are aimed at improving the test specifications.
2 © ISO 2004 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/TR 12471:2004(E)
Key
t time, min
T temperature, °C
1 hydrocarbon
2 standard (ISO)
3 external
T = 20 °C
Figure 1 — Temperature T as function of time t according to Equations (1) to (4)

Irrespective of the fire resistance being determined by testing or by calculation, it is important to consider that

the standard fire resistance test does not represent the real fire exposure in a building, nor does it measure

the behaviour of the structural element as a part of an assembly in the building. It is further essential to have

in mind that the standard fire duration, applied in a test, does not represent the real fire duration. What the test

or the corresponding calculations do is to grade structural elements. The building codes and regulations then

require different grading levels of elements depending on the circumstances.

Model H2 describes a thermal exposure, based on a simulated real fire and either computed by solving the

energy and mass balance equations of the compartment fire or determined from some systematized design

[3]

basis, for instance, the parametric fire as specified in Eurocode 1 , or the set of gas temperature-time curves,

illustrated and explained later in connection with Figure 13.

The two examples of design bases for the fully developed compartment fire exposure are both derived under

the assumptions that
 combustion of the fire load takes place entirely within the fire compartment,
 the fire process is ventilation-controlled, and
 gas temperature is uniform within the fire compartment at any time,

giving a conservative solution. The specified fire exposure considers the influence of the opening factor of the

compartment Ah A and the thermal properties of the surrounding structures of the compartment,

expressed by the thermal inertia λρc . A is the total area of the window and door openings, in m ; h is the

mean value of the heights of the openings, weighted with respect to each individual opening area, in m; A is

the total area of the surfaces bounding the compartment, opening areas included, in m ; λ is the thermal

−1 −1 −3 −1 -1

conductivity, in W⋅m ⋅°C ; ρ is the density, in kg⋅m ; and c is the specific heat, in J⋅kg ⋅°C , of the

compartment boundaries.

The parametric fire specifies the temperature-time curves of the heating phase of the compartment fire as the

standard gas temperature-time curve according to Equation (2) with the real time t replaced by a modified time

tt= Γ (5)
© ISO 2004 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO/TR 12471:2004(E)
where
Ah A 1160
−2 −1/2 −1
Γ=× [J⋅m ⋅s ⋅°C] (6)
0,04
λρc
The duration of the heating phase is given by the modified duration time
*4−
t=×1,3 10 [h] (7)
A hA

where q is the design value of the fire load density per unit area of the total surfaces, bounding the fire

compartment, in MJ⋅m .

For the decay period, the parametric fire exposure is specified by the following formulae:

** *
T = T −−625 (t t ) for t hu 0,5
tt,max d d
** * *
T=T −−250 (3 t ) (t−t ) for 0,5 < t < 2 h
tt,max d d d
** *
T = T −− 250 (t t ) for t hW 2 (8)
tt,max d d
where T is the maximum temperature in the heating phase, i.e. for t = t , in °C.
t,max d

When applying a Model H2 description of the thermal exposure, the design normally consists of an analytical

or numerical procedure. Exceptionally, the design can refer to a full-scale test.

As a means to connect the thermal exposure according to the standard temperature-time curve, Equation (1)

or (2), and the thermal exposure, based on a simulated real fire (Model H2), the concept of the equivalent

time of fire exposure has been introduced. In practice, the concept can be used, for instance, for giving an

improved classification for fire ranking or grading of structural elements.

In principle, the equivalent time of fire exposure is defined as that length of the heating period of the standard

fire resistance test that gives the same decisive effect on a structural element with respect to a limit state as

the complete process of a simulated real fire exposure. The concept is further explained by Figure 2, in which

the full-line curves show the time variation of the gas temperature T and the load-bearing capacity R(t) of a

structural element for a simulated real compartment fire exposure and the dash-line curves the standard

temperature-time curve according to ISO 834 T and the corresponding time curve of the load-bearing

t,ISO

capacity R(t),ISO. The minimum load-bearing capacity of the structural element during the simulated real fire

exposure, transferred to the same value of the load-bearing capacity at the standard thermal exposure,

determines the equivalent time of fire exposure t .

For steel structures, the minimum load-bearing capacity during a simulated real fire exposure normally

corresponds to the maximum steel temperature T , provided that the temperature can be dealt with as

s,max

uniformly distributed over the cross-section of the structure. This simplifies the definition of the equivalent time

of fire exposure as shown in Figure 3.
4 © ISO 2004 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/TR 12471:2004(E)
Key
t time
T temperature
R load-bearing capacity
simulated real compartment fire exposure.
thermal exposure according to the standard fire resistance test, ISO 834.
Figure 2 — Definition of equivalent time of fire exposure t
Key
t time
T gas temperature at time t
T steel temperature

Figure 3 — Equivalent time of fire exposure t as defined by the maximum steel temperature T

e s,max

during a simulated real compartment fire exposure, exemplified for a protected structural steel

element

When determined according to Figures 2 and 3, the equivalent time of fire exposure depends on parameters

influencing the simulated real fire exposure as well as on structural parameters (for protected steel structures:

the thermal material properties and the geometry of the protection and the steel profile). For fire-exposed steel

structures, references [18], [23], [50] and [51] include a design basis for a direct practical determination of this

differentiated form of the equivalent time of fire exposure.
© ISO 2004 – All rights reserved 5
---------------------- Page: 11 ----------------------
ISO/TR 12471:2004(E)

For more rough estimations of the equivalent time of fire exposure t , the following formula has been derived,

[50], [52], [53]

taking into account only the factors affecting the simulated real fire exposure :

= 0,067 [min] (9)
0,5
(/Ah )
where

q is the fire load density per unit area of the total surfaces, bounding the fire compartment; in MJ⋅m ;

A is the total area of window and door openings; in m ;

h is the mean value of the heights of the openings, weighted with respect to each individual opening

area, in m;

A is the total interior area of the surfaces, bounding the compartment, opening areas included, in m .

By using fictitious values of the fire load density q and the opening factor (/Ah ) , the influence of varying

tf f
[18]

thermal properties of the surrounding structures of the fire compartment can be considered .

Summing up, the formula given by Equation (9) connects in a simplified way the thermal exposure according

to the standard fire resistance test, ISO 834, and the thermal exposure of simulated, fully developed

compartment fires. The formula has been verified for application mainly to steel structures and those

reinforced concrete structures, where the critical concern is yielding of the reinforcement under bending

conditions. At very low opening factors, the formula may give a considerable overestimation of the fire

severity. There is also a limitation of the validity of the formula to compartments of moderate size, i.e.

compartments with a size representative of dwellings, ordinary offices, schools, hospitals, hotels, and libraries.

The technical basis for the formula is for small compartments. A study of the applicability of available

relationships for the equivalent time of fire exposure to buildings with large compartments is reported in

reference [54]. In reference [55], formulae for the equivalent time of fire exposure, from Ingberg to Eurocode 1,

are systematically reviewed and compared with experimental data for compartment fires.

2.2 Models for structural behaviour

Model S1 comprises single structural elements, e.g. beams, columns, walls, floors, and roofs. The model may

simulate either a structural element or a single element isolated from the complete structure and described by

simplified end conditions in the fire analysis.

Model S2 means a substructure, which approximately describes the mechanical behaviour of a part of the

complete load-bearing system of the building. Compared to the real structure, a substructure is analysed with

simplified boundary conditions at its outer ends or edges.

Model S3 describes the mechanical behaviour of the complete load-bearing structure of the building, acting

as, for instance, a two- or three-dimensional frame, a beam-slab system or a column-beam-slab system.

In the matrix given in Figure 1, the thermal exposure models and the structural models are combined in the

sequence of improved idealization. In principle, each element in the matrix then represents a particular design

procedure. The matrix therefore can be considered as a type of classification system for methods of structural

fire engineering design. It is, however, evident that not all models can be used in all combinations and the aim

should be to provide a sensible pairing at each level of advancement. In the matrix, reference is made to

these aspects. In principle, a structural fire engineering design offers a problem-oriented choice for the

combination of the thermal exposure model and the structural behaviour model. The final choice may also

depend on national preferences, the complexity of application, and the particular design situation.

6 © ISO 2004 – All rights reserved
---------------------- Page: 12 ----------------------
ISO/TR 12471:2004(E)
[56]
3 Characteristics of a reliability-based structural fire engineering design
[57], [58]

Essential components of a rational design methodology include, in the ideal case :

 analytical modelling of relevant processes; verification of validation and accuracy; determination of critical

design parameters;

 formulation of functional requirements, independent of choice of design process and expressed either in

deterministic or probabilistic terms;
 determination of design parameter values; and

 verification by reliability analysis that the choice of safety factors leads to safety levels that are consistent

with the expressed functional requirements.

For the probabilistic model to be integrated with the analytical model(s) of the relevant processes, the

following levels can be distinguished:

 an exact evaluation of the failure probability, using multi-dimensional integration or Monte Carlo

simulation;

 an approximate evaluation of the failure probability, based on first order reliability methods (FORM); and

 a practical design format calculation, based on partial safety factors and taking into account characteristic

values for action effects and response capacities.
For practical purpose
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
