ISO 9635-5:2014 specifies construction and performance requirements and test methods for control valves, intended for operation in irrigation systems with water at temperatures not exceeding 60 °C, which can contain fertilizers and other chemicals of the types and concentrations used in agriculture. It is applicable to hydraulically-operated control irrigation valves of DN 15 (1/2 inch) diameter or greater, designed to operate in any position, from fully open to fully closed. The valves can either be directly operated (i.e. the force applied via a spring or diaphragm to the obturator), or pilot-operated (i.e. the force is applied through an adjustable pilot valve via a diaphragm). These valves can also function as check valves.
Matériel agricole d'irrigation — Vannes d'irrigation — Partie 5: Vannes de contrôle
General Information
Relations
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 9635-5
Second edition
2014-12-01
Agricultural irrigation equipment —
Irrigation valves —
Part 5:
Control valves
Matériel agricole d’irrigation — Vannes d’irrigation —
Partie 5: Vannes de contrôle
Reference number
ISO 9635-5:2014(E)
©
ISO 2014
---------------------- Page: 1 ----------------------
ISO 9635-5:2014(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2014
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 9635-5:2014(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Design requirements . 2
5 Performance requirements . 2
5.1 Mechanical strength . 2
5.2 Watertightness . 4
5.3 Hydraulic characteristics . 5
5.4 Resistance to chemicals and fertilizers . 5
5.5 Endurance . 5
6 Conformity assessment . 5
6.1 General . 5
6.2 Type tests . 6
6.3 Control of production process and quality system . 6
7 Marking . 7
8 Packaging . 7
Annex A (normative) Test method for hydraulic characteristics of control valves providing
flow regulation function . 8
Annex B (normative) Test method for hydraulic characteristics of control valves providing
pressure regulation function . 9
Annex C (normative) Test method for hydraulic characteristics of control valves providing
level regulation .11
Annex D (normative) Test method for endurance of control valves .12
Bibliography .13
© ISO 2014 – All rights reserved iii
---------------------- Page: 3 ----------------------

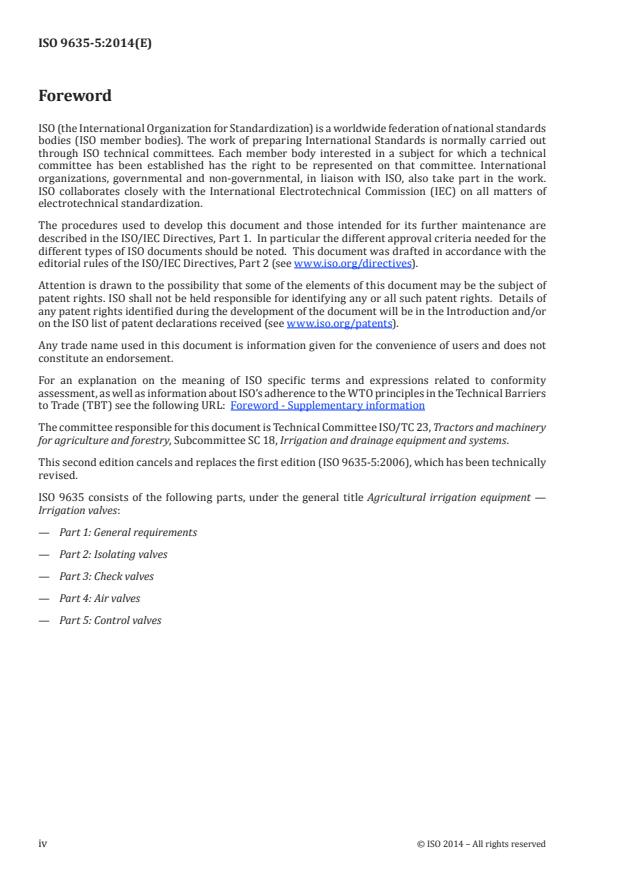

ISO 9635-5:2014(E)
