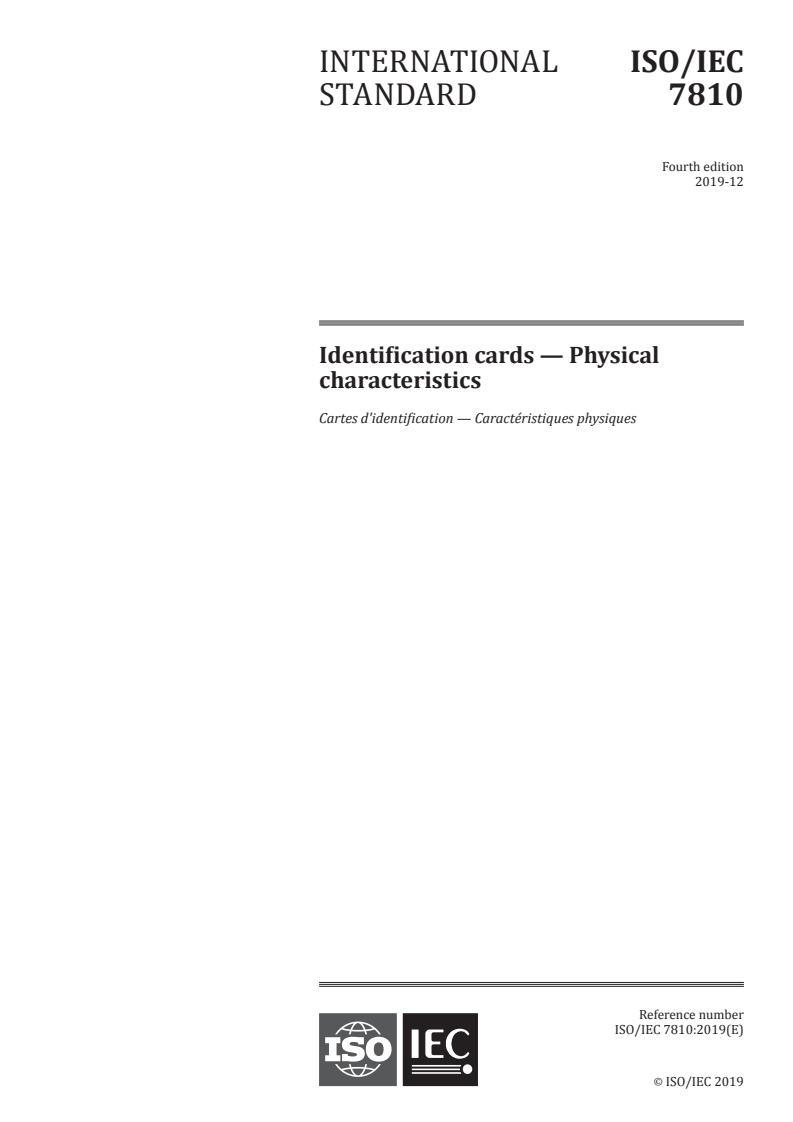

INTERNATIONAL ISO/IEC
STANDARD 7810
Fourth edition
2019-12
Identification cards — Physical
characteristics
Cartes d'identification — Caractéristiques physiques
Reference number
ISO/IEC 7810:2019(E)
©
ISO/IEC 2019
---------------------- Page: 1 ----------------------
ISO/IEC 7810:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2019 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 7810:2019(E)

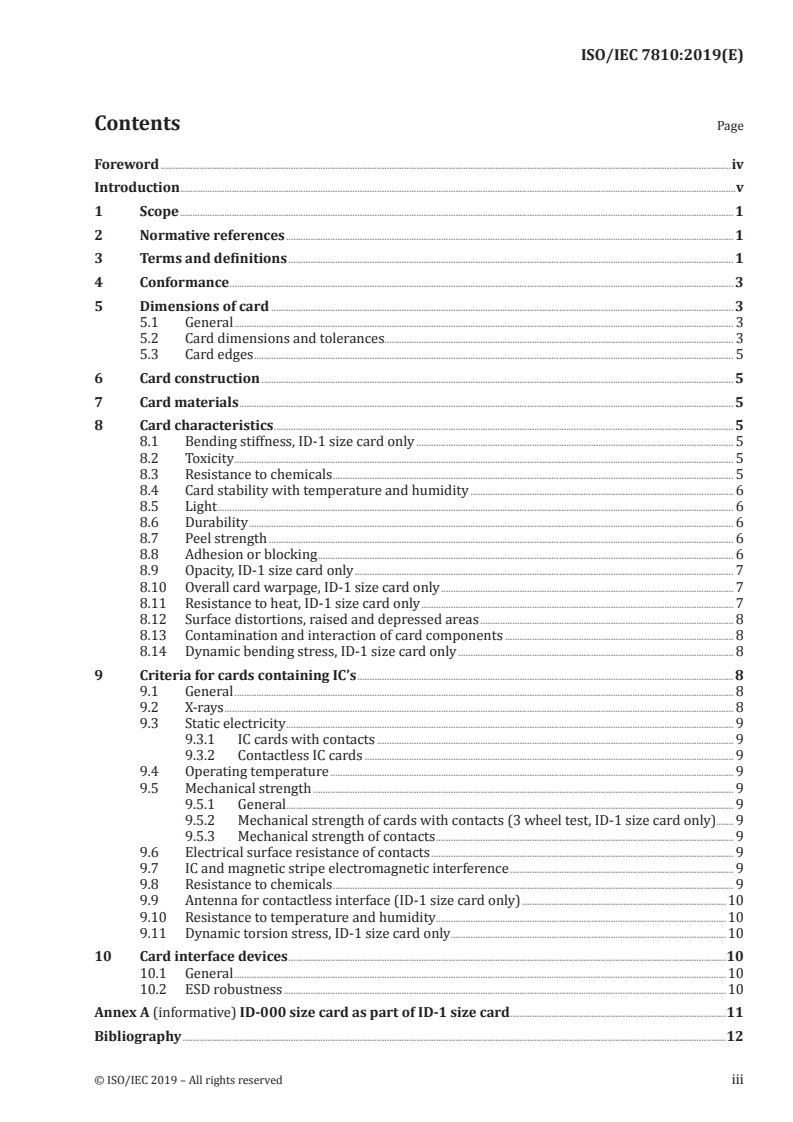

Contents Page
Foreword .iv
Introduction .v
1 Scope .1
2 Normative references .1
3 Terms and definitions .1
4 Conformance .3
5 Dimensions of card .3
5.1 General . 3
5.2 Card dimensions and tolerances. 3
5.3 Card edges . 5
6 Card construction .5
7 Card materials .5
8 Card characteristics .5
8.1 Bending stiffness, ID-1 size card only . 5
8.2 Toxicity . 5
8.3 Resistance to chemicals . 5
8.4 Card stability with temperature and humidity . 6
8.5 Light . 6
8.6 Durability . 6
8.7 Peel strength . 6
8.8 Adhesion or blocking . 6
8.9 Opacity, ID-1 size card only . 7
8.10 Overall card warpage, ID-1 size card only . 7
8.11 Resistance to heat, ID-1 size card only . 7
8.12 Surface distortions, raised and depressed areas . 8
8.13 Contamination and interaction of card components . 8
8.14 Dynamic bending stress, ID-1 size card only . 8
9 Criteria for cards containing IC’s .8
9.1 General . 8
9.2 X-rays . 8
9.3 Static electricity . 9
9.3.1 IC cards with contacts . 9
9.3.2 Contactless IC cards . 9
9.4 Operating temperature . 9
9.5 Mechanical strength . 9
9.5.1 General. 9
9.5.2 Mechanical strength of cards with contacts (3 wheel test, ID-1 size card only) . 9
9.5.3 Mechanical strength of contacts . 9
9.6 Electrical surface resistance of contacts . 9
9.7 IC and magnetic stripe electromagnetic interference . 9
9.8 Resistance to chemicals . 9
9.9 Antenna for contactless interface (ID-1 size card only) .10
9.10 Resistance to temperature and humidity .10
9.11 Dynamic torsion stress, ID-1 size card only .10
10 Card interface devices .10
10.1 General .10
10.2 ESD robustness .10
Annex A (informative) ID-000 size card as part of ID-1 size card .11
Bibliography .12
© ISO/IEC 2019 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 7810:2019(E)

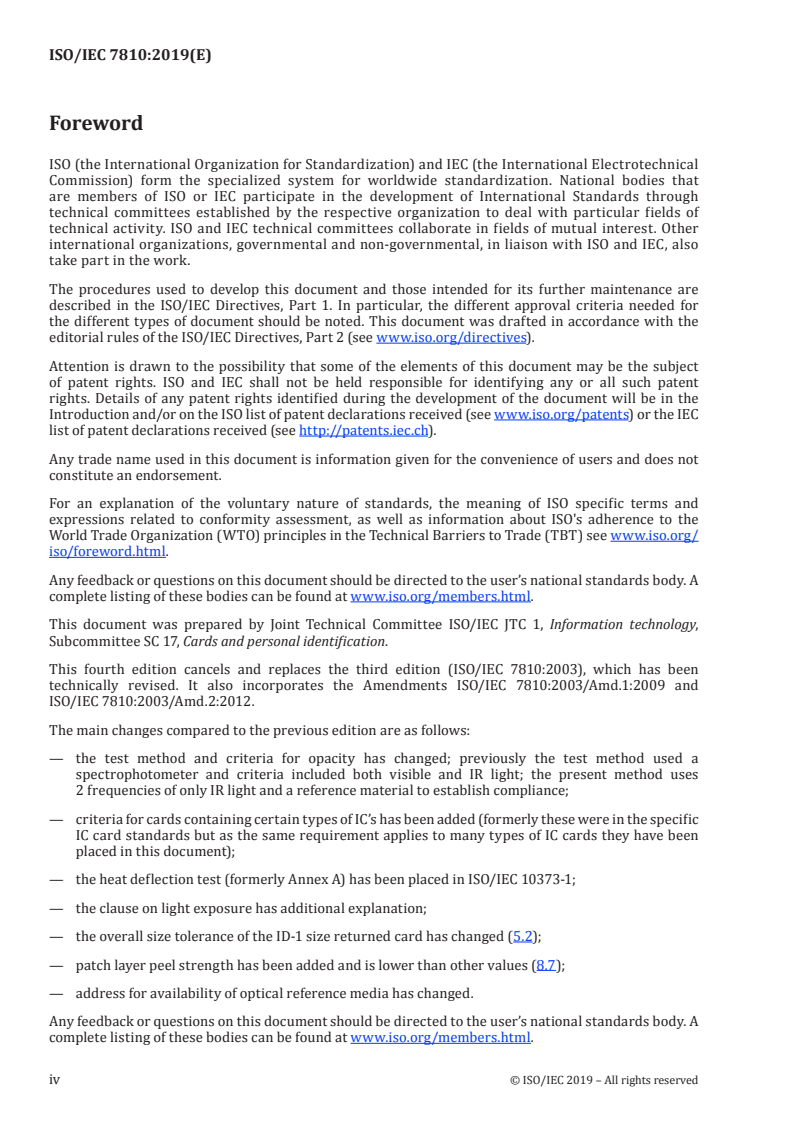

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that
are members of ISO or IEC participate in the development of International Standards through
technical committees established by the respective organization to deal with particular fields of
technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other
international organizations, governmental and non-governmental, in liaison with ISO and IEC, also
take part in the work.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www .iso .org/ patents) or the IEC
list of patent declarations received (see http:// patents .iec .ch).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/
iso/ foreword .html.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 17, Cards and personal identification.
This fourth edition cancels and replaces the third edition (ISO/IEC 7810:2003), which has been
technically revised. It also incorporates the Amendments ISO/IEC 7810:2003/Amd.1:2009 and
ISO/IEC 7810:2003/Amd.2:2012.
The main changes compared to the previous edition are as follows:
— the test method and criteria for opacity has changed; previously the test method used a
spectrophotometer and criteria included both visible and IR light; the present method uses
2 frequencies of only IR light and a reference material to establish compliance;
— criteria for cards containing certain types of IC’s has been added (formerly these were in the specific
IC card standards but as the same requirement applies to many types of IC cards they have been
placed in this document);
— the heat deflection test (formerly Annex A) has been placed in ISO/IEC 10373-1;
— the clause on light exposure has additional explanation;
— the overall size tolerance of the ID-1 size returned card has changed (5.2);
— patch layer peel strength has been added and is lower than other values (8.7);
— address for availability of optical reference media has changed.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO/IEC 2019 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 7810:2019(E)
Introduction
This document defines the minimum physical requirements for the identification card and is used by
the following identification card standards for recording technologies. Other standards not listed here
may also refer to this document.
— ISO/IEC 7501 (all parts), Identification cards — Machine readable travel documents
— ISO/IEC 7811 (all parts), Identification cards — Recording technique — Embossing and magnetic stripes
— ISO/IEC 7812 (all parts), Identification cards — Identification of issuers
— ISO/IEC 7813, Identification cards — Financial transaction cards
— ISO/IEC 7816 (all parts), Identification cards — Integrated circuit(s) cards with contacts
— ISO/IEC 10373 (all parts), Identification cards — Test methods
— ISO/IEC 10536 (all parts), Identification cards — Contactless integrated circuit(s) cards — Close-
coupled cards
— ISO/IEC 14443 (all parts), Identification cards — Proximity integrated circuit(s) cards
— ISO/IEC 15693 (all parts), Identification cards — Vicinity integrated circuit(s) cards
— ISO/IEC 11693-1, Identification cards — Optical memory cards — Part 1: General characteristics
— ISO/IEC 11694 (all parts), Identification cards — Optical memory cards — Linear recording method
— ISO/IEC 24789 (all parts), Identification cards — Card service life
— ISO/IEC 18328 (all parts), Identification cards — ICC-managed devices
NOTE Notes in this document are only used for giving additional information intended to assist in the
understanding or use of this document and do not contain provisions or requirements to which it is necessary to
conform in order to be able to claim compliance with this document.
© ISO/IEC 2019 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 7810:2019(E)
Identification cards — Physical characteristics
1 Scope
This document describes the characteristics for identification cards and the use of such cards for
international interchange.
This document specifies the physical characteristics of identification cards including card materials,
construction, characteristics and dimensions for four sizes of cards.
ISO/IEC 10373-1 and ISO/IEC 24789-2 specify the test procedures used to check cards against the
parameters specified in this document.
This document specifies the requirements for cards and card interface devices used for identification.
It takes into consideration both human and machine aspects and states minimum requirements.
It is the purpose of this document to provide criteria for the performance of cards. No consideration is
given within this document to the amount of use, if any, experienced by the card prior to test.
NOTE 1 Numeric values in the SI and/or Imperial measurement system in this document have been rounded off
and therefore are consistent with, but not exactly equal to, each other. Either system can be used, but intermixing or
reconverting the two can result in errors. The original design was made using the Imperial measurement system.
NOTE 2 Thin flexible cards are not within the scope of this document (see the ISO/IEC 15457 series).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 7816-2, Identification cards — Integrated circuit cards — Part 2: Cards with contacts —
Dimensions and location of the contacts
1)
ISO/IEC 10373-1 , Identification cards — Test methods — Part 1: General characteristics
ISO/IEC 24789-2, Identification cards — Card service life — Part 2: Methods of evaluation
IEC 61000-4-2, Electromagnetic compatibility (EMC) — Part 4-2: Testing and measurement techniques —
Electrostatic discharge immunity test
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
identification card
card identifying its holder and issuer which may carry data required as input for the intended use of the
card and for transactions based thereon
1) New edition under preparation. Stage at the time of publication: ISO/IEC DIS 10373-1:2019.
© ISO/IEC 2019 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/IEC 7810:2019(E)
3.2
signature panel
special material added to the card surface intended to have a signature applied
3.3
warpage
deviation from flatness
3.4
normal use
use as an identification card (3.1) involving equipment processes appropriate to the card technology,
and storage as a personal document between equipment processes
3.5
ID-1
nominally 85,60 mm (3.370 in) wide by 53,98 mm (2.125 in) high by 0,76 mm (0.030 in) thick
3.6
ID-2
nominally 105,00 mm (4.134 in) wide by 74,00 mm (2.913 in) high by 0,76 mm (0.030 in) thick
3.7
ID-3
nominally 125,00 mm (4.921 in) wide by 88,00 mm (3.465 in) high by 0,76 mm (0.030 in) thick
3.8
raised area
area whose surface is raised above that of the surrounding card surface by addition of some feature
such as a hologram, signature panel (3.2), magnetic stripe, photograph, integrated circuit (3.13) contacts
(3.14), embossed characters, security elements, tactile elements, sensors, displays, buttons
3.9
unused card
card possessing all the components required for its intended purpose, which has not been subjected
to any personalization or testing operation, and which has been stored in a clean environment at
temperatures between 5 °C to 30 °C (41 °F to 86 °F) and humidity between 10 % to 90 % with no more
than 48 h exposure to day-light without experiencing thermal shock
3.10
returned card
card which has been issued to the card holder and returned
3.11
ID-000
nominally 25 mm (
...
