Standards Content (Sample)

INTERNATIONAL ISO/IEC
STANDARD 13249-5
Second edition
2003-11-01


Information technology — Database
languages — SQL multimedia and
application packages —
Part 5:
Still image
Technologies de l’information — Langages de bases de données —
Multimédia SQL et paquetages d’application —
Partie 5: Image fixe




Reference number
ISO/IEC 13249-5:2003(E)
©
 ISO/IEC 2003

---------------------- Page: 1 ----------------------
ISO/IEC 13249-5:2003(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO/IEC 2003
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland

ii © ISO/IEC 2003 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 13249-5:2003(E)

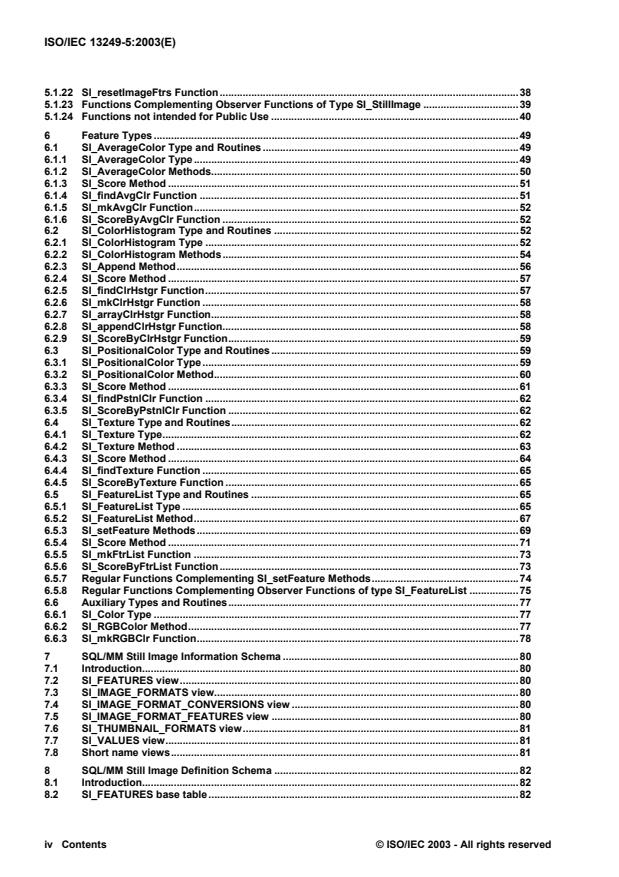

Contents Page

Foreword. vi
Introduction . vii
1 Scope. 1
2 Normative references. 2
3 Terms and definitions, notations and conventions. 3
3.1 Terms and definitions. 3
3.1.1 Terms and definitions provided in ISO/IEC 13249-1:2002 . 3
3.1.2 Terms and definitions provided in this part of ISO/IEC 13249 . 3
3.1.3 Terms and definitions taken from ISO/IEC 9075-9:2001 . 4
3.1.4 Terms and definitions taken from ISO/IEC 10918-1:1994 . 4
3.1.5 Terms and definitions taken from ISO/IEC 15444-1:2000 . 4
3.2 Notations. 4
3.2.1 Notations provided in ISO/IEC 13249-1:2002 . 4
3.2.2 Notations provided in this part of ISO/IEC 13249 . 4
3.3 Conventions. 4
4 Concepts. 5
4.1 Introduction. 5
4.2 Concepts taken from ISO/IEC 9075-9:2001. 6
4.3 Types representing still images . 6
4.3.1 Attributes of the SI_StillImage type . 6
4.3.2 Methods of the SI_StillImage type. 6
4.4 Image features. 7
4.4.1 Feature types. 8
4.4.2 Assessing the similarity of images . 8
4.5 Complementary SQL-invoked regular functions . 9
4.6 Auxiliary type SI_Color. 11
4.7 The Still Image Information Schema .11
5 Still Image Types. 12
5.1 SI_StillImage Types and Routines . 12
5.1.1 SI_StillImage Type. 12
5.1.2 SI_StillImage Methods. 17
5.1.3 SI_setContent Method. 22
5.1.4 SI_changeFormat Method. 23
5.1.5 SI_Scale Methods. 24
5.1.6 SI_Resize Methods. 26
5.1.7 SI_Rotate Method. 28
5.1.8 SI_Thumbnail Methods. 29
5.1.9 SI_InitFeatures method. 30
5.1.10 SI_ClearFeatures method. 30
5.1.11 SI_Score Methods. 31
5.1.12 Functions Complementing SI_StillImage Methods . 33
5.1.13 SI_chgContent Function. 35
5.1.14 SI_convertFormat Function. 35
5.1.15 SI_scaleImage Function. 35
5.1.16 SI_zoomImage Function. 36
5.1.17 SI_resizeImage Function. 36
5.1.18 SI_rotateImage Function. 37
5.1.19 SI_getThmbnl Function. 37
5.1.20 SI_getSizedThmbnl Function. 37
5.1.21 SI_setImageFtrs Function. 38
© ISO/IEC 2003 - All rights reserved Contents  iii

---------------------- Page: 3 ----------------------
ISO/IEC 13249-5:2003(E)
5.1.22 SI_resetImageFtrs Function.38
5.1.23 Functions Complementing Observer Functions of Type SI_StillImage .39
5.1.24 Functions not intended for Public Use .40
6 Feature Types.49
6.1 SI_AverageColor Type and Routines .49
6.1.1 SI_AverageColor Type.49
6.1.2 SI_AverageColor Methods.50
6.1.3 SI_Score Method.51
6.1.4 SI_findAvgClr Function.51
6.1.5 SI_mkAvgClr Function.52
6.1.6 SI_ScoreByAvgClr Function.52
6.2 SI_ColorHistogram Type and Routines .52
6.2.1 SI_ColorHistogram Type.52
6.2.2 SI_ColorHistogram Methods.54
6.2.3 SI_Append Method.56
6.2.4 SI_Score Method.57
6.2.5 SI_findClrHstgr Function.57
6.2.6 SI_mkClrHstgr Function.58
6.2.7 SI_arrayClrHstgr Function.58
6.2.8 SI_appendClrHstgr Function.58
6.2.9 SI_ScoreByClrHstgr Function.59
6.3 SI_PositionalColor Type and Routines .59
6.3.1 SI_PositionalColor Type.59
6.3.2 SI_PositionalColor Method.60
6.3.3 SI_Score Method.61
6.3.4 SI_findPstnlClr Function.62
6.3.5 SI_ScoreByPstnlClr Function.62
6.4 SI_Texture Type and Routines.62
6.4.1 SI_Texture Type.62
6.4.2 SI_Texture Method.63
6.4.3 SI_Score Method.64
6.4.4 SI_findTexture Function.65
6.4.5 SI_ScoreByTexture Function.65
6.5 SI_FeatureList Type and Routines .65
6.5.1 SI_FeatureList Type.65
6.5.2 SI_FeatureList Method.67
6.5.3 SI_setFeature Methods.69
6.5.4 SI_Score Method.71
6.5.5 SI_mkFtrList Function.73
6.5.6 SI_ScoreByFtrList Function.73
6.5.7 Regular Functions Complementing SI_setFeature Methods.74
6.5.8 Regular Functions Complementing Observer Functions of type SI_FeatureList .75
6.6 Auxiliary Types and Routines.77
6.6.1 SI_Color Type.77
6.6.2 SI_RGBColor Method.77
6.6.3 SI_mkRGBClr Function.78
7 SQL/MM Still Image Information Schema .80
7.1 Introduction.80
7.2 SI_FEATURES view.80
7.3 SI_IMAGE_FORMATS view.80
7.4 SI_IMAGE_FORMAT_CONVERSIONS view.80
7.5 SI_IMAGE_FORMAT_FEATURES view.80
7.6 SI_THUMBNAIL_FORMATS view.81
7.7 SI_VALUES view.81
7.8 Short name views.81
8 SQL/MM Still Image Definition Schema .82
8.1 Introduction.82
8.2 SI_FEATURES base table.82
iv  Contents © ISO/IEC 2003 - All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC 13249-5:2003(E)
8.3 SI_IMAGE_FORMATS base table.83
8.4 SI_IMAGE_FORMAT_CONVERSIONS base table . 84
8.5 SI_IMAGE_FORMAT_FEATURES base table . 84
8.6 SI_THUMBNAIL_FORMATS base table. 85
8.7 SI_VALUES base table. 85
9 Status Codes. 87
10 Conformance. 88
10.1 Requirements for conformance. 88
10.2 Features of ISO/IEC 9075-9:2001 required in this part of ISO/IEC 13249 . 91
10.3 Claims of conformance. 92
Annex A (informative).93
A.1 Implementation-defined Meta-variables.94
Annex B (informative). 95
B.1 Implementation-dependent Meta-variables.99
Index . 100

Tables Page

Table 1 – Method and function name correspondences. 9
Table 2 – SQLSTATE class and subclass values . 87


© ISO/IEC 2003 - All rights reserved Contents  v

---------------------- Page: 5 ----------------------
ISO/IEC 13249-5:2003(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 13249-5 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 32, Data management and interchange.
This second edition cancels and replaces the first edition (ISO/IEC 13249-5:2001), which has been technically
revised.
ISO/IEC 13249 consists of the following parts, under the general title Information technology — Database
languages — SQL multimedia and application packages:
— Part 1: Framework
— Part 2: Full-Text
— Part 3: Spatial
— Part 5: Still image
— Part 6: Data mining

vi  Foreword © ISO/IEC 2003 - All rights reserved

---------------------- Page: 6 ----------------------
ISO/IEC 13249-5:2003(E)
Introduction
The purpose of this International Standard is to define multimedia and application specific types and their
associated routines using the user-defined features in ISO/IEC 9075.
This document is based on the content of ISO/IEC International Standard Database Language (SQL).
The organization of this part of ISO/IEC 13249 is as follows:
1) Clause 1, "Scope", specifies the scope of this part of ISO/IEC 13249.
2) Clause 2, "Normative references", identifies additional standards that, through reference in this part of
ISO/IEC 13249, constitute provisions of this part of ISO/IEC 13249.
3) Clause 3, "Definitions, notations, and conventions", defines the notations and conventions used in this
part of ISO/IEC 13249.
4) Clause 4, "Concepts", presents concepts used in the definition of this part of ISO/IEC 13249.
5) Clause 5, "Still Image Types", defines the still image user-defined types and associated routines.
6) Clause 6, "Feature Types", defines the user-defined types provided for the manipulation of still image
features.
7) Clause 7, "SQL/MM Still Image Information Schema" defines the SQL/MM Still Image Information
Schema.
8) Clause 8, "SQL/MM Still Image Definition Schema" defines the SQL/MM Still Image Definition Schema.
9) Clause 9, "Status Codes", defines the SQLSTATE codes used in this part of ISO/IEC 13249.
10) Clause 10, "Conformance", defines the criteria for conformance to this part of ISO/IEC 13249.
11) Annex A, "Implementation-defined elements", is an informative Annex. It lists those features for which the
body of this part of ISO/IEC 13249 states that the syntax or meaning or effect on the database is partly or
wholly implementation-defined, and describes the defining information that an implementer shall provide
in each case.
12) Annex B, "Implementation-dependent elements", is an informative Annex. It lists those features for which
the body of this part of ISO/IEC 13249 states explicitly that the meaning or effect on the database is
implementation-dependent.


© ISO/IEC 2003 - All rights reserved Introduction  vii

---------------------- Page: 7 ----------------------
INTERNATIONAL STANDARD ISO/IEC 13249-5:2003(E)

Information technology — Database languages —
SQL multimedia and application packages —
Part 5:
Still image
1 Scope
This part of ISO/IEC 13249:
a) introduces the still image part of ISO/IEC 13249 (all parts);
b) gives the references necessary for this part of ISO/IEC 13249;
c) defines notations and conventions specific to this part of ISO/IEC 13249;
d) defines concepts specific to this part of ISO/IEC 13249;
e) defines the still image user-defined types and their associated routines.
The still image user-defined types defined in this part of ISO/IEC 13249 adhere to the following.
— A still image user-defined type is generic to image handling. It addresses the need to store, manage and
retrieve information based on aspects of inherent image characteristics such as height, width and format
and based on image features such as average color, color histogram, positional color and texture. It also
addresses the need to employ manipulation such as rotation, scaling, as well as similarity assessment.
— A still image user-defined type does not redefine the database language SQL directly or in combination
with another still image data type.
The still image user-defined types are applicable to all different image formats. However, not all functionality
can be used with all known still image formats.
An implementation of this part of ISO/IEC 13249 may exist in environments that also support information and
content management, decision support, data mining and data warehousing systems.
Application areas addressed by implementations of this part of ISO/IEC 13249 include, but are not restricted
to, graphics, multimedia, scientific research and medicine.


© ISO/IEC 2003 - All rights reserved Scope  1

---------------------- Page: 8 ----------------------
ISO/IEC 13249-5:2003(E)
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/IEC 9075-9:2001, Information technology — Database languages — SQL — Part 9: Management of
External Data (SQL/MED)
ISO/IEC 13249-1:2002, Information technology — Database languages — SQL multimedia and application
packages — Part 1: Framework
ISO/IEC 10918-1:1994, Information technology — Digital compression and coding of continuous-tone still
images: Requirements and guidelines
ISO/IEC 15444-1:2000, Information technology — JPEG 2000 image coding system — Part 1: Core coding
system


2 Normative references © ISO/IEC 2003 - All rights reserved

---------------------- Page: 9 ----------------------
ISO/IEC 13249-5:2003(E)
3 Terms and definitions, notations and conventions
3.1 Terms and definitions
3.1.1 Terms and definitions provided in ISO/IEC 13249-1:2002
This part of ISO/IEC 13249 makes use of all terms defined in ISO/IEC 13249-1:2002.
3.1.2 Terms and definitions provided in this part of ISO/IEC 13249
For the purposes of this document, the following terms and definitions apply.
3.1.2.1
basic image feature
a basic image feature is an image feature that is not a composite feature
3.1.2.2
color space
a set of conventions how to represent a color value
3.1.2.3
composite feature
an image feature, which consists of basic image features and their associated weights
3.1.2.4
image format
a set of conventions for storing the image data of still images in a specific compressed or uncompressed file
format
3.1.2.5
image feature
characteristic (other than inherent image characteristics) of the raw image
3.1.2.6
inherent image characteristics
image format and particular physical characteristics of a still image
3.1.2.7
list of weighted features
see composite feature
3.1.2.8
most significant color
a single color representing the dominant color of a part of an image
3.1.2.9
raw image
a binary string that represents a certain image
3.1.2.10
similarity of images
a numerical measure obtainable by the comparison of two images; the measure is based on image features
3.1.2.11
still image
see "image" in Subclause 3.1.5, "Terms and definitions taken from ISO/IEC 15444-1:2000"
3.1.2.12
thumbnail
a raw image which was obtained from another raw image by downsizing

© ISO/IEC 2003 - All rights reserved Terms and definitions, notations and conventions 3

---------------------- Page: 10 ----------------------
ISO/IEC 13249-5:2003(E)
3.1.3 Terms and definitions taken from ISO/IEC 9075-9:2001
This part of ISO/IEC 13249 makes use of the following terms defined in ISO/IEC 9075-9:2001:
a) datalink
3.1.4 Terms and definitions taken from ISO/IEC 10918-1:1994
This part of ISO/IEC 13249 makes use of the following terms defined in ISO/IEC 10918-1:1994:
a) columns
NOTE 1 The use of "columns" here is as defined in the JPEG standard and not as defined in the SQL
standard.
b) component
c) (digital) (still) image
NOTE 2 Parentheses around the text "digital" and "still" is a convention used by ISO/IEC 10918-1 to denote
that the phrases "digital image", "still image", and "image" are interchangeable.
d) image data
e) interchange format
f) (number of) lines
NOTE 3 Parentheses around the text "number of" is a convention used by ISO/IEC 10918-1 to denote that
the phases "number of lines" and "lines" are interchangeable.
g) sample
3.1.5 Terms and definitions taken from ISO/IEC 15444-1:2000
This part of ISO/IEC 13249 makes use of the following terms defined in ISO/IEC 15444-1:2000:
a) file format
b) reference grid
3.2 Notations
3.2.1 Notations provided in ISO/IEC 13249-1:2002
The notations used in this part of ISO/IEC 13249 are defined in ISO/IEC 13249-1:2002.
3.2.2 Notations provided in this part of ISO/IEC 13249
This part of ISO/IEC 13249 u
...
