ISO 12575-2:2007

Thermal insulation products - Exterior insulating systems for foundations - Part 2: Principal responsibilities of installers

ISO 12575-2:2007 specifies the responsibilities of the installers of exterior insulating systems for foundations such that a product that is manufactured and packaged in accordance with ISO 12575-1 is able to provide the properties declared by the manufacturer when installed according to ISO 12575-2:2007. ISO 12575-2:2007 stipulates responsibilities of the installer in the installation of the exterior insulation system, documentation of the installation and a declaration by the installer that all requirements of ISO 12575-2:2007 have been met. ISO 12575-2:2007 does not specify the fitness of the product for the intended use beyond those aspects relating to installation. Many aspects relating to the fitness for use are specified in ISO 12575-1. The installer can be required to meet additional requirements specified in local regulations or the customer's requirements.

Produits isolants thermiques — Applications externes aux murs des fondations — Partie 2: Principales responsabilités des installateurs

General Information

• Status: Published
• Publication Date: 30-Sep-2007
• ICS: 91.120.10 - Thermal insulation of buildings
• Technical Committee: ISO/TC 163/SC 3 - Thermal insulation products, components and systems
• Drafting Committee: ISO/TC 163/SC 3 - Thermal insulation products, components and systems
• Current Stage: 9093 - International Standard confirmed
• Start Date: 16-Jan-2024
• Completion Date: 13-Dec-2025

Overview

ISO 12575-2:2007 defines the principal responsibilities of installers for exterior insulating systems for foundations. The part ensures that products manufactured and packaged in accordance with ISO 12575-1 deliver the thermal properties declared by the manufacturer when they are installed according to this standard. The document clarifies the role of the installer relative to the manufacturer and the project designer and emphasizes compliance with local regulations and documented procedures.

Installers are required to follow the manufacturer's instructions, verify product conformity, and provide documentation and site labelling that the installation meets the requirements of ISO 12575-2:2007.

Key Topics

• Installer responsibilities: Confirm product suitability, follow manufacturer instructions, and meet jurisdictional or customer requirements.
• Verification and training: Obtain training on how the manufacturer declares conformity to ISO 12575-1 and understand product marking.
• Uniform insulating value: Ensure reasonably uniform thermal performance across the insulated face.
• Regulatory and design compliance: Meet or exceed local minimums or engineered energy-efficiency specifications.
• Protection and durability: Protect insulation exposed to weather or mechanical damage and account for soil settlement where protection penetrates the ground.
• Corrosion resistance: Ensure that carbon steel connectors, frames or furring used with the system are corrosion-resistant.
• Marking and labelling: Identify and record manufacturer markings and attach a prominent job-site label confirming compliance with ISO 12575-2.
• Documentation: Obtain manufacturer documentation or third-party certification of compliance with ISO 12575-1 and retain installation records.
• Dispute resolution: Accept accredited third-party material testing in disputes between manufacturer and installer; accept mutually recognized professional opinions in owner-installer disputes.

Applications

This part of ISO 12575 applies to exterior insulating systems used on:

• Perimeter walls and frost walls
• Load-bearing foundation applications
• Installations using fastened, adhered, furred, framed or soil-pressure methods

Practical applications include new construction and retrofit projects where consistent thermal performance and traceable installation records are required. Installers should integrate this standard into site quality-control practices and project documentation workflows to demonstrate compliance and support warranty claims.

Related Standards

• ISO 12575-1 - Specification for exterior insulating systems for foundations (product requirements and fitness for use aspects)
• ISO 9229 - Thermal insulation - Vocabulary (terms and definitions referenced by ISO 12575-2)

Note: ISO 12575-2:2007 focuses on installation responsibilities and documentation. It does not replace product specifications or the designer's responsibility for suitability of design. Local building codes and customer requirements may impose additional obligations on installers.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 12575-2
First edition
2007-10-01
Thermal insulation products — Exterior
insulating systems for foundations —
Part 2:
Principal responsibilities of installers
Produits isolants thermiques — Applications externes aux murs des
fondations —
Partie 2: Principales responsabilités des installateurs

Reference number
©
ISO 2007

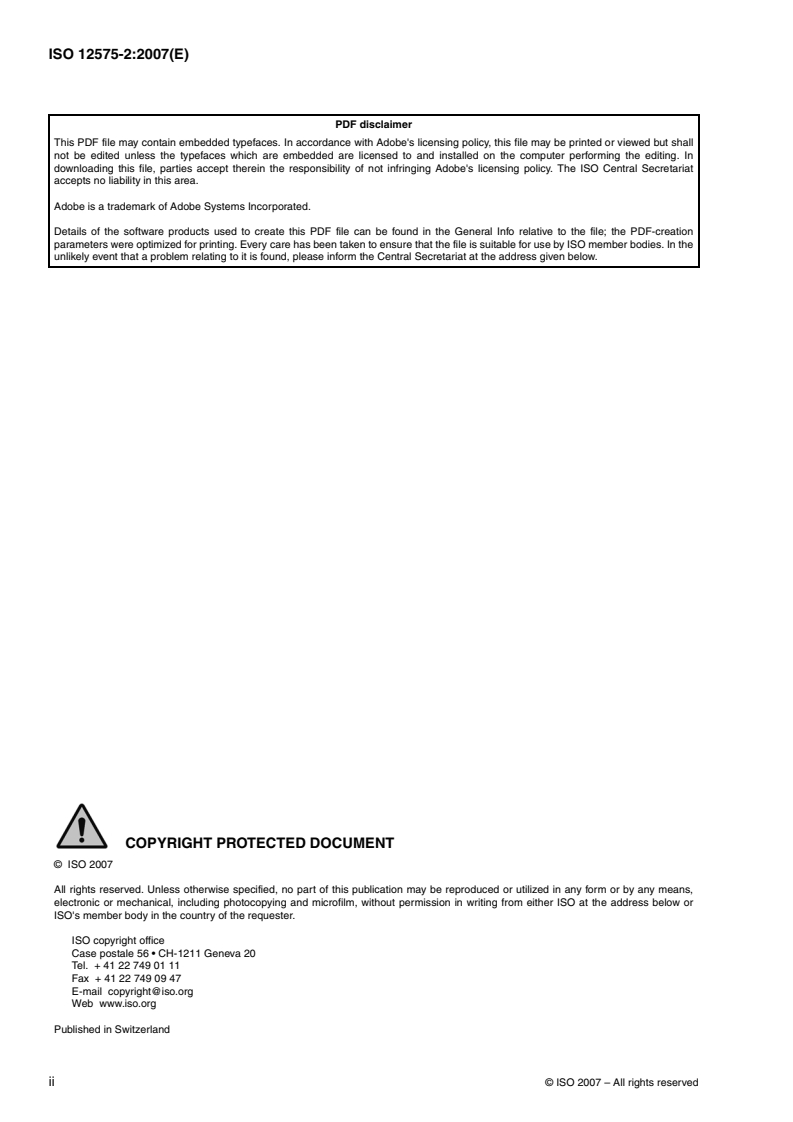

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall
not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the
unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
©
ii ISO 2007 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International
Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 12575-2 was prepared by Technical Committee ISO/TC 163, Thermal performance and energy use in the
built environment, Subcommittee SC 3, Thermal insulation products.
ISO 12575 consists of the following parts, under the general title Thermal insulation products — Exterior
insulating systems for foundations:
— Part 1: Specification
— Part 2: Principal responsibilities of installers
— Part 3: Test methods
©
ISO 2007 – All rights reserved iii

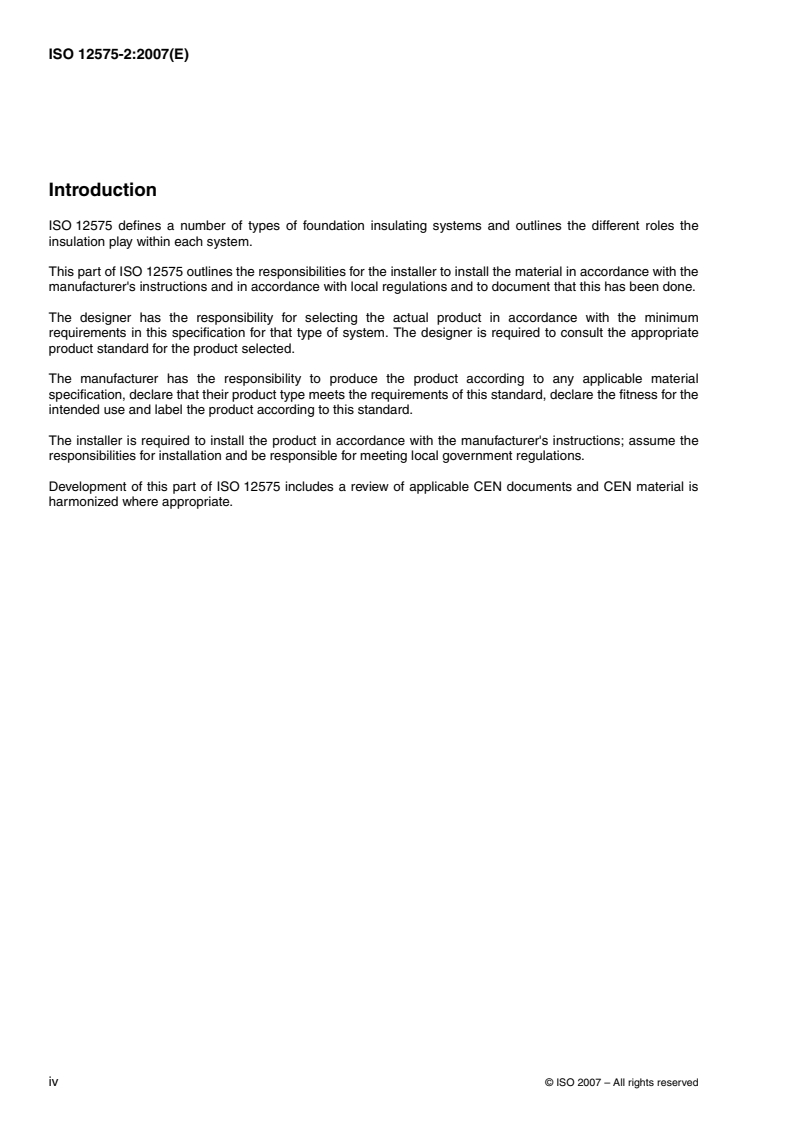

Introduction
ISO 12575 defines a number of types of foundation insulating systems and outlines the different roles the
insulation play within each system.
This part of ISO 12575 outlines the responsibilities for the installer to install the material in accordance with the
manufacturer's instructions and in accordance with local regulations and to document that this has been done.
The designer has the responsibility for selecting the actual product in accordance with the minimum
requirements in this specification for that type of system. The designer is required to consult the appropriate
product standard for the product selected.
The manufacturer has the responsibility to produce the product according to any applicable material
specification, declare that their product type meets the requirements of this standard, declare the fitness for the
intended use and label the product according to this standard.
The installer is required to install the product in accordance with the manufacturer's instructions; assume the
responsibilities for installation and be responsible for meeting local government regulations.
Development of this part of ISO 12575 includes a review of applicable CEN documents and CEN material is
harmonized where appropriate.
©
iv ISO 2007 – All rights reserved

INTERNATIONAL STANDARD ISO 12575-2:2007(E)
Thermal insulation products — Exterior insulating systems for
foundations —
Part 2:
Principal responsib
...
