ISO 12980:2000

Carbonaceous materials used in the production of aluminium - Green coke and calcined coke for electrodes - Analysis using an X-ray fluorescence method

This International Standard specifies an X-ray fluorescence method for the determination of elemental impurities in green and calcined petroleum cokes used for the manufacture of anodes. These anodes are used in the production of aluminium.

Produits carbonés utilisés pour la production de l'aluminium — Coke calciné et coke cru pour électrodes — Analyse par fluorescence aux rayons X

General Information

• Status: Published
• Publication Date: 29-Mar-2000
• ICS: 71.100.10 - Materials for aluminium production
• Technical Committee: ISO/TC 226 - Materials for the production of primary aluminium
• Drafting Committee: ISO/TC 226 - Materials for the production of primary aluminium
• Current Stage: 9093 - International Standard confirmed
• Start Date: 30-Nov-2022
• Completion Date: 13-Dec-2025

Overview

ISO 12980:2000 defines an X‑ray fluorescence (XRF) method for determining elemental impurities in green and calcined petroleum coke used to manufacture electrodes (anodes) for aluminium production. The standard covers sample preparation, instrument configuration, calibration, drift monitoring and expression of results for key impurities that affect anode performance and aluminium quality.

Key topics and technical requirements

• Principle: Analysis by XRF of a pressed tablet (pulverized coke + organic binder). Secondary (characteristic) X‑radiation from the sample is wavelength‑dispersed by crystals and detected according to Bragg’s law.
• Sample preparation
  • Sampling in accordance with ISO 6375.
  • Crush to pass a 4 mm sieve, dry to constant mass at 120 °C, mill to pass a 63 µm sieve.
  • Typical mix: ~30 g sample + ~5 g organic binder (e.g., Hoechst wachs G or stearic acid); remill and press into a tablet.
  • Pressing: tablet press capable of 20 tonne load; recommended specimen thickness ≥ 4 mm; press 20 t for 20 s.
• Instrumentation
  • XRF spectrometer with crystals such as LiF, PE, PX1, Ge, TIAP, LSM; choice of scandium (side‑window tubes) or rhodium (end‑window tubes) depending on elements targeted.
  • Detector gas: 90% argon / 10% methane.
• Measurement and calibration
  • Typical measurement conditions and collimation, kV/mA and counting times are apparatus‑dependent; example conditions are provided in the standard.
  • Calibration uses certified reference materials spanning the specified mass fraction ranges (e.g., S: 0.5–5%; V, Ni, Al, Fe, Si: 20–500 µg/g; Na, Ca: 20–200 µg/g).
  • Matrix corrections for absorption/enhancement (de Jongh model, Traill‑Lachance) are applied where required.
• Quality control
  • Use of monitor standards or reference samples for drift detection; calculation of drift factor and criteria for recalibration.
  • Guidance on counting statistics and minimum counting time to meet targeted precisions (e.g., 2% for Na, 1% for other elements at 2σ).

Applications and users

• Practical use for anode manufacturers, aluminium smelters, process and quality control laboratories, and analytical service providers who need to quantify elemental impurities in petroleum coke.
• Supports materials acceptance, process control, anode quality assurance and investigations into anode consumption and metal quality affected by trace elements.

Related standards

• ISO 6375 - Carbonaceous materials for the production of aluminium - Coke for electrodes - Sampling (referenced for sampling procedure).
• Prepared by ISO/TC 47 (Chemistry), SC 7 - relevant to aluminium and carbonaceous product standardization.

Keywords: ISO 12980:2000, XRF method, green coke, calcined coke, petroleum coke, elemental impurities, anodes, aluminium production, calibration, monitor standard.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 12980
First edition
2000-04-01
Carbonaceous materials used in
the production of aluminium — Green coke
and calcined coke for electrodes —
Analysis using an X-ray fluorescence
method
Produits carbonés utilisés pour la production de l'aluminium — Coke
calciné et coke cru pour électrodes — Analyse par fluorescence aux
rayons X
Reference number
©
ISO 2000

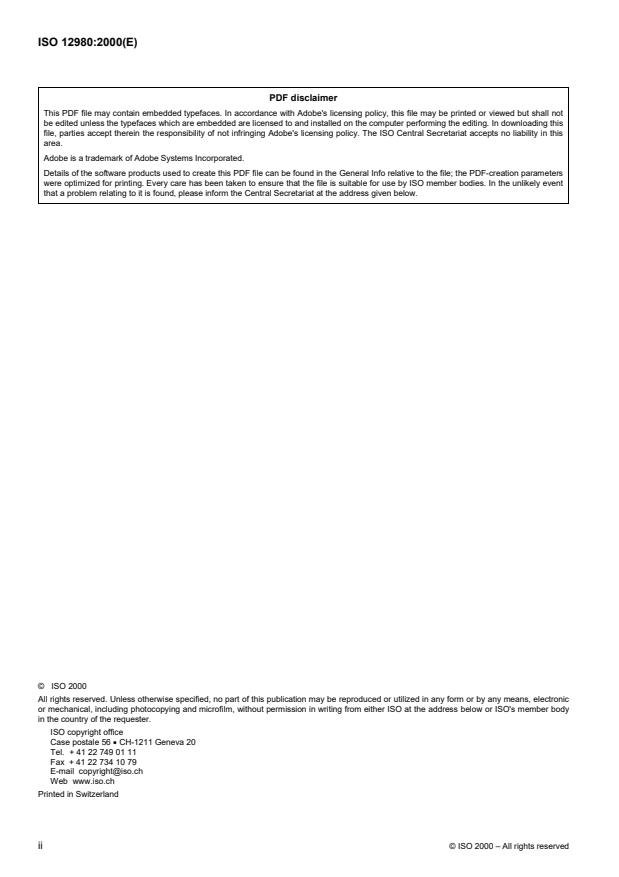

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 � CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 734 10 79
E-mail [e-mail]
Web www.iso.ch
Printed in Switzerland
ii © ISO 2000 – All rights reserved

Contents Page
Foreword.iv
Introduction.v
1 Scope .1
2 Normative reference .1
3 Principle.1
4 Apparatus and materials.2
5 Sampling and test specimen preparation .2
6 Procedure .3
7 Expression of results .8
8 Precision.8
9 Test report .9

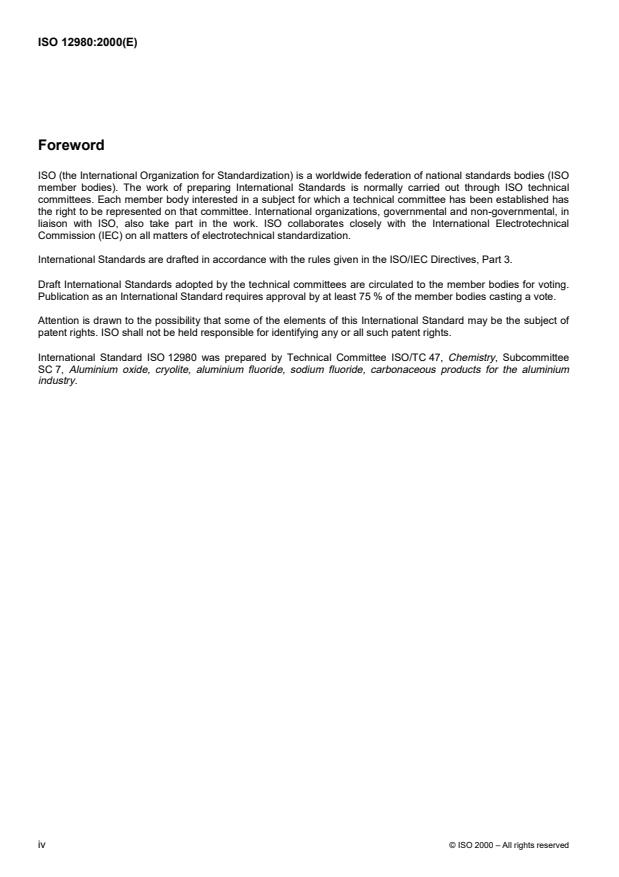

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
International Standard ISO 12980 was prepared by Technical Committee ISO/TC 47, Chemistry, Subcommittee
SC 7, Aluminium oxide, cryolite, aluminium fluoride, sodium fluoride, carbonaceous products for the aluminium
industry.
iv © ISO 2000 – All rights reserved

Introduction
The determination of the elemental impurities is important for reasons of metal quality and anode consumption.
This International Standard refers only to petroleum coke although the principles described are valid for pitch,
anthracite, graphite or electrode materials. As the sample preparation and/or the mass fraction ranges for these
other materials are quite different it is intended that specific standard methods will be published for each material.
INTERNATIONAL STANDARD ISO 12980:2000(E)
Carbonaceous materials used in the production of aluminium —
Green coke and calcined coke for electrodes — Analysis using an
X-ray fluorescence method
1 Scope
This International Standard specifies an X-ray fluorescence method for the determination of elemental impurities in
green and calcined petroleum cokes used for the manufacture of anodes. These anodes are used in the production
of aluminium.
2 Normative reference
The following normative document contains provisions which, through reference in this text, constitute provisions of
this International Standard. For dated references, subsequent amendments to, or revisions of, any of these this
publications do not apply. However, parties to agreements based on this International Standard are encouraged to
investigate the possibility of applying the most recent edition of the normative document indicated below. For
undated references, the latest edition of the normative document referred to applies. Members of ISO and IEC
maintain registers of currently valid International Standards.
ISO 6375, Carbonaceous materials for the production of aluminium — Coke for electrodes — Sampling.
3Principle
A pressed tablet of pulverized coke and organic binder is irradiated by X-rays from a target thin window X-ray tube.
The X-ray tubes can be chromium, rhodium or scandium depending on which elements are to be determined.
Irradiation of the test specimen causes ejection and rearrangement of orbital electrons resulting in the emission of
secondary radiation with a characteristic wavelength for each element.
This secondary radiation is reflected, onto the detector system, by a crystal, which is set at a specific angle to the
secondary radiation. Only specific radiation which obeys Bragg's law reaches the detector system.
n� =2d�sin� (1)
where
n is the order of the diffraction;
� is the X-ray wavelength;
d is the interplanar distance in the crystal;
sin � is the angle setting of the crystal.
The intensities of the specific secondary radiation are calculated into mass fractions according to given calibration
curves.
4 Apparatus and materials
4.1 X-ray fluorescence spectrometer, equipped with the following crystals: LiF (lithium fluoride, reflecting
plane 200), PE (pentaerythiol), PX1 (synthetic W-Si), Ge, TIAP (thallium acid phthalate) and LSM (layered synthetic
microstructure). For instruments equipped with a side window X-ray tube, a scandium tube is advantageous for
light elements. For instruments equipped with an end window X-ray tube, a rhodium tube offers optimum sensitivity.
4.2 Swinging-disc mill, with tungsten-carbide grinding devices.
4.3 Organic binder, suitable for pressed-tablet preparation. The binder shall not contain any of the elements to
be analysed. Suitable binders are 'Hoechst wachs G' or stearic acid.
4.4 Tablet press, capable of providing a 20-tonne load.
4.5 Appropriate sample holders, for example aluminium dishes or brass rings with the dimensions as shown in
Figure 1.
4.6 Detector gas, consisting of 90 % argon and 10 % methane.
4.7 Calibration standards, commercially available and certified covering the range of mass fraction given in
clause 6.5.
4.8 Reference samples (RS), commercially available and certified with appropriate mass fractions for all
elements. (See 6.4.2)
Dimensions in millimetres
Figure 1 — Dimensions of sample holder
5 Sampling and test specimen preparation
5.1 Sampling
Sampling shall be in accordance with the requirements of ISO 6375.
5.2 Test specimen preparation
Crush the sample into sufficiently small particles so as to pass it through a 4 mm sieve. Dry to constant mass at
120 °C. Mill the sample of crushed material into sufficiently small particles so as to pass it through a 63�msieve.
Mix approximately 30 g of this sieved material with approximately 5 g of binder and remill for 20 s. Crush any
remaining lumps with a spatula.
If too many lumps are formed in this mixture, repeat the above procedure with a smaller quantity of binder, for
example 4 g. When a smaller quantity of binder is used, test it to see if the calibration sample and other samples
give pressed tablets strong enough to withstand the procedure. Repeat the above procedure until a suitable
quantity of binder has been added to provide an acceptable mixture for pressing a tablet.
2 © ISO 2000 – All rights reserved

Place the material into the selected sample holder.
NOTE Aluminium dishes are preferred, but brass rings ma
...
