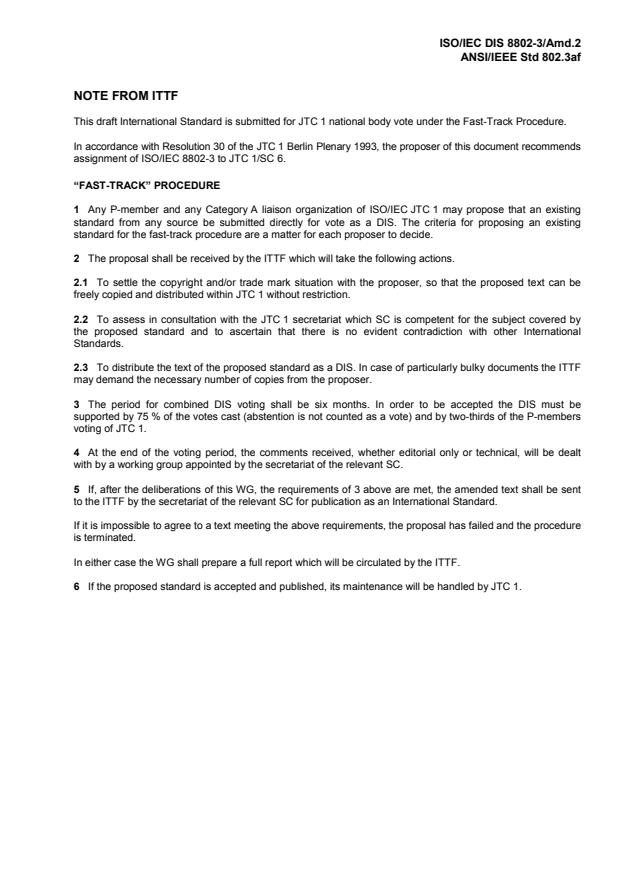

NOTE FROM ITTF
This draft International Standard is submitted for JTC 1 national body vote under the Fast-Track Procedure.
In accordance with Resolution 30 of the JTC 1 Berlin Plenary 1993, the proposer of this document recommends
assignment of ISO/IEC 8802-3 to JTC 1/SC 6.
“FAST-TRACK” PROCEDURE
1  Any P-member and any Category A liaison organization of ISO/IEC JTC 1 may propose that an existing
standard from any source be submitted directly for vote as a DIS. The criteria for proposing an existing
standard for the fast-track procedure are a matter for each proposer to decide.
2  The proposal shall be received by the ITTF which will take the following actions.
2.1  To settle the copyright and/or trade mark situation with the proposer, so that the proposed text can be
freely copied and distributed within JTC 1 without restriction.
2.2  To assess in consultation with the JTC 1 secretariat which SC is competent for the subject covered by
the proposed standard and to ascertain that there is no evident contradiction with other International
Standards.
2.3  To distribute the text of the proposed standard as a DIS. In case of particularly bulky documents the ITTF
may demand the necessary number of copies from the proposer.
3  The period for combined DIS voting shall be six months. In order to be accepted the DIS must be
supported by 75 % of the votes cast (abstention is not counted as a vote) and by two-thirds of the P-members
voting of JTC 1.
4  At the end of the voting period, the comments received, whether editorial only or technical, will be dealt
with by a working group appointed by the secretariat of the relevant SC.
5  If, after the deliberations of this WG, the requirements of 3 above are met, the amended text shall be sent
to the ITTF by the secretariat of the relevant SC for publication as an International Standard.
If it is impossible to agree to a text meeting the above requirements, the proposal has failed and the procedure
is terminated.
In either case the WG shall prepare a full report which will be circulated by the ITTF.
6  If the proposed standard is accepted and published, its maintenance will be handled by JTC 1.

---------------------- Page: 3 ----------------------
™
IEEE Std 802.3af -2003
™
(Amendment to IEEE Std 802.3 -2002,
™
including IEEE Std 802.3ae -2002)
TM
802.3af
IEEE Standard for Information technology—
Telecommunications and information exchange between systems—
Local and metropolitan area networks—
Specific requirements
Part 3: Carrier Sense Multiple Access with
Collision Detection (CSMA/CD) Access Method
and Physical Layer Specifications
Amendment: Data Terminal Equipment (DTE)
Power via Media Dependent Interface (MDI)
IEEE Computer Society
Sponsored by the
LAN/MAN Standards Committee
Published by
The Institute of Electrical and Electronics Engineers, Inc.
3 Park Avenue, New York, NY 10016-5997, USA
Print: SH95132
PDF: SS95132
18 June 2003
IEEE Standards
IEEE Standards

---------------------- Page: 4 ----------------------
™
IEEE Std 802.3af -2003
™
(Amendment to IEEE Std 802.3 -2002,
™
including IEEE Std 802.3ae -2002)
IEEE Standard for Information technology—
Telecommunications and information exchange between systems—
Local and metropolitan area networks—
Specific requirements
Part 3: Carrier Sense Multiple Access with
Collision Detection (CSMA/CD) Access Method
and Physical Layer Specifications
Amendment: Data Terminal Equipment (DTE)
Power via Media Dependent Interface (MDI)
Sponsor
LAN/MAN Standards Committee
of the
IEEE Computer Society
Approved 12 June 2003
IEEE-SA Standards Board
Abstract: Support for optionally powering a 10BASE-T, 100BASE-TX or 1000BASE-T DTE device
via the Power Interface (PI) using physical layers defined in Clauses 14, 25, and 40. The Power
Sourcing Equipment (PSE) is located at an endpoint or midspan, separate from and between the
MDIs, and provides power to the Powered Device (PD) over the Link Section. The PSE detection
protocol distinguishes a compatible PD from non-compatible devices and precludes the application
of power and possible damage to non-compatible devices. The PSE monitors the Maintain Power
Signature (MPS) and removes power when it is no longer requested or required. Optional manage-
ment function requirements are specified.
