Digital cinema (D-cinema) packaging — Part 9: Asset mapping and file segmentation

ISO 26429-9:2009 specifies a generic method for mapping a D-Cinema Package (DCP) onto one or more file storage volumes. Data structures are specified which provide for the mapping of D-cinema asset identifier values onto paths within a particular file storage scheme (e.g. filesystem paths). Where required, assets may be split across multiple storage volumes to allow efficient use of media and the mapping of assets larger than a given storage volume's capacity. The Asset Map and Volume Index structures and the associated provisions detailed in ISO 26429-9:2009 are intended to provide a framework for simplified mapping of a DCP onto a wide variety of file storage systems.

Emballage du cinéma numérique (cinéma D) — Partie 9: Cartographie d'avoir et segmentation de fichier

General Information

Status
Published
Publication Date
02-Dec-2009
Technical Committee
Drafting Committee
Current Stage
9093 - International Standard confirmed
Start Date
05-Aug-2020
Completion Date
05-Aug-2020
Ref Project

Buy Standard

Standard
ISO 26429-9:2009 - Digital cinema (D-cinema) packaging
English language
17 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

INTERNATIONAL ISO
STANDARD 26429-9
First edition
2009-12-15
Digital cinema (D-cinema) packaging —
Part 9:
Asset mapping and file segmentation
Emballage du cinéma numérique (cinéma D) —
Partie 9: Cartographie d'avoir et segmentation de fichier
Reference number
ISO 26429-9:2009(E)
ISO 2009
---------------------- Page: 1 ----------------------
ISO 26429-9:2009(E)

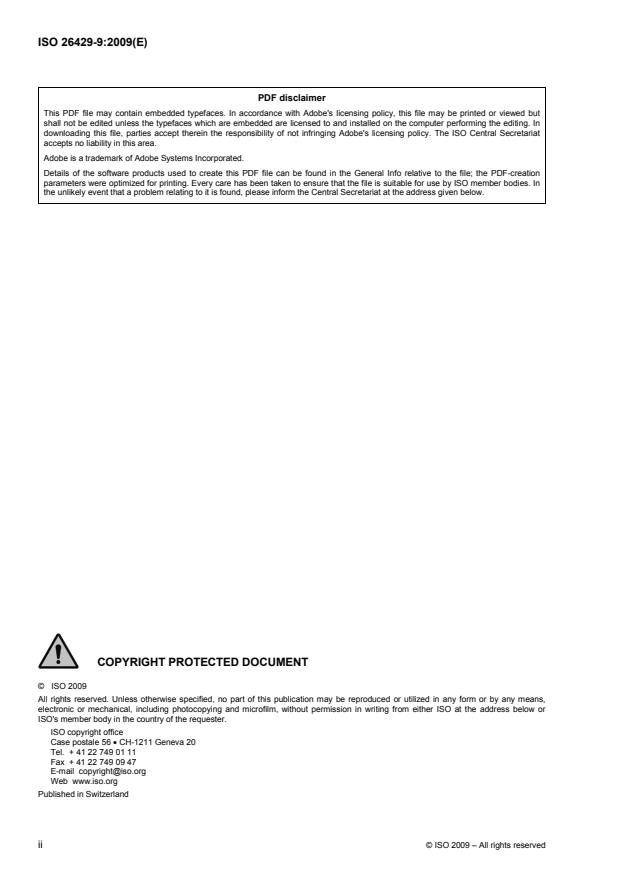

PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but

shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In

downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat

accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation

parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In

the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

COPYRIGHT PROTECTED DOCUMENT
© ISO 2009

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,

electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or

ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 26429-9:2009(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies

(ISO member bodies). The work of preparing International Standards is normally carried out through ISO

technical committees. Each member body interested in a subject for which a technical committee has been

established has the right to be represented on that committee. International organizations, governmental and

non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the

International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International Standards

adopted by the technical committees are circulated to the member bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the member bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO 26429-9 was prepared by Technical Committee ISO/TC 36, Cinematography.

ISO 26429-9 was prepared by the Society of Motion Picture and Television Engineers (as

SMPTE 429-9-2007) and was adopted, under a special “fast-track procedure”, by Technical Committee

ISO/TC 36, Cinematography, in parallel with its approval by the ISO member bodies.

ISO 26429 consists of the following parts, under the general title Digital cinema (D-cinema) packaging:

⎯ Part 3: Sound and picture track file [equivalent to SMPTE 429-3]
⎯ Part 4: MXF JPEG 2000 application [equivalent to SMPTE 429-4]
⎯ Part 6: MXF track file essence encryption [equivalent to SMPTE 429-6]
⎯ Part 7: Composition playlist [equivalent to SMPTE 429-7]
⎯ Part 8: Packing list [equivalent to SMPTE 429-8]
⎯ Part 9: Asset mapping and file segmentation [equivalent to SMPTE 429-9]
⎯ Part 10: Stereoscopic picture track file [equivalent to SMPTE 429-10]
© ISO 2009 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 26429-9:2009(E)
Introduction

This part of ISO 26429 comprises SMPTE 429-9-2007 and Annex ZZ (which provides equivalences between

ISO standards and SMPTE standards referenced in the text).
iv © ISO 2009 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 26429-9:2009(E)
SMPTE 429-9-2007
SMPTE STANDARD
D-Cinema Packaging —
Asset Mapping and
File Segmentation
Page 1 of 18 pages
Table of Contents Page

Foreword .................................................................................................................................................... 2

1 Scope ..................................................................................................................................................... 3

2 Conformance Notation ........................................................................................................................... 3

3 Normative References ........................................................................................................................... 3

4 Overview ................................................................................................................................................ 4

4.1 Ingesting a DCP Volume (Informative) .......................................................................................... 5

4.2 XML File Structure ......................................................................................................................... 5

5 AssetMap Structure................................................................................................................................ 6

5.1 Id .................................................................................................................................................... 6

5.2 AnnotationText [optional] ............................................................................................................... 6

5.3 Creator ........................................................................................................................................... 7

5.4 VolumeCount ................................................................................................................................. 7

5.5 IssueDate ....................................................................................................................................... 7

5.6 Issuer ............................................................................................................................................. 7

5.7 AssetList......................................................................................................................................... 7

6 Asset Structure....................................................................................................................................... 7

6.1 Id .................................................................................................................................................... 7

6.2 AnnotationText [optional] ............................................................................................................... 8

6.3 PackingList [optional] ..................................................................................................................... 8

6.4 ChunkList ....................................................................................................................................... 8

7 Chunk Structure ..................................................................................................................................... 8

7.1 Path................................................................................................................................................ 8

7.2 VolumeIndex [optional] .................................................................................................................. 8

7.3 Offsest [optional] ............................................................................................................................ 9

7.4 Length [optional]............................................................................................................................. 9

8 VolumeIndex Structure........................................................................................................................... 9

9 Media-Specific Constraints .................................................................................................................... 9

9.1 Volume Definition........................................................................................................................... 9

9.2 URL Scheme.................................................................................................................................. 9

Copyright © 2007 by THE SOCIETY OF
Approved
MOTION PICTURE AND TELEVISION ENGINEERS
3 Barker Avenue, White Plains, NY 10601
June 25, 2007
(914) 761-1100
© ISO 2009 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 26429-9:2009(E)
SMPTE 429-9-2007

9.3 URL Path ....................................................................................................................................... 9

9.4 XML Encoding ............................................................................................................................... 10

9.5 Asset Map Location ....................................................................................................................... 10

9.6 VolumeIndex Location ................................................................................................................... 10

9.7 Chunk Size .................................................................................................................................... 10

10 Asset Map Sample (Informative) ......................................................................................................... 11

11 Volume Index Sample (Informative) .................................................................................................... 11

12 XML Schema ....................................................................................................................................... 12

Annex A Basic Map Profile (Normative) .................................................................................................. 14

A.1 URL Scheme................................................................................................................................. 14

A.2 URL Path....................................................................................................................................... 14

A.3 XML Encoding............................................................................................................................... 14

A.4 Asset Map Location....................................................................................................................... 14

A.5 VolumeIndex Location................................................................................................................... 14

A.6 Chunk Size.................................................................................................................................... 14

Annex B XML Diagram Legend (Informative).......................................................................................... 15

B.1 Element Symbols .......................................................................................................................... 15

B.1.1 Examples ........................................................................................................................... 15

B.2 Model Symbols ("Compositors") ................................................................................................... 16

B.3 Types............................................................................................................................................. 16

B.4 Model Groups and References ..................................................................................................... 17

Annex C Bibliography (Informative)......................................................................................................... 18

Foreword

SMPTE (the Society of Motion Picture and Television Engineers) is an internationally-recognized standards

developing organization. Headquartered and incorporated in the United States of America, SMPTE has

members in over 80 countries on six continents. SMPTE’s Engineering Documents, including Standards,

Recommended Practices and Engineering Guidelines, are prepared by SMPTE’s Technology Committees.

Participation in these Committees is open to all with a bona fide interest in their work. SMPTE cooperates

closely with other standards-developing organizations, including ISO, IEC and ITU.

SMPTE Engineering Documents are drafted in accordance with the rules given in Part XIII of its

Administrative Practices.
SMPTE 429-9 was prepared by Technology Committee DC28.
Page 2 of 18 pages
2 © ISO 2009 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 26429-9:2009(E)
SMPTE 429-9-2007
1 Scope

This document specifies a generic method for mapping a D-Cinema Package (DCP) onto one or more file

storage volumes. Data structures are specified which provide for the mapping of D-Cinema asset identifier

values onto paths within a particular file storage scheme (e.g., filesystem paths). Where required, assets may

be split across multiple storage volumes to allow efficient use of media and the mapping of assets larger than

a given storage volume’s capacity. The Asset Map and Volume Index structures and the associated

provisions detailed herein are intended to provide a framework for simplified mapping of a DCP onto a wide

variety of file storage systems.
2 Conformance Notation

Normative text is text that describes elements of the design that are indispensable or contains the

conformance language keywords: "shall", "should", or "may". Informative text is text that is potentially helpful

to the user, but not indispensable, and can be removed, changed, or added editorially without affecting

interoperability. Informative text does not contain any conformance keywords.

All text in this document is, by default, normative, except: the Introduction, any section explicitly labeled as

"Informative" or individual paragraphs that start with "Note:”

The keywords "shall" and "shall not" indicate requirements strictly to be followed in order to conform to the

document and from which no deviation is permitted.

The keywords, "should" and "should not" indicate that, among several possibilities, one is recommended as

particularly suitable, without mentioning or excluding others; or that a certain course of action is preferred but

not necessarily required; or that (in the negative form) a certain possibility or course of action is deprecated

but not prohibited.

The keywords "may" and "need not" indicate courses of action permissible within the limits of the document.

The keyword “reserved” indicates a provision that is not defined at this time, shall not be used, and may be

defined in the future. The keyword “forbidden” indicates “reserved” and in addition indicates that the provision

will never be defined in the future.
3 Normative References

The following standards contain provisions which, through reference in this text, constitute provisions of this

standard. At the time of publication, the editions indicated were valid. All standards are subject to revision,

and parties to agreements based on this standard are encouraged to investigate the possibility of applying the

most recent edition of the standards indicated below.

1. World Wide Web Consortium (W3C) (2004, February 4). Extensible Markup Language (XML) 1.0 (Third

Edition).

2. World Wide Web Consortium (W3C) (2004, October 28). XML Schema Part 1: Structures (Second Edition).

3. World Wide Web Consortium (W3C) (2004, October 28). XML Schema Part 2: Datatypes (Second Edition).

4. Internet Engineering Task Force (IETF) (November 1996) RFC1738 — Uniform Resource Locators (URL)

5. Internet Engineering Task Force (IETF) (1996, November). RFC 2396 — Uniform Resource Identifiers

(URI): Generic Syntax

6. Internet Engineering Task Force (IETF) (2005, July). RFC 4122 — A Universally Unique Identifier (UUID)

URN Namespace.
7. SMPTE 429-8-2007, D-Cinema Packaging — Packing List
Page 3 of 18 pages
© ISO 2009 – All rights reserved 3
---------------------- Page: 7 ----------------------
ISO 26429-9:2009(E)
SMPTE 429-9-2007
4 Overview

D-Cinema content is composed of a number of distinct assets such as Composition Playlists and Track Files.

For delivery between systems, these assets are combined into logical D-Cinema Packages (DCP). A DCP is

a single delivery unit defined by a Packing List document [SMPTE 429-8]. The Packing List enumerates all

the assets included in the DCP, and provides information necessary for a traceable and error-free delivery.

The DCP and its Packing List are specified independently of any media or file storage scheme. The Packing

List contains the UUID identifiers of the assets in the package, not the location of those assets on some

volume of media. The Asset Map provides the link between the asset identifier UUIDs and the files containing

the assets. This layered approach has two distinct advantages. First, it simplifies specification of the Packing

List by removing dependence on past, current or future media formats and constraints. Second, it allows the

DCP and its underlying assets to be created once and mapped onto various target media as circumstances

require.

The Asset Map structure, depicted in Figure 1 below, provides a mapping from the Packing List asset Ids to

actual file locations within the file storage scheme. An Asset Map may contain mappings for more than one

DCP, but shall not contain a partial mapping for a particular DCP. A DCP shall not span multiple Asset Maps.

The Asset Map provides special identification for Packing List assets so that they may be located without

scanning the entire volume.

A DCP storage volume (a distinct container of files) shall contain exactly one Asset Map. In a multi-volume

mapping, a single Asset Map shall contain the complete mapping for all volumes, and shall be repeated on

each volume. A Volume Index structure (defined in Section 8 below) shall be used to identify each volume in

a multi-volume set.

Assets may be divided into multiple segments to allow spanning across multiple volumes (segmentation).

The segments are called “chunks”, and are stored in files, without additional structure. An Asset may be

recreated by concatenating the constituent chunk files.
Figure 1 – Relationship between the Packing List and Asset Map structures
Page 4 of 18 pages
4 © ISO 2009 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 26429-9:2009(E)
SMPTE 429-9-2007

The definition of “volume” and the means of identifying the Asset Map on a volume shall be defined by a

normative DCP Map Profile (see Section 9 “Media-Specific Constraints” below) for that media type. DCP Map

Profiles shall normatively reference this document and shall follow the provisions of this document except

where explicitly noted.
4.1 Ingesting a DCP Volume (Informative)

The process of reading a DCP into a D-Cinema system is termed Ingest. A system may provide a simple or

elaborate ingest control interface - allowing coarse or fine-grained selection of items to be ingested — but the

basic process of discovering the contents of a volume will always be the same.

As illustrated using pseudo-code in Figure 2 below, a DCP storage volume is ingested by first opening the

Asset Map document on that volume. The means of identifying the Asset Map on the volume is defined by the

normative DCP Map Profile (see Section 9) for that media type. The Asset Map is used to locate the Packing

List(s) which detail the contents of the available DCP(s). Assets are chosen from the Packing List(s), and the

selected assets are ingested by using the Asset Map to locate the chunks of data on the storage volume. The

chunks are concatenated to restore the original file. (This example does not illustrate multi-volume ingest).

Ingest DCP volume:
open the Asset Map
for each Packing List in the Asset Map
open the Packing List
for each Asset in the Packing List
if this Asset is wanted
locate the corresponding Asset structure in the Asset Map
for each chunk in the Asset structure
read the chunk data
write to destination
test the message digest
Figure 2 – Example ingest process
4.2 XML File Structure

The structures defined in this document are represented using the Extensible Markup Language (XML) [XML

1.0], and specified using XML Schema [XML Schema Part 1: Structures] and [XML Schema Part 2:

Datatypes]. This specification shall be associated with a unique XML namespace name [Namespaces in

XML]. The namespace name shall be the string value “http://www.smpte-ra.org/schemas/429-

9/2007/AM”. This namespace name conveys both structural and semantic version information, but does not

serve the purpose of a traditional version number field.

Table 1 lists the XML namespace names used in this specification. Namespace names are represented as

Uniform Resource Identifier (URI) values [RFC 2396] .

Readers unfamiliar with URI values as XML namespace names should be aware that although a URI value

begins with a “method” element (“http” in this case), the value is designed primarily to be a unique string and

does not necessarily correspond to an actual on-line resource. Applications implementing this standard

should not attempt to resolve URI values on-line.
Page 5 of 18 pages
© ISO 2009 – All rights reserved 5
---------------------- Page: 9 ----------------------
ISO 26429-9:2009(E)
SMPTE 429-9-2007
Table 1 – XML Namespaces
Qualifier URI
http://www.smpte-ra.org/schemas/429-9/2007/AM
am
xs http://www.w3.org/2001/XMLSchema

The URIs found in Table 1 are normative. The namespace qualifier values (also called namespace prefixes in

XML jargon) used in Table 1 and elsewhere in this document, namely "am" and "xs", are not normative.

Specifically, they may be replaced in instance documents by any XML compliant namespace prefix. In other

words, implementations shall expect any arbitrary XML compliant namespace prefix value that is associated

with a URI from table 1.
5 AssetMap Structure

The AssetMap element is the top-level element of an Asset Map XML document. A single Asset Map

document shall be present in a file on each DCP storage volume. The elements and structure of an AssetMap

element are illustrated in Figure 3 and defined in the subsections that follow.
Figure 3 – AssetMap structure
5.1 Id

The Id element uniquely identifies the Asset Map structure. It is encoded as a urn:UUID [RFC 4122].

5.2 AnnotationText [optional]

The AnnotationText element is a free-form, human-readable annotation describing the Asset Map. It is

meant strictly as a display hint to the user. The optional language attribute is an xs:language language

code and indicates the language used. If the language attribute is not present, the default value en shall be used.

Page 6 of 18 pages
6 © ISO 2009 – All rights reserved
---------------------- Page: 10 ----------------------
ISO 26429-9:2009(E)
SMPTE 429-9-2007
5.3 Creator

The Creator element is a free-form, human-readable annotation describing the system (hardware/software)

that was used to create the Asset Map for distribution. It is meant strictly as a display hint to the user. The

optional language attribute is an xs:language language code and indicates the language used. If the

language attribute is not present, the default value en shall be used.
5.4 VolumeCount

The VolumeCount element indicates the total number of volumes that are referenced by this Asset Map. The

first volume in a set shall be numbered 1 (one).
5.5 IssueDate

The IssueDate element indicates the time and date at which the Asset Map was issued. It may be displayed

to the user.
5.6 Issuer

The Issuer element is a free-form, human-readable annotation describing the person or company who has

created the Asset Map for distribution. It is meant strictly as a display hint to the user. The optional language

attribute is an xs:language language code and indicates the language used. If the language attribute is

not present, the default value en shall be used.
5.7 AssetList

The AssetList element contains a list of Asset elements. The structure of the Asset element is described

in the following section.
6 Asset Structure

The Asset element is used to represent assets within the AssetList element of an AssetMap. The Asset

element is of the type AssetType, illustrated in Figure 4 and defined in the subsections that follow.

Figure 4 – Asset structure
6.1 Id

The Id element uniquely identifies the asset for management purposes. It is encoded as a urn:UUID [RFC

4122].
Page 7 of 18 pages
© ISO 2009 – All rights reserved 7
---------------------- Page: 11 ----------------------
ISO 26429-9:2009(E)
SMPTE 429-9-2007
6.2 AnnotationText [optional]

The AnnotationText element is a free-form, human-readable annotation describing the asset. It is meant

strictly as a display hint to the user. The optional language attribute is an xs:language language code and

indicates the language used. If the language attribute is not present, the default value en shall be used.

6.3 PackingList [optional]

The PackingList element indicates whether the asset is a Packing List [SMPTE 429-8]. It is encoded as an

xs:boolean. If the asset is a Packing List, the element shall be present and the value shall be true. The

default value is false.
6.4 ChunkList

The ChunkList element contains an ordered list of asset Chunk elements. The structure of the Chunk

element is described in the following section.
7 Chunk Structure

The Chunk element is used to represent chunks within the ChunkList element of an Asset. The Chunk

element is of the type ChunkType, illustrated in Figure 5 and defined in the subsections that follow.

Figure 5 – Chunk structure
7.1 Path

The Path element indicates the complete path for the chunk, represented as a URL per [RFC 1738]. Its

semantics and format are delivery-medium dependent. The value is encoded as an xs:anyURI. The

scheme segment of the URL shall be defined by the defining DCP Map Profile.
NOTE – Annex A presents a basic Map Profile.
7.2 VolumeIndex [optional]

The VolumeIndex element indicates the index of the volume that contains the chunk. The first volume shall

be Volume 1. If the VolumeIndex parameter is absent, the chunk shall belong to volume 1.

Page 8 of 18 pages
8 © ISO 2009 – All rights reserved
---------------------- Page: 12 ----------------------
ISO 26429-9:2009(E)
SMPTE 429-9-2007
7.3 Offset [optional]

The Offset element indicates the offset from the start of the asset to the first byte of the asset segment

referenced by this chunk. If the Offset parameter is absent, the chunk is assumed to start at the beginning

of the asset.
7.4 Length [optional]

The Length element identifies the length, in bytes, of the chunk. If the Length parameter is absent, the

length of the chunk shall be that of the asset as expressed by the respective Packing List.

8 VolumeIndex Structure

The VolumeIndex element is the top-level element of a Volume Index XML document. A single Volume

Index document shall be present in a file on each DCP storage volume. The Volume Index is optional for a

single volume DCP.

The VolumeIndex element encodes the numerical index of a particular volume in a DCP set. The element

has a single child element, Index, which encodes the volume index number as an xs:positiveInteger

value. An example is given in Section 9 below.
9 Media-Specific Constraints

The structures defined above do not alone provide sufficient specification for mapping a DCP onto a file

storage system. Many details must be defined to form a complete, standardized mapping, including the format

and access method of the storage system and the paths of the Asset Map and Volume Index files on an

instance of that system.

A DCP Map Profile document specifies, or references specifications of, a file storage system and the

electronic and/or logical means of retrieving files from it. A DCP Map Profile specifies the manner by which a

DCP shall be retrieved from the specified file storage system, including any necessary constraints on the use

of the file storage system and the structures in this document. A DCP Map Profile is distinguished from other

file storage specifications by its normative reference to this document and its adherence to the provisions of

the following sub-sections.
...
