INTERNATIONAL ISO/IEC
STANDARD 23000-2
First edition
2006-08-01
Information technology — Multimedia
application format (MPEG-A) —
Part 2:
MPEG music player application format
Technologies de l'information — Format pour application multimédia
(MPEG-A) —
Partie 2: Format pour application musicienne MPEG
Reference number
ISO/IEC 23000-2:2006(E)
©
ISO/IEC 2006
---------------------- Page: 1 ----------------------
ISO/IEC 23000-2:2006(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO/IEC 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2006 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 23000-2:2006(E)
Contents Page
Foreword. iv
Introduction . v
1 Scope. 1
2 Overview of MPEG Standards . 1
2.1 MPEG-1 Layer III. 1
2.2 MPEG-4 “MPEG-1/2 Audio in MPEG-4” . 2
2.3 ISO Base Media File Format . 2
2.4 The ISO Base Media and MPEG-4 File Formats. 3
2.5 MPEG-7 Multi-Media Description Scheme. 3
3 A System for Archiving and Playing a Music Library . 4
3.1 Overview. 4
3.2 Playback. 5
3.3 File Structures. 6
Annex A (informative) Example of ID3 information mapped to MPEG-7 . 11
Annex B (informative) Example of DID in MAF. 13
Bibliography . 15
© ISO/IEC 2006 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 23000-2:2006(E)

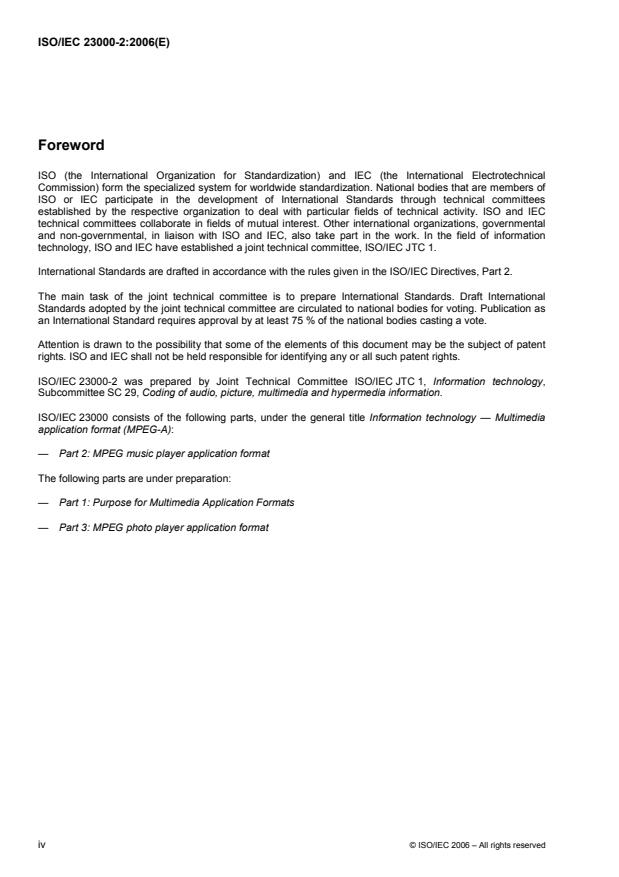

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 23000-2 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia information.
ISO/IEC 23000 consists of the following parts, under the general title Information technology — Multimedia
application format (MPEG-A):
— Part 2: MPEG music player application format
The following parts are under preparation:
— Part 1: Purpose for Multimedia Application Formats
— Part 3: MPEG photo player application format
iv © ISO/IEC 2006 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 23000-2:2006(E)
Introduction
MPEG-1/2 Audio Layer III, also known as MP3, is one of the most widely used MPEG International Standards.
At the time of its standardization, it was thought to be somewhat complex, but it has proved to be one of the
most future-looking of all MPEG technologies.
Since that time, MPEG has developed a number of International Standards, all of which strive to serve the
needs of consumers and industry. Among those are MPEG-4, a next-generation suite of International
Standards for media compression, and MPEG-7, a suite of International Standards for meta-data
representation. MPEG-4 specifies what MPEG expects to be another very successful specification, the
MPEG-4 File Format, while MPEG-7 specifies not only signal-derived meta-data, but also archival meta-data
such as Artist, Album and Song Title.
As such, MPEG-4 and MPEG-7 represent an ideal environment to support the current “MP3 music library”
user experience, and, moreover, to extend that experience in new directions.
This International Standard shows how to carry MP3 information (music and metadata) within the MPEG-4
and MPEG-7 framework. Moving MP3 into the MPEG-4 world supports, as a baseline, everything that users
know and expect, but offers the capability to deliver much richer music experiences with components of
MPEG-4, MPEG-7 and MPEG-21 at our disposal.
© ISO/IEC 2006 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 23000-2:2006(E)
Information technology — Multimedia application format
(MPEG-A) —
Part 2:
MPEG music player application format
1 Scope
ISO/IEC 23000-2 specifies a method to import MPEG-1 Layer III coded media files (i.e. MP3) that may contain
ID3V1 meta-data into the framework of MPEG-4 as an MPEG-4 file. Optionally, the media file can have an
associated JPEG image (e.g. album cover art). The major components of this part of ISO/IEC 23000 are:
⎯ a method to convert the Layer III bitstream into a series of MPEG-4 Access Units suitable for storage in
an MPEG-4 file;
⎯ a method for representing the ID3V1 meta-data using a concise set of MPEG-7 constructs, and how to
place that MPEG-7 description into the MPEG-4 file;
⎯ how to encapsulate a JPEG compressed image into the MPEG-4 file.
Additional components permit using the MPEG-21 file format, which supports a more precise association of
coded audio, meta-data and image information, and also permits the creation of a “music album” via
encapsulation of a set of MPEG-4 files (i.e. songs) within a single MPEG-21 file.
2 Overview of MPEG Standards
2.1 MPEG-1 Layer III
ISO/IEC 11172-3:1993 specifies MPEG-1 Audio [1]. From that specification, MPEG-1 Layer III (or MP3) is one
of the most widely deployed MPEG audio standards ever. Its wide appeal is due to both its good compression
performance and its simplicity of implementation. The vast majority of compressed music archives use MP3
encoding.
One aspect of the simplicity of Layer III is that it specifies a self-synchronizing transport, making it amenable
to both storage in a computer file and transmission over a channel without byte framing. In the context of
transmission channels, Layer III can operate over a constant-rate isocronous link, and has constant-rate
headers (as does Layer I and II). However Layer III is an instantaneously-variable-rate coder, which adapts to
the constant-rate channel by using a “bit buffer” and “back pointers.” Each of the headers signals the start of
another block of audio signal, however due to the Layer III syntax, the data associated with that next block of
audio signal may be in a prior segment of the bitstream, pointed to by the back pointer (see Figure 1,
specifically the curved arrow pointing to main_data_begin). We note that this is in contrast to the MPEG-4
view of data stream segmentation, in which one Access Unit contains all information necessary to decode one
segment of audio.
© ISO/IEC 2006 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/IEC 23000-2:2006(E)
header header header header
frame 1 frame 2 frame 3 frame 4
main_data_begin 1 main_data_begin 2 main_data_begin 3 main_data_begin 4
main info 4
main info 1 main info 2 main info 3
Figure 1 — Layer III bitstream organization
2.2 MPEG-4 “MPEG-1/2 Audio in MPEG-4”
ISO/IEC 14496-3:2005 [3] specifies a method for segmenting and formatting Layer III bitstreams into MPEG-4
Access Units (MPEG-1/2 Audio in MPEG-4), and therefore is often referred to as “MP3onMP4”. This consists
primarily of re-arranging the compressed data associated with a given header such that it follows the header.
This typically results in new segments that are no longer of constant length, but that is perfectly in accordance
with the definition of MPEG-4 Access Units. See example in Figure 2.
Figure 2 — Converting an MPEG-1/2 Layer 3 bitstream into mp3_channel_elements
2.3 ISO Base Media File Format
The ISO Base Media File Format is designed to contain timed media information for a presentation in a
flexible, extensible format that facilitates interchange, management, editing, and presentation of the media.
The ISO Base Media File Format is a base format for media file formats. In particular, the MPEG-4 file format
derives from this base file format.
2 © ISO/IEC 2006 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 23000-2:2006(E)
ISO file
Movie data Media data
trak (video)
…other boxes
Interleaved, time-ordered, video
trak (audio) and audio frames
Figure 3 — Example of a simple ISO file used for interchange, containing two streams
The file structure is object-oriented as shown in Figure 3 which means that a file can be decomposed into
constituent objects very simply, and the structure of the objects inferred directly from their type. The file format
is designed to be independent of any particular network protocol while enabling efficient support for them in
general.
2.4 The ISO Base Media and MPEG-4 File Formats
ISO/IEC 14496-12:2005 [4], and ISO/IEC 14496-14:2003 [5] together specify the MPEG-4 File Format. This
supports storage of compressed audio data (e.g. MP3onMP4) in tracks. It also provides support for metadata
in the form of ‘meta’ boxes at the File, Movie and Track level. This allows support for static (un-timed) meta-
data. Figure 4 schematically illustrates the location of these un-timed MPEG-7 Metadata boxes. Subclause 3.3
provides details as to when the Metadata boxes at each level are used.
Trak
Movie
meta
meta Mdat
meta
Trak
meta
Figure 4 — Support of Static un-timed Metadata in ISO/MP4 Files
2.5 MPEG-7 Multi-Media Description Scheme
ISO/IEC 15938-5:2003, the Multimedia Description Scheme (MDS) [6] specifies all non-Visual and non-Audio
specific metadata (e.g. Artist, Title, Date) in the MPEG-7 standard. As such it is able to represent all of the
information found in the popular ID3V1 [7] metadata specification system.
© ISO/IEC 2006 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/IEC 23000-2:2006(E)
3 A System for Archiving and Playing a Music Library
3.1 Overview
This specification presents a simple architecture for constructing an annotated music library. It defines a
process, based completely on MPEG-4 and MPEG-7 standardized modules, for importing mp3 encoded
music files containing ID3 tags into this architecture. This is shown in Figure 5.
ISO/IEC 11172-3 Layer III (“MP3”) [1]-[2] specifies a music compression scheme that results in a sequence of
bits, or bitstream. In contrast, ISO/IEC 14496-3:2005 [3] specifies a music compression scheme that results in
a sequence of packets which can be stored directly into the MPEG-4 File Format, specified in
ISO/IEC 14496-14. [4] [5]
The first module required in this architecture is a specification to translate an MP3 bitstream into a series of
MP3 packets. This is accomplished by the MP3onMP4 formatter, specified in ISO/IEC 14496-3:2005 [3].This
formatter reads a standard MP3 file (i.e. a bitstream) and converts it to a series of packets (called Access
Units in MPEG-4 terminology) that can be loaded into an MPEG-4 File.
MP3 file with ID3 MP3onMP4
MP3onMP4
data
tags formatter
MP4 File
Extract ID3tags
MPEG-7
and express in
metadata
MPEG-7
JPEG
Figure 5 — Encoder System Architecture
The MPEG-4 File supports both compressed media (i.e. MP3), and associated metadata, typically ID3V1 tags
[6]. This tag information is easily representable using MPEG-7 nomenclature, as specified in [8]. The specific
mapping from ID3V1.1 tags to MPEG-7 metadata is show in Table 1. Parenthetical comments under Artist
clarify that MPEG-7 is able to make a distinction between Artist as a person and and Artist as a group name.
Table 1 — Mapping from ID3 V1.1 Tags to MPEG-7
ID3 V1 Description MPEG-7 Path
Artist Artist performing CreationInformation/Creation/Creator[Role/@href=”urn:mpeg:m
the song peg7:RoleCS:2001:PERFORMER”]/Agent[@xsi:type=”PersonTy
pe”]/Name/{FamilyName, GivenName} (Artist Name)
CreationInformation/Creation/Creator[Role/@href=”urn:mpeg:m
peg7:RoleCS:2001:PERFORMER”]/Agent[@xsi:type=”PersonGr
oupType”]/Name (Group Name)
Album Title of the album CreationInformation/Creation/Title[@type=”albumTitle”]
Song Title Title of the song CreationInformation/Creation/Title[@type=”songTitle”]
Year of the
Year CreationInformation/CreationCoordinates/Date/TimePoint
4 © ISO/IEC 2006 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 23000-2:2006(E)
ID3 V1 Description MPEG-7 Path
recording (Recording date.)
Comment Any comment of CreationInformation/Creation/Abstract/FreeTextAnnotation
any length
Track CD track number Semantics/Seman
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
