Standards Content (sample)

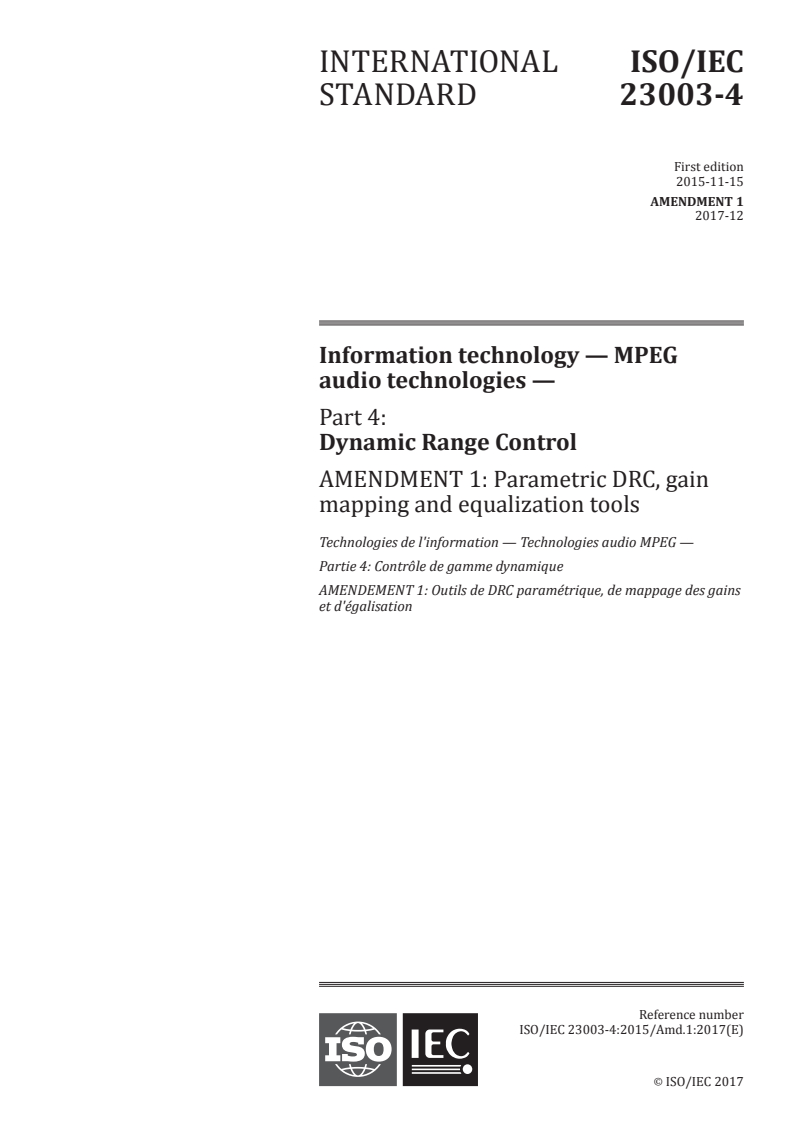

INTERNATIONAL ISO/IEC
STANDARD 23003-4
First edition
2015-11-15
AMENDMENT 1
2017-12
Information technology — MPEG
audio technologies —
Part 4:
Dynamic Range Control
AMENDMENT 1: Parametric DRC, gain
mapping and equalization tools
Technologies de l'information — Technologies audio MPEG —
Partie 4: Contrôle de gamme dynamique
AMENDEMENT 1: Outils de DRC paramétrique, de mappage des gains
et d'égalisation
Reference number
ISO/IEC 23003-4:2015/Amd.1:2017(E)
ISO/IEC 2017
---------------------- Page: 1 ----------------------
ISO/IEC 23003-4:2015/Amd.1:2017(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2017, Published in Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO/IEC 2017 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 23003-4:2015/Amd.1:2017(E)

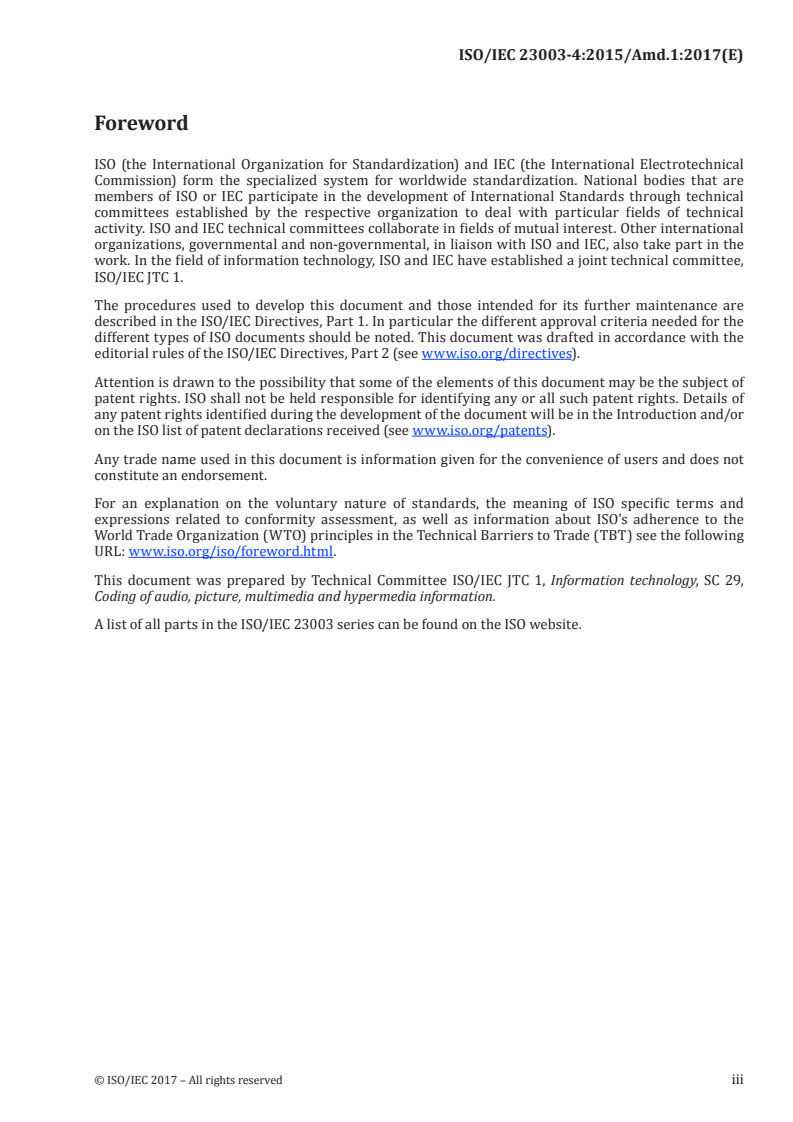

Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical

Commission) form the specialized system for worldwide standardization. National bodies that are

members of ISO or IEC participate in the development of International Standards through technical

committees established by the respective organization to deal with particular fields of technical

activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international

organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the

work. In the field of information technology, ISO and IEC have established a joint technical committee,

ISO/IEC JTC 1.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following

URL: www.iso.org/iso/foreword.html.

This document was prepared by Technical Committee ISO/IEC JTC 1, Information technology, SC 29,

Coding of audio, picture, multimedia and hypermedia information.
A list of all parts in the ISO/IEC 23003 series can be found on the ISO website.
© ISO/IEC 2017 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 23003-4:2015/Amd.1:2017(E)
Information technology — MPEG audio technologies —
Part 4:
Dynamic Range Control
AMENDMENT 1: Parametric DRC, gain mapping and
equalization tools
Page vi, Introduction
Add the following at the end of the Introduction:

Loudness normalization is fully integrated with DRC and peak control to avoid clipping. A metadata-

controlled equalization tool is provided to compensate for playback scenarios that impact the spectral

balance, such as downmix or DRC. Furthermore, the DRC tool supports metadata-based loudness

equalization to compensate the effect of playback level changes on the spectral balance.

Page 2, Clause 4
Insert the following new definitions and maintain the alphabetical order:
mod modulo operator: (x mod y) = x-y floor (x/y)
sizeof(x) size operator that returns the bit size of a field
Page 3, Clause 5
Replace the first paragraph:

The technology described in this part of ISO/IEC 23003 is called DRC tool. It provides efficient control

of dynamic range, loudness, and clipping based on metadata generated at the encoder. The decoder can

choose to selectively apply the metadata to the audio signal to achieve a desired result. Metadata for

dynamic range compression consists of encoded time-varying gain values that can be applied to the

audio signal. Hence, the main blocks of the DRC tool include a DRC gain encoder, a DRC gain decoder, a

DRC gain modification block, and a DRC gain application block. These blocks are exercised on a frame-

by-frame basis during audio processing. Various DRC configurations can be conveyed in a separate

bitstream element, such as configurations for a downmix or combined DRCs. The DRC set selection

block decides based on the playback scenario and the applicable DRC configurations which DRC gains

to apply to the audio signal. Moreover, the DRC tool supports loudness normalization based on loudness

metadata.
With:

The technology described in this document is called the “DRC tool”. It provides efficient control of

dynamic range, loudness, and clipping based on metadata generated at the encoder. The decoder can

choose to selectively apply the metadata to the audio signal to achieve a desired result. Metadata for

dynamic range compression consists of encoded time-varying gain values that can be applied to the

audio signal. Hence, the main blocks of the DRC tool include a DRC gain encoder, a DRC gain decoder, a

DRC gain modification block, and a DRC gain application block. These blocks are exercised on a frame-

by-frame basis during audio processing. In addition to encoded time-varying gain values, the DRC

© ISO/IEC 2017 – All rights reserved 1
---------------------- Page: 4 ----------------------
ISO/IEC 23003-4:2015/Amd.1:2017(E)

gain decoder can also receive parametric DRC metadata for generation of time-varying gain values

at the decoder. Various DRC configurations can be conveyed in a separate bitstream element, such as

configurations for a downmix or combined DRCs. The DRC set selection block decides based on the

playback scenario and the applicable DRC configurations which DRC gains to apply to the audio signal.

Moreover, the DRC tool supports loudness normalization based on loudness metadata.

Page 3, Clause 5
Add the following at the end of the clause:

The DRC tool provides support for loudness equalization, or sometimes called “loudness compensation”,

that can be applied to compensate for the effect of the playback level on the spectral balance. For this

purpose, time-varying loudness information can be recovered from DRC gain sequences to dynamically

control the compensation module. While the compensation module is out of scope, the interface

describes in which frequency ranges the loudness information should be applied.

A flexible tool for generic metadata-controlled equalization is provided. The tool can be used to reach

the desired spectral balance of the reproduced audio signal depending on a wide variety of playback

scenarios, such as downmix, DRC, or playback room size. It can operate in the sub-band domain of an

audio decoder and in the time domain.
Page 4, 6.1.1
Replace the following list after Table 1:
The static payload is divided into five logical blocks:
— channelLayout()
— downmixInstructions ()
— drcCoefficientsBasic(), drcCoefficientsUniDrc()
— drcInstructionsBasic(), drcInstructionUniDrc()
— loudnessInfo()
With:
The static payload is divided into six logical blocks:
— channelLayout();
— downmixInstructions(), downmixInstructionsV1();
— drcCoefficientsBasic(), drcCoefficientsUniDrc(), drcCoefficientsUniDrcV1();
— drcInstructionsBasic(), drcInstructionUniDrc(), drcInstructionUniDrcV1();
— loudnessInfo(), loudnessInfoV1();
— loudEqInstructions().
2 © ISO/IEC 2017 – All rights reserved
---------------------- Page: 5 ----------------------
ISO/IEC 23003-4:2015/Amd.1:2017(E)
Page 4, 6.1.1
Replace the last two paragraphs:

uniDrcConfig() contains all blocks except for the loudnessInfo() blocks which are bundled in

loudnessInfoSet(). The last part of the uniDrcConfig() payload can include future extension payloads.

In the event that a uniDrcConfigExtType value is received that is not equal to UNIDRCCONFEXT_TERM,

the DRC tool parser shall read and discard the bits (otherBit) of the extension payload. Similarly, the

last part of the loudnessInfoSet() payload can include future extension payloads. In the event that a

loudnessInfoSetExtType value is received that is not equal to UNIDRCLOUDEXT_TERM, the DRC tool

parser shall read and discard the bits (otherBit) of the extension payload.

The top level fields of uniDrcConfig() include the audio sample rate, which is a fundamental parameter

for the decoding process (if not present, the audio sample rate is inherited from the employed audio

codec). Moreover, the top level fields of uniDrcConfig() include the number of instances of each of

the logical blocks, except for the channelLayout() block which appears only once. The top level fields

of loudnessInfoSet() only include the number of loudnessInfo() blocks. The five logical blocks are

described in the following.
With:

uniDrcConfig() contains all blocks except for the loudnessInfo() blocks which are bundled in

loudnessInfoSet(). The last part of the uniDrcConfig() payload can include future extension payloads.

In the event that a uniDrcConfigExtType value is received that is not equal to UNIDRCCONFEXT_TERM,

the DRC tool parser shall read and discard the bits (otherBit) of the extension payload. Similarly, the

last part of the loudnessInfoSet() payload can include future extension payloads. In the event that a

loudnessInfoSetExtType value is received that is not equal to UNIDRCLOUDEXT_TERM, the DRC tool

parser shall read and discard the bits (otherBit) of the extension payload. Each extension payload type

in uniDrcConfig() or loudnessInfoSet() shall not appear more than once in the bitstream if not stated

otherwise. An extension payload of type UNIDRCCONFEXT_V1 shall preceed an extension payload

of type UNIDRCCONFEXT_PARAM_DRC in the bitstream if both payloads are present. Note that for

ISO/IEC 14496-12, configuration extension payloads are provided according to Table AMD1.26.

The top level fields of uniDrcConfig() include the audio sample rate, which is a fundamental parameter

for the decoding process (if not present, the audio sample rate is inherited from the employed audio

codec). Moreover, the top level fields of uniDrcConfig() include the number of instances of each of the

logical blocks, except for the channelLayout() block which appears only once. The top level fields of

loudnessInfoSet() only include the number of loudnessInfo() blocks. The six logical blocks are described

in the following.
Page 5, 6.1.2.2
Replace:
6.1.2.2 downmixInstructions()

This block includes a unique non-zero downmix identifier (downmixId) that can be used externally to

refer to this downmix. The targetChannelCount specifies the number of channels after downmixing to

the target layout. It may also contain downmix coefficients, unless they are specified elsewhere. For

use cases where the base audio signal represents objects or other audio content, the downmixId can be

used to refer to a specific target channel configuration of a present rendering engine.

With:
6.1.2.2 downmixInstructions() and downmixInstructionsV1()

This block includes a unique non-zero downmix identifier (downmixId) that can be used externally to

refer to this downmix. The targetChannelCount specifies the number of channels after downmixing to

the target layout. It may also contain downmix coefficients, unless they are specified elsewhere. For

© ISO/IEC 2017 – All rights reserved 3
---------------------- Page: 6 ----------------------
ISO/IEC 23003-4:2015/Amd.1:2017(E)

use cases where the base audio signal represents objects or other audio content, the downmixId can

be used to refer to a specific target channel configuration of a present rendering engine. In contrast

to downmixInstructions(), the downmixInstructionsV1() payload includes an offset for all downmix

coefficients and the coefficient decoding does not depend on the LFE channel assignment. The

downmixInstructions() box for ISO/IEC 14496-12 contains the corresponding metadata of either one of

the in-stream payloads as indicated by the version parameter of the box.
Page 5, 6.1.2.3
Replace the heading of 6.1.2.3 with:

6.1.2.3 drcCoefficientsBasic(), drcCoefficientsUniDrc(), and drcCoefficientsUniDrcV1()

Page 5, 6.1.2.3
Replace the second paragraph with:

The DRC location field encoding depends on the audio codec. A codec specification may include this

specification, and use values 1 to 4 to refer to codec-specific locations as indicated in Table 2. For

example, for AAC (ISO/IEC 14496-3), the codec-specific values of the DRC location field are encoded as

shown in Table 3.
Page 6, 6.1.2.3
Add new paragraph before 6.1.2.4:

The drcCoefficientsUniDrcV1() payload is defined in Table AMD1.24. It contains the same information

as drcCoefficientsUniDrc() except for the assignment of DRC gain sequences to gain sets and the

optional specification of a number of parametric DRC characteristics. The drcCoefficientsUniDrc()

payload assigns gain sequences in order of transmission. In contrast, the drcCoefficientsUniDrcV1()

payload maps a gain sequence by index to gainSets. The latter permits to refer to the same gain

sequence for multiple DRC bands which is not possible when using drcCoefficientsUniDrc(). If a

drcCoefficientsUniDrcV1() payload is present, any drcCoefficientsUniDrc() payload for the same

location is ignored.

The drcCoefficientsUniDrcV1() payload can also include information about dynamic equalization

filters if the field shapingFiltersPresent==1. There can be a number of filters that are indexed in order of

appearance. The DRC sets defined in drcInstructionsUniDrcV1() can refer to specific filters using their

indices (see 6.4.11).
Page 6, 6.1.2.4
Replace the heading of 6.1.2.4 with:

6.1.2.4 drcInstructionsBasic(), drcInstructionsUniDrc(), and drcInstructionsUniDrcV1()

Page 6, 6.1.2.4
Insert the following after the first paragraph of 6.1.2.4:

The drcInstructionsUniDrcV1() payload is defined in Table AMD1.25. Compared to the

drcInstructionsUniDrc() payload, it contains the same information plus several enhancements.

However, the downmixIDs that appear in the two payloads are interpreted differently. For

4 © ISO/IEC 2017 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 23003-4:2015/Amd.1:2017(E)

drcInstructionsUniDrcV1(), the downmixIDs indicate which downmix configuration is permitted in

combination with this DRC, but it does not specify whether the DRC is applied to the downmix or the

base layout. This is controlled by the drcApplyToDownmix flag instead.

The enhanced metadata of drcInstructionsUniDrcV1() compared to drcInstructionsUniDrc() includes

references to target DRC characteristics and dynamic equalization filters. If a target characteristic is

referenced, the corresponding DRC gain values shall be mapped to the target characteristic unless the

host system overrides the target characteristic as specified in Table 16. If dynamic equalization filters

are referenced, they shall be applied when the corresponding DRC set is selected and when this feature

is supported by the decoder implementation (see 6.4.11).
Page 7, 6.1.2.4
Replace the paragraphs:

A second DRC set may be specified for certain configurations. These configurations include cases

where, e.g. one DRC set is used for dynamic range compression and the other for clipping prevention

(“Clipping” bit is set); or, e.g. one DRC set is applied before and the other after the downmix. In those

cases, the second DRC set contains a non-zero field dependsOnDrcSet that has the value of the drcSetId

of the first DRC set it depends on. The declared DRC set effects of the second DRC set do not take into

account the effects of the first DRC set. If the first DRC set is not designed to be used without combining

it with another DRC set, the noIndependentUse flag shall be set to 1. In that case, the DRC set can only

be used in combination with another DRC set as indicated by the dependsOnDrcSet field of the other set

that is combined with it.

Usually, each audio channel is assigned to a DRC gain sequence. A collection of channels assigned to

the same DRC gain sequence is called “channel group”. The assignment of a DRC gain sequence to a

channel group is done in the order of first appearance of the sequence index when iterating through all

channels (see also Table 14). A DRC gain sequence index bsSequenceIndex==0 indicates that the assigned

channel will be passed through by the DRC tool without processing unless otherwise noted. Note that

therefore bsSequenceIndex is effectively 1-based, whereas the corresponding indices (sequenceIndex) for

processing are zero-based.

If subsequent channels are assigned the same sequence index, the field repeatSequenceCount indicates

how many channels will have the same sequence not including the first.
With:

A second DRC set may be specified for certain configurations. These configurations include cases where,

for example, one DRC set is used for dynamic range compression and the other for clipping prevention

(“Clipping” bit is set); or, for example, one DRC set is applied before and the other after the downmix.

In those cases, the first DRC set contains a non-zero field dependsOnDrcSet that has the value of the

drcSetId of the second DRC set it depends on. The declared DRC set effects of the first DRC set do not

take into account the effects of the second DRC set. If the second DRC set is not designed to be used

without combining it with another DRC set, the noIndependentUse flag shall be set to 1. In that case, the

DRC set can only be used in combination with another DRC set as indicated by the dependsOnDrcSet

field of the other set that is combined with it.

If a second DRC is specified by the dependsOnDrcSet field of a drcInstructionsUniDrcV1() payload,

the combined DRCs cannot be applied if the DRC decoder downmix configuration does not match any

downmixID in any of the two corresponding drcInstructionsUniDrcV1() payloads. Please note that these

downmix configurations may include the output of the base layout without downmix, which is specified

by a downmixID==0. Otherwise, the combined DRC is compatible with the downmix.

A DRC gain set is a set of DRC gain sequences, where the sequences are assigned to the bands of a multi-

band DRC. For a single band DRC, the gain set contains just one gain sequence. Usually, each audio

channel is assigned to a DRC gain set. A collection of channels assigned to the same DRC gain set is

called “channel group”. The assignment of a DRC gain set to a channel group is done in the order of first

appearance of the set index when iterating through all channels (see also Table 14). A DRC gain set index

© ISO/IEC 2017 – All rights reserved 5
---------------------- Page: 8 ----------------------
ISO/IEC 23003-4:2015/Amd.1:2017(E)

bsGainSetIndex==0 indicates that the assigned channel will be passed through by the DRC tool without

processing unless otherwise noted. Note that therefore, bsGainSetIndex is effectively 1-based, whereas

the corresponding indices (gainSetIndex) are zero-based.

If subsequent channels are assigned the same gain set index, the field repeatGainSetCount indicates how

many channels will have the same gain set not including the first.
Page 7, 6.1.2.5
Replace the heading of 6.1.2.5 with:
6.1.2.5 loudnessInfo() and loudnessInfoV1()
Page 8, 6.1.2.5
Replace the second paragraph:

If downmixId is zero, then loudnessInfo() applies to the base layout. If the drcSetId is zero, then

loudnessInfo() applies to the audio signal without DRC processing.
With:

If downmixId is zero, then loudnessInfo() applies to the base layout. If the drcSetId is zero, then

loudnessInfo() applies to the audio signal without DRC processing. If drcSetId is 0x3F, then loudnessInfo()

applies to any DRC processing including no DRC.
Page 8, 6.1.2.5
Replace the third paragraph:

The fields samplePeakLevel and truePeakLevel represent the level of the maximum sample magnitude

in dBFS and the true peak in dBTP, respectively, of the associated audio content before or after audio

encoding as defined in Reference [4]. The measurementSystem field includes standardized systems

and others (see Table A.37). System 3 is defined as ITU-R BS.1770-3 with pre-processing. The pre-

processing is a high-pass filter that models the typical limited frequency response of portable device

loudspeakers. System 4 is defined as “User”. It means that the corresponding methodValue reflects a

(subjective) user preference. System 5 is defined as “Expert/Panel”. It means that the corresponding

methodValue represents a (subjective) expert or panel preference.
With:

The fields samplePeakLevel and truePeakLevel represent the level of the maximum sample magnitude

in dBFS and the true peak in dBTP, respectively, of the associated audio content before or after audio

encoding as defined in Reference [4]. The measurementSystem field includes standardized systems

and others (see Table A.37). System 3 is defined as ITU-R BS.1770-4 with pre-processing. The pre-

processing is a high-pass filter that models the typical limited frequency response of portable device

loudspeakers. System 4 is defined as “User”. It means that the corresponding methodValue reflects a

(subjective) user preference. System 5 is defined as “Expert/Panel”. It means that the corresponding

methodValue represents a (subjective) expert or panel preference.
6 © ISO/IEC 2017 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 23003-4:2015/Amd.1:2017(E)
Page 8, 6.1.2.5
Add a new subclause after 6.1.2.5:
6.1.2.6 loudEqInstructions()

The loudEqInstructions() payload includes information relevant for the loudness equalization support.

Each instance of this payload defines a set of loudness equalizer metadata and which combinations of

downmix, DRC, and EQ it can be applied to. The metadata includes references to the corresponding DRC

gain sequences and associated parameters needed to derive the acoustic level data. A typical way of

generation and use of the metadata is given in D.2.10.
Page 11, 6.1.3
Replace the paragraph before Table 7:

Table 6 includes functions to check the availability and to retrieve peak-related information from

loudnessInfo() and a drcInstructions block which can have the basic or uniDrc format. Table 7 shows

pseudo code for some of the functions for the truePeakLevel and limiterPeakTarget. The functions for

samplePeakLevel can be implemented by replacing truePeakLevel with samplePeakLevel.

With:

Table 6 includes functions to check the availability and to retrieve peak-related information from

loudnessInfo() and a drcInstructions block which can have the basic or uniDrc format. Table 7

shows pseudo code for some of the functions for the truePeakLevel and limiterPeakTarget based on

downmixInstructions(), drcInstructionsUniDrc(), and loudnessInfo() payloads. The functions shall be

adapted accordingly for the downmixInstructionsV1(), drcInstructionsUniDrcV1(), or loudnessInfoV1()

payloads, if present. The functions for samplePeakLevel can be implemented by replacing truePeakLevel

with samplePeakLevel.
Page 9, 6.1.3
Add the following paragraph and table after Table 5:

The applicable loudnessInfo() structure for determination of programLoudness and anchorLoudness is

determined as specified in Table AMD1.1. The final loudness metadata value is extracted based on the

selection steps specified in 6.6.2.

Table AMD1.1 — Determination of applicable loudnessInfo() structure for selection of

programLoudness or anchorLoudness for a specific DRC set
getApplicableLoudnessInfoStructure(drcSetId, downmixIdRequested) {
/* default value */
loudnessInfo = getLoudnessInfoStructure(drcSetId, downmixIdRequested);
/* fallback values */
if (loudnessInfo == NULL) {
loudnessInfo = getLoudnessInfoStructure(drcSetId, 0x7F);
} else if (loudnessInfo == NULL) {
loudnessInfo = getLoudnessInfoStructure(0x3F, downmixIdRequested);
} else if (loudnessInfo == NULL) {
loudnessInfo = getLoudnessInfoStructure(0, downmixIdRequested);
} else if (loudnessInfo == NULL) {
loudnessInfo = getLoudnessInfoStructure(0x3F, 0x7F);
} else if (loudnessInfo == NULL) {
© ISO/IEC 2017 – All rights reserved 7
---------------------- Page: 10 ----------------------
ISO/IEC 23003-4:2015/Amd.1:2017(E)
Table AMD1.1 (continued)
loudnessInfo = getLoudnessInfoStructure(0, 0x7F);
} else if (loudnessInfo == NULL) {
loudnessInfo = getLoudnessInfoStructure(drcSetId, 0);
} else if (loudnessInfo == NULL) {
loudnessInfo = getLoudnessInfoStructure(0x3F, 0);
} else if (loudnessInfo == NULL) {
loudnessInfo = getLoudnessInfoStructure(0, 0);
}
return loudnessInfo;
getLoudnessInfoStructure(drcSetId, downmixId) {
if (useAlbumMode == 1) count = loudnessInfoAlbumCount;
else count = loudnessInfoCount;
for (i=0; i if (loudnessInfo[i]->drcSetId == drcSetId) &&
(loudnessInfo[i]->downmixId == downmixId) {
for (j=0; jmeasurmentCount; j++) {
if ((loudnessInfo[i]->measure[j]->methodDefinition==1) ||
(loudnessInfo[i]->measure[j]->methodDefinition==2)) {
return loudnessInfo[i];
}
}
}
}
return NULL;
Page 10, Table 6
Replace Table 6 with:
Table 6 — Determination of signalPeakLevel for a specific DRC set
getSignalPeakLevelForDrcSet (drcSetId, downmixIdRequested) {
dmxId = downmixIdRequested;
if truePeakLevelIsPresent(drcSetId, dmxId) {
signalPeakLevel = getTruePeakLevel(drcSetId, dmxId);
} else if samplePeakLevelIsPresent(drcSetId, dmxId) {
signalPeakLevel = getSamplePeakLevel(drcSetId, dmxId);
} else if truePeakLevelIsPresent(0x3F, dmxId) {
signalPeakLevel = getTruePeakLevel(0x3F, dmxId);
} else if samplePeakLevelIsPresent(0x3F, dmxId) {
signalPeakLevel = getSamplePeakLevel(0x3F, dmxId);
} else if limiterPeakTargetIsPresent(drcSetId, dmxId) {
signalPeakLevel = getLimiterPeakTarget(drcSetId, dmxId);
} else if (dmxId != 0) {
signalPeakLevelTmp = 0.0;
downmixPeakLevelLinear = 0.0;
if downmixCoefficientsArePresent(dmxId) {
for (i=0; i 8 © ISO/IEC 2017 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/IEC 23003-4:2015/Amd.1:2017(E)
Table 6 (continued)
downmixPeakLevelLinearTmp = 0.0;
for (j=0; j downmixPeakLevelLinearTmp +=
pow(10.0, getDownmixCoefficient(dmxId, i, j)/20.0);
}
if (downmixPeakLevelLinear < downmixPeakLevelLinearTmp) {
downmixPeakLevelLinear = downmixPeakLevelLinearTmp;
}
}
}
if truePeakLevelIsPresent(drcSetId, 0) {
signalPeakLevelTmp = getTruePeakLevel(drcSetId, 0);
} else if samplePeakLevelIsPresent(drcSetId, 0) {
signalPeakLevelTmp = getSamplePeakLevel(drcSetId, 0);
} else if truePeakLevelIsPresent(0x3F, 0) {
signalPeakLevelTmp = getTruePeakLevel(0x3F, 0);
} else if samplePeakLevelIsPresent(0x3F, 0) {
signalPeakLevelTmp = getSamplePeakLevel(0x3F, 0);
} else if limiterPeakTargetIsPresent(drcSetId, 0) {
signalPeakLevelTmp = getLimiterPeakTarget(drcSetId, 0);
}
signalPeakLevel = signalPeakLevelTmp + 20.0*log10(downmixPeakLevelLinear);
} else {
signalPeakLevel = 0.0; /* worst case estimate */
}
return signalPeakLevel
Page 12, 6.3.1
Replace the paragraph:

The most relevant metadata for the selection process is summarized in Table 8. The bit fields of the

drcSetEffect field are described in detail in Table A.32. All parameters that can be supplied by the host

to control loudness normalization and dynamic range compression are summarized in Table A.40 and

Table A.41, respectively.
With:

The most relevant metadata for the selection process is summarized in Table 8. The bit fields of the

drcSetEffect field are described in detail in Table A.32. All parameters that can be supplied by the host

to control loudness normalization and dynamic range compression are summarized in Table A.40 and

Table A.41, respectively.

If the DRC tool is configured to support equalization (EQ) according to 6.8, the selection process

includes the EQ-related metadata and the final selection also considers requests for specific EQ, such as

EQ dependent on the playback room size. Otherwise, the preselection discards all DRC sets that require

EQ, i.e. which have a value of requiresEq==1.
© ISO/IEC 2017 – All rights reserved 9
---------------------- Page: 12 ----------------------
ISO/IEC 23003-4:2015/Amd.1:2017(E)
Page 14, 6.3.2.1
Replace:
Table 9 — Requirements for DRC pre-selection
# Requirement Applicability Comment
1 DownmixId of DRC set matches the If a downmixId is requested See 6.3.2.2.
requested downmixId.
2 Output channel layout of DRC set If a target channel layout is request
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
