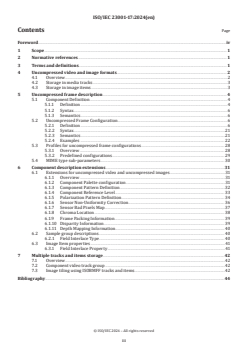

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Uncompressed video and image formats . . 2
4.1 Overview .2
4.2 Storage in media tracks .3
4.3 Storage in image items .3
5 Uncompressed frame description . 4
5.1 Component Definition .4
5.1.1 Definition .4
5.1.2 Syntax . .6
5.1.3 Semantics .6
5.2 Uncompressed Frame Configuration . .6
5.2.1 Definition .6
5.2.2 Syntax . .21
5.2.3 Semantics .21
5.2.4 Examples . 22
5.3 Profiles for uncompressed frame configurations . 28
5.3.1 Overview . 28
5.3.2 Predefined configurations . 29
5.4 MIME type sub-parameters . 30
6 Component description extensions .31
6.1 Extensions for uncompressed video and uncompressed images .31
6.1.1 Overview .31
6.1.2 Component Palette configuration .31
6.1.3 Component Pattern Definition .32
6.1.4 Component Reference Level . 33
6.1.5 Polarization Pattern Definition . 34
6.1.6 Sensor Non-Uniformity Correction . 36
6.1.7 Sensor Bad Pixels Map . .37
6.1.8 Chroma Location . 38
6.1.9 Frame Packing Information . . 39
6.1.10 Disparity Information. 39
6.1.11 Depth Mapping Information . . . 40
6.2 Sample group descriptions . 40
6.2.1 Field Interlace Type . 40
6.3 Image Item properties .41
6.3.1 Field Interlace Property .41
7 Multiple tracks and items storage.42
7.1 Overview .42
7.2 Component video track group .42
7.3 Image tiling using ISOBMFF tracks and items.42
Bibliography .44

© ISO/IEC 2024 – All rights reserved
iii

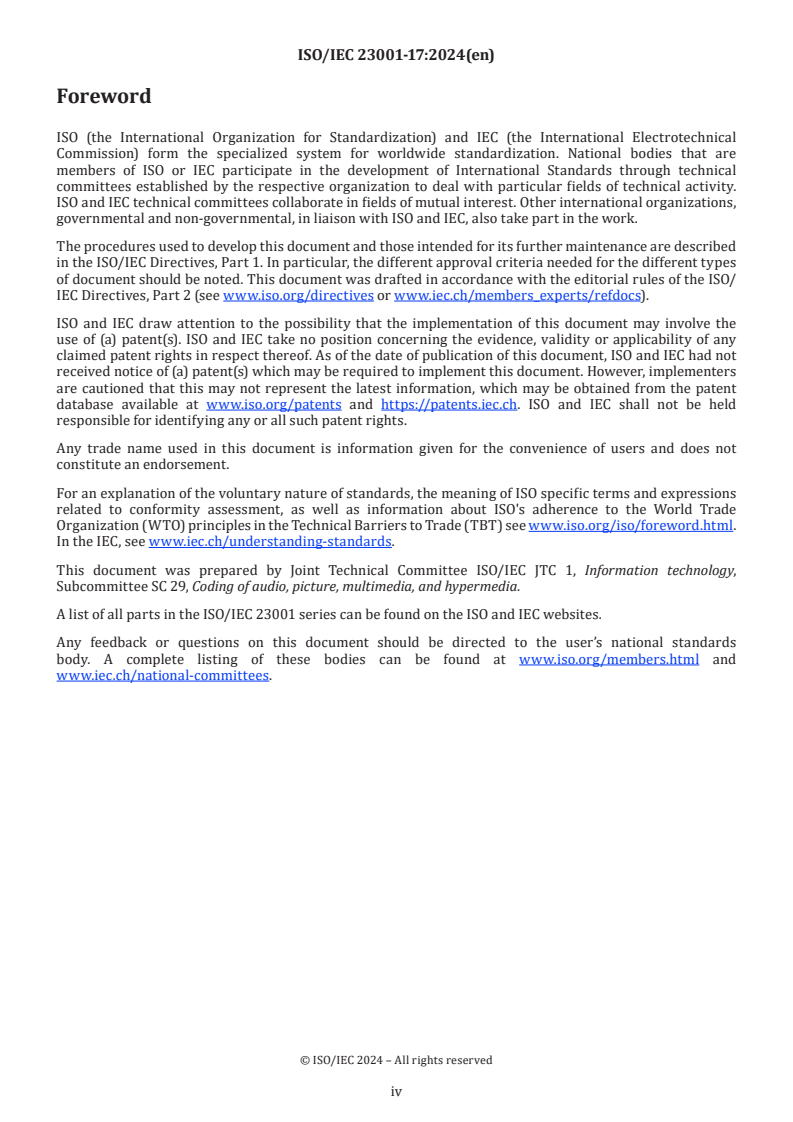

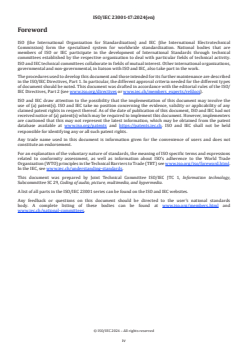

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical activity.
ISO and IEC technical committees collaborate in fields of mutual interest. Other international organizations,
governmental and non-governmental, in liaison with ISO and IEC, also take part in the work.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of document should be noted. This document was drafted in accordance with the editorial rules of the ISO/
IEC Directives, Part 2 (see www.iso.org/directives or www.iec.ch/members_experts/refdocs).
ISO and IEC draw attention to the possibility that the implementation of this document may involve the
use of (a) patent(s). ISO and IEC take no position concerning the evidence, validity or applicability of any
claimed patent rights in respect thereof. As of the date of publication of this document, ISO and IEC had not
received notice of (a) patent(s) which may be required to implement this document. However, implementers
are cautioned that this may not represent the latest information, which may be obtained from the patent
database available at www.iso.org/patents and https://patents.iec.ch. ISO and IEC shall not be held
responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www.iso.org/iso/foreword.html.
In the IEC, see www.iec.ch/understanding-standards.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 29, Coding of audio, picture, multimedia, and hypermedia.
A list of all parts in the ISO/IEC 23001 series can be found on the ISO and IEC websites.
Any feedback or questions on this document should be directed to the user’s national standards
body. A complete listing of these bodies can be found at www.iso.org/members.html and
www.iec.ch/national-committees.

© ISO/IEC 2024 – All rights reserved
iv
International Standard ISO/IEC 23001-17:2024(en)
Information technology — MPEG systems technologies —
Part 17:
Carriage of uncompressed video and images in ISO base
media file format
1 Scope
This document specifies how uncompressed 2D image and video data is carried in files in the family of
standards based on the ISO base media file format (ISO/IEC 14496-12). This includes but is not limited to
monochromatic data, colour data, transparency (alpha) information and depth information.
The primary goal of this document is to allow exchange of uncompressed video and image data while relying
on the information set provided by the ISO base media file format, such as timing, colour space and sample
aspect ratio to specify the interpretation and/or display of video and image data.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 14496-12, Information technology — Coding of audio-visual objects — Part 12: ISO base media file
format
ISO/IEC 23008-12, Information technology — High efficiency coding and media delivery in heterogeneous
environments — Part 12: Image File Format
IEEE 754-2008, IEEE Standard for Floating-Point Arithmetic
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 14496-12 and the following
apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
block
consecutive bytes within the sample data containing one or more component values for one or more pixels
and possible padding
3.2
component
part of the image data representing a single channel (or dimension) of the image
Note 1 to entry: In this document, a component may describe visual information such as luminance or chroma, or
other information usually not intended for direct display such as depth or transparency.

© ISO/IEC 2024 – All rights reserved
3.3
frame
two-dimensional rectangular array of pixels contained in the sample data
3.4
interleaving
ordering of pixel or component within the sample data
3.5
pixel
smallest element of an image, comprised of one or more components
3.6
row
horizonal line of pixels within a frame or a tile
3.7
sample data
payload of the media sample when the uncompressed frame is described by a media track, or payload of the
item when the uncompressed frame is described by an image item
Note 1 to entry: Media sample as defined in ISO/IEC 14496-12.
Note 2 to entry: Image item as defined in ISO/IEC 23008-12.
3.8
tile
two-dimensional rectangular array of pixels within a frame
3.9
uncompressed frame
frame for which each value of each component is coded independently from any other component value in
the same frame or any other frame
Note 1 to entry: In this document, the uncompressed term is used with some video formats applying sub-sampling
of some components for the purpose of data reduction; however, data access to each individual component for such
formats is still independent from other components or frames.
3.10
uncompressed image
single uncompressed frame stored as an image item
3.11
uncompressed video
sequence of one or more uncompressed frames
4 Uncompressed video and image formats
4.1 Overview
Uncompressed frames may be stored in ISO base media files as media samples of media tracks or as image
items using a generic uncompressed video description defined in this document.
Media tracks, media samples and image items may be further described using the various tools defined
in ISO/IEC 14496-12, such as sample group descriptions, MetaBox, metadata tracks and sample auxiliary
information. User-defined components may be used to carry per-pixel specific information, either in the
same sample or item as the described pixels or in a separate track or item.
The tools defined in ISO/IEC 14496-12 and ISO/IEC 23008-12 should be used whenever applicable, namely
to specify pixel aspect ratio, colour information, clean aperture, content light level, mirror and rotate
properties or track header matrix, etc.

© ISO/IEC 2024 – All rights reserved
An uncompressed video media sample or item consists of one uncompressed frame. Each uncompressed
frame is organized as a set of one or more rectangular, non-overlapping and contiguous (without holes)
areas called tiles.
ISOBMF allows constructing files referring to external data. This enables building ISOBMF files describing
existing uncompressed image or video files without having to copy the media data, simplifying integration
into existing workflows.
4.2 Storage in media tracks
Uncompressed video tracks compliant to this document are tracks compliant to ISO/IEC 14496-12 that use
a VisualSampleEntry with codingname equal to 'uncv', hereafter called uncompressed video sample entry.
The uncompressed video sample entry shall contain
— one UncompressedFrameConfigBox;
— one ComponentDefinitionBox if the UncompressedFrameConfigBox version is not 1.
When both UncompressedFrameConfigBox and ComponentDefinitionBox are present in the sample entry, the
ComponentDefinitionBox shall precede the UncompressedFrameConfigBox.
The compressorname field of an uncompressed video sample entry should be set to all 0 (empty string). The
depth field of an uncompressed video sample entry shall be ignored and should be set to 0, the bit depth per
component being indicated by the UncompressedFrameConfigBox.
The handler type associated with the track is usually 'vide', 'auxv' or 'pict' but derived specifications
may introduce new handler types. The width and height fields of the sample entry documents the exact
frame dimension, in pixels of any non-subsampled component, of any sample of the video stream that is
described by this sample entry. Consequently, if the frame dimension changes within a video track, multiple
sample entries shall be used.
The payload of an uncompressed video media sample consists of one uncompressed frame.
The size in bytes of an uncompressed video media sample shall be at least the size in bytes required to store
all the components values documented by the uncompressed video configuration as defined in subclause 5.2.
NOTE The sample data can be larger than the size in bytes required to store all the components values, typically
to store information in the trailing data. How such additional bytes are handled by a file reader is out of scope of this
document.
Each uncompressed video media sample shall be marked as a sync sample. As a consequence, the
SyncSampleBox, ShadowSyncSampleBox, CompositionOffsetBox and CompositionToDecodeBox shall not be
present in the track.
Media tracks containing only non-visual components should be marked as not present in the presentation,
i.e. track_in_movie flag should not be set.
Media tracks containing user-defined components providing per-pixel information for pixels in another
track should use a track reference of type 'cdsc' to the track they describe.
4.3 Storage in image items
An uncompressed image compliant to this document is an image item compliant to ISO/IEC 23008-12 with
the item_type 'unci'.
An uncompressed image shall be associated with:
— an UncompressedFrameConfigBox essential item property, i.e., essential shall be equal to 1 for an
UncompressedFrameConfigBox item property associated with an image item of type 'unci';
— a ComponentDefinitionBox essential item property if the UncompressedFrameConfigBox version is not 1;

© ISO/IEC 2024 – All rights reserved
— an ImageSpatialExtentsProperty whose image_width and image_height fields shall document the exact
frame dimension, in pixels, of the reconstructed image, i.e. the size of the image before applying any
associated transformative properties.
The payload of an uncompressed image consists of one uncompressed frame.
The size in bytes of an uncompressed image item shall be at least the size in bytes required to store all the
components values documented by the uncompressed video configuration as defined in subclause 5.2.
NOTE The image item data can be larger than the size in bytes required to store all the components values,
typically to store information in the trailing data. How such additional bytes are handled by a file reader is out of
scope of this document.
An uncompressed image can be further documented using the various tools defined in ISO/IEC 14496-12 or
ISO/IEC 23008-12, such as descriptive item properties.
Uncompressed images containing only non-visual components should be marked as hidden items, i.e. have
(flags & 1) equal to 1 in their ItemInfoEntry.
Uncompressed images containing user-defined components providing per-pixel information for pixels in
another item should use an item reference of type 'cdsc' to the item they describe.
If an uncompressed item is associated with an AuxiliaryTypeProperty indicating alpha (resp. depth), the
uncompressed item shall have one and only one component of type alpha (resp. depth).
5 Uncompressed frame description
5.1 Component Definition
5.1.1 Definition
Box Type: 'cmpd'
Container: Video sample entry, ItemPropertyContainerBox
Mandatory: see below
Quantity: At most one per uncompressed video sample entry or at most one associated per uncompressed
image item
The ComponentDefinitionBox is used to document the types of components present in samples or items
associated with this box through the sample entry or through item property association.
Components defined in the ComponentDefinitionBox are referenced by indexes in various boxes in this
document. Care has to be taken while removing components from an uncompressed video or image to
also remove in other boxes any reference to the removed components. There is no requirement that all
components defined in the ComponentDefinitionBox are referenced by other boxes.
For all boxes referring to components defined in the ComponentDefinitionBox, the associated
ComponentDefinitionBox (resp. the associated UncompressedFrameConfigBox) is defined as:
— for an uncompressed video, the ComponentDefinitionBox (resp. UncompressedFrameConfigBox) present
in the same sample entry as the referring box;
— for an uncompressed image, the ComponentDefinitionBox (resp. UncompressedFrameConfigBox)
associated, through ItemPropertyAssociationBox, to the same image item as the referring box.
This box shall be present if the version of the associated UncompressedFrameConfigBox is 0.
This box may be present if the version of the associated UncompressedFrameConfigBox is 1.
When the ComponentDefinitionBox is not present, the associated ComponentDefinitionBox is implicitly
defined as indicated by the profile of the associated UncompressedFrameConfigBox, see subclause 5.3.

© ISO/IEC 2024 – All rights reserved
The component_index field value defined in boxes using an associated ComponentDefinitionBox indicates
the index in the list of components, with value 0 indicating the first component listed in the associated
ComponentDefinitionBox. The component_index field value shall be strictly less than the component_count
field value of the associated ComponentDefinitionBox.
A ComponentDefinitionBox may describe two or more components with the same type (e.g. two monochrome
components representing different portions of the electromagnetic spectrum), and file readers may require
additional information to process the pixel data. How such information is provided to the file reader is out of
scope of this document.
Table 1 — Component types
Value Description
0 Monochrome component
1 Luma component (Y)
2 Chroma component (Cb / U)
3 Chroma component (Cr / V)
4 Red component (R)
5 Green component (G)
6 Blue component (B)
7 Alpha/transparency component (A)
8 Depth component (D)
9 Disparity component (Disp)
10 Palette component (P)
The component_format value for this component shall be 0.
11 Filter Array (FA) component such as Bayer, RGBW, etc.
12 Padded component (unused bits/bytes)
13 Cyan component (C)
14 Magenta component (M)
15 Yellow component (Y)
16 Key (black) component (K)
17 to 0x7FFF ISO/IEC reserved
0x8000 to 0xFFFF User-defined component type(s)
Component types reflect only a nominal characterization of the pixel data and how that pixel data should
be displayed; precise bandpass limits, for example, are not implied and may differ from image to image. For
some component types, some other boxes can provide additional information, such as ColourInformationBox
or MasteringDisplayColourVolumeBox. For other component types, the signalling of such information is out
of scope of this document.
if a ColourInformationBox is present for the media sample or item:
— if the ColourInformationBox describes components by numbers, there shall be at least as many
components in the reconstructed image as indicated by the ColourInformationBox, and components are
matched by indices;
— if the ColourInformationBox describes components by labels (e.g. Y, Cb / U, Cr / V or R, G, B), these
components shall be present in the image after applying palette or filter array, if any.
If the bands need to be identified beyond the component type, it is recommended to use URIs in place of the
enumerated component_type value.

© ISO/IEC 2024 – All rights reserved
5.1.2 Syntax
aligned(8) class ComponentDefinitionBox extends Box('cmpd') {
unsigned int(32) component_count;
{
unsigned int(16) component_type;
if (component_type>=0x8000) {
utf8string component_type_uri;
}
} [component_count];
}
5.1.3 Semantics
component_count indicates the number of components described in this box.
component_type indicates the type of the component, as defined in Table 1.
component_type_uri indicates a URI describing the user-defined component type.
5.2 Uncompressed Frame Configuration
5.2.1 Definition
5.2.1.1 Overview
Box Type: 'uncC'
Container: Video sample entry, ItemPropertyContainerBox
Mandatory: Yes, if codingname of the sample entry is 'uncv' or if the item_type of the item is 'unci'
Quantity: One per uncompressed video sample entry or one associated per uncompressed image item
The UncompressedFrameConfigBox describes uncompressed frames that are composed of one or more
components. RGB or YUV formats are typical examples of such uncompressed frames for which each colour
component is a component of the uncompressed frame. Other component types can also be described (e.g.
disparity, transparency, infra-red). The type of each component is specified by the component_type field in
the associated ComponentDefinitionBox.
Component values may be absolute values or indexes into a colour palette, with adjustable black and white
reference levels. Pattern-based sensor data, such as Bayer, can be described through user-defined patterns,
together with various sensor information (polarization, non-uniformity correction, broken pixels, etc.).
For each component, this box specifies the numerical format (e.g. unsigned integer, IEEE 754 binary32
floating point) and bit depth through the component_format and component_bit depth_minus_one fields.
Pixel data may be interleaved per component, per pixel, per row or per tile, as specified by the interleave_
type field, with byte alignment for each row and tile specified by the fields row_align_size and tile_align_
size. Pixel data may also be grouped together in blocks, typically to respect endianness constraints, as
specified by the block_size, block_pad_lsb and block_little_endian fields.
Some formats, such as YUV video, do not always use the same 2D resolution for each component of the frame.
This is indicated by the sampling_type field.
The UncompressedFrameConfigBox may indicate a profile, allowing faster identification of the class
of video data used. Profiles are defined in subclause 5.3. Some profiles may use version 1 of the
UncompressedFrameConfigBox, in which case only the profile is given and the ComponentDefinitionBox, if
absent, is implicitly defined by the profile.
5.2.1.2 Component ordering and constraints
Each pixel in a frame is made of one or more components, where each component is assigned a type (e.g. ‘Y’,
‘U’, ‘V’), as detailed in subclause 5.1.

© ISO/IEC 2024 – All rights reserved
The order in which components are specified in the UncompressedFrameConfigBox indicates the order in
which components are placed into the sample data or within blocks, prior to blocking and endian conversion.
Some formats, such as Bayer image data, contain a 2D array of single-component values, with each
individual component value assigned to a component type using a fixed pattern. Such formats are described
as mono-component data with no subsampling, use a component type of 11 (‘FA’). There shall be at most one
component with type 11 (‘FA’) present in the component list. There may be additional components of other
types present, for example to associate an alpha component with a Bayer image. If a component with type
11 (‘FA’) is present, there shall be a ComponentPatternDefinitionBox present in the video sample entry or
associated to the item to indicate the pattern of component values.
Some formats code colours according to a set of predefined colours, or palette. Such formats are described
as single-component with no subsampling, use a component type of 10 (‘P’). There shall be at most one
component with type 10 (‘P’) present in the component list. There may be additional components of other
types present, for example to associate per-pixel alpha component with a palette image. If a component with
type 10 (‘P’) is present, there shall be a ComponentPaletteBox present in the video sample entry or associated
to the item to indicate the palette values.
5.2.1.3 Component size and numerical format
The variable component_bit_depth for a component is defined as (component_bit_depth_minus_one + 1).
For a given component, the binary representation of each value is given by component_bit_depth (the size in
bits of each component value) and component_format.
The possible values for component_format field is defined in Table 2.
Table 2 — Component formats
Value Description
0 Component value is an unsigned integer coded on component_bit_depth bits.
1 Component value is an IEEE 754 binary float number coded on component_bit_depth
bits (e.g. if component_bit_depth is 16, then the component value is coded as IEEE
754 'binary16'). For this component format, component_bit_depth values shall be 16,
32, 64, 128 or 256; other values are forbidden.
2 Component value is a complex number coded on component_bit_depth bits,
where the first component_bit_depth/2 bits represent the real part and the next
component_bit_depth/2 bits represent the imaginary part. Each part is coded as
an IEEE 754 binary float of the size component_bit_depth/2. For this component
format, component_bit_depth values shall be 32, 64, 128 or 256; other values are
forbidden.
3 to 255 ISO/IEC reserved for future definition.
If component_align_size is 0, the component value is coded on component_bit_depth bits exactly.
Otherwise (component_align_size is not 0), the component value is coded as a word WC of component_align_
size bytes, starting on a byte boundary. This implies that some pre-alignment padding bits may be present
after the previous component value stored; if such pre-alignment padding bits are present, they shall be set
to 0. The least significant bit of the component value is located at the least significant bit of WC. Alignment
padding bits, if present, are located at the most significant bits and shall be set to 0. If components_little_
endian is 0, WC is stored as a big-endian word. Otherwise (components_little_endian is 1), WC is stored as a
little-endian word.
NOTE For example, a pixel with 10-bit unaligned (component_align_size=0) R, G and B components, followed
by a 1-byte aligned 7-bit A component, stored using pixel interleaving mode, would exist in the sample data as 30
consecutive bits containing R, G and B, followed by 2 pre-alignment padding bits for byte alignment, followed by one
alignment padding bit then followed by the 7-bit A value (bringing the A value aligned on 1 byte), for a total of 5 bytes.

© ISO/IEC 2024 – All rights reserved
For each component, component_align_size shall be either 0 or such that component_align_size*8 is
greater than component_bit_depth. If components_little_endian is 1, block_little_endian shall be 0 and
component_align_size of each component shall be different from 0.
Storage of aligned component values is illustrated in Figure 27.
5.2.1.4 Tiling
The uncompressed frame data is structured in a 2D grid of tiles, where the number of tiles in the horizontal
direction (resp. vertical direction) is specified by the variable num_tile_cols_minus_one+1 (resp. num_tile_
rows_minus_one+1). Tiles allow grouping together the component values of pixels close to each-other (i.e., in
the same spatial region of the frame).
All tiles have the same width and height. The frame width (resp. height) shall be a multiple of num_tile_
cols_minus_one+1 (resp. num_tile_rows_minus_one+1). The tile width is w/(num_tile_cols_minus_one+1),
with w the frame width, and the tile height is h/(num_tile_rows_minus_one+1), with h the frame height.
If the width (resp. height) in a source image is not an integer multiple of num_tile_cols_minus_one+1 (resp.
num_tile_rows_minus_one+1), an application creating the tiled frame shall pad the source image with an
appropriate number of columns to the right (resp. rows to the bottom), and the original image dimension
shall be documented using a CleanApertureBox for media tracks or a clean aperture transformative item
property for image items. The width and height fields of the sample entry or the image_width and image_
height fields of the ImageSpatialExtentsProperty shall specify the padded width and height.
Tiles shall be stored in raster-scan order: the top-left tile is stored first, followed by the tile to its right, and
the first tile of a tile row is stored after the last tile of the previous tile row.
Within a tile, component values shall be stored in raster-scan order, left-to-right and top to bottom: for a
given component, the value for pixel {x+1,y} is stored after (but possibly not contiguous with) the value for
pixel {x,y}, and the value for pixel {x,y+1} is stored after (but possibly not contiguous with) the value for pixel
{x, y}.
5.2.1.5 Sampling mode
5.2.1.5.1 Definition
All components in a frame either have the same dimensions or use pre-defined sampling modes, indicated
by the sampling_type field. Possible values for this field are described in Table 3.
NOTE 1 A sampling mode can restrict the possible interleaving modes since the number of values is not the same
for each component.
NOTE 2 Derived specifications can further restrict the usage of sampling modes with tiling.
Table 3 — Sampling type values
Value Sampling mode
0 No subsampling
1 YCbCr 4:2:2 subsampling
2 YCbCr 4:2:0 subsampling
3 YCbCr 4:1:1 subsampling
4 to 0xFF Reserved
5.2.1.5.2 No subsampling
In this mode, all components have the same width and height as the frame.
The tile width and height are not restricted. Derived specifications can further restrict this, for example to
enforce width and height to be multiples of 2 in case Y, U and V components are present.

© ISO/IEC 2024 – All rights reserved
5.2.1.5.3 YCbCr 4:2:2 Subsampling
This sampling mode shall only be used if the following conditions are all true:
— all three component_type values ‘Y’, ‘U’ and ‘V’ are present in the component list;
— the tile width is a multiple of 2;
— the interleave_type field is set to 0 (component interleaving mode), 2 (mixed interleaving mode) or 5
(multi-Y pixel interleaving mode).
The width and height of the ‘Y’ component are the width and height of the frame. The height of the ‘U’ and ‘V’
component is the same as the height of the ‘Y’ component. The width of the ‘U’ and ‘V’ component is half the
width of the ‘Y’ component. Components of other types may be present, and have the same dimension as the
‘Y’ component.
Pixels {x,y} and {x+1,y}, with x%2==0, share the same component values ‘U’ and ‘V’.
If row_align_size is not 0 and interleave_type is 0:
— row_align_size shall be a multiple of 2;
— the row alignment for components of type ‘U’ and ‘V’, as defined in 5.2.1.7, shall be done using row_align_
size/2.
If tile_align_size is not 0:
— tile_align_size shall be a multiple of 2;
— the tile alignment for components of type ‘U’ and ‘V’, as defined in 5.2.1.7, shall be done using tile_
align_size/2.
5.2.1.5.4 YCbCr 4:2:0 Subsampling
This sampling mode shall only be used if the following conditions are all true:
— all three component_type values ‘Y’, ‘U’ and ‘V’ are present in the component list;
— both tile width and height are multiple of 2;
— the interleave_type field is set to 0 (component interleaving mode) or 2 (mixed interleaving mode).
The width and height of the ‘Y’ component are the width and height of the frame. The width of the ‘U’ and ‘V’
component is half the width of the ‘Y’ component’. The height of the ‘U’ and ‘V’ component is half the height
of the ‘Y’ component. Components of other types may be present, and have the same dimension as the ‘Y’
component.
Pixels {x,y}, {x+1,y}, {x,y+1} and {x+1,y+1} with x%2==0 and y%2==0, share the same component values ‘U’
and ‘V’.
If row_align_size is not 0 and interleave_type is 0:
— row_align_size shall be a multiple of 2;
— the row alignment for components of type ‘U’ and ‘V’, as defined in 5.2.1.7, shall be done using row_align_
size/2.
If tile_align_size is not 0:
— tile_align_size shall be a multiple of 4;
— the tile alignment for components of type ‘U’ and ‘V’, as defined in 5.2.1.7, shall be done using tile_
align_size/4.
© ISO/IEC 2024 – All rights reserved
5.2.1.5.5 YCbCr 4:1:1 Subsampling
This sampling mode shall only be used if the following conditions are all true:
— all three component_type values ‘Y’, ‘U’ and ‘V’ are present in the component list;
— tile width is a multiple of 4;
— the interleave_type field is set to 0 (component interleaving mode), 2 (mixed interleaving mode) or 5
(Multi-Y pixel interleaving mode).
The width and height of the ‘Y’ component are the width and height of the frame. The height of the ‘U’ and
‘V’ component is the same as the height of the ‘Y’ component. The width of the ‘U’ and ‘V’ component is the
width of the ‘Y’ component divided by 4. Components of other types may be present, and have the same
dimension as the ‘Y’ component.
Pixels {x,y} , {x+1,y} , {x+2,y} , {x+3,y}, with x%4==0, share the same component values ‘U’ and ‘V’.
If row_align_size is not 0 and interleave_type is 0:
— row_align_size shall be a multiple of 4;
— the row alignment for components of type ‘U’ and ‘V’, as defined in 5.2.1.7, shall be done using row_align_
size/4.
If tile_align_size is not 0:
— tile_align_size shall be a multiple of 4;
— the tile alignment for components of type ‘U’ and ‘V’, as defined in 5.2.1.7, shall be done using tile_
align_size/4.
5.2.1.6 Interleaving modes
5.2.1.6.1 Definition
The interleaving mode of pixels within a tile (or within the frame if a single tile is used) is indicated by
interleave_type, as defined in Table 4. The interleave_type shall apply to all listed components unless
stated otherwise in the interleaving mode definition.
NOTE The interleaving describes the layout of values within the sample data. Positioning of sample data within
the container file is done according to ISO/IEC 14496-12.
Table 4 — Interleaving type values
Value Interleaving mode
0 Component interleaving
1 Pixel interleaving
2 Mixed interleaving
3 Row interleaving
4 Tile-component interleaving
5 Multi-Y pixel interleaving
6 to 0xFF Reserved
5.2.1.6.2 Component interleaving
For a given component, values for all pixels of a tile shall be located sequentially in the sample data.
Component values shall be located in the order the components were declared.

© ISO/IEC 2024 – All rights reserved
Component interleaving mode can be used with a single tile, as illustrated in Figure 1, or with multiple tiles,
as illustrated in Figure 2. In both examples, R is the first component, G is the second and B is the third.
Key
1 frame
a
Increasing memory addresses.
Figure 1 — Single tile component interleaving example
Key
1 tile
a
Increasing memory addresses.
Figure 2 — Multiple tiles component interleaving example
5.2.1.6.3 Pixel interleaving
For a given pixel, the component values shall be located one after the other, in the order the components are
declared, with the first component of a pixel following the last component of the previous pixel.
Pixel interleaving mode shall only be used if sampling_type field value is 0, i.e. when all components are at
the same resolution.
© ISO/IEC 2024 – All rights reserved
Pixel interleaving mode can be used with a single tile, as illustrated in Figure 3, or with multiple tiles, as
illustrated in Figure 4.
Key
1 pixel
a
Increasing memory addresses.
Figure 3 — Single tile Pixel interleaving example
Key
1 tile
2 pixel
a
Increasing memory addresses.
Figure 4 — Multiple tiles Pixel interleaving example
5.2.1.6.4 Mixed interleaving
Mixed interleaving mode shall only be used if the following conditions are all true:
— sampling_type field value is not 0;
— sampling_type value explicitly allows this interleaving mode;

© ISO/IEC 2024 – All rights reserved
— the ‘U’ and ‘V’ components are consecutive in the component list, i.e. ‘V’ component immediately follows
‘U’ component or ‘U’ component immediately follows ‘V’ component.
For all components other than ‘U’ and ‘V’, component values for all pixels shall be located as specified for
component interleaving mode in the order they are declared. The ‘U’ and ‘V’ component values shall be
located as specified by pixel interleaving mode; the first value for component ‘U’, if declared first, or ‘V’
otherwise, shall be located after the last value of the component preceding ‘U’ or ‘V’ if any, or first in the tile
otherwise.
NOTE Mixed interleaving mode is typically used to store YUV 420 data with all Y components followed by
interleaved U and V components.
Figure 5 illustrates mixed interleaving for sampling_type=2 and Figure 6 illustrates mixed interleaving for
sampling_type=1.
a
Increasing memory addresses.
Figure 5 — Mixed interleaving for YUV 420 example

© ISO/IEC 2024 – All rights reserved
a
Increasing memory addresses.
Figure 6 — Mixed interleaving for YUV422 example
5.2.1.6.5 Row interleaving
For a give
...
