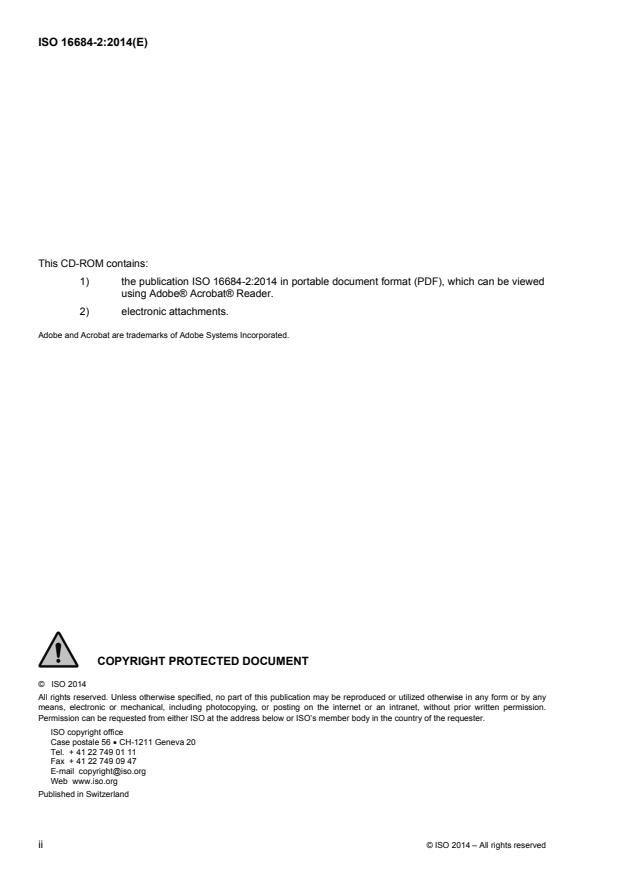

This CD-ROM contains:

1) the publication ISO 16684-2:2014 in portable document format (PDF), which can be viewed

using Adobe® Acrobat® Reader.
2) electronic attachments.
Adobe and Acrobat are trademarks of Adobe Systems Incorporated.
COPYRIGHT PROTECTED DOCUMENT
© ISO 2014

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form or by any

means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior written permission.

Permission can be requested from either ISO at the address below or ISO’s member body in the country of the requester.

ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 16684-2:2014(E)
Installation

If this publication has been packaged as a zipped file, do NOT open the file from the CD-ROM, but copy it to

the desired location in your lo
...

INTERNATIONAL ISO
STANDARD 16684-2
First edition
2014-12-01
Graphic technology — Extensible
metadata platform (XMP) —
Part 2:
Description of XMP schemas using
RELAX NG
Technologie graphique — Plate-forme de métadonnées extensibles
(XMP) —
Partie 2: Description des schémas XMP utilisant RELAX NG
Reference number
ISO 16684-2:2014(E)
ISO 2014
---------------------- Page: 1 ----------------------
ISO 16684-2:2014(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2014

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 16684-2:2014(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Conformance ............................................................................................................................................................................................................. 2

5 Canonical serialization of XMP .............................................................................................................................................................. 2

5.1 General ........................................................................................................................................................................................................... 2

5.2 XMP packet serialization ................................................................................................................................................................ 2

5.3 Property serialization ....................................................................................................................................................................... 2

5.4 Structure value serialization ....................................................................................................................................................... 3

5.5 Array value serialization ................................................................................................................................................................. 3

5.6 Qualifier serialization ........................................................................................................................................................................ 3

6 RELAX NG idioms for XMP........................................................................................................................................................................... 3

6.1 General ........................................................................................................................................................................................................... 3

6.2 Modularization ........................................................................................................................................................................................ 4

6.3 Use of data types.................................................................................................................................................................................... 4

6.4 RELAX NG for properties ................................................................................................................................................................ 6

6.5 RELAX NG for XMP packets .......................................................................................................................................................... 7

6.6 RELAX NG for qualifiers .................................................................................................................................................................. 8

6.7 Extensions ................................................................................................................................................................................................... 9

6.8 Extension for providing UI information ............................................................................................................................ 9

7 RELAX NG schemas ..........................................................................................................................................................................................10

Annex A (informative) RELAX NG schema for standard data types ...................................................................................11

Annex B (informative) RELAX NG schema for the Dublin Core namespace ..............................................................25

Annex C (informative) RELAX NG schema for the XMP namespace ...................................................................................31

Annex D (informative) RELAX NG schema for the XMP Media Management namespace ...........................34

Annex E (informative) RELAX NG schema for the XMP Rights Management namespace............................36

Annex F (informative) RELAX NG schema for a complete XMP packet ...........................................................................38

Bibliography .............................................................................................................................................................................................................................39

© ISO 2014 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 16684-2:2014(E)

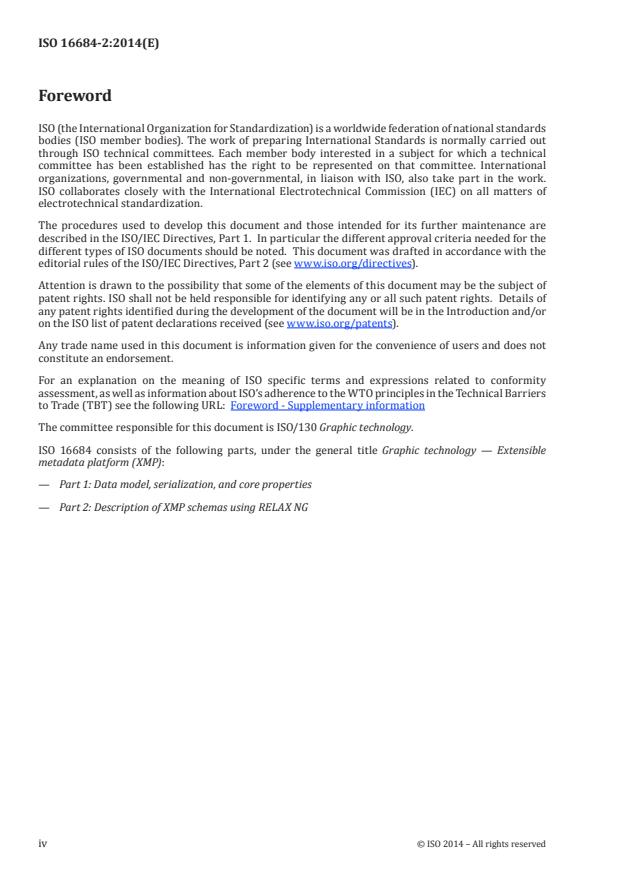

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the meaning of ISO specific terms and expressions related to conformity

assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers

to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/130 Graphic technology.

ISO 16684 consists of the following parts, under the general title Graphic technology — Extensible

metadata platform (XMP):
— Part 1: Data model, serialization, and core properties
— Part 2: Description of XMP schemas using RELAX NG
iv © ISO 2014 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 16684-2:2014(E)
Introduction

ISO 16684 (all parts) defines aspects of the Extensible Metadata Platform (XMP) that are generic, neutral

to the domain of usage. Refer to the Introduction in ISO 16684-1 for general information. This part of

ISO 16684 is about description of XMP schemas for formal or mechanical validation of XMP. RELAX NG

has been chosen as the schema language. It is an ISO standard, ISO/IEC 19757-2, and is both powerful

and easy to use.

There are two major components of formal validation, schemas and validation engines. A schema, or

schema file, is a formal description of constraints regarding the structure and contents of properties in

an XMP packet, on top of the requirements for conforming XMP packets as mandated by ISO 16684-1.

A validation engine is a software tool that compares an input XMP packet to one or more schemas, and

produces a report on whether the XMP packet conforms to the schemas.

This part of ISO 16684 defines policies for validation engines to follow so that schemas can be shared,

so that the schemas do not require customization for each validation engine. It also defines policies for

schemas to follow in order to operate with a conforming validation engine, and to make the schemas

robust and modular.

This part of ISO 16684 does not address how a validation engine reports success or failure. Reporting

success is easy, reporting failure can be complicated by a number of factors.

— It can be difficult to relate a specific RDF usage error to a human-understood XMP data model.

— Recovery from one error can be difficult, masking other errors after the first.

— As an open model, creation of new data items in XMP is expected. Allowing for this in schemas

and/or clear reporting of unexpected input when validating can be difficult.
© ISO 2014 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 16684-2:2014(E)
Graphic technology — Extensible metadata platform
(XMP) —
Part 2:
Description of XMP schemas using RELAX NG
1 Scope

This part of ISO 16684 specifies the use of RELAX NG to describe serialized XMP metadata. This applies

to how conforming schemas can use the features of RELAX NG.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

ISO 16684-1:2012, Graphic technology — Extensible metadata platform (XMP) specification — Part 1: Data

model, serialization and core properties

ISO/IEC 19757-2, Information technology — Document Schema Definition Language (DSDL) — Part 2:

Regular-grammar-based validation — RELAX NG
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
canonical serialization

serialization providing a one-to-one mapping between the XMP data model and the serialized XML

3.2
general qualifier
XMP qualifier other than xml:lang
3.3
schema
schema file
formal description of serialized XMP
3.4
validation
process of verifying whether serialized XMP follows one or more schemas
3.5
validation engine
software tool that performs validation
3.6
XMP
extensible metadata platform, as defined by ISO 16684-1
© ISO 2014 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 16684-2:2014(E)
3.7
XMP entity
XMP property, array item, structure field, or qualifier
4 Conformance

This part of ISO 16684 describes methodology to create interoperable software and schema files in order

to validate XMP metadata using regular-grammar-based validation schemas defined in ISO/IEC 19757-2

and referred to in this part of ISO 16684 as RELAX NG. Conformance on the part of a software validation

engine enables the creation of schema files with lower complexity. Conforming validation engines shall

adhere to all requirements of ISO 16684-1 and this part of ISO 16684. Conforming validation engines

can provide additional features that are not explicitly forbidden by this part of ISO 16684. Conformance

on the part of schema files enables their interchange among conforming validation engines. Conforming

schema files shall adhere to all requirements of this part of ISO 16684. Conforming schema files can

provide additional features that are not explicitly forbidden by this part of ISO 16684.

5 Canonical serialization of XMP
5.1 General

A major difficulty in validating XMP is that the RDF metadata format used by XMP allows multiple XML

representations for the same metadata content. For reference, see ISO 16684-1:2012, 7.9. The RELAX NG

schema language is used to validate serialized XML, not the RDF or XMP data models. Writing a RELAX

NG schema to cover all possible XML forms for XMP is unacceptably complex. A canonical serialization

of XMP is defined to limit this complexity. The canonical serialization requires specific forms of the XMP

serialization defined in ISO 16684-1:2012, Clause 7, banning other forms. This provides a one-to-one

mapping between the XMP data model and the canonical XML.

An XMP validation engine shall produce a canonical serialization of the XMP as part of the validation

process. The validation engine shall accept any XMP as input that is allowed under ISO 16684-1. This

XMP shall be parsed then serialized using the canonical forms described in this Clause. Next, the RELAX

NG schema or schemas shall be applied to that canonical serialization. The XMP validation engine shall

not modify original files containing the input XMP as part of the validation process.

5.2 XMP packet serialization

The canonical serialization of XMP shall have an rdf:RDF outermost XML element, which shall contain

a single rdf:Description element to contain all XMP properties. That is, properties for all top-level

namespaces are within this one rdf:Description element. The XMP properties shall be grouped by

namespace. The namespace groups can have any order.

EXAMPLE An XMP metadata packet is shown containing XMP properties of different namespaces in a single

rdf:Description element.
xmlns:dc=”http://purl.org/dc/elements/1.1/”
xmlns:xmp=”http://ns.adobe.com/xap/1.0/”
xmlns:xmpMM=”http://ns.adobe.com/xap/1.0/mm/”>

image/jpeg
3
2012-02-29T12:33:44
uuid:example1234


5.3 Property serialization

The canonical serialization of XMP shall use the XML element form for XMP properties. The property

attribute notation defined in ISO 16684-1:2012, 7.9.2.2 shall not be used.
2 © ISO 2014 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 16684-2:2014(E)
5.4 Structure value serialization

The canonical serialization of XMP shall use a nested rdf:Description element for structure values. The

structure fields shall be serialized as XML elements within that rdf:Description element. Values in a

structure can be of type simple, structure, or array. They shall be serialized as described in 6.3, 6.4, and

6.5. The rdf:parseType=”resource” attribute notation defined in ISO 16684-1:2012, 7.9.2.3 shall not be

used. The structure field attribute notation defined in ISO 16684-1:2012, 7.9.2.4 shall not be used.

EXAMPLE A structure value from an XMP metadata stream is shown in its canonically serialized form.



id:document
id:instance


5.5 Array value serialization

The canonical serialization of XMP shall use a nested rdf:Bag, rdf:Seq, or rdf:Alt element for array values.

The array items shall be rdf:li elements within the rdf:Bag, rdf:Seq, or rdf:Alt element.

EXAMPLE An array value from an XMP metadata stream is shown in its canonically serialized form.



subject 1
subject 2


5.6 Qualifier serialization

The canonical serialization of XMP shall use the XML syntax defined in ISO 16684-1:2012, 7.8 for

qualifiers. An xml:lang qualifier shall be serialized as an xml:lang attribute in the start tag of the XML

element whose name is that of the XMP entity having the xml:lang qualifier. All general qualifiers shall

be serialized as XML elements within an rdf:Description element that is within the XML element whose

name is that of the XMP entity having the qualifier. The value of that XMP entity shall be within an

rdf:value element within that rdf:Description element. The rdf:value element should be the first XML

element within that rdf:Description element.

The rdf:parseType=”resource” notation defined in ISO 16684-1:2012, 7.9.2.3 shall not be used for an

XMP entity with general qualifiers. The field attribute notation defined in ISO 16684-1:2012, 7.9.2.4

shall not be used for an XMP entity with general qualifiers. The RDF TypedNode notation defined in

ISO 16684-1:2012, 7.9.2.5 shall not be used for an rdf:type qualifier.

EXAMPLE A part from an XMP metadata stream using a qualifier is shown in its canonically serialized form.





0-13-110941-3
ISBN




6 RELAX NG idioms for XMP
6.1 General

Having a canonical serialization for XMP is necessary to simplify the creation of RELAX NG schemas. As

a consequence, considerably more freedom can be granted in the creation of the RELAX NG schemas.

© ISO 2014 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO 16684-2:2014(E)

This clause defines idioms for RELAX NG schemas that can improve reuse and interchange. They can

also enable improved operation of a validation engine, for example making it easier to provide helpful

error messages. Use of these idioms is not required.
6.2 Modularization

RELAX NG provides three main forms of modularization, the rng:define element, the rng:grammar

element, and the rng:include element. The RELAX NG idioms for XMP provide recommendations for

using these elements to simplify the creation of full RELAX NG schemas for XMP and to improve reuse

and interchange of schema modules.

The rng:define element is perhaps the most important. It provides a means to create a named pattern,

typically used to define a specific easily understood aspect of the XML to be validated. Lower level

rng:define patterns can be referenced by name in higher level RELAX NG patterns.

The rng:grammar element provides a means to package rng:define patterns, and to control the scope of

their names if desired.

The rng:include element provides a means to textually include one RELAX NG schema file within another.

While no specific naming conventions are required, the following approach can be chosen:

— names for individual properties can be composed as “prefix.localName”, e.g.”dc.title”;

— names for structure fields can be composed as “prefix.localName”, e.g. “stRef:documentID”;

— names for types can be composed as “Standard/Origin.Types.QValue.Typename”, e.g.”ISO 16684-1.Types.

QValue.Boolean”, and “Standard/Origin.Types.Base.Typename”, e.g.”ISO 16684-1.Types.Base.Boolean”;

— names for array types can additionally denote the array type in their name; for example an unordered

array of simple type Boolean can be expressed as e.g ISO 16684-1.Types.QValue.UnorderedArray.

Boolean or ISO 16684-1.Types.Base.UnorderedArray.Boolean

NOTE The QValue idiom ensures that properties with or without qualifiers can be validated, the Base idiom

contains the actual RELAX NG grammar for the type.
6.3 Use of data types
6.3.1 General

The XMP data model is defined in ISO 16684-1:2012, 6.3 using 3 forms of value: simple, structure, and

array. Specific value types used are defined in ISO 16684-1:2012, 8.2. These can be thought of as data

types, and formally defined that way for validation.

RELAX NG provides a primitive data type for unconstrained text. It also has features to describe various

kinds of constrained text. It allows use of external data type libraries, most importantly the W3C XML

Schema Datatypes. The rng:define element can be used to define arbitrary custom data types.

The rng:text type shall be used where an XMP value is unconstrained text. In all other cases, an rng:define

element should be used to create a custom data type. This provides modularization of the data type

semantics, makes the RELAX NG schema easier to understand, and fosters reuse of data types.

The pattern within an rng:define for a simple XMP value should describe the XML character data of the

serialized value with appropriate semantic restrictions.

EXAMPLE Two rng:define instances describe constraints on text values to create custom data types.



True|False


4 © ISO 2014 – All rights reserved
---------------------- Page: 9 ----------------------
ISO 16684-2:2014(E)


−1

0
5



NOTE The combine=”choice” attribute in the rng:define element is a workaround for the way rng:define and

rng:include interact. Suppose the Boolean type is defined in one schema file, then included and used in two other

schema files, which are then themselves included and used in another schema file. The final schema file will have

two definitions for Boolean, which are, of course, identical. RELAX NG does not detect that they are identical and

requires the combine attribute to be used telling how to select among them. Using combine=”choice” says to pick

any, which is appropriate since they are identical.
6.3.2 Structure value data types

The pattern within an rng:define for a structure value type shall describe the nested rdf:Description element

and the structure fields within that. Each field should have a separate rng:define that describes its XML

element and value. The value should be given as an rng:ref element referring to the appropriate data type.

EXAMPLE Several rng:define instances describe a structure value type using rng:ref elements.























NOTE Only two of the RenditionRef fields, defined in ISO 16684-1:2012, 8.2.2.9, are shown above in order to

reduce the size of the example.

The rng:interleave element shall be used to denote that the structure fields can appear in any order.

The rng:optional element shall be used if a structure field is optional, it shall be omitted if a structure

field is required.
6.3.3 Array value data types

The pattern within an rng:define for an array value type shall describe the nested rdf:Bag, rdf:Seq, or

rdf:Alt element, and the rdf:li array item elements within that.
EXAMPLE 1 An rng:define instance describes an array data type.




© ISO 2014 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO 16684-2:2014(E)





The rng:zeroOrMore element should be used if the array can be empty and has no upper bound. The

rng:oneOrMore element should be used if the array has at least one item and has no upper bound. For

more than one required item, that number of explicit rdf:li patterns should be used. For a closed upper

bound, the appropriate number of rdf:li patterns enclosed in rng:optional should be used.

EXAMPLE 2 An rng:define instance describes minimum and maximum number of entries in an array data type.



















6.3.4 Collections of data types

Collections of useful data types should be gathered in a RELAX NG schema file. This schema file should

have an outer rng:grammar element that contains the rng:defines for the data types.

EXAMPLE An rng:grammar element in a separate schema file describes a collection of often used data types.

datatypeLibrary=”http://www.w3.org/2001/XMLSchema-datatypes”>


True|False







\d+/[1-9]\d*



NOTE Only three of the types defined in ISO 16684-1:2012, 8.2 are shown above in order to reduce the size

of the example.
6.4 RELAX NG for properties

A top-level namespace shall have a RELAX NG schema file with an outer rng:grammar element. Within

that shall be an rng:define element listing all of the properties it contains. Each property should have a

6 © ISO 2014 – All rights reserved
---------------------- Page: 11 ----------------------
ISO 16684-2:2014(E)

separate rng:define that describes its XML element and value. The value should be given as an rng:ref

element referring to the appropriate data type.

EXAMPLE An outer rng:grammar element in its own file for a top-level namespace lists the rng:define

elements for all of the properties it contains.
xmlns:xmp=”http://ns.adobe.com/xap/1.0/”
datatypeLibrary=”http://www.w3.org/2001/XMLSchema-datatypes”>























−1

0
5




NOTE Only two of
...

SLOVENSKI STANDARD
SIST ISO 16684-2:2020
01-april-2020
Grafična tehnologija - Razširljiva metapodatkovna platforma (XMP) - 2. del: Opis
shem XMP z uporabo RELAX NG

Graphic technology - Extensible metadata platform (XMP) - Part 2: Description of XMP

schemas using RELAX NG

Technologie graphique - Plate-forme de métadonnées extensibles (XMP) - Partie 2:

Description des schémas XMP utilisant RELAX NG
Ta slovenski standard je istoveten z: ISO 16684-2:2014
ICS:
35.240.30 Uporabniške rešitve IT v IT applications in information,
informatiki, dokumentiranju in documentation and
založništvu publishing
37.100.99 Drugi standardi v zvezi z Other standards related to
grafično tehnologijo graphic technology
SIST ISO 16684-2:2020 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST ISO 16684-2:2020
---------------------- Page: 2 ----------------------
SIST ISO 16684-2:2020
INTERNATIONAL ISO
STANDARD 16684-2
First edition
2014-12-01
Graphic technology — Extensible
metadata platform (XMP) —
Part 2:
Description of XMP schemas using
RELAX NG
Technologie graphique — Plate-forme de métadonnées extensibles
(XMP) —
Partie 2: Description des schémas XMP utilisant RELAX NG
Reference number
ISO 16684-2:2014(E)
ISO 2014
---------------------- Page: 3 ----------------------
SIST ISO 16684-2:2020
ISO 16684-2:2014(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2014

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved
---------------------- Page: 4 ----------------------
SIST ISO 16684-2:2020
ISO 16684-2:2014(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Conformance ............................................................................................................................................................................................................. 2

5 Canonical serialization of XMP .............................................................................................................................................................. 2

5.1 General ........................................................................................................................................................................................................... 2

5.2 XMP packet serialization ................................................................................................................................................................ 2

5.3 Property serialization ....................................................................................................................................................................... 2

5.4 Structure value serialization ....................................................................................................................................................... 3

5.5 Array value serialization ................................................................................................................................................................. 3

5.6 Qualifier serialization ........................................................................................................................................................................ 3

6 RELAX NG idioms for XMP........................................................................................................................................................................... 3

6.1 General ........................................................................................................................................................................................................... 3

6.2 Modularization ........................................................................................................................................................................................ 4

6.3 Use of data types.................................................................................................................................................................................... 4

6.4 RELAX NG for properties ................................................................................................................................................................ 6

6.5 RELAX NG for XMP packets .......................................................................................................................................................... 7

6.6 RELAX NG for qualifiers .................................................................................................................................................................. 8

6.7 Extensions ................................................................................................................................................................................................... 9

6.8 Extension for providing UI information ............................................................................................................................ 9

7 RELAX NG schemas ..........................................................................................................................................................................................10

Annex A (informative) RELAX NG schema for standard data types ...................................................................................11

Annex B (informative) RELAX NG schema for the Dublin Core namespace ..............................................................25

Annex C (informative) RELAX NG schema for the XMP namespace ...................................................................................31

Annex D (informative) RELAX NG schema for the XMP Media Management namespace ...........................34

Annex E (informative) RELAX NG schema for the XMP Rights Management namespace............................36

Annex F (informative) RELAX NG schema for a complete XMP packet ...........................................................................38

Bibliography .............................................................................................................................................................................................................................39

© ISO 2014 – All rights reserved iii
---------------------- Page: 5 ----------------------
SIST ISO 16684-2:2020
ISO 16684-2:2014(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the meaning of ISO specific terms and expressions related to conformity

assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers

to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/130 Graphic technology.

ISO 16684 consists of the following parts, under the general title Graphic technology — Extensible

metadata platform (XMP):
— Part 1: Data model, serialization, and core properties
— Part 2: Description of XMP schemas using RELAX NG
iv © ISO 2014 – All rights reserved
---------------------- Page: 6 ----------------------
SIST ISO 16684-2:2020
ISO 16684-2:2014(E)
Introduction

ISO 16684 (all parts) defines aspects of the Extensible Metadata Platform (XMP) that are generic, neutral

to the domain of usage. Refer to the Introduction in ISO 16684-1 for general information. This part of

ISO 16684 is about description of XMP schemas for formal or mechanical validation of XMP. RELAX NG

has been chosen as the schema language. It is an ISO standard, ISO/IEC 19757-2, and is both powerful

and easy to use.

There are two major components of formal validation, schemas and validation engines. A schema, or

schema file, is a formal description of constraints regarding the structure and contents of properties in

an XMP packet, on top of the requirements for conforming XMP packets as mandated by ISO 16684-1.

A validation engine is a software tool that compares an input XMP packet to one or more schemas, and

produces a report on whether the XMP packet conforms to the schemas.

This part of ISO 16684 defines policies for validation engines to follow so that schemas can be shared,

so that the schemas do not require customization for each validation engine. It also defines policies for

schemas to follow in order to operate with a conforming validation engine, and to make the schemas

robust and modular.

This part of ISO 16684 does not address how a validation engine reports success or failure. Reporting

success is easy, reporting failure can be complicated by a number of factors.

— It can be difficult to relate a specific RDF usage error to a human-understood XMP data model.

— Recovery from one error can be difficult, masking other errors after the first.

— As an open model, creation of new data items in XMP is expected. Allowing for this in schemas

and/or clear reporting of unexpected input when validating can be difficult.
© ISO 2014 – All rights reserved v
---------------------- Page: 7 ----------------------
SIST ISO 16684-2:2020
---------------------- Page: 8 ----------------------
SIST ISO 16684-2:2020
INTERNATIONAL STANDARD ISO 16684-2:2014(E)
Graphic technology — Extensible metadata platform
(XMP) —
Part 2:
Description of XMP schemas using RELAX NG
1 Scope

This part of ISO 16684 specifies the use of RELAX NG to describe serialized XMP metadata. This applies

to how conforming schemas can use the features of RELAX NG.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

ISO 16684-1:2012, Graphic technology — Extensible metadata platform (XMP) specification — Part 1: Data

model, serialization and core properties

ISO/IEC 19757-2, Information technology — Document Schema Definition Language (DSDL) — Part 2:

Regular-grammar-based validation — RELAX NG
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
canonical serialization

serialization providing a one-to-one mapping between the XMP data model and the serialized XML

3.2
general qualifier
XMP qualifier other than xml:lang
3.3
schema
schema file
formal description of serialized XMP
3.4
validation
process of verifying whether serialized XMP follows one or more schemas
3.5
validation engine
software tool that performs validation
3.6
XMP
extensible metadata platform, as defined by ISO 16684-1
© ISO 2014 – All rights reserved 1
---------------------- Page: 9 ----------------------
SIST ISO 16684-2:2020
ISO 16684-2:2014(E)
3.7
XMP entity
XMP property, array item, structure field, or qualifier
4 Conformance

This part of ISO 16684 describes methodology to create interoperable software and schema files in order

to validate XMP metadata using regular-grammar-based validation schemas defined in ISO/IEC 19757-2

and referred to in this part of ISO 16684 as RELAX NG. Conformance on the part of a software validation

engine enables the creation of schema files with lower complexity. Conforming validation engines shall

adhere to all requirements of ISO 16684-1 and this part of ISO 16684. Conforming validation engines

can provide additional features that are not explicitly forbidden by this part of ISO 16684. Conformance

on the part of schema files enables their interchange among conforming validation engines. Conforming

schema files shall adhere to all requirements of this part of ISO 16684. Conforming schema files can

provide additional features that are not explicitly forbidden by this part of ISO 16684.

5 Canonical serialization of XMP
5.1 General

A major difficulty in validating XMP is that the RDF metadata format used by XMP allows multiple XML

representations for the same metadata content. For reference, see ISO 16684-1:2012, 7.9. The RELAX NG

schema language is used to validate serialized XML, not the RDF or XMP data models. Writing a RELAX

NG schema to cover all possible XML forms for XMP is unacceptably complex. A canonical serialization

of XMP is defined to limit this complexity. The canonical serialization requires specific forms of the XMP

serialization defined in ISO 16684-1:2012, Clause 7, banning other forms. This provides a one-to-one

mapping between the XMP data model and the canonical XML.

An XMP validation engine shall produce a canonical serialization of the XMP as part of the validation

process. The validation engine shall accept any XMP as input that is allowed under ISO 16684-1. This

XMP shall be parsed then serialized using the canonical forms described in this Clause. Next, the RELAX

NG schema or schemas shall be applied to that canonical serialization. The XMP validation engine shall

not modify original files containing the input XMP as part of the validation process.

5.2 XMP packet serialization

The canonical serialization of XMP shall have an rdf:RDF outermost XML element, which shall contain

a single rdf:Description element to contain all XMP properties. That is, properties for all top-level

namespaces are within this one rdf:Description element. The XMP properties shall be grouped by

namespace. The namespace groups can have any order.

EXAMPLE An XMP metadata packet is shown containing XMP properties of different namespaces in a single

rdf:Description element.
xmlns:dc=”http://purl.org/dc/elements/1.1/”
xmlns:xmp=”http://ns.adobe.com/xap/1.0/”
xmlns:xmpMM=”http://ns.adobe.com/xap/1.0/mm/”>

image/jpeg
3
2012-02-29T12:33:44
uuid:example1234


5.3 Property serialization

The canonical serialization of XMP shall use the XML element form for XMP properties. The property

attribute notation defined in ISO 16684-1:2012, 7.9.2.2 shall not be used.
2 © ISO 2014 – All rights reserved
---------------------- Page: 10 ----------------------
SIST ISO 16684-2:2020
ISO 16684-2:2014(E)
5.4 Structure value serialization

The canonical serialization of XMP shall use a nested rdf:Description element for structure values. The

structure fields shall be serialized as XML elements within that rdf:Description element. Values in a

structure can be of type simple, structure, or array. They shall be serialized as described in 6.3, 6.4, and

6.5. The rdf:parseType=”resource” attribute notation defined in ISO 16684-1:2012, 7.9.2.3 shall not be

used. The structure field attribute notation defined in ISO 16684-1:2012, 7.9.2.4 shall not be used.

EXAMPLE A structure value from an XMP metadata stream is shown in its canonically serialized form.



id:document
id:instance


5.5 Array value serialization

The canonical serialization of XMP shall use a nested rdf:Bag, rdf:Seq, or rdf:Alt element for array values.

The array items shall be rdf:li elements within the rdf:Bag, rdf:Seq, or rdf:Alt element.

EXAMPLE An array value from an XMP metadata stream is shown in its canonically serialized form.



subject 1
subject 2


5.6 Qualifier serialization

The canonical serialization of XMP shall use the XML syntax defined in ISO 16684-1:2012, 7.8 for

qualifiers. An xml:lang qualifier shall be serialized as an xml:lang attribute in the start tag of the XML

element whose name is that of the XMP entity having the xml:lang qualifier. All general qualifiers shall

be serialized as XML elements within an rdf:Description element that is within the XML element whose

name is that of the XMP entity having the qualifier. The value of that XMP entity shall be within an

rdf:value element within that rdf:Description element. The rdf:value element should be the first XML

element within that rdf:Description element.

The rdf:parseType=”resource” notation defined in ISO 16684-1:2012, 7.9.2.3 shall not be used for an

XMP entity with general qualifiers. The field attribute notation defined in ISO 16684-1:2012, 7.9.2.4

shall not be used for an XMP entity with general qualifiers. The RDF TypedNode notation defined in

ISO 16684-1:2012, 7.9.2.5 shall not be used for an rdf:type qualifier.

EXAMPLE A part from an XMP metadata stream using a qualifier is shown in its canonically serialized form.





0-13-110941-3
ISBN




6 RELAX NG idioms for XMP
6.1 General

Having a canonical serialization for XMP is necessary to simplify the creation of RELAX NG schemas. As

a consequence, considerably more freedom can be granted in the creation of the RELAX NG schemas.

© ISO 2014 – All rights reserved 3
---------------------- Page: 11 ----------------------
SIST ISO 16684-2:2020
ISO 16684-2:2014(E)

This clause defines idioms for RELAX NG schemas that can improve reuse and interchange. They can

also enable improved operation of a validation engine, for example making it easier to provide helpful

error messages. Use of these idioms is not required.
6.2 Modularization

RELAX NG provides three main forms of modularization, the rng:define element, the rng:grammar

element, and the rng:include element. The RELAX NG idioms for XMP provide recommendations for

using these elements to simplify the creation of full RELAX NG schemas for XMP and to improve reuse

and interchange of schema modules.

The rng:define element is perhaps the most important. It provides a means to create a named pattern,

typically used to define a specific easily understood aspect of the XML to be validated. Lower level

rng:define patterns can be referenced by name in higher level RELAX NG patterns.

The rng:grammar element provides a means to package rng:define patterns, and to control the scope of

their names if desired.

The rng:include element provides a means to textually include one RELAX NG schema file within another.

While no specific naming conventions are required, the following approach can be chosen:

— names for individual properties can be composed as “prefix.localName”, e.g.”dc.title”;

— names for structure fields can be composed as “prefix.localName”, e.g. “stRef:documentID”;

— names for types can be composed as “Standard/Origin.Types.QValue.Typename”, e.g.”ISO 16684-1.Types.

QValue.Boolean”, and “Standard/Origin.Types.Base.Typename”, e.g.”ISO 16684-1.Types.Base.Boolean”;

— names for array types can additionally denote the array type in their name; for example an unordered

array of simple type Boolean can be expressed as e.g ISO 16684-1.Types.QValue.UnorderedArray.

Boolean or ISO 16684-1.Types.Base.UnorderedArray.Boolean

NOTE The QValue idiom ensures that properties with or without qualifiers can be validated, the Base idiom

contains the actual RELAX NG grammar for the type.
6.3 Use of data types
6.3.1 General

The XMP data model is defined in ISO 16684-1:2012, 6.3 using 3 forms of value: simple, structure, and

array. Specific value types used are defined in ISO 16684-1:2012, 8.2. These can be thought of as data

types, and formally defined that way for validation.

RELAX NG provides a primitive data type for unconstrained text. It also has features to describe various

kinds of constrained text. It allows use of external data type libraries, most importantly the W3C XML

Schema Datatypes. The rng:define element can be used to define arbitrary custom data types.

The rng:text type shall be used where an XMP value is unconstrained text. In all other cases, an rng:define

element should be used to create a custom data type. This provides modularization of the data type

semantics, makes the RELAX NG schema easier to understand, and fosters reuse of data types.

The pattern within an rng:define for a simple XMP value should describe the XML character data of the

serialized value with appropriate semantic restrictions.

EXAMPLE Two rng:define instances describe constraints on text values to create custom data types.



True|False


4 © ISO 2014 – All rights reserved
---------------------- Page: 12 ----------------------
SIST ISO 16684-2:2020
ISO 16684-2:2014(E)


−1

0
5



NOTE The combine=”choice” attribute in the rng:define element is a workaround for the way rng:define and

rng:include interact. Suppose the Boolean type is defined in one schema file, then included and used in two other

schema files, which are then themselves included and used in another schema file. The final schema file will have

two definitions for Boolean, which are, of course, identical. RELAX NG does not detect that they are identical and

requires the combine attribute to be used telling how to select among them. Using combine=”choice” says to pick

any, which is appropriate since they are identical.
6.3.2 Structure value data types

The pattern within an rng:define for a structure value type shall describe the nested rdf:Description element

and the structure fields within that. Each field should have a separate rng:define that describes its XML

element and value. The value should be given as an rng:ref element referring to the appropriate data type.

EXAMPLE Several rng:define instances describe a structure value type using rng:ref elements.























NOTE Only two of the RenditionRef fields, defined in ISO 16684-1:2012, 8.2.2.9, are shown above in order to

reduce the size of the example.

The rng:interleave element shall be used to denote that the structure fields can appear in any order.

The rng:optional element shall be used if a structure field is optional, it shall be omitted if a structure

field is required.
6.3.3 Array value data types

The pattern within an rng:define for an array value type shall describe the nested rdf:Bag, rdf:Seq, or

rdf:Alt element, and the rdf:li array item elements within that.
EXAMPLE 1 An rng:define instance describes an array data type.




© ISO 2014 – All rights reserved 5
---------------------- Page: 13 ----------------------
SIST ISO 16684-2:2020
ISO 16684-2:2014(E)





The rng:zeroOrMore element should be used if the array can be empty and has no upper bound. The

rng:oneOrMore element should be used if the array has at least one item and has no upper bound. For

more than one required item, that number of explicit rdf:li patterns should be used. For a closed upper

bound, the appropriate number of rdf:li patterns enclosed in rng:optional should be used.

EXAMPLE 2 An rng:define instance describes minimum and maximum number of entries in an array data type.



















6.3.4 Collections of data types

Collections of useful data types should be gathered in a RELAX NG schema file. This schema file should

have an outer rng:grammar element that contains the rng:defines for the data types.

EXAMPLE An rng:grammar element in a separate schema file describes a collection of often used data types.

datatypeLibrary=”http://www.w3.org/2001/XMLSchema-datatypes”>


True|False







\d+/[1-9]\d*



NOTE Only three of the types defined in ISO 16684-1:2012, 8.2 are shown above in order to reduce the size

of the example.
6.4 RELAX NG for properties

A top-level namespace shall have a RELAX NG schema file with an outer rng:grammar element. Within

that shall be an rng:define element listing all of the properties it contains. Each property should have a

6 © ISO 2014 – All rights reserved
---------------------- Page: 14 ----------------------
SIST ISO 16684-2:2020
ISO 16684-2:2014(E)

separate rng:define that describes its XML element and value. The value should be given as an rng:ref

element referring to the appropriate data type.
EXAMPLE An outer rng:grammar elemen
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
