Standards Content (sample)

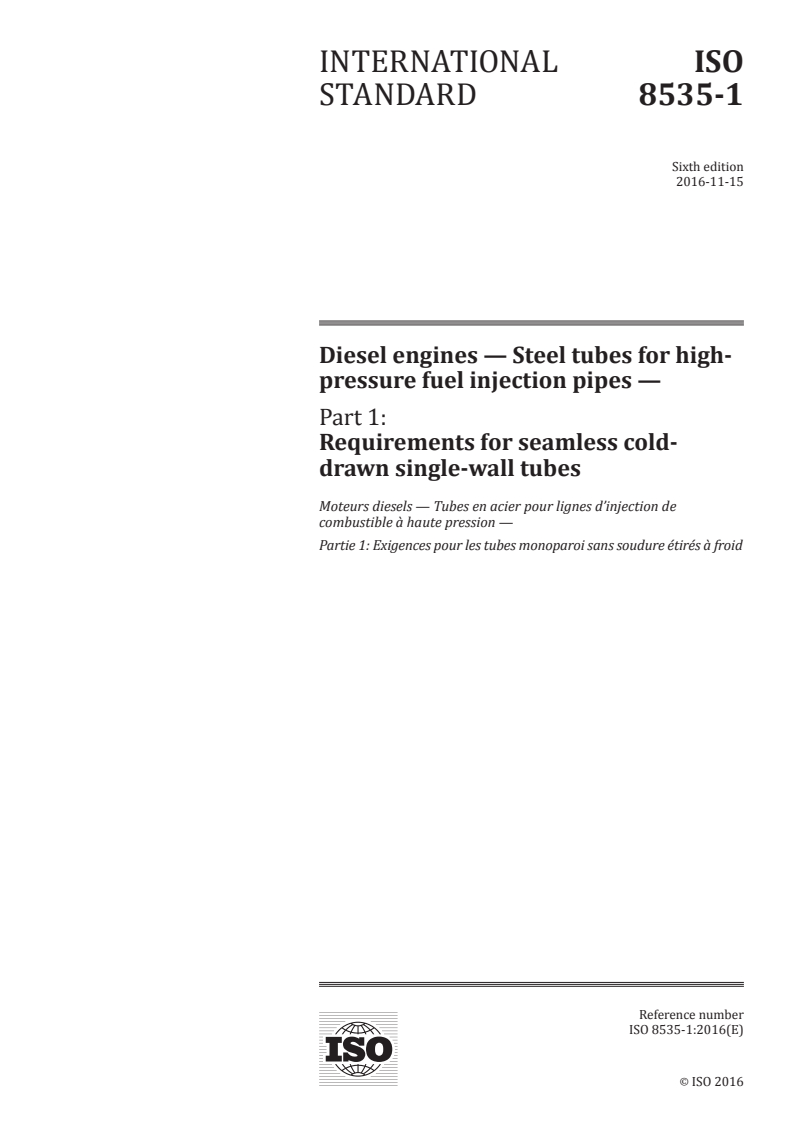

INTERNATIONAL ISO
STANDARD 8535-1
Sixth edition
2016-11-15
Diesel engines — Steel tubes for high-
pressure fuel injection pipes —
Part 1:
Requirements for seamless cold-
drawn single-wall tubes
Moteurs diesels — Tubes en acier pour lignes d’injection de
combustible à haute pression —
Partie 1: Exigences pour les tubes monoparoi sans soudure étirés à froid
Reference number
ISO 8535-1:2016(E)
ISO 2016
---------------------- Page: 1 ----------------------
ISO 8535-1:2016(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2016, Published in Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 8535-1:2016(E)

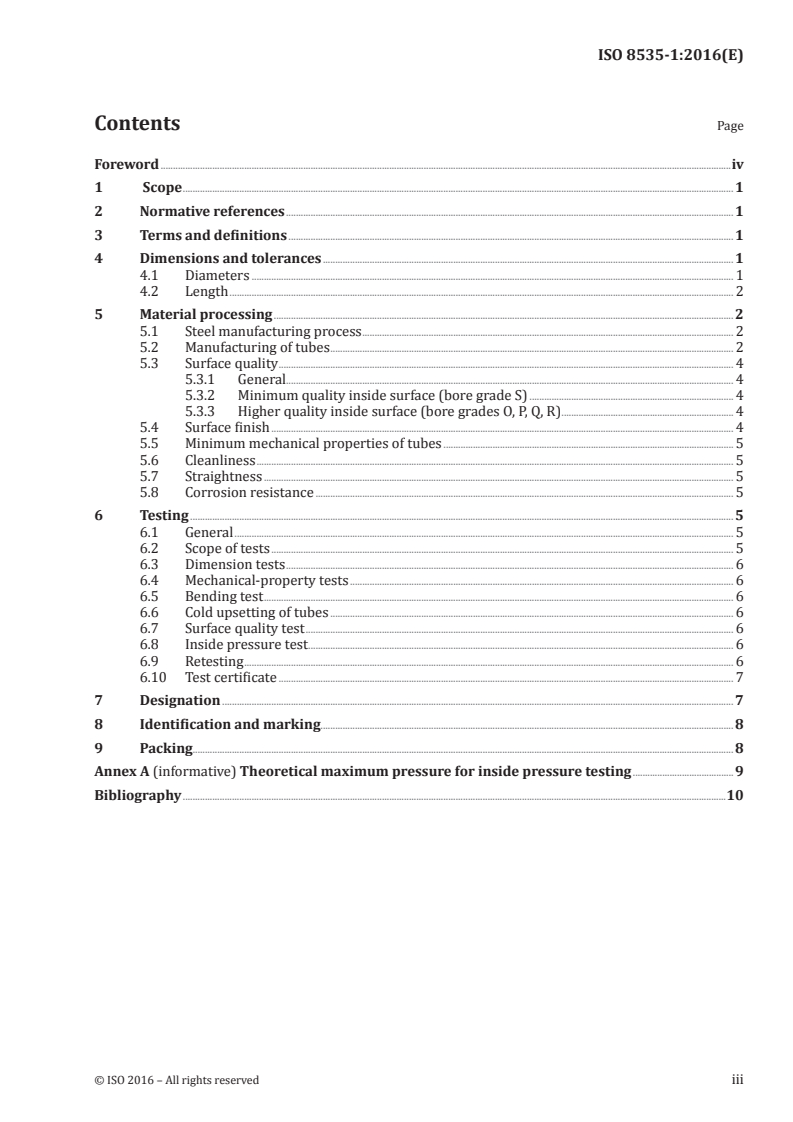

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................ 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Dimensions and tolerances ....................................................................................................................................................................... 1

4.1 Diameters .................................................................................................................................................................................................... 1

4.2 Length ............................................................................................................................................................................................................. 2

5 Material processing ........................................................................................................................................................................................... 2

5.1 Steel manufacturing process ....................................................................................................................................................... 2

5.2 Manufacturing of tubes .................................................................................................................................................................... 2

5.3 Surface quality ......................................................................................................................................................................................... 4

5.3.1 General...................................................................................................................................................................................... 4

5.3.2 Minimum quality inside surface (bore grade S) ................................................................................... 4

5.3.3 Higher quality inside surface (bore grades O, P, Q, R) ...................................................................... 4

5.4 Surface finish ............................................................................................................................................................................................ 4

5.5 Minimum mechanical properties of tubes ...................................................................................................................... 5

5.6 Cleanliness .................................................................................................................................................................................................. 5

5.7 Straightness ............................................................................................................................................................................................... 5

5.8 Corrosion resistance .......................................................................................................................................................................... 5

6 Testing ............................................................................................................................................................................................................................. 5

6.1 General ........................................................................................................................................................................................................... 5

6.2 Scope of tests ............................................................................................................................................................................................ 5

6.3 Dimension tests ...................................................................................................................................................................................... 6

6.4 Mechanical-property tests ............................................................................................................................................................ 6

6.5 Bending test ............................................................................................................................................................................................... 6

6.6 Cold upsetting of tubes .................................................................................................................................................................... 6

6.7 Surface quality test .............................................................................................................................................................................. 6

6.8 Inside pressure test ............................................................................................................................................................................. 6

6.9 Retesting ....................................................................................................................................................................................................... 6

6.10 Test certificate ......................................................................................................................................................................................... 7

7 Designation ................................................................................................................................................................................................................ 7

8 Identification and marking........................................................................................................................................................................ 8

9 Packing............................................................................................................................................................................................................................ 8

Annex A (informative) Theoretical maximum pressure for inside pressure testing .........................................9

Bibliography .............................................................................................................................................................................................................................10

© ISO 2016 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 8535-1:2016(E)

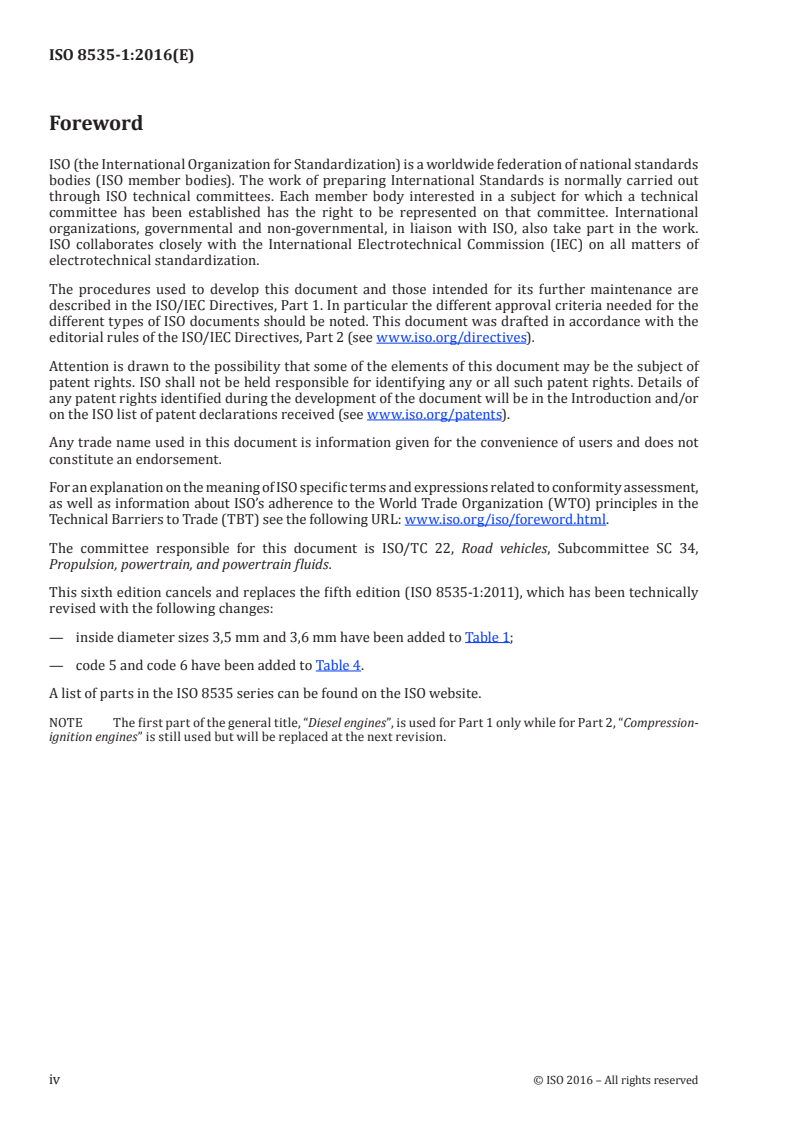

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,

as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the

Technical Barriers to Trade (TBT) see the following URL: www.iso.org/iso/foreword.html.

The committee responsible for this document is ISO/TC 22, Road vehicles, Subcommittee SC 34,

Propulsion, powertrain, and powertrain fluids.

This sixth edition cancels and replaces the fifth edition (ISO 8535-1:2011), which has been technically

revised with the following changes:
— inside diameter sizes 3,5 mm and 3,6 mm have been added to Table 1;
— code 5 and code 6 have been added to Table 4.
A list of parts in the ISO 8535 series can be found on the ISO website.

NOTE The first part of the general title, “Diesel engines”, is used for Part 1 only while for Part 2, “Compression-

ignition engines” is still used but will be replaced at the next revision.
iv © ISO 2016 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 8535-1:2016(E)
Diesel engines — Steel tubes for high-pressure fuel
injection pipes —
Part 1:
Requirements for seamless cold-drawn single-wall tubes
1 Scope

This document specifies dimensions and requirements for seamless cold-drawn single-wall steel tubes

for high-pressure fuel injection pipes used on diesel (compression-ignition) engines (class 2) and for

fuel injection pump testing (class 1).
This document applies to diesel (compression-ignition) engines.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 6507-1, Metallic materials — Vickers hardness test — Part 1: Test method

ISO 6892-1, Metallic materials — Tensile testing — Part 1: Method of test at room temperature

ISO 12345, Diesel engines — Cleanliness assessment of fuel injection equipment
3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
4 Dimensions and tolerances
4.1 Diameters

Recommended inside and outside diameters are given in Table 1. Other sizes may be used by agreement

between supplier and customer.
Tolerances on inside and outside diameters shall be as follows.
a) Inside diameter, d
d ≤ 4 mm: ±0,05 mm for class 2
±0,025 mm for class 1 (these tolerances are in accordance with ISO 4093)
d > 4 mm: ±0,10 mm
© ISO 2016 – All rights reserved 1
--------------
...
