ISO/IEC TR 29106:2007/Amd 2:2019

Information technology — Generic cabling — Introduction to the MICE environmental classification — Amendment 2

Technologies de l'information — Câblage générique — Introduction à la classification environnementale MICE — Amendement 2

General Information

• Status: Published
• Publication Date: 13-Aug-2019
• ICS: 35.200 - Interface and interconnection equipment
• ICS: 35.240.99 - IT applications in other fields
• Technical Committee: ISO/IEC JTC 1/SC 25 - Interconnection of information technology equipment
• Drafting Committee: ISO/IEC JTC 1/SC 25 - Interconnection of information technology equipment
• Current Stage: 6060 - International Standard published
• Due Date: 16-Jan-2021
• Completion Date: 14-Aug-2019

Relations

• Amends: ISO/IEC TR 29106:2007 - Information technology — Generic cabling — Introduction to the MICE environmental classification
• Effective Date: 13-Oct-2020

Standards Content (Sample)

ISO/IEC TR 29106
Edition 1.0 2019-07
TECHNICAL
REPORT

AMENDMENT 2
Information technology –
Generic cabling – Introduction to the MICE environmental classification


ISO/IEC TR 29106:2007-11/AMD2:2019-07(en)

---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 ISO/IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about
ISO/IEC copyright or have an enquiry about obtaining additional rights to this publication, please contact the address
below or your local IEC member National Committee for further information.


IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland

About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: [e-mail].

---------------------- Page: 2 ----------------------

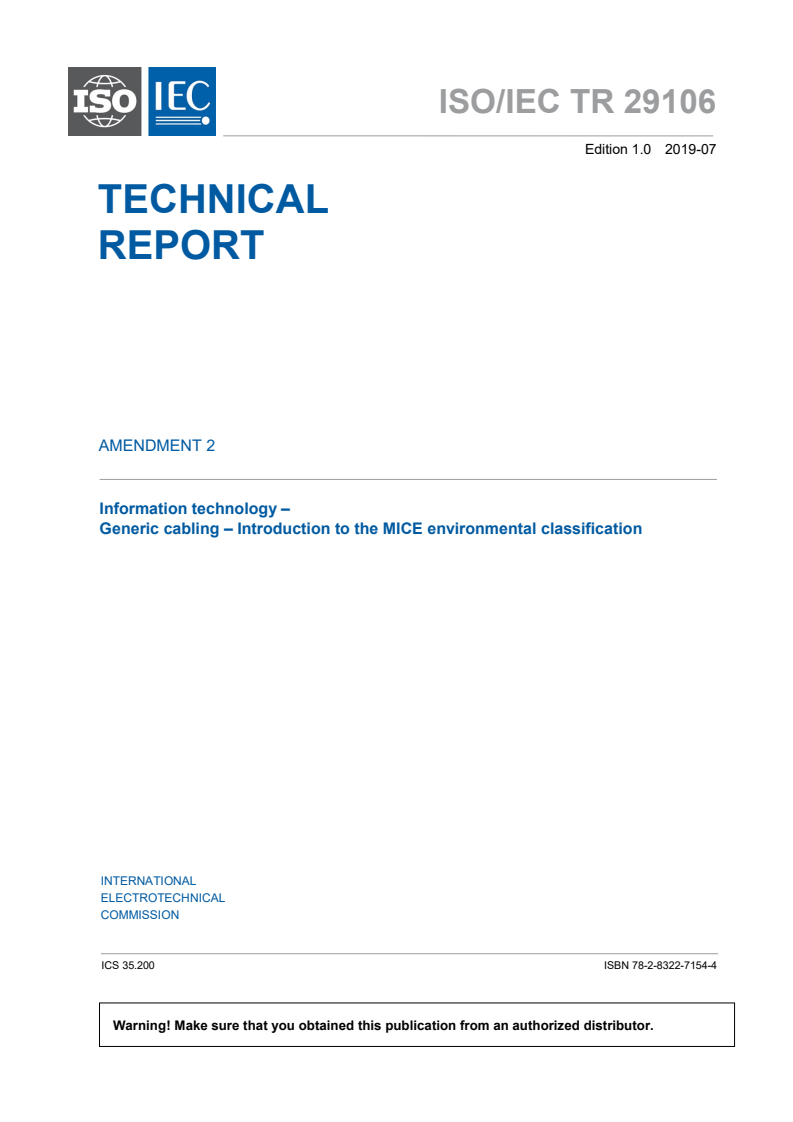

ISO/IEC TR 29106


Edition 1.0 2019-07




TECHNICAL



REPORT














AMENDMENT 2





Information technology –

Generic cabling – Introduction to the MICE environmental classification



























INTERNATIONAL

ELECTROTECHNICAL

COMMISSION






ICS 35.200 ISBN 78-2-8322-7154-4




  Warning! Make sure that you obtained this publication from an authorized distributor.

---------------------- Page: 3 ----------------------
– 2 – ISO/IEC TR 29106:2007/AMD2:2019
ISO/IEC © 2019
FOREWORD
Amendment 2 to ISO/IEC TR 29106 has been prepared by subcommittee 25: Interconnection
of information technology equipment, of ISO/IEC joint technical committee 1: Information
technology.
The text of this amendment is based on the following documents:
DTR Report on voting
JTC1-SC25/2836/DTR JTC1-SC25/2853/RVDTR

Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
_____________

2 Reference documents
Delete the following references:
ISO/IEC 11801, Information technology – Generic cabling for customer premises
ISO/IEC 15018, Information technology – Generic cabling for homes
ISO/IEC 24702, Information technology – Generic cabling – Industrial premises
Add the following new references:
ISO/IEC 11801-1:2017, Information technology – Generic cabling for customer premises –
Part 1: General requirements
ISO/IEC 11801-2, Information technology – Generic cabling for customer premises –
Part 2: Office premises
ISO/IEC 11801-3, Information technology – Generic cabling for customer premises –
Part 3: Industrial premises
ISO/IEC 11801-4, Information technology – Generic cabling for customer premises –
Part 4: Single-tenant homes
ISO/IEC 11801-5, Information technology – Generic cabling for customer premises –
Part 5: Data centres
ISO/IEC 11801-6, Information technology – Generic cabling for customer premises –
Part 6: Distributed building services

---------------------- Page: 4 ----------------------
ISO/IEC TR 29106:2007/AMD2:2019 – 3 –
ISO/IEC © 2019
3 Terms, definitions and abbreviations
3.1 Terms and definitions
Replace the paragraph with the following new paragraph:
For the purposes of this document, the terms and definitions of the applicable parts of
ISO/IEC 11801 apply.
3.2 Abbreviations
Replace the paragraph with the following new paragraph:
For the purposes of this document, the abbreviations of the applicable parts of ISO/IEC 11801
apply.
4 Application of environmental classification
4.3 Component selection
In the second paragraph, replace:
"Table 1, taken from ISO/IEC 24702:2006, shows …"
with:
"Table 1, taken from ISO/IEC 11801-1:2017, shows …".

Table 1 – Details of environmental classification
Replace Table 1 with the following new table:
Mechanical M M M
1 2 3
a
Shock/bump
−2 −2 −2
Peak acceleration 40 ms 100 ms 250 ms
Vibration
Displacement amplitude 1,5 mm 7,0 mm 15,0 mm
(2 Hz to 9 Hz)
−2 −2 −2
Acceleration amplitude
5 ms 20 ms 50 ms
(9 Hz to 500 Hz)
b b b

Tensile strength
Crush 45 N 1 100 N 2 200 N
over 25 mm (linear) min. over 150 mm (linear) min. over 150 mm (linear) min.
Impact 1 J 10 J 30 J
b b b

Bending, flexing and
torsion

---------------------- Page: 5 ----------------------
– 4 – ISO/IEC TR 29106:2007/AMD2:2019
ISO/IEC © 2019
Ingress I I I
1 2 3
Particulate ingress 12,5 mm 50 μm 50 μm
(max. diameter)
Immersion None Intermittent liquid jet Intermittent liquid jet
≤ 12,5 l/min ≤ 12,5 l/min
≥ 6,3 mm jet ≥ 6,3 mm jet
> 2,5 m distance > 2,5 m distance
and immersion
(≤ 1 m for ≤ 30 min)
Climatic and chemical C C C
1 2 3
Ambient temperature −10 °C to +60 °C −25 °C to +70 °C −40 °C to +70 °C
Rate of change of 0,1 °C per minute 1,0 °C per minute 3,0 °C per minute
temperature
Humidity 5 % to 85 % 5 % to 95 % 5 % to 95 %
(non-condensing) (condensing) (condensing)
−2 −2 −2
Solar radiation 700 Wm 1 120 Wm 1 120 Wm
c −6 −6 −6
Liquid pollution Concentration × 10 Concentration × 10 Concentration × 10
Contaminants
Sodium chloride (salt/sea 0 < 0,3 < 0,3
water)
Oil (dry-air concentration) 0 < 0,005 < 0,5
b
(for oil types see )
4 4
Sodium stearate (soap) None
> 5 × 10 aqueous non- > 5 × 10 aqueous gelling
gelling
Detergent None ffs ffs
Conductive materials None Temporary Present
c
Gaseous pollution Mean / Peak Mean / Peak Mean / Peak
−6 −6 −6
(Concentration × 10 ) (Concentration × 10 ) (Concentration × 10 )
Contaminants
Hydrogen sulphide < 0,003 / < 0,01 < 0,05 / < 0,5 < 10 / < 50
Sulphur dioxide < 0,01 / < 0,03 < 0,1 / < 0,3 < 5 / < 15
Sulphur trioxide (ffs) < 0,01 / < 0,03 < 0,1 / < 0,3 < 5 / < 15
Chlorine wet (> 50 % < 0,000 5 / < 0,001 < 0,005 / < 0,03 < 0,05 / < 0,3
humidity)
Chlorine dry (< 50 % < 0,002 / < 0,01 < 0,02 / < 0,1 < 0,2 / < 1,0
humidity)
Hydrogen chloride – / < 0,06 < 0,06 / < 0,3 < 0,6 / 3,0
Hydrogen fluoride < 0,001 / < 0,005 < 0,01 / < 0,05 < 0,1 / < 1,0
Ammonia < 1 / < 5 < 10 / < 50 < 50 / < 250
Oxides of nitrogen < 0,05 / < 0,1 < 0,5 / < 1 < 5 / < 10
Ozone < 0,002 / < 0,005 < 0,025 / < 0,05 < 0,1 / < 1

---------------------- Page: 6 ----------------------
ISO/IEC TR 29106:2007/AMD2:2019 – 5 –
ISO/IEC © 2019
Electromagnetic E E E
1 2 3
Electrostatic discharge – 4 kV 4 kV 4 kV
Contact (0,667 µC)
Electrostatic discharge – 8 kV 8 kV 8 kV
Air (0,132 µC)
Radiated RF – AM 3 V/m at 3 V/m at 10 V/m at
(80 to 1 000) MHz (80 to 1 000) MHz (80 to 1 000) MHz
3 V/m at 3 V/m at 3 V/m at
(1 400 to 2 000) MHz (1 400 to 2 000) MHz (1 400 to 2 000) MHz
1 V/m at 1 V/m at 1 V/m at
(2 000 to 2 700) MHz (2 000 to 2 700) MHz (2 000 to 2 700) MHz
Conducted RF 3 V at 150 kHz to 80 MHz 3 V at 150 kHz to 80 MHz 10 V at 150 kHz to
80 MHz
EFT/B (comms) 500 V 500 V 1 000 V
Surge (transient ground 500 V 1 000 V 1 000 V
potent
...
