ISO 24987

• Abstract:

  This document specifies the basic dimensions and tolerances, in millimetres of trombone head punches. This document gives examples of materials and their hardness, and specifies the designation of punches in accordance with this document. These punches are available with shank diameters, D, from 4 mm to 20 mm. The main use of the punches specified in this document is for punching holes in steel sheet. They may also be used for punching in other materials. The setting up system for trombone head punches is défined in Annex A.

• Status: Not Published
• ICS: 25.120.10 - Forging equipment. Presses. Shears
• Technical Committee: ISO/TC 29/SC 8 - Tools for pressing and moulding
• Drafting Committee: ISO/TC 29/SC 8/WG 2 - Tools for pressing
• Current Stage: 6000 - International Standard under publication
• Start Date: 19-Aug-2026
• Completion Date: 29-Aug-2026

Overview

ISO 24987: Tools for Pressing - Trombone Head Punches is an international standard developed by the International Organization for Standardization (ISO). This standard specifies the essential dimensions, tolerances, and material characteristics for trombone head punches used predominantly in sheet metal processing. Standardization ensures consistent quality and interoperability of tooling components in various industrial applications. The document covers punch designs with shank diameters from 4 mm to 20 mm, including both standard and ejector types, and addresses several geometric forms such as round, square, rectangular, and oblong.

Designed for manufacturers, quality managers, and tool designers in the metalworking and pressing industries, ISO 24987 provides clear criteria for punch selection, designation, and installation. The standard also outlines a setting up system to support seamless integration with press tool systems.

Key Topics

• Dimensions and Tolerances:
  The standard specifies basic dimensions in millimetres and corresponding tolerances, enabling precision and compatibility in press tool assemblies.

• Types and Forms:
  ISO 24987 details a variety of trombone head punch types:

  • Punches with straight or reduced shank
  • Punches with and without ejectors
  • Geometric forms: round, square, rectangular, and oblong

• Material and Hardness:
  Examples of suitable materials and hardness levels are provided to ensure longevity and reliable performance. Selections commonly include alloyed cold work steel and high-speed steel, with recommended hardness values for both the punch point and head.

• Designation System:
  A standardized system for designating trombone head punches and their seats, covering relevant parameters such as type, diameter, point dimensions, length, and material, to facilitate clear communication and ordering.

• Setting Up System:
  Annex A defines the seat dimensions, mounting procedures, and compatible milling tools necessary for accurate installation and use in press tooling systems.

Applications

ISO 24987 trombone head punches are primarily used for punching holes in steel sheet. Their standardized shapes and precise tolerances also make them suitable for use with other materials in various industrial settings, including:

• Automotive manufacturing: For creating precise holes in structural and body components.
• Appliance production: Used in fabricating enclosures and internal sheet metal assemblies.
• General sheet metal fabrication: Applicable wherever accuracy and repeatability in punching operations are required.
• Tool and die making: Ensures compatibility with standardized press equipment and replacement parts.

Standardized punches streamline maintenance, reduce downtime, and minimize the risk of errors in tool assembly. By following ISO 24987, manufacturers can ensure quality control, reduce waste, and improve production efficiency.

Related Standards

• ISO 2768-1: General tolerances - Tolerances for linear and angular dimensions without individual tolerance indications.
  Ensures uniformity in dimensioning and fit for all interchangeable tooling components.

• ISO 8695: Tools for pressing - Punches - Nomenclature and terminology.
  Provides definitions and terminology relevant to press tools, supporting consistent communication across the industry.

• EN ISO 4957: Tool steels.
  Specifies properties and classifications for tool steels suitable for manufacturing punches.

• ISO 21920-1: Geometrical product specifications (GPS) - Surface texture: Profile - Part 1: Indication of surface texture.
  Offers guidelines on surface texture requirements to optimize punch performance and wear resistance.

Adhering to ISO 24987 and related standards helps companies achieve product reliability and compatibility, supporting efficient global trade and high-quality manufacturing outcomes.

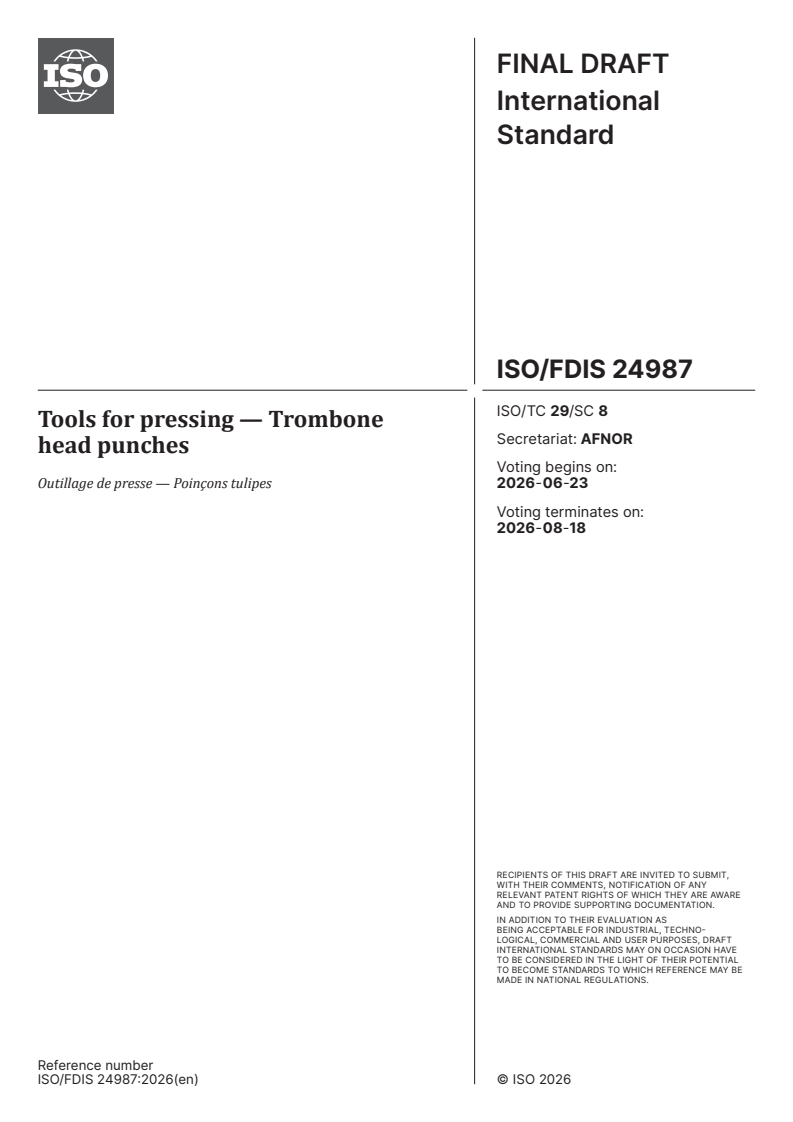

FINAL DRAFT
International
Standard
ISO/FDIS 24987
ISO/TC 29/SC 8
Tools for pressing — Trombone
Secretariat: AFNOR
head punches
Voting begins on:
Outillage de presse — Poinçons tulipes 2026-06-23
Voting terminates on:
2026-08-18
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
ISO/FDIS 24987:2026(en) © ISO 2026

FINAL DRAFT
ISO/FDIS 24987:2026(en)
International
Standard
ISO/FDIS 24987
ISO/TC 29/SC 8
Tools for pressing — Trombone
Secretariat: AFNOR
head punches
Voting begins on:
Outillage de presse — Poinçons tulipes
Voting terminates on:
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
© ISO 2026
IN ADDITION TO THEIR EVALUATION AS
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
or ISO’s member body in the country of the requester.
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland Reference number
ISO/FDIS 24987:2026(en) © ISO 2026

ii
ISO/FDIS 24987:2026(en)

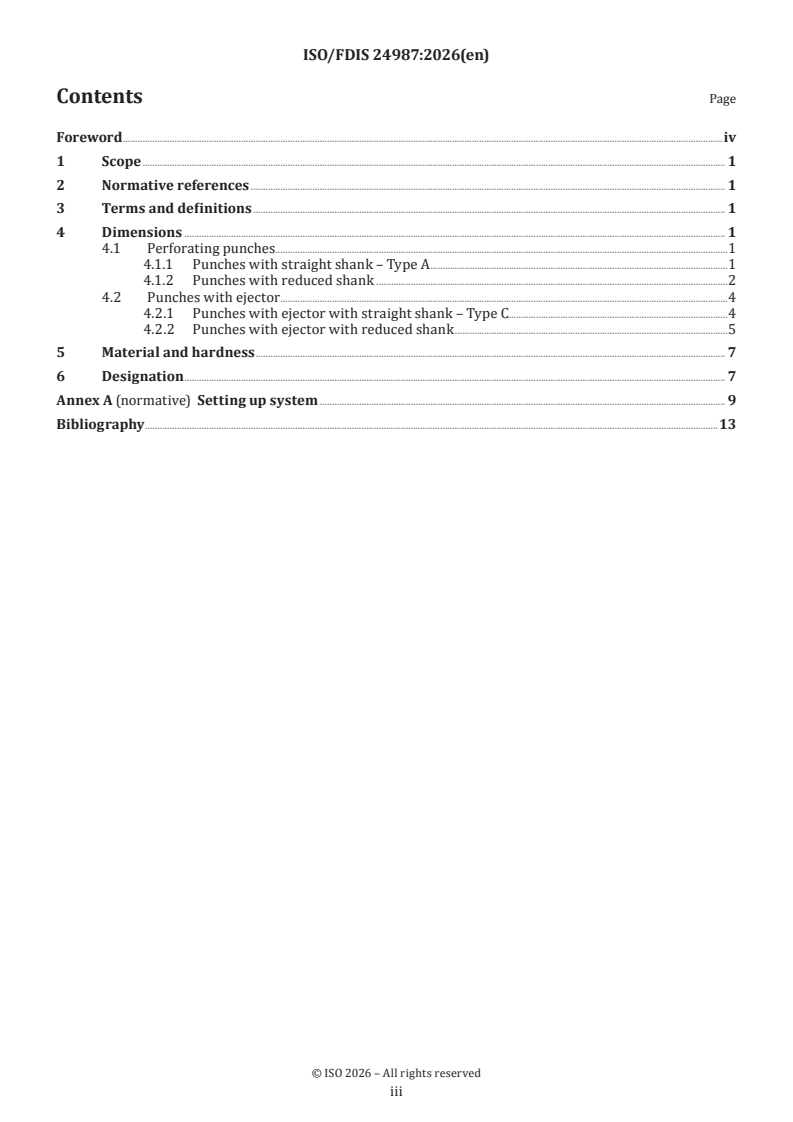

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Dimensions . 1
4.1 Perforating punches .1
4.1.1 Punches with straight shank – Type A .1
4.1.2 Punches with reduced shank .2
4.2 Punches with ejector .4
4.2.1 Punches with ejector with straight shank – Type C.4
4.2.2 Punches with ejector with reduced shank .5
5 Material and hardness . 7
6 Designation . 7
Annex A (normative) Setting up system . 9
Bibliography .13

iii
ISO/FDIS 24987:2026(en)

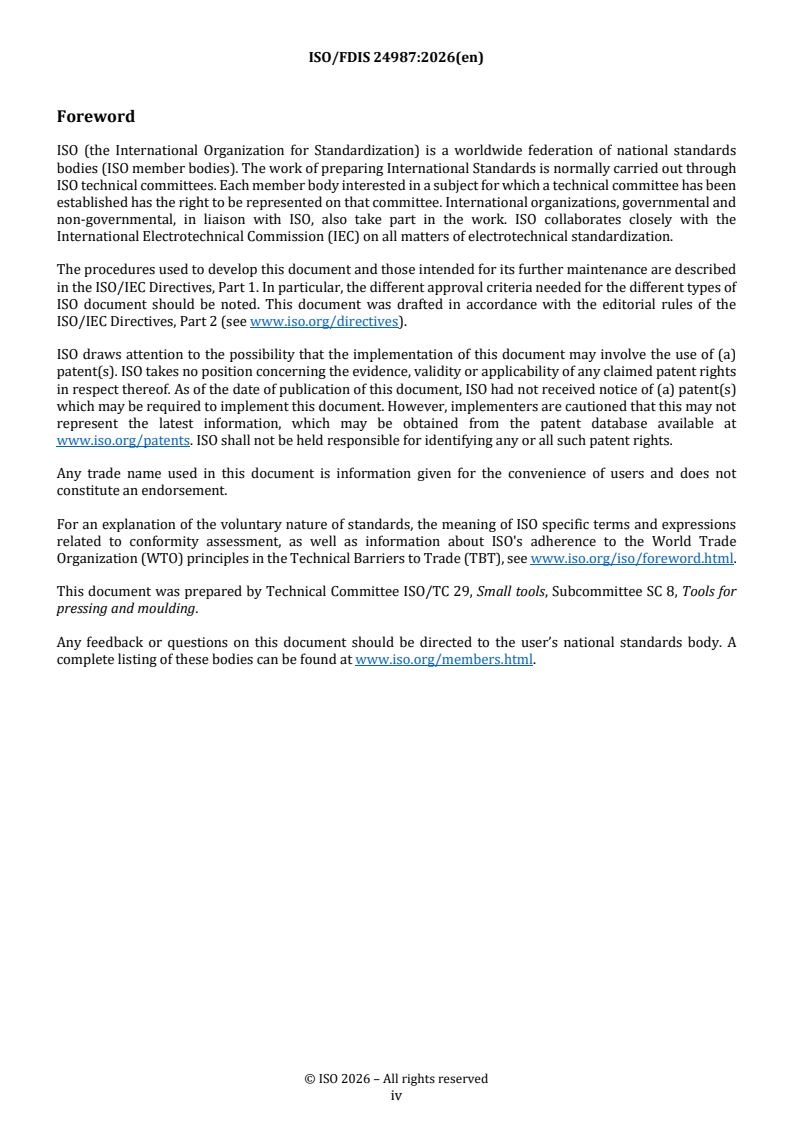

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 29, Small tools, Subcommittee SC 8, Tools for
pressing and moulding.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
FINAL DRAFT International Standard ISO/FDIS 24987:2026(en)
Tools for pressing — Trombone head punches
1 Scope
This document specifies the basic dimensions and tolerances, in millimetres, of trombone head punches.
This document gives examples of materials and their hardness and specifies the designation of punches.
These punches are available with shank diameters, D, from 4 mm to 20 mm.
The main use of the punches specified in this document is for punching holes in steel sheets. They can also
be used for punching in other materials.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 2768-1, General tolerances — Part 1: Tolerances for linear and angular dimensions without individual
tolerance indications
ISO 8695, Tools for pressing — Punches — Nomenclature and terminology
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 8695 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Dimensions
4.1 Perforating punches
4.1.1 Punches with straight shank – Type A
The dimensions of punches with straight shank, type A, shall be in accordance with the indications of
Figure 1 and Table 1.
ISO/FDIS 24987:2026(en)
Figure 1 — Punches with straight shank – Type A
Table 1 — Dimensions of punches with straight shank – Type A
D D H k f r L
h6 0 02, +01, 0 05,
0 0 0
01, 02,
mm mm mm mm ° mm mm
71 80 100
4 5,5 20 8 × × ×
5 7 15 × × ×
6 9 20 × × ×
8 11 30 12 × × ×
4 1,5
10 14 35 × × ×
13 17 × × ×
16 20 40 × × ×
...

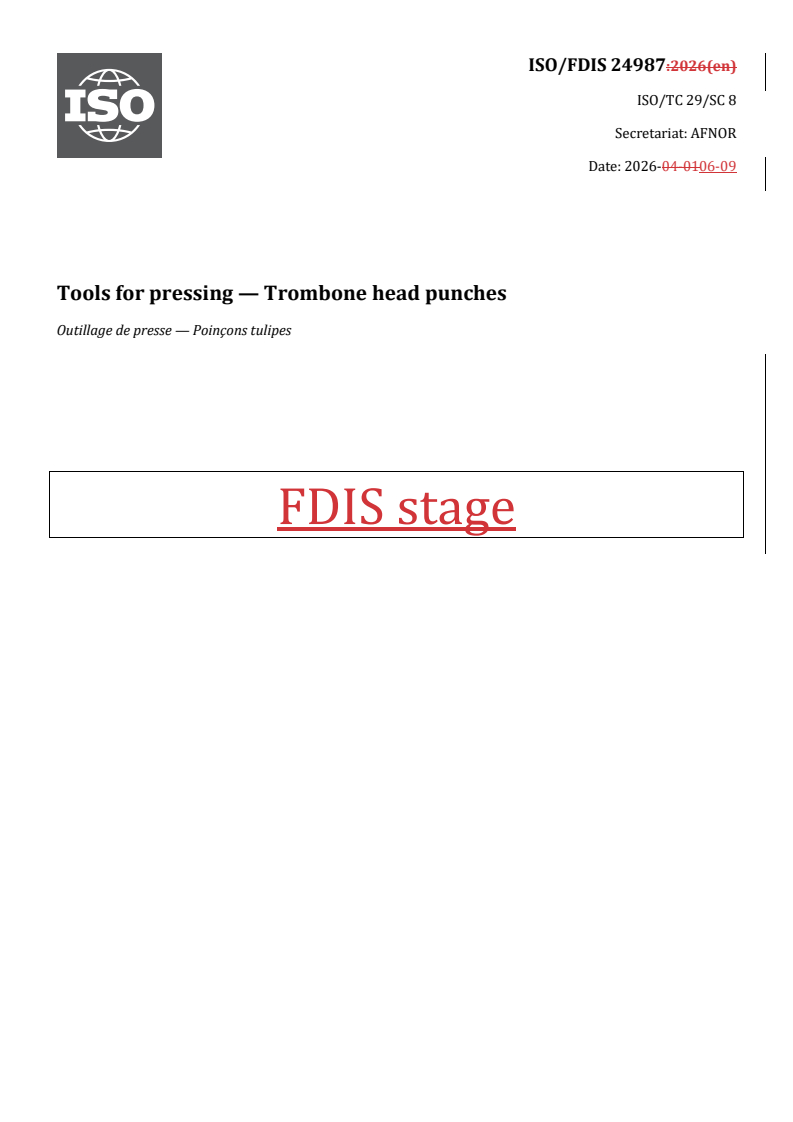

ISO/FDIS 24987:2026(en)
ISO/TC 29/SC 8
Secretariat: AFNOR
Date: 2026-04-0106-09
Tools for pressing — Trombone head punches
Outillage de presse — Poinçons tulipes
FDIS stage
ISO/FDIS 24987:2026(en)

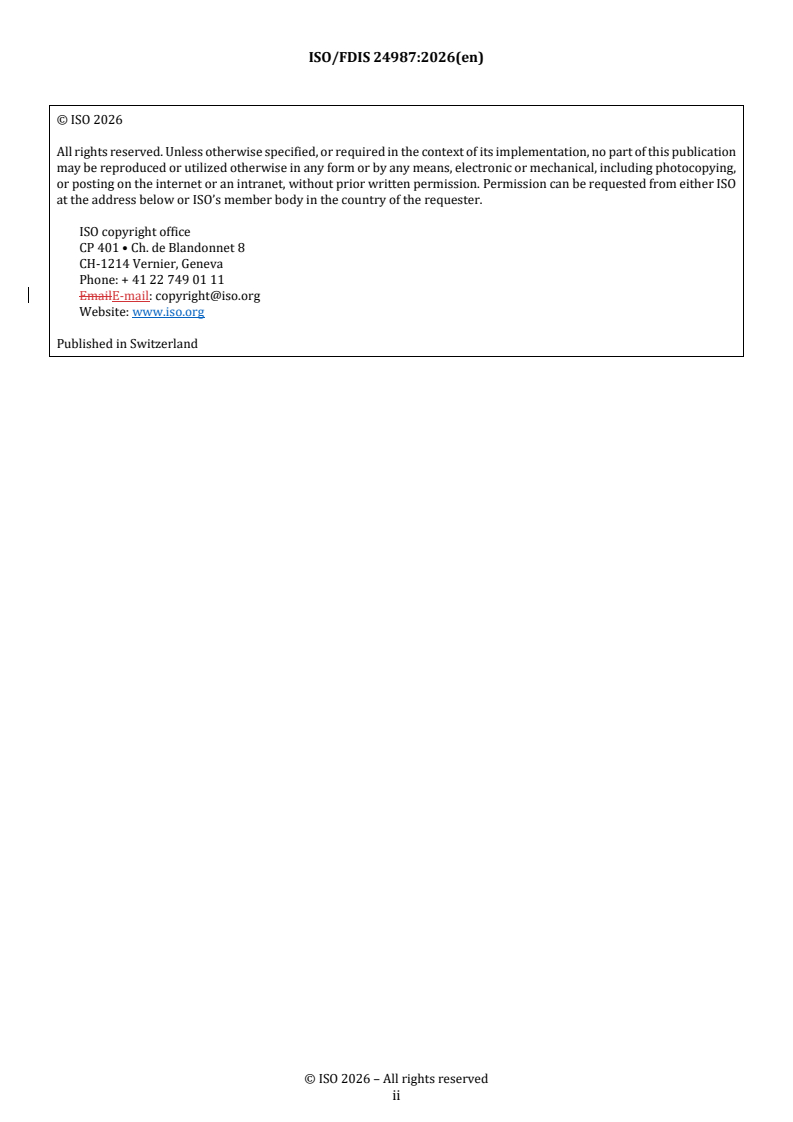

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication
may be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying,
or posting on the internet or an intranet, without prior written permission. Permission can be requested from either ISO
at the address below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: + 41 22 749 01 11
EmailE-mail: [e-mail]
Website: www.iso.org
Published in Switzerland
ii
ISO/FDIS 24987:2026(en)

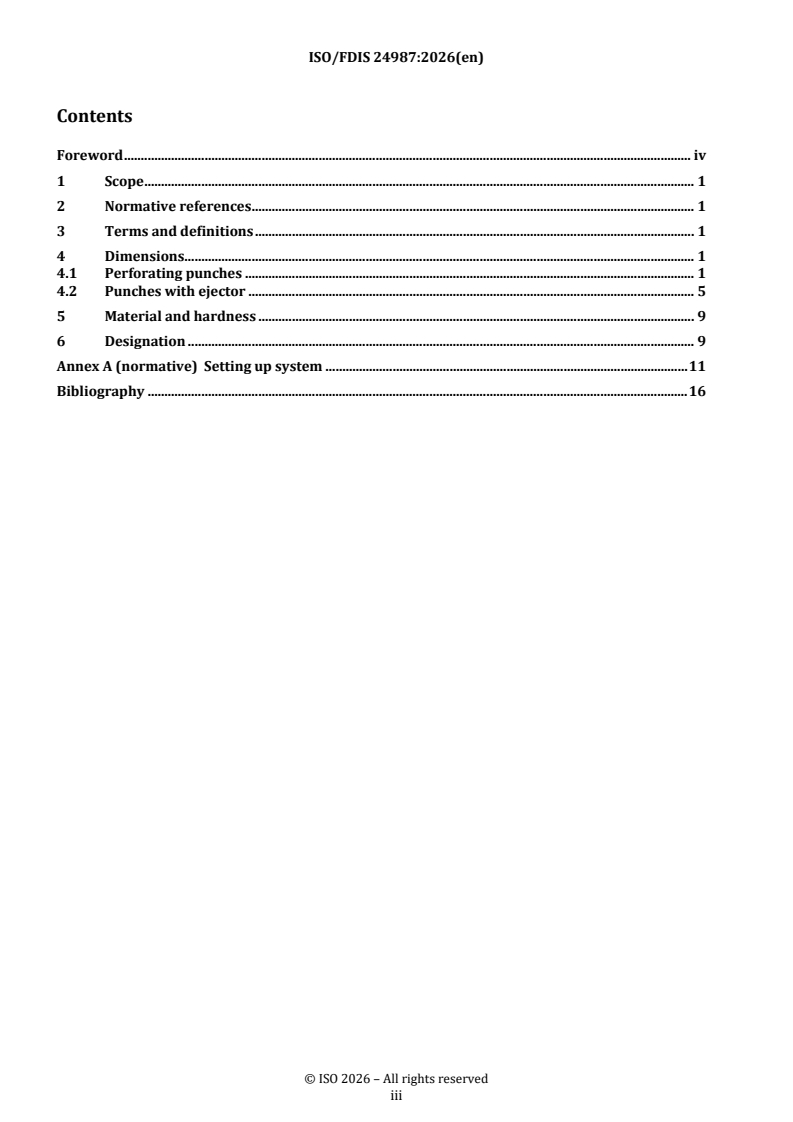

Contents
Foreword . iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Dimensions. 1
4.1 Perforating punches . 1
4.2 Punches with ejector . 5
5 Material and hardness . 9
6 Designation . 9
Annex A (normative) Setting up system . 11
Bibliography . 16

iii
ISO/FDIS 24987:2026(en)

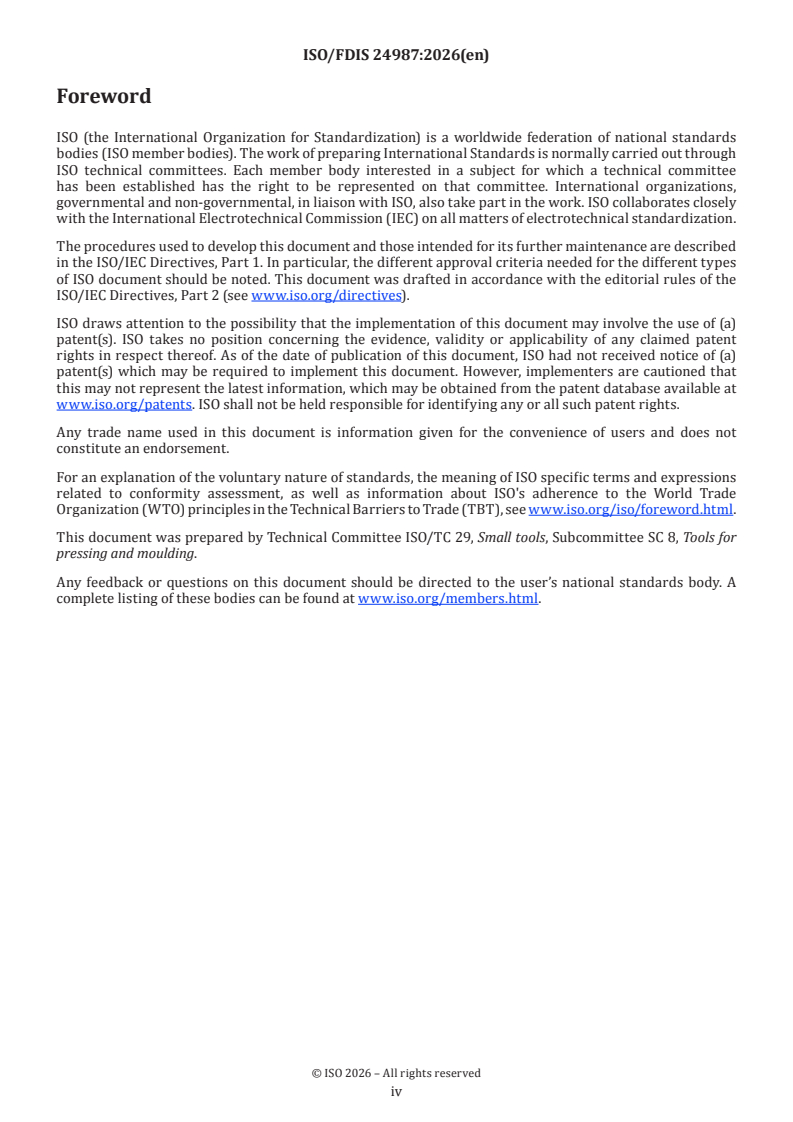

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent rights
in respect thereof. As of the date of publication of this document, ISO had not received notice of (a) patent(s)
which may be required to implement this document. However, implementers are cautioned that this may not
represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 29, Small tools, Subcommittee SC 8, Tools for
pressing and moulding.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
ISO/FDIS 24987:2026(en)
Tools for pressing — Trombone head punches
1 Scope
This document specifies the basic dimensions and tolerances, in millimetres, of trombone head punches. This
document gives examples of materials and their hardness and specifies the designation of punches in
accordance with this document. These punches are available with shank diameters, D, from 4 mm to 20 mm.
The main use of the punches specified in this document is for punching holes in steel sheets. They can also be
used for punching in other materials.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 2768-1, General tolerances — Part 1: Tolerances for linear and angular dimensions without individual
tolerance indications
ISO 8695, Tools for pressing — Punches — Nomenclature and terminology
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 8695 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— — ISO Online browsing platform: available at https://www.iso.org/obp
— — IEC Electropedia: available at https://www.electropedia.org/
4 Dimensions
4.1 Perforating punches
4.1.1 Punches with straight shank – Type A
The dimensions of punches with straight shank, type A, shall be in accordance with the indications of
Figure 1Figure 1 and Table 1Table 1.
ISO/FDIS 24987:2026(en)
Figure 1 — Punches with straight shank – Type A
Table 1 — Dimensions of punches with straight shank – Type A
D D H k f r L
0 +0,2 +0,1  0 +0,5
h6
−0,1 −0,2
0    0  0
mm mm mm mm ° mm mm
71 80 100
4 5,5 20 8 × × ×
5 7 15 × × ×
6 9 20 × × ×
8 11 30 12 × × ×
4 1,5
10 14 35 × × ×
13 17 × × ×
16 20 40 × × ×
20 25 × × ×
Key
× standardized dimensions
4.1.2 Punches with reduced shank
4.1.2.1 Punches with round shape – Type B
The dimensions of punches with round shape, type B, shall be in accordance with the indications of
Figure 2Figure 2 and Table 2Table 2. The general tolerance shall be ISO 2768-m in accordance with ISO 2768-
1.
ISO/FDIS 24987:2026(en)
General tolerance: ISO 2768m2768-m

Figure 2 — Punches with round shape – Type B
Table 2 — Dimensions of punches with round shape – Type B
D D L L
3 1
0 +1 +0,5
h6
−0,01  0
over Up and including 10 13 17 19 25 71 80 100
4 1 3,9 × ×    × × ×
5 1,5 4,9 × ×    × × ×
6 1,6 5,9 × ×    × × ×
8 2,5 7,9 × × × × × × × ×
10 4 9,9 × × × × × × × ×
13 5 12,9 × × × × × × × ×
16 8 15,9 × × × × × × × ×
20 12 19,9 × × × × × × × ×
Key
× standardized dimensions
NOTE D2, H, k, f and r are defined in Table 1.
4.1.2.2 Punches with square (S), rectangular (R) and oblong (O) shapes – Types BS, BR and BO
The dimensions of punches with square (S), rectangular (R) and oblong (O) shapes - Types BS, BR and BO shall
be in accordance with the indications of Figure 3 and Table 3Figure 3 and Table 3. The general tolerance shall
be ISO 2768-m in accordance with ISO 2768-1.

ISO/FDIS 24987:2026(en)
General tolerance: ISO 2768m2768-m; Surface roughness values in micrometersmicrometres

NOTE Standard position of location device is 0°. Optional position of location device can be 90°.
Figure 3 — Punches with square (S), rectangular (R) and oblong (O) shapes – Types BS, BR and BO
...

PROJET FINAL
Norme
internationale
ISO/FDIS 24987
ISO/TC 29/SC 8
Outillage de presse — Poinçons
Secrétariat: AFNOR
tulipes
Début de vote:
Tools for pressing — Trombone head punches 2026-06-23
Vote clos le:
2026-08-18
LES DESTINATAIRES DU PRÉSENT PROJET SONT
INVITÉS À PRÉSENTER, AVEC LEURS OBSERVATIONS,
NOTIFICATION DES DROITS DE PROPRIÉTÉ DONT ILS
AURAIENT ÉVENTUELLEMENT CONNAISSANCE ET À
FOURNIR UNE DOCUMENTATION EXPLICATIVE.
OUTRE LE FAIT D’ÊTRE EXAMINÉS POUR
ÉTABLIR S’ILS SONT ACCEPTABLES À DES FINS
INDUSTRIELLES, TECHNOLOGIQUES ET COM-MERCIALES,
AINSI QUE DU POINT DE VUE DES UTILISATEURS, LES
PROJETS DE NORMES
INTERNATIONALES DOIVENT PARFOIS ÊTRE CONSIDÉRÉS
DU POINT DE VUE DE LEUR POSSI BILITÉ DE DEVENIR DES
NORMES POUVANT
SERVIR DE RÉFÉRENCE DANS LA RÉGLEMENTATION
NATIONALE.
Numéro de référence
ISO/FDIS 24987:2026(fr) © ISO 2026

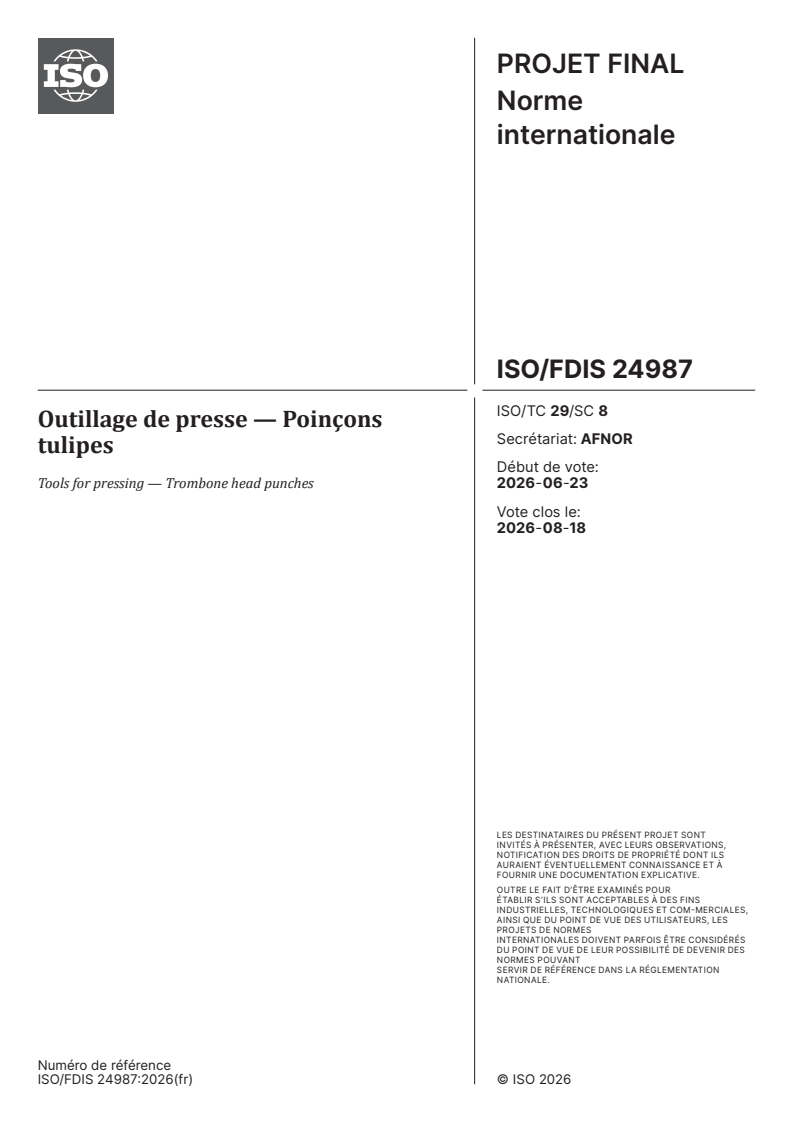

PROJET FINAL
ISO/FDIS 24987:2026(fr)
Norme
internationale
ISO/FDIS 24987
ISO/TC 29/SC 8
Outillage de presse — Poinçons
Secrétariat: AFNOR
tulipes
Début de vote:
Tools for pressing — Trombone head punches
2026-06-23
Vote clos le:
2026-08-18
LES DESTINATAIRES DU PRÉSENT PROJET SONT
INVITÉS À PRÉSENTER, AVEC LEURS OBSERVATIONS,
NOTIFICATION DES DROITS DE PROPRIÉTÉ DONT ILS
AURAIENT ÉVENTUELLEMENT CONNAISSANCE ET À
FOURNIR UNE DOCUMENTATION EXPLICATIVE.

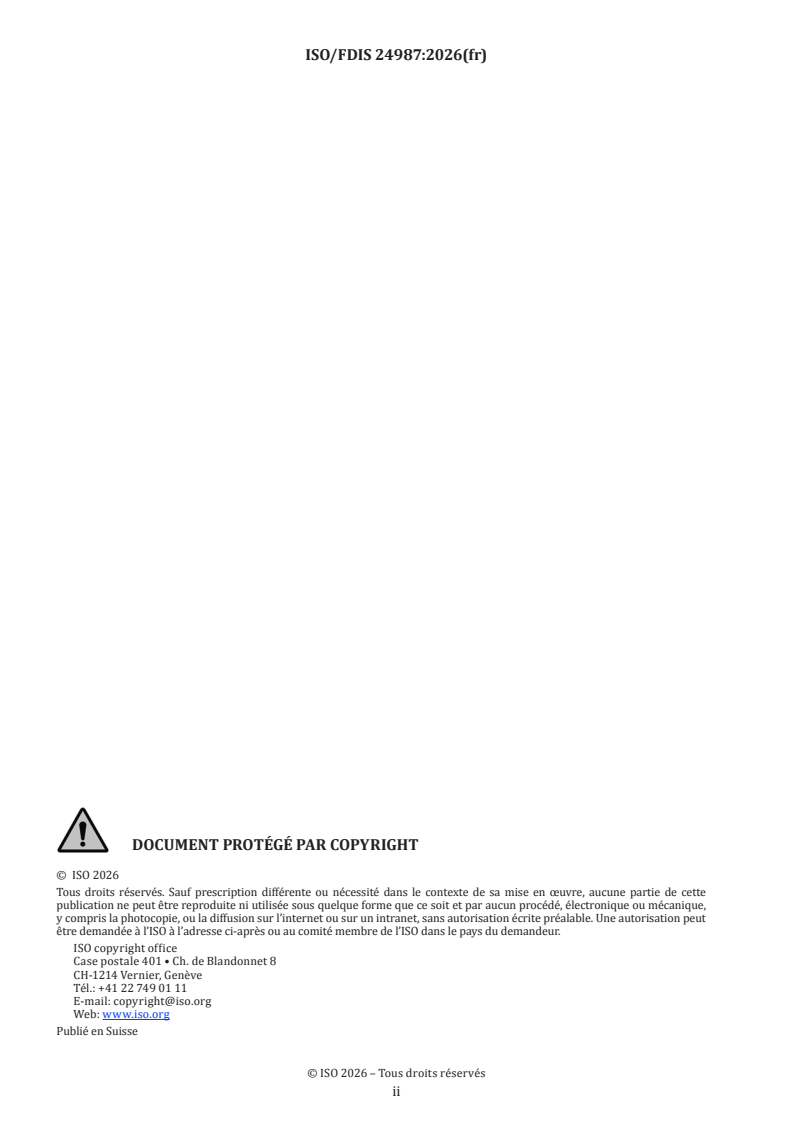

DOCUMENT PROTÉGÉ PAR COPYRIGHT
OUTRE LE FAIT D’ÊTRE EXAMINÉS POUR
ÉTABLIR S’ILS SONT ACCEPTABLES À DES FINS
© ISO 2026 INDUSTRIELLES, TECHNOLOGIQUES ET COM-MERCIALES,
AINSI QUE DU POINT DE VUE DES UTILISATEURS, LES
Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en œuvre, aucune partie de cette
PROJETS DE NORMES
INTERNATIONALES DOIVENT PARFOIS ÊTRE CONSIDÉRÉS
publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,
DU POINT DE VUE DE LEUR POSSI BILITÉ DE DEVENIR DES
y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut
NORMES POUVANT
être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
SERVIR DE RÉFÉRENCE DANS LA RÉGLEMENTATION
NATIONALE.
ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Genève
Tél.: [phone]
E-mail: [e-mail]
Web: www.iso.org
Publié en Suisse Numéro de référence
ISO/FDIS 24987:2026(fr) © ISO 2026

ii
ISO/FDIS 24987:2026(fr)

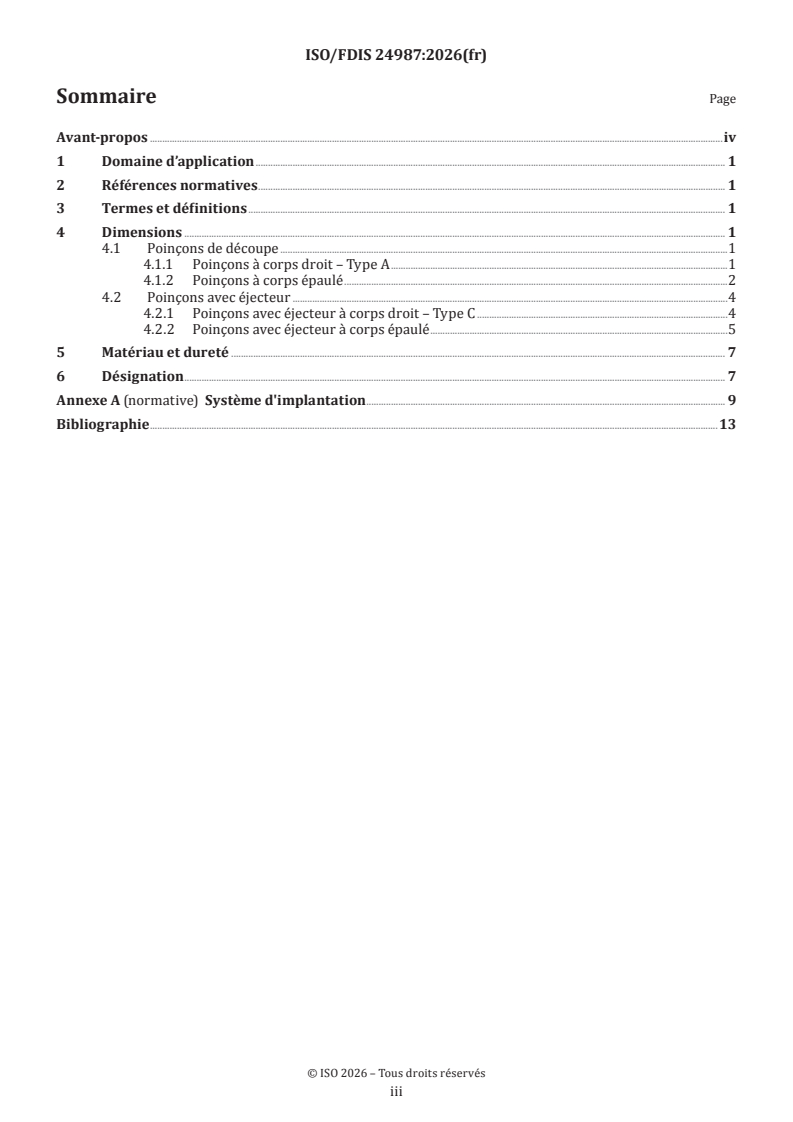

Sommaire Page
Avant-propos .iv
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 1
4 Dimensions . 1
4.1 Poinçons de découpe .1
4.1.1 Poinçons à corps droit – Type A .1
4.1.2 Poinçons à corps épaulé .2
4.2 Poinçons avec éjecteur .4
4.2.1 Poinçons avec éjecteur à corps droit – Type C .4
4.2.2 Poinçons avec éjecteur à corps épaulé .5
5 Matériau et dureté . 7
6 Désignation . 7
Annexe A (normative) Système d'implantation . 9
Bibliographie .13

iii
ISO/FDIS 24987:2026(fr)

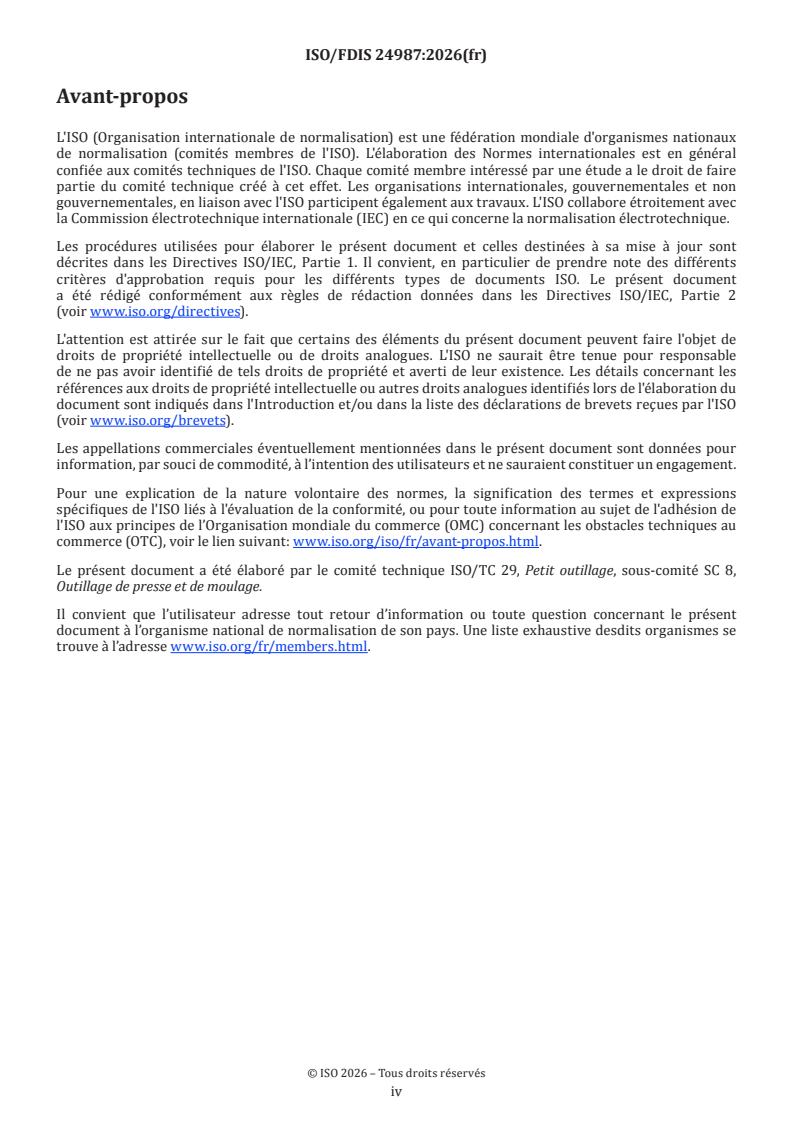

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux
de normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général
confiée aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire
partie du comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec
la Commission électrotechnique internationale (IEC) en ce qui concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier de prendre note des différents
critères d'approbation requis pour les différents types de documents ISO. Le présent document
a été rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2
(voir www.iso.org/directives).
L'attention est attirée sur le fait que certains des éléments du présent document peuvent faire l'objet de
droits de propriété intellectuelle ou de droits analogues. L'ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant les
références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de l'élaboration du
document sont indiqués dans l'Introduction et/ou dans la liste des déclarations de brevets reçues par l'ISO
(voir www.iso.org/brevets).
Les appellations commerciales éventuellement mentionnées dans le présent document sont données pour
information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l'ISO liés à l'évaluation de la conformité, ou pour toute information au sujet de l'adhésion de
l'ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles techniques au
commerce (OTC), voir le lien suivant: www.iso.org/iso/fr/avant-propos.html.
Le présent document a été élaboré par le comité technique ISO/TC 29, Petit outillage, sous-comité SC 8,
Outillage de presse et de moulage.
Il convient que l’utilisateur adresse tout retour d’information ou toute question concernant le présent
document à l’organisme national de normalisation de son pays. Une liste exhaustive desdits organismes se
trouve à l’adresse www.iso.org/fr/members.html.

iv
PROJET FINAL Norme internationale ISO/FDIS 24987:2026(fr)
Outillage de presse — Poinçons tulipes
1 Domaine d’application
Le présent document spécifie les dimensions et tolérances de base, en millimètres, des poinçons tulipes.
Le présent document donne des exemples de matériaux et de leur dureté, et spécifie la désignation des
poinçons. Ces poinçons sont disponibles en diamètres de corps D allant de 4 mm à 20 mm.
Les poinçons spécifiés dans le présent document sont principalment utilisés pour percer des trous dans les
tôles d'acier. Ils peuvent également être utilisés pour le poinçonnage d'autres matériaux.
2 Références normatives
Les documents suivants sont cités dans le texte de sorte qu’ils constituent, pour tout ou partie de leur
contenu, des exigences du présent document. Pour les références datées, seule l’édition citée s’applique. Pour
les références non datées, la dernière édition du document de référence s'applique (y compris les éventuels
amendements).
ISO 2768-1, Tolérances générales — Partie 1: Tolérances pour dimensions linéaires et angulaires non affectées
de tolérances individuelles
ISO 8695, Outillage de presse — Poinçons — Nomenclature et terminologie
3 Termes et définitions
Pour les besoins du présent document, les termes et définitions de l'ISO 8695 ainsi que les suivants
s'appliquent.
L’ISO et l’IEC tiennent à jour des bases de données terminologiques destinées à être utilisées en normalisation,
consultables aux adresses suivantes:
— ISO Online browsing platform: disponible à l’adresse https:// www .iso .org/ obp
— IEC Electropedia: disponible à l’adresse https:// www .electropedia .org/
4 Dimensions
4.1 Poinçons de découpe
4.1.1 Poinçons à corps droit – Type A
Les dimensions des poinçons à corps droit, de type A, doivent être conformes aux indications de la Figure 1
et du Tableau 1.
ISO/FDIS 24987:2026(fr)
Figure 1 — Poinçons à corps droit – Type A
Tableau 1 — Dimensions des poinçons à corps droit – Type A
D
...
