ISO 26429-6:2008
(Main)Digital cinema (D-cinema) packaging — Part 6: MXF track file essence encryption
Digital cinema (D-cinema) packaging — Part 6: MXF track file essence encryption
ISO 26429-6:2008 defines the syntax of encrypted digital cinema non-interleaved material exchange format (MXF) frame-wrapped track files and specifies a matching reference decryption model. It uses the advanced encryption standard (AES) cipher algorithm for essence encryption and, optionally, the HMAC-SHA1 algorithm for essence integrity. The digital cinema track file format is designed to carry digital cinema essence for distribution to exhibition sites and is specified in the sound and picture track file specification. ISO 26429-6:2008 assumes that the cryptographic keys necessary to decrypt and verify the integrity of encrypted track files will be available upon demand. More precisely, it does not specify the fashion with which cryptographic keys and usage rights are managed across digital cinema distribution and exhibition environments. In addition, ISO 26429-6:2008 does not address, but does not preclude, the use of watermarking, fingerprinting or other security techniques to provide additional protection. The scope is limited to digital cinema and does not define a generic MXF encryption framework.
Emballage du cinéma numérique (cinéma D) — Partie 6: Chiffrement de l'essence du fichier de piste MXF
General Information
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 26429-6
First edition
2008-07-15
Digital cinema (D-cinema) packaging —
Part 6:
MXF track file essence encryption
Emballage du cinéma numérique (cinéma D) —
Partie 6: Chiffrement de l'essence du fichier de piste MXF
Reference number
ISO 26429-6:2008(E)
©
ISO 2008
---------------------- Page: 1 ----------------------
ISO 26429-6:2008(E)

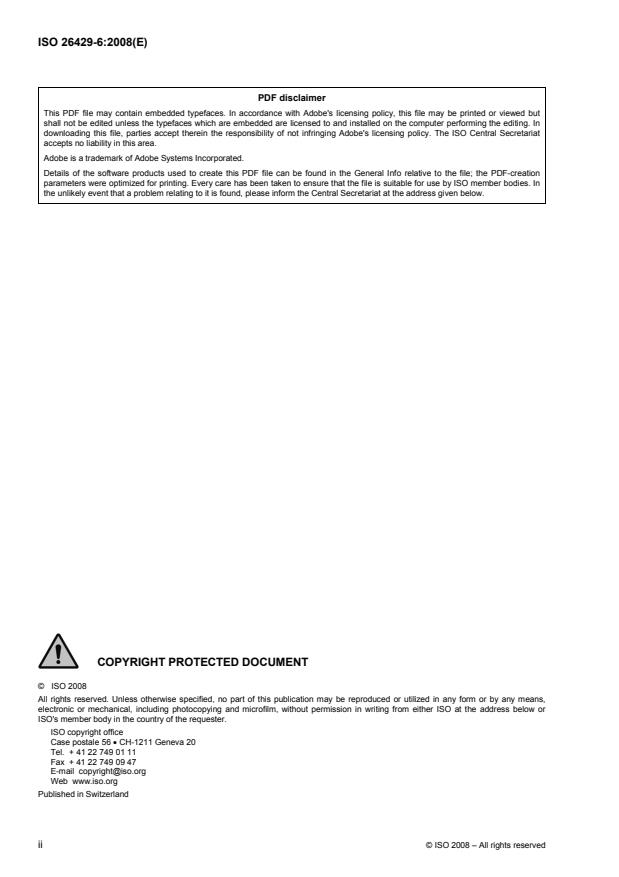

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
COPYRIGHT PROTECTED DOCUMENT
© ISO 2008
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2008 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 26429-6:2008(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
ISO 26429-6 was prepared by the Society of Motion Picture and Television Engineers (as
SMPTE 429-6-2007) and was adopted, under a special “fast-track procedure”, by Technical Committee
ISO/TC 36, Cinematography, in parallel with its approval by the ISO member bodies.
ISO 26429 consists of the following parts, under the general title Digital cinema (D-cinema) packaging:
⎯ Part 3: Sound and picture track file
⎯ Part 4: MXF JPEG 2000 application
⎯ Part 6: MXF track file essence encryption
⎯ Part 7: Composition playlist
© ISO 2008 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 26429-6:2008(E)

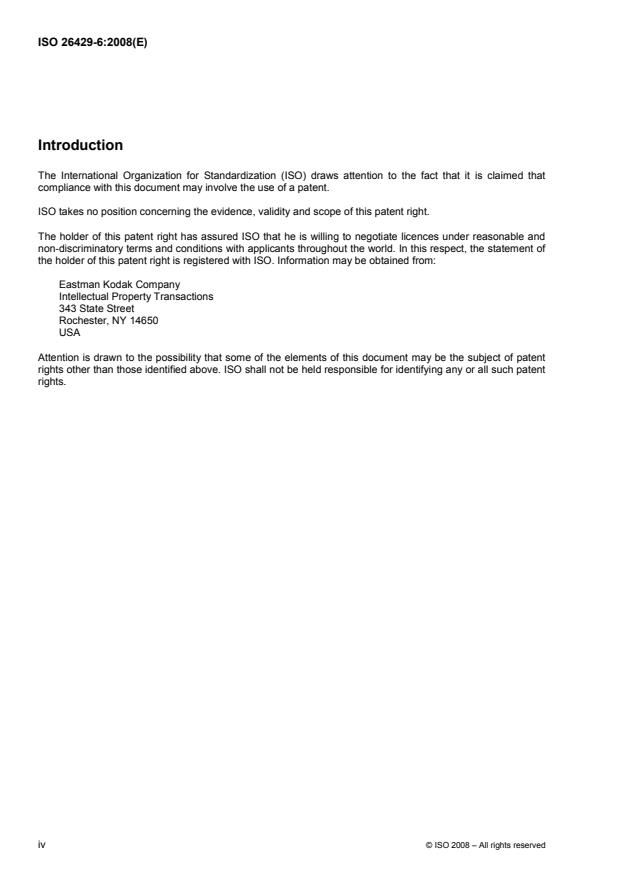

Introduction
The International Organization for Standardization (ISO) draws attention to the fact that it is claimed that
compliance with this document may involve the use of a patent.
ISO takes no position concerning the evidence, validity and scope of this patent right.
The holder of this patent right has assured ISO that he is willing to negotiate licences under reasonable and
non-discriminatory terms and conditions with applicants throughout the world. In this respect, the statement of
the holder of this patent right is registered with ISO. Information may be obtained from:
Eastman Kodak Company
Intellectual Property Transactions
343 State Street
Rochester, NY 14650
USA
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights other than those identified above. ISO shall not be held responsible for identifying any or all such patent
rights.
iv © ISO 2008 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 26429-6:2008(E)
SMPTE 429-6-2006
SMPTE STANDARD
D-Cinema Packaging —
MXF Track File
Essence Encryption
Page 1 of 25 pages
Table of Contents
1 Scope . 3
2 Normative References . 3
3 Overview . 4
4 Encrypted Essence Container . 5
5 Cryptographic Framework. 5
5.1 Cryptographic Framework Key . 6
5.2 Length . 6
5.3 Context SR. 7
6 Cryptographic Context . 7
6.1 Cryptographic Context Key . 7
6.2 Length . 8
6.3 Context ID . 8
6.4 Source Essence Container Label . 8
6.5 Cipher Algorithm . 8
6.6 MIC Algorithm . 8
6.7 Cryptographic Key ID. 9
7 Encrypted Triplet. 9
7.1 Encrypted Triplet Key. 10
7.2 Length . 10
7.3 Cryptographic Context Link. 10
7.4 Plaintext Offset. 10
7.5 Source Key. 10
7.6 Source Length. 10
7.7 Encrypted Source Value . 11
7.8 TrackFile ID [optional] . 11
7.9 Sequence Number [optional] . 12
7.10 MIC [optional]. 12
8 Encrypted Track File Constraints. 12
8.1 Encrypted Essence Track . 12
8.2 Cryptographic Framework DM Track. 12
8.3 Index Tables. 13
9 Reference Decryption Processing Model. 13
9.1 Overall Flow . 13
9.2 Modules. 14
Copyright © 2006 by THE SOCIETY OF
Approved
MOTION PICTURE AND TELEVISION ENGINEERS
October 3, 2006
3 Barker Avenue, White Plains, NY 10601
(914) 761-1100
© ISO 2008 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 26429-6:2008(E)
SMPTE 429-6-2006
10 Label and Key Structures .18
10.1 Encrypted Essence Container Label .18
10.2 Cryptographic Framework Label .19
10.3 Cryptographic Framework Key.20
10.4 Cryptographic Context Key.21
10.5 Encrypted Triplet Key .22
10.6 AES-CBC with 128-bit Key UL .22
10.7 HMAC-SHA1 with 128-bit Key UL .23
Annex A Security Properties (Informative) .24
Annex B Bibliography (Informative).25
Foreword
SMPTE (the Society of Motion Picture and Television Engineers) is an internationally-recognized standards
developing organization. Headquartered and incorporated in the United States of America, SMPTE has
members in over 80 countries on six continents. SMPTE’s Engineering Documents, including Standards,
Recommended Practices and Engineering Guidelines, are prepared by SMPTE’s Technology Committees.
Participation in these Committees is open to all with a bona fide interest in their work. SMPTE cooperates
closely with other standards-developing organizations, including ISO, IEC and ITU.
SMPTE Engineering Documents are drafted in accordance with the rules given in Part XIII of its
Administrative Practices.
Proposed SMPTE Standard 429-6 was prepared by Technology Committee DC28.
Page 2 of 25 pages
2 © ISO 2008 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 26429-6:2008(E)
SMPTE 429-6-2006
1 Scope
This standard defines the syntax of encrypted D-Cinema non-interleaved MXF frame-wrapped track files and
specifies a matching reference decryption model. It uses the AES cipher algorithm for essence encryption
and, optionally, the HMAC-SHA1 algorithm for essence integrity. The D-Cinema track file format is designed
to carry D-Cinema essence for distribution to exhibition sites and is specified in the Sound and Picture Track
File specification.
This standard assumes that the cryptographic keys necessary to decrypt and verify the integrity of encrypted
Track Files will be available upon demand. More precisely, it does not specify the fashion with which
cryptographic keys and usage rights are managed across D-Cinema distribution and exhibition environments.
In addition, this document does not address, but does not preclude, the use of watermarking, fingerprinting or
other security techniques to provide additional protection. The scope is limited to D-Cinema and does not
define a generic MXF encryption framework.
2 Normative References
The following standards contain provisions which, through reference in this text, constitute provisions of this
standard. At the time of publication, the editions indicated were valid. All standards are subject to revision,
and parties to agreements based on this standard are encouraged to investigate the possibility of applying the
most recent edition of the standards indicated below.
SMPTE 336M-2001, Television — Data Encoding Protocol Using Key-Length-Value
SMPTE 377M-2004, Television — Material Exchange Format (MXF) — File Format Specification
SMPTE 429-3-2006, D-Cinema Packaging — Sound and Picture Track File
IETF 2898 (September 2000). PKCS #5: Password-Based Cryptography Specification – Version 2.0.
IETF 2104 (February 1997). HMAC: Keyed-Hashing for Message Authentication
National Institute of Standards and Technology (December 1, 2001). Recommendation for Block Cipher
Modes of Operation Methods and Techniques (SP 800-38A).
National Institute of Standards and Technology, FIPS 197 (November 26, 2001). Advanced Encryption
Standard (AES).
National Institute of Standards and Technology, FIPS PUB 186-2 (+Change Notice 1) (January 27, 2000).
Digital Signature Standard (DSS).
Page 3 of 25 pages
© ISO 2008 – All rights reserved 3
---------------------- Page: 7 ----------------------
ISO 26429-6:2008(E)
SMPTE 429-6-2006
3 Overview
This specification defines the encryption of the sensitive essence information contained in D-Cinema Track
Files using the Advanced Encryption Standard (AES) cipher algorithm in Cipher Block Chaining (CBC) mode
as defined in NIST SP 800-38A. As an option, it also allows the integrity of the same essence to be verified
using the HMAC-SHA1 algorithm. More specifically this specification allows any individual track contained
within a plaintext Track File to be encrypted using a single cryptographic key. The resulting encrypted Track
File is extremely similar to a plaintext Track File, which is itself a constrained version of the MXF OP-ATOM
1
operational pattern . It differs in the following three areas.
First, the Essence Container Label associated with the plaintext track is replaced by an Encrypted Essence
Container Label. The replacement Label signals the presence of encrypted essence and allows any receiving
MXF application which cannot perform decryption to “fail fast” as described in SMPTE EG 41. The Encrypted
Essence Container is defined in Section 4.
Second, cryptographic information associated with the encrypted track as a whole is inserted in the MXF
header metadata as a Cryptographic Framework. The Cryptographic Framework contains a link to the single
cryptographic key used to encrypt the essence track. It also lists the algorithms necessary to process the
encrypted essence and contains the original Essence Container Label. The latter allows implementations to
determine the nature of the plaintext essence without further processing. The Cryptographic Framework is
defined in Sections 5 and 5.1.
K L V
encryption / decryption
Cryptographic Cryptographic
K’ L’ K L E(V)
information information (opt)
V’
Figure 1 – Correspondence between Source and Encrypted Triplets.
Red hatching depicts the encrypted portion of the Encrypted Triplet; other items are left as
plaintext. Only the value item of Source Triplet is encrypted, allowing the essence information
to be encrypted prior to wrapping. See Section 7 for a description of the cryptographic
information associated with each Encrypted Triplet.
Third, the plaintext Triplets containing essence information have been replaced by Encrypted Triplets — see
SMPTE 336M for details on KLV (Key-Length-Value) coding. Each Encrypted Triplet, is designed to be
processed independently, allowing decryption to start anywhere within the encrypted Track File. Figure 1
2
illustrates the correspondence between a plaintext and an Encrypted Triplet . The value V of a source
plaintext KLV Triplet is first encrypted to yield E(V). The encrypted value E(V), along with K and L, is wrapped
in a K’L’V’ Encrypted Triplet. K' is a unique label common to all Encrypted Triplets, independent of their
content. L' refers to the full length of V'. V' consists of K, L and E(V) from the source Triplet as well as
cryptographic information specific to the Encrypted Triplet. This cryptographic information includes, for
instance, the initialization vector used in generating E(V) and the message integrity code (MIC) used to verify
the integrity of the Triplet. The structure of Encrypted Triplets is detailed in Section 7.
1
This specification assumes that the reader is familiar with the MXF and Track File formats.
2
This specification does not require the essence to be wrapped in a KLV Triplet to enable its encryption. In other words,
essence may be encrypted prior to being wrapped in an Encrypted Triplet.
Page 4 of 25 pages
4 © ISO 2008 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 26429-6:2008(E)
SMPTE 429-6-2006
4 Encrypted Essence Container
In order to signal the presence of encrypted tracks, the Essence Container Label of any track containing
Encrypted Triplets shall be replaced by the Encrypted Essence Container Label listed in Table 1. This
replacement shall occur both in the Preface set and in the Partition Pack. The Essence Container Label in the
File Descriptor (SMPTE 377M) shall however remain unchanged to identify the underlying plaintext essence.
Table 1 – Encrypted Essence Container Label
(See Section 10.1 for the complete structure of the Label.)
060e2b34 04010107 0d010301 020b0100
5 Cryptographic Framework
As depicted in Figure 2, the Cryptographic Context shall be carried in encrypted Track Files as an MXF
3
Descriptive Metadata (DM) Framework . Specifically, Track Files may contain one or more Descriptive
4
Metadata Tracks containing each a single Cryptographic Framework . The Cryptographic Framework
structure is detailed in Table 3.
Essence Container
Essence
Header Metadata Track
Partition Pack
contains
Source Package Encrypted Triplet
reference by UID
n
DM Track (Static)
reference by UID
1
DM Sequence
reference by UID
1
DM Segment
reference by UID
1
Cryptographic Framework
reference by Context ID
1
Cryptographic
Cryptographic Context
link by 1 Key
Cryptographic
Key ID
Figure 2 – Cryptographic Framework
The DM Track is static since in encrypted Track Files a single cryptographic key is associated with any
given track. Each Encrypted Triplet within a Track must refer to the same Cryptographic Context.
3
DM frameworks are defined in SMPTE 377M under Plug-in Mechanism and follow the principles described in SMPTE
EG 42.
4
(Informative) The Cryptographic Framework is specified as a subclass of the DM Framework abstract superclass (see
SMPTE 380M).
Page 5 of 25 pages
© ISO 2008 – All rights reserved 5
link by Track Number
link by Context ID
---------------------- Page: 9 ----------------------
ISO 26429-6:2008(E)
SMPTE 429-6-2006
The Cryptographic Framework forms a Cryptographic DM Scheme. The Cryptographic Framework Label
listed in Table 2 shall be included in the Preface set as the identifier of the Cryptographic DM Scheme.
Table 2 – Cryptographic Framework Label
(See Section 10.2 for the complete structure of the Label.)
060e2b34 04010107 0d010401 02010100
The Cryptographic Framework does not contain actual cryptographic information and instead references a
single Cryptographic Context, which is defined in Section 6. Its purpose is to provide compatibility with other
MXF Descriptive Metadata, allowing the Cryptographic Context to be exposed in a consistent manner.
The following defines the items contained in the Cryptographic Framework Set. With the exception of
InstanceID and GenerationUID, which are already defined in SMPTE 377M, all Local Tag values for the
descriptor shall be dynamically allocated as defined in SMPTE 377M section 8.2.2 (Local tag values). The
translation from each dynamically allocated local tag value to its full UL value can be found using the Primer
Pack mechanism defined in SMPTE 377M section 8.2 (Primer Pack).
Table 3 – Cryptographic Framework Set (Lengths are in bytes)
Item Name Type Len UL Req ? Meaning
Cryptographic Set Key 16 060e2b34 Req Defines the Cryptographic
02530101
Framework Key Framework Set
0d010401
02010000
Length BER var n/a Req Set length
Length
InstanceID UUID 16 060e2b34 Req Unique identifier for the
01010101
framework.
01011502
00000000
060e2b34
GenerationUID UUID 16 Opt Optional Generation
01010102 Identifier
05200701
08000000
060e2b34
Context SR Strong Ref 16 Req Strong reference to the
01010109
(Descrip- associate Cryptographic
06010104
tive Set) Context (see Section 6)
020d0000
5.1 Cryptographic Framework Key
The Cryptographic Framework Key uniquely identifies the Set as a Cryptographic Framework being subject to
this specification.
Table 4 – Cryptographic Framework Key
(See Section 10.3 for the complete structure of the Key.)
060e2b34 02530101 0d010401 02010000
5.2 Length
The Length item specifies the length of the Cryptographic Framework encoded using Basic Encoding Rules
(BER) per SMPTE 336M.
Page 6 of 25 pages
6 © ISO 2008 – All rights reserved
---------------------- Page: 10 ----------------------
ISO 26429-6:2008(E)
SMPTE 429-6-2006
5.3 Context SR
The Context SR item contains a strong reference to the Cryptographic Context associated with the
Cryptographic Framework.
6 Cryptographic Context
5
The Cryptographic Context Set contains cryptographic information that applies to encrypted essence tracks
as a whole. The following defines the items contained in the Cryptographic Context Set. With the exception of
InstanceID and GenerationUID, which are already defined in SMPTE 377M, all Local Tag values for the
descriptor shall be dynamically allocated as defined in SMPTE 377M section 8.2.2 (Local tag values). The
translation from each dynamically allocated local tag value to its full UL value can be found using the Primer
Pack mechanism defined in SMPTE 377M section 8.2 (Primer Pack).
Table 5 – Cryptographic Context Set (Lengths are in bytes)
Item Name Type Len UL Req ? Meaning
Cryptographic Set Key 16 060e2b34 Req Defines the Cryptographic
02530101
Context Key Context Set
0d010401
02020000
n/a
Length BER var Req Set length
Length
InstanceID UUID 16 060e2b34 Req Unique identifier for the
01010101
context used by
01011502
Cryptographic Framework
00000000
to refer to the Context.
060e2b34
GenerationUID UUID 16 Opt Optional Generation
01010102
Identifier
05200701
08000000
060e2b34
Context ID UUID 16 Req Unique identifier used by
01010109 Encrypted Triplets to refer
01011511
to the Context.
00000000
060e2b34
Source Essence UL 16 Req Essence Container Label
01010109
Container Label for the source essence,
06010102
prior to encryption
02000000
060e2b34
Cipher Algorithm UL 16 Req Algorithm used for Triplet
or zero 01010109 encryption, if any.
02090301
01000000
060e2b34
MIC Algorithm UL 16 Req Algorithm used for Triplet
01010109
or zero integrity, if any.
02090302
01000000
Cryptographic UUID 16 060e2b34 Req Unique identifier for the
01010109
Key ID cryptographic key.
02090301
02000000
6.1 Cryptographic Context Key
The Cryptographic Context Key item uniquely identifies the Set as a Cryptographic Context being subject to
this specification.
5
(Informative) The Cryptographic Context is a subclass of an InterchangeObject (see SMPTE 380M Annex C)
Page 7 of 25 pages
© ISO 2008 – All rights reserved 7
---------------------- Page: 11 ----------------------
ISO 26429-6:2008(E)
SMPTE 429-6-2006
Table 6 – Cryptographic Context Key
(See Section 10.4 for the complete structure of the Key.)
060e2b34 02530101 0d010401 02020000
6.2 Length
The Length item specifies the length of the Cryptographic Context value encoded using Basic Encoding Rules
(BER) per SMPTE 336M.
6.3 Context ID
The Context ID item uniquely identifies this particular Cryptographic Context. It is represented by a UUID.
This value is referenced by Encrypted Triplets.
6.4 Source Essence Container Label
The Source Essence Container Label item contains the original Label of the Essence Container to which the
Encrypted Triplet belongs. This allows the type of essence contained in the Encrypted Container to be readily
determined.
6.5 Cipher Algorithm
The Cipher Algorithm ID item identifies the algorithm and mode used to encrypt the Encrypted Triplets
associated with this Cryptographic Context. It shall contain one of the values listed in Table 7.
Table 7 – Cipher Algorithms
Description Value
00000000 00000000 00000000 00000000
No cipher algorithm used.
060e2b34 04010107 02090201 01000000
AES-CBC with 128-bit key.
The first row of Table 7 is a special value that shall be used to indicate that no cipher algorithm is necessary
to process the Encrypted Triplets associated with the Cryptographic Context. The second row identifies the
sole permitted value of the cipher algorithm — Section 10.6 defines the complete structure of this label.
6.6 MIC Algorithm
The MIC Algorithm ID item identifies the algorithm used to compute the (optional) message integrity code
contained in the Encrypted Triplets associated with this Cryptographic Context. It shall contain one of the
values listed in Table 8.
Table 8 – Message Integrity Code Algorithms
Description Value
No MIC algorithm used. 00000000 00000000 00000000 00000000
HMAC-SHA1 with 128-bit key. 060e2b34 04010107 02090202 01000000
The first row of Table 8 is a special value that shall be used to indicate that no MIC algorithm is necessary to
process the Encrypted Triplets associated with the Cryptographic Context. The second row identifies the sole
permitted value of the MIC algorithm — Section 10.7 defines the complete structure of this label.
Page 8 of 25 pages
8 © ISO 2008 – All rights reserved
---------------------- Page: 12 ----------------------
ISO 26429-6:2008(E)
SMPTE 429-6-2006
6.7 Cryptographic Key ID
The Cryptographic Key ID item uniquely identifies the cryptographic key used as input to the cipher and
message authentication code algorithms applied to Encrypted Triplets. It shall be encoded as a UUID. See
Section 9.1 for a description of its use.
7 Encrypted Triplet
The Encrypted Triplet Variable Length Pack, shown in Table 9, contains both encrypted data and
cryptographic information specific to the Triplet. As a Variable Length Pack, each individual item in the Value
field comprises a Length field and the individual item value. Byte 6 of the Key value (04h) defines that the
length field for each individual item is BER short or long form encoded in accordance with SMPTE 336M. All
items in a pack are required. Any item labeled Opt means that the value of the Length-Value pair is not
present and therefore the Length is zero.
Table 9 – Encrypted Triplet Variable Length Pack
Item Name Type Len UL Req ? Meaning
060e2b34
Encrypted Triplet Pack Key 16 Req Defines the Encrypted
02040101
Key Triplet Variable
0d010301
Length Pack
027e0100
Length BER var n/a Req Pack length
Length
060e2b34
Cryptographic UUID 16 Req Link to the
01010109
Context Link Cryptographic Context
06010106
associated with this
03000000
Triplet (see Section 6)
060e2b34
Plaintext Offset UInt64 8 Req Offset within the
01010109 source at which
06090201
encryption starts
03000000
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
