ISO/IEC 20237:2023

Information technology — Sparkplug® version 3.0

Technologies de l'information — Sparkplug® version 3.0

General Information

• Status: Published
• Publication Date: 17-Oct-2023
• ICS: 35.020 - Information technology (IT) in general
• Technical Committee: ISO/IEC JTC 1 - Information technology
• Drafting Committee: ISO/IEC JTC 1 - Information technology
• Current Stage: 6060 - International Standard published
• Start Date: 18-Oct-2023
• Due Date: 05-Jun-2024
• Completion Date: 18-Oct-2023

Overview

ISO/IEC 20237:2023 - Information technology - Sparkplug® version 3.0 standardizes the Sparkplug v3.0 specification for MQTT-based industrial messaging. Published October 2023 (First edition), the document formalizes topic namespace conventions, state management, message types and payload encodings (including Google Protocol Buffers), operational behavior for sessions, and security and high‑availability considerations. The specification was prepared by OASIS (Sparkplug 3.0.0) and adopted under the ISO/IEC JTC 1 PAS procedure.

Keywords: ISO/IEC 20237:2023, Sparkplug 3.0, MQTT, industrial IoT, Protocol Buffers, IIoT, message payload, topic namespace

Key Topics and Technical Requirements

• Topic namespace and naming: Defines elements such as namespace, group_id, message_type, edge_node_id and device_id to ensure consistent MQTT topic structure and routing.
• Message types and lifecycle: Standardizes core message types (e.g., birth/death certificates, data and command messages) and their semantics for NBIRTH/DBIRTH, NDATA/DDATA, NCMD/DCMD, NDEATH/DDEATH, and STATE messages.
• Payload formats: Specifies Sparkplug payloads and explicitly references Google Protocol Buffers for efficient, interoperable serialization; includes metric naming, templates, DataSet and metadata constructs.
• Operational behavior: Covers pub/sub principles, session establishment and termination for host applications, edge nodes and MQTT-enabled devices, timestamping, case sensitivity and message ordering rules.
• State management: Defines continuous session awareness, report-by-exception patterns, and birth/death certificate semantics to manage node and device state across MQTT brokers.
• Security: Addresses TLS, authentication, authorization and implementation notes (underlying MQTT security, encrypted sockets, ACLs).
• High availability: Guidance for resilient MQTT server topologies and state handling in multi-broker deployments.

Practical Applications

• Industrial IoT (IIoT) telemetry and device-to-cloud integration
• SCADA and process automation messaging between PLCs, edge gateways and cloud systems
• Edge computing deployments where reliable state management and lightweight serialization are required
• Systems integration for MES, historian, and analytics platforms that consume standardized MQTT topics and Protocol Buffers payloads

Who Should Use This Standard

• MQTT broker and client implementers
• Edge gateway and device OEMs building Sparkplug-enabled devices
• Systems integrators and software developers implementing industrial telemetry
• Security architects and operations teams deploying secure, high‑availability MQTT infrastructures
• Standards bodies and procurement teams specifying IIoT interoperability

Related Standards and Notes

• Builds on the MQTT messaging pattern and leverages Google Protocol Buffers for payload serialization.
• Prepared by OASIS Sparkplug working groups; implementers should consult MQTT and TLS best practices alongside ISO/IEC 20237:2023 for secure deployments.

Standards Content (Sample)

INTERNATIONAL ISO/IEC
STANDARD 20237
First edition
2023-10
Information technology —
Sparkplug® version 3.0
Reference number
© ISO/IEC 2023
© ISO/IEC 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii
© ISO/IEC 2023 – All rights reserved

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical activity.
ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of document should be noted (see www.iso.org/directives or
www.iec.ch/members_experts/refdocs).
ISO and IEC draw attention to the possibility that the implementation of this document may involve the
use of (a) patent(s). ISO and IEC take no position concerning the evidence, validity or applicability of any
claimed patent rights in respect thereof. As of the date of publication of this document, ISO and IEC had
not received notice of (a) patent(s) which may be required to implement this document. However,
implementers are cautioned that this may not represent the latest information, which may be obtained
from the patent database available at www.iso.org/patents and https://patents.iec.ch. ISO and IEC shall
not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the World
Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT),
see www.iso.org/iso/foreword.html. In the IEC, see www.iec.ch/understanding-standards.
This document was prepared by OASIS (as Sparkplug 3.0.0, Sparkplug Specification) and drafted in
accordance with its editorial rules. It was adopted, under the JTC 1 PAS procedure, by Joint Technical
Committee ISO/IEC JTC 1, Information technology.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html and www.iec.ch/national-
committees.

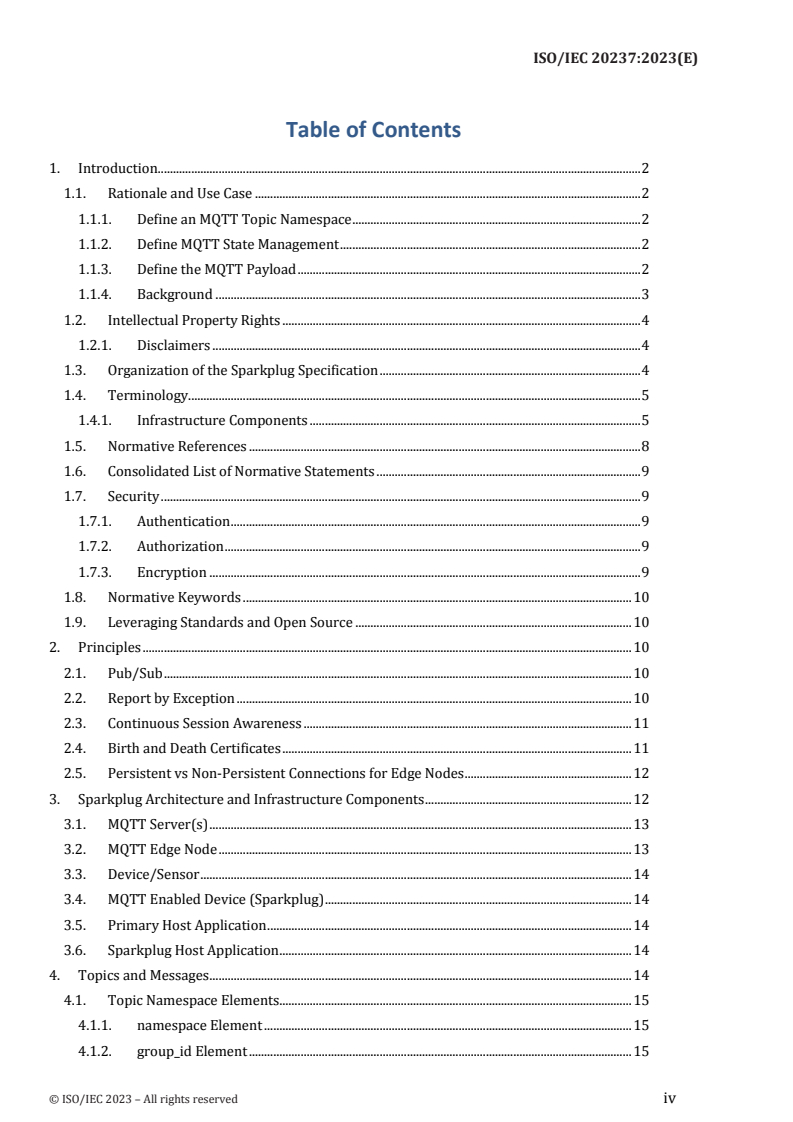

Table of Contents
