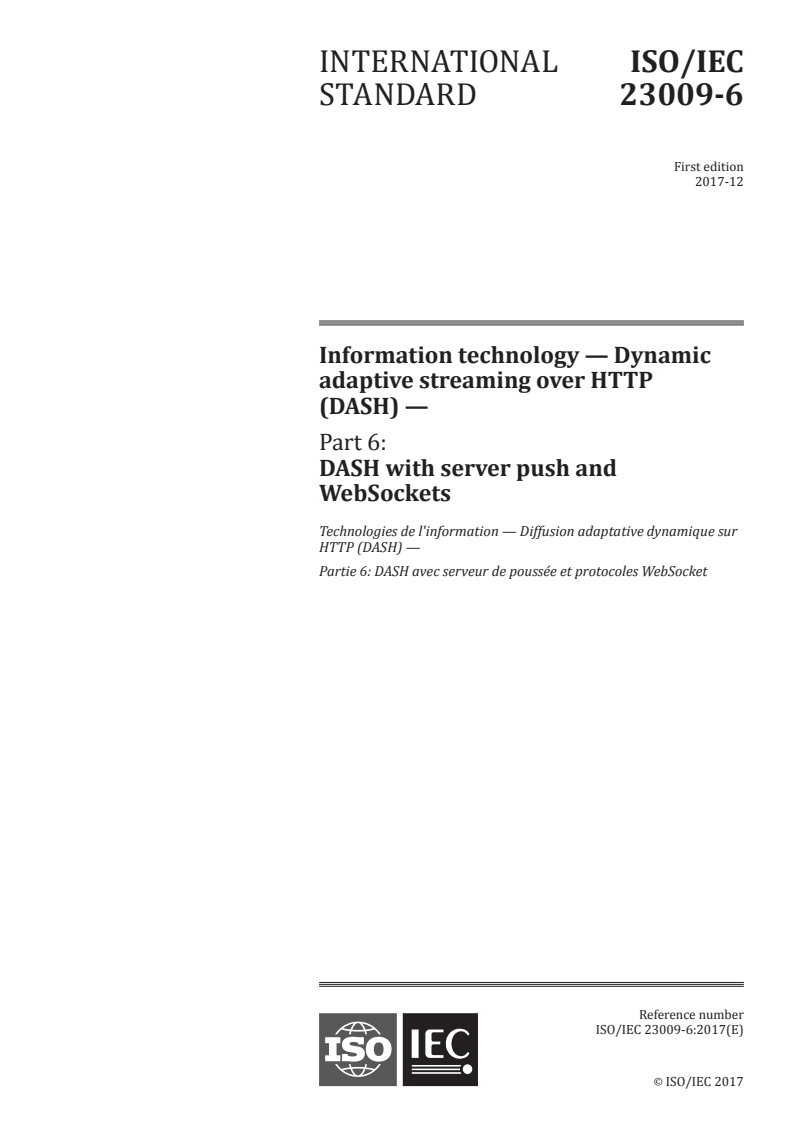

Standards Content (Sample)

INTERNATIONAL ISO/IEC
STANDARD 23009-6
First edition
2017-12
Information technology — Dynamic
adaptive streaming over HTTP
(DASH) —
Part 6:
DASH with server push and
WebSockets
Technologies de l'information — Diffusion adaptative dynamique sur
HTTP (DASH) —
Partie 6: DASH avec serveur de poussée et protocoles WebSocket
Reference number
©
ISO/IEC 2017
© ISO/IEC 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO/IEC 2017 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms, definitions, abbreviated terms and conventions . 1
3.1 Terms and definitions . 1
3.2 Conventions . 2
4 Background . 2
5 Specification structure . 3
6 Definitions . 3
6.1 Data type definitions . 3
6.1.1 General. 3
6.1.2 PushType . 4
6.1.3 PushDirective . 5
6.1.4 PushAck . 5
6.1.5 URLList . 5
6.1.6 URLTemplate . 5
6.1.7 FastStartParams . 6
6.2 Push strategy definitions . 7
7 DASH server push over HTTP/2 . 9
7.1 PushDirective binding. 9
7.2 PushAck binding . 9
7.3 Push cancel . 9
8 DASH server push over WebSocket . 9
8.1 Message flow over WebSocket . 9
8.2 WebSocket sub-protocol for MPEG-DASH .10
8.2.1 MPEG-DASH WebSocket frame format and semantics .10
8.2.2 Definition of WebSocket streams.11
8.3 WebSocket message codes .12
8.4 WebSocket message definitions .12
8.4.1 MPD request (client → server).12
8.4.2 Segment request (client → server) .13
8.4.3 MPD received (server → client) .14
8.4.4 Segment received (server → client) .16
8.4.5 End of stream (EOS) (server → client) .17
8.4.6 Segment cancel (client → server) .18
8.5 MPEG-DASH sub-protocol registration .19
Annex A (informative) Considered use cases .20
Annex B (informative) System architecture for HTTP/2 .21
Annex C (informative) Examples of HTTP/2 client/server behaviour .23
Annex D (informative) Examples of WebSocket client/server behaviour .27
Annex E (informative) Protocol upgrade and fallback procedure for WebSocket .29
Annex F (informative) Examples of URL list and URL template .30
Annex G (informative) Examples of fast start .32
Annex H (informative) Use of DASH server push with the switching element .34
Bibliography .35
© ISO/IEC 2017 – All rights reserved iii

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia information.
A list of all parts in the ISO/IEC 23009 series can be found on the ISO website.
iv © ISO/IEC 2017 – All rights reserved

Introduction
Dynamic Adaptive Streaming over HTTP (DASH) is intended to support a media-streaming model for
delivery of media content in which the control lies exclusively with the client.
This document specifies carriage of MPEG DASH media presentations over full duplex HTTP-compatible
protocols, particularly HTTP/2 (version 2 of the HTTP protocol as defined by the IETF in Reference [8])
and WebSocket (WebSocket protocol as defined by the IETF in RFC 6455). This carriage takes advantage
of the capabilities of these protocols to optimize delivery of MPEG DASH media presentations.
© ISO/IEC 2017 – All rights reserved v

INTERNATIONAL STANDARD ISO/IEC 23009-6:2017(E)
Information technology — Dynamic adaptive streaming
over HTTP (DASH) —
Part 6:
DASH with server push and WebSockets
1 Scope
This document specifies carriage of MPEG-DASH media presentations over full duplex HTTP-compatible
protocols, particularly HTTP/2 and WebSocket. This carriage takes advantage of the features these
protocols support over HTTP/1.1 to improve delivery performance, while still maintaining backwards
compatibility, particularly for the delivery of low latency live video.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
IEEE 1003.1-2008, IEEE Standard for Information Technology — Portable Operating System Interface
(POSIX), Base Specifications, Issue 7
IETF RFC 3986, Uniform Resource Identifiers (URI): Generic Syntax, January 2005
IETF RFC 6455, The WebSocket Protocol, December 2011
IETF RFC 7158, The JavaScript Object Notation (JSON) Data Interchange Format, March 2013
IETF RFC 7231, Hypertext Transfer Protocol (HTTP/1.1): Semantics and Content, June 2014
3 Terms, definitions, abbreviated terms and conventions
3.1 Terms and definitions
For the purposes of this document, the following terms, definitions, abbreviated terms and
conventions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1.1
push acknowledgement
Push Ack
response modifier, sent from a server to a client, which enables a server to state the push strategy (3.1.3)
used when processing a request
3.1.2
push directive
request modifier, sent from a client to a server, which enables a client to express its expectations
regarding the server’s push strategy (3.1.3) for processing a request
© ISO/IEC 2017 – All rights reserved 1

3.1.3
push strategy
segment transmission strategy, that defines the ways in which segments may be pushed from a server
to a client
3.1.4
DASH server push
push
transmission of a segment from server to client based on a push strategy (3.1.3), as opposed to directly
in response to a client request
3.2 Conventions
NOTE In this document, data formats are described using the ABNF method as described in RFC 5234.
STRING = 1* VCHAR
INTEGER = 1* DIGIT
PPCHAR= %x21 / %x23-7E
SQUOTE= %x27
UCHAR= %x21 / %x23-7A / %x7C / %x7E
4 Background
The basic mechanisms of MPEG-DASH over HTTP/1.1 can be augmented by utilizing the new features
and capabilities that are provided by the more recent Internet protocols such as HTTP/2 and WebSocket;
see Annex A for several illustrative use cases. While HTTP/2 and WebSocket are quite different in
details, they both allow server-initiated and client-initiated transactions, data request cancelation and
multiplexing of multiple data responses.
While in the case of HTTP/2 it is possible to carry DASH presentations without additional support,
these new capabilities can be used to reduce the transmission delay (latency). Also, both HTTP/2 and
WebSocket are designed to interoperate with existing HTTP/1.1 infrastructure, allowing for graceful
fallback to HTTP/1.1 when the more recent protocol is not available.
The overall workflow of MPEG-DASH over these protocols is shown in Figure 1. The client and server
first initiate a media channel, where the server can actively push data to the other (enabled by HTTP/2
server push or WebSocket messaging). The media channel may be established via the HTTP/1.1 protocol
upgrade mechanism or by some other means. After the connection is established, the DASH client
requests the media or the MPD from the server, with a URI and a push strategy. This strategy informs
the server about how the client would like media delivery to occur (initiated by the server or initiated
by the client). Once the server receives the request, it responds with the requested data and initializes
the push cycle as defined in the push strategy. Annex B shows a typical end-to-end video streaming
system over HTTP/2 that can benefit from signalling and messages defined in this document.
Figure 1 shows an example DASH session wherein the client requests the MPD first and then the media
segments with a push strategy. Initialization data are pushed in response to a push strategy associated
to the MPD request. After receiving the requested MPD, the client starts requesting video segments
from the server with the respective DASH segment URL and a segment push strategy. Then, the server
responds with the requested video segment, followed by the push cycles as indicated by the segment
push strategy. Typically, the client starts playing back the video after a minimum amount of data is
received and then the aforementioned process repeats until the end of the media streaming session.
2 © ISO/IEC 2017 – All rights reserved

Figure 1 — Overall flow of video streaming using DASH server push
5 Specification structure
This document defines the signalling and message formats for driving the delivery of MPEG-DASH
media presentations over full-duplex HTTP-compatible protocols. Details are provided for utilizing this
signalling over the HTTP/2 (Clause 7) and the WebSocket (Clause 8) protocols.
Annex C provides examples of HTTP/2 client/server behaviour implementing signalling and message
formats defined in this document. Annex D provides examples of WebSocket client/server behaviour
implementing signalling and message formats defined in this document. Annex E illustrates the HTTP
protocol upgrade and fallback procedure for WebSocket. These informational annexes are provided to
demonstrate the use of the specified signalling and message formats to build streaming systems that
take advantage of the full-duplex capabilities of the underlying transport protocol.
6 Definitions
6.1 Data type definitions
6.1.1 General
Clause 6 describes a number of primitive data types (see Table 1) used to define the signalling over
protocols addressed in this document. Details for implementing these primitives for a given protocol
may be found in the subclause of this document defining that binding.
© ISO/IEC 2017 – All rights reserved 3

Table 1 — Definitions of primitive data types
Data type Base type Description
BinaryObject N/A An untyped binary object made up of 0 or more bytes.
Boolean
N/A A true or false value.
MPD
MPD An MPEG-DASH Media Presentation Description
(MPD), as defined in ISO/IEC 23009-1.
Null
N/A An empty value.
PushAck
String A response from the server acknowledging a push
request. The PushAck contains the accepted values
for the push strategy specified in the PushDirective.
For details, see 6.1.4.
PushDirective
String A directive describing the requested push strategy
to be employed within the streaming session. For
details, see 6.1.3.
Segment Segment An MPEG-DASH initialization or media segment, as
defined in ISO/IEC 23009-1.
String
N/A A UTF-8 character string.
URI
String A Uniform Resource Identifier (URI), as defined in
RFC 3986.
URLList
String A list of URLs. For details, see 6.1.5.
URLTemplate
String A URL template and corresponding parameters that
describe a set of URLs. For details, see 6.1.6.
6.1.2 PushType
A PushType is the description of a push strategy. It contains a name identifying the push strategy and
possibly its associated parameters.
The format of a PushType in the ABNF form is as follows:
PUSH_TYPE = PUSH_TYPE_NAME [ OWS ";" OWS PUSH_PARAMS]
PUSH_TYPE_NAME = DQUOTE DQUOTE
PUSH_PARAMS = PUSH_PARAM *( OWS ";" OWS PUSH_PARAM )
PUSH_PARAM = 1*PPCHAR
Where,
'' syntax is defined in RFC 2141. Valid values for this URN according to this document are defined
in Table 3,
'OWS' is defined in RFC 7230, 3.2.3 and represents optional whitespace.
The definition of PUSH_PARAMS is generic to allow the definition of new push strategies without any
limitation on their parameters. Each push strategy adds some restriction on the number and on the
definitions of the PUSH_PARAM instances used with it. Valid values for PUSH_PARAMS are defined in
Table 4.
EXAMPLE If the push strategy expects a parameter of type 'INTEGER', then there is only one 'PUSH_PARAM'
defined by 'INTEGER' as in 3.2. If it expects a parameter of type 'URLTemplate', then there is only one 'PUSH_
PARAM' defined by 'URLTemplate' as in 6.1.6.
4 © ISO/IEC 2017 – All rights reserved

6.1.3 PushDirective
A PushDirective signals the push strategy that a client would like the server to use for delivery of
one or more future segments. A PushDirective has a type (described in Table 3) and depending on
the type, may have one or more additional parameters associated with it (described in Table 4).
In general, a client may signal one or more PushDirectives for a single message. The server may select
at most one of the provided push strategies. This mechanism allows for clients to interoperate with
servers that allow different push strategies and for forward compatibility, as the new types of push
strategies are introduced.
The format of a PushDirective in the ABNF form is as follows:
PUSH_DIRECTIVE = PUSH_TYPE [OWS “;” OWS QVALUE]
PUSH_TYPE =
QVALUE =
When multiple push directives are applied to a request, a client may apply a quality value (“qvalue”)
as is described for use in content negotiation in RFC 7231. A client may apply higher quality values
to directives it wishes to take precedence over alternative directives with a lower quality value. Note
that these values are hints to the server and do not imply that the server will necessarily choose the
strategy with the highest quality value. If the quality value “qvalue” is not present, the default quality
value is 1,0.
6.1.4 PushAck
A Push Acknowledgement (PushAck) is sent from the server to the client to indicate that the server
intends to follow a given push strategy. At most, one Push Acknowledgment may be returned, indicating
the push strategy that is in effect at the server. A Push Acknowledgment, depending on the type, may
have one or more additional parameters associated with it (described in Table 4).
The format of the PushAck in the ABNF form is as follows:
PUSH_ACK = PUSH_TYPE
Where PUSH_TYPE is defined in 6.1.2.
6.1.5 URLList
A URLList describes a specific set of URLs as a delimited list. A client may use a list to explicitly
signal the segments to be pushed during a push transaction. The list of URLs describes the sequence of
segments to be pushed within this push transaction.
The URLList string format ABNF follows:
URL_LIST = LIST_ITEM *( OWS ";" OWS LIST_ITEM )
LIST_ITEM = 1*PPCHAR
Each list element is formed as a URL as defined in RFC 3986. If the URL is in relative form, it is
considered relative to the segment being requested. See Annex F for examples of the URL list under
various scenarios.
6.1.6 URLTemplate
A URLTemplate describes a specific set of URLs via a template and the corresponding parameters
required to expand the template. A client may use a template to explicitly signal the segments to be
pushed during a push transaction. The string is formed as a list of individual URL templates, each of
© ISO/IEC 2017 – All rights reserved 5

which may be parameterized to signal one or more URL values. When fully evaluated, the complete list
of URLs describes the sequence of segments to be pushed within this push transaction.
The URLTemplate format is inspired by the “level 1” URI template scheme defined in IETF RFC 6570.
NOTE The above template mechanism may be used to describe URLs contained in the MPEG-DASH MPD,
whether they are formed using a SegmentTemplate or SegmentList. It is not possible to use URLTemplate to
describe URLs formed via SegmentTemplate when they use $Time$ variable, unless the time value of each
segment can be predicted or is described via SegmentTimeline, typically when @r is present and is not negative.
In addition, each parameter may be suffixed with an additional format tag aligned with the printf()
format tag as defined in IEEE 1003.1-2008 following this prototype:
%0[width]d
The width parameter is an unsigned integer that provides the minimum number of characters to be
printed. If the value to be printed is shorter than this number, the result shall be padded with zeros. The
value is not truncated even if the result is larger.
The URLTemplate string format ABNF follows:
URL_TEMPLATE = TEMPLATE_ITEM *( OWS ";" OWS TEMPLATE_ITEM )
TEMPLATE_ITEM = SQUOTE TEMPLATE_ELEMENT SQUOTE [ OWS “:” OWS “{“ OWS TEMPLATE_
PARAMS OWS “}” ]
TEMPLATE_ELEMENT = CLAUSE_LITERAL [ CLAUSE_VAR [ CLAUSE_LITERAL ] ]
CLAUSE_LITERAL = 1*UCHAR
CLAUSE_VAR = “{%0” 1*DIGIT “d}” / “{}”
TEMPLATE_PARAMS = VALUE_LIST / VALUE_RANGE
VALUE_LIST = 1*DIGIT *( OWS "," OWS 1*DIGIT )
VALUE_RANGE = 1*DIGIT OWS "-" OWS 1*DIGIT
Each template element is formed as a URL as defined in RFC 3986, containing up to one macro for
parameterization. If the URL is in relative form, it is considered relative to the segment being requested.
The {} parameter is used to specify a specified list or range of URLs that differ by segment number or
timestamp and is expanded using the provided value specifier. If no parameter is provided, the value
specifier is optional. This makes it possible to provide a simple list of URLs.
The URL list will be generated from each template item by evaluating the provided parameter. For
number ranges, this means generating a URL for each segment number in the range provided (inclusive).
The complete URL list is formed by expanding each URL template in turn, creating an ordered list of
URLs. See Annex F for examples of the push template under various scenarios.
6.1.7 FastStartParams
A fast start parameter set (FastStartParams) is sent from the client to the server to signal the client’s
preferences for initialization information and media, which may be used by a server to determine the
most appropriate set of segments to push to the client in response to an MPD request.
The parameter set is expressed as a set attributes, made up of keys or key/value pairs. Each attribute
shall be treated as AND conditions.
The FastStartParams string format ABNF is as follows:
FAST_START_PARAMS = ATTRIBUTE_LIST / ATTRIBUTE_ITEM
6 © ISO/IEC 2017 – All rights reserved

ATTRIBUTE_LIST = ATTRIBUTE_ITEM OWS “;” OWS ATTRIBUTE_LIST / ATTRIBUTE_ITEM
ATTRIBUTE_ITEM = 1*PPCHAR
With OWS (optional whitespace) as defined in IETF RFC 7230 3.2.3
Table 2 describes valid values for PushStartParams attributes:
Table 2 — Valid attributes for FastStartParams
Attribute Type ABNF Description
ATTRIBUTE_ITEM = ʺinit-onlyʺ
Initialization Only initialization segments should be pushed.
segments only
If not present, both Initialization Segment
and some Media Segments may be pushed.
ATTRIBUTE_ITEM =
Media Type Only Initialization and/or Media Segments
related to MEDIATYPE should be pushed.
ʺtype=ʺ MEDIATYPE
MEDIATYPE = ʺvideoʺ / ʺaudio~”ʺ
ATTRIBUTE_ITEM = ʺbitrate=ʺ RATE
Start bitrate Only Initialization and/or Media Segments
from the Representation whose bitrate (in
RATE = SQUOTE INTEGER SQUOTE
bit per second) is the nearest but not greater
than the specified value should be pushed.
Note  Selection of the Representation
from which segments are pushed may be
determined by @bandwidth attribute
for Representations.
ATTRIBUTE_ITEM = ʺheight=ʺ
Resolution When provided with “video“ media type
RESOLUTION
attribute, only Initialization and/or Media
Segments from the Representation whose
RESOLUTION = SQUOTE INTEGER SQUOTE
number of horizontal lines is the nearest and
preferably not greater than specified value.
ATTRIBUTE_ITEM = ʺlang=ʺ SQUOTE
Language Declares the language code for segments
STRING SQUOTE
to be pushed. The syntax and semantics
according to IETF RFC 5646 shall be used.
ATTRIBUTE_ITEM =
Media amount Declares a maximum amount of Media data
to be pushed.
ʺD=ʺ SQUOTE INTEGER SQUOTE /
This limit can be expressed as a maximum
ʺB=ʺ SQUOTE INTEGER SQUOTE
duration ʺDʺ in milliseconds or a number
of bytes ʺBʺ.
ATTRIBUTE_ITEM = ʺt=ʺ START_POINT
Media starting point Declares the desired media starting point
of Initialization Segments and/or Media
START_POINT = ʺbeginʺ / ʺnowʺ
Segments to be pushed.
ATTRIBUTE_ITEM = ʺurls=[ʺ URL_
URL List Describes the list of segment URLs that may
LIST ʺ]ʺ
be returned by the server, where URL_LIST
is as defined in 6.1.5.
Sha ll on ly be included in a P ush
Acknowledgment.
Each attribute is optional. If the attribute list is empty, it shall be interpreted as including “init-only”.
See Annex G for examples of fast start under various scenarios.
6.2 Push strategy definitions
Table 3 provides the description of each PUSH_TYPE_NAME defined in this document.
© ISO/IEC 2017 – All rights reserved 7

Table 3 — Valid values for PUSH_TYPE_NAME
PushType Description
urn:mpeg:dash:serverpush:2017:p Indication that, along with an MPD, initialization data and optionally
ush-fast-start a given number of initial media segments are considered for push.
A server receiving such push strategy may push some or all available
Initialization Segments and optionally some media segments related
to the requested MPD within the constraints defined by provided
a
attributes .
A client receiving such push strategy is informed that a server intends
to push some or all available Initialization Segments and optionally
some Media Segments within the constraints defined by provided
a
attributes .
If attributes are not specified, the server may push what it considers
a
the most appropriate by default.
urn:mpeg:dash:serverpush:2017:
Indication that some segments as described by the URL list are
push-list
considered for push.
A server receiving such push strategy may use it to identify some
segments to push.
A client receiving such push strategy can be informed on the segments
the server intends to push.
urn:mpeg:dash:serverpush:2017:
Indication that the next K segments in the order of time, using the
push-next
requested segment as the initial index, are considered for push.
A server receiving such push strategy may push the next segments
consecutively to the requested one.
A client receiving such push directive is informed that the server
intends to push the next segments consecutively to the
requested one.
urn:mpeg:dash:serverpush:2017:
Indication that no push should occur.
push-none
A server receiving such push strategy should prevent from pushing.
A client receiving such push directive is informed that the server does
not intend to push.
urn:mpeg:dash:serverpush:2017:p
Indication that some segments as described by the URL template are
ush-template
considered for push.
A server receiving such push strategy may use it to identify some
segments to push.
A client receiving such push directive can be informed on the segments
the server intends to push.
urn:mpeg:dash:serverpush:2017:
Indication that the next segments in the order of time, continuing until
push-time
the segment time (presentation time of the first frame) of a segment
exceeds time, T, are considered for push.
A server receiving such push strategy may push a given duration of
media segments.
A client receiving such push directive is informed that the server
intends to push a given duration of media segments.
a
To identify more focused resources to push at the beginning to achieve a fast start, the DASH server may use,
in addition to specified attributes, client hints, client preferences, client logs, MPD knowledge or its own propri-
etary knowledge of how the segments are generated.
A server shall recognize at least the “urn:mpeg:dash:serverpush:2017:push-none" strategy.
Each push strategy may only be valid when applied to a segment request, an MPD request or both.
Table 4 describes the type of request for which each strategy may be applied and describes the
parameters that may be used.
8 © ISO/IEC 2017 – All rights reserved

Table 4 — Valid request types and parameters for each PushType
PushType Request type PUSH_PARAM
urn:mpeg:dash:serverpush:2017:push-fast-start MPD FastStartParams
urn:mpeg:dash:serverpush:2017:push-list
Segment URLList
urn:mpeg:dash:serverpush:2017:push-next
Segment INTEGER
urn:mpeg:dash:serverpush:2017:push-none
MPD or Segment N/A
urn:mpeg:dash:serverpush:2017:push-template
Segment URLTemplate
urn:mpeg:dash:serverpush:2017:push-time
Segment INTEGER
7 DASH server push over HTTP/2
7.1 PushDirective binding
In HTTP/2, push directives are signalled using an HTTP header called “Accept-Push-Policy”. The content
of this header is a PushDirective as specified in 6.1.3.
NOTE As required by HTTP, multiple push directives can be signalled either using multiple HTTP headers or
by combining multiple push directives as a comma-separated list into a single header. Annex H illustrates the use
of push directives with the switching element from ISO/IEC 23009-1.
7.2 PushAck binding
In HTTP/2, push acknowledgements are signalled using an HTTP header called “Push-Policy”. The
content of this header is a PushAck as specified in 6.1.4.
Additionally, the server may advertise the PushType(s) it supports by using an HTTP header called
“Supported-Push-Policies“. The content of this header is a comma-separated list of PUSH_TYPE_NAME(s)
as specified in 6.1.2.
NOTE Supported-Push-Policies can be used by the server when it is unable to support any of the requested
PushTypes.
7.3 Push cancel
In HTTP/2, a client may explicitly request to cancel ongoing push requests using an HTTP header called
“Push-Cancel“. The content of this header is a URLList as defined in 6.1.5.
A client sending a “Push-Cancel” with a URLList parameter informs the server that on-going and
promised pushes for resources with one of the specified URLs can be cancelled for the current
connection. If no outstanding push requests are in effect, then this header will have no effect.
The server may send a RST_STREAM frame (see IETF RFC 7540, 6.4) with a cancel code on streams
corresponding to the on-going and promised pushes for resources with one of the specified URLs.
NOTE Server behaviour is best effort and optional.
8 DASH server push over WebSocket
8.1 Message flow over WebSocket
Figure 2 shows the message flow for carrying an MPEG-DASH media presentation over a full duplex
WebSocket session. Messages are defined to allow for MPD and segment objects to be delivered over a
WebSocket sub-protocol (see Table 5). These messages may carry push directives that signal additional
segment objects to be delivered over the WebSocket channel. Note that this flow is identical to the
general message flow described in Clause 4, using WebSocket-specific message bindings.
© ISO/IEC 2017 – All rights reserved 9

Figure 2 — Message flow over WebSocket
8.2 WebSocket sub-protocol for MPEG-DASH
8.2.1 MPEG-DASH WebSocket frame format and semantics
The DASH sub-protocol shall use the "binary" format (opcode "binary" or any ‘"continuation" frames
thereof) for all messages exchanged over the WebSocket connection, as described in RFC 6455.
The MPEG-DASH sub-protocol frame consists of a frame header and frame payload. The frame header
(see Figure 3) shall be formed as WebSocket frame Extension Data, which shall be present and of which
the size can be determined as 4+4*EXT_LENGTH bytes as given by the DASH sub-protocol frame header.
The frame payload corresponds to the WebSocket Application data, as described in RFC 6455.
10 © ISO/IEC 2017 – All rights reserved

Figure 3 — DASH sub-protocol frame header for WebSocket
The DASH sub-protocol frame header is defined as follows:
STREAM_ID: 8 bits
Is an identifier of the current stream, which allows multiplexing of multiple requests/responses
over the same WebSocket connection. The responses to a particular request shall use the same
STREAM_ID as that request. The appearance of a new STREAM_ID indicates that a new stream has
been initiated. The reception of a cancel request, an end of stream or an error shall result in closing
the stream identified by the carried STREAM_ID.
MSG_CODE: 8 bits
Indicates the MPEG-DASH message represented by this frame. Available message codes are
defined in 8.3.
E: 1 bit
This field is the error flag. When this field is set, the receiver may interpret the message as an error.
Additional information about the error may be available in the extension header.
F: 2 bits
Reserved.
EXT_LENGTH: 13 bits
Provides the length in 4 bytes of the extension data that precedes the application data, including
padding.
Extension: 4*EXT_LENGTH
The extension header shall be a JSON encoding of additional information fields that apply to the
request/response, conforming to RFC 7158. To align with 4 byte boundaries, padding 0 bytes
may be added after the extension header. The content shall be encoded in UTF-8 format. The JSON
encoding of the extension header shall consist of a single root-level JSON object, containing zero or
more name/value pairs.
8.2.2 Definition of WebSocket streams
The DASH sub-protocol for WebSocket defines the concept of streams that allows for an independent,
bi-directional, sequence of frames to be exchanged between the client and server. Multiple streams may
be created on top of the same WebSocket connection. The server shall send responses to the client’s
requests on the same stream that was used to submit the request. For instance, a push response that
contains a set of segments shall use the same stream for the delivery of all resources of the response.
© ISO/IEC 2017 – All rights reserved 11

This is different from the behaviour in HTTP/2, where each resource will be assigned to a separate
stream. The streams are identified by their STREAM_ID as defined in 8.2.1.
Each stream shall only carry at most one push directive and its responses. New push directives shall be
started in a new stream.
8.3 WebSocket message codes
Table 5 — List of available DASH sub-protocol message codes
Message code Message Definition
get_mpd 8.4.1
get_segment 8.4.2
new_mpd 8.4.3
new_segment 8.4.4
end_of_stream 8.4.5
segment_cancel 8.4.6
8.4 WebSocket message definitions
8.4.1 MPD request (client → server)
The MPD request message initiates the request for a DASH MPD file. One or more push directives may
be provided with the MPD request.
An optional headers field may be included to provide additional information to the server to aid in
processing the message.
— Message name: get_mpd
— Supplied arguments
Parameter name Type Cardinality Description
mpd_uri
URI 1 The full URI for the MPD being requested.
push_directive
PushDirective 0.N A push strategy to be applied to this MPD request,
as described in 6.1.3.
headers
String 0.1 Contains a CRLF separated set of HTTP 1.1 conformant
header fields that apply to this message.
The supplied arguments shown above shall be JSON encoded conforming to normative JSON schema
shown.
12 © ISO/IEC 2017 – All rights reserved

{
"$schema":"http://json–schema.org/draft–04/schema#",
"title": "Get MPD",
"description": "Normative schema for get_mpd message .",
"type": "object",
"properties": {
"mpd_uri": {
"type": "string",
"format": "uri"
},
"push_directive": {
"type": "array",
"items": {"type": "string"},
"minItems": 0
},
"headers": {
"type": "string"
}
},
"required": ["mpd_uri"]
}
8.4.2 Segment request (client → server)
The segment request message initiates the request for a DASH segment. The segment request may
include one or more push directives to inform the server to actively push one or more future segments.
An optional headers field may be included to provide additional information to the server to aide in
processing the message.
— Message name: get_segment
— Supplied arguments
Parameter name Type Cardinality Description
segment_uri
URI 1 The full URI for the video segment
being requested.
push_directive
PushDirective 0.N The desired push strategy for
getting following segments, as
described in 6.1.3.
headers
String 0.1 Contains a CRLF separated set
of HTTP 1.1 conformant header
fields that apply to this message.
© ISO/IEC 2017 – All rights reserved 13

The supplied arguments shown above shall be JSON encoded conforming to normative JSON schema
shown below.
{
"$schema":"http://json–schema.org/draft–04/schema#",
"title": "Segment Request",
"description": "Normative schema for get_segment message .",
"type": "object",
"properties": {
"segment_uri": {
"type": "string",
"format": "uri"
},
"push_directive": {
"type": "array",
"items": {"type": "string"},
"minItems": 0
},
"headers": {
"type": "string"
}
},
"required": ["segment_uri"]
}
8.4.3 MPD received (server → client)
This message represents the server’s response from a previous get_mpd message sent by the client.
The presence of at most one push acknowledgment informs the client on the push strategy to be taken
by the server in response to a push directive, including possibly that no push strategy will be in effect. A
push acknowledgment shall only be applied to the first response of a push sequence and not to following
pushed responses.
An optional headers field may be included to provide additional information to the client to aide in
processing the message. A status code is included to signal additional detail about the contents of the
message.
— Message name: new_mpd
— Supplied arguments
14 © ISO/IEC 2017 – All rights reserved

Parameter name Type Cardinality Description
mpd
String 1 The MPD returned by the server.
push_ack
PushAck 0.1 The push strategy that the server
will follow, as described in 6.1.4.
headers
String 0.1 Contains a CRLF separated set of
HTTP 1.1 conformant header fields
that apply to this message.
status
integer 1 An HTTP status code, conforming
to RFC 7231, Clause 6, which applies
to this message.
The supplied arguments shown above shall be JSON encoded conforming to normative JSON schema
shown below.
{
"$schema":"http://json–schema.org/draft-04/schema#",
"title": "MPD Received",
"description": "Normative schema for new_mpd message .",
"type": "object",
"properties": {
"mpd": {
"type": "string"
},
"push_ack": {
"type": "string"
},
"headers": {
"type": "string"
},
"status": {
"type": "integer"
}
},
"required": ["mpd","status"]
}
For the parameter "
...
