ISO/IEC 10514-2:1998

Information technology — Programming languages — Part 2: Generics Modula-2

1.1 General This part of ISO/IEC 10514 specifies extensions to allow generic programming facilities to be added to the base Modula-2 language defined in International Standard ISO/IEC 10514-1 without altering the meaning of valid programs allowed by the Base Language (except for the use of the new keyword introduced by this standard—see clause 5). 1.2 Specifications included in this part of ISO/IEC 10514 In addition to the specifications included in the Base Language this part of ISO/IEC 10514 provides specifications for: — required symbols for programs written in ISO Standard Modula-2 with Generic extensions; — the lexical structure and semantics of programs written in ISO Standard Modula-2 with Generic extensions; — the syntax of programs written in ISO Standard Modula-2 with Generic extensions; — violations of the rules for the use of the Generic extensions that a conforming implementation is required to detect; — further compliance requirements for implementations, including documentation requirements. 1.3 Relationship to ISO/IEC 10514-1 This part of ISO/IEC 10514 is part two of the multi-part Standard ISO/IEC 10514. This part of ISO/IEC 10514 extends and modifies the Base Language ISO/IEC 10514-1, but the adoption of this part of ISO/IEC 10514 is optional with respect to the Base Language. This part of ISO/IEC 10514 is also independent of any other parts of ISO/IEC 10514, except for part 1, and can be adopted either together with or independently of such other parts. 1.4 Specifications not within the scope of this part of ISO/IEC 10514 In addition to the categories of specifications excluded by the Base Language this part of ISO/IEC 10514 provides no specifications for: — the method by which specific refinements are constructed from generic library modules; — the method by which generic library modules, their associated refining modules, and the refinements produced by these are stored (including any correspondence between the module names and system file names where files are used).

Technologies de l'information — Langages de programmation — Partie 2: Éléments génériques en modula 2

General Information

• Status: Published
• Publication Date: 02-Dec-1998
• ICS: 35.060 - Languages used in information technology
• Technical Committee: ISO/IEC JTC 1/SC 22 - Programming languages, their environments and system software interfaces
• Drafting Committee: ISO/IEC JTC 1/SC 22 - Programming languages, their environments and system software interfaces
• Current Stage: 9093 - International Standard confirmed
• Start Date: 29-Apr-2021
• Completion Date: 12-Feb-2026

Overview

ISO/IEC 10514-2:1998 - Generics in Modula-2 specifies a standardized extension that adds generic programming facilities to the base Modula-2 language (defined in ISO/IEC 10514-1) without changing the meaning of valid Base Language programs, except for introducing one new keyword: GENERIC. Part 2 defines the lexical, syntactic and semantic requirements needed so implementations can accept and translate Modula‑2 source that uses generic separate modules and refinements.

Key Topics and Requirements

• Language extension model
  • Defines generic separate modules, refining modules (refiners), and refinements (the result of supplying actual parameters to a generic).
  • Uses the single new keyword GENERIC to mark generic separate modules.
• Lexical and syntactic rules
  • Adds the new lexical form and syntactic constructs required to express generics while preserving all base-language lexemes and semantics.
• Semantics and translation
  • Specifies the intended meaning of generic constructs and requires conforming translators to accept and process generic compilation units. Refinement logically occurs before translation.
• Implementation conformance
  • Requires implementations to detect specified new syntactic errors and to behave consistently with the Base Language for ordering, predefined entities, exceptions and implementation-dependencies.
  • Mandates a separate statement of compliance describing the degree of conformance to this part.
• Documentation and compliance
  • Requires documentation of additional behaviors introduced by the generic extension and adherence to the Base Language requirements where applicable.
• Scope limitations
  • Does not prescribe how refinements are constructed in practice nor how generic modules and refinements are stored or correlated with system filenames.
• Annexes and reference
  • Includes normative changes to base syntax and informative annexes (rationale, examples, file-name guidance). Normative reference: ISO/IEC 10514-1:1996.

Applications and Who Uses It

• Compiler and tool implementers who need to add generic/template support to Modula‑2 translators and toolchains.
• Library authors creating reusable, type‑safe generic modules (templates) for Modula‑2 ecosystems.
• Software maintainers and modernization teams updating legacy Modula‑2 code to leverage generics for safer, more modular abstractions.
• Standards and compliance auditors verifying Modula‑2 implementations against international requirements.
• Academic and embedded systems developers using Modula‑2 in environments where static typing and predictable semantics are important.

Adoption of Part 2 is optional relative to the Base Language; it can be adopted independently or together with other parts of ISO/IEC 10514.

Related Standards

• ISO/IEC 10514-1:1996 - Modula‑2, Base Language (normative reference)
• ISO/IEC 10514-3 - Object Oriented Modula‑2 (other part of the multi‑part standard)

Keywords: ISO/IEC 10514-2, Modula-2 Generics, generic programming, GENERIC keyword, generic separate module, refining module, Modula‑2 standard.

Standards Content (Sample)

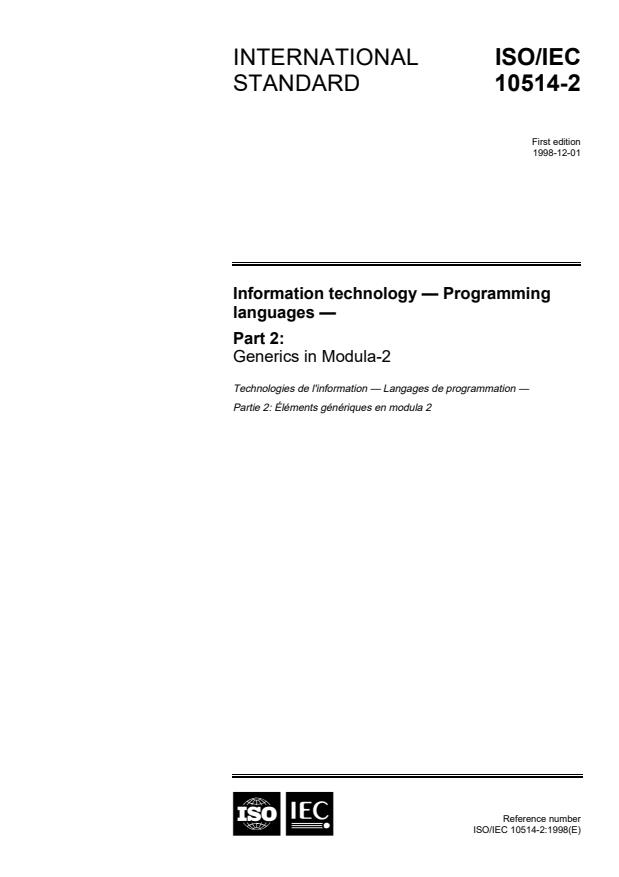

INTERNATIONAL ISO/IEC
STANDARD 10514-2
First edition
1998-12-01
Information technology — Programming
languages —
Part 2:
Generics in Modula-2
Technologies de l'information — Langages de programmation —
Partie 2: Éléments génériques en modula 2
Reference number
B C

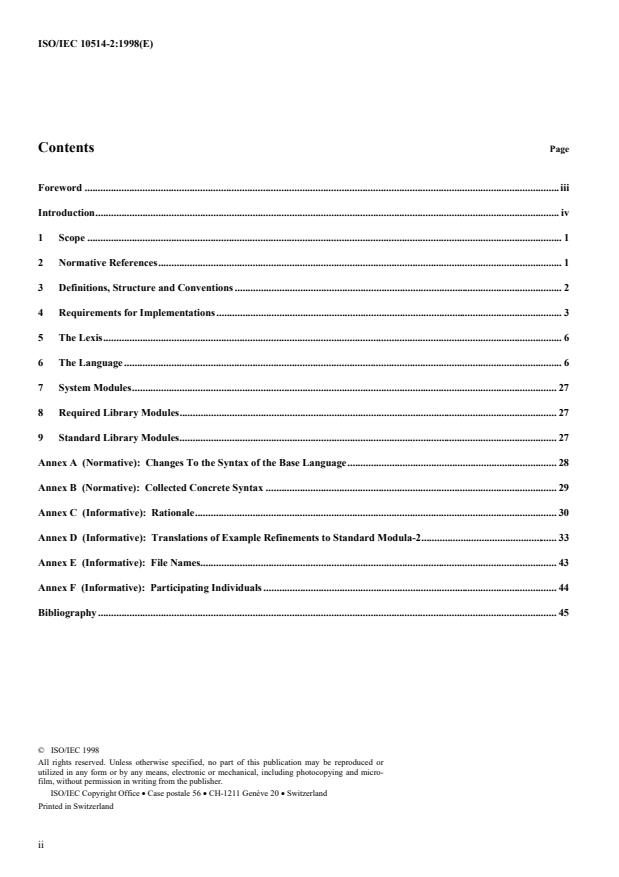

Contents Page
Foreword . iii
Introduction. iv
1 Scope . 1
2 Normative References. 1
3 Definitions, Structure and Conventions . 2
4 Requirements for Implementations. 3
5 The Lexis. 6
6 The Language . 6
7 System Modules. 27
8 Required Library Modules. 27
9 Standard Library Modules. 27
Annex A (Normative): Changes To the Syntax of the Base Language. 28
Annex B (Normative): Collected Concrete Syntax . 29
Annex C (Informative): Rationale. 30
Annex D (Informative): Translations of Example Refinements to Standard Modula-2. 33
Annex E (Informative): File Names. 43
Annex F (Informative): Participating Individuals . 44
Bibliography. 45
©  ISO/IEC 1998
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or
utilized in any form or by any means, electronic or mechanical, including photocopying and micro-
film, without permission in writing from the publisher.
ISO/IEC Copyright Office • Case postale 56 • CH-1211 Genève 20 • Switzerland
Printed in Switzerland
ii
© ISO/IEC ISO/IEC 10514-2:1998(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the Inter-
national Electrotechnical Commission) form the specialized system for worldwide
standardization. National bodies that are members of ISO or IEC participate in the
development of International Standards through technical committees established
by the respective organization to deal with particular fields of technical activity.
ISO and IEC technical committees collaborate in fields of mutual interest. Other
international organizations, governmental and non-governmental, in liaison with
ISO and IEC, also take part in the work.
In the field of information technology, ISO and IEC have established a joint
technical committee, ISO/IEC JTC 1. Draft International Standards adopted by the
joint technical committee are circulated to national bodies for voting. Publication
as an International Standard requires approval by at least 75 % of the national
bodies casting a vote.
International Standard ISO/IEC 10514-2 was prepared by Joint Technical
Committee ISO/IEC JTC 1 Information technology, Subcommittee SC 22,
Programming languages, their environments and system software interfaces.
ISO/IEC 10514 consists of the following parts, under the general title Information
technology — Programming languages :
— Part 1: Modula-2, Base Language
— Part 2: Generics in Modula-2
— Part 3: Object Oriented Modula-2
Annexes A and B form an integral part of this part of ISO/IEC 10514. Annexes C,
D, E, and F are for information only.
iii

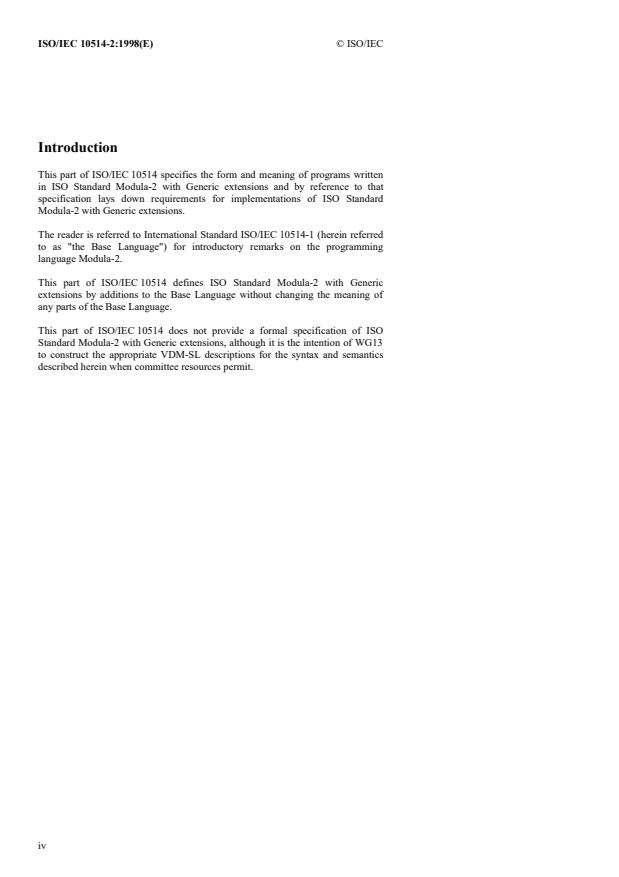

Introduction
This part of ISO/IEC 10514 specifies the form and meaning of programs written
in ISO Standard Modula-2 with Generic extensions and by reference to that
specification lays down requirements for implementations of ISO Standard
Modula-2 with Generic extensions.
The reader is referred to International Standard ISO/IEC 10514-1 (herein referred
to as "the Base Language") for introductory remarks on the programming
language Modula-2.
This part of ISO/IEC 10514 defines ISO Standard Modula-2 with Generic
extensions by additions to the Base Language without changing the meaning of
any parts of the Base Language.
This part of ISO/IEC 10514 does not provide a formal specification of ISO
Standard Modula-2 with Generic extensions, although it is the intention of WG13
to construct the appropriate VDM-SL descriptions for the syntax and semantics
described herein when committee resources permit.
iv
©
INTERNATIONAL STANDARD  ISO/IEC ISO/IEC 10514-2:1998(E)
Information technology — Programming languages —
Part 2:
Generics in Modula-2
1 Scope
1.1 General
This part of ISO/IEC 10514 specifies extensions to allow generic programming facilities to be added to the base Modula-2
language defined in International Standard ISO/IEC 10514-1 without altering the meaning of valid programs allowed by the
Base Language (except for the use of the new keyword introduced by this standard—see clause 5).
1.2 Specifications included in this part of ISO/IEC 10514
In addition to the specifications included in the Base Language this part of ISO/IEC 10514 provides specifications for:
— required symbols for programs written in ISO Standard Modula-2 with Generic extensions;
— the lexical structure and semantics of programs written in ISO Standard Modula-2 with Generic extensions;
— the syntax of programs written in ISO Standard Modula-2 with Generic extensions;
— violations of the rules for the use of the Generic extensions that a conforming implementation is required to detect;
— further compliance requirements for implementations, including documentation requirements.
1.3 Relationship to ISO/IEC 10514-1
This part of ISO/IEC 10514 is part two of the multi-part Standard ISO/IEC 10514. This part of ISO/IEC 10514 extends and
modifies the Base Language ISO/IEC 10514-1, but the adoption of this part of ISO/IEC 10514 is optional with respect to the
Base Language. This part of ISO/IEC 10514 is also independent of any other parts of ISO/IEC 10514, except for part 1, and
can be adopted either together with or independently of such other parts.
1.4 Specifications not within the scope of this part of ISO/IEC 10514
In addition to the categories of specifications excluded by the Base Language this part of ISO/IEC 10514 provides no
specifications for:
— the method by which specific refinements are constructed from generic library modules;
— the method by which generic library modules, their associated refining modules, and the refinements produced by these are
stored (including any correspondence between the module names and system file names where files are used).
2 Normative References
The following normative documents contain provisions which, through reference in this text, constitute provisions of this part
of ISO/IEC 10514. For dated references, subsequent amendments to, or revisions of, any of these publications do not apply.
However, parties to agreements based on this part of ISO/IEC 10514 are encouraged to investigate the possibility of applying
©
the most recent editions of the normative documents indicated below. For undated references, the latest edition of the normative
document referred to applies. Members of ISO and IEC maintain registers of currently valid International Standards.
ISO/IEC 10514-1:1996, Information technology — Programming languages — Part 1: Modula-2, Base Language.
3 Definitions, Structure and Conventions
3.1 Definitions
For the purposes of this part of ISO/IEC 10514, the definitions given in ISO/IEC 10514-1 and the following definitions apply.
3.1.1 Generic separate module
A new kind of separate module having formal parameters that can be either type parameters and/or constant value parameters.
A generic separate module serves as a template for constructing specific refinements of itself that have been customized using
actual types and/or actual constant expressions.
NOTE 1 — A generic separate module consists of a generic definition module and a generic implementation module. The generic definition
module is a template from which a definition module can be refined. The generic implementation module is a template from which an
implementation module can be refined.
3.1.2 Refiner or Refining module
A new kind of module that is a means of supplying actual parameters for the purpose of creating a refinement of the generic
separate module from which the refinement is being made.
NOTE 2 — A refining module can be a separate module, in which case its definition module produces a refinement of the Generic Modula-2
definition module of the generic separate module from which the refinement is being made. The implementation module of such a refining
separate module refines the implementation module of the generic separate module from which the refinement is being made.
NOTE 3 — A refining module can be a local module, in which case its refinement has as its qualified export list the items defined
in the generic definition module of which it is a refining module. Such a refining local module refines the implementation module of
the generic separate module from which the refinement is being made.
3.1.3 Refinement
An abstract entity (either a whole module or an item it contains) constructed from a generic separate module by specifying in a
refining module the name of a generic separate module to be refined from and actual types and/or actual constant expressions
to evaluate and then substitute for the formal parameters of the generic separate module.
NOTE 4 — The refining module is not the same entity as the refinement produced from it.
3.1.4 Refine
The act of constructing a refinement from a generic separate module by using a refining module.
NOTE 5 — Abstractly, the refining of a generic separate module to a specific refinement is the task of the translator. However, nothing in
this part of the multi-part standard precludes an implementation separating this particular translation task from others. For instance,
refinement could be performed separately before other translation tasks.
©
ISO/IEC ISO/IEC 10514-2:1998(E)
NOTE 6 — The effect of refinement is the same as if a refinement of the generic separate module had been written directly in the base
language with the formal parameters replaced by the results of evaluating the actual parameters. Depending on the implementation strategy,
this might not be quite the same as saying that refinement results in a program in the base language (except in the abstract sense), for there is
no requirement in this part of ISO/IEC 10514 for a specific intermediate form in which a refinement finds some expression as a file.
TERMINOLOGY NOTE —WG13 is already using the term "instantiate" for use in Object Oriented Modula-2, and has chosen to use
"refine" in ISO Standard Modula-2 with Generic extensions.
3.1.5 Generic
A property of both the whole and of any item defined within a generic separate module, regardless of whether the item itself
contains or needs module parameters.
3.2 Structure of the Formal Definition
This part of the multi-part International Standard states its requirements in the same form as the Base Language with the
exception that it does not include formal expression of semantics in VDM-SL at this time.
3.3 Conventions
The conventions used in this part of ISO/IEC 10514 are to be interpreted in the same way as in the Base Language with the
exception that this part of ISO/IEC 10514 does not include VDM-SL at this time.
4 Requirements for Implementations
4.1 General Requirements
A conforming implementation of ISO Standard Modula-2 with Generic extensions meets the requirements for Modula-2
implementations that are laid down in the Base Language. In addition, it meets the requirements of this clause:
4.2 Translation
A conforming implementation of ISO Standard Modula-2 with Generic extensions shall accept compilation modules for
translation from source code when they contain the additional lexical form defined in clause 5, and when this is in the syntactic
form specified in clause 6. It shall also accept the lexical forms defined in the Base Language when they are used in the (new)
syntactic forms specified in ISO Standard Modula-2 with Generic extensions.
NOTE — The effect of accepting for translation the new compilation modules is discussed in the appropriate subclauses of clause 6 of this
part of the multi-part standard.
4.3 Source Code Representation
A conforming implementation of ISO Standard Modula-2 with Generic extensions shall provide the additional keyword
specified in clause 5 and shall recognize keywords and identifiers as specified in that clause, including those situations where
keywords and symbols from the base language are used in new syntactic constructs in this part of ISO/IEC 10514.
4.4 Ordering of Declarations
A conforming implementation of ISO Standard Modula-2 with Generic extensions shall have rules identical in this respect to a
conforming Modula-2 implementation.
©
4.5 Predefined Entities
A conforming implementation of ISO Standard Modula-2 with Generic extensions shall have rules identical in this respect to a
conforming Modula-2 implementation.
4.6 Library Modules
A conforming implementation of ISO Standard Modula-2 with Generic extensions shall have rules identical in this respect to a
conforming Modula-2 implementation. No new library modules are specified by this part of ISO/IEC 10514.
NOTE — This does not preclude the possibility that later editions of or amendments to this part of the multi-part standard might include
such modules.
4.7 Errors
A conforming implementation of ISO Standard Modula-2 with Generic extensions shall have rules identical in this respect to a
conforming Modula-2 implementation, with the following changes:
— It shall detect any new errors defined in this part of ISO/IEC 10514 in a manner consistent with the detection and reporting
of errors required by the Base Language.
— In standard mode a conforming implementation of ISO Standard Modula-2 with Generic extensions shall treat the use of
extensions that are not specified by this part of ISO/IEC 10514 or by another standard extension of the Base Language as
errors. Conformance to standards parallel to this one (if any) is on an additive basis, so that two or more such standard
extensions can be conformed to simultaneously.
NOTE — The intent of this provision is to allow a version of Modula-2 to support, for example, both genericity and object orientation (see
ISO 10514-3).
4.8 Exceptions
A conforming implementation of ISO Standard Modula-2 with Generic extensions shall have rules identical in this respect to a
conforming Modula-2 implementation. The rules shall be applied after the construction of any refinements.
NOTE 1— This means, for instance, that two refinements of a single generic separate module constitute two different sources for
exceptions.
Because the process of refinement logically takes place before the translation of the refinement, the only new errors defined in
this part of ISO/IEC 10514 are syntactical and shall be detected by the translator. No new exceptions are therefore defined.
NOTE 2 — This does not preclude the possibility that later editions of or amendments to this part of the multi-part standard might include
library modules that define exceptions. Nor does it prohibit implementations from providing library modules with their own exceptions.
4.9 Implementation-dependencies
A conforming implementation of ISO Standard Modula-2 with Generic extensions shall have rules identical in this respect to a
conforming Modula-2 implementation.
4.10 Documentation
A conforming implementation of ISO Standard Modula-2 with Generic extensions shall have rules identical in this respect to a
conforming Modula-2 implementation.
©
ISO/IEC ISO/IEC 10514-2:1998(E)
4.11 Statement of Compliance
A conforming implementation of ISO Standard Modula-2 with Generic extensions shall have rules identical in this respect to a
conforming Modula-2 implementation and in addition, a separate compliance statement shall be made citing the degree of
compliance with this part of ISO/IEC 10514.
4.12 Minimum requirements
A conforming implementation of ISO Standard Modula-2 with Generic extensions shall have rules identical in this respect to a
conforming Modula-2 implementation.
©
5 The Lexis
5.1 Relationship to the Base Language
The lexis of ISO Standard Modula-2 with Generic extensions is based directly on the lexis of the base language as defined in
ISO/IEC 10514-1. All syntax elements of the base language keep their representation and all elements of the base language
retain their same semantics; a new keyword that is needed to express the new language elements is defined in this clause.
NOTE - A conforming program written in the base language (or in the base language augmented by some other standard extension parallel
to this part of the multi-part standard) is translated correctly by a translator conforming to ISO Standard Modula-2 with Generic extensions
except in the case that the keyword defined in this part of the multi-part standard is used as an identifier in the program.
5.2 Keyword
Only one new keyword is defined; it is used to denote generic separate modules.
Concrete Syntax
keyword = base language keyword | "GENERIC" ;
NOTE — ISO Standard Modula-2 with Generic extensions does not define any new pervasive identifiers or any other new lexis elements
beyond those already present in the base language.
6 The Language
6.1 The Model
ISO Standard Modula-2 with Generic extensions is an extension of the base language to provide facilities for generic
programming. The provided model is characterized as follows:
— Genericity is defined at the separate module level only. (All the contents of a generic separate module are regarded as
generic, but no item within a module can be declared as generic independently of the module containing it).
— Generic separate modules have formal parameters that are either type parameters or constant value parameters.
— Refining separate modules have actual parameters that are compatible with the formal parameters of the generic separate
module from which the refinement is being made.
— Refining local modules have actual parameters that are compatible with the formal parameters of the generic separate
module from which the refinement is being made.
— Formal/actual module parameter correspondence semantics are identical to those employed in the base language for
constant value parameters of procedures. (There are no variable parameters allowed in generic separate module parameter lists;
neither can variables be used to pass values to constant value parameters in generic separate module parameter lists).
— Refinement takes place not later than translation time.
ISO Standard Modula-2 with Generic extensions incorporates all the syntax and semantics of the base language without
alteration. This clause indicates only the additions (new syntax and semantics) required to support generic programming.
6.2 Programs, Program Modules, and Separate Modules
6.2.1 The New Modules
Generic separate modules are extensions of the separate modules defined in the Base Language. Each has a generic definition
module that shall exist in order to check the well-formedness of any other module that depends on it. A generic separate
module also has a generic implementation module. Another module does not import items from a generic separate module;
rather, it imports them from a refinement of a generic separate module.
©
ISO/IEC ISO/IEC 10514-2:1998(E)
Refining separate modules are variations of the separate modules defined in the Base Language. Each has a refining definition
module that shall exist in order to check the well-formedness of any other module that depends on it. A refining separate
module also has a refining implementation module. Each refining separate module depends upon some generic separate
module, and this imposes the constraint that both the refining separate module and the generic separate module from which it
refines shall exist before the well-formedness of the refinement produced by a refining separate module can be checked.
The fact that the translation of a program depends upon the prior translation of the modules it imports means that the
refinement shall exist in order to be translated in the correct order. Thus, the process of refinement logically precedes that of
the establishment of program compilation dependencies, which in turn logically precedes that of the translation of the
program. However, the physical means by which this is actually achieved is implementation defined. Thus, implementations
are free to separate the step of refinement from that of translation, or to combine the two as they see fit. This also means that,
although a refinement of a generic separate module can be thought of in a logical sense as itself being a module (separate or
local), there is no need to define its syntax or semantics as such, for these derive from the generic separate module and the
refiner creating the refinement from it and in turn are correct (or not) according to the rules of the Base Language.
NOTE — A consequence of this is that in systems that employ files, a refinement might find physical expression as a file independent of the
file(s) containing the refining module. However, this is not required, and if the implementation strategy employed is to have the translator
construct the refinement as part of the translation process, no such independent files need be created.
6.2.2 Programs and Compilation Modules
Four new kinds of compilation modules are added to the list provided in the Base Language. This produces the following
change:
Concrete Syntax
compilation module = program module | definition module | implementation module | generic definition module | generic
implementation module | refining definition module | refining implementation module ;
6.2.3 Generic Definition Module
A generic definition module is an extension of the definition module in the Base Language, and the rules for definition
modules given in the Base Language apply to generic definition modules, with the following additions.
Concrete Syntax
generic definition module =
"GENERIC", "DEFINITION", "MODULE", module identifier, [formal module parameters], semicolon,
import lists, definitions,
"END", module identifier, period ;
Semantics
The effect of processing a generic definition module by a translator is implementation defined, but
— Any identifiers it imports shall be distinct from each another and from any identifiers it defines.
— Any identifiers it defines shall be distinct from each other and from any identifiers it imports.
— Its own name is added to the environment. This allows other modules to import it.
— The identifiers it defines are NOT added to the environment. (When the module is later refined, the refinements of those
identifiers will be added to the environment instead of the identifiers defined by the generic separate module). This means that
the translator shall report as an error any attempt to perform unqualified import of an identifier defined in a generic definition
module or to employ such an identifier when qualified by the name of a generic definition module.
— Apart from its own name being added to the environment, no translation of a generic definition module takes place until a
refining definition module is translated, and at that time the effect of the translation depends on the actual parameters supplied
by the refining module.
©
NOTE 1— The effect of this part of the multi-part standard is to require that refinements be checked in the same way as any base language
module. These rules do not either require or preclude an implementation having the translator perform such consistency checks as might be
possible on the definition module of a generic separate module when presenting it to the translator.
NOTE 2— The entities defined in a generic separate module are not available for use by other modules until they have been refined by the
translation of a refining module that refines from the generic separate module in question. (They can of course be used within the generic
separate module itself). It is, therefore, an error that the translator shall report, to attempt to employ in another body items from a generic
separate module rather than from a refinement of one. This does not of course preclude any module (including a generic one) from
importing a generic separate module for the purpose of refining it.
Examples
Conventional data structures such as lists, queues, and stacks can be constructed generically, and parameterized to provide
them with sufficient information about the data expected to be entered into the structure.
NOTE 3 — Several of these examples are dealt with further in the clauses on generic implementations and refining definitions and
implementations.
Example 1: The first example is a generic definition of a data structure. In such applications, it is expected that the structure
will be manipulated independent of the kind of element it contains. All the work of programming is in the structure
manipulation; the provision of the items to enter into it is a refining detail.
GENERIC DEFINITION MODULE Stacks (Element: TYPE);
CONST
StackSize = 100;
PROCEDURE Push (item : Element);
PROCEDURE Pop (VAR item : Element);
PROCEDURE Empty () : BOOLEAN;
END Stacks.
NOTE 4— Specification of a constant such as StackSize in the manner of this example constrains all the refinements of this module. If that
were not the intention, such an item could instead be made a module parameter and then specified by the refinements.
NOTE 5 — Such a constant can be used in the corresponding generic implementation module. However, depending on the implementation
strategy chosen, the correctness of such use might not be checked until the refinement of that implementation is performed.
Example 2: Sometimes the data structure itself needs parameterization.
GENERIC DEFINITION MODULE Matrix (Rows, Cols : CARDINAL; MatrixElement : TYPE);
TYPE
TMatrix = ARRAY [0 . Rows-1]
OF ARRAY [0 . Cols-1] OF MatrixElement;
PROCEDURE Invert (VAR m : TMatrix);
END Matrix.
©
ISO/IEC ISO/IEC 10514-2:1998(E)
Example 3: This illustration shows a generic technique, as opposed to a generic Abstract Data Type (ADT).
GENERIC DEFINITION MODULE Validate (PType : TYPE; PValidProc : ValidProcType);
TYPE
ValidProcType = PROCEDURE (item : PType) : BOOLEAN;
(* Note the forward reference in the module parameter list *)
PROCEDURE Valid (item : PType) : BOOLEAN;
END Validate.
Example 4: (An outline of a generic sort) This example illustrates the abstraction of a generic technique applied to an existing
kind of structure (an array), rather than to a user-defined structure.
GENERIC DEFINITION MODULE Sorts (Item : TYPE; GenCompare : CompareProc);
FROM Comparisons IMPORT
CompareResults;
TYPE
CompareProc = PROCEDURE (Item, Item) : CompareResults;
PROCEDURE Quick (VAR data : ARRAY OF Item);
(* Other procedures and functions could be included as well. *)
END Sorts.
NOTE 6 — The type identifiers of formal parameters can forward reference types defined in the definition module of the generic separate
module itself.
Example 5: (Parameters are optional) This example illustrates that although in the majority of cases generic separate modules
will be parameterized, this is not required, and non-parameterized instances might also be useful. This module defines a
counter, any number of instances of which can be refined under different names.
GENERIC DEFINITION MODULE Counter;
Inc;
PROCEDURE
Reset;
PROCEDURE
Count () : ;
PROCEDURE CARDINAL
Counter.
END
6.2.4 Generic Implementation Module
A generic implementation module is an extension of the implementation module in the sense of the Base Language, and the
rules for implementation modules (and their relationships with their definition modules) given in the Base Language apply,
with the following additions.
©
Concrete Syntax
generic implementation module =
"GENERIC", "IMPLEMENTATION", "MODULE", module identifier, [interrupt protection], [formal module parameters],
semicolon,
import lists, module block,
module identifier, period ;
Semantics
The effect of translating the implementation module of a generic separate module by a translator is implementation defined,
but:
— The definition module of the generic separate module shall already exist and have both the same name and the same
parameters.
— Any identifiers that the implementation module of a generic separate module imports shall be distinct from each other, from
any identifiers it defines, and from any identifiers defined in its corresponding generic definition module.
— Any identifiers that the implementation module of a generic separate module defines shall be distinct from each other, from
any identifiers it imports, and from any identifiers defined in its corresponding generic definition module.
— Other than possibly checking such consistencies, the translation of a generic implementation module cannot be performed
until it is refined by a refining module, and at that time the effect of the translation depends on the actual parameters supplied
by the refining module.
— When a refinement of a generic implementation module is translated, the effect is the same as translating a copy of the
generic implementation module with the results of evaluating the actual parameters supplied in the refinement substituted for
the formal parameters in the generic separate module, and at that time, only the rules of the base language need be applied to
perform the translation.
NOTE 1 — The effect of this part of the multi-part standard is to require that refinements be checked in the same way as any base language
module. These rules neither require nor preclude an implementation having the translator perform such consistency checks as might be
possible on the implementation module of a generic separate module by presenting it to the translator separately.
The parameters of the generic implementation module shall be identical to the parameters of the corresponding generic
definition module.
NOTE 2 — The interrupt protection on the generic implementation module (when provided) applies to all refinements of this module,
whether separate or local, and such refinements can not have a protection expression of their own.
If a programmer employs code in the generic implementation that assumes something about a type that is passed to it via one
of the formal parameters, and then a refinement is done passing an actual type inconsistent with this assumption, the error shall
be detected upon attempting to translate the refinement of the implementation (i.e. after the refinement has been constructed by
the refiner). For instance, suppose a generic implementation used the operator "<" rather than having a compare procedure
passed to it as a parameter (as done in example 4 in 6.2.3 and 6.2.4. The genericity is then restricted to data types that could
use "<" and if some other data type were employed, the translator is required by the base language standard to report the error
when attempting to translate the refinement of the implementation module. Without imposing complicated syntax on the form
of generic separate modules to specifically delimit or control the use of built-in operations and procedures, there is no solution
to this difficulty other than ensuring that the code for generic separate implementation modules is itself written in as "generic"
a fashion as will permit the envisioned refinements of it to be correct.
NOTE 3 — A consequence of such application of the rules of the Base Language to the translation of refinements (i.e. after the refinement is
done) is that a generic separate module that is syntactically correct and has been refined by a syntactically correct refining module can still
result in a refined module that is not correct.
©
ISO/IEC ISO/IEC 10514-2:1998(E)
Examples
Example 1: What follows is a possible generic implementation of the first example in 6.2.3:
GENERIC IMPLEMENTATION MODULE Stacks (Element : TYPE);
VAR
stack  : ARRAY [0.StackSize] OF Element;
stackPtr : CARDINAL;
(* One could also arrange for StackSize to be a parameter. *)
PROCEDURE Push (item : Element);
BEGIN
stack[stackPtr] := item;
INC (stackPtr);
END Push;
PROCEDURE Pop (VAR item : Element);
BEGIN
DEC (stackPtr);
item := stack[stackPtr];
END Pop;
PROCEDURE Empty () : BOOLEAN;
BEGIN
RETURN stackPtr = 0
END Empty;
BEGIN (* module body initialization *)
stackPtr := 0
END Stacks.
NOTE 4 — The constant StackSize is from the corresponding definition module. It can be used in this generic implementation module.
However, depending on the implementation strategy chosen, the correctness of such use might not be checked until the refinement of that
implementation is performed.
Example 2: The next module is a corresponding implementation for the generic definition of example 2 in 6.2.3.
Matrix (Rows, Cols : ; MatrixElement : );
GENERIC IMPLEMENTATION MODULE CARDINAL TYPE
(* Note that, as in any implementation module, the generic implementation module has access to the types defined
in the corresponding definition. *)
( m : TMatrix);
PROCEDURE Invert VAR
BEGIN
(* your favourite technique *)

END Invert;
Matrix.
END
The next module is a corresponding implementation for the generic definition of example 3 in 6.2.3.
Example 3:
Validate (PType : ; PValidProc : ValidProcType);
GENERIC IMPLEMENTATION MODULE TYPE
Valid (item : PType) : ;
PROCEDURE BOOLEAN
BEGIN
©
RETURN PValidProc (item)
END Valid;
END Validate.
Example 4: Here is a sketch of a generic implementation of the module defined in example 4 of 6.2.3.
Sorts
GENERIC IMPLEMENTATION MODULE Sorts (Item : TYPE; GenCompare : CompareProc);
FROM Comparisons IMPORT
CompareResults;
PROCEDURE Swap (VAR a, b : Item);
VAR
temp : Item;
BEGIN
temp := a;
a := b;
b := temp;
END Swap;
PROCEDURE Quick (VAR data : ARRAY OF Item);
BEGIN
(* typical quicksort algorithm, except that compares are done by a procedure Compare
which returns values of type Comparisons.CompareResults. Swaps are done using the refinement of the generic swap above.
*)
END Quick;
END Sorts.
Example 5: (Parameters are optional) This example implements the non-parameterized counter found in 6.2.3.
GENERIC IMPLEMENTATION MODULE Counter;
VAR
CurrentCount : CARDINAL;
PROCEDURE Inc;
BEGIN
INC (CurrentCount);
END Inc;
PROCEDURE Reset;
BEGIN
CurrentCount := 0;
END Reset;
PROCEDURE Count () : CARDINAL;
BEGIN
RETURN CurrentCount
END Count;
BEGIN (* main *)
Reset;
END Counter.
©
ISO/IEC ISO/IEC 10514-2:1998(E)
6.2.5 Refining Definition Module
A refining definition module is similar to a definition module in the sense of the Base Language, and the rules for definition
modules given in the Base Language apply, with the following additions or changes.
The imports of a refining definition module are the imports of the definition module of the generic separate module of which it
is a refiner together with the results of evaluating the actual module parameters (i.e. these values can be treated as imports).
The exports of a refining definition module are the refinements of the items defined in the definition module of the generic
separate module of which it is a refiner.
Concrete Syntax
refining definition module =
"DEFINITION", "MODULE", module identifier, equals, generic separate module identifier, [actual module parameters],
semicolon,
"END", module identifier, period ;
= identifier
generic separate module identifier
A refining definition module cannot have additional imports or declarations of its own in addition to the ones in the generic
separate module from which it refines.
Semantics
The effect of translating a refining definition module shall be the same as constructing and then translating a definition module
(in the sense of the Base Language) obtained from the definition module of the generic separate module that it refines from but
with the results of evaluating the actual parameters of the refining definition module substituted for the formal parameters of
the definition module of the generic separate module that is being refined. The resulting refinement that is translated is a
definition module in the sense of the base language, and the translation that is done following refinement employs only the
rules of the base language.
One consequence of this is that if a generic separate module exports a type, and this module is then refined more
NOTE 1 —
than one time so as to produce several types, then any one of these is incompatible with all the others, even though they all
were refined from the same generic separate module.
The parameters of the refining definition module shall match the parameters of the generic definition module of which it is a
refiner. If the definition module of the generic separate module has no parameters, the refining definition module shall also
have none, not even an empty parameter list.
NOTE 2 — It is not the intention of this part of the multi-part standard to specify the exact means by which the substitutions are carried out.
That is, implementations are free to separate this step from the other functions of the translator and carry it out prior to other translation tasks
(perhaps creating a new physical file expressing the refinement as an ordinary definition module). Implementations are also free to have the
translator carry out the refinement in some other manner, so long as the effect is as described. That is, the actual refinement might or might
not have a separate physical existence from the refiner (perhaps as a file in its own right), and whether it does or not is an implementation
defined issue.
This part of the multi-part standard permits a client program module to be translated once any refining definition modules (and
therefore also all the definition modules needed to do the refinement) have been translated. Although the definition modules of
the generic separate modules from which the refinements are being made shall also exist, the corresponding implementation
modules of the generic separate modules and refining separate modules need not exist at this point.
Examples
For each example, the outcome of one possible preprocessor refinement strategy is shown in informative Annex D.
©
Example 1: What follows is a possible refiner of the first example in 6.2.3:
DEFINITION MODULE CardStack = Stacks (CARDINAL);
END CardStack.
Example 2: In order to refine the module Sorts as a separate module, one must first supply the necessary Compare procedure
in a separate module. For instance to refine an integer sort, first supply:
DEFINITION MODULE IntegerInfo;
FROM Comparisons IMPORT
CompareResults;
PROCEDURE Compare (a, b : INTEGER) : CompareResults;
END IntegerInfo.
When this is done, refining is by a module such as:
DEFINITION MODULE IntSorts = Sorts (INTEGER, IntegerInfo.Compare);
END IntSorts.
NOTE 3 — Once the separate definition module IntegerInfo has been processed, accessibility to such items as IntegerInfo.Compare in the
parameter list of a refining definition module follows the rules for accessibility to imported identifiers in any definition module.
The generic implementation module must also be supplied and refined.
NOTE 4 — The refined type
IntSorts.CompareProc = PROCEDURE (INTEGER, INTEGER) : CompareResults
is now exported by the refined module. This might not be necessary, but is consistent with normal language rules. There seems to be no
compelling reason to make this export "disappear" in the refining process.
Example 3: Any number of specific instances of the generic counter can be refined, though this might not be a common use of
the facility:
One refiner that illustrates the syntax is:
DEFINITION MODULE ACount = Counter;
END ACount.
NOTE 5 — See also example 4 in 6.3 for multiple local refinements.
Example 4: The generic matrix is refined with constants, as in the following:
DEFINITION MODULE RealMatrix45 = Matrix (4, 5, REAL);
END RealMatrix45.
6.2.6 Refining Implementation Module
A refining implementation module is similar to an implementation module in the sense of the Base Language, and the rules for
implementation modules (and their relationships with the corresponding definition modules) given in the Base Language
apply, with the following additions and changes.
©
ISO/IEC ISO/IEC 10514-2:1998(E)
The imports of a refining implementation module are the imports of the implementation module of the generic separate
module of which it is a refiner together with the actual parameters of the refining implementation module (i.e. the values can
be treated as imports).
Concrete Syntax
refining implementation module =
"IMPLEMENTATION", "MODULE", module identifier, equals, generic separate module identifier, [actual module
parameters], semicolon,
"END", module identifier, period ;
generic separate module identifier = identifier ;
Semantics
The effect of translating a refining implementation module shall be the same as constructing and then translating an
implementation module (in the sense of the Base Language) obtained from the implementation module of the generic separate
module that it refines from, but with the results of evaluating the actual parameters of the refining module substituted for the
formal parameters of the generic separate module that is being refined. The resulting refinement that is translated is an
implementation module in the sense of the base language, and the translation that is done following refinement employs only
the rules of the base language.
The parameters of the refining implementation module shall be the same as the parameters of th
...
