ISO/TS 19016:2019
(Main)Gas cylinders — Cylinders and tubes of composite construction — Modal acoustic emission (MAE) testing for periodic inspection and testing
Gas cylinders — Cylinders and tubes of composite construction — Modal acoustic emission (MAE) testing for periodic inspection and testing
This document describes the use of modal acoustic emission (MAE) testing during periodic inspection and testing of hoop wrapped and fully wrapped composite transportable gas cylinders and tubes, with aluminium-alloy, steel or non-metallic liners or of linerless construction, intended for compressed and liquefied gases under pressure. This document addresses the periodic inspection and testing of composite cylinders constructed to ISO 11119‑1, ISO 11119‑2, ISO 11119‑3, ISO 11515 and ISO/TS 17519 and can be applied to other composite cylinders designed to comparable standards when authorized by the competent authority. Unless noted by exception, the use of "cylinder" in this document refers to both cylinders and tubes.
Bouteilles à gaz — Bouteilles et tubes composites — Essai par émission acoustique modale (EAM) pour les besoins du contrôle et des essais périodiques
General Information
Standards Content (Sample)
TECHNICAL ISO/TS
SPECIFICATION 19016
First edition
2019-10
Gas cylinders — Cylinders and tubes
of composite construction — Modal
acoustic emission (MAE) testing for
periodic inspection and testing
Bouteilles à gaz — Bouteilles et tubes composites — Essai par
émission acoustique modale (EAM) pour les besoins du contrôle et des
essais périodiques
Reference number
ISO/TS 19016:2019(E)
©
ISO 2019
---------------------- Page: 1 ----------------------
ISO/TS 19016:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TS 19016:2019(E)
Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms, definitions and symbols . 1
3.1 Terms and definitions . 1
3.2 Symbols . 5
4 Modal acoustic emission (MAE) general operational principles .6
5 Personnel qualification . 6
6 Test validity . 6
7 Calibration . 6
7.1 Absolute sensor calibration . 6
7.2 Rolling ball impact calibration . 7
7.2.1 General. 7
7.2.2 Direct calibration . 8
7.2.3 Linearity calibration . 8
7.3 MAE wave recording system calibration . 8
8 MAE testing equipment . 9
9 MAE testing . 9
9.1 General . 9
9.2 MAE testing procedure . 9
9.2.1 General. 9
9.2.2 Sensor coupling . . .10
9.2.3 Sensor positioning .10
9.2.4 Attenuation measurement . .11
9.2.5 System settings .11
9.2.6 System sampling rate .11
9.2.7 Sensor coupling checks .11
9.2.8 Pressurisation test methods .11
9.2.9 Repeating MAE testing . .12
10 Interpretation .13
10.1 General .13
10.2 Noise filtering .13
10.2.1 General.13
10.2.2 Electromagnetic interference (EMI) .14
10.2.3 Mechanical rubbing .14
10.2.4 Flow noise .14
10.2.5 Leakage .14
10.2.6 Clean front end .14
10.3 Data analysis .14
11 Evaluation and rejection criteria.14
11.1 Evaluation .14
11.2 Analysis procedure .15
11.2.1 General.15
11.2.2 Rejection due to partial fibre bundle rupture criteria .15
11.2.3 Rejection due to single event energy .15
11.2.4 Rejection due to background energy (BE) and background energy
oscillation (BEO) .15
12 Test report .16
© ISO 2019 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/TS 19016:2019(E)

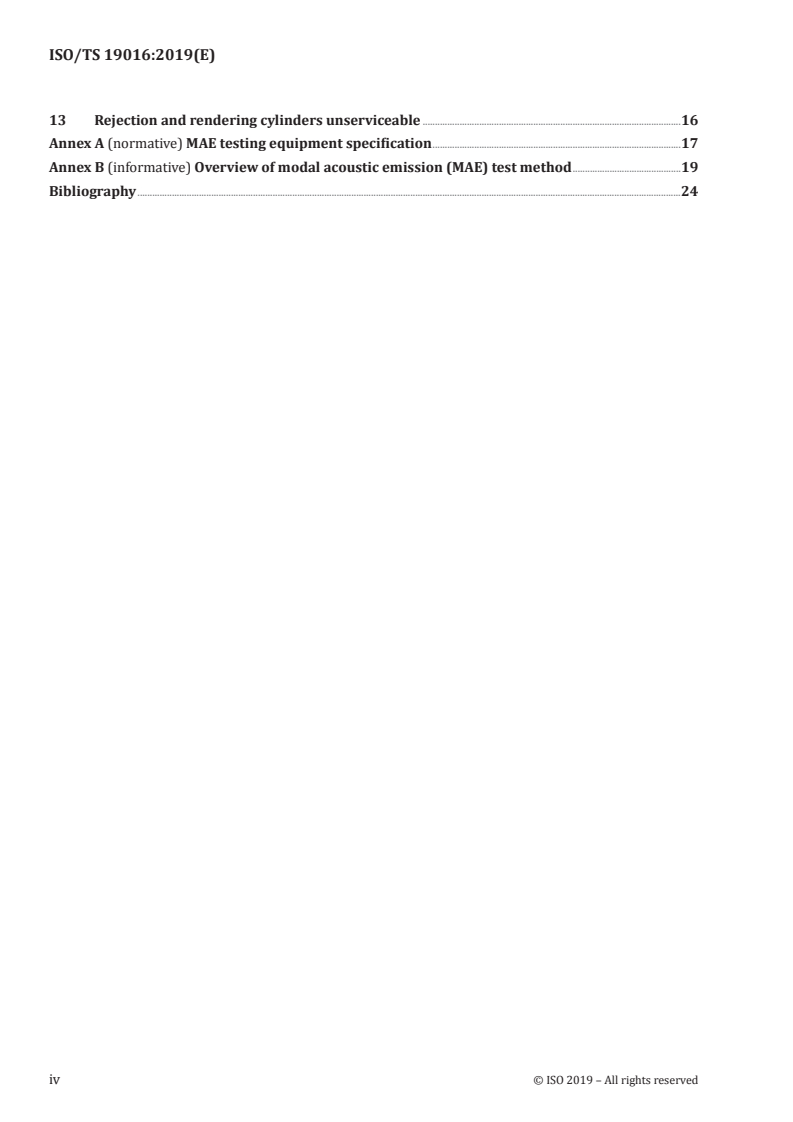

13 Rejection and rendering cylinders unserviceable .16
Annex A (normative) MAE testing equipment specification .17
Annex B (informative) Overview of modal acoustic emission (MAE) test method .19
Bibliography .24
iv © ISO 2019 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TS 19016:2019(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 58, Gas cylinders, Subcommittee SC 4,
Operational requirements for gas cylinders.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
© ISO 2019 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/TS 19016:2019(E)
Introduction
In recent years, new non-destructive examination (NDE) techniques have been successfully introduced
as an alternative to the conventional retesting procedures of gas cylinders, tubes and other cylinders.
One of the alternative NDE methods for certain applications is acoustic emission testing (AT), which in
several countries has proved to be an acceptable testing method applied during periodic inspection.
This AT method is described in ISO 16148, which authorizes pressurization pneumatically to a value
equal to 110 % of the cylinder’s working pressure and hydraulic pressurization to a value equal to the
cylinder’s test pressure. Since ISO 16148 was developed for periodic inspection and testing of monolithic
materials (seamless steel and aluminium-alloy cylinders), the test method was not appropriate for
composite cylinders. The modal acoustic emission (MAE) test method described in this document was
developed to address this shortcoming.
The MAE test method described in this document applies during periodic inspection and testing, and
it uses either hydraulic (liquid) pressurization or pneumatic (gas) pressurization to a level equal to the
design test pressure of the cylinder. It detects structural damage that can result in a compromised burst
pressure strength in a composite cylinder. The MAE waveforms can be used to identify damage such
as fibre breakage and delamination. An MAE waveform is distinguished by the wave (mode) shapes,
velocities, waveform energy and frequency spectrums. This MAE test method is not intended for newly
manufactured composite cylinders.
The application of MAE testing on composite overwrapped gas cylinders with metallic and polymer
liners was applied to a sample of composite cylinders [180 self-contained breathing apparatus (SCBA)
cylinders selected from 50 000] that were near the end of their 15-year service life. The MAE testing
was performed during physical testing, which was similar to design qualification testing for this type
of composite cylinder. The physical testing included pressure cycling, burst testing, flaw tolerance
testing and ISO 11119-2 drop testing. The MAE testing consistently detected and differentiated each
cylinder that had a compromised burst pressure strength, which had been defined for this project to be
a pressure less than the original design burst pressure of the cylinder, by the presence of background
energy oscillation (BEO) at or near the test pressure.
vi © ISO 2019 – All rights reserved
---------------------- Page: 6 ----------------------
TECHNICAL SPECIFICATION ISO/TS 19016:2019(E)
Gas cylinders — Cylinders and tubes of composite
construction — Modal acoustic emission (MAE) testing for
periodic inspection and testing
CAUTION — Some of the tests specified in this document involve the use of processes (e.g.
pneumatic pressurization) which could lead to a hazardous situation.
1 Scope
This document describes the use of modal acoustic emission (MAE) testing during periodic inspection
and testing of hoop wrapped and fully wrapped composite transportable gas cylinders and tubes, with
aluminium-alloy, steel or non-metallic liners or of linerless construction, intended for compressed and
liquefied gases under pressure.
This document addresses the periodic inspection and testing of composite cylinders constructed
to ISO 11119-1, ISO 11119-2, ISO 11119-3, ISO 11515 and ISO/TS 17519 and can be applied to other
composite cylinders designed to comparable standards when authorized by the competent authority.
Unless noted by exception, the use of “cylinder” in this document refers to both cylinders and tubes.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 9712, Non-destructive testing — Qualification and certification of NDT personnel
ISO 11623, Gas cylinders — Composite construction — Periodic inspection and testing
ASTM E1106-12, Standard Test Method for Primary Calibration of Acoustic Emission Sensor
3 Terms, definitions and symbols
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http: //www .electropedia .org/
— ISO Online browsing platform: available at http: //www .iso .org/obp
© ISO 2019 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO/TS 19016:2019(E)
3.1.1
modal acoustic emission
MAE
branch of acoustic emission (AT) focused on the detection, capture and analysis of the sound waves
generated by acoustic events due to fibre tow (3.1.19) breakage, cracking, crazing, rubbing, delamination
or fracture of structural components
Note 1 to entry: The sound waves can be produced either by defects [e.g. fibre tow (3.1.19) breakage, crack
growth, delamination] or by surface rubbing. The wave frequencies typically extend from the sonic to the lower
ultrasonic range. MAE is distinguished from AT by its focus on capturing waveforms with broader bandwidth
sensors and analysing the waveforms according to wave propagation physics in an attempt to determine the type
of source, as is done in seismology, whereas AT has been generally concerned with counts, amplitudes and other
signal features based on different theories of analysis than MAE.
3.1.2
broadband piezoelectric sensor
sensor having a response that is flat-with-frequency (±6 dB) when calibrated in an absolute sense over
the frequency range of interest
Note 1 to entry: Due to a lack of signal distortion or “coloration”, broadband piezoelectric sensors enable the
observation of the extensional and flexural plate waves which facilitates the direct comparison to physical
models for proper damage mechanism identification.
3.1.3
preamplifier
amplifier that converts a lower level voltage signal to a higher level voltage signal
Note 1 to entry: A preamplifier can also have a 0 dB gain where it would function purely as a buffer or unity gain
amplifier.
3.1.4
high-pass filter
electronic filter applied to the wave signals to reduce mechanical noise
3.1.5
low-pass filter
electronic filter applied to the wave signals to prevent aliasing (3.1.13)
3.1.6
analogue-to-digital converter
A/D converter
electronic device that changes an analogue electrical signal into a digital representation
3.1.7
input impedance
value of the impedance, denoted as Z, at the input to the voltage preamplifier (3.1.3) to which the
transducer is directly connected
3.1.8
Nyquist frequency
bandwidth of the sampled signal, equal to half the sampling rate
3.1.9
primary AE
acoustic emissions caused by damage mechanisms (e.g. fracture, crack propagation, defect growth)
originating from the material under test
2 © ISO 2019 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/TS 19016:2019(E)
3.1.10
secondary AE
acoustic emissions caused by sources other than damage mechanisms originating from the material
under test (frictional rubbing against containment, EMI, flow noise, etc.)
Note 1 to entry: See Clause 10 for information regarding filtering out extraneous noise.
3.1.11
background energy
BE
minimum energy in a windowed portion of a given waveform
3.1.12
background energy oscillation
BEO
excursion of greater than BEO multiplication factor (M ) (3.1.26) between neighbouring maxima and
2
minima of an N point moving average calculated from all background energy (3.1.11) values
3.1.13
aliasing
effect resulting from under sampling that causes different signals to become indistinguishable (or
aliases of one another) when sampled
3.1.14
clean front end
−15
pre-trigger energy of less than 0,01 × 10 J when accounting for gain
3.1.15
working pressure
settled pressure of a compressed gas at a uniform reference temperature of 15 °C in a full gas cylinder
Note 1 to entry: In North America, service pressure is often used to indicate a similar condition, usually at 21,1 °C
(70 °F).
Note 2 to entry: In East Asia, service pressure is often used to indicate a similar condition, usually at 35 °C.
[SOURCE: ISO 10286:2015, 736]
3.1.16
developed pressure
pressure developed by the gas contents in a cylinder at a uniform reference temperature of Temp
max
Note 1 to entry: Temp is the expected maximum uniform temperature in normal service as specified in
max
international or national cylinder filling regulations.
[SOURCE: ISO 10286:2015, 733, modified — “T ” replaced with “Temp ”]
max max
3.1.17
composite overwrap
combination of fibres (3.1.18) and matrix (3.1.20)
3.1.18
fibre
load-carrying part of the composite overwrap (3.1.17)
EXAMPLE Glass, aramid or carbon.
3.1.19
fibre tow
group or bundle of fibres (3.1.18)
© ISO 2019 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO/TS 19016:2019(E)
3.1.20
matrix
material used to bind and hold fibres (3.1.18) in place
3.1.21
extensional waves
collection of wave modes characterized by dominant in-plane deformation characteristics
Note 1 to entry: Extensional wave modes are analogous to symmetric (S) wave modes in isotropic plate-type
structures.
3.1.22
flexural waves
collection of wave modes characterized by dominant out-of-plane deformation characteristics
Note 1 to entry: Flexural wave modes are analogous to antisymmetric (A) wave modes in isotropic plate-type
structures.
3.1.23
fibre bundle rupture energy multiplication factor
F
1
allowance factor for fibre (3.1.18) bundle rupture energy
Note 1 to entry: The value of F is determined by analysis of the composite material and pressure vessel design.
1
3.1.24
total single event energy multiplication factor
F
2
allowance factor for single event energy
3.1.25
BE multiplication factor
M
1
multiplicative factor that corresponds to a rise in the background energy (3.1.11) level above the
quiescent level
Note 1 to entry: The value of M is a function of vessel type, fibre (3.1.18) construction, size and pressure rating of
1
the composite cylinder and is determined through theory and/or testing.
Note 2 to entry: M indicates that the damage accumulation has commenced in the composite pressure vessel
1
under test.
Note 3 to entry: See 3.1.27.
3.1.26
BEO multiplication factor
M
2
difference factor between neighbouring maxima and minima of an N point moving average calculated
from all background energy (3.1.11) values
Note 1 to entry: The value of M is a function of vessel type, fibre (3.1.18) construction, size and pressure rating of
2
the composite cylinder and is determined through theory and/or testing.
Note 2 to entry: M indicates that the composite pressure vessel under test is progressing towards failure.
2
3.1.27
quiescent background energy
U
QE
energy determined in a windowed portion of a waveform during a period of inactivity
4 © ISO 2019 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/TS 19016:2019(E)
3.1.28
wave energy
U
WAVE
1
t 2
U =∫ Vdt
WAVE
0
z
Note 1 to entry: For comparison to physical energy values (e.g. the theoretical energy released by a fibre fracture
event), the total system gain is accounted for by dividing V by the gain factor before squaring, e.g. 40 dB gain is a
gain factor of 100, 48 dB is a gain factor of 251,2, 60 dB is a gain factor of 1 000, etc.
3.2 Symbols
C speed of the first arriving frequency in the E wave
E
C speed of the last arriving frequency in the F wave
F
d diameter of the fibre
E Young's modulus of the fibre
ε strain to failure of the fibre
g acceleration due to gravity
h vertical height of the centre of the rolling ball at the top of the inclined plane
I ineffective fibre length for the fibre and matrix combination
L distance between sensors, in m
m mass
N constant value relating to the type of fibre in the composite cylinder
T period of the cycle
t time, in μs, when the first part of the direct E wave will arrive
1
(i.e. the arrival of the lowest observable frequency of interest in the E mode)
t time, in μs, when the last part of the direct F wave will arrive
2
(i.e. the arrival of the lowest observable frequency of interest in the F mode)
t time
Temp expected maximum uniform temperature in normal service
max
energy produced by the occurrence of fibre breakage
AE
U
FB
energy produced by the occurrence of fibre bundle breakage
AE
U
FBB
AE
U rolling ball impact acoustical wave energy
RBI
U theoretical fibre break energy
FB
U known mechanical energy
mgh
U rolling ball impact energy
RBI
© ISO 2019 – All rights reserved 5
---------------------- Page: 11 ----------------------
ISO/TS 19016:2019(E)
U wave energy
WAVE
V voltage
Z preamplifier input impedance
4 Modal acoustic emission (MAE) general operational principles
When a composite cylinder containing flaws is pressurized, stress waves can be generated by several
different sources (fibre breakage, matrix cracking, delamination, etc.). These stress waves are defined
as acoustic emissions (AE). The AE resulting from major flaws such as delamination or fibre bundle
breakage starts at a pressure less than or equal to the test pressure of the cylinder. The internal
pressure causes stress in the fibre overwrap which can result in AE waves that propagate throughout
the structure. The AE waveform is captured, digitized and stored for analysis. MAE analysis essentially
“fingerprints” each waveform by mode, energy and frequency content to determine the damage
mechanism which occurred (delamination, matrix crack, fibre breakage, etc.). The connections between
waveforms and fracture mechanisms have been determined through theoretical elastodynamic
calculation and experiment and published in open literature.
The formulae for determining fibre break sources in composite cylinders are given in Annex A. Annex B
provides examples for calculating fibre break energy and energy scaling, using representative values
for F , F , M and M , which are components of the formulae used to determine the reject criteria.
1 2 1 2
After an MAE source is identified, this information is used to assess cylinder integrity. The values for
rejection criteria are calculated as described in Clause 11.
NOTE The MAE test method described in this document is not intended for newly manufactured composite
cylinders.
5 Personnel qualification
The MAE equipment shall be operated by, and its operation supervised by, qualified and experienced
personnel only, certified in accordance with ISO 9712 or equivalent (e.g. ASNT SNT-TC-1A). The operator
shall be certified to Level I and this individual shall be supervised by a Level II person. The testing
organization shall retain a Level III (company employee or a third party) to oversee the organization’s
entire MAE programme.
6 Test validity
The type of construction of the cylinder (e.g. hoop or fully wrapped) and the type of fibre and resin
(matrix) shall be known for input in the computer program (software) that analyses the MAE test.
To obtain an accurate MAE testing result, the cylinder should not have been pressurized to or above
the MAE test pressure within the past 12 months prior to the requalification. However, if suspected
external damage has occurred to the cylinder within 12 months of the previous requalification
(mechanical impact, etc.), then an MAE test is recommended.
7 Calibration
7.1 Absolute sensor calibration
Sensors shall have a flat frequency response (±6 dB amplitude response over the frequency range
specified, 50 kHz to 400 kHz) as determined by an absolute calibration. MAE sensors shall have a
diameter no greater than 13 mm for the active part of the sensor face. The aperture effect shall be
taken into account during MAE testing. Sensor sensitivity shall be at least 0,05 V/nm (with the removal
of all amplification).
6 © ISO 2019 – All rights reserved
---
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
