Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 13491-2
Fifth edition
2023-01
Financial services — Secure
cryptographic devices (retail) —
Part 2:
Security compliance checklists for
devices used in financial transactions
Services financiers — Dispositifs cryptographiques de sécurité
(services aux particuliers) —
Partie 2: Listes de contrôle de conformité de sécurité pour les
dispositifs utilisés dans les transactions financières
Reference number
ISO 13491-2:2023(E)
© ISO 2023
---------------------- Page: 1 ----------------------
ISO 13491-2:2023(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2023

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on

the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below

or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
© ISO 2023 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 13491-2:2023(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction .................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ..................................................................................................................................................................................... 1

3 Terms and definitions .................................................................................................................................................................................... 1

4 Use of security compliance checklists .......................................................................................................................................... 2

Annex A (normative) Physical, logical and device-management characteristics common to

all secure cryptographic devices........................................................................................................................................................3

Annex B (normative) Devices with PIN entry functionality ....................................................................................................11

Annex C (normative) Devices with PIN management functionality ................................................................................17

Annex D (normative) Devices with message authentication functionality .............................................................20

Annex E (normative) Devices with key generation functionality ......................................................................................22

Annex F (normative) Devices with key transfer and loading functionality ...........................................................26

Annex G (normative) Devices with digital signature functionality ................................................................................31

Annex H (normative) Categorization of environments .................................................................................................................33

Bibliography .............................................................................................................................................................................................................................38

iii
© ISO 2023 – All rights reserved
---------------------- Page: 3 ----------------------
ISO 13491-2:2023(E)

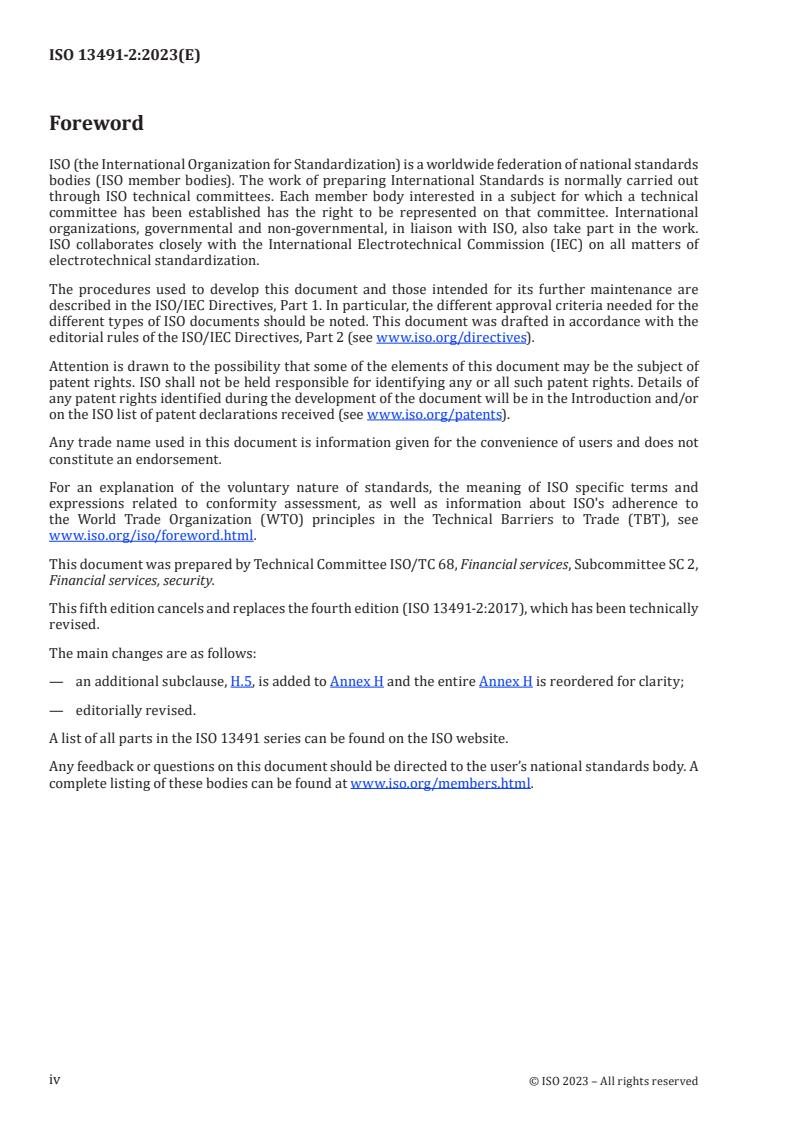

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to

the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see

www.iso.org/iso/foreword.html.

This document was prepared by Technical Committee ISO/TC 68, Financial services, Subcommittee SC 2,

Financial services, security.

This fifth edition cancels and replaces the fourth edition (ISO 13491-2:2017), which has been technically

revised.
The main changes are as follows:

— an additional subclause, H.5, is added to Annex H and the entire Annex H is reordered for clarity;

— editorially revised.
A list of all parts in the ISO 13491 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www.iso.org/members.html.
© ISO 2023 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 13491-2:2023(E)
Introduction

This document specifies both the physical and logical characteristics and the management of the

secure cryptographic devices (SCDs) used to protect messages, cryptographic keys and other sensitive

information used in a retail financial services environment.

The security of retail financial services is largely dependent upon the security of these cryptographic

devices.

Security requirements are based upon the premise that computer files can be accessed and manipulated,

communication lines can be “tapped” and authorized data or control inputs in a system device can be

replaced with unauthorized inputs. While certain cryptographic devices (e.g., host security modules)

reside in relatively high-security processing centres, a large proportion of cryptographic devices used

in retail financial services (e.g., PIN entry devices) now reside in non-secure environments. Therefore,

when PINs, MACs, cryptographic keys and other sensitive data are processed in these devices, there is a

risk that the devices can be tampered with or otherwise compromised to disclose or modify such data.

The risk of financial loss can be reduced through the appropriate use of cryptographic devices that

have proper physical and logical security characteristics and are properly managed. To ensure that

SCDs have the proper physical and logical security, they require evaluation.

This document provides the security compliance checklists for evaluating SCDs used in financial

services systems in accordance with ISO 13491-1. Other evaluation frameworks exist and can be

appropriate for formal security evaluations (e.g., ISO/IEC 15408-1, ISO/IEC 15408-2, ISO/IEC 15408-3

and ISO/IEC 19790) but are outside the scope of this document.

Appropriate device characteristics are necessary to ensure that the device has the proper operational

capabilities and provides adequate protection for the data it contains. Appropriate device management

is necessary to ensure that the device is legitimate, that it has not been modified in an unauthorized

manner (e.g., by “bugging”) and that any sensitive data placed within the device (e.g., cryptographic

keys) have not been subject to disclosure or change.

Absolute security is not practically achievable. Cryptographic security depends upon each life cycle

phase of the SCD and the complementary combination of appropriate device management procedures

and secure cryptographic characteristics. These management procedures implement preventive

measures to reduce the opportunity for a breach of cryptographic device security. These measures aim

for a high probability of detection of any illicit access to sensitive or confidential data in the event that

device characteristics fail to prevent or detect the security compromise.
© ISO 2023 – All rights reserved
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 13491-2:2023(E)
Financial services — Secure cryptographic devices
(retail) —
Part 2:
Security compliance checklists for devices used in financial
transactions
1 Scope

This document specifies checklists to be used to evaluate secure cryptographic devices (SCDs)

incorporating cryptographic processes as specified in ISO 9564-1, ISO 9564-2, ISO 16609, and

ISO 11568 in the financial services environment. Integrated circuit (IC) payment cards are subject

to the requirements identified in this document up until the time of issue, after which they are to be

regarded as a “personal” device and outside of the scope of this document.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 9564-1, Financial services — Personal Identification Number (PIN) management and security — Part 1:

Basic principles and requirements for PINs in card-based systems
ISO 11568, Financial services — Key management (retail)

ISO 13491-1, Financial services — Secure cryptographic devices (retail) — Part 1: Concepts, requirements

and evaluation methods

ISO 16609, Financial services — Requirements for message authentication using symmetric techniques

ISO/IEC 18031, Information technology — Security techniques — Random bit generation

3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 13491-1 and the following

apply.

ISO and IEC maintain terminology databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
auditor
person or organization approved as an auditor by an approval authority
[SOURCE: ISO 9000:2015, 3.13.15]
3.2
data integrity
assurance that data has not been altered or destroyed in an unauthorized manner
© ISO 2023 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 13491-2:2023(E)
3.3
dual control

process of utilizing two or more entities (usually persons) operating in concert to protect sensitive

functions or information whereby no single entity is able to access or use the materials

Note 1 to entry: A cryptographic key is an example of the type of material to be accessed or utilized.

3.4
evaluation agency

organization trusted by the design, manufacturing, and sponsoring entities which evaluates the secure

cryptographic device (using specialist skills and tools)
Note 1 to entry: Evaluation is in accordance with ISO 13491-1.
3.5
exclusive-or
bit-by-bit modulo two addition of binary vectors of equal length
3.6
security compliance checklist
list of auditable claims, organized by device type
Note 1 to entry: Checklist is as specified in this document.
3.7
sensitive state

device condition that provides access to the secure operator interface such that it can only be entered

when the device is under dual or multiple control
3.8
sponsor
person or organization that requests a test
[SOURCE: ISO 20088-3:2018, 3.5]
4 Use of security compliance checklists

These checklists shall be used to assess the acceptability of cryptographic equipment upon which

the security of the system depends. It is the responsibility of any sponsor, approval authority or

accreditation authority, depending on the evaluation method chosen, that adopts some or all of these

checklists to:

— approve evaluating agencies for use by suppliers to or participants in the system;

— set up an audit review body to review the completed audit checklists.

Annex A to Annex H, which provide checklists defining the minimum evaluation to be performed

to assess the acceptability of cryptographic equipment, shall be applied. Additional tests may be

performed to reflect the state of the art at the time of the evaluation.

A cryptographic device achieves security both through its inherent characteristics and the

characteristics of the environment in which the device is located. When completing these audit

checklists, the environment in which the device is located shall be considered, for example a device

intended for use in a public location can require greater inherent security than the equivalent device

operating in a controlled environment. So that an evaluating agency need not investigate the specific

environment where an evaluated device may reside, this document provides a suggested categorization

of environments in Annex H. Thus, an evaluating agency may be asked to evaluate a given device for

operation in a specific environment. Such a device can be deployed in a given facility only if this facility

itself has been audited to ensure that it provides the ensured environment. However, these audit

checklists may be used with categorizations of the environment other than those suggested in Annex H.

© ISO 2023 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 13491-2:2023(E)
Annex A
(normative)
Physical, logical and device-management characteristics common
to all secure cryptographic devices
A.1 General

This annex is intended for use with all evaluations and shall be completed prior to any device-specific

security compliance checklists.

The following statements in this security compliance checklist shall be specified by the auditor as

“true (T)”, “false (F)” or “not applicable (N/A)”. A “false” indication does not necessarily indicate

unacceptable practice but shall be explained in writing. Those statements that are indicated as “N/A”

shall also be explained in writing.
A.2 Device characteristics
A.2.1 Physical security characteristics
A.2.1.1 General

All devices shall meet the criteria given in A.2.1.2 for general security characteristics, in A.2.1.5 for

tamper-responsive characteristics and in A.2.1.3 for tamper-evident characteristics. Other devices

shall additionally meet the criteria given in A.2.1.4 for tamper-resistant characteristics.

A.2.1.2 General security characteristics

An evaluation agency has evaluated the device bearing in mind susceptibility to physical and logical

attack techniques known at the time of the evaluation, such as (but not limited to):

— chemical attacks (solvents);
— scanning attacks (scanning electron microscope);
— mechanical attacks (e.g. drilling, cutting, probing);
— thermal attacks (high and low temperature extremes);
— radiation attacks (X-rays);

— information leakage through covert (side) channels (e.g. power supply, timing);

— failure attacks.
The conclusions are given in Table A.1.
Table A.1 — General security characteristics
No. Security compliance statement True False N/A
It is not feasible to determine a PIN, a key or other secret in-
formation by monitoring (e.g., the electromagnetic emissions
from the device with or without the cooperation of the device
operator).
© ISO 2023 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 13491-2:2023(E)
TTabablele A A..11 ((ccoonnttiinnueuedd))
No. Security compliance statement True False N/A
Any ventilation and other openings in the module are posi-
tioned and protected so that it is not feasible to use such an
opening to probe any component of the module such that
plaintext PINs, access codes or cryptographic keys might be
disclosed or to disable any of the protection mechanisms of the
device.
All sensitive data and cryptographic keys, including residues,
are stored in the security module.
All transfer mechanisms within the device are implemented in
A4 such a way that it is not feasible to monitor the device to obtain
unauthorized disclosure of any such information.
Any access entry point into the device's internal circuitry is
locked in the closed position when the device is operative, by
means of one or more pick-resistant locks or similar security
mechanisms.
The design of the device is such that a duplicate device cannot
A6 be constructed from components which are available through
retail commercial channels.
If the device generates random numbers or pseudo-random
A7 numbers, then the generation of those numbers conforms to
ISO/IEC 18031.
If the device generates random numbers or pseudo-random
numbers, it is not feasible to influence the output of those
A8 numbers, for example by varying environmental conditions
of the device, such as resetting or reinitializing the device or
manipulating the power supply or electromagnetic injection.
A.2.1.3 Tamper-evident characteristics
The conclusions of the evaluating agency are given in Table A.2.
Table A.2 — Tamper-evident characteristics
No. Security compliance statement True False N/A
The device is designed and constructed so that it is not feasible
to penetrate the device in order to:
— make any additions, substitutions or modifications (e.g.,
the installation of a bug) to the hardware or software of the
device; or
— determine or modify any sensitive information (e.g., PINs,
access codes, and cryptographic keys);
and then subsequently return the device without requiring
specialized skills and equipment not generally available and:
a) without damaging the device so severely that the damage
would have a high probability of detection; or
b) requiring that the device be absent from its intended loca-
tion for a sufficiently long time that its absence or reappear-
ance would have a high probability of being detected.
A.2.1.4 Tamper-resistant characteristics
The conclusions of the evaluating agency are given in Table A.3.
© ISO 2023 – All rights reserved
---------------------- Page: 9 ----------------------
ISO 13491-2:2023(E)
Table A.3 — Tamper-resistant characteristics
No. Security compliance statement True False N/A
The device is protected against penetration by employing physi-
A10
cal protection to such a degree that penetration is not feasible.
Even after having gained unlimited, undisturbed access to the
A11 device, discovery of secret information in the target device is
not feasible.
A.2.1.5 Tamper-responsive characteristics
The conclusions of the evaluating agency are given in Table A.4.
Table A.4 — Tamper-responsive characteristics
No. Security compliance statement True False N/A
The device is protected against penetration by including
features that detect any feasible attempts to tamper with the
A12
device and cause immediate erasure of all cryptographic keys
and sensitive data when such an attempt is detected.
Removal of the case or the opening, whether authorized or
unauthorized, of any access entry to the device’s internal com-
A13
ponents causes the automatic and immediate erasure of the
cryptographic keys stored within the device.
There is a defined method for ensuring that secret data or any
cryptographic key that has been used to encrypt secret data is
erased from the unit when permanently removing the unit from
service (decommissioning). There is also a defined method for
A14 ensuring, when permanently decommissioned, that any cryp-
tographic key contained in the unit that might be usable in the
future is either erased from the unit or is invalidated at all facil-
ities with which the unit is capable of performing cryptographi-
cally protected communications.
Any tamper detection or key erasure mechanisms function even
A15
in the absence of applied power.
If the device has no mechanism for detection of removal from its
operational environment, then defeating the tamper detection
mechanisms or discovery of secret information in the target
device is not feasible, even when removed from its operational
environment. Compromise of the device requires equipment and
skill sets that are not readily available.
A16
As a possible example, discovery of such information requires
a significant time, such as one month of preparation, including
analysis of other devices and at least one week of effort to com-
promise the device after having gained unlimited, undisturbed
access to the target device.
If the device has a mechanism for detection of removal from its
operational environment, then defeating the tamper- detection
mechanisms or discovery of secret information in the target de-
vice is not feasible. Compromise of the device shall require skill
sets that are not readily available and equipment that is neither
readily available at the device site nor can be feasibly transport-
A17
ed to the device site.
As a possible example, discovery of such information requires
a significant time, such as one month of preparation, including
analysis of other devices and at least 12 hours of unlimited,
undisturbed access to the target device.
© ISO 2023 – All rights reserved
---------------------- Page: 10 ----------------------
ISO 13491-2:2023(E)
A.2.2 Logical security characteristics
The conclusions of the evaluating agency are given in Table A.5.
Table A.5 — Logical security characteristics
No. Security compliance statement True False N/A
The device includes self-test capabilities capable of manual or
A18 automatic initiation to ensure that its basic functions are oper-
ating properly.
A19 The device only performs its designed functions.
It is not feasible to determine a key or other secret information
A20
by the use of diagnostic or special test modes.
The cryptographic algorithms, modes of operation and
A21 lengths of cryptographic keys used by the device conform to
ISO 11568.
The device key management conforms to ISO 11568 using each
A22 key for only one cryptographic purpose (although a variant of
a key may be used for a different purpose).
The functionality implemented within the device is such that
there is no feasible way in which plaintext secret information
(e.g., PINs or cryptographic keys) or secret information enci-
A23
phered under other than the legitimate key can be obtained
from the device, except in an authorized manner (e.g., PIN
mailers).
If the device is composed of several components, it is not
possible to move a secret cryptographic key within the device
A24
from a component of higher security to a component providing
lower security.
The loading of keys is performed when:
— the device is in a sensitive state; or
A25
— the action of loading a key puts the device into a mode that
activates all the tamper-protection mechanisms within the
device.
The following operator functions that may influence the
security of a device are only permitted when the device is in a
sensitive state, i.e., under dual or multiple control:
A26
— disabling or enabling of device functions;
— change of passwords or data that enable the device to
enter the sensitive state.
The secure operator interface is so designed that entry of
more than one password (or some equivalent mechanism for
A27
dual or multiple control) is required in order to enter this
sensitive state.
The secure operator interface is so designed that it is highly
A28 unlikely that the device can inadvertently be left in the sensi-
tive state.
If sensitive state is established with multiple limits (e.g., on the
A29 number of function calls and a time limit), the device returns
to normal state when the first of these limits is reached.
Where passwords or other plaintext data are used to control
A30 transition to a sensitive state, then these are protected in the
same manner as other secret or sensitive information.
If cryptographic keys are lost for any reason (e.g., long-term
A31 absence of applied power), the device will enter a non- opera-
tional state.
© ISO 2023 – All rights reserved
---------------------- Page: 11 ----------------------
ISO 13491-2:2023(E)
TTabablele A A..55 ((ccoonnttiinnueuedd))
No. Security compliance statement True False N/A
The only function calls and sensitive operator functions that
A32 exist in the device are functions approved by the sponsor or
the system in which the device is to operate.
Keys are never translated from encipherment under one vari-
A33
ant to encipherment under another variant of the same key.
A.3 Device management
A.3.1 General consideration

For each life cycle stage, the entity responsible for completing the audit checklist for that stage has

provided assurance for the statements given in Table A.6.
Table A.6 — General consideration
No. Security compliance statement True False N/A
For audit and control purposes, the identity of the device
(e.g., its serial number) can be determined either by external
A34 tamper-evident marking or labelling or by a command that
causes the device to return its identity via the interface or via
the display.
When the device is in a life cycle stage such that it contains
cryptographic keys, the identity of these keys can be easily
A35
determined from the identity of the device [so that the key(s)
can be invalidated if the device is reported lost or stolen].
Any physical keys used to unlock or operate the device are
A36
carefully controlled and available only to authorized persons.
If a device contains a secret cryptographic key and there is an
attack on a device, or a device is stolen, then procedures are
A37
in place to notify the party responsible for the security of the
device immediately after detection.
If a device does not yet contain a secret cryptographic key
and there is an attack on a device, or a device is stolen, then
A38 procedures are in place to prevent the substitution of the
attacked or stolen device for a legitimate device that does not
yet contain a secret cryptographic key.
If no sensitive state exists in the device, the loading of plain-
A39
text keys is performed under dual control.
A.3.2 Device protection by manufacturer

The device manufacturer or an independent auditor has provided assurance, acceptable to the audit

review body, for the statements given in Table A.7
Table A.7 — Device protection by manufacturer
No. Security compliance statement True False N/A
The hardware and software design of the device has been
evaluated to ensure that the functional capabilities provided
A40 with the device are all legitimate, documented functions and
that no unauthorized function (e.g., a “Trojan horse”) resides
in the device.
© ISO 2023 – All rights reserved
---------------------- Page: 12 ----------------------
ISO 13491-2:2023(E)
TTabablele A A..77 ((ccoonnttiinnueuedd))
No. Security compliance statement True False N/A
The device, including software, is produced and stored in a
controlled environment under the control of qualified person-
A41
nel to prevent unauthorized modifications to the physical or
functional characteristics of the device.
A.3.3 Device protection between manufacturer and post-manufacturing phases

The device manufacturer and those responsible for the transport and storage of the device prior to

initial financial key loading, or else an independent auditor, have provided assurance for the statements

given in Table A.8.
Table A.8 — Device protection between manufacturer and post-manufacturing phases
No. Security compliance statement True False N/A
Subsequent to manufacturing and prior to shipment, the de-
A42 vice is stored in a protected area or sealed within tamper- evi-
dent packaging to detect unauthorized access to it.
— The device is shipped in tamper-evident packaging and
inspected to detect unauthorized access to it; or
— before a device is loaded with cryptographic keys, it is
closely inspected by qualified staff to ensure that it has not
been subject to any physical or functional modification; or
A43
— the device is delivered with secret information that is
erased if tampering is detected to enable the user to ascertain
that the device is genuine and not compromised.
NOTE One example of such information is the private key of an
asymmetric key pair with the public key of the device signed
by a private key known only t
...

FINAL
INTERNATIONAL ISO/FDIS
DRAFT
STANDARD 13491-2
ISO/TC 68/SC 2
Financial services — Secure
Secretariat: BSI
cryptographic devices (retail) —
Voting begins on:
2022-10-04
Part 2:
Voting terminates on:
Security compliance checklists for
2022-11-29
devices used in financial transactions
Services financiers — Dispositifs cryptographiques de sécurité
(services aux particuliers) —
Partie 2: Listes de contrôle de conformité de sécurité pour les
dispositifs utilisés dans les transactions financières
RECIPIENTS OF THIS DRAFT ARE INVITED TO
SUBMIT, WITH THEIR COMMENTS, NOTIFICATION
OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPOR TING
DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
Reference number
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/FDIS 13491-2:2022(E)
LOGICAL, COMMERCIAL AND USER PURPOSES,
DRAFT INTERNATIONAL STANDARDS MAY ON
OCCASION HAVE TO BE CONSIDERED IN THE
LIGHT OF THEIR POTENTIAL TO BECOME STAN-
DARDS TO WHICH REFERENCE MAY BE MADE IN
NATIONAL REGULATIONS. © ISO 2022
---------------------- Page: 1 ----------------------
ISO/FDIS 13491-2:2022(E)
FINAL
INTERNATIONAL ISO/FDIS
DRAFT
STANDARD 13491-2
ISO/TC 68/SC 2
Financial services — Secure
Secretariat: BSI
cryptographic devices (retail) —
Voting begins on:
Part 2:
Voting terminates on:
Security compliance checklists for
devices used in financial transactions
Services financiers — Dispositifs cryptographiques de sécurité
(services aux particuliers) —
Partie 2: Listes de contrôle de conformité de sécurité pour les
dispositifs utilisés dans les transactions financières
COPYRIGHT PROTECTED DOCUMENT
© ISO 2022

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on

the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below

or ISO’s member body in the country of the requester.
RECIPIENTS OF THIS DRAFT ARE INVITED TO
ISO copyright office
SUBMIT, WITH THEIR COMMENTS, NOTIFICATION
OF ANY RELEVANT PATENT RIGHTS OF WHICH
CP 401 • Ch. de Blandonnet 8
THEY ARE AWARE AND TO PROVIDE SUPPOR TING
CH-1214 Vernier, Geneva
DOCUMENTATION.
Phone: +41 22 749 01 11
IN ADDITION TO THEIR EVALUATION AS
Reference number
Email: copyright@iso.org
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/FDIS 13491-2:2022(E)
Website: www.iso.org
LOGICAL, COMMERCIAL AND USER PURPOSES,
DRAFT INTERNATIONAL STANDARDS MAY ON
Published in Switzerland
OCCASION HAVE TO BE CONSIDERED IN THE
LIGHT OF THEIR POTENTIAL TO BECOME STAN-
DARDS TO WHICH REFERENCE MAY BE MADE IN
© ISO 2022 – All rights reserved
NATIONAL REGULATIONS. © ISO 2022
---------------------- Page: 2 ----------------------
ISO/FDIS 13491-2:2022(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction .................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ..................................................................................................................................................................................... 1

3 Terms and definitions .................................................................................................................................................................................... 1

4 Use of security compliance checklists .......................................................................................................................................... 2

4.1 General ........................................................................................................................................................................................................... 2

Annex A (normative) Physical, logical and device-management characteristics common to

all secure cryptographic devices........................................................................................................................................................4

Annex B (normative) Devices with PIN entry functionality ....................................................................................................12

Annex C (normative) Devices with PIN management functionality ................................................................................18

Annex D (normative) Devices with message authentication functionality .............................................................21

Annex E (normative) Devices with key generation functionality ......................................................................................23

Annex F (normative) Devices with key transfer and loading functionality ...........................................................27

Annex G (normative) Devices with digital signature functionality ................................................................................32

Annex H (normative) Categorization of environments .................................................................................................................34

Bibliography .............................................................................................................................................................................................................................39

iii
© ISO 2022 – All rights reserved
---------------------- Page: 3 ----------------------
ISO/FDIS 13491-2:2022(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to

the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see

www.iso.org/iso/foreword.html.

This document was prepared by Technical Committee ISO/TC 68, Financial services, Subcommittee SC 2,

Financial services, security.

This fifth edition cancels and replaces the fourth edition (ISO 13491-2:2017), which has been technically

revised.
The main changes are as follows:

— an additional subclause, H.5, is added to Annex H and the whole of Annex H is reordered for clarity;

— editorially revised.
A list of all parts in the ISO 13491 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www.iso.org/members.html.
© ISO 2022 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/FDIS 13491-2:2022(E)
Introduction

This document specifies both the physical and logical characteristics and the management of the

secure cryptographic devices (SCDs) used to protect messages, cryptographic keys and other sensitive

information used in a retail financial services environment.

The security of retail financial services is largely dependent upon the security of these cryptographic

devices.

Security requirements are based upon the premise that computer files can be accessed and manipulated,

communication lines can be “tapped” and authorized data or control inputs in a system device can be

replaced with unauthorized inputs. While certain cryptographic devices (e.g., host security modules)

reside in relatively high-security processing centres, a large proportion of cryptographic devices used

in retail financial services (e.g., PIN entry devices) now reside in non-secure environments. Therefore,

when PINs, MACs, cryptographic keys and other sensitive data are processed in these devices, there is a

risk that the devices can be tampered with or otherwise compromised to disclose or modify such data.

The risk of financial loss can be reduced through the appropriate use of cryptographic devices that

have proper physical and logical security characteristics and are properly managed. To ensure that

SCDs have the proper physical and logical security, they require evaluation.

This document provides the security compliance checklists for evaluating SCDs used in financial

services systems in accordance with ISO 13491-1. Other evaluation frameworks exist and can be

appropriate for formal security evaluations (e.g., ISO/IEC 15408-1, ISO/IEC 15408-2, ISO/IEC 15408-3

and ISO/IEC 19790) but are outside the scope of this document.

Appropriate device characteristics are necessary to ensure that the device has the proper operational

capabilities and provides adequate protection for the data it contains. Appropriate device management

is necessary to ensure that the device is legitimate, that it has not been modified in an unauthorized

manner (e.g., by “bugging”) and that any sensitive data placed within the device (e.g., cryptographic

keys) have not been subject to disclosure or change.

Absolute security is not practically achievable. Cryptographic security depends upon each life cycle

phase of the SCD and the complementary combination of appropriate device management procedures

and secure cryptographic characteristics. These management procedures implement preventive

measures to reduce the opportunity for a breach of cryptographic device security. These measures aim

for a high probability of detection of any illicit access to sensitive or confidential data in the event that

device characteristics fail to prevent or detect the security compromise.
© ISO 2022 – All rights reserved
---------------------- Page: 5 ----------------------
FINAL DRAFT INTERNATIONAL STANDARD ISO/FDIS 13491-2:2022(E)
Financial services — Secure cryptographic devices
(retail) —
Part 2:
Security compliance checklists for devices used in financial
transactions
1 Scope

This document specifies checklists to be used to evaluate secure cryptographic devices (SCDs)

incorporating cryptographic processes as specified in ISO 9564-1, ISO 9564-2, ISO 16609, and

ISO 11568 in the financial services environment. Integrated circuit (IC) payment cards are subject

to the requirements identified in this document up until the time of issue, after which they are to be

regarded as a “personal” device and outside of the scope of this document.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 9564-1, Financial services — Personal Identification Number (PIN) management and security — Part 1:

Basic principles and requirements for PINs in card-based systems
ISO 11568, Financial services — Key management (retail)

ISO 13491-1, Financial services — Secure cryptographic devices (retail) — Part 1: Concepts, requirements

and evaluation methods

ISO 16609, Financial services — Requirements for message authentication using symmetric techniques

ISO/IEC 18031, Information technology — Security techniques — Random bit generation

3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 13491-1 and the following

apply.

ISO and IEC maintain terminology databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
auditor
person or organization approved as an auditor by an approval authority
[SOURCE: ISO 9000:2015, 3.13.15]
3.2
data integrity
assurance that data has not been altered or destroyed in an unauthorized manner
© ISO 2022 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/FDIS 13491-2:2022(E)
3.3
dual control

process of utilizing two or more entities (usually persons) operating in concert to protect sensitive

functions or information whereby no single entity is able to access or use the materials

Note 1 to entry: A cryptographic key is an example of the type of material to be accessed or utilized.

3.4
evaluation agency

organization trusted by the design, manufacturing, and sponsoring entities which evaluates the secure

cryptographic device (using specialist skills and tools)
Note 1 to entry: Evaluation is in accordance with ISO 13491-1.
3.5
exclusive-or
bit-by-bit modulo two addition of binary vectors of equal length
3.6
security compliance checklist
list of auditable claims, organized by device type
Note 1 to entry: Checklist is as specified in this document.
3.7
sensitive state

device condition that provides access to the secure operator interface such that it can only be entered

when the device is under dual or multiple control
3.8
sponsor
person or organization that requests a test
[SOURCE: ISO 20088-3:2018, 3.5]
4 Use of security compliance checklists
4.1 General

These checklists shall be used to assess the acceptability of cryptographic equipment upon which

the security of the system depends. It is the responsibility of any sponsor, approval authority or

accreditation authority, depending on the evaluation method chosen, that adopts some or all of these

checklists to:

— approve evaluating agencies for use by suppliers to or participants in the system;

— set up an audit review body to review the completed audit checklists.

Annex A to Annex H, which provide checklists defining the minimum evaluation to be performed

to assess the acceptability of cryptographic equipment, shall be applied. Additional tests may be

performed to reflect the state of the art at the time of the evaluation.

A cryptographic device achieves security both through its inherent characteristics and the

characteristics of the environment in which the device is located. When completing these audit

checklists, the environment in which the device is located shall be considered, for example a device

intended for use in a public location can require greater inherent security than the equivalent device

operating in a controlled environment. So that an evaluating agency need not investigate the specific

environment where an evaluated device may reside, this document provides a suggested categorization

of environments in Annex H. Thus, an evaluating agency may be asked to evaluate a given device for

operation in a specific environment. Such a device can be deployed in a given facility only if this facility

© ISO 2022 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/FDIS 13491-2:2022(E)

itself has been audited to ensure that it provides the ensured environment. However, these audit

checklists may be used with categorizations of the environment other than those suggested in Annex H.

© ISO 2022 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/FDIS 13491-2:2022(E)
Annex A
(normative)
Physical, logical and device-management characteristics common
to all secure cryptographic devices
A.1 General

This annex is intended for use with all evaluations and shall be completed prior to any device-specific

security compliance checklists.

The following statements in this security compliance checklist shall be specified by the auditor as

“true (T)”, “false (F)” or “not applicable (N/A)”. A “false” indication does not necessarily indicate

unacceptable practice but shall be explained in writing. Those statements that are indicated as “N/A”

shall also be explained in writing.
A.2 Device characteristics
A.2.1 Physical security characteristics
A.2.1.1 General

All devices shall meet the criteria given in A.2.1.2 for general security characteristics, in A.2.1.5 for

tamper-responsive characteristics and in A.2.1.3 for tamper-evident characteristics. Other devices

shall additionally meet the criteria given in A.2.1.4 for tamper-resistant characteristics.

A.2.1.2 General security characteristics

An evaluation agency has evaluated the device bearing in mind susceptibility to physical and logical

attack techniques known at the time of the evaluation, such as (but not limited to):

— chemical attacks (solvents);
— scanning attacks (scanning electron microscope);
— mechanical attacks (e.g. drilling, cutting, probing);
— thermal attacks (high and low temperature extremes);
— radiation attacks (X-rays);

— information leakage through covert (side) channels (e.g. power supply, timing);

— failure attacks.
The conclusions are given in Table A.1.
Table A.1 — General security characteristics
No. Security compliance statement True False N/A
It is not feasible to determine a PIN, a key or other secret in-
formation by monitoring (e.g., the electromagnetic emissions
from the device with or without the cooperation of the device
operator).
© ISO 2022 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/FDIS 13491-2:2022(E)
TTabablele A A..11 ((ccoonnttiinnueuedd))
No. Security compliance statement True False N/A
Any ventilation and other openings in the module are posi-
tioned and protected so that it is not feasible to use such an
opening to probe any component of the module such that
plaintext PINs, access codes or cryptographic keys might be
disclosed or to disable any of the protection mechanisms of the
device.
All sensitive data and cryptographic keys, including residues,
are stored in the security module.
All transfer mechanisms within the device are implemented in
A4 such a way that it is not feasible to monitor the device to obtain
unauthorized disclosure of any such information.
Any access entry point into the device's internal circuitry is
locked in the closed position when the device is operative, by
means of one or more pick-resistant locks or similar security
mechanisms.
The design of the device is such that a duplicate device cannot
A6 be constructed from components which are available through
retail commercial channels.
If the device generates random numbers or pseudo-random
A7 numbers, then the generation of those numbers conforms to
ISO/IEC 18031.
If the device generates random numbers or pseudo-random
numbers, it is not feasible to influence the output of those
A8 numbers, for example by varying environmental conditions
of the device, such as resetting or reinitializing the device or
manipulating the power supply or electromagnetic injection.
A.2.1.3 Tamper-evident characteristics
The conclusions of the evaluating agency are given in Table A.2.
Table A.2 — Tamper-evident characteristics
No. Security compliance statement True False N/A
The device is designed and constructed so that it is not feasible
to penetrate the device in order to:
— make any additions, substitutions or modifications (e.g.,
the installation of a bug) to the hardware or software of the
device; or
— determine or modify any sensitive information (e.g., PINs,
access codes, and cryptographic keys);
and then subsequently return the device without requiring
specialized skills and equipment not generally available and:
a) without damaging the device so severely that the damage
would have a high probability of detection; or
b) requiring that the device be absent from its intended loca-
tion for a sufficiently long time that its absence or reappear-
ance would have a high probability of being detected.
A.2.1.4 Tamper-resistant characteristics
The conclusions of the evaluating agency are given in Table A.3.
© ISO 2022 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/FDIS 13491-2:2022(E)
Table A.3 — Tamper-resistant characteristics
No. Security compliance statement True False N/A
The device is protected against penetration by employing physi-
A10
cal protection to such a degree that penetration is not feasible.
Even after having gained unlimited, undisturbed access to the
A11 device, discovery of secret information in the target device is
not feasible.
A.2.1.5 Tamper-responsive characteristics
The conclusions of the evaluating agency are given in Table A.4.
Table A.4 — Tamper-responsive characteristics
No. Security compliance statement True False N/A
The device is protected against penetration by including
features that detect any feasible attempts to tamper with the
A12
device and cause immediate erasure of all cryptographic keys
and sensitive data when such an attempt is detected.
Removal of the case or the opening, whether authorized or
unauthorized, of any access entry to the device’s internal com-
A13
ponents causes the automatic and immediate erasure of the
cryptographic keys stored within the device.
There is a defined method for ensuring that secret data or any
cryptographic key that has been used to encrypt secret data is
erased from the unit when permanently removing the unit from
service (decommissioning). There is also a defined method for
A14 ensuring, when permanently decommissioned, that any cryp-
tographic key contained in the unit that might be usable in the
future is either erased from the unit or is invalidated at all facil-
ities with which the unit is capable of performing cryptographi-
cally protected communications.
Any tamper detection or key erasure mechanisms function even
A15
in the absence of applied power.
If the device has no mechanism for detection of removal from its
operational environment, then defeating the tamper detection
mechanisms or discovery of secret information in the target
device is not feasible, even when removed from its operational
environment. Compromise of the device requires equipment and
skill sets that are not readily available.
A16
As a possible example, discovery of such information requires
a significant time, such as one month of preparation, including
analysis of other devices and at least one week of effort to com-
promise the device after having gained unlimited, undisturbed
access to the target device.
If the device has a mechanism for detection of removal from its
operational environment, then defeating the tamper- detection
mechanisms or discovery of secret information in the target de-
vice is not feasible. Compromise of the device shall require skill
sets that are not readily available and equipment that is neither
readily available at the device site nor can be feasibly transport-
A17
ed to the device site.
As a possible example, discovery of such information requires
a significant time, such as one month of preparation, including
analysis of other devices and at least 12 hours of unlimited,
undisturbed access to the target device.
© ISO 2022 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/FDIS 13491-2:2022(E)
A.2.2 Logical security characteristics
The conclusions of the evaluating agency are given in Table A.5.
Table A.5 — Logical security characteristics
No. Security compliance statement True False N/A
The device includes self-test capabilities capable of manual or
A18 automatic initiation to ensure that its basic functions are oper-
ating properly.
A19 The device only performs its designed functions.
It is not feasible to determine a key or other secret information
A20
by the use of diagnostic or special test modes.
The cryptographic algorithms, modes of operation and
A21 lengths of cryptographic keys used by the device conform to
ISO 11568.
The device key management conforms to ISO 11568 using each
A22 key for only one cryptographic purpose (although a variant of
a key may be used for a different purpose).
The functionality implemented within the device is such that
there is no feasible way in which plaintext secret information
(e.g., PINs or cryptographic keys) or secret information enci-
A23
phered under other than the legitimate key can be obtained
from the device, except in an authorized manner (e.g., PIN
mailers).
If the device is composed of several components, it is not
possible to move a secret cryptographic key within the device
A24
from a component of higher security to a component providing
lower security.
The loading of keys is performed when:
— the device is in a sensitive state; or
A25
— the action of loading a key puts the device into a mode that
activates all the tamper-protection mechanisms within the
device.
The following operator functions that may influence the
security of a device are only permitted when the device is in a
sensitive state, i.e., under dual or multiple control:
A26
— disabling or enabling of device functions;
— change of passwords or data that enable the device to
enter the sensitive state.
The secure operator interface is so designed that entry of
more than one password (or some equivalent mechanism for
A27
dual or multiple control) is required in order to enter this
sensitive state.
The secure operator interface is so designed that it is highly
A28 unlikely that the device can inadvertently be left in the sensi-
tive state.
If sensitive state is established with multiple limits (e.g., on the
A29 number of function calls and a time limit), the device returns
to normal state when the first of these limits is reached.
Where passwords or other plaintext data are used to control
A30 transition to a sensitive state, then these are protected in the
same manner as other secret or sensitive information.
If cryptographic keys are lost for any reason (e.g., long-term
A31 absence of applied power), the device will enter a non- opera-
tional state.
© ISO 2022 – All rights reserved
---------------------- Page: 12 ----------------------
ISO/FDIS 13491-2:2022(E)
TTabablele A A..55 ((ccoonnttiinnueuedd))
No. Security compliance statement True False N/A
The only function calls and sensitive operator functions that
A32 exist in the device are functions approved by the sponsor or
the system in which the device is to operate.
Keys are never translated from encipherment under one vari-
A33
ant to encipherment under another variant of the same key.
A.3 Device management
A.3.1 General consideration

For each life cycle stage, the entity responsible for completing the audit checklist for that stage has

provided assurance for the statements given in Table A.6.
Table A.6 — General consideration
No. Security compliance statement True False N/A
For audit and control purposes, the identity of the device
(e.g., its serial number) can be determined either by external
A34 tamper-evident marking or labelling or by a command that
causes the device to return its identity via the interface or via
the display.
When the device is in a life cycle stage such that it contains
cryptographic keys, the identity of these keys can be easily
A35
determined from the identity of the device [so that the key(s)
can be invalidated if the device is reported lost or stolen].
Any physical keys used to unlock or operate the device are
A36
carefully controlled and available only to authorized persons.
If a device contains a secret cryptographic key and there is an
attack on a device, or a device is stolen, then procedures are
A37
in place to notify the party responsible for the security of the
device immediately after detection.
If a device does not yet contain a secret cryptographic key
and there is an attack on a device, or a device is stolen, then
A38 procedures are in place to prevent the substitution of the
attacked or stolen device for a legitimate device that does not
yet contain a secret cryptographic key.
If no sensitive state exists in the device, the loading of plain-
A39
text keys is performed under dual control.
A.3.2 Device protection by manufacturer

The device manufacturer or an independent auditor has provided assurance, acceptable to the audit

review body, for the statements given in Table A.7
Table A.7 — Device protect
...

ISO /FDIS 13491-2:2022(E)
ISO/TC 68/SC 2
Date: 2022-08-0209-20

Financial services — Secure cryptographic devices (retail) —Part 2: Security compliance

checklists for devices used in financial transactions
Services financiers — Dispositifs cryptographiques de sécurité (services aux

particuliers) — Partie 2: Listes de contrôle de conformité de sécurité pour les dispositifs

utilisés dans les transactions financières
---------------------- Page: 1 ----------------------
ISO/DIS FDIS 13491-2:2022(E)
Copyright notice

This ISO document is a Draft International Standard and is copyright-protected by ISO. Except as

permitted under the applicable laws of the user's country, neither this ISO draft nor any extract

from it may be reproduced, stored in a retrieval system or transmitted in any form or by any means,

electronic, photocopying, recording or otherwise, without prior written permission being secured.

Requests for permission to reproduce should be addressed to either ISO at the address below or

ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.orgwww.iso.org
Reproduction may be subject to royalty payments or a licensing agreement.
Violators may be prosecuted.
© ISO 2022 – All rights reserved iii
---------------------- Page: 2 ----------------------
ISO/DIS FDIS 13491-2:2022(E)
Contents Page

Foreword ....................................................................................................... Error! Bookmark not defined.

Introduction ................................................................................................. Error! Bookmark not defined.

1 Scope ................................................................................................. Error! Bookmark not defined.

2 Normative references ................................................................. Error! Bookmark not defined.

3 Terms and definitions ................................................................ Error! Bookmark not defined.

4 Use of security compliance checklists .................................. Error! Bookmark not defined.

Annex A (normative) Physical, logical, and device management characteristics common to

all secure cryptographic devices ............................................ Error! Bookmark not defined.

A.1 General ............................................................................................. Error! Bookmark not defined.

A.2 Device characteristics................................................................. Error! Bookmark not defined.

A.2.1 Physical security characteristics ............................................ Error! Bookmark not defined.

A.2.1.1 General ............................................................................................. Error! Bookmark not defined.

A.2.1.2 General security characteristics ............................................. Error! Bookmark not defined.

A.2.1.3 Tamper-evident characteristics ............................................. Error! Bookmark not defined.

A.2.1.4 Tamper-resistant characteristics ........................................... Error! Bookmark not defined.

A.2.1.5 Tamper-responsive characteristics ...................................... Error! Bookmark not defined.

A.2.2 Logical security characteristics .............................................. Error! Bookmark not defined.

A.3 Device management .................................................................... Error! Bookmark not defined.

A.3.1 General consideration ................................................................ Error! Bookmark not defined.

A.3.2 Device protection by manufacturer ...................................... Error! Bookmark not defined.

A.3.3 Device protection between manufacturer and post-manufacturing phases ......... Error!

Bookmark not defined.

A.3.4 Device protection during initial financial key loading and prior to pre-use ......... Error!

Bookmark not defined.

A.3.5 Device protection during pre-use and prior to installation .......... Error! Bookmark not

defined.
iv © ISO 2022 – All rights reserved
---------------------- Page: 3 ----------------------
ISO/DIS FDIS 13491-2:2022(E)

A.3.6 Device protection subsequent to installation .................... Error! Bookmark not defined.

A.3.7 Device protection after removal from service ................... Error! Bookmark not defined.

Annex B (normative) Devices with PIN entry functionality ........ Error! Bookmark not defined.

B.1 General ............................................................................................. Error! Bookmark not defined.

B.2 Device characteristics ................................................................. Error! Bookmark not defined.

B.2.1 Physical security characteristics............................................. Error! Bookmark not defined.

B.2.1.1 General physical security characteristics ............................ Error! Bookmark not defined.

B.2.1.2 Tamper-responsive characteristics ....................................... Error! Bookmark not defined.

B.2.2 Logical security characteristics ............................................... Error! Bookmark not defined.

B.3 Device management .................................................................... Error! Bookmark not defined.

B.3.1 PIN entry device protection during initial key loading .. Error! Bookmark not defined.

B.3.2 PIN entry device protection after installation ................... Error! Bookmark not defined.

Annex C (normative) Devices with PIN management functionality .......... Error! Bookmark not

defined.

C.1 General ............................................................................................. Error! Bookmark not defined.

C.2 Device characteristics ................................................................. Error! Bookmark not defined.

C.2.1 Physical security characteristics............................................. Error! Bookmark not defined.

C.2.2 Logical security characteristics ............................................... Error! Bookmark not defined.

C.3 Device management .................................................................... Error! Bookmark not defined.

Annex D (normative) Devices with message authentication functionality .... Error! Bookmark

not defined.

D.1 General ............................................................................................. Error! Bookmark not defined.

D.2 Logical security device characteristics ................................. Error! Bookmark not defined.

Annex E (normative) Devices with key generation functionality .............. Error! Bookmark not

defined.

E.1 General ............................................................................................. Error! Bookmark not defined.

© ISO 2022 – All rights reserved v
---------------------- Page: 4 ----------------------
ISO/DIS FDIS 13491-2:2022(E)

E.2 Device characteristics................................................................. Error! Bookmark not defined.

E.2.1 Physical security characteristics ............................................ Error! Bookmark not defined.

E.2.2 Logical security characteristics .............................................. Error! Bookmark not defined.

E.3 Device management .................................................................... Error! Bookmark not defined.

Annex F (normative) Devices with key transfer and loading functionality ... Error! Bookmark

not defined.

F.1 General ............................................................................................. Error! Bookmark not defined.

F.2 Device characteristics................................................................. Error! Bookmark not defined.

F.2.1 Physical security characteristics ............................................ Error! Bookmark not defined.

F.2.2 Logical security characteristics .............................................. Error! Bookmark not defined.

F.3 Device management .................................................................... Error! Bookmark not defined.

Annex G (normative) Devices with digital signature functionality ........... Error! Bookmark not

defined.

G.1 General ............................................................................................. Error! Bookmark not defined.

G.2 Device management .................................................................... Error! Bookmark not defined.

G.2.1 General considerations .............................................................. Error! Bookmark not defined.

G.2.2 Device management for digital signature verification ... Error! Bookmark not defined.

Annex H (normative) Categorization of environments ................ Error! Bookmark not defined.

H.1 General ............................................................................................. Error! Bookmark not defined.

H.2 Uncontrolled environments ..................................................... Error! Bookmark not defined.

H.3 Minimally controlled environments ..................................... Error! Bookmark not defined.

H.4 Controlled environments .......................................................... Error! Bookmark not defined.

H.5 Controlled-plus Environments ................................................ Error! Bookmark not defined.

H.6 Secure environments .................................................................. Error! Bookmark not defined.

Bibliography ................................................................................................. Error! Bookmark not defined.

Foreword ................................................................................................................................................................ v

vi © ISO 2022 – All rights reserved
---------------------- Page: 5 ----------------------
ISO/DIS FDIS 13491-2:2022(E)

Introduction ........................................................................................................................................................... 9

1 Scope .......................................................................................................................................................... 1

2 Normative references .......................................................................................................................... 1

3 Terms and definitions .......................................................................................................................... 1

4 Use of security compliance checklists ............................................................................................ 3

Annex A (normative) Physical, logical and device-management characteristics common to

all secure cryptographic devices ...................................................................................................... 4

Annex B (normative) Devices with PIN entry functionality ............................................................. 13

Annex C (normative) Devices with PIN management functionality .............................................. 19

Annex D (normative) Devices with message authentication functionality ................................ 22

Annex E (normative) Devices with key generation functionality .................................................. 24

Annex F (normative) Devices with key transfer and loading functionality ................................ 28

Annex G (normative) Devices with digital signature functionality ............................................... 33

Annex H (normative) Categorization of environments ...................................................................... 35

Bibliography ....................................................................................................................................................... 40

© ISO 2022 – All rights reserved vii
---------------------- Page: 6 ----------------------
ISO/DIS FDIS 13491-2:2022(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work. ISO

collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directiveswww.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any

patent rights identified during the development of the document will be in the Introduction and/or on

the ISO list of patent declarations received (see www.iso.org/patentswww.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the World

Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see

www.iso.org/iso/foreword.htmlwww.iso.org/iso/foreword.html.

This document was prepared by Technical Committee ISO/TC 68, Financial services, Subcommittee SC 2,

Financial services, security.

This fifth edition cancels and replaces the fourth edition (ISO 13491-2:2017), which has been technically

revised.
The main changes are as follows:

— an additional clausesubclause, H.5, is added to Annex H and the whole of Annex H is reordered for

clarity;
— editorially revised.
A list of all parts in the ISO 13491 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at
www.iso.org/members.htmlwww.iso.org/members.html.
viii © ISO 2022 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/DIS FDIS 13491-2:2022(E)
Introduction

This document specifies both the physical and logical characteristics and the management of the secure

cryptographic devices (SCDs) used to protect messages, cryptographic keys and other sensitive

information used in a retail financial services environment.

The security of retail financial services is largely dependent upon the security of these cryptographic

devices.

Security requirements are based upon the premise that computer files can be accessed and manipulated,

communication lines can be “tapped” and authorized data or control inputs in a system device can be

replaced with unauthorized inputs. While certain cryptographic devices (e.g., host security modules)

reside in relatively high-security processing centres, a large proportion of cryptographic devices used in

retail financial services (e.g., PIN entry devices) now reside in non-secure environments. Therefore, when

PINs, MACs, cryptographic keys and other sensitive data are processed in these devices, there is a risk

that the devices can be tampered with or otherwise compromised to disclose or modify such data.

The risk of financial loss can be reduced through the appropriate use of cryptographic devices that have

proper physical and logical security characteristics and are properly managed. To ensure that SCDs have

the proper physical and logical security, they require evaluation.

This document provides the security compliance checklists for evaluating SCDs used in financial services

systems in accordance with ISO 13491-1. Other evaluation frameworks exist and can be appropriate for

formal security evaluations (e.g., ISO/IEC 15408-1, ISO/IEC 15408-2, ISO/IEC 15408-3 and

ISO/IEC 19790) but are outside the scope of this document.

Appropriate device characteristics are necessary to ensure that the device has the proper operational

capabilities and provides adequate protection for the data it contains. Appropriate device management

is necessary to ensure that the device is legitimate, that it has not been modified in an unauthorized

manner (e.g., by “bugging”) and that any sensitive data placed within the device (e.g., cryptographic keys)

have not been subject to disclosure or change.

Absolute security is not practically achievable. Cryptographic security depends upon each life cycle phase

of the SCD and the complementary combination of appropriate device management procedures and

secure cryptographic characteristics. These management procedures implement preventive measures to

reduce the opportunity for a breach of cryptographic device security. These measures aim for a high

probability of detection of any illicit access to sensitive or confidential data in the event that device

characteristics fail to prevent or detect the security compromise.
© ISO 2022 – All rights reserved ix
---------------------- Page: 8 ----------------------
FINAL DRAFT INTERNATIONAL STANDARD ISO/DIS FDIS 13491-2:2022(E)
Financial services — Secure cryptographic devices (retail) —
Part 2: Security compliance checklists for devices used in financial
transactions
1 Scope

This document specifies checklists to be used to evaluate secure cryptographic devices (SCDs)

incorporating cryptographic processes as specified in ISO 9564-1, ISO 9564-2, ISO 16609, and ISO 11568

in the financial services environment. Integrated circuit (IC) payment cards are subject to the

requirements identified in this document up until the time of issue, after which they are to be regarded

as a “personal” device and outside of the scope of this document.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 9564--1, Financial services — Personal Identification Number (PIN) management and security —

Part 1: Basic principles and requirements for PINs in card-based systems

ISO 9564-2, Financial services — Personal Identification Number (PIN) management and security — Part

2: Approved algorithms for PIN encipherment
ISO 11568, Financial services — Key management (retail)

ISO 13491-1, Financial services — Secure cryptographic devices (retail) — Part 1: Concepts, requirements

and evaluation methods

ISO 16609, Financial services — Requirements for message authentication using symmetric techniques

ISO/IEC 18031, Information technology — Security techniques — Random bit generation

3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 13491-1 and the following

apply.

ISO and IEC maintain terminology databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https://www.iso.org/obphttps://www.iso.org/obp

— IEC Electropedia: available at https://www.electropedia.org/https://www.electropedia.org/

3.1
© ISO 2022 – All rights reserved 1
---------------------- Page: 9 ----------------------
ISO/DIS FDIS 13491-2:2022(E)
auditor
person or organization approved as an auditor by an approval authority
[SOURCE: ISO 9000:2015, 3.13.15]
3.2
data integrity
assurance that data has not been altered or destroyed in an unauthorized manner
3.3
dual control

process of utilizing two or more entities (usually persons) operating in concert to protect sensitive

functions or information whereby no single entity is able to access or use the materials

Note 1 to entry: A cryptographic key is an example of the type of material to be accessed or utilized.

3.4
evaluation agency

organization trusted by the design, manufacturing, and sponsoring entities which evaluates the secure

cryptographic device (using specialist skills and tools)
Note 1 to entry: Evaluation is in accordance with ISO 13491-1.
3.5
exclusive-or
bit-by-bit modulo two addition of binary vectors of equal length
3.6
security compliance checklist
list of auditable claims, organized by device type
Note 1 to entry: Checklist is as specified in this document.
3.7
sensitive state

device condition that provides access to the secure operator interface such that it can only be entered

when the device is under dual or multiple control
3.8
sponsor
person or organization that requests a test
[[SOURCE: ISO 20088-3:2018, 3.5]
2 © ISO 2022 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/DIS FDIS 13491-2:2022(E)
4 Use of security compliance checklists
4.1 General

These checklists shall be used to assess the acceptability of cryptographic equipment upon which the

security of the system depends. It is the responsibility of any sponsor, approval authority or accreditation

authority, depending on the evaluation method chosen, that adopts some or all of these checklists to:

— approve evaluating agencies for use by suppliers to or participants in the system;

— set up an audit review body to review the completed audit checklists.

Annex A to Annex H, which provide checklists defining the minimum evaluation to be performed to assess

the acceptability of cryptographic equipment, shall be applied. Additional tests may be performed to

reflect the state of the art at the time of the evaluation.

A cryptographic device achieves security both through its inherent characteristics and the characteristics

of the environment in which the device is located. When completing these audit checklists, the

environment in which the device is located shall be considered, for example a device intended for use in

a public location can require greater inherent security than the equivalent device operating in a

controlled environment. So that an evaluating agency need not investigate the specific environment

where an evaluated device may reside, this document provides a suggested categorization of

environments in Annex H. Thus, an evaluating agency may be asked to evaluate a given device for

operation in a specific environment. Such a device can be deployed in a given facility only if this facility

itself has been audited to ensure that it provides the ensured environment. However, these audit

checklists may be used with categorizations of the environment other than those suggested in Annex H.

© ISO 2022 – All rights reserved 3
---------------------- Page: 11 ----------------------
ISO/DIS FDIS 13491-2:2022(E)
Annex A
(normative)
Physical, logical and device-management characteristics common to all
secure cryptographic devices
A.1 General

This annex is intended for use with all evaluations and shall be completed prior to any device-specific

security compliance checklists.

The following statements in this security compliance checklist shall be specified by the auditor as

“true (T)”, “false (F)” or “not applicable (N/A)”. A “false” indication does not necessarily indicate

unacceptable practice but shall be explained in writing. Those statements that are indicated as “N/A”

shall also be explained in writing.
A.2 Device characteristics
A.2.1 Physical security characteristics
A.2.1.1 General

All devices shall meet the criteria given in A.2.1.2 for general security characteristics, in A.2.1.5 for

tamper-responsive characteristics and in A.2.1.3 for tamper-evident characteristics. Other devices shall

additionally meet the criteria given in A.2.1.4 for tamper-resistant characteristics.

A.2.1.2 General security characteristics

An evaluation agency has evaluated the device bearing in mind susceptibility to physical and logical

attack techniques known at the time of the evaluation, such as (but not limited to):

— chemical attacks (solvents);
— scanning attacks (scanning electron microscope);
— mechanical attacks (e.g. drilling, cutting, probing);
— thermal attacks (high and low temperature extremes);
— radiation attacks (X-rays);

— information leakage through covert (side) channels (e.g. power supply, timing);

— failure attacks.
The conclusions are given in Table A.1.
Table A.1 — General security characteristics
4 © ISO 2022 – All rights reserved
---------------------- Page: 12 ----------------------
ISO/DIS FDIS 13491-2:2022(E)
No. Security compliance statement True False N/A
It is not feasible to determine a PIN, a key or other secret
information by monitoring (e.g., the electromagnetic emissions
from the device with or without the cooperation of the device
operator).
Any ventilation and other openings in the module are
positioned and protected so that it is not feasible to use such an
opening to probe any component of the module such that
plaintext PINs, access codes or cryptographic keys might be
disclosed or to disable any of the protection mechanisms of the
device.
All sensitive data and cryptographic keys, including residues,
are stored in the security module.
All transfer mechanisms within the device are implemented in
A4 such a way that it is not feasible to monitor the device to obtain
unauthorized disclosure of any such information.
Any access entry point into the device's internal circuitry is
locked in the closed position when the device is operative, by
means of one or more pick-resistant locks or similar security
mechanisms.
The design of the device is such that a duplicate device cannot
A6 be constructed from components which are available through
retail commercial channels.
If the device generates random numbers or pseudo-random
A7 numbers, then the generation of those numbers conforms to
ISO/IEC 18031.
If the device generates random numbers or pseudo-random
numbers, it is not feasible to influence the output of those
A8 numbers, for example by varying environmental conditions of
the device, such as resetting or reinitializing the device or
manipulating the power supply or electromagnetic injection.
A.2.1.3 Tamper-evident characteristics
The conclusions of the evaluating agency are given in Table A.2.
Table A.2 — Tamper-evident characteristics
No. Security compliance statement True False N/A
The device is designed and constructed so that it is not feasible
to penetrate the device in order to:
— make any additions, substitutions or modifications (e.g.,
the installation of a bug) to the hardware or software of the
device; or
— determine or modify any sensitive information (e.g., PINs,
access codes, and cryptographic keys);
and then subsequently return the device without requiring
specialized skills and equipment not generally available and:
© ISO 2022 – All rights reserved 5
---------------------- Page: 13 ----------------------
ISO/DIS FDIS 13491-2:2022(E)
a) without damaging the device so severely that the damage
would have a high probability of detection; or
b) requiring that the device be absent from its intended
location for a sufficiently long time that its absence or
reappearance would have a high probability of being detected.
A.2.1.4 Tamper-resistant characteristics
The conclusions of the evaluating agency are given in Table A.3.
Table A.3 — Tamper-resistant characteristics
No. Security compliance statement True False N/A
The device is protected against penetration by employing
A10 physical protection to such a degree that penetration is not
feasible.
Even after having gained unlimited, undisturbed access to the
A11 device, discovery of secret information in the target device is
not feasible.
A.2.1.5 Tamper-responsive characteristics
The conclusions of the evaluating agency are given in Table A.4.
Table A.4 — Tamper-responsive characteristics
No. Security compliance statement True False N/A
The device is protected against penetration by including features
that detect any feasible attempts to tamper with the device and
A12
cause immediate erasure of all cryptographic keys and sensitive
data when such an attempt is detected.
Removal of the case or the opening, whether authorized or
unauthorized, of any access entry to the device’s internal
A13
components causes the automatic and immediate erasure of the
cryptographic keys stored within the device.
There is a defined method for ensuring that secret data or any
cryptographic key that has been used to encrypt secret data is
erased from the unit when permanently removing the unit from
service (decommissioning). There is also a defined method for
A14 ensuring, when permanently decommissioned, that any
cryptographic key contained in the unit that might be usable in
the future is either erased from the unit or is invalidated at all
facilities with which the unit is capable of performing
cryptographically protected communications.
Any tamper detection or key erasure mechanisms function even
A15
in the absence of applied pow
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
