ISO/TR 18230:2015

Iron ores — Determination of loss on ignition — Non-oxidised ores

ISO/TR 18230:2015 describes a gravimetric method for the determination of the loss in mass of non-oxidized iron ores, when ignited at 1 000 °C. This method is applicable to a concentration range of a mass fraction of −3,0 % to 7,0 % loss on ignition in natural iron ores, iron ore concentrates and agglomerates, and sinters. The method is not applicable to the following: a) processed ores containing metallic iron (direct reduced iron); b) natural or processed ores in which the sulfur content is higher than a mass fraction of 0,2 %; c) internationally traded ores with combined water greater than 2,5 %. NOTE 1 Loss on ignition can be used as an estimate of combined water. NOTE 2 This method is intended for in-house use and is not intended for referee purposes.

Minerais de fer — Détermination de la perte au feu — Minerais non oxydés

General Information

• Status: Published
• Publication Date: 16-Aug-2015
• ICS: 73.060.10 - Iron ores
• Technical Committee: ISO/TC 102/SC 2 - Chemical analysis
• Drafting Committee: ISO/TC 102/SC 2 - Chemical analysis
• Current Stage: 6060 - International Standard published
• Completion Date: 17-Aug-2015

Standards Content (Sample)

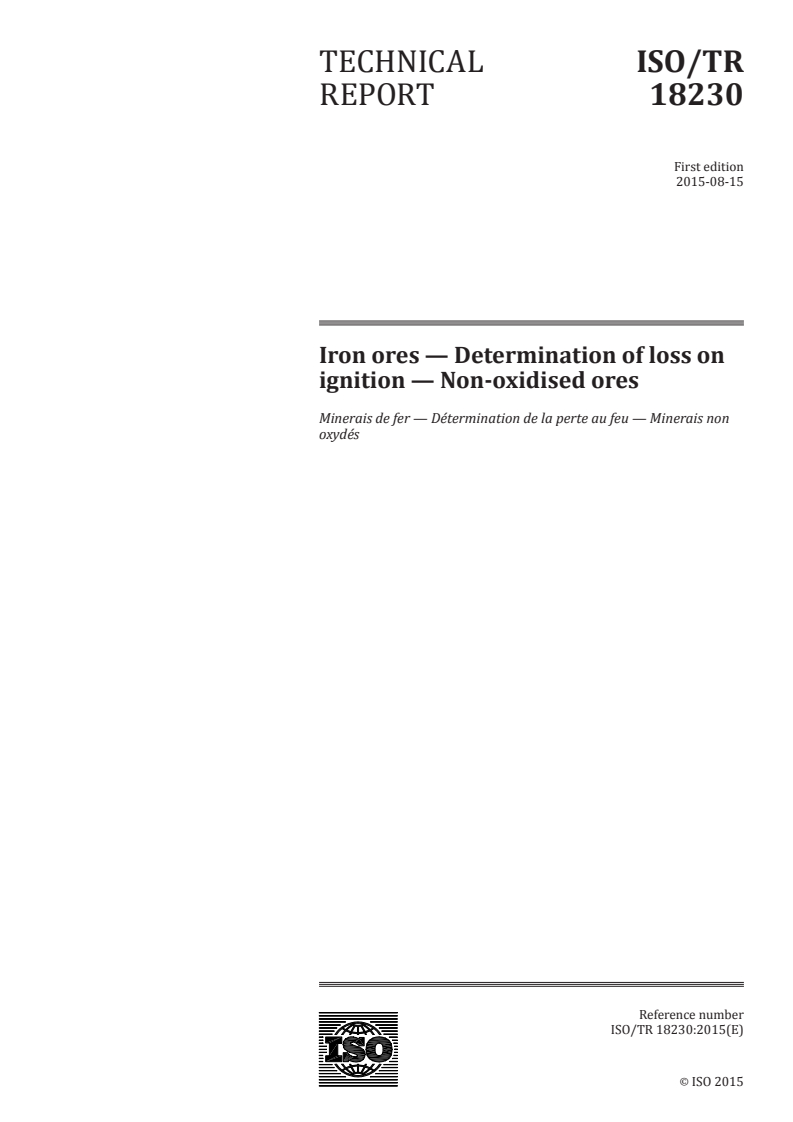

TECHNICAL ISO/TR
REPORT 18230
First edition
2015-08-15
Iron ores — Determination of loss on
ignition — Non-oxidised ores
Minerais de fer — Détermination de la perte au feu — Minerais non
oxydés
Reference number
ISO/TR 18230:2015(E)
©
ISO 2015

---------------------- Page: 1 ----------------------
ISO/TR 18230:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/TR 18230:2015(E)

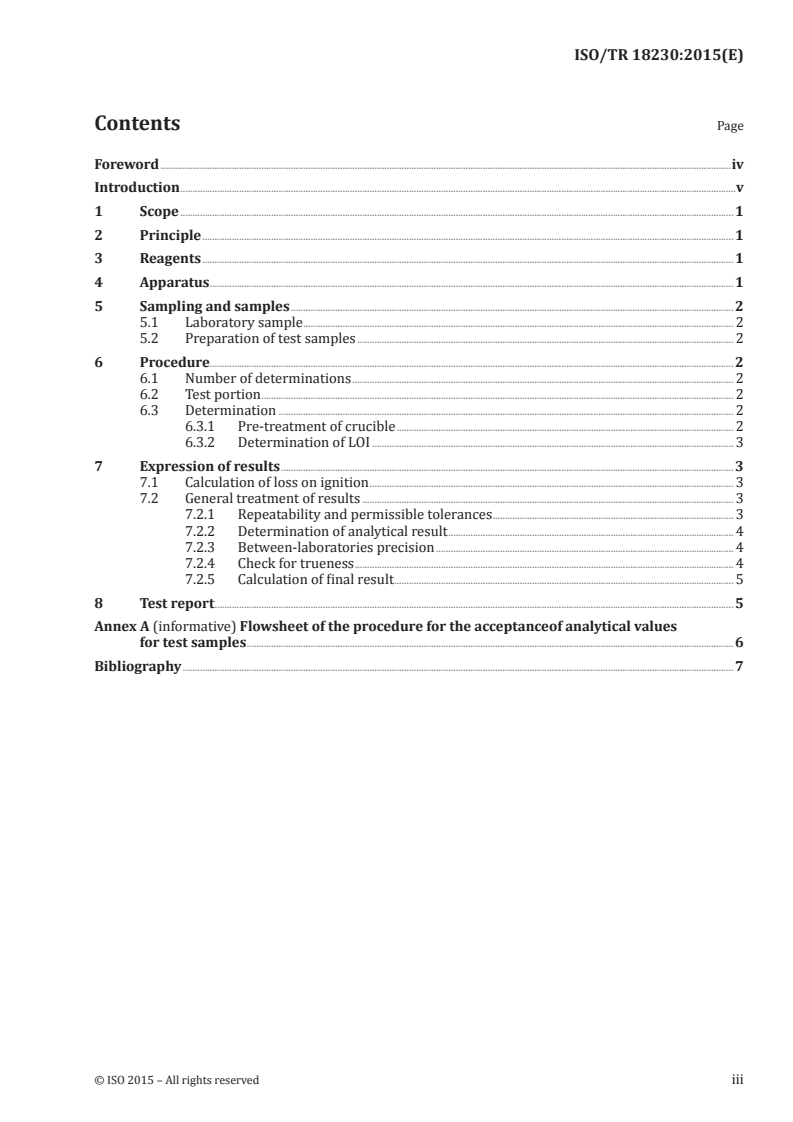

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Principle . 1
3 Reagents . 1
4 Apparatus . 1
5 Sampling and samples . 2
5.1 Laboratory sample . 2
5.2 Preparation of test samples . 2
6 Procedure. 2
6.1 Number of determinations . 2
6.2 Test portion . 2
6.3 Determination . 2
6.3.1 Pre-treatment of crucible . 2
6.3.2 Determination of LOI . 3
7 Expression of results . 3
7.1 Calculation of loss on ignition . 3
7.2 General treatment of results . 3
7.2.1 Repeatability and permissible tolerances . 3
7.2.2 Determination of analytical result . 4
7.2.3 Between-laboratories precision . 4
7.2.4 Check for trueness . 4
7.2.5 Calculation of final result . 5
8 Test report . 5
Annex A (informative) Flowsheet of the procedure for the acceptanceof analytical values
for test samples . 6
Bibliography . 7
© ISO 2015 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/TR 18230:2015(E)

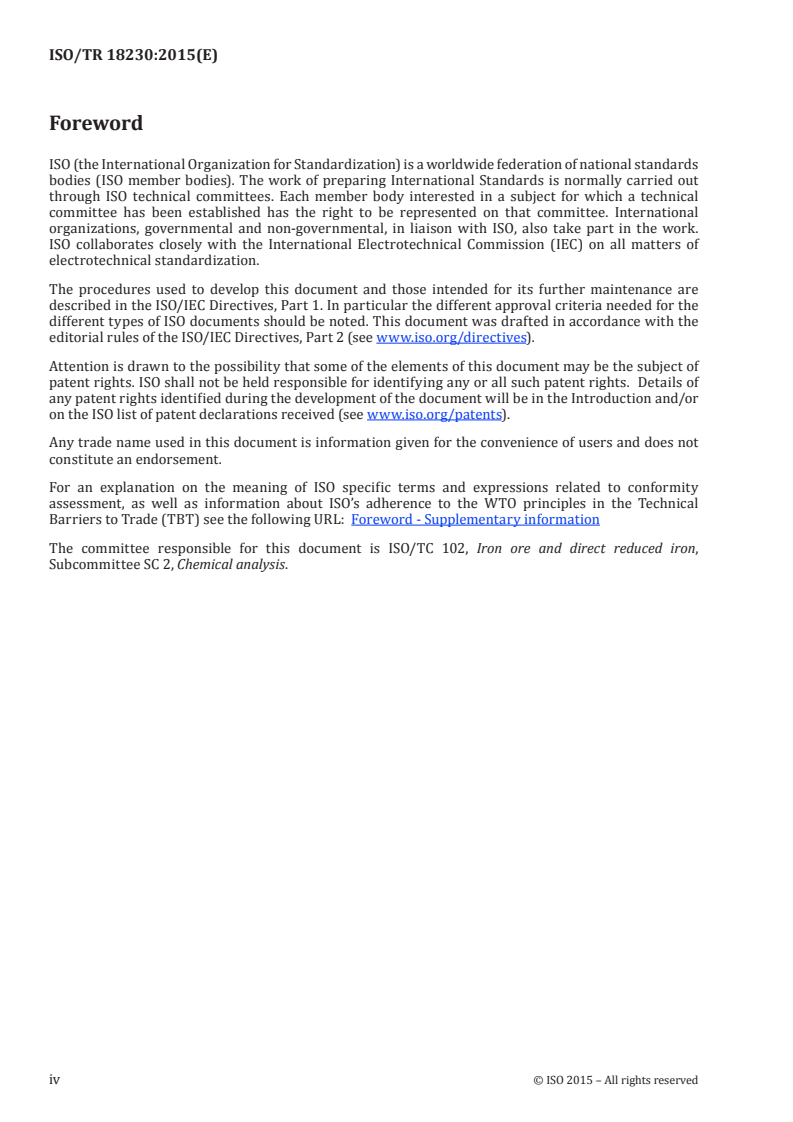

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 102, Iron ore and direct reduced iron,
Subcommittee SC 2, Chemical analysis.
iv © ISO 2015 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/TR 18230:2015(E)

Introduction
The measurement of loss on ignition (LOI) is a technique widely used in the iron ore industry.
Ignition loss is the sum of contributions from the mass loss of volatile compounds such as water vapour,
carbon dioxide and sulphides (due to the decomposition of goethite and carbonaceous materials),
and the mass gain due to oxidation [Fe(II) to Fe O ]. Its use is complementary to the determination
2 3
of elemental or oxide concentrations. It serves to allow for an addition of the oxides, generated at the
ignition temperature, and the LOI, to arrive at total (oxide + LOI). The determination of LOI is essential
in sinter plant and blast furnace balance calculations, as it is used to calculate calcinated elemental
concentrations.
© ISO 2015 – All rights reserved v

---------------------- Page: 5 ----------------------
TECHNICAL REPORT ISO/TR 18230:2015(E)
Iron ores — Determination of loss on ignition — Non-
oxidised ores
WARNING — This Technical Report may involve hazardous materials, operations and equipment.
This Technical Report does not purport to address all of the safety problems associated with its
use. It is the responsibility of the user of this Technical Report to establish appropriate health
and safety practices and determine the applicability of regulatory limitations prior to use.
1 Scope
This Technical Report describes a gravimetric method for the determination of the loss in mass of non-
oxidized iron ores, when ignited at 1 000 °C.
This method is applicable to a concentration range of a mass fraction of −3,0 % to 7,0 % loss on ignition
in natural iron ores, iron ore concentrates and agglomerates, and sinters.
...
