SIST ES 202 999 V1.1.1:2012

• Abstract:

  DES/SAFETY-00007

• Status: Published
• Publication Date: 06-Feb-2012
• ICS: 35.200 - Interface and interconnection equipment
• Technical Committee: SPN - Services and Protocols for Networks
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 09-Jun-2011
• Due Date: 14-Aug-2011
• Completion Date: 07-Feb-2012
• Ref Project: ETSI ES 202 999 V1.1.1 (2010-11) - SAFETY; Remote Power Feeding Installations; Safety requirements for the erection and operation of information technology installations with remote power feeding

SIST ES 202 999 V1.1.1:2012 is the Slovenian standard published by SIST based on ETSI ES 202 999 V1.1.1. It sets safety requirements for the erection and operation of information technology installations with remote power feeding, especially where the operating a.c. voltage exceeds 50 V rms or the operating d.c. voltage exceeds 120 V. It is written for designers, installers, operators, maintenance staff and safety managers who need to control shock, overvoltage, labeling and working-practice risks.

What does SIST ES 202 999 V1.1.1:2012 specify?

SIST ES 202 999 V1.1.1:2012 specifies safety requirements for remote power feeding installations used with information technology installations. The document applies in addition to EN 60950-1 and EN 60950-21, and it combines definitions, limits, equipment rules, operating-instruction requirements and test checks.

The scope is limited to installations with remote power feeding above the stated a.c. and d.c. voltage levels. Where special standards apply to an installation or part of an installation, those special standards take precedence.

The document is organized into:

• Scope and references
• Definitions and abbreviations
• Limits
• General requirements
• Requirements on equipment and lines
• Requirements on operating instructions
• Informative recommendations for operating instructions

What are the key requirements of SIST ES 202 999 V1.1.1:2012?

Limits and when the document applies

Clause 4 points readers to EN 60950-21 for permitted limit values during normal operation and single fault conditions. If equipment exceeds those limits, EN 60950-1 applies together with clauses 5 to 7 of this document.

In practice, this means the operating voltage and fault behavior determine which safety regime you must follow before commissioning or maintenance.

Installation and equipment protection

Clause 5.1 requires remote power supply equipment to be in restricted access locations, and remotely fed equipment such as repeaters to be in locations with limited access. Clause 5.4 requires remote power devices to protect against electrical shock and power hazard in line with EN 60950-1.

In practice, access control is part of the safety concept, not an afterthought.

Fault detection, shutdown and monitoring

Clause 5.2 requires voltage sources with current limiting to switch off reliably if the limit is exceeded by 10 %. Clause 5.3 requires monitoring for faults and unbalance, with an alarm or display when values deviate from target.

In practice, operators need both automatic shutdown behavior and a way to see earth faults or unbalance quickly.

Marking and identification

Clause 5.5 requires all relevant cables to be continuously marked with the telephone symbol and the hazardous electrical voltage symbol. Clause 5.6 requires the safety information in the operating instructions to be clearly visible at the installation site, and clause 5.7 requires isolation points at each end of each section to be labeled so different remote power circuits cannot be mixed up.

In practice, the marking helps prevent mistaken handling and wrong circuit selection during work.

Switching off and line arrangements

Clause 6.1 requires the remote power source to be switchable off at an easily accessible point, with reactivation prevented, for example by a lock. Clause 6.2 requires disconnected-circuit detection to work only when remote power sources are switched off.

Clause 6.3 and 6.4 cover coaxial and earth-referenced arrangements, including balanced-to-earth remote power feeding and the use of non-earthed outer wires in some d.c. coaxial cases, together with ITU-T protection guidance.

What terms does SIST ES 202 999 V1.1.1:2012 define?

• remote power feeding - Supply of electric power in a.c. or d.c. form to information technology installations through cables of the associated telecommunication line.
• remote power feeding circuit - The functional circuit formed by interconnecting remote power feeding devices and cables.
• remote power feeding point - The point that supplies remote power feeding circuits through its remote power feeding equipment.
• load power-fed point - A point that extracts electric power from the remote power feeding circuits through remote power feeding equipment.
• remote power feeding section - The part of a remote power feeding circuit between a remote power feeding point and the next power-fed point, or between adjacent power-fed points.
• RFT-C circuit - An RFT circuit designed so current stays within defined values in normal and single-fault conditions.
• RFT-V circuit - An RFT circuit designed so voltage and accessible contact area are limited in normal and single-fault conditions.

Who uses SIST ES 202 999 V1.1.1:2012?

SIST ES 202 999 V1.1.1:2012 is used by people who erect, operate and maintain telecommunication or information technology installations with remote power feeding. That includes network operators, equipment integrators, installers, electricians, maintenance teams and safety personnel working in restricted-access sites.

It is also useful for buyers and technical approvers who need to specify safe handling, labeling, monitoring and lockout arrangements for remote-fed installations.

Which standards are used with SIST ES 202 999 V1.1.1:2012?

The document relies on these normative references:

• EN 60417-1 - provides the graphical symbols used for cable marking and hazard identification.
• EN 60900 - covers insulated hand tools for work up to 1 000 V a.c. and 1 500 V d.c.
• EN 60950-1 - gives general safety requirements for information technology equipment.
• EN 60950-21 - gives the remote power feeding safety requirements and the limit values referenced in clause 4.
• ITU-T Directives concerning the protection of telecommunication lines against harmful effects from electric power and electrified railway lines - support line protection measures.
• ITU-T Recommendation K.10 - addresses low frequency interference due to unbalance about earth.

What does the SIST ES 202 999 V1.1.1:2012 document contain?

The document contains definitions, limit rules, general installation requirements, equipment and line requirements, and operating-instruction requirements. Clause 5 includes test notes such as visual inspection and checking switch-off and monitoring behavior. Clause 6 includes checks for balancing to earth, resistance to earth potential and coaxial wiring arrangements.

Table 1 provides guidance for placing symbols on remote power cables, based on cable diameter and symbol spacing. Clause 8 adds informative operating advice for work planning, lockout, labeling, qualified personnel and safe re-energization.

ETSI Standard
SAFETY;
Remote Power Feeding Installations;
Safety requirements for the erection and operation
of information technology installations
with remote power feeding

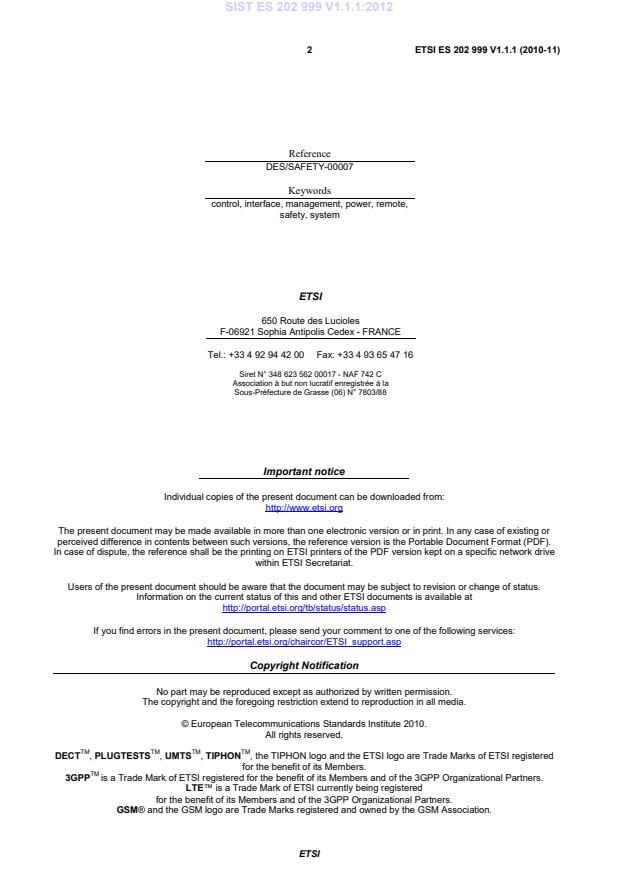

2 ETSI ES 202 999 V1.1.1 (2010-11)

Reference
DES/SAFETY-00007
Keywords
control, interface, management, power, remote,
safety, system
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI

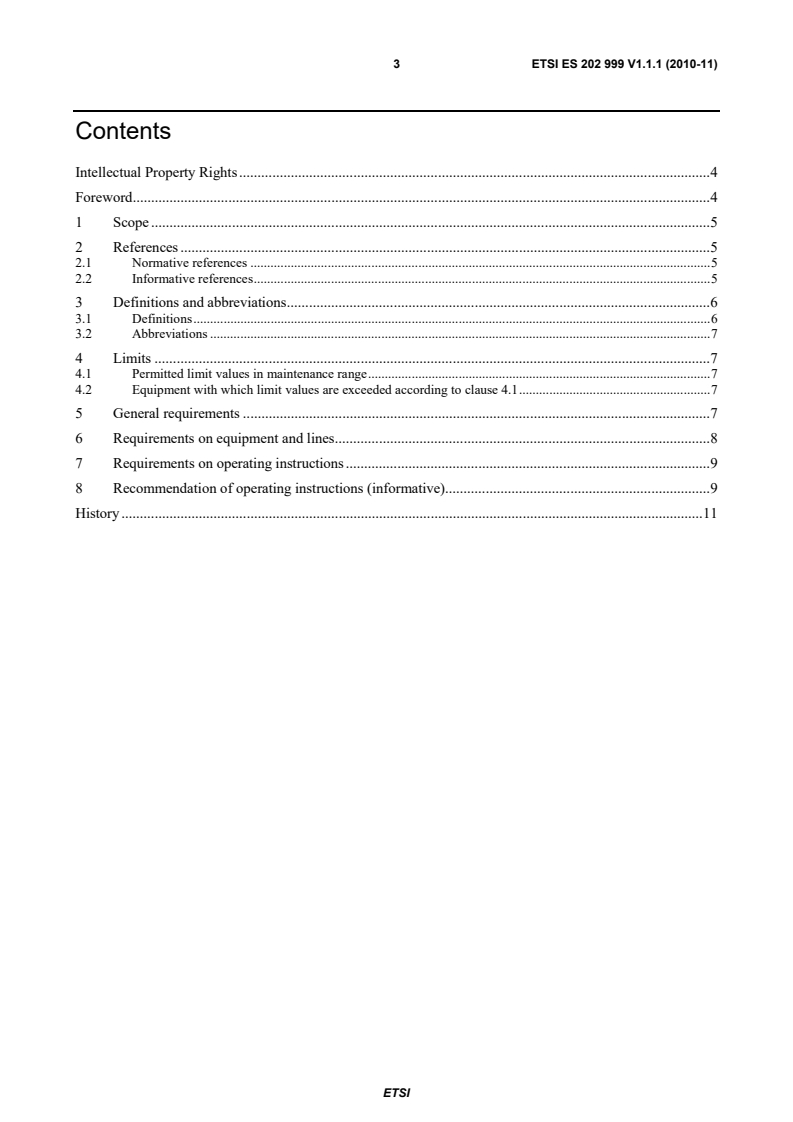

3 ETSI ES 202 999 V1.1.1 (2010-11)
Contents
Intellectual Property Rights . 4
Foreword . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 5
3 Definitions and abbreviations . 6
3.1 Definitions . 6
3.2 Abbreviations . 7
4 Limits . 7
4.1 Permitted limit values in maintenance range . 7
4.2 Equipment with which limit values are exceeded according to clause 4.1 . 7
5 General requirements . 7
6 Requirements on equipment and lines . 8
7 Requirements on operating instructions . 9
8 Recommendation of operating instructions (informative). 9
History . 11

ETSI

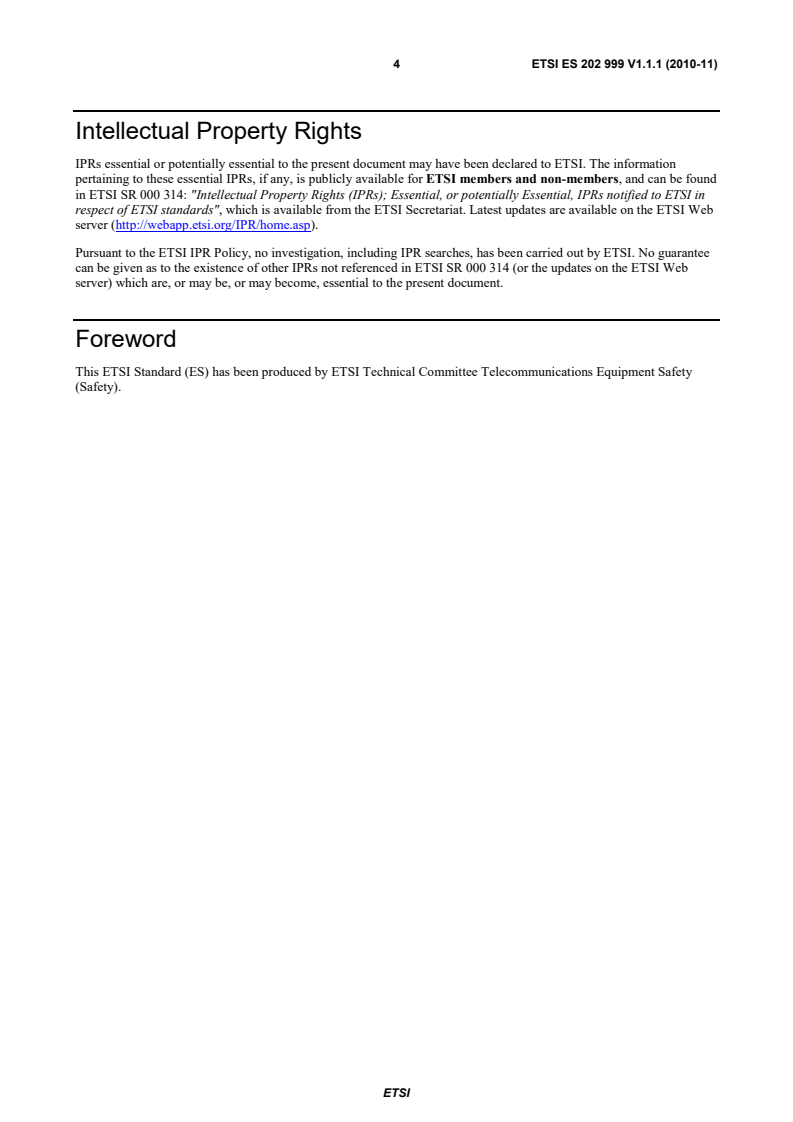

4 ETSI ES 202 999 V1.1.1 (2010-11)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This ETSI Standard (ES) has been produced by ETSI Technical Committee Telecommunications Equipment Safety
(Safety).
ETSI
5 ETSI ES 202 999 V1.1.1 (2010-11)
1 Scope
The present document contains safety requirements for the erection of information technology installations with remote
power feeding at an operating a.c. voltage exceeding 50 V (rms value) or an operating d.c. voltage exceeding 120 V,
conductor to conductor and/or conductor to earth. It applies in addition to EN 60950-1 [3] and EN 60950-21 [4] and
contains terms, requirements and tests.
If special standards are applicable for installations and parts of installations these shall take precedence; for example
EN 60950-1 [3] and EN 60950-21 [4].
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] CENELEC EN 60417-1 (1999): "Graphical symbols for use on equipment. Overview and
application".
[2] CENELEC EN 60900 (2004): "Live working. Hand tools for use up to 1 000 V a.c. and
1 500 V d.c".
[3] CENELEC EN 60950-1: "Information technology equipment - Safety - Part 1: General
requirements".
[4] CENELEC EN 60950-21: "Information technology equipment - Safety - Part 21: Remote power
feeding".
[5] ITU-T Directives concerning the protection of telecommunication lines against harmful effects
from electric power and electrified railway lines (volume IV).
[6] ITU-T Recommendation K.10: "Low frequency interference due to unbalance about earth of
telecommunication equipment".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
Not applicable.
ETSI
6 ETSI ES 202 999 V1.1.1 (2010-11)
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions given in EN 60950-1 [3],
EN 60950-21 [4] and the following apply:
load power-fed point: load power-fed point extracts electric power from the remote power feeding circuits via its
remote power feeding equipment
remote power feeding: supply of electric power in the form of direct or alternating current to information technology
installations through cables of the associated telecommunication line
remote power feeding cables: cables of a telecommunication line which are used for remote power feeding and may at
the same time be telecommunication cables
NOTE: They are components of the information technology installation.
remote power feeding circuit: circuit which is established by interconnecting remote power feeding devices and cables
to form a functional entity
NOTE: See also RFT circuit (remote feeding telecommunication circuit), RFT-C circuits and RFT-V circuits
according to EN 60950-21 [4].
remote power feeding devices: devices used for remote power feeding, e.g. to supply or extract electric power
remote power feeding equipment: equipment from which the electric power necessary for the remote power feeding
of information technology installations is extracted
NOTE 1: It is a component of the information technology installation.
NOTE 2: For information technology equipment see EN 60950-1 [3].
remote power feeding point: remote power feeding point supplies remote power feeding circuits with electrical current
via its remote power feeding equipment
remote power feeding section: part of remote power feeding circuits located between a remote power feeding point
and the immediately following power-fed point, or between two adjacent power-fed points
RFT-C circuit: RFT circuit which is so designed and protected that under normal operating conditions and single fault
conditions, the currents in the circuit do not exceed defined values
NOTE: See EN 60950-21 [4].
RFT-V circuit: RFT circuit which is so designed and protected that under normal operating conditions and single fault
conditions, the voltages are limited and the accessible area of contact is limited
NOTE: See EN 60950-21 [4].
type of remote power feeding: electrical operating mode of the remote power feed in a remote power feeding circuit. It
is specified by particular characteristics of the circuit configuration and power feeding method. A distinctions is made
in particular between the following ones:
• a.c. remote power feeding: power-fed points receive an a.c. supply;
• d.c. remote power feeding: power-fed points receive a d.c. supply;
• double-ended remote power feeding: remote power feeding circuit has two remote power feeding points;
• external remote power f
...

Final draft ETSI ES 202 999 V1.1.1 (2010-09)
ETSI Standard
SAFETY;
Remote Power Feeding Installations;
Safety requirements for the erection and operation
of information technology installations
with remote power feeding

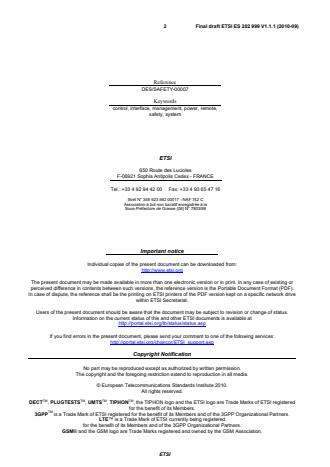

2 Final draft ETSI ES 202 999 V1.1.1 (2010-09)

Reference
DES/SAFETY-00007
Keywords
control, interface, management, power, remote,
safety, system
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Final draft ETSI ES 202 999 V1.1.1 (2010-09)
Contents
Intellectual Property Rights . 4
Foreword . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 5
3 Definitions and abbreviations . 6
3.1 Definitions . 6
3.2 Abbreviations . 7
4 Limits . 7
4.1 Permitted limit values in maintenance range . 7
4.2 Equipment with which limit values are exceeded according to clause 4.1 . 7
5 General requirements . 7
6 Requirements on equipment and lines . 8
7 Requirements on operating instructions . 9
8 Recommendation of operating instructions (informative). 9
History . 11

ETSI
4 Final draft ETSI ES 202 999 V1.1.1 (2010-09)

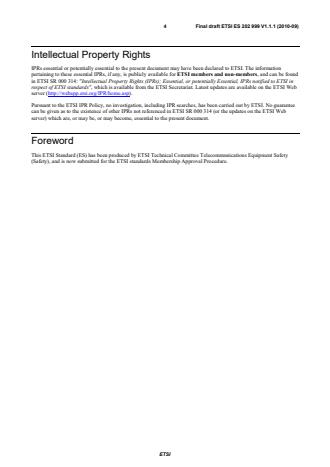

Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This ETSI Standard (ES) has been produced by ETSI Technical Committee Telecommunications Equipment Safety
(Safety), and is now submitted for the ETSI standards Membership Approval Procedure.
ETSI
5 Final draft ETSI ES 202 999 V1.1.1 (2010-09)
1 Scope
The present document contains safety requirements for the erection of information technology installations with remote
power feeding at an operating a.c. voltage exceeding 50 V (rms value) or an operating d.c. voltage exceeding 120 V,
conductor to conductor and/or conductor to earth. It applies in addition to EN 60950-1 [3] and EN 60950-21 [4] and
contains terms, requirements and tests.
If special standards are applicable for installations and parts of installations these shall take precedence; for example
EN 60950-1 [3] and EN 60950-21 [4].
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] CENELEC EN 60417-1 (1999): "Graphical symbols for use on equipment. Overview and
application".
[2] CENELEC EN 60900 (2004): "Live working. Hand tools for use up to 1 000 V a.c. and
1 500 V d.c".
[3] CENELEC EN 60950-1 (2005): "Information technology equipment - Safety - Part 1: General
requirements".
[4] CENELEC EN 60950-21 (2002): "Information technology equipment - Safety - Part 21: Remote
power feeding".
[5] ITU-T Directives concerning the protection of telecommunication lines against harmful effects
from electric power and electrified railway lines (volume IV).
[6] ITU-T Recommendation K.10 (March 1993): "Low frequency interference due to unbalance about
earth of telecommunication equipment".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
Not applicable.
ETSI
6 Final draft ETSI ES 202 999 V1.1.1 (2010-09)
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions given in EN 60950-1 [3],
EN 60950-21 [4] and the following apply:
load power-fed point: load power-fed point extracts electric power from the remote power feeding circuits via its
remote power feeding equipment
remote power feeding: supply of electric power in the form of direct or alternating current to information technology
installations through cables of the associated telecommunication line
remote power feeding cables: cables of a telecommunication line which are used for remote power feeding and may at
the same time be telecommunication cables
NOTE: They are components of the information technology installation.
remote power feeding circuit: circuit which is established by interconnecting remote power feeding devices and cables
to form a functional entity
NOTE: See also RFT circuit (remote feeding telecommunication circuit), RFT-C circuits and RFT-V circuits
according to EN 60950-21 [4].
remote power feeding devices: devices used for remote power feeding, e.g. to supply or extract electric power
remote power feeding equipment: equipment from which the electric power necessary for the remote power feeding
of information technology installations is extracted
NOTE 1: It is a component of the information technology installation.
NOTE 2: For information technology equipment see EN 60950-1 [3].
remote power feeding point: remote power feeding point supplies remote power feeding circuits with electrical current
via its remote power feeding equipment
remote power feeding section: part of remote power feeding circuits located between a remote power feeding point
and the immediately following power-fed point, or between two adjacent power-fed points
RFT-C circuit: RFT circuit which is so designed and protected that under normal operating conditions and single fault
conditions, the currents in the circuit do not exceed defined values
NOTE: See EN 60950-21 [4].
RFT-V circuit: RFT circuit which is so designed and protected that under normal operating conditions and single fault
conditions, the voltages are limited and the accessible area of contact is limited
NOTE: See EN 60950-21 [4].
type of remote power feeding: electrical operating mode of the remote power feed in a remote power feeding circuit. It
is specified by particular characteristics of the circuit configuration and power feeding method. A distinctions is made
in particular between the following ones:
• a.c. remote power feeding: power-fed points receive an a.c. supply;
• d.c. remote power feeding: power-fed points receive a d.c. supply;
• double-ended remote power feeding: remote power feeding
...

SLOVENSKI STANDARD
01-marec-2012
9DUQRVW1DSHOMDYH]DGDOMLQVNRQDSDMDQMH]HOHNWULþQRHQHUJLMR9DUQRVWQH
]DKWHYH]DSRVWDYLWHYLQREUDWRYDQMHQDSHOMDYLQIRUPDFLMVNHWHKQRORJLMH]
GDOMLQVNLPQDSDMDQMHP
SAFETY - Remote Power Feeding Installations - Safety requirements for the erection
and operation of information technology installations with remote power feeding
Ta slovenski standard je istoveten z: ES 202 999 Version 1.1.1
ICS:
35.200 Vmesniška in povezovalna Interface and interconnection
oprema equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

ETSI Standard
SAFETY;
Remote Power Feeding Installations;
Safety requirements for the erection and operation
of information technology installations
with remote power feeding
2 ETSI ES 202 999 V1.1.1 (2010-11)

Reference
DES/SAFETY-00007
Keywords
control, interface, management, power, remote,
safety, system
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI ES 202 999 V1.1.1 (2010-11)
Contents
Intellectual Property Rights . 4
Foreword . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 5
3 Definitions and abbreviations . 6
3.1 Definitions . 6
3.2 Abbreviations . 7
4 Limits . 7
4.1 Permitted limit values in maintenance range . 7
4.2 Equipment with which limit values are exceeded according to clause 4.1 . 7
5 General requirements . 7
6 Requirements on equipment and lines . 8
7 Requirements on operating instructions . 9
8 Recommendation of operating instructions (informative). 9
History . 11

ETSI
4 ETSI ES 202 999 V1.1.1 (2010-11)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This ETSI Standard (ES) has been produced by ETSI Technical Committee Telecommunications Equipment Safety
(Safety).
ETSI
5 ETSI ES 202 999 V1.1.1 (2010-11)
1 Scope
The present document contains safety requirements for the erection of information technology installations with remote
power feeding at an operating a.c. voltage exceeding 50 V (rms value) or an operating d.c. voltage exceeding 120 V,
conductor to conductor and/or conductor to earth. It applies in addition to EN 60950-1 [3] and EN 60950-21 [4] and
contains terms, requirements and tests.
If special standards are applicable for installations and parts of installations these shall take precedence; for example
EN 60950-1 [3] and EN 60950-21 [4].
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] CENELEC EN 60417-1 (1999): "Graphical symbols for use on equipment. Overview and
application".
[2] CENELEC EN 60900 (2004): "Live working. Hand tools for use up to 1 000 V a.c. and
1 500 V d.c".
[3] CENELEC EN 60950-1: "Information technology equipment - Safety - Part 1: General
requirements".
[4] CENELEC EN 60950-21: "Information technology equipment - Safety - Part 21: Remote power
feeding".
[5] ITU-T Directives concerning the protection of telecommunication lines against harmful effects
from electric power and electrified railway lines (volume IV).
[6] ITU-T Recommendation K.10: "Low frequency interference due to unbalance about earth of
telecommunication equipment".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
Not applicable.
ETSI
6 ETSI ES 202 999 V1.1.1 (2010-11)
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions given in EN 60950-1 [3],
EN 60950-21 [4] and the following apply:
load power-fed point: load power-fed point extracts electric power from the remote power feeding circuits via its
remote power feeding equipment
remote power feeding: supply of electric power in the form of direct or alternating current to information technology
installations through cables of the associated telecommunication line
remote power feeding cables: cables of a telecommunication line which are used for remote power feeding and may at
the same time be telecommunication cables
NOTE: They are components of the information technology installation.
remote power feeding circuit: circuit which is established by interconnecting remote power feeding devices and cables
to form a functional entity
NOTE: See also RFT circuit (remote feeding telecommunication circuit), RFT-C circuits and RFT-V circuits
according to EN 60950-21 [4].
remote power feeding devices: devices used for remote power feeding, e.g. to supply or extract electric power
remote power feeding equipment: equipment from which the electric power necessary for the remote power feeding
of information technology installations is extracted
NOTE 1: It is a component of the information technology installation.
NOTE 2: For information technology equipment see EN 60950-1 [3].
remote power feeding point: remote power feeding point supplies remote power feeding circuits with electrical current
via its remote power feeding equipment
remote power feeding section: part of remote power feeding circuits located between a remote power feeding point
and the immediately following power-fed point, or between two adjacent power-fed points
RFT-C circuit: RFT circuit which is so designed and protected that under normal operating conditions and single fault
conditions, the currents in the circuit do not exceed defined values
NOTE: See EN 60950-21 [4].
RFT-V circuit: RFT circuit which is so designed and protected that under normal operating conditions and single fault
conditions, the voltages are limited and the accessible area of contact is limited
NOTE: See EN 60950-21 [4].
type of remote power feeding: electrical operating mode of the remote power feed in a remote power feeding circuit. It
is spe
...
