oSIST prEN 3293:2025

Aerospace series - Bolts, T-head, close tolerance, medium thread length, in heat resisting nickel base alloy NI-P100HT (Inconel 718), uncoated - Classification: 1 275 MPa/650 °C

This document specifies the dimensions of uncoated T-head bolts, close tolerance, with MJ-thread, medium thread length, in heat-resisting nickel base alloy NI-P100HT for aerospace applications.
Maximum test temperature of the parts is 650 °C.
These bolts are used in aerospace fastening systems mainly stressed in shearing force.

Luft- und Raumfahrt - T-Kopf-Passschrauben, mittlere Gewindelänge, aus hochwarmfester Nickelbasislegierung NI-P100HT (Inconel 718), blank - Klasse: 1 275 MPa/650 °C

Dieses Dokument legt die Maße von blanken T-Kopf-Passschrauben mit MJ-Gewinde mittlerer Gewindelänge aus hochwarmfester Nickelbasislegierung NI P100HT für die Verwendung in der Luft- und Raumfahrt fest.
Die maximale Prüftemperatur der Teile beträgt 650 °C.
Diese Schrauben sind in Verbindungssystemen der Luft- und Raumfahrt zu verwenden, die hauptsächlich auf Scherkraft beansprucht werden.

Série aérospatiale - Vis de précision à tête bihexagonale, à filetage moyen, en alliage résistant à chaud à base de nickel NI-P100HT (Inconel 718), non revêtu - Classification : 1 275 MPa/650 °C

Le présent document spécifie les dimensions des vis de précision à tête anti-rotation en T, à filetage MJ moyen, en alliage résistant à chaud base nickel NI-P100HT, pour les applications aérospatiales.
La température maximale d'essai des pièces est de 650 °C.
Ces vis sont à utiliser dans les systèmes de fixation aérospatiaux essentiellement soumis à des efforts de cisaillement.

Aeronavtika - Sorniki, glava T, ozka toleranca, srednja navojna dolžina, iz toplotnoodporne zlitine na nikljevi osnovi NI-P100HT (Inconel 718), brez prevleke - Klasifikacija: 1 275 MPa/650 °C

General Information

• Status: Not Published
• Public Enquiry End Date: 09-Sep-2025
• ICS: 49.030.20 - Bolts, screws, studs
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 4020 - Public enquire (PE) (Adopted Project)
• Start Date: 23-Jun-2025
• Due Date: 10-Nov-2025
• Completion Date: 11-Sep-2025
• Ref Project: prEN 3293 - Aerospace series - Bolts, T-head, close tolerance, medium thread length, in heat resisting nickel base alloy NI-P100HT (Inconel 718), uncoated - Classification: 1 275 MPa/650 °C

Relations

• Revises: SIST EN 3293:2008 - Aerospace series - Bolts, T-head, close tolerance, medium thread length, in heat resisting nickel base alloy NI-P100HT (Inconel 718), uncoated - Classification: 1 275 MPa/650 °C
• Effective Date: 12-Feb-2025

Standards Content (Sample)

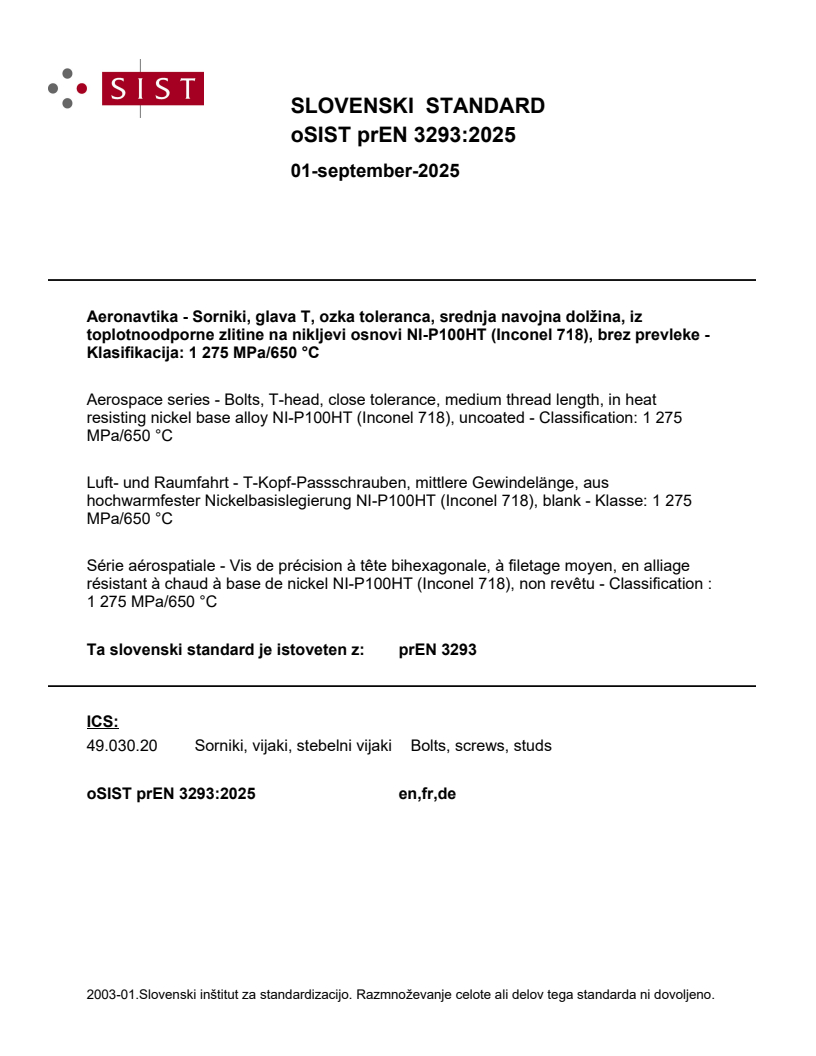

SLOVENSKI STANDARD
