SIST EN 301 908-13 V13.4.1:2026 is the Slovenian adoption of ETSI EN 301 908-13 V13.4.1 (2026-09), a harmonised European standard for IMT cellular networks. It specifies radio spectrum access requirements for Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE) that operates in the listed bands and carrier aggregation combinations. Manufacturers, test laboratories and conformity assessors use it to check transmitter, receiver and radiated performance against a common compliance method.

What does SIST EN 301 908-13 V13.4.1:2026 specify?

SIST EN 301 908-13 V13.4.1:2026 applies to User Equipment for Evolved Universal Terrestrial Radio Access (E-UTRA). The scope covers UE that can operate in all or part of the frequency bands listed in table 1-1, and the carrier aggregation combinations listed in tables 1-3 to 1-5.

The document is organized as follows: clause 1 gives the scope, clause 2 lists references, clause 3 defines terms, symbols and abbreviations, clause 4 sets the technical requirements, and clause 5 gives the compliance test suites. Informative annexes B, C, D, E and F support testing, interpretation and document tracking.

Table	What it covers
1-1	E-UTRA UE operating bands
1-3	E-UTRA UE inter-band carrier aggregation operating bands for two bands
1-4	E-UTRA UE inter-band carrier aggregation operating bands for three bands
1-5	Intra-band non-contiguous carrier aggregation operating bands with two sub-blocks

What are the key requirements of SIST EN 301 908-13 V13.4.1:2026?

Operating profile and band coverage

Clause 4.1 ties the requirements to the equipment's intended operational environmental profile. In practice, a UE has to meet the radio limits not just in a lab-friendly condition, but across the environmental range for which it is designed. Annex B gives the test environments used for that part of the assessment.

Clause 4 also splits the requirements by operating mode. The standard covers Single Carrier, Carrier Aggregation (DL CA and UL CA), UL-MIMO, category NB1, UE category 0 and UE category M1. That matters because a device may pass in one mode and fail in another, so the claimed feature set has to match the tested configuration.

Transmitter limits

Clause 4.2.2 sets the Transmitter Maximum Output Power limits. The document gives separate limits for Single Carrier, Carrier Aggregation, UL-MIMO, category NB1 and UE category M1, with band-dependent power classes where applicable. For inter-band Carrier Aggregation with separate antenna connectors, the power is measured across the component carriers and summed where the standard calls for that approach, so both radio chains and the combined output matter.

Clause 4.2.3 defines the Transmitter Spectrum Emission Mask for Single Carrier, Carrier Aggregation, UL-MIMO, Multi-Cluster PUSCH within a component carrier and category NB1. In practice, this is the check that keeps energy close to the assigned channel or aggregated bandwidth. The clause uses different measurement bandwidths and offset ranges, so test planning has to follow the right mask for the exact operating mode.

Clause 4.2.4 sets Transmitter Spurious Emissions limits over wide frequency ranges and adds band-specific coexistence limits. Some cases include exceptions around harmonic emissions or network-signalled values, so the band pairing and the protected frequency range both matter. This is the clause that most directly protects other services from unwanted transmitter energy.

Clause 4.2.5 covers Transmitter Minimum Output Power. That requirement matters because a UE must still transmit correctly at the low end of its power range, not just at maximum power. It is especially relevant when power control reduces transmit level during real network operation.

Receiver limits and radiated tests

Clause 4.2.6 covers Receiver Adjacent Channel Selectivity (ACS), clause 4.2.7 covers Receiver Blocking Characteristics, clause 4.2.8 covers Receiver Spurious Response, clause 4.2.9 covers Receiver Intermodulation Characteristic, and clause 4.2.10 covers Receiver Spurious Emissions. These receiver clauses are the core checks for how well the UE keeps working when strong unwanted signals are nearby or far away in frequency. In practice, the tests use wanted signals, interferers and throughput or sensitivity criteria to show that the receiver still delivers usable performance.

For blocking and ACS, the standard includes throughput-based acceptance criteria in some configurations. That means the UE is not judged only by whether it detects a signal, but by whether it keeps enough data throughput under interference. For a buyer or engineer, this is the part that says whether a claimed band combination will still behave well in a crowded radio environment.

Clause 4.2.12 sets the Receiver Reference Sensitivity Level for Single Carrier, Carrier Aggregation in DL-only bands, category NB1, UE category 0 and UE category M1. This is the baseline wanted-signal level used to set up and interpret the receiver tests. If a device has a poor sensitivity result, it will be harder to use at cell edge even if its transmit power is acceptable.

Clauses 4.2.13 and 4.2.14 define Receiver Total Radiated Sensitivity (TRS) and Total Radiated Power (TRP). These are over-the-air measurements rather than cable-connected measurements, and they apply only to devices within the stated width range. They are not applicable to carrier aggregation, so the claimed product form factor and feature set matter before those tests are scheduled.

Clause 5 links each requirement to a corresponding test suite. The procedures specify initial conditions, scheduling messages, reference measurement channels, measurement filters and the pass/fail comparison against clause 4. For a test lab, that is the practical part of the standard because it fixes how the UE is stimulated and how the result is judged.

What terms does SIST EN 301 908-13 V13.4.1:2026 define?

• Evolved Universal Terrestrial Radio Access (E-UTRA) - the radio access system covered by the standard for cellular UE spectrum access.
• User Equipment (UE) - the terminal radio equipment that transmits and receives in the E-UTRA bands and carrier aggregation modes covered by the standard.
• Carrier aggregation (CA) - the combination of two or more component carriers to support wider transmission bandwidths.
• Channel bandwidth - the RF bandwidth supporting a single E-UTRA carrier and used as the reference for transmitter and receiver limits.
• Carrier aggregation configuration - the combination of CA operating bands and CA bandwidth classes supported by a UE.
• Maximum Output Power (MOP) - the mean power per carrier measured at the antenna connector in the specified reference condition.
• Receiver Reference Sensitivity Level (REFSENS) - the wanted-signal level used to define receiver sensitivity tests and compare band-specific receive performance.
• Total Radiated Power (TRP) - the over-the-air radiated transmit power derived from chamber measurements on supported device widths.

Who uses SIST EN 301 908-13 V13.4.1:2026?

Manufacturers of E-UTRA UE use this standard during radio design, prototype verification and final compliance testing. It helps them check power, emissions, selectivity, blocking and over-the-air performance before a product is released in a declared band or carrier aggregation configuration.

Test laboratories and conformity assessors use it to set up the right reference channels, interferers, measurement bandwidths and environmental conditions. Quality, regulatory and buyer teams use the resulting reports to compare the claimed bands and feature set with the tested configuration.

Which standards are used with SIST EN 301 908-13 V13.4.1:2026?

• ETSI TS 136 521-1 [1] - provides the detailed radio conformance test methods, reference measurement channels and test setups used throughout clause 5.
• ETSI TS 136 101 [3] - supplies UE radio parameters and configuration definitions used for transmitter settings, bandwidth references and sensitivity-related setup.
• ETSI EG 203 336 [i.3] - gives guidance for selecting technical parameters for harmonised standards under Directive 2014/53/EU.
• Recommendation ITU-R SM.329-13 [i.4] - supports the treatment of unwanted emissions in the spurious domain.
• ETSI TS 137 544 [6] - provides the TRS and TRP calculation and chamber-based measurement basis.
• ETSI TR 125 914 [i.13] - defines the device width range used when deciding whether TRS and TRP requirements apply.

What does the SIST EN 301 908-13 V13.4.1:2026 document contain?

Clause 3 provides the terminology, symbols and abbreviations, including figures that explain channel bandwidth and aggregated bandwidth relationships. Clause 4 contains the main limit tables for transmitter power, emission masks, spurious emissions, receiver performance, sensitivity, TRS and TRP.

Clause 5 gives the corresponding test procedures, including initial conditions, measurement steps and the comparison method against the clause 4 limits. Annex B gives test environments, annex C explains the receiver parameters covered by the standard, annex D lists maximum measurement uncertainty, annex E is the bibliography and annex F records change history.

Together, these parts support design verification, laboratory testing, certification and compliance audits for E-UTRA UE.

Draft ETSI EN 301 908-13 V13.4.0 (2025-12)

HARMONISED EUROPEAN STANDARD
IMT cellular networks;
Harmonised Standard for access to radio spectrum;
Part 13: Evolved Universal Terrestrial Radio Access (E-UTRA)
User Equipment (UE)
2 Draft ETSI EN 301 908-13 V13.4.0 (2025-12)

Reference
REN/MSG-TFES-1512
Keywords
3G, 3GPP, cellular, digital, E-UTRA, IMT,
IMT-2000, IMT-Advanced, LTE, LTE-Advanced,
mobile, radio, regulation, UMTS

ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from the
ETSI Search & Browse Standards application.
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format on ETSI deliver repository.
Users should be aware that the present document may be revised or have its status changed,
this information is available in the Milestones listing.
If you find errors in the present document, please send your comments to
the relevant service listed under Committee Support Staff.
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure (CVD) program.
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2025.
All rights reserved.
ETSI
3 Draft ETSI EN 301 908-13 V13.4.0 (2025-12)
Contents
Intellectual Property Rights . 11
Foreword . 11
Modal verbs terminology . 12
Introduction . 12
1 Scope . 13
2 References . 16
2.1 Normative references . 16
2.2 Informative references . 16
3 Definition of terms, symbols and abbreviations . 18
3.1 Terms . 18
3.2 Symbols . 21
3.3 Abbreviations . 23
4 Technical requirements specifications . 25
4.1 Environmental profile . 25
4.2 Conformance requirements . 25
4.2.0 General . 25
4.2.1 Introduction. 25
4.2.2 Transmitter Maximum Output Power . 26
4.2.2.1 Transmitter maximum output power for Single Carrier . 26
4.2.2.1.1 Definition. 26
4.2.2.1.2 Limits . 26
4.2.2.1.3 Conformance . 26
4.2.2.2 Transmitter output power for Carrier Aggregation (DL CA and UL CA) . 26
4.2.2.2.1 Definition. 26
4.2.2.2.2 Limits . 27
4.2.2.2.3 Conformance . 28
4.2.2.3 Transmitter output power for UL-MIMO . 28
4.2.2.3.1 Definition. 28
4.2.2.3.2 Limits . 28
4.2.2.3.3 Conformance . 28
4.2.2.4 Transmitter output power for category NB1 . 29
4.2.2.4.1 Definition. 29
4.2.2.4.2 Limits . 29
4.2.2.4.3 Conformance . 29
4.2.2.5 Transmitter output power for UE category M1 . 29
4.2.2.5.1 Definition. 29
4.2.2.5.2 Limits . 29
4.2.2.5.3 Conformance . 30
4.2.3 Transmitter Spectrum Emission Mask . 30
4.2.3.1 Transmitter spectrum emission mask for Single Carrier . 30
4.2.3.1.1 Definition. 30
4.2.3.1.2 Limits . 30
4.2.3.1.3 Conformance . 31
4.2.3.2 Transmitter spectrum emission mask for Carrier Aggregation (DL CA and UL CA) . 31
4.2.3.2.1 Definition. 31
4.2.3.2.2 Limits . 31
4.2.3.2.3 Conformance . 33
4.2.3.3 Transmitter spectrum emission mask for UL-MIMO . 33
4.2.3.3.1 Definition. 33
4.2.3.3.2 Limits . 34
4.2.3.3.3 Conformance . 34
4.2.3.4 Transmitter spectrum emission mask for Multi-Cluster PUSCH within a component carrier . 34
4.2.3.4.1 Definition. 34
4.2.3.4.2 Limits . 34
ETSI
4 Draft ETSI EN 301 908-13 V13.4.0 (2025-12)
4.2.3.4.3 Conformance . 34
4.2.3.5 Transmitter spectrum emission mask for category NB1 . 34
4.2.3.5.1 Definition. 34
4.2.3.5.2 Limits . 34
4.2.3.5.3 Conformance . 34
4.2.4 Transmitter Spurious Emissions . 35
4.2.4.1 Transmitter spurious emissions for Single Carrier . 35
4.2.4.1.1 Definition. 35
4.2.4.1.2 Limits . 35
4.2.4.1.3 Conformance . 39
4.2.4.2 Transmitter spurious emissions for Carrier Aggregation (DL CA and UL CA) . 39
4.2.4.2.1 Definition. 39
4.2.4.2.2 Limits . 40
4.2.4.2.3 Conformance . 44
4.2.4.3 Transmitter spurious emissions for UL-MIMO . 44
4.2.4.3.1 Definition. 44
4.2.4.3.2 Limits . 45
4.2.4.3.3 Conformance . 45
4.2.4.4 Transmitter spurious emissions for Multi-Cluster PUSCH within a component carrier . 45
4.2.4.4.1 Definition. 45
4.2.4.4.2 Limits . 45
4.2.4.4.3 Conformance . 45
4.2.4.5 Transmitter spurious emissions for category NB1 . 45
4.2.4.5.1 Definition. 45
4.2.4.5.2 Limits . 45
4.2.4.5.3 Conformance . 46
4.2.5 Transmitter Minimum Output Power . 46
4.2.5.1 Transmitter minimum output power for Single Carrier. 46
4.2.5.1.1 Definition. 46
4.2.5.1.2 Limits . 46
4.2.5.1.3 Conformance . 46
4.2.5.2 Transmitter minimum output power for Carrier Aggregation (DL CA and UL CA) . 46
4.2.5.2.1 Definition. 46
4.2.5.2.2 Limits . 46
4.2.5.2.3 Conformance . 47
4.2.5.3 Transmitter minimum output power for UL-MIMO . 47
4.2.5.3.1 Definition. 47
4.2.5.3.2 Limits . 47
4.2.5.3.3 Conformance . 47
4.2.5.4 Transmitter minimum output power for category NB1 . 47
4.2.5.4.1 Definition. 47
4.2.5.4.2 Limits . 47
4.2.5.4.3 Conformance . 47
4.2.6 Receiver Adjacent Channel Selectivity (ACS) . 48
4.2.6.1 Receiver Adjacent Channel Selectivity (ACS) for Single Carrier . 48
4.2.6.1.1 Definition. 48
4.2.6.1.2 Limits . 48
4.2.6.1.3 Conformance . 49
4.2.6.2 Receiver Adjacent Channel Selectivity (ACS) for Carrier Aggregation in DL-only bands . 49
4.2.6.2.1 Definition. 49
4.2.6.2.2 Limits . 49
4.2.6.2.3 Conformance . 50
4.2.6.3 Receiver Adjacent Channel Selectivity (ACS) for category NB1 . 50
4.2.6.3.1 Definition. 50
4.2.6.3.2 Limits . 50
4.2.6.3.3 Conformance . 51
4.2.7 Receiver Blocking Characteristics . 51
4.2.7.1 Receiver Blocking Characteristics for Single Carrier . 51
4.2.7.1.1 Definition. 51
4.2.7.1.2 Limits . 51
4.2.7.1.3 Conformance . 53
4.2.7.2 Receiver Blocking Characteristics for Carrier Aggregation in DL-only bands . 53
ETSI
5 Draft ETSI EN 301 908-13 V13.4.0 (2025-12)
4.2.7.2.1 Definition. 53
4.2.7.2.2 Limits . 53
4.2.7.2.3 Conformance . 56
4.2.7.3 Receiver Blocking Characteristics for category NB1 . 57
4.2.7.3.1 Definition. 57
4.2.7.3.2 Limits . 57
4.2.7.3.3 Conformance . 58
4.2.8 Receiver Spurious Response . 58
4.2.8.1 Receiver Spurious Response for Single Carrier . 58
4.2.8.1.1 Definition. 58
4.2.8.1.2 Limits . 58
4.2.8.1.3 Conformance . 58
4.2.8.2 Receiver Spurious Response for Carrier Aggregation in DL-only bands . 59
4.2.8.2.1 Definition. 59
4.2.8.2.2 Limits . 59
4.2.8.2.3 Conformance . 59
4.2.8.3 Receiver Spurious Response for category NB1 . 59
4.2.8.3.1 Definition. 59
4.2.8.3.2 Limits . 59
4.2.8.3.3 Conformance . 59
4.2.9 Receiver Intermodulation Characteristic . 60
4.2.9.1 Receiver Intermodulation Characteristics for Single Carrier . 60
4.2.9.1.1 Definition. 60
4.2.9.1.2 Limits . 60
4.2.9.1.3 Conformance . 60
4.2.9.2 Receiver Intermodulation Characteristics for Carrier Aggregation in DL-only bands . 61
4.2.9.2.1 Definition. 61
4.2.9.2.2 Limits . 61
4.2.9.2.3 Conformance . 61
4.2.9.3 Receiver Intermodulation Characteristics for category NB1 . 61
4.2.9.3.1 Definition. 61
4.2.9.3.2 Limits . 62
4.2.9.3.3 Conformance . 62
4.2.10 Receiver Spurious Emissions . 62
4.2.10.1 Receiver Spurious Emissions for Single Carrier . 62
4.2.10.1.1 Definition. 62
4.2.10.1.2 Limits . 62
4.2.10.1.3 Conformance . 62
4.2.10.2 Receiver Spurious Emissions in DL-only bands . 62
4.2.10.2.1 Definition. 62
4.2.10.2.2 Limits . 63
4.2.10.2.3 Conformance . 63
4.2.11 Transmitter Adjacent Channel Leakage Power Ratio . 63
4.2.11.1 Transmitter adjacent channel leakage power ratio for Single Carrier . 63
4.2.11.1.1 Definition. 63
4.2.11.1.2 Limits . 63
4.2.11.1.3 Conformance . 64
4.2.11.2 Transmitter adjacent channel leakage power ratio for Carrier Aggregation (DL CA and UL CA). 64
4.2.11.2.1 Definition. 64
4.2.11.2.2 Limits for CA UTRA . 66
4.2.11.2.3 Limits for CA E-UTRA . 67
4.2.11.2.4 Conformance . 67
4.2.11.3 Transmitter adjacent channel leakage power ratio for UL-MIMO . 67
4.2.11.3.1 Definition. 67
4.2.11.3.2 Limits . 68
4.2.11.3.3 Conformance . 69
4.2.11.4 Transmitter adjacent channel leakage power ratio for Multi-Cluster PUSCH within a component
carrier . 69
4.2.11.4.1 Definition. 69
4.2.11.4.2 Limits . 69
4.2.11.4.3 Conformance . 69
4.2.11.5 Transmitter adjacent channel leakage power ratio for category NB1 . 70
ETSI
6 Draft ETSI EN 301 908-13 V13.4.0 (2025-12)
4.2.11.5.1 Definition. 70
4.2.11.5.2 Limits . 70
4.2.11.5.3 Conformance . 70
4.2.12 Receiver Reference Sensitivity Level . 70
4.2.12.0 General . 70
4.2.12.1 Receiver Reference Sensitivity Level for Single Carrier . 70
4.2.12.1.1 Definition. 70
4.2.12.1.2 Limits . 70
4.2.12.1.3 Conformance . 71
4.2.12.2 Receiver Reference Sensitivity Level for Carrier Aggregation in DL-only bands . 71
4.2.12.2.1 Definition. 71
4.2.12.2.2 Limits . 71
4.2.12.2.3 Conformance . 72
4.2.12.3 Receiver Reference Sensitivity Level for category NB1 . 72
4.2.12.3.1 Definition. 72
4.2.12.3.2 Limits . 73
4.2.12.3.3 Conformance . 73
4.2.12.4 Receiver Reference Sensitivity Level for UE category 0 . 73
4.2.12.4.1 Definition. 73
4.2.12.4.2 Limits . 73
4.2.12.4.3 Conformance . 74
4.2.12.5 Receiver Reference Sensitivity Level for UE category M1 . 74
4.2.12.5.1 Definition. 74
4.2.12.5.2 Limits . 74
4.2.12.5.3 Conformance . 75
4.2.13 Receiver Total Radiated Sensitivity (TRS) . 75
4.2.13.0 Applicability. 75
4.2.13.1 Definition . 75
4.2.13.2 Limits . 76
4.2.13.3 Conformance . 77
4.2.14 Total Radiated Power (TRP) . 77
4.2.14.0 Applicability. 77
4.2.14.1 Definition . 77
4.2.14.2 Limits . 78
5 Testing for compliance with technical requirements . 79
5.1 Environmental conditions for testing . 79
5.2 Void . 79
5.3 Essential radio test suites . 79
5.3.0 General . 79
5.3.1 Transmitter Maximum Output Power . 79
5.3.1.1 Transmitter maximum output power for Single Carrier . 79
5.3.1.1.1 Method of test . 79
5.3.1.1.2 Test requirements . 80
5.3.1.2 Transmitter maximum output power for intra-band contiguous Carrier Aggregation (DL CA and
UL CA) . 80
5.3.1.2.1 Method of test . 80
5.3.1.2.2 Test requirements . 81
5.3.1.2A Transmitter maximum output power for inter-band Carrier Aggregation (DL CA and UL CA) . 81
5.3.1.2A.1 Method of test . 81
5.3.1.2A.2 Test requirements . 82
5.3.1.3 Transmitter maximum output power for UL-MIMO . 82
5.3.1.3.1 Method of test . 82
5.3.1.3.2 Test requirements . 83
5.3.1.4 Transmitter maximum output power for category NB1 . 83
5.3.1.4.1 Method of Test . 83
5.3.1.4.2 Test requirements . 83
5.3.1.5 Transmitter maximum output power for UE category 0 . 84
5.3.1.5.1 Method of test . 84
5.3.1.5.2 Test requirements . 84
5.3.1.6 Transmitter maximum output power for UE category M1 . 84
5.3.1.6.1 Method of test . 84
ETSI
7 Draft ETSI EN 301 908-13 V13.4.0 (2025-12)
5.3.1.6.2 Test requirements . 85
5.3.2 Transmitter Spectrum Emission Mask . 85
5.3.2.1 Transmitter spectrum emission mask for Single Carrier . 85
5.3.2.1.1 Method of test . 85
5.3.2.1.2 Test requirements . 86
5.3.2.2 Transmitter spectrum emission mask for intra-band contiguous Carrier Aggregation (DL CA and
UL CA) . 86
5.3.2.2.1 Method of test . 86
5.3.2.2.2 Test requirements . 87
5.3.2.2A Transmitter spectrum emission mask for inter-band Carrier Aggregation (DL CA and UL CA) . 87
5.3.2.2A.1 Method of test . 87
5.3.2.2A.2 Test requirements . 88
5.3.2.3 Transmitter spectrum emission mask for UL-MIMO . 88
5.3.2.3.1 Method of test . 88
5.3.2.3.2 Test requirements . 89
5.3.2.4 Transmitter spectrum emission mask for Multi-Cluster PUSCH within a component carrier . 89
5.3.2.4.1 Method of test . 89
5.3.2.4.2 Test requirements . 89
5.3.2.5 Transmitter spectrum emission mask for category NB1 . 90
5.3.2.5.1 Method of test . 90
5.3.2.5.2 Test requirements . 90
5.3.2.6 Transmitter spectrum emission mask for UE category 0 . 91
5.3.2.6.1 Method of test . 91
5.3.2.6.2 Test requirements . 91
5.3.2.7 Transmitter spectrum emission mask for UE category M1 . 91
5.3.2.7.1 Method of test . 91
5.3.2.7.2 Test requirements . 92
5.3.3 Transmitter Spurious Emissions . 92
5.3.3.1 Transmitter spurious emissions for S
...

Final draft ETSI EN 301 908-13 V13.4.1 (2026-06)

HARMONISED EUROPEAN STANDARD
IMT cellular networks;
Harmonised Standard for access to radio spectrum;
Part 13: Evolved Universal Terrestrial Radio Access (E-UTRA)
User Equipment (UE)
2 Final draft ETSI EN 301 908-13 V13.4.1 (2026-06)

Reference
REN/MSG-TFES-1512
Keywords
3G, 3GPP, cellular, digital, E-UTRA, IMT, IMT-
2000, IMT-Advanced, LTE, LTE-Advanced, mobile,
radio, regulation, UMTS
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from the
ETSI Search & Browse Standards application.
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format on ETSI deliver repository.
Users should be aware that the present document may be revised or have its status changed,
this information is available in the Milestones listing.
If you find errors in the present document, please send your comments to
the relevant service listed under Committee Support Staff.
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure (CVD) program.
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2026.
All rights reserved.
ETSI
3 Final draft ETSI EN 301 908-13 V13.4.1 (2026-06)
Contents
Intellectual Property Rights . 11
Foreword . 11
Modal verbs terminology . 12
Introduction . 12
1 Scope . 13
2 References . 16
2.1 Normative references . 16
2.2 Informative references . 16
3 Definition of terms, symbols and abbreviations . 18
3.1 Terms . 18
3.2 Symbols . 21
3.3 Abbreviations . 23
4 Technical requirements specifications . 25
4.1 Environmental profile . 25
4.2 Conformance requirements . 25
4.2.0 General . 25
4.2.1 Introduction. 25
4.2.2 Transmitter Maximum Output Power . 26
4.2.2.1 Transmitter maximum output power for Single Carrier . 26
4.2.2.1.1 Definition. 26
4.2.2.1.2 Limits . 26
4.2.2.1.3 Conformance . 26
4.2.2.2 Transmitter output power for Carrier Aggregation (DL CA and UL CA) . 26
4.2.2.2.1 Definition. 26
4.2.2.2.2 Limits . 27
4.2.2.2.3 Conformance . 28
4.2.2.3 Transmitter output power for UL-MIMO . 28
4.2.2.3.1 Definition. 28
4.2.2.3.2 Limits . 28
4.2.2.3.3 Conformance . 28
4.2.2.4 Transmitter output power for category NB1 . 29
4.2.2.4.1 Definition. 29
4.2.2.4.2 Limits . 29
4.2.2.4.3 Conformance . 29
4.2.2.5 Transmitter output power for UE category M1 . 29
4.2.2.5.1 Definition. 29
4.2.2.5.2 Limits . 29
4.2.2.5.3 Conformance . 30
4.2.3 Transmitter Spectrum Emission Mask . 30
4.2.3.1 Transmitter spectrum emission mask for Single Carrier . 30
4.2.3.1.1 Definition. 30
4.2.3.1.2 Limits . 30
4.2.3.1.3 Conformance . 31
4.2.3.2 Transmitter spectrum emission mask for Carrier Aggregation (DL CA and UL CA) . 31
4.2.3.2.1 Definition. 31
4.2.3.2.2 Limits . 31
4.2.3.2.3 Conformance . 33
4.2.3.3 Transmitter spectrum emission mask for UL-MIMO . 33
4.2.3.3.1 Definition. 33
4.2.3.3.2 Limits . 34
4.2.3.3.3 Conformance . 34
4.2.3.4 Transmitter spectrum emission mask for Multi-Cluster PUSCH within a component carrier . 34
4.2.3.4.1 Definition. 34
4.2.3.4.2 Limits . 34
ETSI
4 Final draft ETSI EN 301 908-13 V13.4.1 (2026-06)
4.2.3.4.3 Conformance . 34
4.2.3.5 Transmitter spectrum emission mask for category NB1 . 34
4.2.3.5.1 Definition. 34
4.2.3.5.2 Limits . 34
4.2.3.5.3 Conformance . 34
4.2.4 Transmitter Spurious Emissions . 35
4.2.4.1 Transmitter spurious emissions for Single Carrier . 35
4.2.4.1.1 Definition. 35
4.2.4.1.2 Limits . 35
4.2.4.1.3 Conformance . 39
4.2.4.2 Transmitter spurious emissions for Carrier Aggregation (DL CA and UL CA) . 39
4.2.4.2.1 Definition. 39
4.2.4.2.2 Limits . 39
4.2.4.2.3 Conformance . 44
4.2.4.3 Transmitter spurious emissions for UL-MIMO . 44
4.2.4.3.1 Definition. 44
4.2.4.3.2 Limits . 45
4.2.4.3.3 Conformance . 45
4.2.4.4 Transmitter spurious emissions for Multi-Cluster PUSCH within a component carrier . 45
4.2.4.4.1 Definition. 45
4.2.4.4.2 Limits . 45
4.2.4.4.3 Conformance . 45
4.2.4.5 Transmitter spurious emissions for category NB1 . 45
4.2.4.5.1 Definition. 45
4.2.4.5.2 Limits . 45
4.2.4.5.3 Conformance . 46
4.2.5 Transmitter Minimum Output Power . 46
4.2.5.1 Transmitter minimum output power for Single Carrier. 46
4.2.5.1.1 Definition. 46
4.2.5.1.2 Limits . 46
4.2.5.1.3 Conformance . 46
4.2.5.2 Transmitter minimum output power for Carrier Aggregation (DL CA and UL CA) . 46
4.2.5.2.1 Definition. 46
4.2.5.2.2 Limits . 46
4.2.5.2.3 Conformance . 47
4.2.5.3 Transmitter minimum output power for UL-MIMO . 47
4.2.5.3.1 Definition. 47
4.2.5.3.2 Limits . 47
4.2.5.3.3 Conformance . 47
4.2.5.4 Transmitter minimum output power for category NB1 . 47
4.2.5.4.1 Definition. 47
4.2.5.4.2 Limits . 47
4.2.5.4.3 Conformance . 47
4.2.6 Receiver Adjacent Channel Selectivity (ACS) . 48
4.2.6.1 Receiver Adjacent Channel Selectivity (ACS) for Single Carrier . 48
4.2.6.1.1 Definition. 48
4.2.6.1.2 Limits . 48
4.2.6.1.3 Conformance . 49
4.2.6.2 Receiver Adjacent Channel Selectivity (ACS) for Carrier Aggregation in DL-only bands . 49
4.2.6.2.1 Definition. 49
4.2.6.2.2 Limits . 49
4.2.6.2.3 Conformance . 50
4.2.6.3 Receiver Adjacent Channel Selectivity (ACS) for category NB1 . 50
4.2.6.3.1 Definition. 50
4.2.6.3.2 Limits . 50
4.2.6.3.3 Conformance . 51
4.2.7 Receiver Blocking Characteristics . 51
4.2.7.1 Receiver Blocking Characteristics for Single Carrier . 51
4.2.7.1.1 Definition. 51
4.2.7.1.2 Limits . 51
4.2.7.1.3 Conformance . 53
4.2.7.2 Receiver Blocking Characteristics for Carrier Aggregation in DL-only bands . 53
ETSI
5 Final draft ETSI EN 301 908-13 V13.4.1 (2026-06)
4.2.7.2.1 Definition. 53
4.2.7.2.2 Limits . 53
4.2.7.2.3 Conformance . 56
4.2.7.3 Receiver Blocking Characteristics for category NB1 . 57
4.2.7.3.1 Definition. 57
4.2.7.3.2 Limits . 57
4.2.7.3.3 Conformance . 58
4.2.8 Receiver Spurious Response . 58
4.2.8.1 Receiver Spurious Response for Single Carrier . 58
4.2.8.1.1 Definition. 58
4.2.8.1.2 Limits . 58
4.2.8.1.3 Conformance . 58
4.2.8.2 Receiver Spurious Response for Carrier Aggregation in DL-only bands . 59
4.2.8.2.1 Definition. 59
4.2.8.2.2 Limits . 59
4.2.8.2.3 Conformance . 59
4.2.8.3 Receiver Spurious Response for category NB1 . 59
4.2.8.3.1 Definition. 59
4.2.8.3.2 Limits . 59
4.2.8.3.3 Conformance . 59
4.2.9 Receiver Intermodulation Characteristic . 60
4.2.9.1 Receiver Intermodulation Characteristics for Single Carrier . 60
4.2.9.1.1 Definition. 60
4.2.9.1.2 Limits . 60
4.2.9.1.3 Conformance . 60
4.2.9.2 Receiver Intermodulation Characteristics for Carrier Aggregation in DL-only bands . 61
4.2.9.2.1 Definition. 61
4.2.9.2.2 Limits . 61
4.2.9.2.3 Conformance . 61
4.2.9.3 Receiver Intermodulation Characteristics for category NB1 . 61
4.2.9.3.1 Definition. 61
4.2.9.3.2 Limits . 62
4.2.9.3.3 Conformance . 62
4.2.10 Receiver Spurious Emissions . 62
4.2.10.1 Receiver Spurious Emissions for Single Carrier . 62
4.2.10.1.1 Definition. 62
4.2.10.1.2 Limits . 62
4.2.10.1.3 Conformance . 62
4.2.10.2 Receiver Spurious Emissions in DL-only bands . 62
4.2.10.2.1 Definition. 62
4.2.10.2.2 Limits . 63
4.2.10.2.3 Conformance . 63
4.2.11 Transmitter Adjacent Channel Leakage Power Ratio . 63
4.2.11.1 Transmitter adjacent channel leakage power ratio for Single Carrier . 63
4.2.11.1.1 Definition. 63
4.2.11.1.2 Limits . 63
4.2.11.1.3 Conformance . 64
4.2.11.2 Transmitter adjacent channel leakage power ratio for Carrier Aggregation (DL CA and UL CA). 64
4.2.11.2.1 Definition. 64
4.2.11.2.2 Limits for CA UTRA . 66
4.2.11.2.3 Limits for CA E-UTRA . 67
4.2.11.2.4 Conformance . 67
4.2.11.3 Transmitter adjacent channel leakage power ratio for UL-MIMO . 67
4.2.11.3.1 Definition. 67
4.2.11.3.2 Limits . 68
4.2.11.3.3 Conformance . 69
4.2.11.4 Transmitter adjacent channel leakage power ratio for Multi-Cluster PUSCH within a component
carrier . 69
4.2.11.4.1 Definition. 69
4.2.11.4.2 Limits . 69
4.2.11.4.3 Conformance . 69
4.2.11.5 Transmitter adjacent channel leakage power ratio for category NB1 . 70
ETSI
6 Final draft ETSI EN 301 908-13 V13.4.1 (2026-06)
4.2.11.5.1 Definition. 70
4.2.11.5.2 Limits . 70
4.2.11.5.3 Conformance . 70
4.2.12 Receiver Reference Sensitivity Level . 70
4.2.12.0 General . 70
4.2.12.1 Receiver Reference Sensitivity Level for Single Carrier . 70
4.2.12.1.1 Definition. 70
4.2.12.1.2 Limits . 70
4.2.12.1.3 Conformance . 71
4.2.12.2 Receiver Reference Sensitivity Level for Carrier Aggregation in DL-only bands . 71
4.2.12.2.1 Definition. 71
4.2.12.2.2 Limits . 71
4.2.12.2.3 Conformance . 72
4.2.12.3 Receiver Reference Sensitivity Level for category NB1 . 72
4.2.12.3.1 Definition. 72
4.2.12.3.2 Limits . 73
4.2.12.3.3 Conformance . 73
4.2.12.4 Receiver Reference Sensitivity Level for UE category 0 . 73
4.2.12.4.1 Definition. 73
4.2.12.4.2 Limits . 73
4.2.12.4.3 Conformance . 74
4.2.12.5 Receiver Reference Sensitivity Level for UE category M1 . 74
4.2.12.5.1 Definition. 74
4.2.12.5.2 Limits . 74
4.2.12.5.3 Conformance . 75
4.2.13 Receiver Total Radiated Sensitivity (TRS) . 75
4.2.13.0 Applicability. 75
4.2.13.1 Definition . 75
4.2.13.2 Limits . 76
4.2.13.3 Conformance . 77
4.2.14 Total Radiated Power (TRP) . 77
4.2.14.0 Applicability. 77
4.2.14.1 Definition . 77
4.2.14.2 Limits . 78
5 Testing for compliance with technical requirements . 79
5.1 Environmental conditions for testing . 79
5.2 Void . 79
5.3 Essential radio test suites . 79
5.3.0 General . 79
5.3.1 Transmitter Maximum Output Power . 79
5.3.1.1 Transmitter maximum output power for Single Carrier . 79
5.3.1.1.1 Method of test . 79
5.3.1.1.2 Test requirements . 80
5.3.1.2 Transmitter maximum output power for intra-band contiguous Carrier Aggregation (DL CA and
UL CA) . 80
5.3.1.2.1 Method of test . 80
5.3.1.2.2 Test requirements . 81
5.3.1.2A Transmitter maximum output power for inter-band Carrier Aggregation (DL CA and UL CA) . 81
5.3.1.2A.1 Method of test . 81
5.3.1.2A.2 Test requirements . 82
5.3.1.3 Transmitter maximum output power for UL-MIMO . 82
5.3.1.3.1 Method of test . 82
5.3.1.3.2 Test requirements . 83
5.3.1.4 Transmitter maximum output power for category NB1 . 83
5.3.1.4.1 Method of Test . 83
5.3.1.4.2 Test requirements . 83
5.3.1.5 Transmitter maximum output power for UE category 0 . 84
5.3.1.5.1 Method of test . 84
5.3.1.5.2 Test requirements . 84
5.3.1.6 Transmitter maximum output power for UE category M1 . 84
5.3.1.6.1 Method of test . 84
ETSI
7 Final draft ETSI EN 301 908-13 V13.4.1 (2026-06)
5.3.1.6.2 Test requirements . 85
5.3.2 Transmitter Spectrum Emission Mask . 85
5.3.2.1 Transmitter spectrum emission mask for Single Carrier . 85
5.3.2.1.1 Method of test . 85
5.3.2.1.2 Test requirements . 86
5.3.2.2 Transmitter spectrum emission mask for intra-band contiguous Carrier Aggregation (DL CA and
UL CA) . 86
5.3.2.2.1 Method of test . 86
5.3.2.2.2 Test requirements . 87
5.3.2.2A Transmitter spectrum emission mask for inter-band Carrier Aggregation (DL CA and UL CA) . 87
5.3.2.2A.1 Method of test . 87
5.3.2.2A.2 Test requirements . 88
5.3.2.3 Transmitter spectrum emission mask for UL-MIMO . 88
5.3.2.3.1 Method of test . 88
5.3.2.3.2 Test requirements . 89
5.3.2.4 Transmitter spectrum emission mask for Multi-Cluster PUSCH within a component carrier . 89
5.3.2.4.1 Method of test . 89
5.3.2.4.2 Test requirements . 89
5.3.2.5 Transmitter spectrum emission mask for category NB1 . 90
5.3.2.5.1 Method of test . 90
5.3.2.5.2 Test requirements . 90
5.3.2.6 Transmitter spectrum emission mask for UE category 0 . 91
5.3.2.6.1 Method of test . 91
5.3.2.6.2 Test requirements . 91
5.3.2.7 Transmitter spectrum emission mask for UE category M1 . 91
5.3.2.7.1 Method of test . 91
5.3.2.7.2 Test requirements . 92
5.3.3 Transmitter Spurious Emissions . 92
5.3
...

HARMONISED EUROPEAN STANDARD
IMT cellular networks;
Harmonised Standard for access to radio spectrum;
Part 13: Evolved Universal Terrestrial Radio Access (E-UTRA)
User Equipment (UE)
2 ETSI EN 301 908-13 V13.4.1 (2026-09)

Reference
REN/MSG-TFES-1512
Keywords
3G, 3GPP, cellular, digital, E-UTRA, IMT,
IMT-2000, IMT-Advanced, LTE, LTE-Advanced,
mobile, radio, regulation, UMTS

ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from the
ETSI Search & Browse Standards application.
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format on ETSI deliver repository.
Users should be aware that the present document may be revised or have its status changed,
this information is available in the Milestones listing.
If you find errors in the present document, please send your comments to
the relevant service listed under Committee Support Staff.
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure (CVD) program.
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part of this document may be reproduced in any form, by any means and in any media, without the prior written
authorization of ETSI and except as expressly permitted below.
By way of exception and when the document is a normative deliverable (European Standard (EN),
Technical Specification (TS), Group Specification (GS) or ETSI Standard (ES)), ETSI authorizes to reproduce
and incorporate into products, services and technical documentation only those extracts (e.g. templates) that are strictly
necessary for the technical implementation of the normative deliverable, to ensure compliance with the latter.
Nothing in this notice shall be construed as limiting any mandatory exceptions to copyright provided by applicable law.

© ETSI 2026.
All rights reserved.
ETSI
3 ETSI EN 301 908-13 V13.4.1 (2026-09)
Contents
Intellectual Property Rights . 11
Foreword . 11
Modal verbs terminology . 12
Introduction . 12
1 Scope . 13
2 References . 16
2.1 Normative references . 16
2.2 Informative references . 16
3 Definition of terms, symbols and abbreviations . 18
3.1 Terms . 18
3.2 Symbols . 21
3.3 Abbreviations . 23
4 Technical requirements specifications . 25
4.1 Environmental profile . 25
4.2 Conformance requirements . 25
4.2.0 General . 25
4.2.1 Introduction. 25
4.2.2 Transmitter Maximum Output Power . 26
4.2.2.1 Transmitter maximum output power for Single Carrier . 26
4.2.2.1.1 Definition. 26
4.2.2.1.2 Limits . 26
4.2.2.1.3 Conformance . 26
4.2.2.2 Transmitter output power for Carrier Aggregation (DL CA and UL CA) . 26
4.2.2.2.1 Definition. 26
4.2.2.2.2 Limits . 27
4.2.2.2.3 Conformance . 28
4.2.2.3 Transmitter output power for UL-MIMO . 28
4.2.2.3.1 Definition. 28
4.2.2.3.2 Limits . 28
4.2.2.3.3 Conformance . 28
4.2.2.4 Transmitter output power for category NB1 . 29
4.2.2.4.1 Definition. 29
4.2.2.4.2 Limits . 29
4.2.2.4.3 Conformance . 29
4.2.2.5 Transmitter output power for UE category M1 . 29
4.2.2.5.1 Definition. 29
4.2.2.5.2 Limits . 29
4.2.2.5.3 Conformance . 30
4.2.3 Transmitter Spectrum Emission Mask . 30
4.2.3.1 Transmitter spectrum emission mask for Single Carrier . 30
4.2.3.1.1 Definition. 30
4.2.3.1.2 Limits . 30
4.2.3.1.3 Conformance . 31
4.2.3.2 Transmitter spectrum emission mask for Carrier Aggregation (DL CA and UL CA) . 31
4.2.3.2.1 Definition. 31
4.2.3.2.2 Limits . 31
4.2.3.2.3 Conformance . 33
4.2.3.3 Transmitter spectrum emission mask for UL-MIMO . 33
4.2.3.3.1 Definition. 33
4.2.3.3.2 Limits . 34
4.2.3.3.3 Conformance . 34
4.2.3.4 Transmitter spectrum emission mask for Multi-Cluster PUSCH within a component carrier . 34
4.2.3.4.1 Definition. 34
4.2.3.4.2 Limits . 34
ETSI
4 ETSI EN 301 908-13 V13.4.1 (2026-09)
4.2.3.4.3 Conformance . 34
4.2.3.5 Transmitter spectrum emission mask for category NB1 . 34
4.2.3.5.1 Definition. 34
4.2.3.5.2 Limits . 34
4.2.3.5.3 Conformance . 34
4.2.4 Transmitter Spurious Emissions . 35
4.2.4.1 Transmitter spurious emissions for Single Carrier . 35
4.2.4.1.1 Definition. 35
4.2.4.1.2 Limits . 35
4.2.4.1.3 Conformance . 39
4.2.4.2 Transmitter spurious emissions for Carrier Aggregation (DL CA and UL CA) . 39
4.2.4.2.1 Definition. 39
4.2.4.2.2 Limits . 39
4.2.4.2.3 Conformance . 44
4.2.4.3 Transmitter spurious emissions for UL-MIMO . 44
4.2.4.3.1 Definition. 44
4.2.4.3.2 Limits . 45
4.2.4.3.3 Conformance . 45
4.2.4.4 Transmitter spurious emissions for Multi-Cluster PUSCH within a component carrier . 45
4.2.4.4.1 Definition. 45
4.2.4.4.2 Limits . 45
4.2.4.4.3 Conformance . 45
4.2.4.5 Transmitter spurious emissions for category NB1 . 45
4.2.4.5.1 Definition. 45
4.2.4.5.2 Limits . 45
4.2.4.5.3 Conformance . 46
4.2.5 Transmitter Minimum Output Power . 46
4.2.5.1 Transmitter minimum output power for Single Carrier. 46
4.2.5.1.1 Definition. 46
4.2.5.1.2 Limits . 46
4.2.5.1.3 Conformance . 46
4.2.5.2 Transmitter minimum output power for Carrier Aggregation (DL CA and UL CA) . 46
4.2.5.2.1 Definition. 46
4.2.5.2.2 Limits . 46
4.2.5.2.3 Conformance . 47
4.2.5.3 Transmitter minimum output power for UL-MIMO . 47
4.2.5.3.1 Definition. 47
4.2.5.3.2 Limits . 47
4.2.5.3.3 Conformance . 47
4.2.5.4 Transmitter minimum output power for category NB1 . 47
4.2.5.4.1 Definition. 47
4.2.5.4.2 Limits . 47
4.2.5.4.3 Conformance . 47
4.2.6 Receiver Adjacent Channel Selectivity (ACS) . 48
4.2.6.1 Receiver Adjacent Channel Selectivity (ACS) for Single Carrier . 48
4.2.6.1.1 Definition. 48
4.2.6.1.2 Limits . 48
4.2.6.1.3 Conformance . 49
4.2.6.2 Receiver Adjacent Channel Selectivity (ACS) for Carrier Aggregation in DL-only bands . 49
4.2.6.2.1 Definition. 49
4.2.6.2.2 Limits . 49
4.2.6.2.3 Conformance . 50
4.2.6.3 Receiver Adjacent Channel Selectivity (ACS) for category NB1 . 50
4.2.6.3.1 Definition. 50
4.2.6.3.2 Limits . 50
4.2.6.3.3 Conformance . 51
4.2.7 Receiver Blocking Characteristics . 51
4.2.7.1 Receiver Blocking Characteristics for Single Carrier . 51
4.2.7.1.1 Definition. 51
4.2.7.1.2 Limits . 51
4.2.7.1.3 Conformance . 53
4.2.7.2 Receiver Blocking Characteristics for Carrier Aggregation in DL-only bands . 53
ETSI
5 ETSI EN 301 908-13 V13.4.1 (2026-09)
4.2.7.2.1 Definition. 53
4.2.7.2.2 Limits . 53
4.2.7.2.3 Conformance . 56
4.2.7.3 Receiver Blocking Characteristics for category NB1 . 57
4.2.7.3.1 Definition. 57
4.2.7.3.2 Limits . 57
4.2.7.3.3 Conformance . 58
4.2.8 Receiver Spurious Response . 58
4.2.8.1 Receiver Spurious Response for Single Carrier . 58
4.2.8.1.1 Definition. 58
4.2.8.1.2 Limits . 58
4.2.8.1.3 Conformance . 58
4.2.8.2 Receiver Spurious Response for Carrier Aggregation in DL-only bands . 59
4.2.8.2.1 Definition. 59
4.2.8.2.2 Limits . 59
4.2.8.2.3 Conformance . 59
4.2.8.3 Receiver Spurious Response for category NB1 . 59
4.2.8.3.1 Definition. 59
4.2.8.3.2 Limits . 59
4.2.8.3.3 Conformance . 59
4.2.9 Receiver Intermodulation Characteristic . 60
4.2.9.1 Receiver Intermodulation Characteristics for Single Carrier . 60
4.2.9.1.1 Definition. 60
4.2.9.1.2 Limits . 60
4.2.9.1.3 Conformance . 60
4.2.9.2 Receiver Intermodulation Characteristics for Carrier Aggregation in DL-only bands . 61
4.2.9.2.1 Definition. 61
4.2.9.2.2 Limits . 61
4.2.9.2.3 Conformance . 61
4.2.9.3 Receiver Intermodulation Characteristics for category NB1 . 61
4.2.9.3.1 Definition. 61
4.2.9.3.2 Limits . 62
4.2.9.3.3 Conformance . 62
4.2.10 Receiver Spurious Emissions . 62
4.2.10.1 Receiver Spurious Emissions for Single Carrier . 62
4.2.10.1.1 Definition. 62
4.2.10.1.2 Limits . 62
4.2.10.1.3 Conformance . 62
4.2.10.2 Receiver Spurious Emissions in DL-only bands . 62
4.2.10.2.1 Definition. 62
4.2.10.2.2 Limits . 63
4.2.10.2.3 Conformance . 63
4.2.11 Transmitter Adjacent Channel Leakage Power Ratio . 63
4.2.11.1 Transmitter adjacent channel leakage power ratio for Single Carrier . 63
4.2.11.1.1 Definition. 63
4.2.11.1.2 Limits . 63
4.2.11.1.3 Conformance . 64
4.2.11.2 Transmitter adjacent channel leakage power ratio for Carrier Aggregation (DL CA and UL CA). 64
4.2.11.2.1 Definition. 64
4.2.11.2.2 Limits for CA UTRA . 66
4.2.11.2.3 Limits for CA E-UTRA . 67
4.2.11.2.4 Conformance . 67
4.2.11.3 Transmitter adjacent channel leakage power ratio for UL-MIMO . 67
4.2.11.3.1 Definition. 67
4.2.11.3.2 Limits . 68
4.2.11.3.3 Conformance . 69
4.2.11.4 Transmitter adjacent channel leakage power ratio for Multi-Cluster PUSCH within a component
carrier . 69
4.2.11.4.1 Definition. 69
4.2.11.4.2 Limits . 69
4.2.11.4.3 Conformance . 69
4.2.11.5 Transmitter adjacent channel leakage power ratio for category NB1 . 70
ETSI
6 ETSI EN 301 908-13 V13.4.1 (2026-09)
4.2.11.5.1 Definition. 70
4.2.11.5.2 Limits . 70
4.2.11.5.3 Conformance . 70
4.2.12 Receiver Reference Sensitivity Level . 70
4.2.12.0 General . 70
4.2.12.1 Receiver Reference Sensitivity Level for Single Carrier . 70
4.2.12.1.1 Definition. 70
4.2.12.1.2 Limits . 70
4.2.12.1.3 Conformance . 71
4.2.12.2 Receiver Reference Sensitivity Level for Carrier Aggregation in DL-only bands . 71
4.2.12.2.1 Definition. 71
4.2.12.2.2 Limits . 71
4.2.12.2.3 Conformance . 72
4.2.12.3 Receiver Reference Sensitivity Level for category NB1 . 72
4.2.12.3.1 Definition. 72
4.2.12.3.2 Limits . 73
4.2.12.3.3 Conformance . 73
4.2.12.4 Receiver Reference Sensitivity Level for UE category 0 . 73
4.2.12.4.1 Definition. 73
4.2.12.4.2 Limits . 73
4.2.12.4.3 Conformance . 74
4.2.12.5 Receiver Reference Sensitivity Level for UE category M1 . 74
4.2.12.5.1 Definition. 74
4.2.12.5.2 Limits . 74
4.2.12.5.3 Conformance . 75
4.2.13 Receiver Total Radiated Sensitivity (TRS) . 75
4.2.13.0 Applicability. 75
4.2.13.1 Definition . 75
4.2.13.2 Limits . 76
4.2.13.3 Conformance . 77
4.2.14 Total Radiated Power (TRP) . 77
4.2.14.0 Applicability. 77
4.2.14.1 Definition . 77
4.2.14.2 Limits . 78
5 Testing for compliance with technical requirements . 79
5.1 Environmental conditions for testing . 79
5.2 Void . 79
5.3 Essential radio test suites . 79
5.3.0 General . 79
5.3.1 Transmitter Maximum Output Power . 79
5.3.1.1 Transmitter maximum output power for Single Carrier . 79
5.3.1.1.1 Method of test . 79
5.3.1.1.2 Test requirements . 80
5.3.1.2 Transmitter maximum output power for intra-band contiguous Carrier Aggregation (DL CA and
UL CA) . 80
5.3.1.2.1 Method of test . 80
5.3.1.2.2 Test requirements . 81
5.3.1.2A Transmitter maximum output power for inter-band Carrier Aggregation (DL CA and UL CA) . 81
5.3.1.2A.1 Method of test . 81
5.3.1.2A.2 Test requirements . 82
5.3.1.3 Transmitter maximum output power for UL-MIMO . 82
5.3.1.3.1 Method of test . 82
5.3.1.3.2 Test requirements . 83
5.3.1.4 Transmitter maximum output power for category NB1 . 83
5.3.1.4.1 Method of Test . 83
5.3.1.4.2 Test requirements . 83
5.3.1.5 Transmitter maximum output power for UE category 0 . 84
5.3.1.5.1 Method of test . 84
5.3.1.5.2 Test requirements . 84
5.3.1.6 Transmitter maximum output power for UE category M1 . 84
5.3.1.6.1 Method of test . 84
ETSI
7 ETSI EN 301 908-13 V13.4.1 (2026-09)
5.3.1.6.2 Test requirements . 85
5.3.2 Transmitter Spectrum Emission Mask . 85
5.3.2.1 Transmitter spectrum emission mask for Single Carrier . 85
5.3.2.1.1 Method of test . 85
5.3.2.1.2 Test requirements . 86
5.3.2.2 Transmitter spectrum emission mask for intra-band contiguous Carrier Aggregation (DL CA and
UL CA) . 86
5.3.2.2.1 Method of test . 86
5.3.2.2.2 Test requirements . 87
5.3.2.2A Transmitter spectrum emission mask for inter-band Carrier Aggregation (DL CA and UL CA) . 87
5.3.2.2A.1 Method of test . 87
5.3.2.2A.2 Test requirements . 88
5.3.2.3 Transmitter spectrum emission mask for UL-MIMO . 88
5.3.2.3.1 Method of test . 88
5.3.2.3.2 Test requirements . 89
5.3.2.4 Transmitter spectrum emission mask for Multi-Cluster PUSCH within a component carrier . 89
5.3.2.4.1 Method of test . 89
5.3.2.4.2 Test requirements . 89
5.3.2.5 Transmitter spectrum emission mask for category NB1 . 90
5.3.2.5.1 Method of test . 90
5.3.2.5.2 Test requirements . 90
5.3.2.6 Transmitter spectrum emission mask for UE category 0 . 91
5.3.2.6.1 Method of test . 91
5.3.2.6.2 Test requirements . 91
5.3.2.7 Transmitter spectrum emission mask for UE category M1 . 91
5.3.2.7.1 Method of test . 91
5.3.2.7.2 Test r
...

SLOVENSKI STANDARD
01-november-2026
Celična omrežja IMT - Harmonizirani standard za dostop do radijskega spektra -
13. del: Uporabniška oprema za razviti prizemni radijski dostop za UMTS (E-UTRA)
IMT cellular networks - Harmonised Standard for access to radio spectrum - Part 13:
Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)
Ta slovenski standard je istoveten z: ETSI EN 301 908-13 V13.4.1 (2026-09)
ICS:
33.060.99 Druga oprema za radijske Other equipment for
komunikacije radiocommunications
33.070.99 Druge mobilne storitve Other mobile services
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

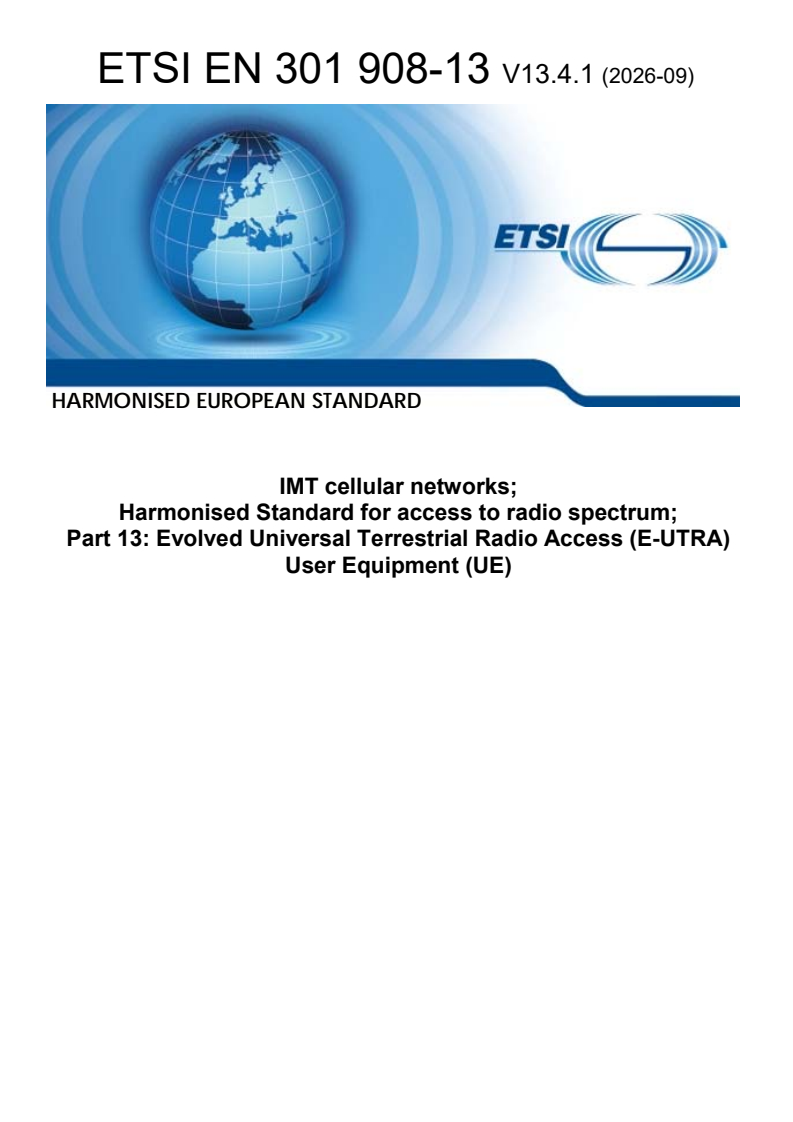

HARMONISED EUROPEAN STANDARD
IMT cellular networks;
Harmonised Standard for access to radio spectrum;
Part 13: Evolved Universal Terrestrial Radio Access (E-UTRA)
User Equipment (UE)
2 ETSI EN 301 908-13 V13.4.1 (2026-09)

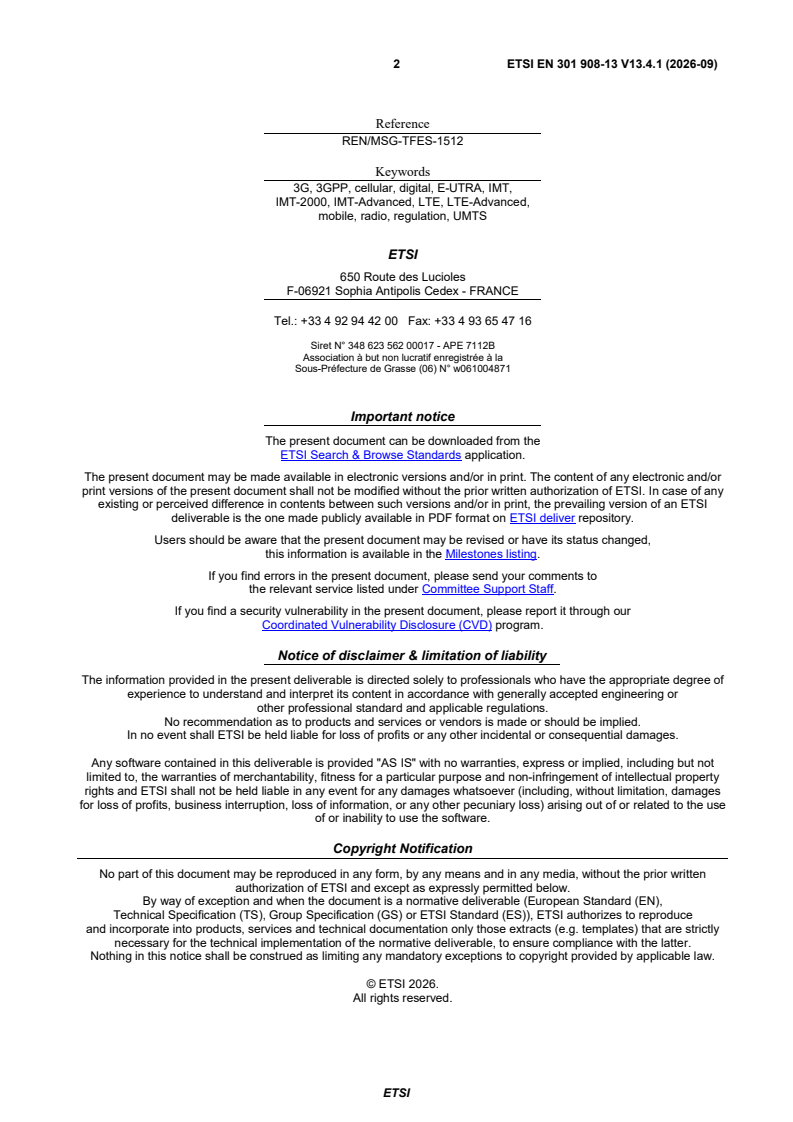

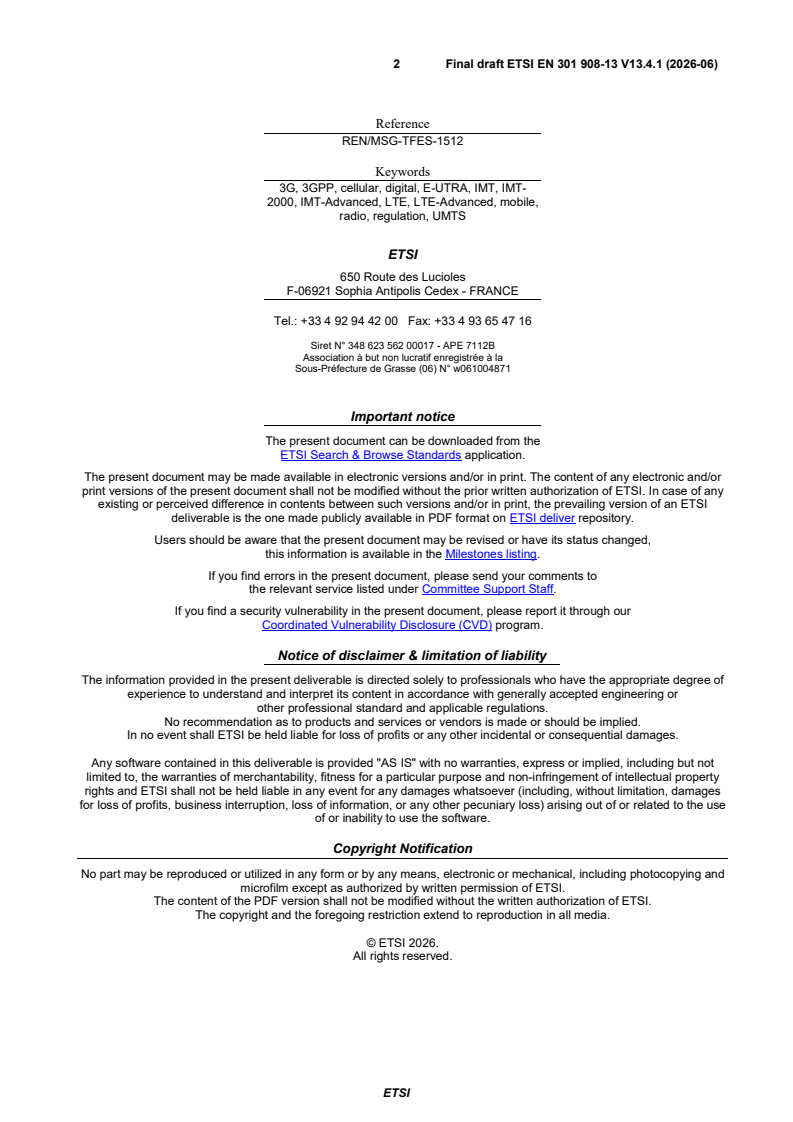

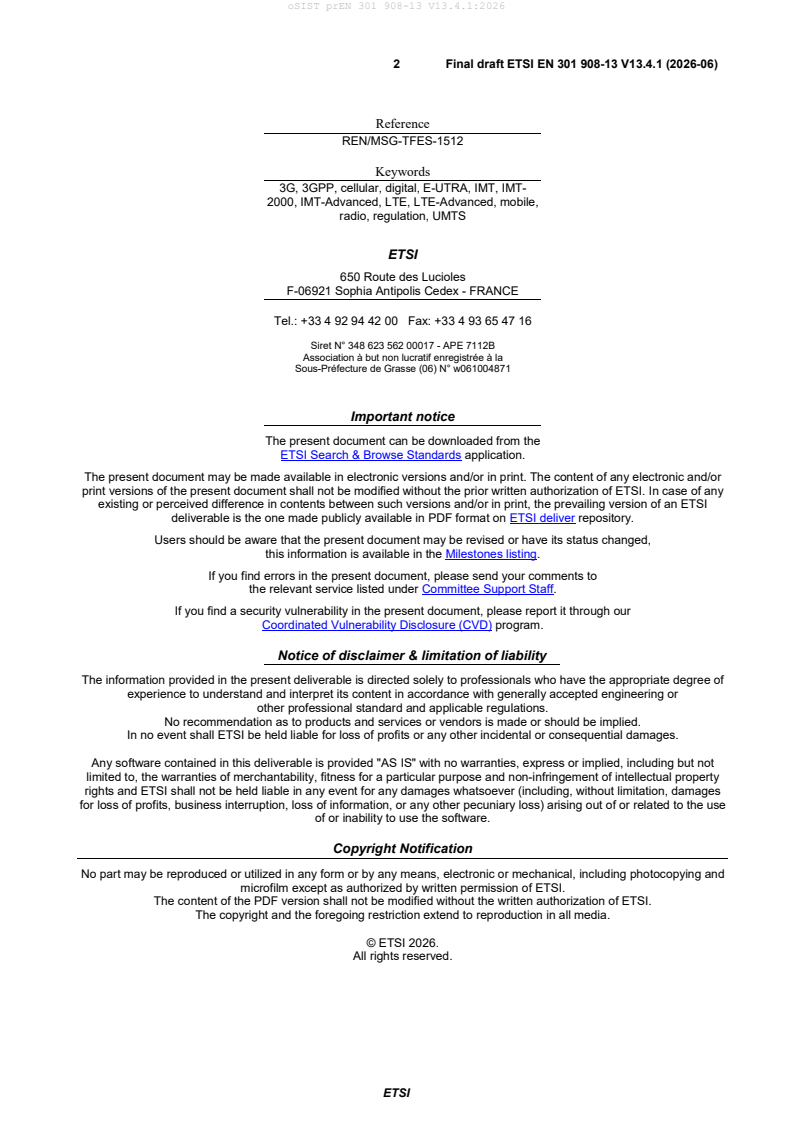

Reference
REN/MSG-TFES-1512
Keywords
3G, 3GPP, cellular, digital, E-UTRA, IMT,
IMT-2000, IMT-Advanced, LTE, LTE-Advanced,
mobile, radio, regulation, UMTS

ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from the
ETSI Search & Browse Standards application.
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format on ETSI deliver repository.
Users should be aware that the present document may be revised or have its status changed,
this information is available in the Milestones listing.
If you find errors in the present document, please send your comments to
the relevant service listed under Committee Support Staff.
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure (CVD) program.
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part of this document may be reproduced in any form, by any means and in any media, without the prior written
authorization of ETSI and except as expressly permitted below.
By way of exception and when the document is a normative deliverable (European Standard (EN),
Technical Specification (TS), Group Specification (GS) or ETSI Standard (ES)), ETSI authorizes to reproduce
and incorporate into products, services and technical documentation only those extracts (e.g. templates) that are strictly
necessary for the technical implementation of the normative deliverable, to ensure compliance with the latter.
Nothing in this notice shall be construed as limiting any mandatory exceptions to copyright provided by applicable law.

© ETSI 2026.
All rights reserved.
ETSI
3 ETSI EN 301 908-13 V13.4.1 (2026-09)
Contents
Intellectual Property Rights . 11
Foreword . 11
Modal verbs terminology . 12
Introduction . 12
1 Scope . 13
2 References . 16
2.1 Normative references . 16
2.2 Informative references . 16
3 Definition of terms, symbols and abbreviations . 18
3.1 Terms . 18
3.2 Symbols . 21
3.3 Abbreviations . 23
4 Technical requirements specifications . 25
4.1 Environmental profile . 25
4.2 Conformance requirements . 25
4.2.0 General . 25
4.2.1 Introduction. 25
4.2.2 Transmitter Maximum Output Power . 26
4.2.2.1 Transmitter maximum output power for Single Carrier . 26
4.2.2.1.1 Definition. 26
4.2.2.1.2 Limits . 26
4.2.2.1.3 Conformance . 26
4.2.2.2 Transmitter output power for Carrier Aggregation (DL CA and UL CA) . 26
4.2.2.2.1 Definition. 26
4.2.2.2.2 Limits . 27
4.2.2.2.3 Conformance . 28
4.2.2.3 Transmitter output power for UL-MIMO . 28
4.2.2.3.1 Definition. 28
4.2.2.3.2 Limits . 28
4.2.2.3.3 Conformance . 28
4.2.2.4 Transmitter output power for category NB1 . 29
4.2.2.4.1 Definition. 29
4.2.2.4.2 Limits . 29
4.2.2.4.3 Conformance . 29
4.2.2.5 Transmitter output power for UE category M1 . 29
4.2.2.5.1 Definition. 29
4.2.2.5.2 Limits . 29
4.2.2.5.3 Conformance . 30
4.2.3 Transmitter Spectrum Emission Mask . 30
4.2.3.1 Transmitter spectrum emission mask for Single Carrier . 30
4.2.3.1.1 Definition. 30
4.2.3.1.2 Limits . 30
4.2.3.1.3 Conformance . 31
4.2.3.2 Transmitter spectrum emission mask for Carrier Aggregation (DL CA and UL CA) . 31
4.2.3.2.1 Definition. 31
4.2.3.2.2 Limits . 31
4.2.3.2.3 Conformance . 33
4.2.3.3 Transmitter spectrum emission mask for UL-MIMO . 33
4.2.3.3.1 Definition. 33
4.2.3.3.2 Limits . 34
4.2.3.3.3 Conformance . 34
4.2.3.4 Transmitter spectrum emission mask for Multi-Cluster PUSCH within a component carrier . 34
4.2.3.4.1 Definition. 34
4.2.3.4.2 Limits . 34
ETSI
4 ETSI EN 301 908-13 V13.4.1 (2026-09)
4.2.3.4.3 Conformance . 34
4.2.3.5 Transmitter spectrum emission mask for category NB1 . 34
4.2.3.5.1 Definition. 34
4.2.3.5.2 Limits . 34
4.2.3.5.3 Conformance . 34
4.2.4 Transmitter Spurious Emissions . 35
4.2.4.1 Transmitter spurious emissions for Single Carrier . 35
4.2.4.1.1 Definition. 35
4.2.4.1.2 Limits . 35
4.2.4.1.3 Conformance . 39
4.2.4.2 Transmitter spurious emissions for Carrier Aggregation (DL CA and UL CA) . 39
4.2.4.2.1 Definition. 39
4.2.4.2.2 Limits . 39
4.2.4.2.3 Conformance . 44
4.2.4.3 Transmitter spurious emissions for UL-MIMO . 44
4.2.4.3.1 Definition. 44
4.2.4.3.2 Limits . 45
4.2.4.3.3 Conformance . 45
4.2.4.4 Transmitter spurious emissions for Multi-Cluster PUSCH within a component carrier . 45
4.2.4.4.1 Definition. 45
4.2.4.4.2 Limits . 45
4.2.4.4.3 Conformance . 45
4.2.4.5 Transmitter spurious emissions for category NB1 . 45
4.2.4.5.1 Definition. 45
4.2.4.5.2 Limits . 45
4.2.4.5.3 Conformance . 46
4.2.5 Transmitter Minimum Output Power . 46
4.2.5.1 Transmitter minimum output power for Single Carrier. 46
4.2.5.1.1 Definition. 46
4.2.5.1.2 Limits . 46
4.2.5.1.3 Conformance . 46
4.2.5.2 Transmitter minimum output power for Carrier Aggregation (DL CA and UL CA) . 46
4.2.5.2.1 Definition. 46
4.2.5.2.2 Limits . 46
4.2.5.2.3 Conformance . 47
4.2.5.3 Transmitter minimum output power for UL-MIMO . 47
4.2.5.3.1 Definition. 47
4.2.5.3.2 Limits . 47
4.2.5.3.3 Conformance . 47
4.2.5.4 Transmitter minimum output power for category NB1 . 47
4.2.5.4.1 Definition. 47
4.2.5.4.2 Limits . 47
4.2.5.4.3 Conformance . 47
4.2.6 Receiver Adjacent Channel Selectivity (ACS) . 48
4.2.6.1 Receiver Adjacent Channel Selectivity (ACS) for Single Carrier . 48
4.2.6.1.1 Definition. 48
4.2.6.1.2 Limits . 48
4.2.6.1.3 Conformance . 49
4.2.6.2 Receiver Adjacent Channel Selectivity (ACS) for Carrier Aggregation in DL-only bands . 49
4.2.6.2.1 Definition. 49
4.2.6.2.2 Limits . 49
4.2.6.2.3 Conformance . 50
4.2.6.3 Receiver Adjacent Channel Selectivity (ACS) for category NB1 . 50
4.2.6.3.1 Definition. 50
4.2.6.3.2 Limits . 50
4.2.6.3.3 Conformance . 51
4.2.7 Receiver Blocking Characteristics . 51
4.2.7.1 Receiver Blocking Characteristics for Single Carrier . 51
4.2.7.1.1 Definition. 51
4.2.7.1.2 Limits . 51
4.2.7.1.3 Conformance . 53
4.2.7.2 Receiver Blocking Characteristics for Carrier Aggregation in DL-only bands . 53
ETSI
5 ETSI EN 301 908-13 V13.4.1 (2026-09)
4.2.7.2.1 Definition. 53
4.2.7.2.2 Limits . 53
4.2.7.2.3 Conformance . 56
4.2.7.3 Receiver Blocking Characteristics for category NB1 . 57
4.2.7.3.1 Definition. 57
4.2.7.3.2 Limits . 57
4.2.7.3.3 Conformance . 58
4.2.8 Receiver Spurious Response . 58
4.2.8.1 Receiver Spurious Response for Single Carrier . 58
4.2.8.1.1 Definition. 58
4.2.8.1.2 Limits . 58
4.2.8.1.3 Conformance . 58
4.2.8.2 Receiver Spurious Response for Carrier Aggregation in DL-only bands . 59
4.2.8.2.1 Definition. 59
4.2.8.2.2 Limits . 59
4.2.8.2.3 Conformance . 59
4.2.8.3 Receiver Spurious Response for category NB1 . 59
4.2.8.3.1 Definition. 59
4.2.8.3.2 Limits . 59
4.2.8.3.3 Conformance . 59
4.2.9 Receiver Intermodulation Characteristic . 60
4.2.9.1 Receiver Intermodulation Characteristics for Single Carrier . 60
4.2.9.1.1 Definition. 60
4.2.9.1.2 Limits . 60
4.2.9.1.3 Conformance . 60
4.2.9.2 Receiver Intermodulation Characteristics for Carrier Aggregation in DL-only bands . 61
4.2.9.2.1 Definition. 61
4.2.9.2.2 Limits . 61
4.2.9.2.3 Conformance . 61
4.2.9.3 Receiver Intermodulation Characteristics for category NB1 . 61
4.2.9.3.1 Definition. 61
4.2.9.3.2 Limits . 62
4.2.9.3.3 Conformance . 62
4.2.10 Receiver Spurious Emissions . 62
4.2.10.1 Receiver Spurious Emissions for Single Carrier . 62
4.2.10.1.1 Definition. 62
4.2.10.1.2 Limits . 62
4.2.10.1.3 Conformance . 62
4.2.10.2 Receiver Spurious Emissions in DL-only bands . 62
4.2.10.2.1 Definition. 62
4.2.10.2.2 Limits . 63
4.2.10.2.3 Conformance . 63
4.2.11 Transmitter Adjacent Channel Leakage Power Ratio . 63
4.2.11.1 Transmitter adjacent channel leakage power ratio for Single Carrier . 63
4.2.11.1.1 Definition. 63
4.2.11.1.2 Limits . 63
4.2.11.1.3 Conformance . 64
4.2.11.2 Transmitter adjacent channel leakage power ratio for Carrier Aggregation (DL CA and UL CA). 64
4.2.11.2.1 Definition. 64
4.2.11.2.2 Limits for CA UTRA . 66
4.2.11.2.3 Limits for CA E-UTRA . 67
4.2.11.2.4 Conformance . 67
4.2.11.3 Transmitter adjacent channel leakage power ratio for UL-MIMO . 67
4.2.11.3.1 Definition. 67
4.2.11.3.2 Limits . 68
4.2.11.3.3 Conformance . 69
4.2.11.4 Transmitter adjacent channel leakage power ratio for Multi-Cluster PUSCH within a component
carrier . 69
4.2.11.4.1 Definition. 69
4.2.11.4.2 Limits . 69
4.2.11.4.3 Conformance . 69
4.2.11.5 Transmitter adjacent channel leakage power ratio for category NB1 . 70
ETSI
6 ETSI EN 301 908-13 V13.4.1 (2026-09)
4.2.11.5.1 Definition. 70
4.2.11.5.2 Limits . 70
4.2.11.5.3 Conformance . 70
4.2.12 Receiver Reference Sensitivity Level . 70
4.2.12.0 General . 70
4.2.12.1 Receiver Reference Sensitivity Level for Single Carrier . 70
4.2.12.1.1 Definition. 70
4.2.12.1.2 Limits . 70
4.2.12.1.3 Conformance . 71
4.2.12.2 Receiver Reference Sensitivity Level for Carrier Aggregation in DL-only bands . 71
4.2.12.2.1 Definition. 71
4.2.12.2.2 Limits . 71
4.2.12.2.3 Conformance . 72
4.2.12.3 Receiver Reference Sensitivity Level for category NB1 . 72
4.2.12.3.1 Definition. 72
4.2.12.3.2 Limits . 73
4.2.12.3.3 Conformance . 73
4.2.12.4 Receiver Reference Sensitivity Level for UE category 0 . 73
4.2.12.4.1 Definition. 73
4.2.12.4.2 Limits . 73
4.2.12.4.3 Conformance . 74
4.2.12.5 Receiver Reference Sensitivity Level for UE category M1 . 74
4.2.12.5.1 Definition. 74
4.2.12.5.2 Limits . 74
4.2.12.5.3 Conformance . 75
4.2.13 Receiver Total Radiated Sensitivity (TRS) . 75
4.2.13.0 Applicability. 75
4.2.13.1 Definition . 75
4.2.13.2 Limits . 76
4.2.13.3 Conformance . 77
4.2.14 Total Radiated Power (TRP) . 77
4.2.14.0 Applicability. 77
4.2.14.1 Definition . 77
4.2.14.2 Limits . 78
5 Testing for compliance with technical requirements . 79
5.1 Environmental conditions for testing . 79
5.2 Void . 79
5.3 Essential radio test suites . 79
5.3.0 General . 79
5.3.1 Transmitter Maximum Output Power . 79
5.3.1.1 Transmitter maximum output power for Single Carrier . 79
5.3.1.1.1 Method of test . 79
5.3.1.1.2 Test requirements . 80
5.3.1.2 Transmitter maximum output power for intra-band contiguous Carrier Aggregation (DL CA and
UL CA) . 80
5.3.1.2.1 Method of test . 80
5.3.1.2.2 Test requirements . 81
5.3.1.2A Transmitter maximum output power for inter-band Carrier Aggregation (DL CA and UL CA) . 81
5.3.1.2A.1 Method of test . 81
5.3.1.2A.2 Test requirements . 82
5.3.1.3 Transmitter maximum output power for UL-MIMO . 82
5.3.1.3.1 Method of test . 82
5.3.1.3.2 Test requirements . 83
5.3.1.4 Transmitter maximum output power for category NB1 . 83
5.3.1.4.1 Method of Test . 83
5.3.1.4.2 Test requirements . 83
5.3.1.5 Transmitter maximum output power for UE category 0 . 84
5.3.1.5.1 Method of test . 84
5.3.1.5.2 Test requirements . 84
5.3.1.6 Transmitter maximum output power for UE category M1 . 84
5.3.1.6.1 Method of test . 84
ETSI
7 ETSI EN 301 908-13 V13.4.1 (2026-09)
5.3.1.6.2 Test requirements . 85
5.3.2 Transmitter Spectrum Emission Mask . 85
5.3.2.1 Transmitter spectrum emission mask for Single Carrier . 85
5.3.2.1.1 Method of test . 85
5.3.2.1.2 Test requirements . 86
5.3.2.2 Transmitter spectrum emission mask for intra-band contiguous Carrier Aggregation (DL CA and
UL CA) . 86
5.3.2.2.1 Method of test . 86
5.3.2.2.2 Test requirements . 87
5.3.2.2A Transmitter spectrum emission mask for inter-band Carrier Aggregation (DL CA and UL CA) . 87
5.3.2.2A.1 Method of test . 87
5.3.2.2A.2 Test requirements . 88
5.3.2.3 Transmitter spectrum emission mask for UL-MIMO . 88
5.3.2.3.1 Method of test . 88
5.3.2.3.2 Test requirements . 89
5.3.2.4 Transmitter spectrum emission mask for Multi-Cluster PUSCH within a component carrier . 89
5.3.2.4.1 Method of test . 89
5.3.2.4.2 Test requirements . 89
5.3.2.5 Transmitter spectrum emission mask for category NB1 .
...
