SIST ETS 300 494-2:1999/A1:1999

• Abstract:

  First ammendment of ETS 300494-2, the CTS for GAP. Based upon ETS 300 494-2 and ETS 300 497, Edition 2, reflecting changes introduced into the second edition of ETS 300 497.

• Status: Published
• Publication Date: 30-Apr-1999
• ICS: 33.070.30 - Digital Enhanced Cordless Telecommunications (DECT)
• Technical Committee: RES - Radio equipment and systems
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-May-1999
• Due Date: 01-May-1999
• Completion Date: 01-May-1999
• Mandate: T-317
• Ref Project: ETSI ETS 300 494-2/A1 ed.1 (1998-02) - Digital Enhanced Cordless Telecommunications (DECT); Generic Access Profile (GAP); Profile Test Specification (PTS); Part 2: Profile Specific Test Specification (PSTS) - Portable radio Termination (PT)

Overview

SIST ETS 300 494-2:1999/A1:1999 is the first amendment to the standard covering the Profile Specific Test Specification (PSTS) for the Generic Access Profile (GAP) in Digital Enhanced Cordless Telecommunications (DECT). Developed by the Slovenski inštitut za standardizacijo (SIST) and based on ETS 300 494-2 and ETS 300 497 Edition 2, this document outlines the necessary test cases to verify compliance of portable radio termination (PT) devices within the DECT/GAP framework. This amendment reflects updates and changes aligned with the second edition of ETS 300 497, ensuring that manufacturers and test laboratories have up-to-date procedures for evaluating DECT portable devices.

Key Topics

• Conformance Test Cases:
  The amendment introduces updated and new test cases covering the network (NWK), Data Link Control (DLC), and Medium Access Control (MAC) layers, directly referencing ETS 300 497.

• Test Coverage:
  Test procedures include call control, mobility management, ciphering, authentication, key allocation, location registration, bearer and link management, as well as error and timer handling for portable radio termination.

• Amendment Updates:
  This document modifies and replaces various tables and subclauses in the original ETS 300 494-2 standard, aligning test specifications with the refined requirements in ETS 300 497.

• Layered Testing Approach:

  • NWK Layer: Handling call and connection states, information, release, and security procedures
  • DLC Layer: Verification of frame acknowledgements, retransmissions, link establishment, and information transfer processes
  • MAC Layer: Management of bearer handover, bearer release, paging, timing, and encryption scenarios

• Test Case Structure:
  Each test case specifies the conditions, expected behaviour, and verdict outcome (Pass/Fail/Inconclusive) for comprehensive device assessment.

Applications

• Device Compliance Testing:
  Manufacturers of DECT portable devices use this standard to demonstrate conformity with GAP requirements, ensuring compatibility and interoperability within the DECT ecosystem.

• Verification and Certification:
  Test laboratories refer to the detailed test case index to systematically evaluate PT (portable termination) functionality, network integration, and security performance before market release.

• Quality Assurance:
  Implementing these test cases in the development cycle enables early detection of protocol errors, improving device reliability and reducing costly redesigns.

• European Market Access:
  Compliance with SIST ETS 300 494-2:1999/A1:1999 is critical for DECT product certification and enables alignment with harmonized European telecommunications regulations.

• Continuous Improvement:
  The amendment process ensures that test specifications remain current, accommodating evolving DECT standards and industry feedback.

Related Standards

• ETS 300 494-2:
  The original Profile Test Specification (PTS) for GAP, defining overall conformance criteria for DECT portable radio termination.

• ETS 300 497 (Edition 2):
  The core specification upon which this amendment is based, detailing protocol and test requirements for DECT profiles.

• EN 300 444:
  Standard for DECT GAP, referenced for baseline profile characteristics and interoperability.

• ETSI Standards Series:
  This standard is part of the broader ETSI family supporting standardized cordless telecommunications across Europe.

Conclusion

Adopting SIST ETS 300 494-2:1999/A1:1999 ensures rigorous and up-to-date testing of DECT portable devices under the GAP framework. By following these verified test procedures, manufacturers and laboratories can guarantee product quality, regulatory compliance, and seamless operation within DECT networks, supporting the reliable deployment of advanced cordless telecommunications solutions.

Keywords: DECT, Generic Access Profile, GAP, portable radio termination, compliance testing, profile test specification, conformance, SIST, ETSI, telecommunications standard, device certification, test cases, wireless communication.

SLOVENSKI STANDARD
3SIST ETS 300 494-2:1999/A1:1999
01-MDQXDU1999
'LJLWDOQHL]EROMãDQHEUH]YUYLþQHWHOHNRPXQLNDFLMH'(&73URILOJHQHULþQHJD
GRVWRSD*$3GHO2GSURILODRGYLVQDSUHVNXãDOQDVSHFLILNDFLMD3676
SUHQRVQDUDGLMVND]DNOMXþLWHY
Digital Enhanced Cordless Telecommunications (DECT); Generic Access Profile (GAP);
Profile Test Specification (PTS); Part 2: Profile Specific Test Specification (PSTS) -
Portable radio Termination (PT)
Ta slovenski standard je istoveten z: ETS 300 494-2/A1 E1
ICS:
33.070.30 'LJLWDOQHL]EROMãDQH Digital Enhanced Cordless
EUH]YUYLþQHWHOHNRPXQLNDFLMH Telecommunications (DECT)
'(&7
3SIST ETS 300 494-2:1999/A1:1999 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

ETS 300 494-2
AMENDMENT A1
February 1998
Source: DECT Reference: RE/DECT-040093-2
ICS: 33.020
Key words: DECT, GAP, testing
This amendment A1 modifies
the European Telecommunication Standard ETS 300 494-2 (1996)
Digital Enhanced Cordless Telecommunications (DECT);
Generic Access Profile (GAP);
Profile Test Specification (PTS);
Part 2: Profile Specific Test Specification (PSTS) -
Portable radio Termination (PT)
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
X.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail]
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1998. All rights reserved.

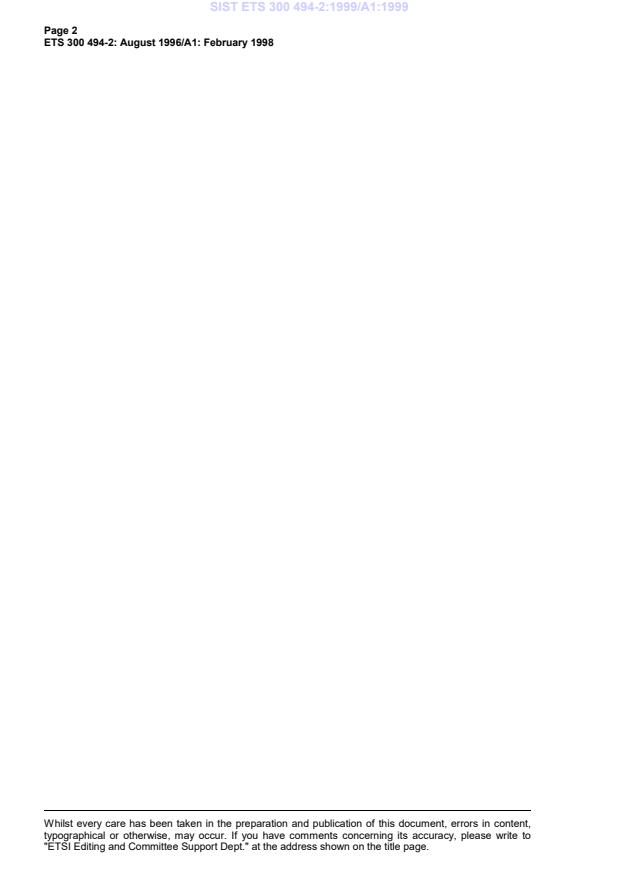

Page 2
ETS 300 494-2: August 1996/A1: February 1998
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 494-2: August 1996/A1: February 1998
Foreword
This amendment to ETS 300 494-2 (1996) has been produced by the Digital Enhanced Cordless
Telecommunications (DECT) Project of the European Telecommunications Standards Institute (ETSI).
Transposition dates
Date of adoption of this amendment: 6 February 1998
Date of latest announcement of this amendment (doa): 31 May 1998
Date of latest publication or endorsement of this amendment (dop/e): 30 November 1998
Date of withdrawal of any conflicting National Standard (dow): 30 November 1998

Page 4
ETS 300 494-2: August 1996/A1: February 1998
Amendments
Clause 2
Modify clause 2 as follows:
[8]                   ETS 300 444 (1995): "Radio Equipment and Systems (RES); Digital European
Cordless Telecommunications (DECT); Generic Access Profile (GAP)”.
[8]                   EN 300 444: "Digital European Cordless Telecommunications (DECT); Generic
Access Profile (GAP)”.
Subclause 4.1
Modify subclause 4.1 as follows:
This subclause includes lists of the test groups, and abstract test cases and test steps relevant for GAP
Profile Test Specification (PTS) - Network (NWK) layer Portable radio Termination (PT) derived from
ETS 300 497-7 [24].
The page number referenced is the relative page number in the corresponding ETS where the particular
item can be found.
NOTE: As ETS 300 497 [18] is a draft ETS, and some changes are likely due to the results of
the Public Enquiry (PE) phase, page numbers reflecting the exact place in that ETS
where a test case is to be found are not included in this ETS. They will be added in at a
later stage. References when necessary are given based on the particular test case
name unique through all test specification ETS 300 497 [18].

Page 5
ETS 300 494-2: August 1996/A1: February 1998
Subclause 4.1.2
Replace table 2 with the following table 2:
Table 2
Test Case Index
Test Group Test Case Id Description
Reference
PT/CC/BV/OC/ TC_PT_CC_BV_OC_01 Outgoing call; T-00, T-01, T-02, T-03, T-04, T-10; piece
wise dialling in T-02
TC_PT_CC_BV_OC_02 Outgoing call; states T-00, T-01, T-10; piece wise
dialling in T-10
TC_PT_CC_BV_OC_03 Outgoing call; states T-00, T-01, T-02, T-10; piece wise
dialling in T-02 and T-10
TC_PT_CC_BV_OC_04 Outgoing call; U-plane connection upon < ind.>> in {CC-SETUP-ACK}
PT/CC/BV/IC/ TC_PT_CC_BV_IC_01 Incoming call; T-01, T-06, T-07, T-08, T-10;
<> in T-07
TC_PT_CC_BV_IC_02 Incoming call; T-01, T-06, T-07, T-08, T-10;
<> in {CC-SETUP}
PT/CC/BV/CI/ TC_PT_CC_BV_CI_01 Alerting the user; Incoming call; <> in {CC-
SETUP}
TC_PT_CC_BV_CI_02 Go to pulse invocation in T-02; Outgoing call
TC_PT_CC_BV_CI_03 Go to pulse invocation in T-10; Outgoing call
TC_PT_CC_BV_CI_04 Dialling pause indication in T-02; Outgoing call
TC_PT_CC_BV_CI_05 Dialling pause indication in T-10; Outgoing call
TC_PT_CC_BV_CI_06 Go to DTMF invocation in T-02; defined tone length;
Outgoing call
TC_PT_CC_BV_CI_07 Go to DTMF invocation in T-10; defined tone length;
Outgoing call
TC_PT_CC_BV_CI_08 Go to DTMF invocation in T-02; infinite tone length;
Outgoing call
TC_PT_CC_BV_CI_09 Go to DTMF invocation in T-10; infinite tone length;
Outgoing call
TC_PT_CC_BV_CI_10 Outgoing normal call; T-02; {CC-INFO], sending < keypad>>, "0-9, star, hash mark"
TC_PT_CC_BV_CI_11 Internal call
TC_PT_CC_BV_CI_12 T-10; {CC-INFO}, <> standard
characters handling
TC_PT_CC_BV_CI_13 T-10; {CC-INFO}, <> control characters
handling
TC_PT_CC_BV_CI_14 T-10; invocation of "Register recall"; {CC-INFO},
<>
PT/CC/BV/CR/ TC_PT_CC_BV_CR_01 Outgoing normal call; T-02; FT initiated normal release
TC_PT_CC_BV_CR_02 Outgoing normal call; T-03; FT initiated normal release
TC_PT_CC_BV_CR_03 Outgoing normal call; T-04; FT initiated normal release
TC_PT_CC_BV_CR_04 Incoming call; T-08; FT initiated normal release
TC_PT_CC_BV_CR_05 T-10; FT initiated normal release
TC_PT_CC_BV_CR_06 T-10; IUT initiated normal release
TC_PT_CC_BV_CR_07 T-01; FT initiated abnormal release
TC_PT_CC_BV_CR_08 T-02; FT initiated abnormal release
TC_PT_CC_BV_CR_09 T-10; FT initiated abnormal release
TC_PT_CC_BV_CR_10 T-10; FT initiated partial release
TC_PT_CC_BV_CR_11 T-10; IUT initiated partial release
PT/CC/BV/RS/ TC_PT_CC_BV_RS_01 T-00; Incoming call; {CC-SETUP} with < number>>; CLIP handling
(continued)
Page 6
ETS 300 494-2: August 1996/A1: February 1998
Table 2 (continued)
Test Case Index
PT/CC/BO/ TC_PT_CC_BO_01 T-038; unexpected message {CC-CALL-PROC}; ignore
TC_PT_CC_BO_02 T-19; receipt of {CC-RELEASE}; release collision; clear
the call
PT/CC/BI/ TC_PT_CC_BI_01 T-00; {CC-SETUP} mandatory I.E. missing; answer
upon with {CC-RELEASE-COM]
TC_PT_CC_BI_02 T-00; {CC-SETUP} wrong mandatory I.E.; answer upon
with {CC-RELEASE-COM]
TC_PT_CC_BI_03 T-00; {CC-SETUP}-like message, non {CC-SETUP}
unrecognized message type; ignore
TC_PT_CC_BI_04 T-00; to short message to contain the complete
<>; ignore
PT/CC/TI/ TC_PT_CC_TI_01 T-19; timer P- expiry (-10% margin)(± 5%
margin); IUT sends {CC-RELEASE-COM}
TC_PT_CC_TI_02 Outgoing call; T-01; timer P- expiry (-10%
margin(± 5% margin); IUT sends {CC-RELEASE-COM}
TC_PT_CC_TI_03 T-01; restarts P- upon {CC-NOTIFY}
TC_PT_CC_TI_04 Outgoing call; T-08; timer P- expiry (-10%
margin(± 5% margin); IUT sends {CC-RELEASE}
PT/MM/BV/ID/ TC_PT_MM_BV_ID_01 Identity request; IPUI type requested; active IPUI
returned
TC_PT_MM_BV_ID_02 Identity request; unavailable id. type requested; no
identity in the reply
TC_PT_MM_BV_ID_08 Identity request; PARK requested; active PARK
returned
PT/MM/BV/AU/ TC_PT_MM_BV_AU_01 Authentication of PT; IUT(PT) has no stored ZAP value
and service class info
TC_PT_MM_BV_AU_02 Authentication of PT; unacceptable algorithm
requested; reject
TC_PT_MM_BV_AU_03 Authentication of PT; IUT(PT) has stored ZAP value;
IUT includes ZAP value in the replay
TC_PT_MM_BV_AU_04 Authentication of PT; ZAP increment handling
TC_PT_MM_BV_AU_05 Authentication of PT; ZAP increment handling;
unsuccessful authentication of FT; ZAP is not
incremented
TC_PT_MM_BV_AU_06 Authentication of PT; storage of DCK handling
TC_PT_MM_BV_AU_07 Authentication of user
TC_PT_MM_BV_AU_08 Authentication of FT; IUT initiated
TC_PT_MM_BV_AU_09 Authentication of PT; IUT(PT) has stored service class
info; IUT includes service class info in the replay
PT/MM/BV/LO/ TC_PT_MM_BV_LO_01 Location registration after obtain access rights; a44 and
a38=1 at locking; no TPUI assignment
TC_PT_MM_BV_LO_02 Location registration after obtain access rights; a44 and
a38=1 at locking; TPUI assignment
TC_PT_MM_BV_LO_03 Location registration after obtain access rights; a44=1
and a38=0 at locking; IUT does not perform location
registration
TC_PT_MM_BV_LO_04 Location registration; no CC activities; location area
changes; a38=1 at locking and at the beginning of the
procedure; no TPUI assignment
TC_PT_MM_BV_LO_05 No CC activities; power off; power on; Location
registration request
(continued)
Page 7
ETS 300 494-2: August 1996/A1: February 1998
Table 2 (continued)
Test Case Index
TC_PT_MM_BV_LO_06 Location registration; unacceptable TPUI assignment;
reject
TC_PT_MM_BV_LO_07 Location registration; entering new location area; IUT
deletes old TPUII - no TPUI in identity reply sent from
IUT
TC_PT_MM_BV_LO_08 Location update suggested by FT; Location registration
initiated by IUT; a38=1 at locking and at the beginning
of the procedure
TC_PT_MM_BV_LO_09 Location update suggested by FT; Location registration
initiated by IUT; a38=1 at locking, a38=0 at the
beginning of the procedure
PT/MM/BV/AR/ TC_PT_MM_BV_AR_01 Obtain access rights; a44=1; both sides use AC
TC_PT_MM_BV_AR_03 Obtain access rights; a44=0; IUT does not initiate
obtain access rights procedure
TC_PT_MM_BV_AR_05 Terminate access rights; FT initiated; IUT(PT) may
authenticate FT
TC_PT_MM_BV_AR_06 Terminate access rights; FT initiated; IUT(PT)
authenticates FT; authentication fails; termination
rejected
TC_PT_MM_BV_AR_09 Obtain access rights; FT assigns ZAP field; IUT stores
it
TC_PT_MM_BV_AR_10 Obtain access rights; FT assigns service class; IUT
stores it
PT/MM/BV/KA/ TC_PT_MM_BV_KA_01 Key allocation
TC_PT_MM_BV_KA_02 Key allocation; <> unacceptable; reject
TC_PT_MM_BV_KA_03 Key allocation; implicit authentication of FT fails; key is
not allocated
PT/MM/BV/CH/ TC_PT_MM_BV_CH_01 Cipher switching; IUT(PT) initiated; "cipher-off" to
"cipher-on"
TC_PT_MM_BV_CH_02 Cipher switching; IUT(PT) initiated; "cipher-on" to
"cipher-off"
TC_PT_MM_BV_CH_03 Cipher switching; FT initiated; "cipher-off" to "cipher-on"
TC_PT_MM_BV_CH_04 Cipher switching; FT initiated; "cipher-on" to "cipher-off"
TC_PT_MM_BV_CH_05 Cipher switching; FT initiated; "cipher-off" to "cipher-on";
unacceptable algorithm or key; reject
TC_PT_MM_BV_CH_08 Cipher switching; IUT (PT) initiated; "cipher-off" to
"cipher-on" fails; release of link
TC_PT_MM_BV_CH_09 Cipher switching; IUT (PT) initiated; "cipher-off" to
"cipher-on"; successful inter-cell bearer handover
TC_PT_MM_BV_CH_10 Cipher switching; IUT (PT) initiated; "cipher-off" to
"cipher-on"; successful intra-cell bearer handover
TC_PT_MM_BV_CH_11 Cipher switching; IUT (PT) initiated; "cipher-off" to
"cipher-on"; "cipher-on" to "cipher-off" fails; release of
link
TC_PT_MM_BV_CH_12 Cipher switching; FT initiated; "cipher-off" to "cipher-on"
fails; release of link
TC_PT_MM_BV_CH_13 Cipher switching; FT initiated; "cipher-off" to "cipher-on";
successful inter-cell bearer handover
TC_PT_MM_BV_CH_14 Cipher switching; FT initiated; "cipher-off" to "cipher-on";
successful intra-cell bearer handover
TC_PT_MM_BV_CH_15 Cipher switching; FT initiated; "cipher-off" to "cipher-on";
"cipher-on" to "cipher-off" fails; release of link
(continued)
Page 8
ETS 300 494-2: August 1996/A1: February 1998
Table 2 (continued)
Test Case Index
PT/MM/BO/ TC_PT_MM_BO_01 Location registration request; receipt of {ACCESS-
RIGHTS-ACCEPT}; unexpected, ignore
PT/MM/BI/ TC_PT_MM_BI_01 Unrecognized message type; ignore
TC_PT_MM_BI_02 "Cipher off"; {CIPHER-REQUEST}, with invalid
<>; reject
TC_PT_MM_BI_03 Authentication of PT; {AUTH-REQUEST} missing
<>; reject
TC_PT_MM_BI_04 Obtain access rights; {ACCESS-RIGHTS-ACCEPT},
wrong <>; ignore
PT/MM/TI/ TC_PT_MM_TI_01 Key allocation; timer P- expiry (± 5%
margin) (+ 5% margin)
TC_PT_MM_TI_02 Authentication of FT; timer P- expiry (±
5% margin)
TC_PT_MM_TI_03 Location registration; just before timer P-
expiry (± 5% margin) (- 10% margin)
TC_PT_MM_TI_04 Obtain access rights; just before timer P-
expiry (± 5% margin) (- 10% margin)
TC_PT_MM_TI_05 Cipher switching; IUT(PT) initiated; timer P-
expiry (± 5% margin) (- 10% margin)
PT/ME/BV/ TC_PT_ME_BV_01 Outgoing call; T-01; Authentication of IUT(PT)
performed before answering the setup request
TC_PT_ME_BV_02 Cipher switching IUT(PT) initiated; Locate update;
location registration initiation after "cipher off"
TC_PT_ME_BV_03 Obtain access rights; Interrupted by Authentication of
user
TC_PT_ME_BV_04 Obtain access rights; Interrupted by Authentication of
IUT(PT)
TC_PT_ME_BV_05 Outgoing call and authentication of IUT(PT) in parallel
Test Case Index
TC_PT_ME_BV_06 Outgoing call and cipher switching FT initiated in
parallel
TC_PT_ME_BV_07 Outgoing call; T-01; Cipher switching FT initiated
performed before answering the setup request
TC_PT_ME_BV_08 Outgoing call; T-01; Authentication of user performed
before answering the setup request; {CC-NOTIFY}
restart timer handling
TC_PT_ME_BV_09 Cipher on; Store DCK; new DCK not used in the current
ciphering
TC_PT_ME_BV_10 T-10; a38=1; location area changes; location
registration request during the call or in T-00
TC_PT_ME_BV_11 Outgoing call; T-01; Terminate access rights FT
initiated performed before answering the setup request
TC_PT_ME_BV_12 T-10; link fails; IUT clears the call
TC_PT_ME_BV_13 Obtain access rights interrupted by key allocation
PT/ME/BO/ TC_PT_ME_BO_01 Authentication of FT interrupted by {AUTH-REQUEST}
from FT; ignore
PT/LC/BV/LE/ TC_PT_LC_BV_LE_01 Direct link establishment; IUT initiated
TC_PT_LC_BV_LE_02 Indirect FT initiated link establishment
(continued)
Page 9
ETS 300 494-2: August 1996/A1: February 1998
Table 2 (concluded)
Test Case Index
PT/LC/BV/LR/ TC_PT_LC_BV_LR_01 Link exists; MM entity ceases to use the link; no
...

SLOVENSKI STANDARD
01-maj-1999
'LJLWDOQHL]EROMãDQHEUH]YUYLþQHWHOHNRPXQLNDFLMH'(&73URILOJHQHULþQHJD
GRVWRSD*$3GHO2GSURILODRGYLVQDSUHVNXãDOQDVSHFLILNDFLMD3676
SUHQRVQDUDGLMVND]DNOMXþLWHY
Digital Enhanced Cordless Telecommunications (DECT); Generic Access Profile (GAP);
Profile Test Specification (PTS); Part 2: Profile Specific Test Specification (PSTS) -
Portable radio Termination (PT)
Ta slovenski standard je istoveten z: ETS 300 494-2/A1 Edition 1
ICS:
33.070.30 'LJLWDOQHL]EROMãDQH Digital Enhanced Cordless
EUH]YUYLþQHWHOHNRPXQLNDFLMH Telecommunications (DECT)
'(&7
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

ETS 300 494-2
AMENDMENT A1
February 1998
Source: DECT Reference: RE/DECT-040093-2
ICS: 33.020
Key words: DECT, GAP, testing
This amendment A1 modifies
the European Telecommunication Standard ETS 300 494-2 (1996)
Digital Enhanced Cordless Telecommunications (DECT);
Generic Access Profile (GAP);
Profile Test Specification (PTS);
Part 2: Profile Specific Test Specification (PSTS) -
Portable radio Termination (PT)
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
X.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail]
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1998. All rights reserved.

Page 2
ETS 300 494-2: August 1996/A1: February 1998
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 494-2: August 1996/A1: February 1998
Foreword
This amendment to ETS 300 494-2 (1996) has been produced by the Digital Enhanced Cordless
Telecommunications (DECT) Project of the European Telecommunications Standards Institute (ETSI).
Transposition dates
Date of adoption of this amendment: 6 February 1998
Date of latest announcement of this amendment (doa): 31 May 1998
Date of latest publication or endorsement of this amendment (dop/e): 30 November 1998
Date of withdrawal of any conflicting National Standard (dow): 30 November 1998

Page 4
ETS 300 494-2: August 1996/A1: February 1998
Amendments
Clause 2
Modify clause 2 as follows:
[8]                   ETS 300 444 (1995): "Radio Equipment and Systems (RES); Digital European
Cordless Telecommunications (DECT); Generic Access Profile (GAP)”.
[8]                   EN 300 444: "Digital European Cordless Telecommunications (DECT); Generic
Access Profile (GAP)”.
Subclause 4.1
Modify subclause 4.1 as follows:
This subclause includes lists of the test groups, and abstract test cases and test steps relevant for GAP
Profile Test Specification (PTS) - Network (NWK) layer Portable radio Termination (PT) derived from
ETS 300 497-7 [24].
The page number referenced is the relative page number in the corresponding ETS where the particular
item can be found.
NOTE: As ETS 300 497 [18] is a draft ETS, and some changes are likely due to the results of
the Public Enquiry (PE) phase, page numbers reflecting the exact place in that ETS
where a test case is to be found are not included in this ETS. They will be added in at a
later stage. References when necessary are given based on the particular test case
name unique through all test specification ETS 300 497 [18].

Page 5
ETS 300 494-2: August 1996/A1: February 1998
Subclause 4.1.2
Replace table 2 with the following table 2:
Table 2
Test Case Index
Test Group Test Case Id Description
Reference
PT/CC/BV/OC/ TC_PT_CC_BV_OC_01 Outgoing call; T-00, T-01, T-02, T-03, T-04, T-10; piece
wise dialling in T-02
TC_PT_CC_BV_OC_02 Outgoing call; states T-00, T-01, T-10; piece wise
dialling in T-10
TC_PT_CC_BV_OC_03 Outgoing call; states T-00, T-01, T-02, T-10; piece wise
dialling in T-02 and T-10
TC_PT_CC_BV_OC_04 Outgoing call; U-plane connection upon < ind.>> in {CC-SETUP-ACK}
PT/CC/BV/IC/ TC_PT_CC_BV_IC_01 Incoming call; T-01, T-06, T-07, T-08, T-10;
<> in T-07
TC_PT_CC_BV_IC_02 Incoming call; T-01, T-06, T-07, T-08, T-10;
<> in {CC-SETUP}
PT/CC/BV/CI/ TC_PT_CC_BV_CI_01 Alerting the user; Incoming call; <> in {CC-
SETUP}
TC_PT_CC_BV_CI_02 Go to pulse invocation in T-02; Outgoing call
TC_PT_CC_BV_CI_03 Go to pulse invocation in T-10; Outgoing call
TC_PT_CC_BV_CI_04 Dialling pause indication in T-02; Outgoing call
TC_PT_CC_BV_CI_05 Dialling pause indication in T-10; Outgoing call
TC_PT_CC_BV_CI_06 Go to DTMF invocation in T-02; defined tone length;
Outgoing call
TC_PT_CC_BV_CI_07 Go to DTMF invocation in T-10; defined tone length;
Outgoing call
TC_PT_CC_BV_CI_08 Go to DTMF invocation in T-02; infinite tone length;
Outgoing call
TC_PT_CC_BV_CI_09 Go to DTMF invocation in T-10; infinite tone length;
Outgoing call
TC_PT_CC_BV_CI_10 Outgoing normal call; T-02; {CC-INFO], sending < keypad>>, "0-9, star, hash mark"
TC_PT_CC_BV_CI_11 Internal call
TC_PT_CC_BV_CI_12 T-10; {CC-INFO}, <> standard
characters handling
TC_PT_CC_BV_CI_13 T-10; {CC-INFO}, <> control characters
handling
TC_PT_CC_BV_CI_14 T-10; invocation of "Register recall"; {CC-INFO},
<>
PT/CC/BV/CR/ TC_PT_CC_BV_CR_01 Outgoing normal call; T-02; FT initiated normal release
TC_PT_CC_BV_CR_02 Outgoing normal call; T-03; FT initiated normal release
TC_PT_CC_BV_CR_03 Outgoing normal call; T-04; FT initiated normal release
TC_PT_CC_BV_CR_04 Incoming call; T-08; FT initiated normal release
TC_PT_CC_BV_CR_05 T-10; FT initiated normal release
TC_PT_CC_BV_CR_06 T-10; IUT initiated normal release
TC_PT_CC_BV_CR_07 T-01; FT initiated abnormal release
TC_PT_CC_BV_CR_08 T-02; FT initiated abnormal release
TC_PT_CC_BV_CR_09 T-10; FT initiated abnormal release
TC_PT_CC_BV_CR_10 T-10; FT initiated partial release
TC_PT_CC_BV_CR_11 T-10; IUT initiated partial release
PT/CC/BV/RS/ TC_PT_CC_BV_RS_01 T-00; Incoming call; {CC-SETUP} with < number>>; CLIP handling
(continued)
Page 6
ETS 300 494-2: August 1996/A1: February 1998
Table 2 (continued)
Test Case Index
PT/CC/BO/ TC_PT_CC_BO_01 T-038; unexpected message {CC-CALL-PROC}; ignore
TC_PT_CC_BO_02 T-19; receipt of {CC-RELEASE}; release collision; clear
the call
PT/CC/BI/ TC_PT_CC_BI_01 T-00; {CC-SETUP} mandatory I.E. missing; answer
upon with {CC-RELEASE-COM]
TC_PT_CC_BI_02 T-00; {CC-SETUP} wrong mandatory I.E.; answer upon
with {CC-RELEASE-COM]
TC_PT_CC_BI_03 T-00; {CC-SETUP}-like message, non {CC-SETUP}
unrecognized message type; ignore
TC_PT_CC_BI_04 T-00; to short message to contain the complete
<>; ignore
PT/CC/TI/ TC_PT_CC_TI_01 T-19; timer P- expiry (-10% margin)(± 5%
margin); IUT sends {CC-RELEASE-COM}
TC_PT_CC_TI_02 Outgoing call; T-01; timer P- expiry (-10%
margin(± 5% margin); IUT sends {CC-RELEASE-COM}
TC_PT_CC_TI_03 T-01; restarts P- upon {CC-NOTIFY}
TC_PT_CC_TI_04 Outgoing call; T-08; timer P- expiry (-10%
margin(± 5% margin); IUT sends {CC-RELEASE}
PT/MM/BV/ID/ TC_PT_MM_BV_ID_01 Identity request; IPUI type requested; active IPUI
returned
TC_PT_MM_BV_ID_02 Identity request; unavailable id. type requested; no
identity in the reply
TC_PT_MM_BV_ID_08 Identity request; PARK requested; active PARK
returned
PT/MM/BV/AU/ TC_PT_MM_BV_AU_01 Authentication of PT; IUT(PT) has no stored ZAP value
and service class info
TC_PT_MM_BV_AU_02 Authentication of PT; unacceptable algorithm
requested; reject
TC_PT_MM_BV_AU_03 Authentication of PT; IUT(PT) has stored ZAP value;
IUT includes ZAP value in the replay
TC_PT_MM_BV_AU_04 Authentication of PT; ZAP increment handling
TC_PT_MM_BV_AU_05 Authentication of PT; ZAP increment handling;
unsuccessful authentication of FT; ZAP is not
incremented
TC_PT_MM_BV_AU_06 Authentication of PT; storage of DCK handling
TC_PT_MM_BV_AU_07 Authentication of user
TC_PT_MM_BV_AU_08 Authentication of FT; IUT initiated
TC_PT_MM_BV_AU_09 Authentication of PT; IUT(PT) has stored service class
info; IUT includes service class info in the replay
PT/MM/BV/LO/ TC_PT_MM_BV_LO_01 Location registration after obtain access rights; a44 and
a38=1 at locking; no TPUI assignment
TC_PT_MM_BV_LO_02 Location registration after obtain access rights; a44 and
a38=1 at locking; TPUI assignment
TC_PT_MM_BV_LO_03 Location registration after obtain access rights; a44=1
and a38=0 at locking; IUT does not perform location
registration
TC_PT_MM_BV_LO_04 Location registration; no CC activities; location area
changes; a38=1 at locking and at the beginning of the
procedure; no TPUI assignment
TC_PT_MM_BV_LO_05 No CC activities; power off; power on; Location
registration request
(continued)
Page 7
ETS 300 494-2: August 1996/A1: February 1998
Table 2 (continued)
Test Case Index
TC_PT_MM_BV_LO_06 Location registration; unacceptable TPUI assignment;
reject
TC_PT_MM_BV_LO_07 Location registration; entering new location area; IUT
deletes old TPUII - no TPUI in identity reply sent from
IUT
TC_PT_MM_BV_LO_08 Location update suggested by FT; Location registration
initiated by IUT; a38=1 at locking and at the beginning
of the procedure
TC_PT_MM_BV_LO_09 Location update suggested by FT; Location registration
initiated by IUT; a38=1 at locking, a38=0 at the
beginning of the procedure
PT/MM/BV/AR/ TC_PT_MM_BV_AR_01 Obtain access rights; a44=1; both sides use AC
TC_PT_MM_BV_AR_03 Obtain access rights; a44=0; IUT does not initiate
obtain access rights procedure
TC_PT_MM_BV_AR_05 Terminate access rights; FT initiated; IUT(PT) may
authenticate FT
TC_PT_MM_BV_AR_06 Terminate access rights; FT initiated; IUT(PT)
authenticates FT; authentication fails; termination
rejected
TC_PT_MM_BV_AR_09 Obtain access rights; FT assigns ZAP field; IUT stores
it
TC_PT_MM_BV_AR_10 Obtain access rights; FT assigns service class; IUT
stores it
PT/MM/BV/KA/ TC_PT_MM_BV_KA_01 Key allocation
TC_PT_MM_BV_KA_02 Key allocation; <> unacceptable; reject
TC_PT_MM_BV_KA_03 Key allocation; implicit authentication of FT fails; key is
not allocated
PT/MM/BV/CH/ TC_PT_MM_BV_CH_01 Cipher switching; IUT(PT) initiated; "cipher-off" to
"cipher-on"
TC_PT_MM_BV_CH_02 Cipher switching; IUT(PT) initiated; "cipher-on" to
"cipher-off"
TC_PT_MM_BV_CH_03 Cipher switching; FT initiated; "cipher-off" to "cipher-on"
TC_PT_MM_BV_CH_04 Cipher switching; FT initiated; "cipher-on" to "cipher-off"
TC_PT_MM_BV_CH_05 Cipher switching; FT initiated; "cipher-off" to "cipher-on";
unacceptable algorithm or key; reject
TC_PT_MM_BV_CH_08 Cipher switching; IUT (PT) initiated; "cipher-off" to
"cipher-on" fails; release of link
TC_PT_MM_BV_CH_09 Cipher switching; IUT (PT) initiated; "cipher-off" to
"cipher-on"; successful inter-cell bearer handover
TC_PT_MM_BV_CH_10 Cipher switching; IUT (PT) initiated; "cipher-off" to
"cipher-on"; successful intra-cell bearer handover
TC_PT_MM_BV_CH_11 Cipher switching; IUT (PT) initiated; "cipher-off" to
"cipher-on"; "cipher-on" to "cipher-off" fails; release of
link
TC_PT_MM_BV_CH_12 Cipher switching; FT initiated; "cipher-off" to "cipher-on"
fails; release of link
TC_PT_MM_BV_CH_13 Cipher switching; FT initiated; "cipher-off" to "cipher-on";
successful inter-cell bearer handover
TC_PT_MM_BV_CH_14 Cipher switching; FT initiated; "cipher-off" to "cipher-on";
successful intra-cell bearer handover
TC_PT_MM_BV_CH_15 Cipher switching; FT initiated; "cipher-off" to "cipher-on";
"cipher-on" to "cipher-off" fails; release of link
(continued)
Page 8
ETS 300 494-2: August 1996/A1: February 1998
Table 2 (continued)
Test Case Index
PT/MM/BO/ TC_PT_MM_BO_01 Location registration request; receipt of {ACCESS-
RIGHTS-ACCEPT}; unexpected, ignore
PT/MM/BI/ TC_PT_MM_BI_01 Unrecognized message type; ignore
TC_PT_MM_BI_02 "Cipher off"; {CIPHER-REQUEST}, with invalid
<>; reject
TC_PT_MM_BI_03 Authentication of PT; {AUTH-REQUEST} missing
<>; reject
TC_PT_MM_BI_04 Obtain access rights; {ACCESS-RIGHTS-ACCEPT},
wrong <>; ignore
PT/MM/TI/ TC_PT_MM_TI_01 Key allocation; timer P- expiry (± 5%
margin) (+ 5% margin)
TC_PT_MM_TI_02 Authentication of FT; timer P- expiry (±
5% margin)
TC_PT_MM_TI_03 Location registration; just before timer P-
expiry (± 5% margin) (- 10% margin)
TC_PT_MM_TI_04 Obtain access rights; just before timer P-
expiry (± 5% margin) (- 10% margin)
TC_PT_MM_TI_05 Cipher switching; IUT(PT) initiated; timer P-
expiry (± 5% margin) (- 10% margin)
PT/ME/BV/ TC_PT_ME_BV_01 Outgoing call; T-01; Authentication of IUT(PT)
performed before answering the setup request
TC_PT_ME_BV_02 Cipher switching IUT(PT) initiated; Locate update;
location registration initiation after "cipher off"
TC_PT_ME_BV_03 Obtain access rights; Interrupted by Authentication of
user
TC_PT_ME_BV_04 Obtain access rights; Interrupted by Authentication of
IUT(PT)
TC_PT_ME_BV_05 Outgoing call and authentication of IUT(PT) in parallel
Test Case Index
TC_PT_ME_BV_06 Outgoing call and cipher switching FT initiated in
parallel
TC_PT_ME_BV_07 Outgoing call; T-01; Cipher switching FT initiated
performed before answering the setup request
TC_PT_ME_BV_08 Outgoing call; T-01; Authentication of user performed
before answering the setup request; {CC-NOTIFY}
restart timer handling
TC_PT_ME_BV_09 Cipher on; Store DCK; new DCK not used in the current
ciphering
TC_PT_ME_BV_10 T-10; a38=1; location area changes; location
registration request during the call or in T-00
TC_PT_ME_BV_11 Outgoing call; T-01; Terminate access rights FT
initiated performed before answering the setup request
TC_PT_ME_BV_12 T-10; link fails; IUT clears the call
TC_PT_ME_BV_13 Obtain access rights interrupted by key allocation
PT/ME/BO/ TC_PT_ME_BO_01 Authentication of FT interrupted by {AUTH-REQUEST}
from FT; ignore
PT/LC/BV/LE/ TC_PT_LC_BV_LE_01 Direct link establishment; IUT initiated
TC_PT_LC_BV_LE_02 Indirect FT initiated link establishment
(continued)
Page 9
ETS 300 494-2: August 1996/A1: February 1998
Table 2 (concluded)
Test Case Index
PT/LC/BV/LR/ TC_PT_LC_BV_LR_01 Link exists; MM entity ceases to use the link; no oth
...
