Optics and photonics - Test method for total scattering by optical components (ISO 13696:2022)

This document specifies procedures for the determination of the total scattering by coated and uncoated
optical surfaces. Procedures are given for measuring the contributions of the forward scattering or
backward scattering to the total scattering of an optical component.
This document applies to coated and uncoated optical components with optical surfaces that have a
radius of curvature of more than 10 m. Measurement wavelengths covered by this document range
from the ultraviolet above 250 nm to the infrared spectral region below 15 µm. For measurements in
the deep ultraviolet between 190 nm to 250 nm, specific methods are considered and are described.
Generally, optical scattering is considered as neglectable for wavelengths above 15 µm.

Optik und Photonik - Bestimmung von totaler Streustrahlung, hervorgerufen durch optische Komponenten (ISO 13696:2022)

Dieses Dokument legt ein Prüfverfahren für die Bestimmung der Gesamtstreuung von beschichteten und unbeschichteten optischen Oberflächen fest. Verfahren zur Messung der Beiträge der Vorwärts- und Rückwärtsstreuung zur Gesamtstreuung von optischen Komponenten werden angegeben.
Dieses Dokument bezieht sich auf beschichtete und unbeschichtete optische Komponenten mit optischen Oberflächen, die einen Krümmungsradius von mehr als 10 m besitzen. Die von diesem Dokument abgedeckten Messwellenlängenbereiche reichen vom Ultraviolettbereich oberhalb von 250 nm bis in den infraroten Spektralbereich unterhalb von 15 μm. Für Messungen im tiefen Ultraviolettbereich zwischen 190 nm und 250 nm müssen spezifische Verfahren in Betracht gezogen werden, die in diesem Dokument beschrieben sind. In der Regel kann die optische Streuung für Wellenlängen oberhalb 15 μm als vernachlässigbar betrachtet werden.

Optique et photonique - Méthodes d’essai du rayonnement diffusé par les composants optiques (ISO 13696:2022)

Le présent document définit les méthodes de détermination de la diffusion totale par des surfaces optiques revêtues et non revêtues. Des procédures sont indiquées pour mesurer les contributions de la prodiffusion ou de la rétrodiffusion à la diffusion totale d'un composant optique.
Le présent document s'applique aux composants optiques revêtus et non revêtus dont les surfaces optiques ont un rayon de courbure supérieur à 10 m. Les mesures de longueurs d'onde couvertes par le présent document vont de l'ultraviolet au-dessus de 250 nm à la région spectrale infrarouge en dessous de 15 µm. Pour les mesures dans l'ultraviolet profond entre 190 nm et 250 nm, des méthodes spécifiques sont envisagées et sont décrites. En général, la diffusion optique est considérée comme négligeable pour les longueurs d'onde supérieures à 15 µm.

Optika in optični instrumenti - Preskusne metode za sevanje, razpršeno z optičnimi komponentami (ISO 13696:2022)

Ta dokument določa postopke za ugotavljanje skupnega sevanja, razpršenega s prevlečenimi in neprevlečenimi optičnimi površinami. Podaja postopke za merjenje prispevkov razpršenega sevanja v smeri naprej ali nazaj k skupnemu razpršenemu sevanju optične komponente.
Ta dokument se uporablja za prevlečene in neprevlečene optične komponente z optičnimi površinami, katerih polmer ukrivljenosti znaša več kot 10 m. Valovne dolžine meritev, zajete v tem dokumentu, segajo od ultravijoličnega območja nad 250 nm do infrardečega spektralnega območja pod 15 µm. Za meritve v kratkovalovnem ultravijoličnem območju spektra med 190 nm in 250 nm so obravnavane in opisane posebne metode.
Na splošno velja, da je pri valovnih dolžinah nad 15 µm optično razpršeno sevanje zanemarljivo.

General Information

Status
Published
Public Enquiry End Date
24-Jun-2021
Publication Date
23-Aug-2022
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
04-Aug-2022
Due Date
09-Oct-2022
Completion Date
24-Aug-2022

Relations

Buy Standard

Standard
SIST EN ISO 13696:2022
English language
40 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Draft
oSIST prEN ISO 13696:2021
English language
37 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

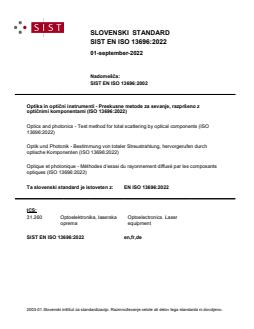

SLOVENSKI STANDARD
SIST EN ISO 13696:2022
01-september-2022
Nadomešča:
SIST EN ISO 13696:2002
Optika in optični instrumenti - Preskusne metode za sevanje, razpršeno z
optičnimi komponentami (ISO 13696:2022)

Optics and photonics - Test method for total scattering by optical components (ISO

13696:2022)
Optik und Photonik - Bestimmung von totaler Streustrahlung, hervorgerufen durch
optische Komponenten (ISO 13696:2022)

Optique et photonique - Méthodes d’essai du rayonnement diffusé par les composants

optiques (ISO 13696:2022)
Ta slovenski standard je istoveten z: EN ISO 13696:2022
ICS:
31.260 Optoelektronika, laserska Optoelectronics. Laser
oprema equipment
SIST EN ISO 13696:2022 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

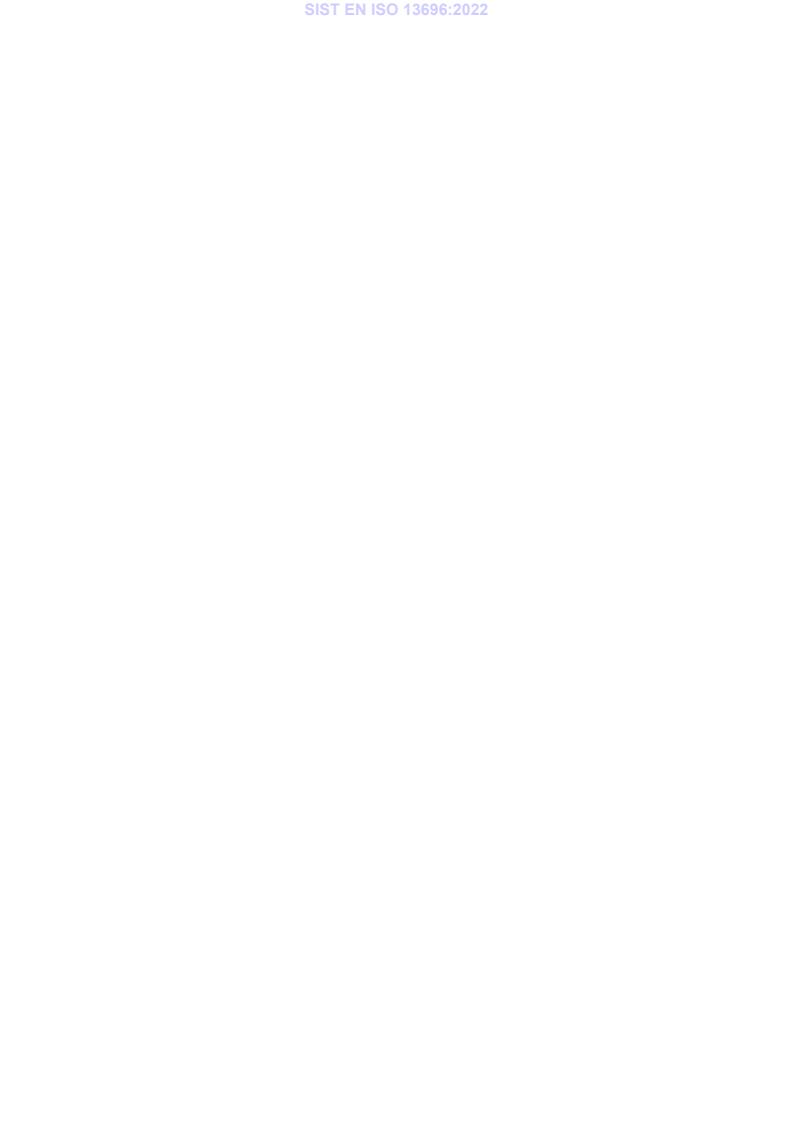

SIST EN ISO 13696:2022
---------------------- Page: 2 ----------------------
SIST EN ISO 13696:2022

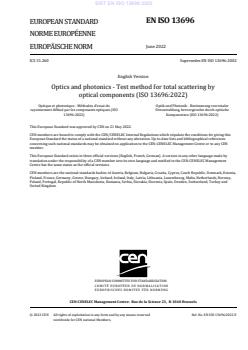

EN ISO 13696
EUROPEAN STANDARD
NORME EUROPÉENNE
June 2022
EUROPÄISCHE NORM
ICS 31.260 Supersedes EN ISO 13696:2002
English Version
Optics and photonics - Test method for total scattering by
optical components (ISO 13696:2022)

Optique et photonique - Méthodes d'essai du Optik und Photonik - Bestimmung von totaler

rayonnement diffusé par les composants optiques (ISO Streustrahlung, hervorgerufen durch optische

13696:2022) Komponenten (ISO 13696:2022)
This European Standard was approved by CEN on 21 May 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 13696:2022 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN ISO 13696:2022
EN ISO 13696:2022 (E)
Contents Page

European foreword ....................................................................................................................................................... 3

---------------------- Page: 4 ----------------------
SIST EN ISO 13696:2022
EN ISO 13696:2022 (E)
European foreword

This document (EN ISO 13696:2022) has been prepared by Technical Committee ISO/TC 172 "Optics

and photonics" in collaboration with Technical Committee CEN/TC 123 “Lasers and photonics” the

secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by December 2022, and conflicting national standards

shall be withdrawn at the latest by December 2022.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document supersedes EN ISO 13696:2002.

Any feedback and questions on this document should be directed to the users’ national standards

body/national committee. A complete listing of these bodies can be found on the CEN website.

According to the CEN-CENELEC Internal Regulations, the national standards organizations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the

United Kingdom.
Endorsement notice

The text of ISO 13696:2022 has been approved by CEN as EN ISO 13696:2022 without any modification.

---------------------- Page: 5 ----------------------
SIST EN ISO 13696:2022
---------------------- Page: 6 ----------------------
SIST EN ISO 13696:2022
INTERNATIONAL ISO
STANDARD 13696
Second edition
2022-06
Optics and photonics — Test method
for total scattering by optical
components
Optique et photonique — Méthodes d'essai du rayonnement diffusé
par les composants optiques
Reference number
ISO 13696:2022(E)
© ISO 2022
---------------------- Page: 7 ----------------------
SIST EN ISO 13696:2022
ISO 13696:2022(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2022

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on

the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below

or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
© ISO 2022 – All rights reserved
---------------------- Page: 8 ----------------------
SIST EN ISO 13696:2022
ISO 13696:2022(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction .............................................................................................................................................................................................................................. vi

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ..................................................................................................................................................................................... 1

3 Terms, definitions and symbols .......................................................................................................................................................... 1

3.1 Terms and definitions ...................................................................................................................................................................... 1

3.2 Symbols and units of measure ........................................................................................................................................... ....... 3

4 Test method ............................................................................................................................................................................................................... 3

4.1 Principle ....................................................................................................................................................................................................... 3

4.2 Measurement arrangement and test equipment ...................................................................................................... 3

4.2.1 General ........................................................................................................................................................................................ 3

4.2.2 Radiation source ................................................................................................................................................................. 4

4.2.3 Beam preparation system .......................................................................................................................................... 4

4.2.4 Integrating sphere ............................................................................................................................................................ 5

4.2.5 Detection system................................................................................................................................................................ 6

4.2.6 Specimen holder .................................................................................................................................................................. 6

4.3 Arrangement with high sensitivity ...................................................................................................................................... 6

4.4 Preparation of specimens ............................................................................................................................................................. 7

5 Procedure ....................................................................................................................................................................................................................7

5.1 General ........................................................................................................................................................................................................... 7

5.2 Alignment procedure ........................................................................................................................................................................ 8

5.2.1 General ........................................................................................................................................................................................ 8

5.2.2 Alignment of the beam .................................................................................................................................................. 8

5.2.3 Alignment of the specimen ........................................................................................................................................ 8

5.3 Measurement procedure ............................................................................................................................................................... 8

6 Evaluation ................................................................................................................................................................................................................... 9

6.1 Determination of the total scattering value ................................................................................................................. 9

6.2 Error budget ..........................................................................................................................................................................................12

7 Test report ...............................................................................................................................................................................................................12

Annex A (informative) Set-up with a Coblentz hemisphere .....................................................................................................14

Annex B (informative) Example of test report .......................................................................................................................................17

Annex C (informative) Statistical evaluation example ..................................................................................................................21

Annex D (informative) Example for selection of spacing ............................................................................................................26

Annex E (informative) Alternative method for calibrating total scatter measurements

using a calcium fluoride diffuser disk .......................................................................................................................................29

Bibliography .............................................................................................................................................................................................................................31

iii
© ISO 2022 – All rights reserved
---------------------- Page: 9 ----------------------
SIST EN ISO 13696:2022
ISO 13696:2022(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to

the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see

www.iso.org/iso/foreword.html.

This document was prepared by Technical Committee ISO/TC 172, Optics and Photonics, Subcommittee

SC 9, Laser and electro-optical systems, in collaboration with the European Committee for Standardization

(CEN) Technical Committee CEN/TC 123, Lasers and photonics, in accordance with the agreement on

technical cooperation between ISO and CEN (Vienna Agreement).

This second edition cancels and replaces the first edition (ISO 13696:2002), which has been technically

revised.
The main changes are as follows:

— In the Scope, measurement range outlined in more detail and limited to 250 nm. For measurements in

the deep ultraviolet between 190 nm to 250 nm, specific methods are considered and are described.

— In 3.1.6, additional Note 2 inserted for high volume scattering of the specimen and additional Note

3 inserted for comprehensive illustration of the term total scattering.

— In 3.1.7, Note extended concerning diffuse reflectance standard for wavelengths below 250 nm

down to the deep ultraviolet.

— In 3.2, New symbols for total scattering, σ , forward scattering, τ , and backward scattering, ρ ,

TS TS TS
in Table 1.

— In Figure 1 and 4.2.5, lock-in amplifier optional. For fast data acquisition modules, no Lock-in

technique may be necessary.

— In 4.2.2, calibration of the monitor detector is not necessary. The power at the sample surface shall

be measured by a calibrated detector.

— In 4.2.4, additional Note 1 inserted concerning aging of the diffuse reflecting material on the inner

walls of the sphere.

— In 4.2.5, additional Note inserted concerning optional components for a phase sensitive detection

scheme with lock-in amplifier.
© ISO 2022 – All rights reserved
---------------------- Page: 10 ----------------------
SIST EN ISO 13696:2022
ISO 13696:2022(E)

— In 5.3, change of measurement sequence starting with power measurement calibration procedure,

and determination of the signal of the unloaded sphere prior to the measurement of the specimen.

— In 6.1, adaptation of Formulae (1) (2) and (5) to (8) (in the denominator V ()r was adapted to V ).

— Correction of Formula (C.2).

— Annex E inserted concerning alternative method for calibrating total scatter measurements using a

calcium fluoride diffuser disk.

— In Bibliography, ISO 31-6:1992 was replaced by current version ISO 80000-7, same for ISO 11146 with

ISO 11146-1 and ISO 11146−2, ISO 11554 and ISO 12005 no longer cited dated. Also replacement of

[5]" [6]
former citations " by latest edition of SEMI MF1048-0217 .

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www.iso.org/members.html.
© ISO 2022 – All rights reserved
---------------------- Page: 11 ----------------------
SIST EN ISO 13696:2022
ISO 13696:2022(E)
Introduction

In most applications, scattering in optical components reduces the efficiency and deteriorates the

image-forming quality of optical systems. Scattering is predominantly produced by imperfections of

the coatings and the optical surfaces of the components. Common surface features, which contribute

to optical scattering, are imperfections of substrates, thin films and interfaces, surface and interface

roughness, or contamination and scratches. These imperfections deflect a fraction of the incident

radiation from the specular path. The spatial distribution of this scattered radiation is dependent on

the wavelength of the incident radiation and on the individual optical properties of the component. For

most applications in laser technology and optics, the amount of total loss produced by scattering is a

useful quality criterion of an optical component.

This document describes a testing procedure for the corresponding quantity, the total scattering

value, which is defined by the measured values of backward scattering or forward scattering. The

measurement principle described in this document is based on an Ulbricht sphere as the integrating

element for scattered radiation. An alternative apparatus with a Coblentz hemisphere, which is also

frequently used for collecting scattered light, is described in Annex A.
© ISO 2022 – All rights reserved
---------------------- Page: 12 ----------------------
SIST EN ISO 13696:2022
INTERNATIONAL STANDARD ISO 13696:2022(E)
Optics and photonics — Test method for total scattering by
optical components
1 Scope

This document specifies procedures for the determination of the total scattering by coated and uncoated

optical surfaces. Procedures are given for measuring the contributions of the forward scattering or

backward scattering to the total scattering of an optical component.

This document applies to coated and uncoated optical components with optical surfaces that have a

radius of curvature of more than 10 m. Measurement wavelengths covered by this document range

from the ultraviolet above 250 nm to the infrared spectral region below 15 µm. For measurements in

the deep ultraviolet between 190 nm to 250 nm, specific methods are considered and are described.

Generally, optical scattering is considered as neglectable for wavelengths above 15 µm.

2 Normative references

The following documents are referred to in the text in such a way, that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 11145, Optics and photonics — Lasers and laser-related equipment — Vocabulary and symbols

ISO 14644-1, Cleanrooms and associated controlled environments — Part 1: Classification of air cleanliness

by particle concentration
3 Terms, definitions and symbols
3.1 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 11145 and the following apply.

ISO and IEC maintain terminology databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1.1
scattered radiation

fraction of the incident radiation that is deflected from the specular optical path

3.1.2
front surface
optical surface that interacts first with the incident radiation
3.1.3
rear surface
surface that interacts last with the transmitted radiation
© ISO 2022 – All rights reserved
---------------------- Page: 13 ----------------------
SIST EN ISO 13696:2022
ISO 13696:2022(E)
3.1.4
backward scattering

fraction of radiation scattered by the optical component into the backward halfspace

Note 1 to entry: Backward halfspace is defined by the halfspace that contains the incident beam impinging upon

the component and that is limited by a plane containing the front surface of the optical component.

3.1.5
forward scattering

fraction of radiation scattered by the optical component into the forward halfspace

Note 1 to entry: Forward halfspace is defined by the halfspace that contains the beam transmitted by the

component and that is limited by a plane containing the rear surface of the optical component.

3.1.6
total scattering

ratio of the total power generated by all contributions of scattered radiation (3.1.1) into the forward or

the backward halfspace to the power of the incident radiation

Note 1 to entry: The halfspace in which the scattering is measured should be clearly stated.

Note 2 to entry: The sum of the measured forward and backward scattering does not include the contribution of

the bulk material in the optical component. In case the volume scattering of the component is not negligible, the

total scatter losses may exceed the sum of forward and backward scattering.

Note 3 to entry: Total scattering is equal to forward or backward scattering, and is neither the sum of both nor

the sum of all scattering contributions.
3.1.7
diffuse reflectance standard
diffuse reflector with known total reflectance

Note 1 to entry: Commonly used diffuse reflectance standards are fabricated from barium sulfate or

polytetrafluoroethylene powders (see Table 2). The total reflectance of reflectors freshly prepared from these

materials is typically greater than 0,98 in the spectral range given in Table 2, and it can be considered as a

100 % reflectance standard. For increasing the accuracy, diffuse reflectance standards with lower reflectance

values can be realized by mixtures of polytetrafluoroethylene powder and powders of absorbing materials,

see Reference [6]. Further concepts for diffuse reflectance standards include optical surfaces with specially

prepared microstructures, metal-coated diffusers or diffuse transparent reference samples. A versatile method

on the basis of a calcium fluoride diffuser disk for the wavelength range from 250 nm down in the ultraviolet

range is described in Annex E.
3.1.8
range of acceptance angle

range of scattering angles in the reflecting or transmitting hemisphere, which are collected by the

integrating element

Note 1 to entry: The maximum polar acceptance angle with respect to the sample normal is 85°.

Note 2 to entry: The radiant power around the specular transmitted or reflected beam is not collected by the

integrating element in a cone with an opening angle of 2° or less.
3.1.9
angle of polarization

angle between the major axis of the instantaneous polarization ellipse of the incident radiation and the

plane of incidence

Note 1 to entry: For non-normal incidence, the plane of incidence is defined by the plane which contains the

direction of propagation of the incident radiation and the normal at the point of incidence.

Note 2 to entry: The angle of polarization, γ, is identical to the azimuth, Φ (according to ISO 12005), if the reference

axis is located in the plane of incidence.
© ISO 2022 – All rights reserved
---------------------- Page: 14 ----------------------
SIST EN ISO 13696:2022
ISO 13696:2022(E)
3.2 Symbols and units of measure
Table 1 — Symbols and units of measure
Symbol Term Unit
λ wavelength nm
α angle of incidence degrees
γ angle of polarization degrees
d beam diameter on the surface of the specimen mm
d largest beam diameter at a beam port mm
σ,p
P power of the incident radiation W
inc
P total power, backward scattered radiation W
bac
P total power, forward scattered radiation W
for
σ total scattering
ρ backward scattering
τ forward scattering
V detector signal for the specimen, backward scattering
s,bac
V detector signal for the specimen, forward scattering
s,for
V detector signal, diffuse reflectance standard
V detector signal, test ports open
τ transmittance of specimen at wavelength, λ
ρ reflectance of specimen at wavelength, λ
r test site position
N number of test sites per surface
The unit depends on the measurement device and is therefore not specified here.
4 Test method
4.1 Principle

The fundamental principle (see Figure 1) of the measurement apparatus is based on the collection and

integration of the scattered radiation. For this purpose, a hollow sphere with a diffusely reflecting

coating on the inner surface (Ulbricht sphere) is used. Beam ports are necessary for the transmission of

the test beam and the specularly reflected beam through the wall of the sphere. The sample is attached

to one of these ports forming a part of the inner surface of the sphere. For the measurement of the

backward scattering, the specimen is located at the exit port. The forward scattering is determined by

mounting the specimen to the entrance port. The scattered radiation is integrated by the sphere and

measured by a suitable detector, which is attached to an additional port at an appropriate position. A

diffuse reflectance standard is used for calibration of the detector signal.
4.2 Measurement arrangement and test equipment
4.2.1 General

The measurement facility used for the determination of the total scattering is divided into four

functional sections, which are described in detail below. One functional section consists of the radiation

source and the beam preparation system. Two different components are defined by the integration and

detection of the scattered radiation. Another section is formed by the sample holder and its optional

accessories.
© ISO 2022 – All rights reserved
---------------------- Page: 15 ----------------------
SIST EN ISO 13696:2022
ISO 13696:2022(E)
Key
1 radiation source 10 exit port
2 chopper 11 beam stop
3 spatial filter 12 sample
4 beam splitter 13 radiation baffles
5 power detector 14 detector, diffuser
6 power meter 15 beam stop
7 entrance port 16 chopper signal
8 Ulbricht sphere 17 lock-in amplifier (optional)
9 coating 18 detector signal
Figure 1 — Schematic arrangement for the measurement of total scattering
(configuration for backward scattering with phase sensitive detection scheme)
4.2.2 Radiation source

As radiation sources, lasers are preferred because of their excellent beam quality and the high power

density achievable on the sample surface. For special applications, for example involving the wavelength

dependence of scattering, different conventional radiation sources may be used.

The temporal power variation of the radiation source shall be measured and documented. For this

purpose, a beam splitter and a monitor detector are installed. The power at the sample surface shall be

measured by a calibrated detector for both test locations at the entrance and exit port of the integrating

element.
4.2.3 Beam preparation system

The beam preparation system consists of a spatial filter and additional apertures, if necessary, for

cleaning the beam. For measurements involving conventional radiation sources, additional optical

elements are required for the shaping and collimation of the beam. The beam diameter, d , at the surface

© ISO 2022 – All rights reserved
---------------------- Page: 16 ----------------------
SIST EN ISO 13696:2022
ISO 13696:2022(E)

of the specimen shall be greater than 0,4 mm. No radiation power shall be present in the collimated

beam profile beyond radial positions exceeding the beam radius by a factor of 5.

NOTE 1 The behaviour of the measured total scatter value can be dependent on the beam diameter and the

beam profile (see Annex D).

On the sample surface, the beam profile shall be smooth without local power density values exceeding

the average power density within the beam diameter, d , by a factor of three. For measurement systems

with a laser as the radiation source, a TEM -operation with a diffraction-limited Gaussian beam

profile is recommended. The defined state and angle of polarization shall be selected. For measurement

systems usin
...
