SIST ETS 300 494-3:1999/A1:1999

• Abstract:

  First ammendment of ETS 300494-3, the CTS for GAP. Based upon ETS 300 494-3 and ETS 300 497, Edition 2, reflecting changes introduced into the second edition of ETS 300 497.

• Status: Published
• Publication Date: 30-Apr-1999
• ICS: 33.070.30 - Digital Enhanced Cordless Telecommunications (DECT)
• Technical Committee: RES - Radio equipment and systems
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-May-1999
• Due Date: 01-May-1999
• Completion Date: 01-May-1999
• Mandate: T-317
• Ref Project: ETSI ETS 300 494-3/A1 ed.1 (1998-02) - Digital Enhanced Cordless Telecommunications (DECT); Generic Access Profile (GAP); Profile Test Specification (PTS); Part 3: Profile Specific Test Specification (PSTS) - Fixed radio Termination (FT)

SIST ETS 300 494-3:1999/A1:1999 is a SIST publication of an ETSI amendment for Digital Enhanced Cordless Telecommunications (DECT) Generic Access Profile (GAP) testing. It specifies the Profile Specific Test Specification (PSTS) for the Fixed radio Termination (FT), so manufacturers and test labs can check FT behaviour against named abstract test cases. The document is a test specification, and the FT is treated as the Implementation Under Test (IUT).

What does SIST ETS 300 494-3:1999/A1:1999 specify?

SIST ETS 300 494-3:1999/A1:1999 amends ETS 300 494-3 (1996) and aligns the FT test material with ETS 300 497, Edition 2. It focuses on conformance testing for the FT across the NWK, DLC and MAC layers of DECT GAP.

The document is organized around:

• Clause 2, which updates the normative reference list.
• Clause 4.1, which covers NWK layer FT test groups and abstract test cases.
• Clause 4.2, which covers DLC layer FT test groups and abstract test cases.
• Clause 4.3, which covers the MAC FT suite structure and test cases.
• Annex B, which provides result tables for recording selected tests, runs, verdicts and observations.

In practice, the structure tells a test engineer where to find the case lists, the layer-specific test objectives, and the sheets used to record execution results.

What are the key requirements of SIST ETS 300 494-3:1999/A1:1999?

NWK layer FT test coverage

SIST ETS 300 494-3:1999/A1:1999 updates clause 4.1 to list NWK layer FT test groups derived from ETS 300 497-9 [26]. The amendment adds the FT/CC/RS test group for call related supplementary service procedures and revises the group list used for call control, mobility management and link control.

Table 2 is the core NWK case list. It covers outgoing, incoming and internal calls, normal and abnormal call release, register recall, supplementary service signalling, message handling errors, timer expiry, identity and authentication procedures, location registration and update, access rights, key allocation, cipher switching, and link establishment and release. For users of the standard, this means the FT must be checked not only for basic call setup, but also for error handling and timing behaviour.

DLC layer FT test coverage

SIST ETS 300 494-3:1999/A1:1999 updates clause 4.2 with DLC layer FT test groups derived from ETS 300 497-5 [22]. Table 4 covers Class A and Class B link behaviour, retransmission, acknowledgement, re-establishment, connection handover, short broadcast frame generation, and U-plane Class 0 frame transfer.

These cases matter because they verify that the FT handles frame numbering, retransmission control and link recovery correctly. A lab running these cases is checking whether the device keeps communication stable when acknowledgements are missing or frames arrive with invalid sequence information.

MAC FT suite structure and test method

SIST ETS 300 494-3:1999/A1:1999 updates clause 4.3 with the MAC FT suite structure. Table 5 names the suite mac_ft and identifies the test method as remote (modified). It also splits the work into test groups for downlink broadcast, paging, bearer setup, bearer handover, bearer release, data transfer and LLME MAC layer management.

Table 6 adds the practical MAC cases. These include broadcast and paging message behaviour, bearer setup and release, handover with and without encryption, CS segment retransmission, and error handling during data transfer. For implementers, this section shows the MAC behaviors that need to be demonstrated on real equipment, not just described in a design document.

Result recording in Annex B

SIST ETS 300 494-3:1999/A1:1999 replaces the result tables in Annex B.6.1, B.6.2 and B.6.3. These tables list each test case with columns for selection, run status, verdict and observation.

That layout matters in a test campaign because it gives teams a common way to record what was executed and whether each case passed, failed or was inconclusive.

What terms does SIST ETS 300 494-3:1999/A1:1999 define?

• Digital Enhanced Cordless Telecommunications (DECT) - the cordless telecommunications family addressed by the standard.
• Generic Access Profile (GAP) - the access profile whose FT behavior is being tested.
• Profile Test Specification (PTS) - the test specification framework used to verify a profile.
• Profile Specific Test Specification (PSTS) - the part of the PTS that focuses on one profile element, here the FT.
• Fixed radio Termination (FT) - the fixed-side DECT entity that is tested by this document.
• Implementation Under Test (IUT) - the FT equipment or implementation that is being exercised by the test cases.
• European Telecommunications Standards Institute (ETSI) - the standards body that produced the amendment.

Who uses SIST ETS 300 494-3:1999/A1:1999?

SIST ETS 300 494-3:1999/A1:1999 is used by DECT equipment manufacturers, conformance test laboratories, and quality or certification teams working on GAP implementations. It is also useful to engineers who need to select test cases, set up remote testing, and compare observed behaviour with the named abstract test cases.

Buyers or technical reviewers use it when they need to understand what a DECT FT test campaign covers: call handling, mobility management, access rights, cipher switching, bearer control, paging and data transfer. In practice, it supports both implementation verification and acceptance testing.

What changed in SIST ETS 300 494-3:1999/A1:1999 from the previous edition?

SIST ETS 300 494-3:1999/A1:1999 is an amendment to ETS 300 494-3 (1996) and reflects changes introduced in the second edition of ETS 300 497.

The amendment:

• updates clause 2 by replacing the ETS 300 444 reference with EN 300 444;
• revises clause 4.1, including the FT/CC/RS group and the Table 2 NWK case list;
• revises clause 4.2 and replaces Table 4 for DLC FT testing;
• revises clause 4.3 and replaces the MAC suite structure and Table 6;
• updates Annex B result sheets to match the revised case lists.

Which standards are used with SIST ETS 300 494-3:1999/A1:1999?

Standard	What it contributes
ETS 300 444 / EN 300 444	GAP reference used in the test suite context and cited in the updated references.
ETS 300 497-9 [26]	Source for the NWK layer FT test groups and abstract test cases in clause 4.1.
ETS 300 497-5 [22]	Source for the DLC layer FT test groups and abstract test cases in clause 4.2.
ETS 300 497-3 [20]	Source for the MAC FT suite structure and test cases in clause 4.3.
ETS 300 474 [27]	Profile ICS Ref named in the MAC suite structure.
ETS 300 494-3	Profile IXIT Ref named in the MAC suite structure and the base document amended here.
ETS 300 497-1 [18]	Used for unique test case naming where the amendment notes that page references are not included.

What does the SIST ETS 300 494-3:1999/A1:1999 document contain?

SIST ETS 300 494-3:1999/A1:1999 contains lists of test groups and abstract test cases for the FT across NWK, DLC and MAC layers. The case lists are organized by functional area, such as call control, mobility management, access rights, bearer setup, handover, release, paging and data transfer.

The document also contains a MAC test suite structure table for mac_ft and result sheets in Annex B. Those sheets are used to mark selection, execution and verdict status for each test case.

In short, the document is a working conformance test specification: it tells a test team what to test, how the cases are grouped, and how to record the outcome.

SLOVENSKI STANDARD
3SIST ETS 300 494-3:1999/A1:1999
01-jDQXDU-1999
'LJLWDOQHL]EROMãDQHEUH]YUYLþQHWHOHNRPXQLNDFLMH'(&73URILOJHQHULþQHJD
GRVWRSD*$3GHO2GSURILODRGYLVQDSUHVNXãDOQDVSHFLILNDFLMD3676
ILNVQDUDGLMVND]DNOMXþLWHY)7
Digital Enhanced Cordless Telecommunications (DECT); Generic Access Profile (GAP);
Profile Test Specification (PTS); Part 3: Profile Specific Test Specification (PSTS) - Fixed
radio Termination (FT)
Ta slovenski standard je istoveten z: ETS 300 494-3/A1 E1
ICS:
33.070.30 'LJLWDOQHL]EROMãDQH Digital Enhanced Cordless
EUH]YUYLþQHWHOHNRPXQLNDFLMH Telecommunications (DECT)
'(&7
3SIST ETS 300 494-3:1999/A1:1999 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

ETS 300 494-3
AMENDMENT A1
February 1998
Source: DECT Reference: RE/DECT-040093-3
ICS: 33.020
Key words: DECT, GAP, testing
This amendment A1 modifies
the European Telecommunication Standard ETS 300 494-3 (1996)
Digital Enhanced Cordless Telecommunications (DECT);
Generic Access Profile (GAP);
Profile Test Specification (PTS);
Part 3: Profile Specific Test Specification (PSTS) -
Fixed radio Termination (FT)
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
X.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail]
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1998. All rights reserved.

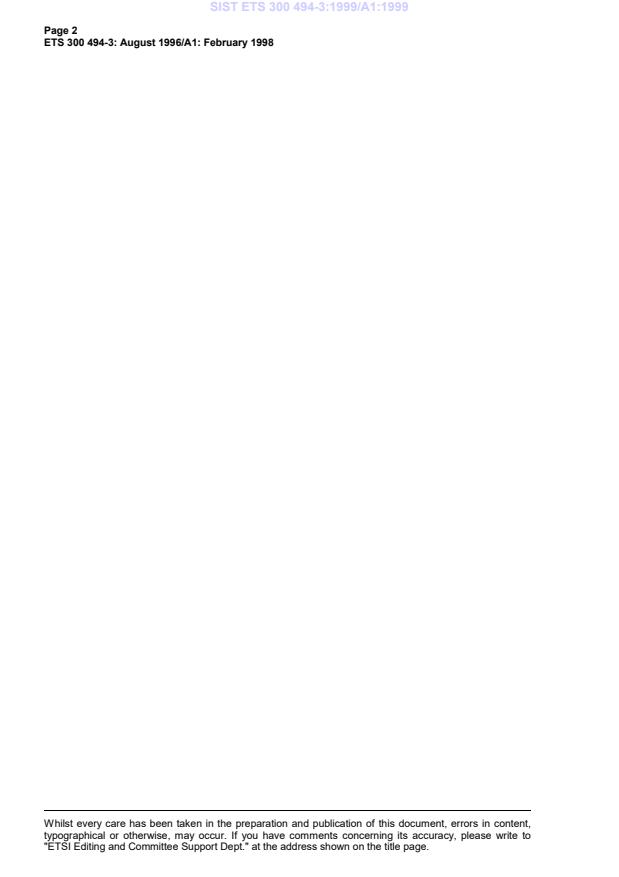

Page 2
ETS 300 494-3: August 1996/A1: February 1998
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 494-3: August 1996/A1: February 1998
Foreword
This amendment to ETS 300 494-3 (1996) has been produced by the Digital Enhanced Cordless
Telecommunications (DECT) Project of the European Telecommunications Standards Institute (ETSI).
Transposition dates
Date of adoption of this amendment: 6 February 1998
Date of latest announcement of this amendment (doa): 31 May 1998
Date of latest publication or endorsement of this amendment (dop/e): 30 November 1998
Date of withdrawal of any conflicting National Standard (dow): 30 November 1998

Page 4
ETS 300 494-3: August 1996/A1: February 1998
Amendments
Clause 2
Modify clause 2 as follows:
[8]                   ETS 300 444 (1995): "Radio Equipment and Systems (RES); Digital European
Cordless Telecommunications (DECT); Generic Access Profile (GAP)”.
[8]                   EN 300 444: "Digital European Cordless Telecommunications (DECT); Generic
Access Profile (GAP)”.
Subclause 4.1
Modify subclause 4.1 as follows:
This subclause includes lists of the test groups and abstract test cases relevant for GAP PTS - NWK layer
Fixed Termination (FT) derived from ETS 300 497-9 [26].
The page number referenced is the relative page number in the corresponding ETS where the particular
item can be found.
NOTE: As ETS 300 497-1 [18] is draft, and some changes are likely due to the results of the
Public Enquiry (PE) phase, page numbers reflecting the exact place in that ETS where
a test case is to be found are not included in this ETS. They shall be added in a later
stage. References when necessary shall be made based on the particular test case
name unique through all test specification ETS 300 497-1 [18].
Subclause 4.1.1
Add the test group reference for "FT/CC/RS" in table 1, as follows:
FT/CC/BV/CR/ To check the IUT's behaviours to release an outgoing/incoming call
FT/CC/RS To check the IUT’s behaviour during call related supplementary service
procedures.
FT/CC/BO/ To check the behaviour of the CC entity of the IUT in response to the
messages that are syntactically correct but not allowed to occur in some states
of the CC procedures
Delete test group reference for "FT/ME/BO" in table 1, as follows:
FT/ME/BV/ To tests the LLME of the IUT in response to syntactically and contextual correct
behaviour of the test system
FT/ME/BO/ To check the IUT behaviour in response to the messages that are syntactically
correct but not allowed to occur in some phase of the LLME managed
procedures
FT/LC/ To check the behaviour of the LCE of the IUT

Page 5
ETS 300 494-3: August 1996/A1: February 1998
Subclause 4.1.2
Replace table 2 with the following table 2:
Table 2
Test Case Index
Test Group Test Case Id Description
Reference
FT/CC/BV/OC/ TC_FT_CC_BV_OC_01 Outgoing normal call; F-00 to F-10; piece-wise dialling
TC_FT_CC_BV_OC_06 Internal call. (There is no test case defined in
ETS 300 497-9 [26] due to difficulties of predicting the
IUT behaviour)
FT/CC/BV/IC/ TC_FT_CC_BV_IC_01 Incoming call; F-00, F-06, F-07 to F-10
FT/CC/BV/CI/ TC_FT_CC_BV_CI_01 Incoming call; <> either in {SS-SETUP}{CC-
SETUP} or in {CC-INFO}
TC_FT_CC_BV_CI_02 Outgoing normal call; F-02; {CC-INFO], < keypad>>, "Go to pulse" handling
TC_FT_CC_BV_CI_03 Outgoing normal call; F-10; {CC_INFO},< keypad>>, ‘Go to pulse’ handling.
TC_FT_CC_BV_CI_04 Outgoing normal call; F-02; {CC-INFO], < keypad>>, "dialling pause" handling
TC_FT_CC_BV_CI_05 Outgoing normal call; F-10; {CC-INFO], < keypad>>, "Dialling pause" handling
TC_FT_CC_BV_CI_06 Outgoing normal call; F-02; {CC-INFO], < keypad>>, "Go to DTMF defined tone length" handling
TC_FT_CC_BV_CI_07 Outgoing normal call; F-10; {CC-INFO], < keypad>>, "Go to DTMF defined tone length" handling
TC_FT_CC_BV_CI_08 Outgoing normal call; F-02; {CC-INFO], < keypad>>, "Go to DTMF infinite tone length" handling
TC_FT_CC_BV_CI_09 Outgoing normal call; F-10; {CC-INFO], < keypad>>, "Go to DTMF infinite tone length" handling
TC_FT_CC_BV_CI_10 Outgoing normal call; F-10; {CC-INFO], < keypad>>, "0-9, star, hash mark" handling
TC_FT_CC_BV_CI_11 Internal call. (There is no test case defined in
ETS 300 497-9 [26] due to difficulties of predicting the
IUT behaviour)
TC_FT_CC_BV_CI_12 FT handling <>. (There is no test
case defined in ETS 300 497-9 [26] due to difficulties of
predicting the IUT behaviour)
FT/CC/BV/CR/ TC_FT_CC_BV_CR_01 Outgoing normal call; F-02; IUT initiated normal release
TC_FT_CC_BV_CR_02 F-10; IUT initiated normal release
TC_FT_CC_BV_CR_03 Incoming call; F-07; IUT initiated normal release
TC_FT_CC_BV_CR_04 Outgoing call; F-02; PT initiated normal release
TC_FT_CC_BV_CR_05 F-10; PT initiated normal release
TC_FT_CC_BV_CR_06 Incoming call; F-07; PT initiated normal release
TC_FT_CC_BV_CR_07 Incoming call; F-07; PT initiated abnormal release
TC_FT_CC_BV_CR_08 F-10; PT initiated abnormal release
TC_FT_CC_BV_CR_09 Incoming call; F-06; PT initiated abnormal release
TC_FT_CC_BV_CR_10 F-10; PT initiated partial release
TC_FT_CC_BV_CR_11 F-10; FT initiated partial release
FT/CC/RS/ TC_FT_CC_RS_01 Register recall. (There is no test case defined in
ETS 300 497-9 [26] due to difficulties of predicting the
IUT behaviour)
FT/CC/RS TC_FT_CC_RS_07 Incoming call; T-00; {CC-SETUP}, < number>> provision (CLIP support)
(continued)
Page 6
ETS 300 494-3: August 1996/A1: February 1998
Table 2 (continued)
Test Case Index
Test Group Test Case Id Description
Reference
FT/CC/BO/ TC_FT_CC_BO_01 F-10; unexpected {CC-ALERTING}
F-02; unexpected {CC-SETUP}
TC_FT_CC_BO_02 F-19; receipt of {CC-RELEASE}; release collisions
handling
FT/CC/BI/ TC_FT_CC_BI_01 F-00; {CC-SETUP} mandatory I.E. missing; answer
upon with {CC-RELEASE-COM]
TC_FT_CC_BI_02 F-00; {CC-SETUP} wrong mandatory I.E.; answer upon
with {CC-RELEASE-COM]
TC_FT_CC_BI_03 F-00; {CC-SETUP}-like message, non {CC-SETUP}
unrecognised message type; ignore
TC_FT_CC_BI_04 F-00; to short message to contain the complete
<>; ignore
FT/CC/TI/ TC_FT_CC_TI_01 Outgoing call; F-02; timer F- expiry (± 5 %
margin) (-10%margin); IUT sends {CC-RELEASE}
TC_FT_CC_TI_02 Outgoing call; F-02; restart of timer F- on
receipt of {CC-INFO}
TC_FT_CC_TI_03 Outgoing call; F-19; timer F- expiry (-
10%margin(± 5 % margin); IUT sends {CC-RELEASE-
COM}
TC_FT_CC_TI_04 Outgoing call; F-06; timer F- expiry (-
10%margin(± 5 % margin); IUT sends {CC-RELEASE-
COM}
FT/MM/BV/ID/ TC_FT_MM_BV_ID_01 Identity request procedure; IUT initiated
FT/MM/BV/AU/ TC_FT_MM_BV_AU_01 Authentication of PT; PT has no stored ZAP value and
service class info
TC_FT_MM_BV_AU_02 Authentication of PT; ZAP increment; PT has stored
ZAP value and service class info; PT authenticates FT
before answering
TC_FT_MM_BV_AU_03 Authentication of user; PT has no stored ZAP value
and service class info
TC_FT_MM_BV_AU_04 Authentication of FT
TC_FT_MM_BV_AU_05 Authentication of FT; Unsupported key requested; IUT
rejects
TC_FT_MM_BV_AU_06 Authentication of PT; store DCK ; PT has no stored
ZAP value and service class info
FT/MM/BV/LO/ TC_FT_MM_BV_LO_01 Location registration; a38=1 at locking and at the
beginning of the procedure; request with IPUI
TC_FT_MM_BV_LO_02 Location registration; a38=1 at locking and at the
beginning of the procedure; request with unknown IPUI;
reject
TC_FT_MM_BV_LO_03 Location registration; a38=1 at locking and at the
beginning of the procedure; request with IPUI; IUT
assigns TPUI
TC_FT_MM_BV_LO_05 Location update; a38=1 at locking; Location reg started
upon 1st {MM-INFO-SUGGEST};
TC_FT_MM_BV_LO_06 Location registration; a38=1 at locking; a38=0 at the
beginning of the procedure; request with IPUI
TC_FT_MM_BV_LO_07 Location update; a38=1 at locking; Location reg started
upon 2nd {MM-INFO-SUGGEST};
FT/MM/BV/AR/ TC_FT_MM_BV_AR_01 Obtain access rights; both sides use AC indication; IUT
sends the whole PARK
TC_FT_MM_BV_AR_02 Obtain access rights; service class assign
TC_FT_MM_BV_AR_03 Terminate access rights; IUT(FT) initiated; PT
authenticates FT
(continued)
Page 7
ETS 300 494-3: August 1996/A1: February 1998
Table 2 (continued)
Test Case Index
Test Group Test Case Id Description
Reference
TC_FT_MM_BV_AR_06 Obtain access rights; both sides use UAK indication;
IUT sends the whole PARK
TC_FT_MM_BV_AR_07 Obtain access rights; ZAP value assign
FT/MM/BV/KA/ TC_FT_MM_BV_KA_01 Key allocate; IUT initiated
TC_FT_MM_BV_KA_02 Key allocate; IUT initiated; "implicit PT authentication"
failure; IUT rejects
TC_FT_MM_BV_KA_03 Key allocate; IUT initiated; PT rejects; IUT keeps AC
FT/MM/BV/CH/ TC_FT_MM_BV_CH_01 Cipher switching; PT initiated; "cipher-off" to "cipher-on"
TC_FT_MM_BV_CH_02 Cipher switching; PT initiated; "cipher-on" to "cipher-off"
TC_FT_MM_BV_CH_03 Cipher switching; IUT(FT) initiated; "cipher-off" to
"cipher-on"
TC_FT_MM_BV_CH_04 Cipher switching; IUT(FT) initiated; "cipher-on" to
"cipher-off"
TC_FT_MM_BV_CH_05 Cipher switching; PT initiated with "unsupported cipher
key"; IUT rejects
TC_FT_MM_BV_CH_08 Cipher switching; IUT(FT) initiated; "cipher-off" to
"cipher-on" fails
TC_FT_MM_BV_CH_09 Cipher switching; PT initiated; "cipher-off" to "cipher-on"
fails
TC_FT_MM_BV_CH_10 Cipher switching; PT initiated; "cipher-off" to "cipher-on"
and intercell handover
TC_FT_MM_BV_CH_11 Cipher switching; PT initiated; "cipher-off" to "cipher-on"
and intracell handover
TC_FT_MM_BV_CH_12 Cipher switching; IUT(FT) initiated; "cipher-off" to
"cipher-on" and intercell handover
TC_FT_MM_BV_CH_13 Cipher switching; PT initiated; "cipher-on" to "cipher-off"
fails
TC_FT_MM_BV_CH_14 Cipher switching; IUT(FT) initiated; "cipher-off" to
"cipher-on" and intracell handover
TC_FT_MM_BV_CH_15 Cipher switching; IUT(FT) initiated; "cipher-on" to
"cipher-off" fails
FT/MM/BO/ TC_FT_MM_BO_01 Cipher switching; IUT(FT) initiated; ignoring
unexpected {IDENTITY-REPLY}
FT/MM/BI/ TC_FT_MM_BI_01 Identity request; PT sends unrecognised message; IUT
ignores
FT/MM/BI TC_FT_MM_BI_02 Obtain access rights; {ACCESS-RIGHTS-REQUEST}
missing <>; IUT sends {ACCESS-RIGHTS-
REJECT}
TC_FT_MM_BI_03 Obtain access rights; {ACCESS-RIGHTS-REQUEST}
with <> exceeding the max. allowed length;
IUT sends {ACCESS-RIGHTS-REJECT}
FT/MM/TI/ TC_FT_MM_TI_01 Identity request; timer F- expiry (± 5 %
margin) (- 10% margin)
TC_FT_MM_TI_02 Authentication of PT; timer F- expiry (±
5 % margin) (- 10% margin)
TC_FT_MM_TI_03 Authentication of user; timer F- expiry (±
5 % margin) (- 10% margin)
TC_FT_MM_TI_04 Terminate access rights; IUT(FT) initiated; timer F-
expiry (± 5 % margin) (- 10% margin)
TC_FT_MM_TI_05 Key allocation; timer F- expiry (± 5 %
margin) (- 10% margin)
(continued)
Page 8
ETS 300 494-3: August 1996/A1: February 1998
Table 2 (concluded)
Test Case Index
Test Group Test Case Id Description
Reference
TC_FT_MM_TI_06 Cipher switching; IUT(FT) initiated; timer F-
expiry (margin: -20%)(± 5 % margin)
TC_FT_MM_TI_07 Location registration with TPUI assignment; timer F-
expiry (+± 5 % margin)
FT/ME/BV/ TC_FT_ME_BV_01 Incoming call and authentication of FT handled in
parallel
TC_FT_ME_BV_02 Authentication of user interrupted by Authentication of
FT
TC_FT_ME_BV_03 CC call and location registration in parallel
FT/ME/BO/ TC_FT_ME_BO_01 Authentication of PT; Ignore of {LOCATE-REQUEST}
(lower priority)
FT/LC/BV/LE/ TC_FT_LC_BV_LE_01 Indirect IUT(FT) link establishment procedure; correct
PT answer
TC_FT_LC_BV_LE_02 Indirect IUT(FT) link establishment procedure; {LCE-
PAGE-RESPONSE} with mismatching IPUI; IUT rejects
and release the link
TC_FT_LC_BV_LE_03 Direct PT initiated link establishment procedure
FT/LC/BV/LR/ TC_FT_LC_BV_LR_01 Link exists; PT initiated "normal" link release
TC_FT_LC_BV_LR_02 Link exists; MM entity ceases to use the link; no other
entity uses the link; IUT maintains the link
time
TC_FT_LC_BV_LR_03 Link exists; CC call is terminated; FT initiated link
release
TC_FT_LC_BV_LR_04 Link exists; CC entity ceases to use the link partial
release agreed; no other entity uses the link; IUT
maintains the link time
FT/LC/BI/ TC_FT_LC_BI_01 Protocol discriminator value error -unsupported service;
IUT ignores
TC_FT_LC_BI_04 {AUTH-REQUEST} with illegal transaction id.; ignore
TC_FT_LC_BI_05 Identity request procedure; {IDENTITY-REPLY} with
transaction id. flag='0'; ignore
TC_FT_LC_BI_07 F-10; link fails; IUT clears the call
FT/LC/TI/ TC_FT_LC_TI_01 Link exists; normal link release is requested; timer
expiry. (There is no test case defined in
ETS 30
...

SLOVENSKI STANDARD
01-maj-1999
'LJLWDOQHL]EROMãDQHEUH]YUYLþQHWHOHNRPXQLNDFLMH'(&73URILOJHQHULþQHJD
GRVWRSD*$3GHO2GSURILODRGYLVQDSUHVNXãDOQDVSHFLILNDFLMD3676
ILNVQDUDGLMVND]DNOMXþLWHY)7
Digital Enhanced Cordless Telecommunications (DECT); Generic Access Profile (GAP);
Profile Test Specification (PTS); Part 3: Profile Specific Test Specification (PSTS) - Fixed
radio Termination (FT)
Ta slovenski standard je istoveten z: ETS 300 494-3/A1 Edition 1
ICS:
33.070.30 'LJLWDOQHL]EROMãDQH Digital Enhanced Cordless
EUH]YUYLþQHWHOHNRPXQLNDFLMH Telecommunications (DECT)
'(&7
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

ETS 300 494-3
AMENDMENT A1
February 1998
Source: DECT Reference: RE/DECT-040093-3
ICS: 33.020
Key words: DECT, GAP, testing
This amendment A1 modifies
the European Telecommunication Standard ETS 300 494-3 (1996)
Digital Enhanced Cordless Telecommunications (DECT);
Generic Access Profile (GAP);
Profile Test Specification (PTS);
Part 3: Profile Specific Test Specification (PSTS) -
Fixed radio Termination (FT)
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
X.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail]
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1998. All rights reserved.

Page 2
ETS 300 494-3: August 1996/A1: February 1998
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 494-3: August 1996/A1: February 1998
Foreword
This amendment to ETS 300 494-3 (1996) has been produced by the Digital Enhanced Cordless
Telecommunications (DECT) Project of the European Telecommunications Standards Institute (ETSI).
Transposition dates
Date of adoption of this amendment: 6 February 1998
Date of latest announcement of this amendment (doa): 31 May 1998
Date of latest publication or endorsement of this amendment (dop/e): 30 November 1998
Date of withdrawal of any conflicting National Standard (dow): 30 November 1998

Page 4
ETS 300 494-3: August 1996/A1: February 1998
Amendments
Clause 2
Modify clause 2 as follows:
[8]                   ETS 300 444 (1995): "Radio Equipment and Systems (RES); Digital European
Cordless Telecommunications (DECT); Generic Access Profile (GAP)”.
[8]                   EN 300 444: "Digital European Cordless Telecommunications (DECT); Generic
Access Profile (GAP)”.
Subclause 4.1
Modify subclause 4.1 as follows:
This subclause includes lists of the test groups and abstract test cases relevant for GAP PTS - NWK layer
Fixed Termination (FT) derived from ETS 300 497-9 [26].
The page number referenced is the relative page number in the corresponding ETS where the particular
item can be found.
NOTE: As ETS 300 497-1 [18] is draft, and some changes are likely due to the results of the
Public Enquiry (PE) phase, page numbers reflecting the exact place in that ETS where
a test case is to be found are not included in this ETS. They shall be added in a later
stage. References when necessary shall be made based on the particular test case
name unique through all test specification ETS 300 497-1 [18].
Subclause 4.1.1
Add the test group reference for "FT/CC/RS" in table 1, as follows:
FT/CC/BV/CR/ To check the IUT's behaviours to release an outgoing/incoming call
FT/CC/RS To check the IUT’s behaviour during call related supplementary service
procedures.
FT/CC/BO/ To check the behaviour of the CC entity of the IUT in response to the
messages that are syntactically correct but not allowed to occur in some states
of the CC procedures
Delete test group reference for "FT/ME/BO" in table 1, as follows:
FT/ME/BV/ To tests the LLME of the IUT in response to syntactically and contextual correct
behaviour of the test system
FT/ME/BO/ To check the IUT behaviour in response to the messages that are syntactically
correct but not allowed to occur in some phase of the LLME managed
procedures
FT/LC/ To check the behaviour of the LCE of the IUT

Page 5
ETS 300 494-3: August 1996/A1: February 1998
Subclause 4.1.2
Replace table 2 with the following table 2:
Table 2
Test Case Index
Test Group Test Case Id Description
Reference
FT/CC/BV/OC/ TC_FT_CC_BV_OC_01 Outgoing normal call; F-00 to F-10; piece-wise dialling
TC_FT_CC_BV_OC_06 Internal call. (There is no test case defined in
ETS 300 497-9 [26] due to difficulties of predicting the
IUT behaviour)
FT/CC/BV/IC/ TC_FT_CC_BV_IC_01 Incoming call; F-00, F-06, F-07 to F-10
FT/CC/BV/CI/ TC_FT_CC_BV_CI_01 Incoming call; <> either in {SS-SETUP}{CC-
SETUP} or in {CC-INFO}
TC_FT_CC_BV_CI_02 Outgoing normal call; F-02; {CC-INFO], < keypad>>, "Go to pulse" handling
TC_FT_CC_BV_CI_03 Outgoing normal call; F-10; {CC_INFO},< keypad>>, ‘Go to pulse’ handling.
TC_FT_CC_BV_CI_04 Outgoing normal call; F-02; {CC-INFO], < keypad>>, "dialling pause" handling
TC_FT_CC_BV_CI_05 Outgoing normal call; F-10; {CC-INFO], < keypad>>, "Dialling pause" handling
TC_FT_CC_BV_CI_06 Outgoing normal call; F-02; {CC-INFO], < keypad>>, "Go to DTMF defined tone length" handling
TC_FT_CC_BV_CI_07 Outgoing normal call; F-10; {CC-INFO], < keypad>>, "Go to DTMF defined tone length" handling
TC_FT_CC_BV_CI_08 Outgoing normal call; F-02; {CC-INFO], < keypad>>, "Go to DTMF infinite tone length" handling
TC_FT_CC_BV_CI_09 Outgoing normal call; F-10; {CC-INFO], < keypad>>, "Go to DTMF infinite tone length" handling
TC_FT_CC_BV_CI_10 Outgoing normal call; F-10; {CC-INFO], < keypad>>, "0-9, star, hash mark" handling
TC_FT_CC_BV_CI_11 Internal call. (There is no test case defined in
ETS 300 497-9 [26] due to difficulties of predicting the
IUT behaviour)
TC_FT_CC_BV_CI_12 FT handling <>. (There is no test
case defined in ETS 300 497-9 [26] due to difficulties of
predicting the IUT behaviour)
FT/CC/BV/CR/ TC_FT_CC_BV_CR_01 Outgoing normal call; F-02; IUT initiated normal release
TC_FT_CC_BV_CR_02 F-10; IUT initiated normal release
TC_FT_CC_BV_CR_03 Incoming call; F-07; IUT initiated normal release
TC_FT_CC_BV_CR_04 Outgoing call; F-02; PT initiated normal release
TC_FT_CC_BV_CR_05 F-10; PT initiated normal release
TC_FT_CC_BV_CR_06 Incoming call; F-07; PT initiated normal release
TC_FT_CC_BV_CR_07 Incoming call; F-07; PT initiated abnormal release
TC_FT_CC_BV_CR_08 F-10; PT initiated abnormal release
TC_FT_CC_BV_CR_09 Incoming call; F-06; PT initiated abnormal release
TC_FT_CC_BV_CR_10 F-10; PT initiated partial release
TC_FT_CC_BV_CR_11 F-10; FT initiated partial release
FT/CC/RS/ TC_FT_CC_RS_01 Register recall. (There is no test case defined in
ETS 300 497-9 [26] due to difficulties of predicting the
IUT behaviour)
FT/CC/RS TC_FT_CC_RS_07 Incoming call; T-00; {CC-SETUP}, < number>> provision (CLIP support)
(continued)
Page 6
ETS 300 494-3: August 1996/A1: February 1998
Table 2 (continued)
Test Case Index
Test Group Test Case Id Description
Reference
FT/CC/BO/ TC_FT_CC_BO_01 F-10; unexpected {CC-ALERTING}
F-02; unexpected {CC-SETUP}
TC_FT_CC_BO_02 F-19; receipt of {CC-RELEASE}; release collisions
handling
FT/CC/BI/ TC_FT_CC_BI_01 F-00; {CC-SETUP} mandatory I.E. missing; answer
upon with {CC-RELEASE-COM]
TC_FT_CC_BI_02 F-00; {CC-SETUP} wrong mandatory I.E.; answer upon
with {CC-RELEASE-COM]
TC_FT_CC_BI_03 F-00; {CC-SETUP}-like message, non {CC-SETUP}
unrecognised message type; ignore
TC_FT_CC_BI_04 F-00; to short message to contain the complete
<>; ignore
FT/CC/TI/ TC_FT_CC_TI_01 Outgoing call; F-02; timer F- expiry (± 5 %
margin) (-10%margin); IUT sends {CC-RELEASE}
TC_FT_CC_TI_02 Outgoing call; F-02; restart of timer F- on
receipt of {CC-INFO}
TC_FT_CC_TI_03 Outgoing call; F-19; timer F- expiry (-
10%margin(± 5 % margin); IUT sends {CC-RELEASE-
COM}
TC_FT_CC_TI_04 Outgoing call; F-06; timer F- expiry (-
10%margin(± 5 % margin); IUT sends {CC-RELEASE-
COM}
FT/MM/BV/ID/ TC_FT_MM_BV_ID_01 Identity request procedure; IUT initiated
FT/MM/BV/AU/ TC_FT_MM_BV_AU_01 Authentication of PT; PT has no stored ZAP value and
service class info
TC_FT_MM_BV_AU_02 Authentication of PT; ZAP increment; PT has stored
ZAP value and service class info; PT authenticates FT
before answering
TC_FT_MM_BV_AU_03 Authentication of user; PT has no stored ZAP value
and service class info
TC_FT_MM_BV_AU_04 Authentication of FT
TC_FT_MM_BV_AU_05 Authentication of FT; Unsupported key requested; IUT
rejects
TC_FT_MM_BV_AU_06 Authentication of PT; store DCK ; PT has no stored
ZAP value and service class info
FT/MM/BV/LO/ TC_FT_MM_BV_LO_01 Location registration; a38=1 at locking and at the
beginning of the procedure; request with IPUI
TC_FT_MM_BV_LO_02 Location registration; a38=1 at locking and at the
beginning of the procedure; request with unknown IPUI;
reject
TC_FT_MM_BV_LO_03 Location registration; a38=1 at locking and at the
beginning of the procedure; request with IPUI; IUT
assigns TPUI
TC_FT_MM_BV_LO_05 Location update; a38=1 at locking; Location reg started
upon 1st {MM-INFO-SUGGEST};
TC_FT_MM_BV_LO_06 Location registration; a38=1 at locking; a38=0 at the
beginning of the procedure; request with IPUI
TC_FT_MM_BV_LO_07 Location update; a38=1 at locking; Location reg started
upon 2nd {MM-INFO-SUGGEST};
FT/MM/BV/AR/ TC_FT_MM_BV_AR_01 Obtain access rights; both sides use AC indication; IUT
sends the whole PARK
TC_FT_MM_BV_AR_02 Obtain access rights; service class assign
TC_FT_MM_BV_AR_03 Terminate access rights; IUT(FT) initiated; PT
authenticates FT
(continued)
Page 7
ETS 300 494-3: August 1996/A1: February 1998
Table 2 (continued)
Test Case Index
Test Group Test Case Id Description
Reference
TC_FT_MM_BV_AR_06 Obtain access rights; both sides use UAK indication;
IUT sends the whole PARK
TC_FT_MM_BV_AR_07 Obtain access rights; ZAP value assign
FT/MM/BV/KA/ TC_FT_MM_BV_KA_01 Key allocate; IUT initiated
TC_FT_MM_BV_KA_02 Key allocate; IUT initiated; "implicit PT authentication"
failure; IUT rejects
TC_FT_MM_BV_KA_03 Key allocate; IUT initiated; PT rejects; IUT keeps AC
FT/MM/BV/CH/ TC_FT_MM_BV_CH_01 Cipher switching; PT initiated; "cipher-off" to "cipher-on"
TC_FT_MM_BV_CH_02 Cipher switching; PT initiated; "cipher-on" to "cipher-off"
TC_FT_MM_BV_CH_03 Cipher switching; IUT(FT) initiated; "cipher-off" to
"cipher-on"
TC_FT_MM_BV_CH_04 Cipher switching; IUT(FT) initiated; "cipher-on" to
"cipher-off"
TC_FT_MM_BV_CH_05 Cipher switching; PT initiated with "unsupported cipher
key"; IUT rejects
TC_FT_MM_BV_CH_08 Cipher switching; IUT(FT) initiated; "cipher-off" to
"cipher-on" fails
TC_FT_MM_BV_CH_09 Cipher switching; PT initiated; "cipher-off" to "cipher-on"
fails
TC_FT_MM_BV_CH_10 Cipher switching; PT initiated; "cipher-off" to "cipher-on"
and intercell handover
TC_FT_MM_BV_CH_11 Cipher switching; PT initiated; "cipher-off" to "cipher-on"
and intracell handover
TC_FT_MM_BV_CH_12 Cipher switching; IUT(FT) initiated; "cipher-off" to
"cipher-on" and intercell handover
TC_FT_MM_BV_CH_13 Cipher switching; PT initiated; "cipher-on" to "cipher-off"
fails
TC_FT_MM_BV_CH_14 Cipher switching; IUT(FT) initiated; "cipher-off" to
"cipher-on" and intracell handover
TC_FT_MM_BV_CH_15 Cipher switching; IUT(FT) initiated; "cipher-on" to
"cipher-off" fails
FT/MM/BO/ TC_FT_MM_BO_01 Cipher switching; IUT(FT) initiated; ignoring
unexpected {IDENTITY-REPLY}
FT/MM/BI/ TC_FT_MM_BI_01 Identity request; PT sends unrecognised message; IUT
ignores
FT/MM/BI TC_FT_MM_BI_02 Obtain access rights; {ACCESS-RIGHTS-REQUEST}
missing <>; IUT sends {ACCESS-RIGHTS-
REJECT}
TC_FT_MM_BI_03 Obtain access rights; {ACCESS-RIGHTS-REQUEST}
with <> exceeding the max. allowed length;
IUT sends {ACCESS-RIGHTS-REJECT}
FT/MM/TI/ TC_FT_MM_TI_01 Identity request; timer F- expiry (± 5 %
margin) (- 10% margin)
TC_FT_MM_TI_02 Authentication of PT; timer F- expiry (±
5 % margin) (- 10% margin)
TC_FT_MM_TI_03 Authentication of user; timer F- expiry (±
5 % margin) (- 10% margin)
TC_FT_MM_TI_04 Terminate access rights; IUT(FT) initiated; timer F-
expiry (± 5 % margin) (- 10% margin)
TC_FT_MM_TI_05 Key allocation; timer F- expiry (± 5 %
margin) (- 10% margin)
(continued)
Page 8
ETS 300 494-3: August 1996/A1: February 1998
Table 2 (concluded)
Test Case Index
Test Group Test Case Id Description
Reference
TC_FT_MM_TI_06 Cipher switching; IUT(FT) initiated; timer F-
expiry (margin: -20%)(± 5 % margin)
TC_FT_MM_TI_07 Location registration with TPUI assignment; timer F-
expiry (+± 5 % margin)
FT/ME/BV/ TC_FT_ME_BV_01 Incoming call and authentication of FT handled in
parallel
TC_FT_ME_BV_02 Authentication of user interrupted by Authentication of
FT
TC_FT_ME_BV_03 CC call and location registration in parallel
FT/ME/BO/ TC_FT_ME_BO_01 Authentication of PT; Ignore of {LOCATE-REQUEST}
(lower priority)
FT/LC/BV/LE/ TC_FT_LC_BV_LE_01 Indirect IUT(FT) link establishment procedure; correct
PT answer
TC_FT_LC_BV_LE_02 Indirect IUT(FT) link establishment procedure; {LCE-
PAGE-RESPONSE} with mismatching IPUI; IUT rejects
and release the link
TC_FT_LC_BV_LE_03 Direct PT initiated link establishment procedure
FT/LC/BV/LR/ TC_FT_LC_BV_LR_01 Link exists; PT initiated "normal" link release
TC_FT_LC_BV_LR_02 Link exists; MM entity ceases to use the link; no other
entity uses the link; IUT maintains the link
time
TC_FT_LC_BV_LR_03 Link exists; CC call is terminated; FT initiated link
release
TC_FT_LC_BV_LR_04 Link exists; CC entity ceases to use the link partial
release agreed; no other entity uses the link; IUT
maintains the link time
FT/LC/BI/ TC_FT_LC_BI_01 Protocol discriminator value error -unsupported service;
IUT ignores
TC_FT_LC_BI_04 {AUTH-REQUEST} with illegal transaction id.; ignore
TC_FT_LC_BI_05 Identity request procedure; {IDENTITY-REPLY} with
transaction id. flag='0'; ignore
TC_FT_LC_BI_07 F-10; link fails; IUT clears the call
FT/LC/TI/ TC_FT_LC_TI_01 Link exists; normal link release is requested; timer
expiry. (There is no test case defined in
ETS 300 4
...
