Overview

EN 61937-12:2010 (equivalent to IEC 61937-12:2010) defines how to carry non‑linear PCM audio bitstreams encoded in the DRA formats over the digital audio interface specified by IEC 60958. In practical terms, this part of the EN/IEC 61937 family describes the packet (data‑burst) structure, timing, and signalling needed so DRA‑encoded streams can be transmitted, detected and decoded across consumer and professional digital audio links.

Keywords: EN 61937-12:2010, IEC 61937-12, DRA formats, IEC 60958, digital audio interface, non-linear PCM, burst-info, data-burst.

Key topics and technical requirements

• Scope: Specifies the method for IEC 60958 to convey DRA (Digital Rise Audio) non‑linear PCM bitstreams.
• Burst-info and data-type: Defines a 16‑bit burst‑info (Pc) field and assigns the DRA data‑type/sub‑data‑type (data‑type = 23, sub‑data‑type = 3).
• Data‑burst format: Each DRA audio data‑burst comprises a burst‑preamble, a burst‑payload containing one complete DRA frame, and stuffing bits to fill IEC 60958 frames.
• Frame size and samples: A DRA data‑burst payload represents 1 024 samples per encoded channel; length-code (Pd) units are in bytes.
• Sampling‑rate relation: Bits 8–9 of Pc identify the relation between DRA sampling frequency and the IEC 60958 frame rate:
  • 00 = regular rate (repetition period 1 024 IEC 60958 frames)
  • 01 = half‑rate low sampling frequency (2 048 frames)
  • 10 = quarter‑rate low sampling frequency (4 096 frames)
  • 11 = reserved
• Pause data‑bursts: Recommended repetition periods for pause bursts are 32, 64 or 128 IEC 60958 frames depending on the sampling‑rate relation.
• Latency signalling: The standard defines the notion of decoding latency (sum of receive and decode delays) and requires transmitters to schedule bursts considering latency to maintain AV sync.
• Normative references: The document references IEC 60958, IEC 61937 (parts 1 & 2) and points to the DRA frame specification (e.g., GB/T 22726‑2008).

Practical applications

• Interoperability of DRA‑encoded audio over S/PDIF or AES3 links that follow IEC 60958 framing
• Implementation guidance for audio interface firmware, digital audio transmitters, and decoder front‑ends
• Design of consumer electronics (set‑top boxes, DVD/Blu‑ray players), broadcast encoders and professional audio equipment that need to carry DRA streams
• Test labs and conformance testing for digital audio transport and synchronization

Who should use this standard

• Audio equipment manufacturers and hardware engineers
• Codec and DSP developers implementing DRA encoders/decoders
• System integrators and firmware developers for digital audio interfaces
• Test laboratories and standards compliance teams

Related standards

• IEC 60958 (Digital audio interface)
• IEC 61937-1 (General) and IEC 61937-2 (Burst‑info)
• DRA format specification (e.g., GB/T 22726‑2008)

This standard is essential when transporting DRA non‑linear PCM over IEC 60958 interfaces to ensure correct framing, timing, latency handling and interoperability.

Standards Content (Sample)

SLOVENSKI STANDARD
01-november-2010
Digitalni avdio - Vmesnik za nelinearne PCM kodirane avdio bitne struje po IEC
60958 - 12. del: Bitne struje nelinearne PCM v formatih DRA (IEC 61937-12:2010)
Digital audio - Interface for non-linear PCM encoded audio bitstreams applying IEC
60958 - Part 12: Non-linear PCM bitstreams according to the DRA formats (IEC 61937-
12:2010)
Digitalton - Schnittstelle für nichtlinear-PCM-codierte Audio-Bitströme unter Verwendung
von IEC 60958 - Teil 12: Nichtlineare PCM-Bitströme entsprechend DRA-Formaten (IEC
61937-12:2010)
Audionumérique - Interface pour les flux de bits audio à codage MIC non linéaire
conformément à la CEI 60958 - Partie 12 : Flux de bits à codage MIC non linéaire
conforme au format DRA (CEI 61937-12:2010)
Ta slovenski standard je istoveten z: EN 61937-12:2010
ICS:
33.160.30 Avdio sistemi Audio systems
35.200 Vmesniška in povezovalna Interface and interconnection
oprema equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61937-12
NORME EUROPÉENNE
June 2010
EUROPÄISCHE NORM
ICS 33.160.30; 33.170
English version
Digital audio -
Interface for non-linear PCM encoded audio bitstreams
applying IEC 60958 -
Part 12: Non-linear PCM bitstreams according to the DRA formats
(IEC 61937-12:2010)
Audionumérique -  Digitalton – Schnittstelle für nichtlinear-
Interface pour les flux de bits audio PCM-codierte Audio-Bitströme
à codage MIC non linéaire unter Verwendung von IEC 60958 –
conformément à la CEI 60958 - Teil 12: Nichtlineare PCM-Bitströme
Partie 12 : Flux de bits à codage MIC entsprechend DRA-Formaten
non linéaire conforme au format DRA (IEC 61937-12:2010)
(CEI 61937-12:2010)
This European Standard was approved by CENELEC on 2010-06-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2010 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61937-12:2010 E
Foreword
The text of document 100/1578/CDV, future edition 1 of IEC 61937-12, prepared by IEC TC 100, Audio,
video and multimedia systems and equipment, was submitted to the IEC-CENELEC parallel vote and was
approved by CENELEC as EN 61937-12 on 2010-06-01.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent
rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
(dop) 2011-03-01
national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2013-06-01
with the EN have to be withdrawn
Annex ZA has been added by CENELEC.
__________

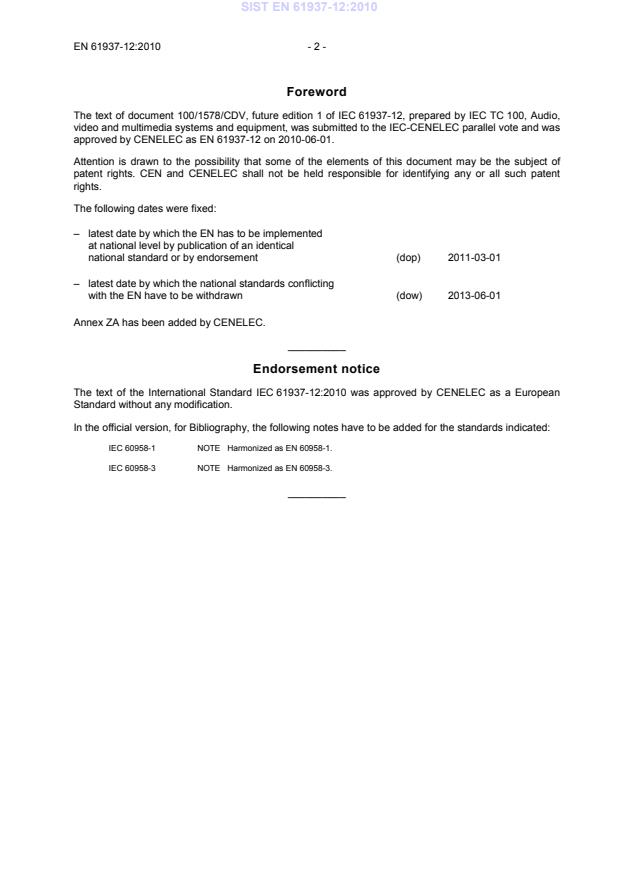

Endorsement notice
