SIST EN 61628-2:2001

Corrugated pressboard and presspaper for electrical purposes -- Part 2: Methods of test

Gives test methods (type and dimension of corrugation, dimensional changes on drying, compressive strength and compression modulus) for the materials classified in EN 61628-1.

Wellspan für elektrotechnische Zwecke -- Teil 2: Prüfverfahren

Cartons et papiers comprimés ondulés à usages électriques -- Partie 2: Méthodes d'essais

Donne des méthodes d'essais (types et dimensions de l'ondulation, variation dimensionnelle au séchage, résistance à la compression et module de compression) applicables aux matériaux définis dans la EN 61628-1.

Valovita prešpanska plošča in prešpanski papir za električne namene – 2. del: Preskušalne metode (IEC 61628-2:1998)

General Information

• Status: Published
• Publication Date: 28-Feb-2001
• ICS: 29.035.10 - Paper and board insulating materials
• Technical Committee: IZO - Insulating materials
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Mar-2001
• Due Date: 01-Mar-2001
• Completion Date: 01-Mar-2001
• Ref Project: EN 61628-2:1999 - Corrugated pressboard and presspaper for electrical purposes - Part 2: Methods of test

Relations

• Amended By: SIST EN 61628-2:2001/A1:2007 - Corrugated pressboard and presspaper for electrical purposes -- Part 2: Methods of test
• Effective Date: 01-Nov-2007

Overview

EN 61628-2:1999 - Corrugated pressboard and presspaper for electrical purposes - Part 2: Methods of test (CLC) specifies the standardized test methods used to assess corrugated pressboard and presspaper that are classified under EN 61628-1. The standard defines how to determine corrugation geometry, dimensional stability on drying, and key mechanical properties relevant to electrical insulation performance.

Key topics

The standard focuses on test methods and measurable properties rather than material composition. Main technical topics include:

• Type and dimensions of corrugation - standardized identification and measurement of corrugation profile and geometry.
• Dimensional changes on drying - procedures to evaluate shrinkage/expansion when the material is dried under specified conditions.
• Compressive strength - methods to measure the load-bearing capacity of corrugated pressboard/presspaper under compression.
• Compression modulus - procedures to determine stiffness in compression (elastic response) for quality control and design input.
• Relationship to classification in EN 61628-1 - tests apply to materials as classified in Part 1.

Note: EN 61628-2 provides test procedures and acceptance criteria context, not manufacturing specifications.

Applications

EN 61628-2 is used wherever corrugated pressboard and presspaper serve as electrical insulating materials. Typical practical applications include:

• Design verification and quality control for insulating components and barriers in electrical equipment
• Material acceptance testing by manufacturers and purchasers
• Specifying test requirements in procurement documents for electrical insulation materials
• Supporting safety and reliability assessments for transformers, switchgear, coils, and other electrical apparatus where board/paper insulation is employed

(Use of the materials in specific equipment should be validated against device-specific and national regulations.)

Who uses this standard

• Manufacturers of corrugated pressboard and presspaper for electrical insulation
• Independent testing laboratories and quality assurance teams
• Design and development engineers in electrical equipment industries
• Procurement specialists specifying insulation material performance
• Certification and compliance bodies validating material test results

Related standards

• EN 61628-1 - Classification and general requirements for corrugated pressboard and presspaper (reference for material classes)
• Other international and regional standards on insulating papers and boards and general electrical insulation testing (e.g., related IEC/CENELEC documents) - consult national standardization bodies for cross-references.

Keywords: EN 61628-2:1999, corrugated pressboard, presspaper, methods of test, compressive strength, compression modulus, dimensional changes on drying, electrical insulation, CLC, EN 61628-1.

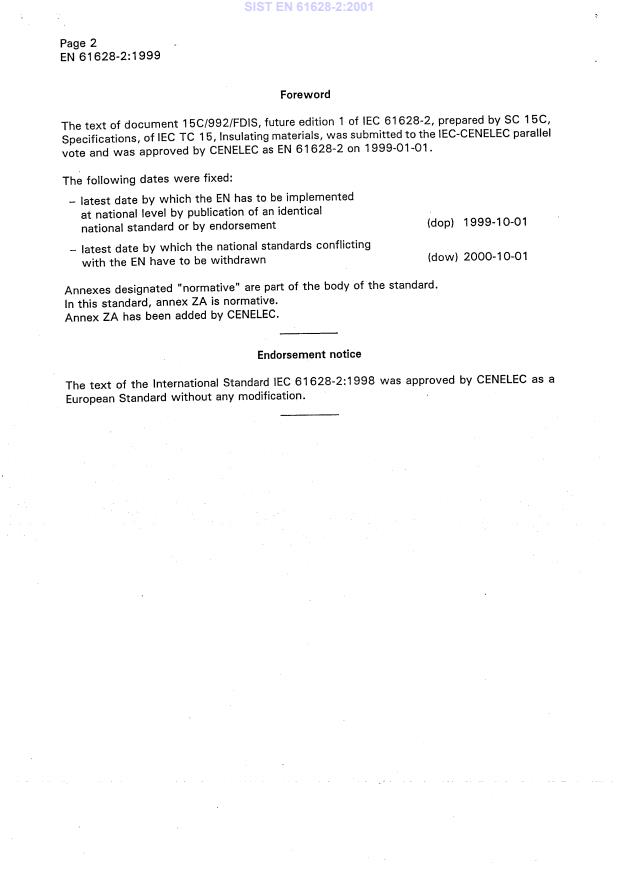

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2001
9DORYLWDSUHãSDQVNDSORãþDLQSUHãSDQVNLSDSLU]DHOHNWULþQHQDPHQH±GHO
3UHVNXãDOQHPHWRGH,(&
Corrugated pressboard and presspaper for electrical purposes -- Part 2: Methods of test
Wellspan für elektrotechnische Zwecke -- Teil 2: Prüfverfahren
Cartons et papiers comprimés ondulés à usages électriques -- Partie 2: Méthodes
d'essais
Ta slovenski standard je istoveten z: EN 61628-2:1999
ICS:
29.035.10 Papirni in kartonski izolacijski Paper and board insulating
materiali materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

--------
...
