SIST ETS 300 141-5:1997

Integrated Services Digital Network (ISDN); Call Hold (HOLD) supplementary service; Digital Subscriber Signalling System No. one (DSS1) protocol; Part 5: Test Suite Structure and Test Purposes (TSS&TP) specification for the network

,

Digitalno omrežje z integriranimi storitvami (ISDN) - Dopolnilna storitev: zadržanje klica (HOLD) - Protokol digitalne naročniške signalizacije št. 1 (DSS1) - 5. del: Zgradba preskušalnega niza in namen preskušanja (TSS&TP) - Specifikacija za omrežje

General Information

• Status: Published
• Publication Date: 30-Nov-1997
• ICS: 33.080 - Integrated Services Digital Network (ISDN)
• Technical Committee: SPS - Signalling protocols and switching
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-1997
• Due Date: 01-Dec-1997
• Completion Date: 01-Dec-1997
• Ref Project: ETSI ETS 300 141-5 ed.1 (1996-10) - Integrated Services Digital Network (ISDN); Call Hold (HOLD) supplementary service; Digital Subscriber Signalling System No. one (DSS1) protocol; Part 5: Test Suite Structure and Test Purposes (TSS&TP) specification for the network

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.RPUHåMHIntegrated Services Digital Network (ISDN); Call Hold (HOLD) supplementary service; Digital Subscriber Signalling System No. one (DSS1) protocol; Part 5: Test Suite Structure and Test Purposes (TSS&TP) specification for the network33.080Digitalno omrežje z integriranimi storitvami (ISDN)Integrated Services Digital Network (ISDN)ICS:Ta slovenski standard je istoveten z:ETS 300 141-5 Edition 13SIST ETS 300 141-5:1997en01-RNWREHU-19973SIST ETS 300 141-5:1997SLOVENSKI
STANDARD



SIST ETS 300 141-5:1997



EUROPEANETS 300 141-5TELECOMMUNICATIONOctober 1996STANDARDSource: ETSI TC-SPSReference: DE/SPS-05061-S-5ICS:33.080Key words:ISDN, DSS1, supplementary service, HOLD, testing, TSS&TP, networkIntegrated Services Digital Network (ISDN);Call Hold (HOLD) supplementary service;Digital Subscriber Signalling System No. one (DSS1) protocol;Part 5: Test Suite Structure and Test Purposes (TSS&TP)specification for the networkETSIEuropean Telecommunications Standards InstituteETSI SecretariatPostal address: F-06921 Sophia Antipolis CEDEX - FRANCEOffice address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCEX.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail].: [phone] - Fax: [phone]Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and theforegoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1996. All rights reserved.SIST ETS 300 141-5:1997



Page 2ETS 300 141-5: October 1996Whilst every care has been taken in the preparation and publication of this document, errors in content,typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to"ETSI Editing and Committee Support Dept." at the address shown on the title page.SIST ETS 300 141-5:1997



Page 3ETS 300 141-5: October 1996ContentsForeword.51Scope.72Normative references.73Definitions.83.1Definitions related to conformance testing.83.2Definitions related to ETS 300 141-1.84Abbreviations.95Test Suite Structure (TSS).96Test Purposes (TP).106.1Introduction.106.1.1TP naming convention.106.1.2Source of TP definition.106.1.3TP structure.106.1.4Test strategy.116.2Network TPs for HOLD.126.2.1Network (S/T).126.2.1.1Served User.126.2.1.1.1Holding.126.2.1.1.2Retrieving.146.2.2Remote user.156.2.2.1Holding.156.2.2.2Retrieving.156.2.3Network (T).167Compliance.178Requirements for a comprehensive testing service.17History.18SIST ETS 300 141-5:1997



Page 4ETS 300 141-5: October 1996Blank pageSIST ETS 300 141-5:1997



Page 5ETS 300 141-5: October 1996ForewordThis European Telecommunication Standard (ETS) has been produced by the Signalling Protocols andSwitching (SPS) Technical Committee of the European Telecommunications Standards Institute (ETSI).This ETS is part 5 of a multi-part standard covering the Digital Subscriber Signalling System No. one(DSS1) protocol specification for the Integrated Services Digital Network (ISDN) Call Hold (HOLD)supplementary service, as described below:Part 1:"Protocol specification";Part 2:"Protocol Implementation Conformance Statement (PICS) proforma specification";Part 3:"Test Suite Structure and Test Purposes (TSS&TP) specification for the user";Part 4:"Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing(PIXIT) proforma specification for the user";Part 5:"TSS&TP specification for the network";Part 6:"ATS and partial PIXIT proforma specification for the network".Transposition datesDate of adoption of this ETS:4 October 1996Date of latest announcement of this ETS (doa):31 January 1997Date of latest publication of new National Standardor endorsement of this ETS (dop/e):31 July 1997Date of withdrawal of any conflicting National Standard (dow):31 July 1997SIST ETS 300 141-5:1997



Page 6ETS 300 141-5: October 1996Blank pageSIST ETS 300 141-5:1997



Page 7ETS 300 141-5: October 19961ScopeThis fifth part of ETS 300 141 specifies the Test Suite Structure and Test Purposes (TSS&TP) for theNetwork side of the T reference point or coincident S and T reference point (as defined in ITU-TRecommendation I.411 [7]) of implementations conforming to the stage three standard for the Call Hold(HOLD) supplementary service for the pan-European Integrated Services Digital Network (ISDN) bymeans of the Digital Subscriber Signalling System No. one (DSS1) protocol, ETS 300 141-1 [1].A further part of this ETS specifies the Abstract Test Suite (ATS) and partial Protocol ImplementationeXtra Information for Testing (PIXIT) proforma based on this ETS. Other parts specify the TSS&TP andthe ATS and partial PIXIT proforma for the User side of the T reference point or coincident S andT reference point of implementations conforming to ETS 300 141-1 [1].2Normative referencesThis ETS incorporates by dated and undated reference, provisions from other publications. Thesenormative references are cited at the appropriate places in the text and the publications are listedhereafter. For dated references, subsequent amendments to or revisions of any of these publicationsapply to this ETS only when incorporated in it by amendment or revision. For undated references the latestedition of the publication referred to applies.[1]ETS 300 141-1 (1993): "Integrated Services Digital Network (ISDN); Call Hold(HOLD) supplementary service; Digital Subscriber Signalling System No. one(DSS1) protocol; Part 1: Protocol specification".[2]ETS 300 141-2: "Integrated Services Digital Network (ISDN); Call Hold (HOLD)supplementary service; Digital Subscriber Signalling System No. one (DSS1)protocol; Part 2: Protocol Implementation Conformance Statement (PICS)proforma specification".[3]ISO/IEC 9646-1: "Information Technology - OSI Conformance TestingMethodology and Framework; Part 1: General Concepts".[4]ISO/IEC 9646-2: "Information Technology - OSI Conformance TestingMethodology and Framework; Part 2: Abstract Test Suite specification".[5]ISO/IEC 9646-3: "Information Technology - OSI Conformance TestingMethodology and Framework; Part 3: The Tree and Tabular CombinedNotation".[6]ETS 300 196-1 (1993): "Integrated Services Digital Network (ISDN); Genericfunctional protocol for the support of supplementary services; Digital SubscriberSignalling System No. one (DSS1) protocol; Part 1: Protocol specification".[7]ITU-Recommendation I.411 (1993): "ISDN user-network interfaces - Referenceconfigurations".[8]ETS 300 102-1: "Integrated Services Digital Network (ISDN); User-networkinterface layer 3; Specifications for basic call control".[9]ITU-Recommendation I.112 (1993): "Vocabulary and terms for ISDNs".[10]CCITT Recommendation E.164 (1991): "Numbering plan for the ISDN era".[11]ITU-T Recommendation I.210 (1993): "Principles of the telecommunicationservices supported by an ISDN and the means to describe them".SIST ETS 300 141-5:1997



Page 8ETS 300 141-5: October 19963DefinitionsFor the purposes of this ETS, the following definitions apply:3.1Definitions related to conformance testingabstract test case: Refer to ISO/IEC 9646-1 [3].Abstract Test Suite (ATS): Refer to ISO/IEC 9646-1 [3].Implementation Under Test (IUT): Refer to ISO/IEC 9646-1 [3].implicit send event: Refer to ISO/IEC 9646-3 [5].lower tester: Refer to ISO/IEC 9646-1 [3].point of control and observation: Refer to ISO/IEC 9646-1 [3].Protocol Implementation Conformance Statement (PICS): Refer to ISO/IEC 9646-1 [3].PICS proforma: Refer to ISO/IEC 9646-1 [3].Protocol Implementation eXtra Information for Testing (PIXIT): Refer to ISO/IEC 9646-1 [3].PIXIT proforma: Refer to ISO/IEC 9646-1 [3].system under test: Refer to ISO/IEC 9646-1 [3].Test Purpose (TP): Refer to ISO/IEC 9646-1 [3].3.2Definitions related to ETS 300 141-1Call Held auxiliary state: See ETS 300 196-1 [6], subclause 7.1.2.call reference: See ETS 300 102-1 [8], subclause 4.3.component: See ETS 300 196-1 [6], subclause 11.2.2.1.Idle auxiliary state: See ETS 300 196-1 [6], subclause 7.1.2.Integrated Services Digital Network (ISDN): See ITU-T Recommendation I.112 [9], definition 308.ISDN number: A number conforming to the numbering and structure specified in CCITTRecommendation E.164 [10].invoke component: See ETS 300 196-1 [6], subclause 11.2.2.1.network: The DSS1 protocol entity at the Network side of the user-network interface where a T referencepoint or coincident S and T reference point applies.network (S/T): The DSS1 protocol entity at the Network side of the user-network interface where acoincident S and T reference point applies.network (T): The DSS1 protocol entity at the Network side of the user-network interface where aT reference point applies (Network connected to Private ISDN).return error component: See ETS 300 196-1 [6], subclause 11.2.2.1.return result component: See ETS 300 196-1 [6], subclause 11.2.2.1.served user: The served user is the user who invokes the HOLD supplementary service.SIST ETS 300 141-5:1997



Page 9ETS 300 141-5: October 1996service; telecommunication service: See ITU-T Recommendation I.112 [9], definition 201.supplementary service: See CCITT Recommendation I.210 [11], subclause 2.4.4AbbreviationsFor the purposes of this ETS, the following abbreviations apply:ATMAbstract Test MethodATSAbstract Test SuiteDSS1Digital Subscriber Signalling System No. oneHOLDCall HoldISDNIntegrated Services Digital NetworkIUTImplementation Under TestN00Null call stateN02Overlap Sending call stateN03Outgoing Call Proceeding call stateN04Call Delivered call stateN06Call Present call stateN07Call Received call stateN08Connect Request call stateN09Incoming Call Proceeding call stateN10Active call stateN12Disconnect Indication call stateN19Release Request call stateN25Overlap Receiving call statePICSProtocol Implementation Conformance StatementPIXITProtocol Implementation eXtra Information for TestingTPTest PurposeTSSTest Suite Structure5Test Suite Structure (TSS)HOLD - NetworkNetwork (S/T)Remote user (S/T or T)Network (T)(06)Served UserHolding(01)RetrievingHolding(04)Retrieving(05)Normal(02)Exceptionalprocedures(03)NOTE:Numbers in brackets represent group numbers and are used in TP identifiers.Figure 1: Test suite structureSIST ETS 300 141-5:1997



Page 10ETS 300 141-5: October 19966Test Purposes (TP)6.1IntroductionFor each test requirement a TP is defined.6.1.1TP naming conventionTPs are numbered, starting at 001, within each group. Groups are organized according to the TSS.Additional references are added to identify the actual test suite and whether it applies to the network or theuser (see table 1).Table 1: TP identifier naming convention schemeIdentifier:__=supplementary service:e.g. "HOLD"=type of IUT:UUserNNetwork=group2 digit field representing group reference according to TSS=sequential number(001-999)6.1.2Source of TP definitionThe TPs are based on ETS 300 141-1 [1], clauses 9, 10 and 14.6.1.3TP structureEach TP has been written in a manner which is consistent with all other TPs. The intention of this is tomake the TPs more readable and checkable. A particular structure has been used and this is illustrated intable 2. This table should be read in conjunction with any TP, i.e. use a TP as an example to fullyunderstand the table.SIST ETS 300 141-5:1997



Page 11ETS 300 141-5: October 1996Table 2: Structure of a single TPTP partTextExampleHeader tabsee table 1 tabsubclause 0.0.0 tabvalid, invalid, inopportune CR.mandatory, optional, conditionalStimulusEnsure that the IUT in theN00, N10, etc.and Hold Requested, . see below for message structurereceiving a XXXX messageor to request a .Reactionsends, saves, does, etc.using en-bloc sending, .if the action is sending
see below for message structure, etc.and remains in the same stateor and enters state Messagestructuremessage containing aSETUP, FACILITY, CONNECT, .a) information element withb) a encoded as or including and back to a or b,Bearer capability, Facility, .NOTE:Text in italics will not appear in TPs and text between <> is filled in for each TP and maydiffer from one TP to the next.6.1.4Test strategyAs the base standard ETS 300 141-1 [1] contains no explicit requirements for testing, the TPs weregenerated as a result of an analysis of the base standard and the PICS specification ETS 300 141-2 [2].The criteria applied include the following:-only the requirements from the point of view of the T or coincident S and T reference point areconsidered;-whether or not a test case can be built from the TP is not considered.SIST ETS 300 141-5:1997



Page 12ETS 300 141-5: October 19966.2Network TPs for HOLDAll PICS items referred to in this subclause are as specified in ETS 300 141-2 [2] unless indicatedotherwise by another numbered reference. Where not stated otherwise, PICS item R 1 ("support theHOLD supplementary service") is required to be supported.6.2.1Network (S/T)Selection:IUT supports coincident S and T reference point procedures. PICS: R 3.1.6.2.1.1Served User6.2.1.1.1HoldingHOLD_N01_001subclause 9.1.1, 2nd paragraphvalidoptionalEnsure that the IUT in the Call Delivered call state N04 and Idle auxiliary state, receiving a HOLDmessage,sends a HOLD ACKNOWLEDGE and enters the Call Held auxiliary state.Selection:IUT supports the holding of a call in the Call Delivered call state. PICS: MC 3.2.HOLD_N01_002subcla
...

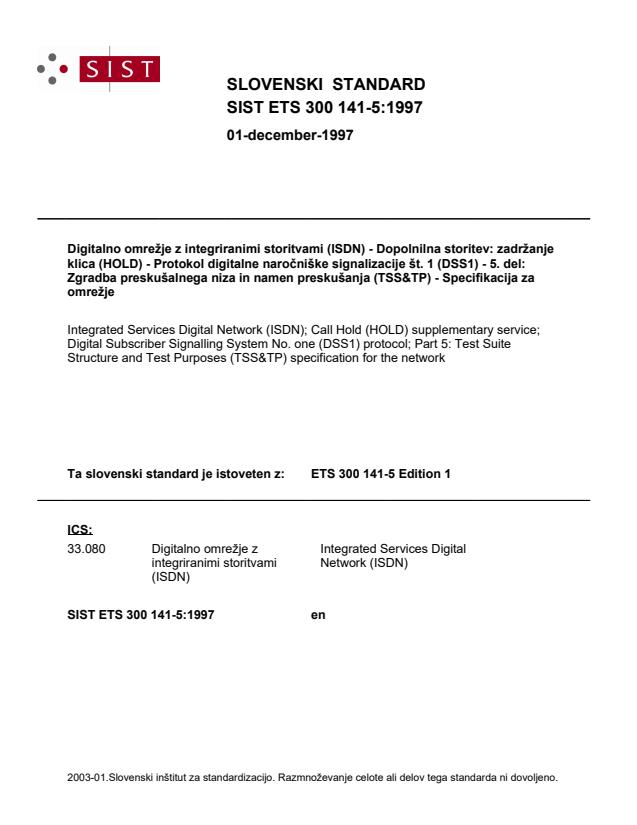

SLOVENSKI STANDARD
SIST ETS 300 141-5:1997
01-december-1997
'LJLWDOQRRPUHåMH]LQWHJULUDQLPLVWRULWYDPL,6'1'RSROQLOQDVWRULWHY]DGUåDQMH
NOLFD+2/'3URWRNROGLJLWDOQHQDURþQLãNHVLJQDOL]DFLMHãW'66GHO
=JUDGEDSUHVNXãDOQHJDQL]DLQQDPHQSUHVNXãDQMD766 736SHFLILNDFLMD]D
RPUHåMH
Integrated Services Digital Network (ISDN); Call Hold (HOLD) supplementary service;
Digital Subscriber Signalling System No. one (DSS1) protocol; Part 5: Test Suite
Structure and Test Purposes (TSS&TP) specification for the network
Ta slovenski standard je istoveten z: ETS 300 141-5 Edition 1
ICS:
33.080 Digitalno omrežje z Integrated Services Digital
integriranimi storitvami Network (ISDN)
(ISDN)
SIST ETS 300 141-5:1997 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST ETS 300 141-5:1997

---------------------- Page: 2 ----------------------

SIST ETS 300 141-5:1997

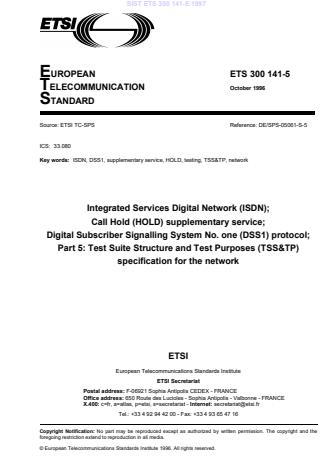

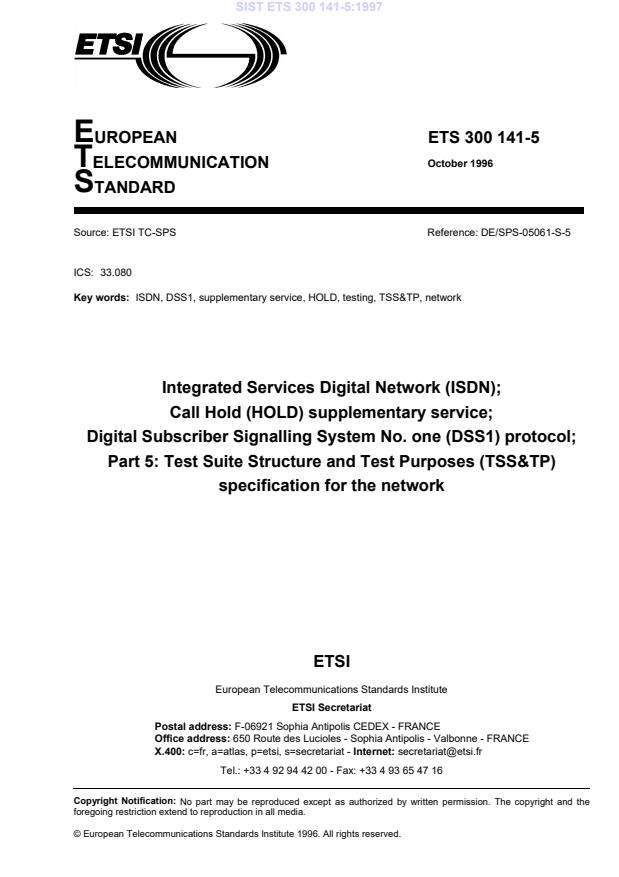

EUROPEAN ETS 300 141-5
TELECOMMUNICATION October 1996
STANDARD
Source: ETSI TC-SPS Reference: DE/SPS-05061-S-5
ICS: 33.080
Key words: ISDN, DSS1, supplementary service, HOLD, testing, TSS&TP, network
Integrated Services Digital Network (ISDN);
Call Hold (HOLD) supplementary service;
Digital Subscriber Signalling System No. one (DSS1) protocol;
Part 5: Test Suite Structure and Test Purposes (TSS&TP)
specification for the network
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
X.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail]
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1996. All rights reserved.

---------------------- Page: 3 ----------------------

SIST ETS 300 141-5:1997
Page 2
ETS 300 141-5: October 1996
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

---------------------- Page: 4 ----------------------

SIST ETS 300 141-5:1997
Page 3
ETS 300 141-5: October 1996
Contents
Foreword .5
1 Scope .7
2 Normative references.7
3 Definitions.8
3.1 Definitions related to conformance testing.8
3.2 Definitions related to ETS 300 141-1.8
4 Abbreviations.9
5 Test Suite Structure (TSS) .9
6 Test Purposes (TP).10
6.1 Introduction .10
6.1.1 TP naming convention.10
6.1.2 Source of TP definition.10
6.1.3 TP structure.10
6.1.4 Test strategy.11
6.2 Network TPs for HOLD.12
6.2.1 Network (S/T) .12
6.2.1.1 Served User.12
6.2.1.1.1 Holding.12
6.2.1.1.2 Retrieving.14
6.2.2 Remote user.15
6.2.2.1 Holding.15
6.2.2.2 Retrieving.15
6.2.3 Network (T).16
7 Compliance .17
8 Requirements for a comprehensive testing service .17
History.18

---------------------- Page: 5 ----------------------

SIST ETS 300 141-5:1997
Page 4
ETS 300 141-5: October 1996
Blank page

---------------------- Page: 6 ----------------------

SIST ETS 300 141-5:1997
Page 5
ETS 300 141-5: October 1996
Foreword
This European Telecommunication Standard (ETS) has been produced by the Signalling Protocols and
Switching (SPS) Technical Committee of the European Telecommunications Standards Institute (ETSI).
This ETS is part 5 of a multi-part standard covering the Digital Subscriber Signalling System No. one
(DSS1) protocol specification for the Integrated Services Digital Network (ISDN) Call Hold (HOLD)
supplementary service, as described below:
Part 1: "Protocol specification";
Part 2: "Protocol Implementation Conformance Statement (PICS) proforma specification";
Part 3: "Test Suite Structure and Test Purposes (TSS&TP) specification for the user";
Part 4: "Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing
(PIXIT) proforma specification for the user";
Part 5: "TSS&TP specification for the network";
Part 6: "ATS and partial PIXIT proforma specification for the network".
Transposition dates
Date of adoption of this ETS: 4 October 1996
Date of latest announcement of this ETS (doa): 31 January 1997
Date of latest publication of new National Standard
or endorsement of this ETS (dop/e): 31 July 1997
Date of withdrawal of any conflicting National Standard (dow): 31 July 1997

---------------------- Page: 7 ----------------------

SIST ETS 300 141-5:1997
Page 6
ETS 300 141-5: October 1996
Blank page

---------------------- Page: 8 ----------------------

SIST ETS 300 141-5:1997
Page 7
ETS 300 141-5: October 1996
1 Scope
This fifth part of ETS 300 141 specifies the Test Suite Structure and Test Purposes (TSS&TP) for the
Network side of the T reference point or coincident S and T reference point (as defined in ITU-T
Recommendation I.411 [7]) of implementations conforming to the stage three standard for the Call Hold
(HOLD) supplementary service for the pan-European Integrated Services Digital Network (ISDN) by
means of the Digital Subscriber Signalling System No. one (DSS1) protocol, ETS 300 141-1 [1].
A further part of this ETS specifies the Abstract Test Suite (ATS) and partial Protocol Implementation
eXtra Information for Testing (PIXIT) proforma based on this ETS. Other parts specify the TSS&TP and
the ATS and partial PIXIT proforma for the User side of the T reference point or coincident S and
T reference point of implementations conforming to ETS 300 141-1 [1].
2 Normative references
This ETS incorporates by dated and undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this ETS only when incorporated in it by amendment or revision. For undated references the latest
edition of the publication referred to applies.
[1] ETS 300 141-1 (1993): "Integrated Services Digital Network (ISDN); Call Hold
(HOLD) supplementary service; Digital Subscriber Signalling System No. one
(DSS1) protocol; Part 1: Protocol specification".
[2] ETS 300 141-2: "Integrated Services Digital Network (ISDN); Call Hold (HOLD)
supplementary service; Digital Subscriber Signalling System No. one (DSS1)
protocol; Part 2: Protocol Implementation Conformance Statement (PICS)
proforma specification".
[3] ISO/IEC 9646-1: "Information Technology - OSI Conformance Testing
Methodology and Framework; Part 1: General Concepts".
[4] ISO/IEC 9646-2: "Information Technology - OSI Conformance Testing
Methodology and Framework; Part 2: Abstract Test Suite specification".
[5] ISO/IEC 9646-3: "Information Technology - OSI Conformance Testing
Methodology and Framework; Part 3: The Tree and Tabular Combined
Notation".
[6] ETS 300 196-1 (1993): "Integrated Services Digital Network (ISDN); Generic
functional protocol for the support of supplementary services; Digital Subscriber
Signalling System No. one (DSS1) protocol; Part 1: Protocol specification".
[7] ITU-Recommendation I.411 (1993): "ISDN user-network interfaces - Reference
configurations".
[8] ETS 300 102-1: "Integrated Services Digital Network (ISDN); User-network
interface layer 3; Specifications for basic call control".
[9] ITU-Recommendation I.112 (1993): "Vocabulary and terms for ISDNs".
[10] CCITT Recommendation E.164 (1991): "Numbering plan for the ISDN era".
[11] ITU-T Recommendation I.210 (1993): "Principles of the telecommunication
services supported by an ISDN and the means to describe them".

---------------------- Page: 9 ----------------------

SIST ETS 300 141-5:1997
Page 8
ETS 300 141-5: October 1996
3 Definitions
For the purposes of this ETS, the following definitions apply:
3.1 Definitions related to conformance testing
abstract test case: Refer to ISO/IEC 9646-1 [3].
Abstract Test Suite (ATS): Refer to ISO/IEC 9646-1 [3].
Implementation Under Test (IUT): Refer to ISO/IEC 9646-1 [3].
implicit send event: Refer to ISO/IEC 9646-3 [5].
lower tester: Refer to ISO/IEC 9646-1 [3].
point of control and observation: Refer to ISO/IEC 9646-1 [3].
Protocol Implementation Conformance Statement (PICS): Refer to ISO/IEC 9646-1 [3].
PICS proforma: Refer to ISO/IEC 9646-1 [3].
Protocol Implementation eXtra Information for Testing (PIXIT): Refer to ISO/IEC 9646-1 [3].
PIXIT proforma: Refer to ISO/IEC 9646-1 [3].
system under test: Refer to ISO/IEC 9646-1 [3].
Test Purpose (TP): Refer to ISO/IEC 9646-1 [3].
3.2 Definitions related to ETS 300 141-1
Call Held auxiliary state: See ETS 300 196-1 [6], subclause 7.1.2.
call reference: See ETS 300 102-1 [8], subclause 4.3.
component: See ETS 300 196-1 [6], subclause 11.2.2.1.
Idle auxiliary state: See ETS 300 196-1 [6], subclause 7.1.2.
Integrated Services Digital Network (ISDN): See ITU-T Recommendation I.112 [9], definition 308.
ISDN number: A number conforming to the numbering and structure specified in CCITT
Recommendation E.164 [10].
invoke component: See ETS 300 196-1 [6], subclause 11.2.2.1.
network: The DSS1 protocol entity at the Network side of the user-network interface where a T reference
point or coincident S and T reference point applies.
network (S/T): The DSS1 protocol entity at the Network side of the user-network interface where a
coincident S and T reference point applies.
network (T): The DSS1 protocol entity at the Network side of the user-network interface where a
T reference point applies (Network connected to Private ISDN).
return error component: See ETS 300 196-1 [6], subclause 11.2.2.1.
return result component: See ETS 300 196-1 [6], subclause 11.2.2.1.
served user: The served user is the user who invokes the HOLD supplementary service.

---------------------- Page: 10 ----------------------

SIST ETS 300 141-5:1997
Page 9
ETS 300 141-5: October 1996
service; telecommunication service: See ITU-T Recommendation I.112 [9], definition 201.
supplementary service: See CCITT Recommendation I.210 [11], subclause 2.4.
4 Abbreviations
For the purposes of this ETS, the following abbreviations apply:
ATM Abstract Test Method
ATS Abstract Test Suite
DSS1 Digital Subscriber Signalling System No. one
HOLD Call Hold
ISDN Integrated Services Digital Network
IUT Implementation Under Test
N00 Null call state
N02 Overlap Sending call state
N03 Outgoing Call Proceeding call state
N04 Call Delivered call state
N06 Call Present call state
N07 Call Received call state
N08 Connect Request call state
N09 Incoming Call Proceeding call state
N10 Active call state
N12 Disconnect Indication call state
N19 Release Request call state
N25 Overlap Receiving call state
PICS Protocol Implementation Conformance Statement
PIXIT Protocol Implementation eXtra Information for Testing
TP Test Purpose
TSS Test Suite Structure
5 Test Suite Structure (TSS)
HOLD - Network
Network (S/T) Remote user (S/T or T) Network (T)
(06)
Served User
Holding Retrieving Holding Retrieving
(01) (04) (05)
Normal Exceptional
(02) procedures
(03)
NOTE: Numbers in brackets represent group numbers and are used in TP identifiers.
Figure 1: Test suite structure

---------------------- Page: 11 ----------------------

SIST ETS 300 141-5:1997
Page 10
ETS 300 141-5: October 1996
6 Test Purposes (TP)
6.1 Introduction
For each test requirement a TP is defined.
6.1.1 TP naming convention
TPs are numbered, starting at 001, within each group. Groups are organized according to the TSS.
Additional references are added to identify the actual test suite and whether it applies to the network or the
user (see table 1).
Table 1: TP identifier naming convention scheme
Identifier: __
= supplementary service: e.g. "HOLD"
= type of IUT: U User
N Network
= group 2 digit field representing group reference according to TSS
= sequential number (001-999)
6.1.2 Source of TP definition
The TPs are based on ETS 300 141-1 [1], clauses 9, 10 and 14.
6.1.3 TP structure
Each TP has been written in a manner which is consistent with all other TPs. The intention of this is to
make the TPs more readable and checkable. A particular structure has been used and this is illustrated in
table 2. This table should be read in conjunction with any TP, i.e. use a TP as an example to fully
understand the table.

---------------------- Page: 12 ----------------------

SIST ETS 300 141-5:1997
Page 11
ETS 300 141-5: October 1996
Table 2: Structure of a single TP
TP part Text Example
Header tab see table 1
tab subclause 0.0.0
tab valid, invalid, inopportune
CR. mandatory, optional, conditional
Stimulus Ensure that the IUT in the
N00, N10, etc.
and Hold Requested, .
see below for message structure receiving a XXXX message
or to request a .
Reaction sends, saves, does, etc.
using en-bloc sending, .
if the action is sending
  see below for message structure
, etc.
and remains in the same state
or and enters state
Message SETUP, FACILITY, CONNECT, .
message containing a
structure
a) Bearer capability, Facility, .
information element with
b) a
encoded as or including
and back to a or b,
NOTE: Text in italics will not appear in TPs and text between <> is filled in for each TP and may
differ from one TP to the next.
6.1.4 Test strategy
As the base standard ETS 300 141-1 [1] contains no explicit requirements for testing, the TPs were
generated as a result of an analysis of the base standard and the PICS specification ETS 300 141-2 [2].
The criteria applied include the following:
- only the requirements from the point of view of the T or coincident S and T reference point are
considered;
- whether or not a test case can be built from the TP is not considered.

---------------------- Page: 13 ----------------------

SIST ETS 300 141-5:1997
Page 12
ETS 300 141-5: October 1996
6.2 Network TPs for HOLD
All PICS items referred to in this subclause are as specified in ETS 300 141-2 [2] unless indicated
otherwise by another numbered reference. Where not stated otherwise, PICS item R 1 ("support the
HOLD supplementary service") is required to be supported.
6.2.1 Network (S/T)
Selection: IUT supports coincident S and T reference point procedures. PICS: R 3.1.
6.2.1.1 Served User
6.2.1.1.1 Holding
HOLD_N01_001 subclause 9.1.1, 2nd
...
