SIST EN 301 067-2:2001

• Abstract:

  PICS proforma spec

• Status: Published
• Publication Date: 31-Jan-2001
• ICS: 33.080 - Integrated Services Digital Network (ISDN)
• Technical Committee: SPS - Signalling protocols and switching
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Feb-2001
• Due Date: 01-Feb-2001
• Completion Date: 01-Feb-2001
• Ref Project: ETSI EN 301 067-2 V1.1.3 (1999-05) - Broadband Integrated Services Digital Network (B-ISDN); Digital Subscriber Signalling System No. two (DSS2) protocol; Connection characteristics; Negotiation during call/connection establishment phase; Part 2: Protocol Implementation Conformance Statement (PICS) proforma specification

Overview

SIST EN 301 067-2:2001 is a European Standard developed by the Slovenski inštitut za standardizacijo (SIST) and aligns with ETSI EN 301 067-2 V1.1.3. This standard focuses on the Broadband Integrated Services Digital Network (B-ISDN) and the Digital Subscriber Signalling System No. two (DSS2) protocol. It specifically addresses the connection characteristics and negotiation mechanisms during the call and connection establishment phase. The document provides the Protocol Implementation Conformance Statement (PICS) proforma specification, which serves as a structured tool for suppliers and implementers to declare conformance with the relevant protocol requirements as outlined in EN 301 067-1.

The standard is essential for the telecommunications industry, particularly for those involved in designing, implementing, or testing B-ISDN systems that utilize the DSS2 protocol for high-speed broadband services.

Key Topics

• PICS Proforma Specification: The core of the document is the PICS proforma-a formal questionnaire that identifies which protocol features and options have been implemented.
• B-ISDN & DSS2 Protocol: Specifies how the DSS2 protocol is used for negotiating connection characteristics in broadband ISDN environments.
• Call/Connection Establishment: Focuses on protocol behaviors and negotiation processes during the setup phase of a call or connection.
• User and Network Roles: Differentiates between user-side and network-side protocol requirements and options.
• Conformance Requirements: Outlines the obligations for suppliers claiming compliance, including mandatory and optional protocol capabilities.
• ISO/IEC 9646 Alignment: Incorporates international guidance for protocol conformance statements, ensuring consistency with global practices.

Applications

SIST EN 301 067-2:2001 is vital for a variety of practical applications within telecommunications and network equipment development:

• Product Development: Equipment manufacturers, such as vendors of broadband network devices, use the PICS proforma to document and declare which protocol components are supported in their solutions.
• System Integration: Integrators use the completed PICS proforma to verify compatibility and interoperability between devices and networks that comply with B-ISDN DSS2 protocol specifications.
• Testing and Certification: Test labs and certification bodies leverage the PICS as a baseline to assess conformance, guide test suite selection, and streamline certification processes.
• Procurement and Compliance: Network operators and service providers employ PICS documents in procurement requirements, ensuring that purchased equipment meets mandated standards for B-ISDN and supports essential DSS2 protocol features.
• Quality Assurance: Helps identify static conformance of an implementation by comparing claimed support for protocol features with normative requirements.

Related Standards

For comprehensive coverage and context, the following related standards are directly referenced within SIST EN 301 067-2:2001:

• EN 301 067-1: Protocol specification for DSS2 protocol connection characteristics and negotiation (core functional requirements).
• EN 300 443-1: B-ISDN DSS2 protocol user-network interface layer 3 specification for basic call/bearer control.
• EN 300 443-2: PICS proforma for DSS2 basic call/bearer control.
• ISO/IEC 9646-1: General concepts for Open Systems Interconnection (OSI) conformance testing methodology.
• ISO/IEC 9646-7: Guidelines for implementation conformance statements (ICS/PICS proforma design and use).

By adhering to SIST EN 301 067-2:2001, organizations ensure robust, interoperable telecommunications solutions that meet European and international requirements for broadband ISDN services and associated signalling protocols.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Broadband Integrated Services Digital Network (B-ISDN); Digital Subscriber Signalling System No. two (DSS2) protocol; Connection characteristics; Negotiation during call/connection establishment phase; Part 2: Protocol Implementation Conformance Statement (PICS) proforma specification33.080Digitalno omrežje z integriranimi storitvami (ISDN)Integrated Services Digital Network (ISDN)ICS:Ta slovenski standard je istoveten z:EN 301 067-2 V1.1.33SIST EN 301 067-2:en01-GHFHPEHU3SIST EN 301 067-2:SLOVENSKI
STANDARD
EN 301 067-2 V1.1.3 (1999-05)European Standard (Telecommunications series)Broadband Integrated Services Digital Network (B-ISDN);Digital Subscriber Signalling System No. two (DSS2) protocol;Connection characteristics;Negotiation during call/connection establishment phase;Part 2: Protocol Implementation ConformanceStatement (PICS) proforma specificationSIST EN 301 067-2:2001

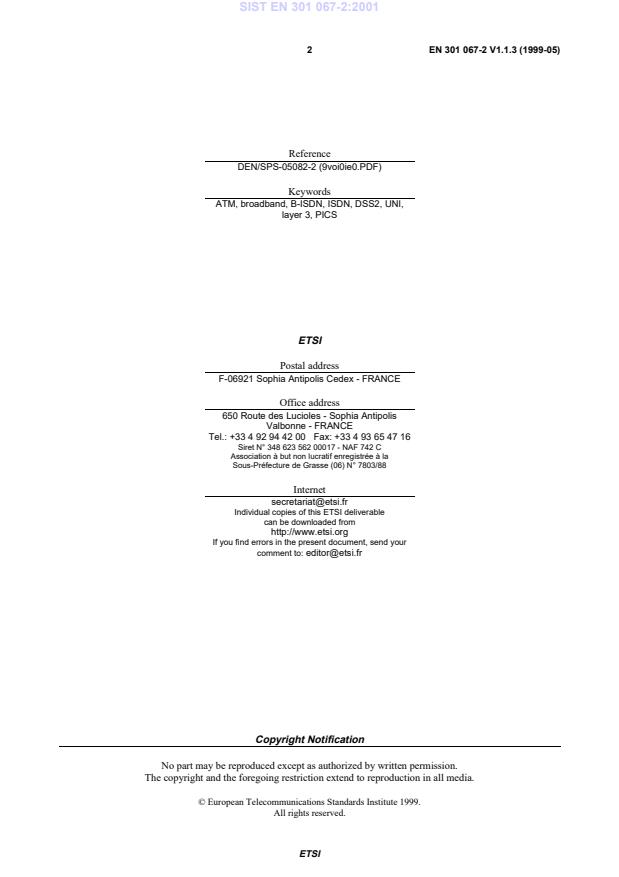

ETSIEN 301 067-2 V1.1.3 (1999-05)2ReferenceDEN/SPS-05082-2 (9voi0ie0.PDF)KeywordsATM, broadband, B-ISDN, ISDN, DSS2, UNI,layer 3, PICSETSIPostal addressF-06921 Sophia Antipolis Cedex - FRANCEOffice address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: [phone]
Fax: [phone]Siret N° 348 623 562 00017 - NAF 742 CAssociation à but non lucratif enregistrée à laSous-Préfecture de Grasse (06) N° 7803/[e-mail] copies of this ETSI deliverablecan be downloaded fromhttp://www.etsi.orgIf you find errors in the present document, send yourcomment to: [e-mail] NotificationNo part may be reproduced except as authorized by written permission.The copyright and the foregoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1999.All rights reserved.SIST EN 301 067-2:2001

ETSIEN 301 067-2 V1.1.3 (1999-05)3ContentsIntellectual Property Rights.4Foreword.41Scope.52References.53Definitions, symbols and abbreviations.63.1Definitions.63.2Symbols.63.3Abbreviations.64Conformance.7Annex A (normative):PICS proforma for EN 301 067-1.8A.1Instructions for completing the PICS proforma.8A.1.1Identification of the implementation.8A.1.2Global statement of conformance.8A.1.3Explanation of PICS proforma subclauses.8A.1.4Symbols, abbreviations and terms.9A.2Identification of the implementation.9A.2.1Date of the statement.9A.2.2Implementation Under Test (IUT) identification.9A.2.3System Under Test (SUT) identification.9A.2.4Product supplier.10A.2.5Client.10A.2.6PICS contact person.11A.3PICS/SCS relationship.11A.4Identification of the protocol.12A.5Global statement of conformance.12A.6Roles.12A.7User.13A.7.1Major capabilities.13A.7.2Subsidiary capabilities.13A.7.3Protocol data units.13A.7.4Protocol data unit parameters.13A.7.5Structure of Protocol Data Unit Parameters.15A.7.6Timers.15A.7.7Call states.16A.8Network.16A.8.1Major capabilities.16A.8.2Subsidiary capabilities.16A.8.3Protocol data units.16A.8.4Protocol data unit parameters.16A.8.5Structure of Protocol Data Unit Parameters.18A.8.6Timers.18A.8.7Call states.18History.19SIST EN 301 067-2:2001

ETSIEN 301 067-2 V1.1.3 (1999-05)4Intellectual Property RightsIPRs essential or potentially essential to the present document may have been declared to ETSI. The informationpertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be foundin SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respectof ETSI standards", which is available free of charge from the ETSI Secretariat. Latest updates are available on theETSI Web server (http://www.etsi.org/ipr).Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guaranteecan be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)which are, or may be, or may become, essential to the present document.ForewordThis European Standard (Telecommunications series) has been produced by ETSI Technical Committee SignallingProtocols and Switching (SPS).The present document is part 2 of a multi-part standard covering the Digital Subscriber Signalling System No. two(DSS2) protocol specification for the Broadband Integrated Services Digital Network (B-ISDN) connection negotiationduring call/connection establishment phase, as described below:Part 1:"Protocol specification [ITU-T Recommendation Q.2962 (1996), modified]";Part 2:"Protocol Implementation Conformance Statement (PICS) proforma specification";Part 3:"Test Suite Structure and Test Purposes (TSS&TP) specification for the user";Part 4:"Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT)proforma specification for the user";Part 5:"Test Suite Structure and Test Purposes (TSS&TP) specification for the network";Part 6:"Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT)proforma specification for the network".To evaluate conformance of a particular implementation, it is necessary to have a statement of which capabilities andoptions have been implemented for a given Open Systems Interconnection (OSI) protocol. Such a statement is called aProtocol Implementation Conformance Statement (PICS).National transposition datesDate of adoption of this EN:2 April 1999Date of latest announcement of this EN (doa):31 July 1999Date of latest publication of new National Standardor endorsement of this EN (dop/e):31 January 2000Date of withdrawal of any conflicting National Standard (dow):31 January 2000SIST EN 301 067-2:2001

ETSIEN 301 067-2 V1.1.3 (1999-05)51ScopeThis second part of EN 301 067 provides the Protocol Implementation Conformance Statement (PICS) proforma for theconnection characteristics negotiation during call/connection establishment phase for the Broadband Integrated ServicesDigital Network (B-ISDN) by means of the Digital Subscriber Signalling System No. two (DSS2) protocol as specifiedin EN 301 067-1 [3] in compliance with the relevant requirements and in accordance with the relevant guidance given inISO/IEC 9646-7 [5].The supplier of a protocol implementation which is claimed to conform to EN 301 067-1 [3] is required to complete acopy of the PICS proforma provided in annex A of the present document and is required to provide the informationnecessary to identify both the supplier and the implementation.2ReferencesThe following documents contain provisions which, through reference in this text, constitute provisions of the presentdocument.· References are either specific (identified by date of publication, edition number, version number, etc.) ornon-specific.· For a specific reference, subsequent revisions do not apply.· For a non-specific reference, the latest version applies.· A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the samenumber.[1]EN 300 443-1: "Broadband Integrated Services Digital Network (B-ISDN); Digital SubscriberSignalling System No. two (DSS2) protocol, B-ISDN user-network interface layer 3 specificationfor basic call/bearer control; Part 1: Protocol specification [ITU-T RecommendationQ.2931 (1995), modified]".[2]EN 300 443-2: "Broadband Integrated Services Digital Network (B-ISDN); Digital SubscriberSignalling System No. two (DSS2) protocol; B-ISDN user-network interface layer 3 specificationfor basic call/bearer control; Part 2: Protocol Implementation Conformance Statement (PICS)proforma specification".[3]EN 301 067-1 (V1.1): "Broadband Integrated Services Digital Network (B-ISDN); DigitalSubscriber Signalling System No. two (DSS2) protocol; Connection characteristics; Negotiationduring call/connection establishment phase; Part 1: Protocol specification [ITU-TRecommendation Q.2962 (1996), modified]".[4]ISO/IEC 9646-1: "Information technology - Open Systems Interconnection - Conformance testingmethodology and framework - Part 1: General concepts".[5]ISO/IEC 9646-7: "Information technology - Open Systems Interconnection - Conformance testingmethodology and framework - Part 7: Implementation Conformance Statements".SIST EN 301 067-2:2001

ETSIEN 301 067-2 V1.1.3 (1999-05)63Definitions, symbols and abbreviations3.1DefinitionsFor the purposes of the present document, the following terms and definitions apply, in addition to those given inEN 301 067-1 [3]:Protocol Implementation Conformance Statement (PICS): a statement made by the supplier of an Open SystemsInterconnection (OSI) implementation or system, stating which capabilities have been implemented for a given OSIprotocol (see ISO/IEC 9646-1 [4])PICS proforma: a document, in the form of a questionnaire, designed by the protocol specifier or conformance testsuite specifier, which, when completed for an OSI implementation or system becomes the PICS (seeISO/IEC 9646-1 [4])static conformance review: a review of the extent to which the static conformance requirements are met by theImplementation Under Test (IUT), accomplished by comparing the PICS with the static conformance requirementsexpressed in the relevant standard(s) (see ISO/IEC 9646-1 [4])3.2SymbolsFor the purposes of the present document, the following symbols apply:ANDBoolean "and"CConditional requirement (to be observed if the relevant conditions apply)MMandatory requirement (to be observed in all cases)N/ANot applicable, not supported or the conditions for status are not meetNonot supportedNOTBoolean "not"OOption (may be selected to suit the implementation, provided that any requirements applicable tothe option are observed)O.nOptions, but support required for either at least one or only one of the options in the group labelledwith the same numeral "n"ORBoolean "or"Yessupported3.3AbbreviationsFor the purposes of the present document, the following abbreviations apply:B-ISDNBroadband Integrated Services Digital NetworkDSS2Digital Subscriber Signalling System No. twoIEInformation ElementsIUTImplementation Under TestMCMajor CapabilitiesMRMessages ReceivedMTMessages TransmittedOSIOpen Systems InterconnectionPParametersPICSProtocol Implementation Conformance StatementRRoleSCSubsidiary CapabilitiesSCSSystem Conformance StatementSUTSystem Under TestTIType of ImplementationSIST EN 301 067-2:2001

ETSIEN 301 067-2 V1.1.3 (1999-05)74ConformanceA PICS proforma which conforms to this PICS proforma specification shall be technically equivalent to annex A, andshall preserve the numbering and ordering of the items in annex A.A PICS which conforms to this PICS proforma specification shall:a)describe an implementation which claims to conform to EN 301 067-1 [3];b)be a conforming PICS proforma which has been completed in accordance with the instructions for completiongiven in annex A, clause A.1;c)include the information necessary to uniquely identify both the supplier and the implementation.SIST EN 301 067-2:2001

ETSIEN 301 067-2 V1.1.3 (1999-05)8Annex A (normative):PICS proforma for EN 301 067-1Notwithstanding the provisions of the copyright clause related to the text of the present document, ETSI grants that usersof the present document may freely reproduce the PICS proforma in this annex so that it can be used for its intendedpurposes and may further publish the completed PICS.A.1Instructions for completing the PICS proformaA.1.1Identification of the implementationIdentification of the Implementation Under Test (IUT) and the system in which it resides (the System Under Test(SUT)) should be filled in so as to provide as much detail as possible regarding version numbers and configurationoptions.The product supplier information and client information should both be filled in if they are different.A person who can answer queries regarding information supplied in the PICS should be named as the contact person.The System Conformance Statement (SCS) as defined in ISO/IEC 9646-1 [4] is a document supplied by the client orproduct supplier that summarizes which OSI standards are implemented and to which conformance is claimed. ThePICS/SCS clause should describe the relationship of the PICS to the SCS.A.1.2Global statement of conformanceIf the answer to the statement in this subclause is "Yes", all subsequent subclauses should be completed to facilitateselection of test cases for optional functions.If the answer to the statement in this subclause is "No", all subsequent subclauses should be completed, and all non-supported mandatory capabilities should be identified and explained. Explanations may be entered in the comments fieldat the bottom of each table or on attached pages.A.1.3Explanation of PICS proforma subclausesThe PICS proforma contains a Roles clause and thereafter is presented in two parts (for user and network) with thefollowing subclauses, as required:-major capabilities;-subsidiary capabilities;-protocol data unit support;-protocol data unit parameters;-timers;-call states.The User clause shall only be completed for user implementations (including private network implementations) whilethe Network clause shall only be completed for network implementations. The Roles subclause shall be completed forall implementations.The relationship between this PICS proforma and other related PICS proforma (e.g. the basic call PICS proforma) isexpressed in the requirements list contained in annex B. This provides the additional restrictions placed on the relatedproforma (different conditions, different status, etc.).SIST EN 301 067-2:2001
