SLOVENSKI STANDARD
SIST EN 300 061-6 V1.2.4:2005
01-julij-2005
'LJLWDOQRRPUHåMH]LQWHJULUDQLPLVWRULWYDPL ,6'1 'RSROQLOQDVWRULWHY

SRGQDVODYOMDQMH 68% 3URWRNROGLJLWDOQHQDURþQLãNHVLJQDOL]DFLMHãW '66

GHO$EVWUDNWQLSUHVNXãDOQLQL] $76 LQGRGDWQDLQIRUPDFLMD]DSUHVNXãDQMHGHOQH

L]YHGEHSURWRNROD 3,;,7 3URIRUPDVSHFLILNDFLMD]DRPUHåMH
Integrated Services Digital Network (ISDN); Subaddressing (SUB) supplementary

service; Digital Subscriber Signalling System No. one (DSS1) protocol; Part 6: Abstract

Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing

(PIXIT) proforma specification for the network
Ta slovenski standard je istoveten z: EN 300 061-6 Version 1.2.4
ICS:
33.080 Digitalno omrežje z Integrated Services Digital
integriranimi storitvami Network (ISDN)
(ISDN)
SIST EN 300 061-6 V1.2.4:2005 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 300 061-6 V1.2.4:2005
---------------------- Page: 2 ----------------------
SIST EN 300 061-6 V1.2.4:2005
EN 300 061-6 V1.2.4 (1998-06)
European Standard (Telecommunications series)
Integrated Services Digital Network (ISDN);
Subaddressing (SUB) supplementary service;
Digital Subscriber Signalling System No. one (DSS1) protocol;
Part 6: Abstract Test Suite (ATS) and partial Protocol
Implementation eXtra Information for Testing (PIXIT)
proforma specification for the network
---------------------- Page: 3 ----------------------
SIST EN 300 061-6 V1.2.4:2005

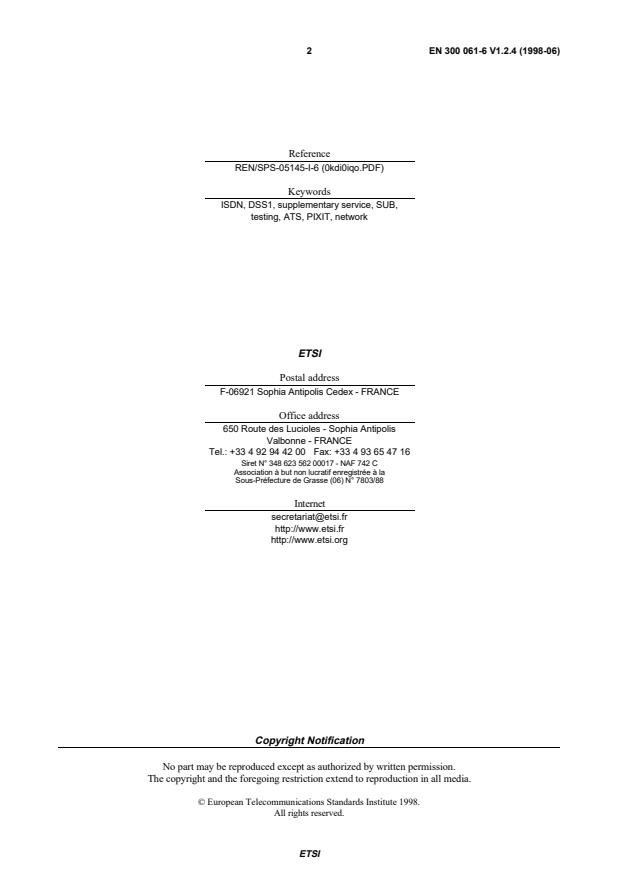

2 EN 300 061-6 V1.2.4 (1998-06)
Reference
REN/SPS-05145-I-6 (0kdi0iqo.PDF)
Keywords
ISDN, DSS1, supplementary service, SUB,
testing, ATS, PIXIT, network
ETSI
Postal address
F-06921 Sophia Antipolis Cedex - FRANCE
Office address
650 Route des Lucioles - Sophia Antipolis
Valbonne - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Internet
secretariat@etsi.fr
http://www.etsi.fr
http://www.etsi.org
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1998.
All rights reserved.
ETSI
---------------------- Page: 4 ----------------------
SIST EN 300 061-6 V1.2.4:2005
3 EN 300 061-6 V1.2.4 (1998-06)
Contents

Intellectual Property Rights...................................................................................................................... 5

Foreword................................................................................................................................................ 5

1 Scope ........................................................................................................................................... 6

2 Normative references..................................................................................................................... 6

3 Definitions and abbreviations ......................................................................................................... 7

3.1 Definitions ...........................................................................................................................................................7

3.2 Abbreviations ......................................................................................................................................................7

4 Abstract Test Method (ATM)......................................................................................................... 8

4.1 Description of ATM used ....................................................................................................................................8

4.1.1 Conventions for test components and PCOs ...................................................................................................8

4.1.2 Conventions for variables and parameters .....................................................................................................9

4.2 Alternative ATM................................................................................................................................................10

5 Untestable test purposes .............................................................................................................. 10

6 ATS conventions......................................................................................................................... 11

6.1 Declarations part................................................................................................................................................11

6.1.1 Type definitions............................................................................................................................................11

6.1.1.1 Simple type definitions...........................................................................................................................11

6.1.1.2 Structured type definitions......................................................................................................................11

6.1.1.2.1 TTCN structured type definitions......................................................................................................11

6.1.1.2.2 ASN.1 structured type definitions .....................................................................................................11

6.1.1.3 ASP type definitions...............................................................................................................................12

6.1.1.3.1 TTCN ASP type definitions ..............................................................................................................12

6.1.1.3.2 ASN.1 ASP type definitions..............................................................................................................13

6.1.1.4 PDU type definitions...............................................................................................................................13

6.1.1.4.1 TTCN PDU type definitions..............................................................................................................13

6.1.1.4.2 ASN.1 PDU type definitions .............................................................................................................13

6.1.2 Test suite constants.......................................................................................................................................13

6.1.3 Test suite parameters....................................................................................................................................13

6.1.4 Variables......................................................................................................................................................13

6.1.4.1 Test suite variables.................................................................................................................................13

6.1.4.2 Test case variables.................................................................................................................................13

6.1.5 Test suite operation definitions ....................................................................................................................14

6.2 Constraints part..................................................................................................................................................14

6.2.1 Structured type constraint declaration ..........................................................................................................14

6.2.2 ASN.1 type constraint declaration................................................................................................................14

6.2.2.1 Specification of encoding rules ..............................................................................................................14

6.2.3 ASP type constraint declaration ...................................................................................................................14

6.2.3.1 ASN.1 ASP type constraint declaration..................................................................................................14

6.2.3.2 TTCN ASP type constraint declaration ..................................................................................................15

6.2.4 PDU type constraint declaration...................................................................................................................15

6.2.4.1 ASN.1 PDU type constraint declaration .................................................................................................15

6.2.4.2 TTCN PDU type constraint declaration..................................................................................................15

6.2.5 Chaining of constraints .................................................................................................................................15

6.2.5.1 Static chaining ........................................................................................................................................15

6.2.5.2 Dynamic chaining ...................................................................................................................................15

6.2.6 Derived constraints ......................................................................................................................................15

6.2.7 Parameterized constraints.............................................................................................................................15

6.2.8 Value assignment..........................................................................................................................................16

6.2.8.1 Specific values .......................................................................................................................................16

6.2.8.2 Matching values......................................................................................................................................16

6.3 Dynamic part......................................................................................................................................................16

6.3.1 Test cases.....................................................................................................................................................16

6.3.2 Test steps......................................................................................................................................................16

ETSI
---------------------- Page: 5 ----------------------
SIST EN 300 061-6 V1.2.4:2005
4 EN 300 061-6 V1.2.4 (1998-06)

6.3.2.1 PTC1_IN ................................................................................................................................................16

6.3.2.2 PTC1_OUT.............................................................................................................................................16

6.3.3 Defaults ........................................................................................................................................................16

7 ATS to TP map........................................................................................................................... 17

8 PCTR conformance ..................................................................................................................... 17

9 PIXIT conformance...................................................................................................................... 17

10 ATS conformance........................................................................................................................ 17

Annex A (normative): Protocol Conformance Test Report (PCTR) proforma........................... 18

A.1 Identification summary................................................................................................................. 18

A.1.1 Protocol conformance test report .......................................................................................................................18

A.1.2 IUT identification...............................................................................................................................................18

A.1.3 Testing environment...........................................................................................................................................19

A.1.4 Limits and reservations......................................................................................................................................19

A.1.5 Comments...........................................................................................................................................................19

A.2 IUT conformance status ............................................................................................................... 19

A.3 Static conformance summary........................................................................................................ 19

A.4 Dynamic conformance summary................................................................................................... 20

A.5 Static conformance review report.................................................................................................. 20

A.6 Test campaign report ................................................................................................................... 20

A.7 Observations............................................................................................................................... 20

Annex B (normative): Partial PIXIT proforma ......................................................................... 22

B.1 Identification summary................................................................................................................. 22

B.2 Abstract test suite summary ......................................................................................................... 22

B.3 Test laboratory............................................................................................................................ 22

B.4 Client (of the test laboratory)........................................................................................................ 23

B.5 System Under Test (SUT)............................................................................................................ 23

B.6 Protocol information .................................................................................................................... 24

B.6.1 Protocol identification .......................................................................................................................................24

B.6.2 Parameter values................................................................................................................................................24

B.6.3 Number information parameter values ...............................................................................................................24

B.6.4 Configuration of IUT..........................................................................................................................................24

B.6.5 Timer values ......................................................................................................................................................25

B.7 Basic call PIXIT items................................................................................................................. 25

B.7.1 Parameter values - information element codings................................................................................................25

Annex C (normative): Abstract Test Suite (ATS)....................................................................... 26

C.1 The TTCN Graphical form (TTCN.GR) ....................................................................................... 26

C.2 The TTCN Machine Processable form (TTCN.MP)....................................................................... 26

Annex D (informative): General structure of ATS ....................................................................... 27

Annex E (informative): Changes with respect to the previous ETS 300 061-6............................. 28

History................................................................................................................................................. 29

ETSI
---------------------- Page: 6 ----------------------
SIST EN 300 061-6 V1.2.4:2005
5 EN 300 061-6 V1.2.4 (1998-06)
Intellectual Property Rights

IPRs essential or potentially essential to the present document may have been declared to ETSI. The information

pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in

SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect

of ETSI standards", which is available free of charge from the ETSI Secretariat. Latest updates are available on the

ETSI Web server (http://www.etsi.fr/ipr or http://www.etsi.org/ipr).

Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can

be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server) which

are, or may be, or may become, essential to the present document.
Foreword

This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Signalling

Protocols and Switching (SPS).

The present document is part 6 of a multi-part standard covering the Digital Subscriber Signalling System No. one (DSS1)

protocol specification for the Integrated Services Digital Network (ISDN) Subaddressing (SUB) supplementary service,

as described below:
Part 1: "Protocol specification";

Part 2: "Protocol Implementation Conformance Statement (PICS) proforma specification";

Part 3: "Test Suite Structure and Test Purposes (TSS&TP) specification for the user";

Part 4: "Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT)

proforma specification for the user";

Part 5: "Test Suite Structure and Test Purposes (TSS&TP) specification for the network";

Part 6: "Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing

(PIXIT) proforma specification for the network".
The present version updates the references to the basic call specifications.
National transposition dates
Date of adoption of this EN: 19 June 1998
Date of latest announcement of this EN (doa): 30 September 1998
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 March 1999
Date of withdrawal of any conflicting National Standard (dow): 31 March 1999
ETSI
---------------------- Page: 7 ----------------------
SIST EN 300 061-6 V1.2.4:2005
6 EN 300 061-6 V1.2.4 (1998-06)
1 Scope

This sixth part of EN 300 061 specifies the Abstract Test Suite (ATS) and partial Protocol Implementation eXtra

Information for Testing (PIXIT) proforma for the Network side of the T reference point or coincident S and T reference

point (as defined in ITU-T Recommendation I.411 [10]) of implementations conforming to the stage three standard for the

Subaddressing (SUB) supplementary service for the pan-European Integrated Services Digital Network (ISDN) by means

of the Digital Subscriber Signalling System No. one (DSS1) protocol, EN 300 061-1 [2].

EN 300 061-5 [4] specifies the Test Suite Structure and Test Purposes (TSS&TP) related to this ATS and partial PIXIT

proforma specification. Other parts specify the TSS&TP and the ATS and partial PIXIT proforma for the User side of the

T reference point or coincident S and T reference point of implementations conforming to EN 300 061-1 [2].

2 Normative references
References may be made to:

a) specific versions of publications (identified by date of publication, edition number, version number, etc.), in which

case, subsequent revisions to the referenced document do not apply; or

b) all versions up to and including the identified version (identified by "up to and including" before the version

identity); or

c) all versions subsequent to and including the identified version (identified by "onwards" following the version

identity); or

d) publications without mention of a specific version, in which case the latest version applies.

A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the same

number.

[1] EN 300 403-1: "Integrated Services Digital Network (ISDN); Digital Subscriber Signalling System

No. one (DSS1) protocol; Signalling network layer for circuit-mode basic call control; Part 1:

Protocol specification [ITU-T Recommendation Q.931 (1993), modified]".

[2] EN 300 061-1 (V1.2): "Integrated Services Digital Network (ISDN); Subaddressing (SUB)

supplementary service; Digital Subscriber Signalling System No. one (DSS1) protocol; Part 1:

Protocol specification".

[3] EN 300 061-2 (V1.2): "Integrated Services Digital Network (ISDN); Subaddressing (SUB)

supplementary service; Digital Subscriber Signalling System No. one (DSS1) protocol; Part 2:

Protocol Implementation Conformance Statement (PICS) proforma specification".

[4] EN 300 061-5 (V1.2): "Integrated Services Digital Network (ISDN); Subaddressing (SUB)

supplementary service; Digital Subscriber Signalling System No. one (DSS1) protocol; Part 5: Test

Suite Structure and Test Purposes (TSS&TP) specification for the network".

[5] ISO/IEC 9646-1: "Information technology - OSI Conformance Testing Methodology and Framework;

Part 1: General Concepts".

[6] ISO/IEC 9646-2: "Information technology - OSI Conformance Testing Methodology and Framework;

Part 2: Abstract Test Suite Specification".

[7] ISO/IEC 9646-3: "Information technology - OSI Conformance Testing Methodology and Framework;

Part 3: The Tree and Tabular Combined Notation".

[8] ISO/IEC 9646-4: "Information technology - OSI Conformance Testing Methodology and Framework;

Part 4: Test realization".

[9] ISO/IEC 9646-5: "Information technology - OSI Conformance Testing Methodology and Framework;

Part 5: Requirements on test laboratories and clients for the conformance assessment process".

[10] ITU-T Recommendation I.411 (1993): "ISDN user-network interfaces - Reference configurations".

ETSI
---------------------- Page: 8 ----------------------
SIST EN 300 061-6 V1.2.4:2005
7 EN 300 061-6 V1.2.4 (1998-06)

[11] CCITT Recommendation X.209 (1988): "Specification of Basic Encoding Rules for Abstract Syntax

Notation One (ASN.1)".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following definitions apply:
Abstract Test Suite (ATS): See ISO/IEC 9646-1 [5].
Implementation Under Test (IUT): See ISO/IEC 9646-1 [5].
Lower Tester (LT): See ISO/IEC 9646-1 [5].
Point Of Control And Observation (PCO): See ISO/IEC 9646-1 [5].
Protocol Implementation Conformance Statement (PICS): See ISO/IEC 9646-1 [5].
PICS proforma: See ISO/IEC 9646-1 [5].

Protocol Implementation Extra Information For Testing (PIXIT): See ISO/IEC 9646-1 [5].

PIXIT proforma: See ISO/IEC 9646-1 [5].
System Under Test (SUT): See ISO/IEC 9646-1 [5].
Upper Tester (UT): See ISO/IEC 9646-1 [5].
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ASP Abstract Service Primitive
ATM Abstract Test Method
ATS Abstract Test Suite
BER Basic Encoding Rules
CM Co-ordination Message
CP Co-ordination Point
ExTS Executable Test Suite
IUT Implementation Under Test
LT Lower Tester
MOT Means Of Testing
MTC Main Test Component
PCO Point of Control and Observation
PCTR Protocol Conformance Test Report
PDU Protocol Data Unit
PICS Protocol Implementation Conformance Statement
PIXIT Protocol Implementation eXtra Information for Testing
PTC Parallel Test Component
SUB Subaddressing
SUT System Under Test
TCP Test Co-ordination Procedures
TP Test Purpose
TTCN Tree and Tabular Combined Notation
UT Upper Tester
ETSI
---------------------- Page: 9 ----------------------
SIST EN 300 061-6 V1.2.4:2005
8 EN 300 061-6 V1.2.4 (1998-06)
4 Abstract Test Method (ATM)
4.1 Description of ATM used

The requirement for testing the network IUT is to focus on the behaviour of the network IUT at the user-network interface

where a T reference point or coincident S and T reference point applies. Thus the IUT is the network DSS1 protocol

entity at a particular user-network interface and is not the whole network.

It is possible to specify an ATS based on a Single party (remote) test method for such an IUT. However, it is considered

that an ATS based on such an approach is of limited use as the only way to specify IUT generated PDUs is to use the

"implicit send" statement. Many users of such an ATS would replace the "implicit send" statements with descriptions of

the behaviour at other interfaces.

An ATS based on a multi-party test method is considered to be more useful in that it is closer to how a real test suite

would be constructed. Such a test method specifies behaviour at multiple network interfaces. One very important

limitation here is that tests are focused on one particular interface. Thus the test system is made up one Main Test

Component (MTC) and one or more Parallel Test Components (PTC), see figure 1.
4.1.1 Conventions for test components and PCOs
Master part Slave part
MTCA
PTC1
CPA1
L0 PCO L1 PCO
IUT
NETWORK
Figure 1: Multi-party test method
ETSI
---------------------- Page: 10 ----------------------
SIST EN 300 061-6 V1.2.4:2005
9 EN 300 061-6 V1.2.4 (1998-06)

In a master/slave arrangement, the MTC is considered to be the master while the PTCs are the slaves. The "slave" testers

are only an explicit description of how to deal with the "other" interfaces during the testing process, i.e. "how to make the

IUT send the required message".

This means, in particular, that the verdict will only be assigned from the protocol aspects observed on the interface under

test (i.e. by the "master" tester), as it would be observed by a terminal connected to this interface. A failure in the

correlation between the protocol at the different interfaces to which the different testers are connected, i.e. in the

mechanism of the functional service itself, will not cause a FAIL verdict. For instance, if the IUT fails to send a message

on the tested interface after another interface has received the proper stimulus, the verdict will be INCONCLUSIVE.

The MTC MTCA has two functions in this configuration. Firstly, it has the MTC function of controlling the one or more

PTCs. Thus it is responsible for starting the PTCs and afterwards co-ordinates activities by exchanging Co-ordination

Messages (CM) with the PTCs. Secondly it is responsible for the behaviour of the Lower Tester (LT) at PCO L0.

A combination of the remote and multi-party test methods is applied. As can be seen from figure 1, several PCOs are

used. All PCOs reside at the service access points between layers 2 and 3.
MTC SUT PTC1
Layer 3 IUT Layer 3
 L0     L1 
Layer 2 Layer 2
       
 
Layer 1 Layer 1
Service provider
Figure 2: Combination of the remote and multi-party test methods

The MTC PCO is named "L0" ("L" for Lower). PCO L0 is used to control and observe the behaviour of the IUT and test

case verdicts are assigned depending on the behaviour observed at this PCO. The PTC PTC1 uses PCO L1. This PCO is

used to control and, in a limited way, observe the behaviour of the network equipment at interfaces other than the one

under test. No verdicts are assigned at this PCO.

As stated in a previous paragraph, the non-receipt of network generated messages at L0, which are stimulated by events at

the L1, will result in INCONCLUSIVE rather than FAIL verdicts being assigned.
4.1.2 Conventions for variables and parameters
MTCA
call reference CREF1
B channel (basic) bch_num1 (to PTC1)
channel nr (primary) CH_NUM1
PCO L0 IPN0, LIPN0
PTC1
call reference P1CREF
B channel (basic) P1_bch_num
channel nr (primary) P1_CH_NUM
PCO L1 IPN1, LIPN1
ETSI
---------------------- Page: 11 ----------------------
SIST EN 300 061-6 V1.2.4:2005
10 EN 300 061-6 V1.2.4 (1998-06)
4.2 Alternative ATM

As stated in subclause 4.1, an ATS based on a single-party (remote) ATM is possible. Such an ATS may be generated

from the one specified in the present document. The following general steps should be taken:

1) remove all PTC behaviour;
2) remove all CREATE statements;

3) replace CMs which are used to provoke PDUs at the MTC, with implicit send statements.

An example, showing the difference between the multi-party ATM and single-party ATM for a single test case, is given in

tables 1 and 2.
Table 1: Test case dynamic behaviour table using multi-party ATM
TEST CASE DYNAMIC BEHAVIOUR
Test Case Name HOLD_N04_001
Group RemoteUser_ST_OR_T/Holding/
Purpose Ensure that the IUT, while in the Active call state N10, to
notify the non-served user that the call is held
sends a NOTIFY message with a notification indicator coded as
"remote hold" to user B and remains in the Active call state.
Default DF69901(1)
Configuration CONFIG1
Comments 9.2.1valid optional
Nr| Label | BEHAVIOUR DESCRIPTION | CREF | V
| COMMENTS
1 | |CREATE ( PTC1: PTC1_IN_servedUser)| | |
2 | | +PR31002 | | |preamble N10
3 | | CPA1!CP_M START TWAIT |S_HL | |
4 | | L0?NOTIFYr |A_NO20(CREF1,hold_NID) |(P)|
5 | | +CS59901(10,1) | | |check N10
6 | | ?TIMEOUT TWAIT | |(I)|
7 | | +PO49901(1) | | |postamble N0
DETAILED COMMENTS:
