Representation of results of particle size analysis - Part 5: Methods of calculation relating to particle size analyses using logarithmic normal probability distribution

The main objective of this part of ISO 9276 is to provide the background for the representation of a cumulative particle size distribution which follows a logarithmic normal probability distribution, as a means by which calculations performed using particle size distribution functions may be unequivocally checked. The design of logarithmic normal probability graph paper is explained, as well as the calculation of moments, median diameters, average diameters and volume-specific surface area. Logarithmic normal probability distributions are often suitable for the representation of cumulative particle size distributions of any dimensionality. Their particular advantage lies in the fact that cumulative distributions, such as number-, length-, area-, volume- or mass-distributions, are represented by parallel lines, all of whose locations may be determined from a knowledge of the location of any one.

Représentation de données obtenues par analyse granulométrique - Partie 5: Méthodes de calcul relatif à l'analyse granulométrique à l'aide de la distribution de probabilité logarithmique normale

Predstavitev podatkov, dobljenih z granulometrijsko analizo - 5. del: Računska metoda določitve zrnavosti na osnovi normalne logaritmične porazdelitve

General Information

Status
Published
Publication Date
30-Sep-2006
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Oct-2006
Due Date
01-Oct-2006
Completion Date
01-Oct-2006

Buy Standard

Standard
ISO 9276-5:2005 - Representation of results of particle size analysis
English language
12 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ISO 9276-5:2006
English language
17 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 9276-5
First edition
2005-08-01

Representation of results of particle size
analysis —
Part 5:
Methods of calculation relating to particle
size analyses using logarithmic normal
probability distribution
Représentation de données obtenues par analyse granulométrique —
Partie 5: Méthodes de calcul relatif à l'analyse granulométrique à l'aide
de la distribution de probabilité logarithmique normale




Reference number
ISO 9276-5:2005(E)
©
ISO 2005

---------------------- Page: 1 ----------------------
ISO 9276-5:2005(E)

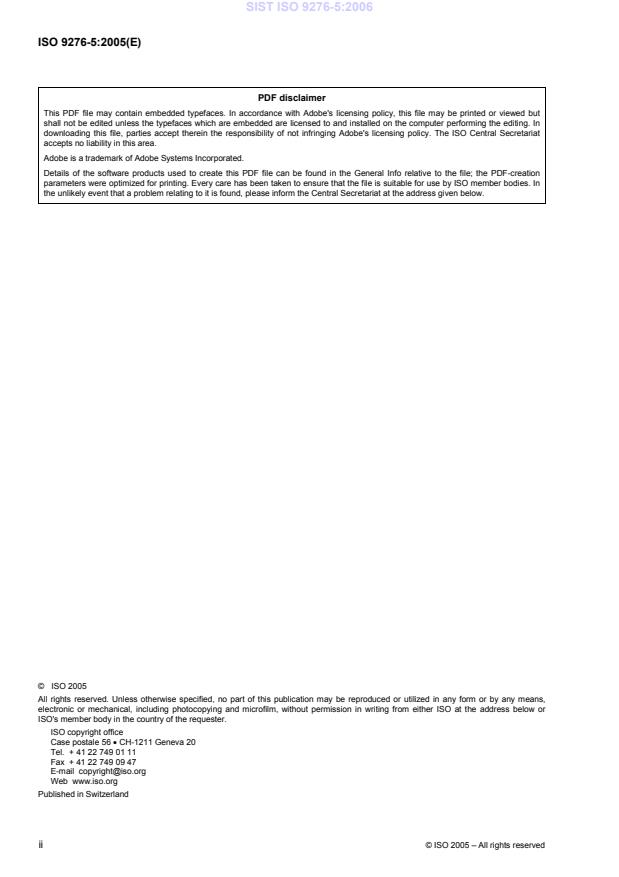

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2005 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 9276-5:2005(E)
Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Symbols . 1
4 Logarithmic normal probability function. 2
5 Special values of a logarithmic normal probability distribution. 5
5.1 Complete kth moments. 5
5.2 Average particle sizes . 5
5.3 Median particle sizes. 6
5.4 Horizontal shifts between plotted distribution values. 6
5.5 Volume-specific surface area (Sauter diameter) . 8
Annex A (informative) Cumulative distribution values of a normal probability distribution. 9
Bibliography . 12

© ISO 2005 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 9276-5:2005(E)

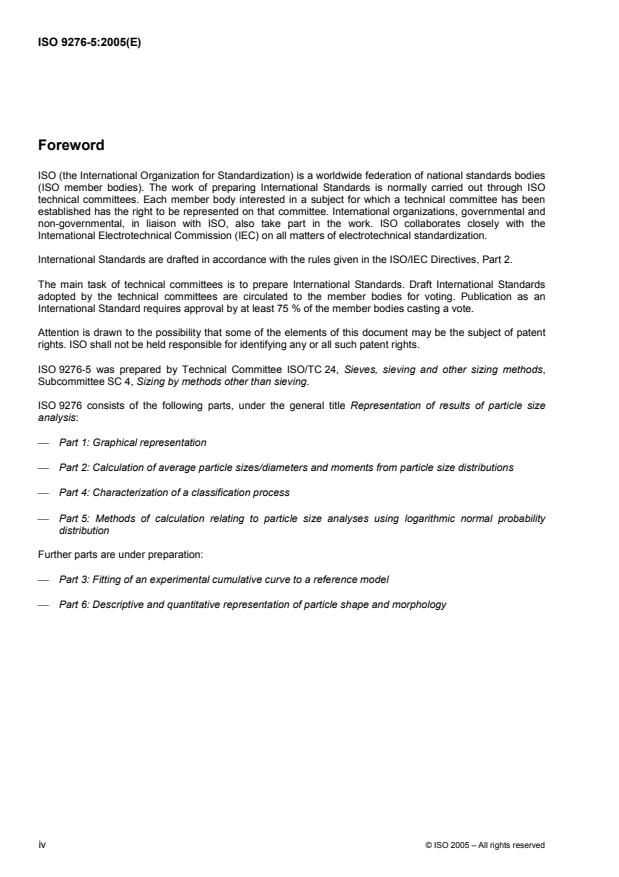

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 9276-5 was prepared by Technical Committee ISO/TC 24, Sieves, sieving and other sizing methods,
Subcommittee SC 4, Sizing by methods other than sieving.
ISO 9276 consists of the following parts, under the general title Representation of results of particle size
analysis:
 Part 1: Graphical representation
 Part 2: Calculation of average particle sizes/diameters and moments from particle size distributions
 Part 4: Characterization of a classification process
 Part 5: Methods of calculation relating to particle size analyses using logarithmic normal probability
distribution
Further parts are under preparation:
 Part 3: Fitting of an experimental cumulative curve to a reference model
 Part 6: Descriptive and quantitative representation of particle shape and morphology
iv © ISO 2005 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 9276-5:2005(E)
Introduction
Many cumulative particle size distributions, Q (x), may be plotted on special graph paper which allow the
r
cumulative size distribution to be represented as a straight line. Scales on the ordinate and the abscissa are
generated from various mathematical formulae. In this part of ISO 9276, it is assumed that the cumulative
particle size distribution follows a logarithmic normal probability distribution.
In this part of ISO 9276, the size, x, of a particle represents the diameter of a sphere. Depending on the
situation, the particle size, x, may also represent the equivalent diameter of a particle of some other shape.

© ISO 2005 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 9276-5:2005(E)

Representation of results of particle size analysis —
Part 5:
Methods of calculation relating to particle size analyses using
logarithmic normal probability distribution
1 Scope
The main objective of this part of ISO 9276 is to provide the background for the representation of a cumulative
particle size distribution which follows a logarithmic normal probability distribution, as a means by which
calculations performed using particle size distribution functions may be unequivocally checked. The design of
logarithmic normal probability graph paper is explained, as well as the calculation of moments, median
diameters, average diameters and volume-specific surface area. Logarithmic normal probability distributions
are often suitable for the representation of cumulative particle size distributions of any dimensionality. Their
particular advantage lies in the fact that cumulative distributions, such as number-, length-, area-, volume- or
mass-distributions, are represented by parallel lines, all of whose locations may be determined from a
knowledge of the location of any one.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 9276-1, Representation of results of particle size analysis — Part 1: Graphical representation
ISO 9276-2:2001, Representation of results of particle size analysis — Part 2: Calculation of average particle
sizes/diameters and moments from particle size distributions
3 Symbols
For the purposes of this part of ISO 9276, the following symbols apply.
c
cumulative percentage
base of natural logarithms
e = 2,718 28.
k power of x in a moment
M complete kth moment of a density distribution of dimensionality r
k,r
p
dimensionality (type of quantity) of a distribution,
p = 0: number, p = 1: length, p = 2: area, p = 3: volume or mass
q (x) density distribution of dimensionality r
r
Q (x) cumulative distribution of dimensionality r
r
© ISO 2005 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO 9276-5:2005(E)
r dimensionality (type of quantity) of a distribution,
r = 0: number, r = 1: length, r = 2: area, r = 3: volume or mass
s standard deviation of the density distribution
s geometric standard deviation, exponential function of the standard deviation
g
S volume-specific surface area

V
x particle size, diameter of a sphere
x particle size below which there are no particles in a given size distribution
min
x particle size above which there are no particles in a given size distribution
max
x
particle size at which Q = 0,84
84,r
r
x median particle size of a cumulative distribution of dimensionality r
50,r
x particle size at which Q = 0,16
16,r r
x average particle size based on the kth moment of a distribution of dimensionality r
k,r
z dimensionless variable proportional to the logarithm of x (see Equation 3)
integration variable based on x (see Equation 11)
ξ
integration variable based on z (see Equation 2)
ζ
Subscripts of different sense are separated by a comma in this and all other parts of ISO 9276.
4 Logarithmic normal probability function
Normal probability density distributions are described in terms of a dimensionless variable z:
2
1
−0,5z
qz*( ) = e (1)
r

The cumulative normal probability distribution is represented by:
zz
2
1
−0,5ζ
Qz*( )==q* (ζζ)d e dζ (2)
rr
∫∫

−∞ −∞
A sample table of values for Q* (z) as a function of z is given in Table A.1.
r
The logarithmic normal probability distribution is a formulation in which z is defined as a logarithm of x scaled
by two parameters, the mean size x and either the dimensionless standard deviation, s, or the geometric
50,r
standard deviation, s , that characterize the distribution:
g
   
11xx 1 x
z==ln ln = log (3)
   
sx lns x logs x
50,rrg 50, g 50,r
   
2 © ISO 2005 – All rights reserved

---------------------- Page: 7 ----------------------
ISO 9276-5:2005(E)
which is equivalent to
s z
xx= e (4)
50,r
According to Equation 3, the standard deviation, s, is linked with the geometric standard deviation, s , by:
g
s
ss==ln ors e (5)
gg
Although Equation 1 has no explicit dependences on r, the dimensionality of the density distribution is
involved through the relationship of z to x in Equation 3. The value of x for a specific size distribution
50,r 50,r
may be determined from experimental data according to ISO 9276-1. The standard deviation of a logarithmic
normal probability distribution may be calculated from the values of the cumulative distribution at certain
characteristic values of z:
either at z = 1, for which

x
84,r
Qz* ( ==1) 0,84 ands= ln (6)

r
x
50,r

or at z = −1, for which
x
50,r
Qz* ( =−1)= 0,16 ands = ln (7)

r
x
16,r

Throughout this part of ISO 9276, the values 0,84 and 0,16 (and their representation as percentages
84 and 16) are used in place of the more precise values 0,841 34 and 0,158 65.
Logarithmic probability graph presentation: Useful information about the nature of a particle size
distribution may be obtained by plotting the cumulative distribution on special graph paper, on which the
abscissa (representing particle size) is marked with an exponential scale and the ordinate (representing
cumulative distribution) is marked with a scale of Q* (z) values (see Annex A). Preprinted paper marked with
r
these scales is available. Graphical representation is now mor
...

SLOVENSKI STANDARD
SIST ISO 9276-5:2006
01-oktober-2006
3UHGVWDYLWHYSRGDWNRYGREOMHQLK]JUDQXORPHWULMVNRDQDOL]RGHO5DþXQVND
PHWRGDGRORþLWYH]UQDYRVWLQDRVQRYLQRUPDOQHORJDULWPLþQHSRUD]GHOLWYH
Representation of results of particle size analysis - Part 5: Methods of calculation relating
to particle size analyses using logarithmic normal probability distribution
Représentation de données obtenues par analyse granulométrique - Partie 5: Méthodes
de calcul relatif à l'analyse granulométrique à l'aide de la distribution de probabilité
logarithmique normale
Ta slovenski standard je istoveten z: ISO 9276-5:2005
ICS:
19.120 Analiza velikosti delcev. Particle size analysis. Sieving
Sejanje
SIST ISO 9276-5:2006 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST ISO 9276-5:2006

---------------------- Page: 2 ----------------------

SIST ISO 9276-5:2006


INTERNATIONAL ISO
STANDARD 9276-5
First edition
2005-08-01

Representation of results of particle size
analysis —
Part 5:
Methods of calculation relating to particle
size analyses using logarithmic normal
probability distribution
Représentation de données obtenues par analyse granulométrique —
Partie 5: Méthodes de calcul relatif à l'analyse granulométrique à l'aide
de la distribution de probabilité logarithmique normale




Reference number
ISO 9276-5:2005(E)
©
ISO 2005

---------------------- Page: 3 ----------------------

SIST ISO 9276-5:2006
ISO 9276-5:2005(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2005 – All rights reserved

---------------------- Page: 4 ----------------------

SIST ISO 9276-5:2006
ISO 9276-5:2005(E)
Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Symbols . 1
4 Logarithmic normal probability function. 2
5 Special values of a logarithmic normal probability distribution. 5
5.1 Complete kth moments. 5
5.2 Average particle sizes . 5
5.3 Median particle sizes. 6
5.4 Horizontal shifts between plotted distribution values. 6
5.5 Volume-specific surface area (Sauter diameter) . 8
Annex A (informative) Cumulative distribution values of a normal probability distribution. 9
Bibliography . 12

© ISO 2005 – All rights reserved iii

---------------------- Page: 5 ----------------------

SIST ISO 9276-5:2006
ISO 9276-5:2005(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 9276-5 was prepared by Technical Committee ISO/TC 24, Sieves, sieving and other sizing methods,
Subcommittee SC 4, Sizing by methods other than sieving.
ISO 9276 consists of the following parts, under the general title Representation of results of particle size
analysis:
 Part 1: Graphical representation
 Part 2: Calculation of average particle sizes/diameters and moments from particle size distributions
 Part 4: Characterization of a classification process
 Part 5: Methods of calculation relating to particle size analyses using logarithmic normal probability
distribution
Further parts are under preparation:
 Part 3: Fitting of an experimental cumulative curve to a reference model
 Part 6: Descriptive and quantitative representation of particle shape and morphology
iv © ISO 2005 – All rights reserved

---------------------- Page: 6 ----------------------

SIST ISO 9276-5:2006
ISO 9276-5:2005(E)
Introduction
Many cumulative particle size distributions, Q (x), may be plotted on special graph paper which allow the
r
cumulative size distribution to be represented as a straight line. Scales on the ordinate and the abscissa are
generated from various mathematical formulae. In this part of ISO 9276, it is assumed that the cumulative
particle size distribution follows a logarithmic normal probability distribution.
In this part of ISO 9276, the size, x, of a particle represents the diameter of a sphere. Depending on the
situation, the particle size, x, may also represent the equivalent diameter of a particle of some other shape.

© ISO 2005 – All rights reserved v

---------------------- Page: 7 ----------------------

SIST ISO 9276-5:2006

---------------------- Page: 8 ----------------------

SIST ISO 9276-5:2006
INTERNATIONAL STANDARD ISO 9276-5:2005(E)

Representation of results of particle size analysis —
Part 5:
Methods of calculation relating to particle size analyses using
logarithmic normal probability distribution
1 Scope
The main objective of this part of ISO 9276 is to provide the background for the representation of a cumulative
particle size distribution which follows a logarithmic normal probability distribution, as a means by which
calculations performed using particle size distribution functions may be unequivocally checked. The design of
logarithmic normal probability graph paper is explained, as well as the calculation of moments, median
diameters, average diameters and volume-specific surface area. Logarithmic normal probability distributions
are often suitable for the representation of cumulative particle size distributions of any dimensionality. Their
particular advantage lies in the fact that cumulative distributions, such as number-, length-, area-, volume- or
mass-distributions, are represented by parallel lines, all of whose locations may be determined from a
knowledge of the location of any one.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 9276-1, Representation of results of particle size analysis — Part 1: Graphical representation
ISO 9276-2:2001, Representation of results of particle size analysis — Part 2: Calculation of average particle
sizes/diameters and moments from particle size distributions
3 Symbols
For the purposes of this part of ISO 9276, the following symbols apply.
c
cumulative percentage
base of natural logarithms
e = 2,718 28.
k power of x in a moment
M complete kth moment of a density distribution of dimensionality r
k,r
p
dimensionality (type of quantity) of a distribution,
p = 0: number, p = 1: length, p = 2: area, p = 3: volume or mass
q (x) density distribution of dimensionality r
r
Q (x) cumulative distribution of dimensionality r
r
© ISO 2005 – All rights reserved 1

---------------------- Page: 9 ----------------------

SIST ISO 9276-5:2006
ISO 9276-5:2005(E)
r dimensionality (type of quantity) of a distribution,
r = 0: number, r = 1: length, r = 2: area, r = 3: volume or mass
s standard deviation of the density distribution
s geometric standard deviation, exponential function of the standard deviation
g
S volume-specific surface area

V
x particle size, diameter of a sphere
x particle size below which there are no particles in a given size distribution
min
x particle size above which there are no particles in a given size distribution
max
x
particle size at which Q = 0,84
84,r
r
x median particle size of a cumulative distribution of dimensionality r
50,r
x particle size at which Q = 0,16
16,r r
x average particle size based on the kth moment of a distribution of dimensionality r
k,r
z dimensionless variable proportional to the logarithm of x (see Equation 3)
integration variable based on x (see Equation 11)
ξ
integration variable based on z (see Equation 2)
ζ
Subscripts of different sense are separated by a comma in this and all other parts of ISO 9276.
4 Logarithmic normal probability function
Normal probability density distributions are described in terms of a dimensionless variable z:
2
1
−0,5z
qz*( ) = e (1)
r

The cumulative normal probability distribution is represented by:
zz
2
1
−0,5ζ
Qz*( )==q* (ζζ)d e dζ (2)
rr
∫∫

−∞ −∞
A sample table of values for Q* (z) as a function of z is given in Table A.1.
r
The logarithmic normal probability distribution is a formulation in which z is defined as a logarithm of x scaled
by two parameters, the mean size x and either the dimensionless standard deviation, s, or the geometric
50,r
standard deviation, s , that characterize the distribution:
g
   
11xx 1 x
z==ln ln = log (3)
   
sx lns x logs x
50,rrg 50, g 50,r
   
2 © ISO 2005 – All rights reserved

---------------------- Page: 10 ----------------------

SIST ISO 9276-5:2006
ISO 9276-5:2005(E)
which is equivalent to
s z
xx= e (4)
50,r
According to Equation 3, the standard deviation, s, is linked with the geometric standard deviation, s , by:
g
s
ss==ln ors e (5)
gg
Although Equation 1 has no explicit dependences on r, the dimensionality of the density distribution is
involved through the relationship of z to x in Equation 3. The value of x for a specific size distribution
50,r 50,r
may be determined from experimental data according to ISO 9276-1. The standard deviation of a logarithmic
normal probability distribution may be calculated from the values of the cumulative distribution at certain
characteristic values of z:
either at z = 1, for which

x
84,r
Qz* ( ==1) 0,84 ands= ln (6)

r
x
50,r

or at z = −1, for which
x
50,r
Qz* ( =−1)= 0,16 ands = ln (7)

r
x
16,r

Throughout this part of ISO 9276, the values 0,84 and 0,16 (and their rep
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
