EUROPEAN ETS 300 702-3
TELECOMMUNICATION March 1997
STANDARD
Source: ETSI EP-DECT Reference: DE/DECT-010025-3
ICS: 33.020
Key words: DECT, interworking, GSM, PTS, TTCN
Digital Enhanced Cordless Telecommunications (DECT);
Global System for Mobile communications (GSM);
DECT/GSM Interworking Profile (IWP);
Profile Test Specification (PTS);
Profile Specific Test Specification (PSTS);
Part 3: Fixed radio Termination (FT)
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
X.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail]
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1997. All rights reserved.

---------------------- Page: 3 ----------------------

SIST ETS 300 702-3:2001
Page 2
ETS 300 702-3: March 1997

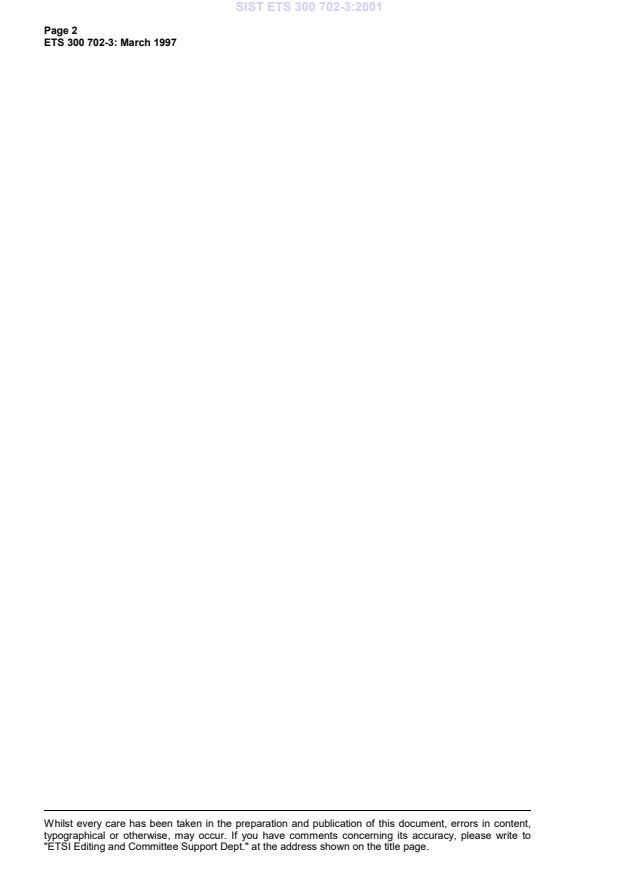

Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

---------------------- Page: 4 ----------------------

SIST ETS 300 702-3:2001
Page 3
ETS 300 702-3: March 1997
Contents
Foreword .5
1 Scope .7
2 Normative references.7
3 Definitions and abbreviations .9
3.1 Definitions .9
3.2 Abbreviations .9
4 Relevant test cases list.10
4.1 Network (NWK) layer.10
4.1.1 Test suite structure.11
4.1.2 Test case index .12
4.2 Data Link Control (DLC) layer.12
4.3 Medium Access Control (MAC) layer.12
4.4 Physical (PHL) layer.12
5 Replacement lists.12
5.1 General .12
5.2 Test case replacement list.13
5.3 Test step replacement list.14
5.4 Constraint replacement list .15
5.5 Test cases impacted by replacements outside of the test case description.15
6 Additional test cases list.16
6.1 Test purposes .16
6.1.1 Test purposes for Call Control (CC).16
6.1.1.1 Outgoing call.16
6.1.1.2 Incoming call.17
6.1.1.3 Information transfer procedures .17
6.1.1.4 Call release.18
6.1.1.5 Timer handling.18
6.1.2 Test purposes for Mobility Management (MM).19
6.1.2.1 Identity procedures .19
6.1.2.2 Authentication procedures.19
6.1.2.3 Location registration procedures .20
6.1.2.4 Ciphering procedures .21
6.1.2.5 Timer handling.22
6.1.3 Test purposes for Link Control Entity (LCE).22
6.1.3.1 Connection oriented link establishment procedures.22
6.1.3.2 Timer handling.22
Annex A (normative): Abstract Test Suite (ATS) for NWK testing (DECT/GSM IWP specific).23
A.1 The machine processable ATS (TTCN.MP) .23
A.2 The graphical ATS (TTCN.GR).23
Annex B (normative): Profile Implementation Extra Information for Testing (IXIT) proforma .24
B.1 General.24
B.2 Profile XRL NWK layer protocol .24
B.2.1 Addresses.24
B.2.2 Parameter values.25

---------------------- Page: 5 ----------------------

SIST ETS 300 702-3:2001
Page 4
ETS 300 702-3: March 1997
B.2.3 Timer values. 25
B.2.4 Counters values . 25
B.2.5 Protocol constants values . 25
B.2.6 Control of Protocol Data Units (PDU) sending . 26
B.3 Profile specific IXIT NWK layer. 26
B.3.1 Configuration constraints . 26
Annex C (normative): Profile Conformance Test Report (Profile CTR) proforma . 27
C.1 Identification summary. 27
C.1.1 Profile CTR. 27
C.1.2 Implementation Under Test (IUT) . 27
C.1.3 Testing environment. 28
C.1.4 Limits and reservations . 28
C.1.5 Comments. 28
C.2 IUT conformance status . 28
C.3 Static conformance summary. 29
C.4 Dynamic conformance summary. 29
C.5 Static conformance review report . 30
C.6 Test campaign report. 31
C.6.1 NWK layer . 31
C.7 Observations. 31
Annex D (normative): System Conformance Test Report (SCTR) proforma . 32
D.1 Identification summary. 32
D.1.1 SCTR. 32
D.1.2 Test laboratory . 32
D.1.3 Client . 33
D.1.4 System Under Test (SUT). 33
D.1.5 Profile . 33
D.1.6 Nature of conformance testing. 34
D.1.7 Limits and reservations . 34
D.1.8 Record of agreement . 34
D.1.9 Comments. 34
D.2 System report summary . 35
D.2.1 Profile testing summary for DECT/GSM IWP NWK layer FT. 35
Annex E (normative): System Conformance Statement (SCS) proforma . 36
E.1 Identification summary. 36
E.1.1 SCS identification. 36
E.1.2 IUT identification. 36
E.1.3 Client identification . 36
E.1.4 Supplier identification . 37
E.1.5 Manufacturer identification . 37
E.1.6 Protocols identification . 38
E.1.7 Profile identification . 38
E.2 Miscellaneous system information. 39
E.2.1 Configuration. 39
E.2.2 Other information . 39
History. 40

---------------------- Page: 6 ----------------------

SIST ETS 300 702-3:2001
Page 5
ETS 300 702-3: March 1997
Foreword
This European Telecommunication Standard (ETS) has been produced by the Digital Enhanced Cordless
Telecommunications (DECT) Project of the European Telecommunications Standards Institute (ETSI).
The meaning of the abbreviation DECT has been changed to Digital Enhanced Cordless
Telecommunications (DECT) by the decision of the 23rd ETSI Technical Assembly (TA),
7th November 1995.
The Digital Enhanced Cordless Telecommunications/Global System for Mobile communications
(DECT/GSM) Interworking Profile (IWP) Profile test Specification (PTS) comprises three parts:
Part 1: "Summary";
Part 2: "Portable radio Termination (PT)";
Part 3: "Fixed radio Termination (FT)".
Transposition dates
Date of adoption: 21 March 1997
Date of latest announcement of this ETS (doa): 31 July 1997
Date of latest publication of new National Standard
or endorsement of this ETS (dop/e): 31 January 1998
Date of withdrawal of any conflicting National Standard (dow): 31 January 1998

---------------------- Page: 7 ----------------------

SIST ETS 300 702-3:2001
Page 6
ETS 300 702-3: March 1997
Blank page

---------------------- Page: 8 ----------------------

SIST ETS 300 702-3:2001
Page 7
ETS 300 702-3: March 1997
1 Scope
This European Telecommunication Standard (ETS) contains the test specification for Digital Enhanced
Cordless Telecommunications / Global System for Mobile communications (DECT/GSM) Interworking
Profile (IWP) Fixed Part (FP) applications as specified in ETS 300 370 [3].
The main objective of the DECT/GSM IWP test specification is to provide approval tests giving a high
probability of air interface inter-operability between any DECT FP and any Portable Part (PP) conforming
to ETS 300 370 [3] offered by different manufacturers.
All FPs conforming to ETS 300 370 [3] and supporting only Access Rights Identity (ARI) class D, as far as
DECT Network (NWK) layer is concerned, are tested for conformance only to this ETS.
All FPs conforming to ETS 300 370 [3] and supporting in addition to ARI class D any other ARI classes, as
far as DECT NWK layer is concerned, are tested for conformance separately:
- first to ETS 300 494-1 [17] and ETS 300 494-3 [18]; and
- second to this ETS.
All FPs conforming to ETS 300 370 [3], as far as the Data Link Control (DLC) layer, Medium Access
Control (MAC) layer and PHL layer are concerned, are tested to ETS 300 494-1 [17] and
ETS 300 494-3 [18].
ISO/IEC 9646 Parts 1 to 7 [19] - [24] are used as the basis for the test methodology, and as the basis for
test case specification.
The test cases if listed in this ETS have been derived from ETS 300 497 Parts 1 to 9 [8] - [16] or
ETS 300 494-1 [17] and ETS 300 494-3 [18]. Additional DECT/GSM IWP specific test cases are included
where required. The Profile IXIT is based on ETS 300 497 Parts 8 to 9 [15] - [0] and GAP Profile IXIT
ETS 300 494-1 [17] and ETS 300 494-3 [18].
Annex A contains the Abstract Test Suite (ATS).
2 Normative references
This ETS incorporates, by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to, or revisions of, any of these publications
apply to this ETS only when incorporated in it by amendment or revision. For undated references the latest
edition of the publication referred to applies.
[1] ETS 300 175-5: "Radio Equipment and Systems (RES); Digital European
Cordless Telecommunications (DECT); Common Interface (CI); Part 5: Network
(NWK) layer".
[2] ETS 300 466: "Radio Equipment and Systems (RES); Digital European
Cordless Telecommunications/Global System for Mobile Communications
(DECT/GSM) interworking profile; General description of service requirements;
Functional capabilities and information flows".
[3] ETS 300 370: "Radio Equipment and Systems (RES); Digital Enhanced
Cordless Telecommunications / Global System for Mobile communications
(DECT/GSM) inter-working profile; Access and mapping (Protocol/procedure
description for 3,1 kHz speech service)".
[4] ETS 300 704-2: "Radio Equipment and Systems (RES); Digital Enhanced
Cordless Telecommunications/Global System for Mobile communications
(DECT/GSM) Interworking Profile (IWP); Profile Implementation Conformance
Statement (ICS); Part 2: Fixed radio Termination (FT)".

---------------------- Page: 9 ----------------------

SIST ETS 300 702-3:2001
Page 8
ETS 300 702-3: March 1997
[5] ETS 300 444: "Radio Equipment and Systems (RES); Digital European
Cordless Telecommunications (DECT); Generic Access Profile (GAP)".
[6] ETS 300 474, Part 1 and 2: "Radio Equipment and Systems (RES); Digital
Enhanced Cordless Telecommunications (DECT); Generic Access Profile
(GAP); Profile requirement list and profile specific Implementation Conformance
Statement (ICS) proforma".
[7] ETS 300 476, Part 1 - 7: "Radio Equipment and Systems (RES); Digital
Enhanced Cordless Telecommunications (DECT); Common Interface (CI);
Protocol Implementation Conformance Statement (PICS) proforma".
[8] ETS 300 497-1: "Radio Equipment and Systems (RES); Digital Enhanced
Cordless Telecommunications (DECT); Common Interface (CI) Test Case
Library (TCL); Part 1: Test Suite Structure (TSS) and Test Purposes (TP) for
Medium Access Control (MAC) layer".
[9] ETS 300 497-2: "Radio Equipment and Systems (RES); Digital Enhanced
Cordless Telecommunications (DECT); Common Interface (CI) Test Case
Library (TCL); Part 2: Abstract Test Suite (ATS) for Medium Access Control
(MAC) layer - Portable radio Termination (PT)".
[10] ETS 300 497-3: "Radio Equipment and Systems (RES); Digital Enhanced
Cordless Telecommunications (DECT); Common Interface (CI) Test Case
Library (TCL); Part 3: Abstract Test Suite (ATS) for Medium Access Control
(MAC) layer - Fixed radio Termination (FT)".
[11] ETS 300 497-4: "Radio Equipment and Systems (RES); Digital Enhanced
Cordless Telecommunications (DECT); Common Interface (CI) Test Case
Library (TCL); Part 4: Test Suite Structure (TSS) and Test Purposes (TP) - Data
Link Control (DLC) layer".
[12] ETS 300 497-5: "Radio Equipment and Systems (RES); Digital Enhanced
Cordless Telecommunications (DECT); Common Interface (CI) Test Case
Library (TCL); Part 5: Abstract Test Suite (ATS) - Data Link Control (DLC)
layer".
[13] ETS 300 497-6: "Radio Equipment and Systems (RES); Digital Enhanced
Cordless Telecommunications (DECT); Common Interface (CI) Test Case
Library (TCL); Part 6: Test Suite Structure (TSS) and Test Purposes (TP) -
Network (NWK) layer - Portable radio Termination (PT)".
[14] ETS 300 497-7: "Radio Equipment and Systems (RES); Digital Enhanced
Cordless Telecommunications (DECT); Common Interface (CI) Test Case
Library (TCL); Part 7: Abstract Test Suite (ATS) for Network (NWK) layer -
Portable radio Termination (PT)".
[15] ETS 300 497-8: "Radio Equipment and Systems (RES); Digital Enhanced
Cordless Telecommunications (DECT); Common Interface (CI) Test Case
Library (TCL); Part 8: Test Suite Structure (TSS) and Test Purposes (TP) -
Network (NWK) layer - Fixed radio Termination (FT)".
[16] ETS 300 497-9: "Radio Equipment and Systems (RES); Digital Enhanced
Cordless Telecommunications (DECT); Common Interface (CI) Test Case
Library (TCL); Part 9: Abstract Test Suite (ATS) for Network (NWK) layer - Fixed
radio Termination (FT)".
[17] ETS 300 494-1: "Radio Equipment and Systems (RES); Digital Enhanced
Cordless Telecommunications (DECT); Generic Access Profile (GAP); Profile
Test Specification (PTS); Part 1: Summary".

---------------------- Page: 10 ----------------------

SIST ETS 300 702-3:2001
Page 9
ETS 300 702-3: March 1997
[18] ETS 300 494-3: "Radio Equipment and Systems (RES); Digital Enhanced
Cordless Telecommunications (DECT); Generic Access Profile (GAP); Profile
Test Specification (PTS); Part 3: Profile Specific Test Specification (PSTS) -
Fixed radio Termination (FT)".
[19] ISO/IEC 9646-1 (1991): "Information technology - Open Systems
Interconnection - Conformance testing methodology and framework - Part 1:
General concepts". (See also CCITT Recommendation X.290 (1991)).
[20] ISO/IEC 9646-2 (1991): "Information technology - Open Systems
Interconnection - Conformance testing methodology and framework - Part 2:
Abstract test suite specification". (See also CCITT Recommendation X.291
(1991)).
[21] ISO/IEC 9646-3 (1991): "Information technology - Open Systems
Interconnection - Conformance testing methodology and framework - Part 3:
The tree and tabular combined notation". (See also CCITT Recommendation
X.292 (1992)).
[22] ISO/IEC 9646-5 (1991): "Information technology - Open Systems
Interconnection - Conformance testing methodology and framework - Part 5:
Requirements on test laboratories and clients for the conformance assessment
process". (See also CCITT Recommendation X.292 (1992)).
[23] ISO/IEC 9646-6 (1991): "Information technology - Open Systems
Interconnection - Conformance testing methodology and framework - Part 6:
Protocol profile test specification".
[24] ISO/IEC 9646-7 (1991): "Information technology - Open Systems
Interconnection - Conformance testing methodology and framework - Part 7:
Implementation conformance statement".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of this ETS, the following definitions apply:
- terms defined in ISO/IEC 9646 Parts 1 to 3 [19] - [21] and Parts 5 to 7 [22] - [24];
- definitions in ETS 300 370 [3];
- definitions in pr ETS 300 466 [2].
3.2 Abbreviations
For the purposes of this ETS, the following abbreviations apply:
ATS Abstract Test Suite
CC Call Control
CI Common Interface
DLC Data Link Control
FT Fixed radio Termination
GAP Generic Access Profile
GSM Global System for Mobile communications
ICS Implementation Conformance Statement
IPUI International Portable User Identity
IUT Implementation Under Test
IWP Interworking Profile
IXIT Implementation Extra Information for Testing
LCE Link Control Entity
LLME Lower Layer Management Entity

---------------------- Page: 11 ----------------------

SIST ETS 300 702-3:2001
Page 10
ETS 300 702-3: March 1997
LLN Logical Link Number
MAC Medium Access Control
MM Mobility Management
NLF New Link Flag
NWK Network
PARK Portable Access Rights Key
PHL Physical
PICS Protocol Implementation Conformance Statement
PIXIT Protocol Implementation Extra Information for Testing
PP Portable Part
PSTS Profile Specific Test Specification
PT Portable radio Termination
PTS Profile Test Specification
SARI Secondary Access Rights Identity
SUT System Under Test
TCL Test Case Library
TPUI Temporary Portable User Identity
TS Test System
TSO Test Suite Overview
TSS&TP Test Suite Structure & Test Purposes
TTCN Tree and Tabular Combined Notation
4 Relevant test cases list
4.1 Network (NWK) layer
This subclause includes lists of test suite groups and abstract test cases relevant for DECT/GSM IWP
derived from ETS 300 497-9 [16] and ETS 300 494-3 [18].
If a test purpose, described in ETS 300 497-8 [15], is outside the scope of the DECT/GSM IWP the name
of the relevant test case is excluded from the list.
NOTE: Exclusion of a test case may lead to exclusion of test steps, constraints, etc. and this
should be taken into account when extracting the relevant information from
ETS 300 497-9 [16].
If a test purpose, described in ETS 300 497-8 [15], is within the scope of the DECT/GSM IWP the name of
the relevant test case is included into the list.

---------------------- Page: 12 ----------------------

SIST ETS 300 702-3:2001
Page 11
ETS 300 702-3: March 1997
4.1.1 Test suite structure
Table 1: Test suite structure
Test suite structure
Suite name: nwk_ft
Standards Ref.: ETS 300 370 [3]; ETS 300 497-9 [16]; ETS 300 494-3 [18]
Profile ICS Ref.: ETS 300 704-2 [4]
Profile IXIT Ref.: ETS 300 702-3 (this ETS)
Test Method: remote
Comments:
Test group reference Test group objective
FT/ To check the behaviour of the NWK layer of the FT(IUT)
FT/CC/ To check the IUT CC-state machine behaviour
FT/CC/IT/ To check that the IUT CC-state machine provides sufficient conformance for
possible interconnection without trying to perform thorough testing
FT/CC/CA/ Limited testing that the observable capabilities of the CC entity of the IUT are in
accordance with the static conformance requirements and the additional
capabilities claimed in the Profile ICS/Profile IXIT
FT/CC/BV/ To tests the CC entity of the IUT in response to syntactically and contextual
correct behaviour of the test system
FT/CC/BV/OC/ To check the IUT's behaviours to set-up an outgoing call
FT/CC/BV/IC/ To check the IUT's behaviours to set-up an incoming call
FT/CC/BV/CI/ To check the IUT's behaviours in information transfer procedures
FT/CC/BV/CR/ To check the IUT's behaviours to release an outgoing/incoming call
FT/CC/TI/ To verify that the IUT CC timers are with correct values and the IUT is reacting
properly to the expiry of a timer
FT/MM/ To check the behaviour of the MM entity of the IUT
FT/MM/IT/ To check that the MM entity of the IUT provides sufficient conformance for
possible interconnection without trying to perform thorough testing
FT/MM/CA/ Limited testing that the observable capabilities of the MM entity of the IUT are
in accordance with the static conformance requirements and the additional
capabilities claimed in the Profile ICS/Profile IXIT
FT/MM/BV/ To tests the MM entity of the IUT in response to syntactically and contextual
correct behaviour of the test system
FT/MM/BV/AU/ To check the IUT's behaviour concerning the authentication procedures
FT/MM/BV/ID/ To check the IUT's behaviour concerning identity procedures
FT/MM/BV/LO/ To check the IUT's behaviour concerning the location procedures
FT/MM/BV/CH/ To check the IUT's behaviour concerning the ciphering related procedures
FT/MM/TI/ To verify that the IUT MM timers are with correct values and the IUT is reacting
properly to the expiry of a timer
FT/LC/ To check the behaviour of the LCE of the IUT
FT/LC/IT/ To check that LCE of the IUT provides sufficient conformance for possible
interconnection without trying to perform thorough testing
FT/LC/CA/ Limited testing that the observable capabilities of the LCE of the IUT are in
accordance with the static conformance requirements and the additional
capabilities claimed in the Profile ICS/Profile IXIT
FT/LC/BV/ To tests the LCE of the IUT in response to syntactically and contextual correct
behaviour of the test system
FT/LC/BV/LE/ To check the IUT's behaviour concerning the connection oriented link
establishment procedures
FT/LC/TI/ To verify that the IUT LCE timers are with correct values and the IUT is
reacting properly to the expiry of a timer
Detailed comments:
1. The sub-sub-groups with identifiers FT/xx/IT/ and FT/xx/CA/ do not include their own test
cases but only list an appropriate selection of tests from the relevant sub-group with identifier
FT/xx/.

---------------------- Page: 13 ----------------------

SIST ETS 300 702-3:2001
Page 12
ETS 300 702-3: March 1997
4.1.2 Test case index
Table 2: Test case index
Test case index
Test group Test case identity Description
reference
FT/CC/BV/OC/ No relevant test cases
FT/CC/BV/IC/ No relevant test cases
FT/CC/BV/CI/ No relevant test cases
FT/CC/BV/CR/ No relevant test cases
FT/CC/TI/ No relevant test cases
FT/MM/BV/AU/ No relevant test cases
FT/MM/BV/ID/ No relevant test cases
FT/MM/BV/LO/ No relevant test cases
FT/MM/BV/CH/ No relevant test cases
FT/MM/TI/ No relevant test cases
FT/LC/BV/LE/ No relevant test cases
FT/LC/TI/ No r
...
