ASTM C1782/C1782M-19

(Specification)

Standard Specification for Segmental Concrete Paving Slabs

Standard Specification for Segmental Concrete Paving Slabs

ABSTRACT
This specification covers segmental concrete paving slabs manufactured for construction of pedestrian and roof applications for commercial and municipal projects where close dimensional tolerances for thickness, and/or length and width are not required. These slabs can be manufactured with a dry-cast, wet-cast, or hydraulically pressed process. Concrete units covered by this specification shall be made with lightweight or normal weight aggregates or both.
SCOPE
1.1 This specification covers the requirements for segmental concrete paving slabs manufactured for construction of pedestrian and roof applications for commercial and municipal projects. These slabs can be manufactured with a dry-cast, wet-cast, or hydraulically pressed process.
Note 1: Pedestal-set applications and those applications subject to vehicular traffic may require alternate materials properties or structural support or both.
1.2 Concrete units covered by this specification shall be made with lightweight or normal weight aggregates or both.
Note 2: If particular features are desired, such as weight classification, higher modulus of rupture, surface textures, finish, color, or other special features, such properties should be specified by the purchaser. Local sellers, however, should be consulted as to availability of units having the desired features.
1.3 The values stated in either inch-pound units or SI units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

Status
Historical
Publication Date
30-Nov-2019
ICS
93.080.20 - Road construction materials
Technical Committee
C15 - Manufactured Masonry Units
Drafting Committee
C15.03 - Concrete Masonry Units and Related Units
Current Stage
Ref Project

Buy Standard

ASTM C1782/C1782M-19 - Standard Specification for Segmental Concrete Paving SlabsASTM C1782/C1782M-19 - Standard Specification for Segmental Concrete Paving Slabs
PreviousNext
Technical specification
ASTM C1782/C1782M-19 - Standard Specification for Segmental Concrete Paving Slabs
English language
3 pages
sale 15% off
Preview
sale 15% off
Preview
REDLINE ASTM C1782/C1782M-19 - Standard Specification for Segmental Concrete Paving SlabsREDLINE ASTM C1782/C1782M-19 - Standard Specification for Segmental Concrete Paving Slabs
PreviousNext
Technical specification
REDLINE ASTM C1782/C1782M-19 - Standard Specification for Segmental Concrete Paving Slabs
English language
3 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

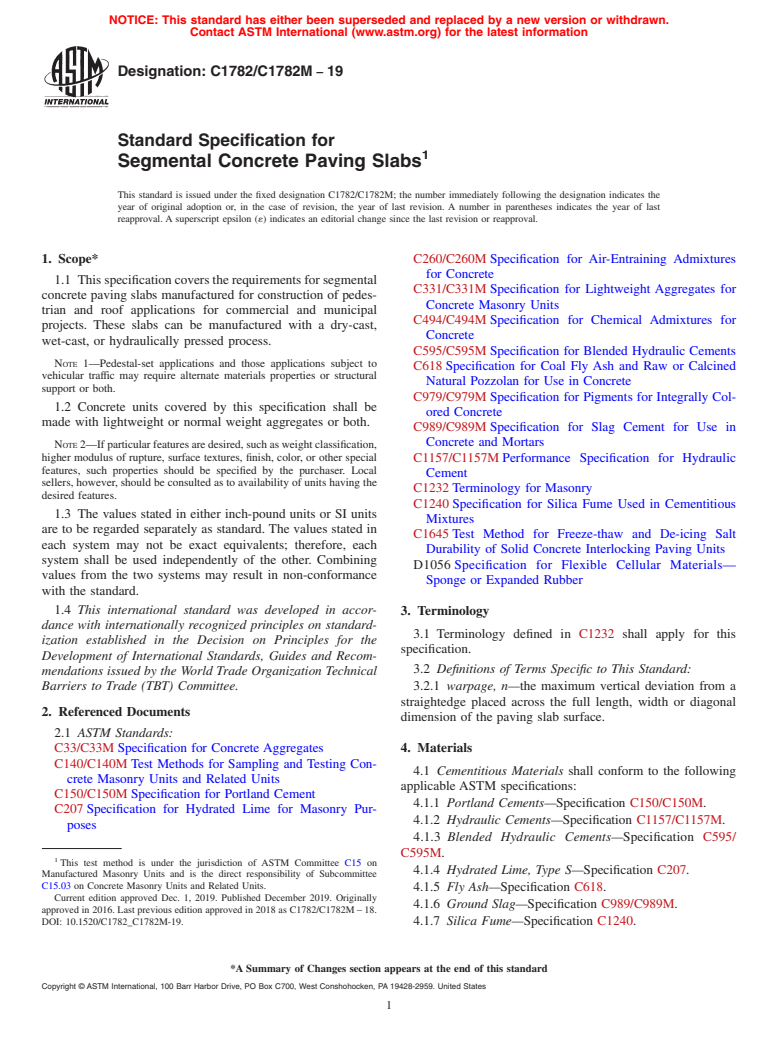

Designation:C1782/C1782M −19
Standard Specification for
1
Segmental Concrete Paving Slabs
This standard is issued under the fixed designation C1782/C1782M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* C260/C260M Specification for Air-Entraining Admixtures
for Concrete
1.1 This specification covers the requirements for segmental
C331/C331M Specification for Lightweight Aggregates for
concrete paving slabs manufactured for construction of pedes-
Concrete Masonry Units
trian and roof applications for commercial and municipal
C494/C494M Specification for Chemical Admixtures for
projects. These slabs can be manufactured with a dry-cast,
Concrete
wet-cast, or hydraulically pressed process.
C595/C595M Specification for Blended Hydraulic Cements
NOTE 1—Pedestal-set applications and those applications subject to
C618 Specification for Coal Fly Ash and Raw or Calcined
vehicular traffic may require alternate materials properties or structural
Natural Pozzolan for Use in Concrete
support or both.
C979/C979M Specification for Pigments for Integrally Col-
1.2 Concrete units covered by this specification shall be
ored Concrete
made with lightweight or normal weight aggregates or both.
C989/C989M Specification for Slag Cement for Use in
Concrete and Mortars
NOTE 2—If particular features are desired, such as weight classification,
higher modulus of rupture, surface textures, finish, color, or other special C1157/C1157M Performance Specification for Hydraulic
features, such properties should be specified by the purchaser. Local
Cement
sellers, however, should be consulted as to availability of units having the
C1232 Terminology for Masonry
desired features.
C1240 Specification for Silica Fume Used in Cementitious
1.3 The values stated in either inch-pound units or SI units
Mixtures
are to be regarded separately as standard. The values stated in
C1645 Test Method for Freeze-thaw and De-icing Salt
each system may not be exact equivalents; therefore, each
Durability of Solid Concrete Interlocking Paving Units
system shall be used independently of the other. Combining
D1056 Specification for Flexible Cellular Materials—
values from the two systems may result in non-conformance
Sponge or Expanded Rubber
with the standard.
1.4 This international standard was developed in accor-
3. Terminology
dance with internationally recognized principles on standard-
3.1 Terminology defined in C1232 shall apply for this
ization established in the Decision on Principles for the
specification.
Development of International Standards, Guides and Recom-
3.2 Definitions of Terms Specific to This Standard:
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee. 3.2.1 warpage, n—the maximum vertical deviation from a
straightedge placed across the full length, width or diagonal
2. Referenced Documents
dimension of the paving slab surface.
2.1 ASTM Standards:
C33/C33M Specification for Concrete Aggregates 4. Materials
C140/C140M Test Methods for Sampling and Testing Con-
4.1 Cementitious Materials shall conform to the following
crete Masonry Units and Related Units
applicable ASTM specifications:
C150/C150M Specification for Portland Cement
4.1.1 Portland Cements—Specification C150/C150M.
C207 Specification for Hydrated Lime for Masonry Pur-
4.1.2 Hydraulic Cements—Specification C1157/C1157M.
poses
4.1.3 Blended Hydraulic Cements—Specification C595/
C595M.
1
This test method is under the jurisdiction of ASTM Committee C15 on
4.1.4 Hydrated Lime, Type S—Specification C207.
Manufactured Masonry Units and is the direct responsibility of Subcommittee
C15.03 on Concrete Masonry Units and Related Units.
4.1.5 Fly Ash—Specification C618.
Current edition approved Dec. 1, 2019. Published December 2019. Originally
4.1.6 Ground Slag—Specification C989/C989M.
approved in 2016. Last previous edition approved in 2018 as C1782/C1782M – 18.
DOI: 10.1520/C1782_C1782M-19. 4.1.7 Silica Fume—Specification C1240.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
C1782/C1782M−19
4.2 Aggregates shall conform to the following ASTM sampled from units that will not be exposed to deicing salts in
specifications, except that grading requirements shall not service shall be tested in tap water. Specimens sampled from
necessarily apply: units that will be exposed to deicing materials in service shall
4.2.1 Normal Weight—Specification C33/C33M. be tested in 3 % saline s
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: C1782/C1782M − 18 C1782/C1782M − 19
Standard Specification for
1
Segmental Concrete Paving Slabs
This standard is issued under the fixed designation C1782/C1782M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This specification covers the requirements for segmental concrete paving slabs manufactured for construction of pedestrian
and roof applications for commercial and municipal projects. These slabs can be manufactured with a dry-cast, wet-cast, or
hydraulically pressed process.
NOTE 1—Applications Pedestal-set applications and those applications subject to vehicular traffic may require alternate materials properties or structural
support or both.
1.2 Concrete units covered by this specification shall be made with lightweight or normal weight aggregates or both.
NOTE 2—If particular features are desired, such as weight classification, higher modulus of rupture, surface textures, finish, color, or other special
features, such properties should be specified by the purchaser. Local sellers, however, should be consulted as to availability of units having the desired
features.
1.3 The values stated in either inch-pound units or SI units are to be regarded separately as standard. The values stated in each
system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the
two systems may result in non-conformance with the standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
C33/C33M Specification for Concrete Aggregates
C140/C140M Test Methods for Sampling and Testing Concrete Masonry Units and Related Units
C150/C150M Specification for Portland Cement
C207 Specification for Hydrated Lime for Masonry Purposes
C260/C260M Specification for Air-Entraining Admixtures for Concrete
C331/C331M Specification for Lightweight Aggregates for Concrete Masonry Units
C494/C494M Specification for Chemical Admixtures for Concrete
C595/C595M Specification for Blended Hydraulic Cements
C618 Specification for Coal Fly Ash and Raw or Calcined Natural Pozzolan for Use in Concrete
C979/C979M Specification for Pigments for Integrally Colored Concrete
C989/C989M Specification for Slag Cement for Use in Concrete and Mortars
C1157/C1157M Performance Specification for Hydraulic Cement
C1232 Terminology for Masonry
C1240 Specification for Silica Fume Used in Cementitious Mixtures
C1645 Test Method for Freeze-thaw and De-icing Salt Durability of Solid Concrete Interlocking Paving Units
D1056 Specification for Flexible Cellular Materials—Sponge or Expanded Rubber
3. Terminology
3.1 Terminology defined in C1232 shall apply for this specification.
3.2 Definitions of Terms Specific to This Standard:
1
This test method is under the jurisdiction of ASTM Committee C15 on Manufactured Masonry Units and is the direct responsibility of Subcommittee C15.03 on Concrete
Masonry Units and Related Units.
Current edition approved June 1, 2018Dec. 1, 2019. Published July 2018December 2019. Originally approved in 2016. Last previous edition approved in 20172018 as
C1782/C1782M – 17.C1782/C1782M – 18. DOI: 10.1520/C1782_C1782M-18.10.1520/C1782_C1782M-19.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
C1782/C1782M − 19
3.2.1 warpage, n—the maximum vertical deviation from a straightedge placed across the full length, width or diagonal
dimension of the paving slab surface.
4. Materials
4.1 Cementitious Materials shall conform to the following applicable ASTM specifications:
4.1.1 Portland Cements—Specification C150/C150M.
4.1.2 Hydraulic Cements—Specification C1157/C1157M.
4.1.3 Blended Hydraulic Cements—Specification C595/C595M.
4.1.4 Hydrated Lime, Type S—Specification C207.
4.1.5 Fly Ash—Specification C618.
4.1.6 Ground Slag—Specification C989/C989M.
4.1.7 Silica Fume—Specification C1240.
4.2 Aggregates shall
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM C1272-22a(Specification)
Standard Specification for Heavy Vehicular Paving Brick

ABSTRACT
This specification covers heavy vehicular paving bricks designed for use in streets, commercial driveways, aircraft taxiways, and other places where there is a high volume of heavy vehicular traffic. The bricks should be manufactured from clay, shale, or similar naturally occurring earthy substances and subjected to firing. The high temperature heat treatment should develop sufficient fired bonds between the material particles to produce the required strength and durability. The bricks may also be shaped by extruding, molding, or pressing during manufacture and may have spacing lugs, chamfered edges, or both. The materials are classified into two types according to the intended installation and should all conform to the required values of freeze thaw resistance, abrasion resistance, skid resistance, coring, chips or cracks, and efflorescence.
SCOPE
1.1 This specification covers brick intended for use as a paving material in areas with a high volume of heavy vehicular traffic. The units are designed for use in such places as streets, commercial driveways, and aircraft taxiways. These units are not intended for applications covered by Specifications C410 or C902.
1.2 The requirements of this specification apply at the time of purchase. The use of results from testing of brick extracted from pavements for determining compliance with the requirements of this specification is beyond the intent of this standard.
1.3 Units are manufactured from clay, shale, or similar naturally occurring earthy substances and subjected to a heat treatment at elevated temperatures (firing). The heat treatment must develop sufficient fired bond between the particulate constituents to provide the strength and durability requirements of this specification (see Terminology C1232).
1.4 Brick may be shaped during manufacture by extruding, molding, or pressing. Brick may have spacing lugs, chamfered edges, or both.
1.5 Use of this standard and the requirements herein to evaluate and corroborate the performance of a paving unit made from other materials, or made with other forming methods, or other means of binding the materials is not covered by the scope of this standard.
1.6 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    4 pages
    English language
    sale 15% off
  • Technical specification
    4 pages
    English language
    sale 15% off
ASTM
ASTM C1781/C1781M-21(Test Method)
Standard Test Method for Surface Infiltration Rate of Permeable Unit Pavement Systems

SIGNIFICANCE AND USE
5.1 This test method can be used for acceptance of surface infiltration of new permeable unit pavement systems.
5.2 Tests performed at the same location across a span of years may be used to detect a reduction of infiltration rate of the permeable surface, thereby identifying the need for any remedial maintenance intended to increase the infiltration rates to predefined levels.
5.3 The infiltration rate obtained by this method is valid only for the localized area of the pavement where the test is conducted. To determine the surface infiltration rate of the entire permeable pavement, multiple locations must be tested and the results averaged.
5.4 The minimum acceptable infiltration rate is typically established by the design engineer of record or the municipality and can be a function of the design precipitation event.
5.5 This test method can also be used to demonstrate the infiltration rate of a particular permeable unit pavement system if the drainage joints are filled with the aggregate that is specified for use in that system.
SCOPE
1.1 This test method covers the determination of the field surface infiltration rate of in place permeable unit pavement systems surfaced with solid interlocking concrete paving units, concrete grid paving units, or clay paving brick.
Note 1: For in-place pervious concrete, Test Method C1701/C1701M should be used. Test Method C1701/C1701M is functionally identical to this standard, but does not include the added provisions for positioning and securing the test ring to a discontinuous surface, which are detailed in this standard. Both tests methods give comparable results
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.
1.3 The text of this test method references notes that provide explanatory material. These notes shall not be considered as requirements of the test method.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    6 pages
    English language
    sale 15% off
  • Standard
    6 pages
    English language
    sale 15% off
ASTM
ASTM C1791-16(2021)(Guide)
Standard Guide for Reduction of Efflorescence Potential in New Unit Pavement Systems

SIGNIFICANCE AND USE
4.1 This guide provides information that, if implemented, will reduce efflorescence potential in new unit pavement systems. However, its implementation will not always completely prevent efflorescence.
4.2 This guide may be augmented by related information contained in the appendixes of Specification C270, the additional material listed in Appendix X1 in this standard, and other publications.
SCOPE
1.1 This guide covers methods for reducing efflorescence potential in new unit pavement systems.
1.2 The values stated in inch-pound units are to be regarded as the standard. The SI units given in parentheses are for information only.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    3 pages
    English language
    sale 15% off
ASTM
ASTM D8139-23(Specification)
Standard Specification for Semi-Rigid, Closed-Cell Polypropylene Foam, Preformed Expansion Joint Fillers for Concrete Paving and Structural Construction

SCOPE
1.1 This specification covers preformed expansion joint fillers made from closed-cell polypropylene foam materials having suitable compressibility, recovery from compression, nonextruding, and weather-resistant characteristics.
1.1.1 Type I, closed-cell polypropylene foam.
1.2 These joint fillers are intended for use in concrete pavements in full-depth joints. There are several variations in size with typical thicknesses of 1/2 in. (12.7 mm), 3/4 in. (19.05 mm), and 1 in. (25.4 mm); typical widths of 31/2 in. (88.9 mm), 4 in. (101.6 mm), 5 in. (127 mm), 6 in. (152.5 mm), 7 in. (177.8 mm), 8 in. (203.2 mm), or 48 in. (1.2 m) sheet; and typical lengths of 5 ft (1.52 m) and 10 ft (3.05 m).
1.3 The values stated in inch-pound units are to be regarded as the standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    2 pages
    English language
    sale 15% off
  • Technical specification
    2 pages
    English language
    sale 15% off
ASTM
ASTM D140/D140M-16(2023)(Practice)
Standard Practice for Sampling Asphalt Materials

SIGNIFICANCE AND USE
4.1 Sampling is as important as testing, and precautions shall be taken to obtain samples to show the true nature and condition of the materials.
4.2 Samples are taken for either of the following two purposes:
4.2.1 To represent as nearly as possible an average of the bulk of the materials sampled, or
4.2.2 To ascertain the maximum variation in characteristics which the material possesses.
SCOPE
1.1 This practice applies to the sampling of asphalt materials at points of manufacture, storage, or delivery.
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    6 pages
    English language
    sale 15% off
ASTM
ASTM D3319-23(Practice)
Standard Practice for the Accelerated Polishing of Aggregates Using the British Wheel

SIGNIFICANCE AND USE
4.1 This practice simulates the polishing action of vehicular traffic on coarse aggregates used in bituminous pavements.
4.2 A polish value is determined that may be used to rate or classify coarse aggregates for their ability to resist polishing under traffic.
Note 1: The quality of the results produced by this standard are dependant upon the competence of the personnel performing the procedure and the capability, calibration, and the maintenance of the equipment used. Agencies that meet the criteria of Specification D3666 are generally considered capable of competent and objective testing, sampling, inspection, etc. Users of this standard are cautioned that compliance with Specification D3666 alone does not completely ensure reliable results. Reliable results depend on many factors: following the suggestions of Specification D3666 or similar acceptable guideline provides a means of evaluating and controlling some of those factors.
SCOPE
1.1 This practice covers a laboratory procedure by which an estimate may be made of the extent to which different coarse aggregates may polish.
1.2 The values stated in inch-pound units are to be regarded as the standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard. Regarding sieves, per Specification E11: “The values stated in SI units shall be considered standard for the dimensions of the wire cloth openings and the diameter of the wires used in the wire cloth.” When sieve mesh sizes are referenced, the alternate inch-pound designations are provided for information purposes and enclosed in parentheses.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    5 pages
    English language
    sale 15% off
  • Standard
    5 pages
    English language
    sale 15% off
ASTM
ASTM D517-23(Specification)
Standard Specification for Asphalt Plank

ABSTRACT
This specification covers asphalt plank used for bridge decks as well as for industrial floors. Asphalt planks shall be classified according to usage: Type Ia; Type Ib; and Type II. Asphalt plank shall be formed from a mixture of asphalt, fibers, modifiers, or a combination thereof, and mineral filler in such a manner as to produce a uniformly dense mass. The following test methods shall be intended to measure those attributes necessary to measure the ability of asphalt plank to provide a reasonably long and satisfactory service: absorption; brittleness; dimensions; and hardness.
SCOPE
1.1 This specification covers asphalt plank used for bridge decks as well as for industrial floors.
1.2 The values stated in SI units are to be regarded as the standard. The values given in parentheses are for information only.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    3 pages
    English language
    sale 15% off
  • Technical specification
    3 pages
    English language
    sale 15% off
ASTM
ASTM D6628-23(Specification)
Standard Specification for Color of Retroreflective Pavement Marking Materials

ABSTRACT
This specification covers the daytime and nighttime color of retroreflective pavement marking materials, both painted and tape lines, including thermoplastic, epoxy and other types, used for traffic control lane markings and symbols on road surfaces. This specification is not applicable to the testing, for quality control purposes, of marking material without added drop-on beads. The performance requirements for which the marking materials shall be tested on and conform accordingly to are the daytime and nighttime chromaticity limits, retroreflectance, and daytime lightness limits (Y tristimulus coordinate).
SCOPE
1.1 This specification covers the daytime and nighttime color of retroreflective pavement marking materials used for traffic control lane markings and symbols on road surfaces.
1.2 This specification applies to all retroreflective pavement markings (markings that include retroreflective optics residing on the surface) except structured pavement markings as defined in 3.2.5.
1.3 This specification is not applicable to pavement markings that do not include retroreflective optics on the surface.
1.4 This specification does not address any requirements other than the color of retroreflective pavement markings.
1.5 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5.1 Exception—This specification is noted to be an SI document, where angles are generally expressed in radians. However, as angles used in retroreflection have historically been identified in degrees, the International Committee for Weights and Measures (CIPM, Comité International des Poids et Mesures) accepts the use of degrees with SI units, and European Normatives and documents from the International Commission on Illumination (CIE) use degrees for retroreflection geometry.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    6 pages
    English language
    sale 15% off
  • Technical specification
    6 pages
    English language
    sale 15% off
ASTM
ASTM D8079-23(Practice)
Standard Practice for Preparation of Compacted Slab Asphalt Mix Samples Using a Segmented Rolling Compactor

SIGNIFICANCE AND USE
5.1 Asphalt slabs compacted with the rolling compactor can be used to obtain specimens for further testing, including bulk specific gravity following Test Methods D1188/D1188M, D2726/D2726M, and D6752/D6752M, fatigue performance characteristics following Test Methods D7460 and D8237 or AASHTO T 321, and Hamburg wheel-track testing following AASHTO T 324.
5.2 Specimens to perform other standard tests could also be obtained, as long as their volume is contained within the volume of a slab.
Note 1: The quality of the results produced by this standard are dependent on the competence of the personnel performing the procedure and the capability, calibration, and maintenance of the equipment used. Agencies that meet the criteria of Specification D3666 are generally considered capable of competent and objective testing, sampling, inspection, etc. Users of this practice are cautioned that compliance with Specification D3666 alone does not completely ensure reliable results. Reliable results depend on many factors; following the suggestions of Specification D3666 or some similar acceptable guideline that provides a means of evaluating and controlling some of those factors.
SCOPE
1.1 This practice covers the fabrication of slabs of asphalt mix using an automated laboratory rolling compactor (RC). Compacted specimens are suitable for volumetric and physical property testing. This practice should not be used for acceptance or rejection of a material or for purchasing purposes.
1.2 Units—The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 The text of this standard references notes and footnotes which provide explanatory material. These notes and footnotes (excluding those in tables and figures) shall not be considered as requirements of the standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    4 pages
    English language
    sale 15% off
  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM D244-23(Test Method)
Standard Test Methods and Practices for Emulsified Asphalts

SIGNIFICANCE AND USE
5.1 This test method measures the amount of water present in the emulsified asphalt, as distinguished from either bitumen or petroleum solvent.
SCOPE
1.1 These test methods and practices, given under the headings titled Composition, Consistency, Stability, and Examination of Residue, cover the examination of asphalt emulsions composed principally of a semisolid or liquid asphaltic base, water, and an emulsifying agent. The test methods cover the following tests and practices:
Test
Sections
Composition:
Water Content
4 – 10
Residue and Oil Distillate by Distillation
See Test Method
D6997
Residue by Evaporation
See Test Method
D6934
Particle Charge of Cationic Emulsified Asphalts
See Practice
D7402
Consistency:
Viscosity (Saybolt Furol)
See Test Method
D7496
Stability:
Demulsibility
See Test Method
D6936
Settlement
See Test Method
D6930
Cement Mixing
See Test Method
D6935
Sieve Test
See Test Method
D6933
Aggregate Coating
See Practice
D6998
Miscibility with Water
See Practice
D6999
Freezing
See Practice
D6929
Coating Ability and Water Resistance
11 – 18
Storage Stability of Asphalt Emulsion
See Test Method
D6930
Examination of Residue
19 – 26
Identification Test for Rapid Setting Cationic Emulsified Asphalt
27 – 34
Identification of Cationic Slow Set Emulsions
See Practice
D7402
Field Coating Test on Emulsified Asphalts
35 – 40
Emulsified Asphalt/Job Aggregate Coating Test
41 – 46
Density of Emulsified Asphalt
See Test Method
D6937
Residue by Low-Temperature Vacuum Distillation
See Test Method
D7403
1.2 The values stated in SI units are to be regarded as the standard. The values given in parentheses are for information only.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    9 pages
    English language
    sale 15% off
  • Standard
    9 pages
    English language
    sale 15% off
