Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

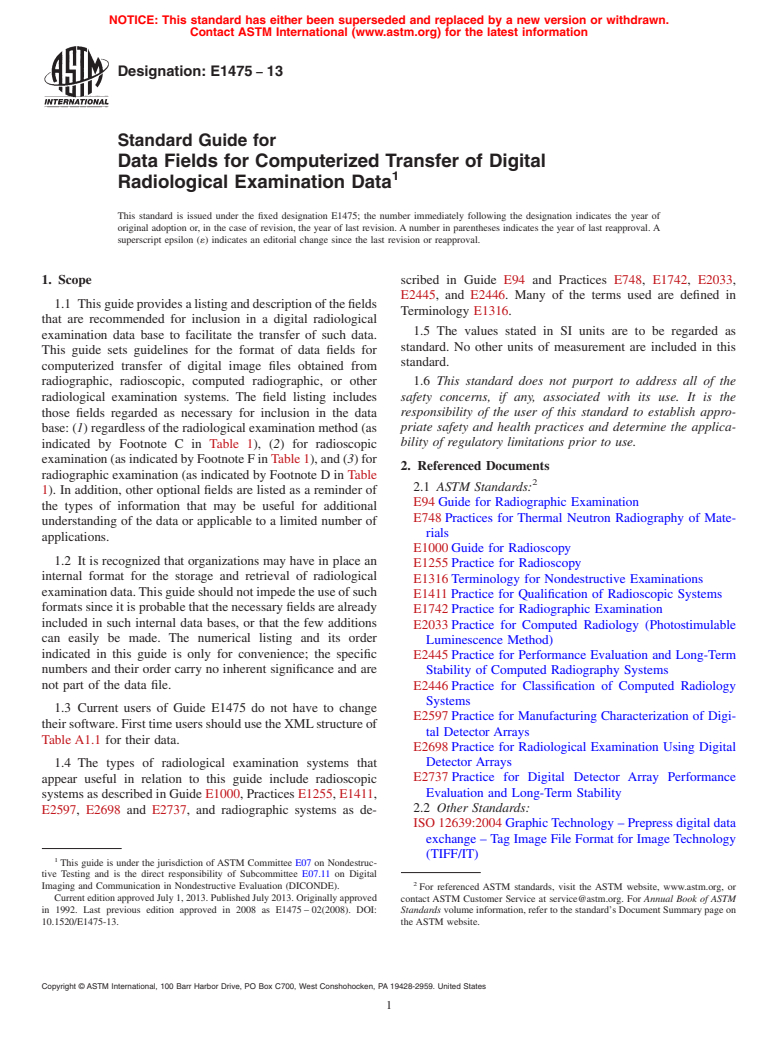

Designation: E1475 − 13
Standard Guide for
Data Fields for Computerized Transfer of Digital
1
Radiological Examination Data
This standard is issued under the fixed designation E1475; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope scribed in Guide E94 and Practices E748, E1742, E2033,
E2445, and E2446. Many of the terms used are defined in
1.1 Thisguideprovidesalistinganddescriptionofthefields
Terminology E1316.
that are recommended for inclusion in a digital radiological
1.5 The values stated in SI units are to be regarded as
examination data base to facilitate the transfer of such data.
standard. No other units of measurement are included in this
This guide sets guidelines for the format of data fields for
standard.
computerized transfer of digital image files obtained from
radiographic, radioscopic, computed radiographic, or other 1.6 This standard does not purport to address all of the
safety concerns, if any, associated with its use. It is the
radiological examination systems. The field listing includes
those fields regarded as necessary for inclusion in the data responsibility of the user of this standard to establish appro-
priate safety and health practices and determine the applica-
base: (1) regardless of the radiological examination method (as
bility of regulatory limitations prior to use.
indicated by Footnote C in Table 1), (2) for radioscopic
examination(asindicatedbyFootnoteFinTable1),and(3)for
2. Referenced Documents
radiographic examination (as indicated by Footnote D in Table
2
2.1 ASTM Standards:
1). In addition, other optional fields are listed as a reminder of
E94 Guide for Radiographic Examination
the types of information that may be useful for additional
E748 Practices for Thermal Neutron Radiography of Mate-
understanding of the data or applicable to a limited number of
rials
applications.
E1000 Guide for Radioscopy
1.2 It is recognized that organizations may have in place an
E1255 Practice for Radioscopy
internal format for the storage and retrieval of radiological
E1316 Terminology for Nondestructive Examinations
examinationdata.Thisguideshouldnotimpedetheuseofsuch
E1411 Practice for Qualification of Radioscopic Systems
formats since it is probable that the necessary fields are already
E1742 Practice for Radiographic Examination
included in such internal data bases, or that the few additions
E2033 Practice for Computed Radiology (Photostimulable
can easily be made. The numerical listing and its order
Luminescence Method)
indicated in this guide is only for convenience; the specific
E2445 Practice for Performance Evaluation and Long-Term
numbers and their order carry no inherent significance and are
Stability of Computed Radiography Systems
not part of the data file. E2446 Practice for Classification of Computed Radiology
Systems
1.3 Current users of Guide E1475 do not have to change
E2597 Practice for Manufacturing Characterization of Digi-
theirsoftware.FirsttimeusersshouldusetheXMLstructureof
tal Detector Arrays
Table A1.1 for their data.
E2698 Practice for Radiological Examination Using Digital
1.4 The types of radiological examination systems that Detector Arrays
E2737 Practice for Digital Detector Array Performance
appear useful in relation to this guide include radioscopic
Evaluation and Long-Term Stability
systems as described in Guide E1000, Practices E1255, E1411,
2.2 Other Standards:
E2597, E2698 and E2737, and radiographic systems as de-
ISO 12639:2004 Graphic Technology – Prepress digital data
exchange – Tag Image File Format for Image Technology
(TIFF/IT)
1
This guide is under the jurisdiction of ASTM Committee E07 on Nondestruc-
tive Testing and is the direct responsibility of Subcommittee E07.11 on Digital
2
Imaging and Communication in Nondestructive Evaluation (DICONDE). For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved July 1, 2013. Published July 2013. Originally approved contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
in 1992. Last previous edition approved in 2008 as E1475 – 02(2008). DOI: Standards volume information, refer to the standard’s Document Summary page on
10.1520/E1475-13. the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
E1475 − 13
TABLE 1 Field Listing
A B
Field Number Field Name and Description Category Sets, Values and Units
Header Information:
C,D
1 Intermediate file name Alphanumeric string
C,D
2 Format revision code Alphanum
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

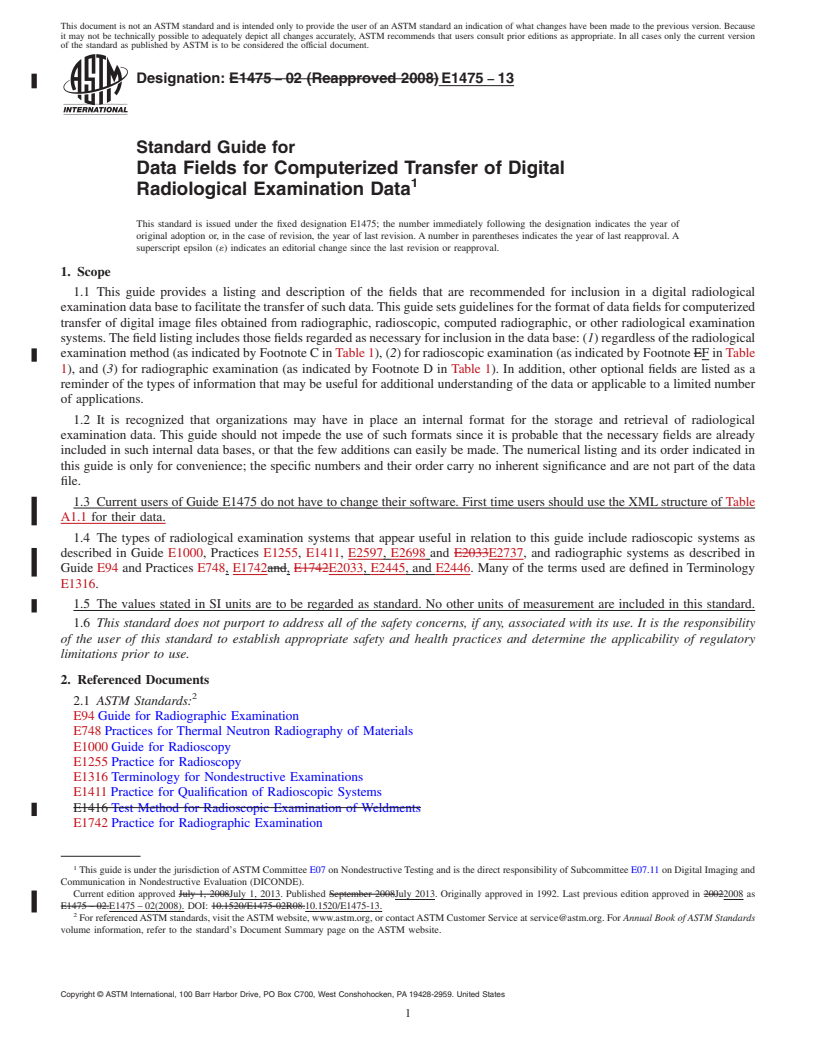

Designation: E1475 − 02 (Reapproved 2008) E1475 − 13
Standard Guide for
Data Fields for Computerized Transfer of Digital
1
Radiological Examination Data
This standard is issued under the fixed designation E1475; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This guide provides a listing and description of the fields that are recommended for inclusion in a digital radiological
examination data base to facilitate the transfer of such data. This guide sets guidelines for the format of data fields for computerized
transfer of digital image files obtained from radiographic, radioscopic, computed radiographic, or other radiological examination
systems. The field listing includes those fields regarded as necessary for inclusion in the data base: (1) regardless of the radiological
examination method (as indicated by Footnote C in Table 1), (2) for radioscopic examination (as indicated by Footnote EF in Table
1), and (3) for radiographic examination (as indicated by Footnote D in Table 1). In addition, other optional fields are listed as a
reminder of the types of information that may be useful for additional understanding of the data or applicable to a limited number
of applications.
1.2 It is recognized that organizations may have in place an internal format for the storage and retrieval of radiological
examination data. This guide should not impede the use of such formats since it is probable that the necessary fields are already
included in such internal data bases, or that the few additions can easily be made. The numerical listing and its order indicated in
this guide is only for convenience; the specific numbers and their order carry no inherent significance and are not part of the data
file.
1.3 Current users of Guide E1475 do not have to change their software. First time users should use the XML structure of Table
A1.1 for their data.
1.4 The types of radiological examination systems that appear useful in relation to this guide include radioscopic systems as
described in Guide E1000, Practices E1255, E1411, E2597, E2698 and E2033E2737, and radiographic systems as described in
Guide E94 and Practices E748, E1742and, E1742E2033, E2445, and E2446. Many of the terms used are defined in Terminology
E1316.
1.5 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory
limitations prior to use.
2. Referenced Documents
2
2.1 ASTM Standards:
E94 Guide for Radiographic Examination
E748 Practices for Thermal Neutron Radiography of Materials
E1000 Guide for Radioscopy
E1255 Practice for Radioscopy
E1316 Terminology for Nondestructive Examinations
E1411 Practice for Qualification of Radioscopic Systems
E1416 Test Method for Radioscopic Examination of Weldments
E1742 Practice for Radiographic Examination
1
This guide is under the jurisdiction of ASTM Committee E07 on Nondestructive Testing and is the direct responsibility of Subcommittee E07.11 on Digital Imaging and
Communication in Nondestructive Evaluation (DICONDE).
Current edition approved July 1, 2008July 1, 2013. Published September 2008July 2013. Originally approved in 1992. Last previous edition approved in 20022008 as
E1475 – 02.E1475 – 02(2008). DOI: 10.1520/E1475-02R08.10.1520/E1475-13.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
E1475 − 13
TABLE 1 Field Listing
A B
Field Number Field Name and Description Category Sets, Values and Units
Header Information:
C,D
1 Intermediate file name Alphanumeric string
C,D
2 Format revision code Alphanumeric string
C,D
3 Format revision date yyyy/mm/dd
C,D
4 Source file name Alphanumeric string
5 Examination file description notes Alphanumeric string
C,
...
