ASTM D5386-16

(Test Method)

Standard Test Method for Color of Liquids Using Tristimulus Colorimetry

Standard Test Method for Color of Liquids Using Tristimulus Colorimetry

SIGNIFICANCE AND USE
4.1 The primary objective of the visual method of Pt-Co color measurement, as defined in Test Method D8005, is to rate specific materials for yellowness. This yellowness is frequently the result of the undesirable tendency of liquid hydrocarbons to absorb blue light due to contamination in processing, storage or shipping.
4.2 Clear liquids can be rated for light absorbing yellowish or brownish contaminants using scales that simulate the long-established visual-comparison method.
SCOPE
1.1 This test method covers an instrumental method for the CIE (Commission International de l’Eclairage) tristimulus measurement of the color of near-clear liquid samples. The transmission measurement values are converted to the color scale in the platinum-cobalt (Pt-Co) system.
1.2 This test method has been found applicable to the color measurement of clear, liquid samples, free of haze, with nominal Pt-Co color values in the 0 to 100 range. It is applicable to non-fluorescent liquids with light absorption characteristics similar to those of the Pt-Co color standard solutions.
1.3 The tristimulus colorimetry may be calculated from spectral measurements or be obtained directly from a colorimeter. Practice E1455 provides some guidance on colorimeters, while Test Methods D1686 and D2108 deal with the visual and instrumental measurement of near-clear liquids.
1.4 In determining the conformance of the test results using this method to applicable specifications, results shall be rounded in accordance with the rounding off methods of Practice E29.
1.5 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use. For specific hazard statements, see Section 8.

General Information

Status
Published
Publication Date
30-Nov-2016
ICS
71.080.01 - Organic chemicals in general
Technical Committee
D16 - Aromatic, Industrial, Specialty and Related Chemicals
Drafting Committee
D16.04 - Instrumental Analysis
Current Stage
Ref Project

Relations

Refers
ASTM E313-15 - Standard Practice for Calculating Yellowness and Whiteness Indices from Instrumentally Measured Color Coordinates
Effective Date
01-Jan-2015
Refers
ASTM E308-15 - Standard Practice for Computing the Colors of Objects by Using the CIE System
Effective Date
01-Apr-2015
Refers
ASTM D8005-15 - Standard Test Method for Color of Clear Liquids (Platinum-Cobalt Scale)
Effective Date
01-Jun-2015
Refers
ASTM E1455-16 - Standard Practice for Obtaining Colorimetric Data from a Visual Display Unit Using Tristimulus Colorimeters
Effective Date
01-Jul-2016
Refers
ASTM E308-17 - Standard Practice for Computing the Colors of Objects by Using the CIE System
Effective Date
01-May-2017
Refers
ASTM D2108-10(2020) - Standard Test Method for Color of Halogenated Organic Solvents and Their Admixtures (Platinum-Cobalt Scale)
Effective Date
01-Jan-2020
Refers
ASTM D6809-02(2016) - Standard Guide for Quality Control and Quality Assurance Procedures for Aromatic Hydrocarbons and Related Materials
Effective Date
01-Nov-2016
Refers
ASTM D2108-10(2015) - Standard Test Method for Color of Halogenated Organic Solvents and Their Admixtures (Platinum-Cobalt Scale)
Effective Date
01-Jun-2015

Buy Standard

ASTM D5386-16 - Standard Test Method for Color of Liquids Using Tristimulus ColorimetryASTM D5386-16 - Standard Test Method for Color of Liquids Using Tristimulus Colorimetry
PreviousNext
Standard
ASTM D5386-16 - Standard Test Method for Color of Liquids Using Tristimulus Colorimetry
English language
4 pages
sale 15% off
Preview
sale 15% off
Preview
REDLINE ASTM D5386-16 - Standard Test Method for Color of Liquids Using Tristimulus ColorimetryREDLINE ASTM D5386-16 - Standard Test Method for Color of Liquids Using Tristimulus Colorimetry
PreviousNext
Standard
REDLINE ASTM D5386-16 - Standard Test Method for Color of Liquids Using Tristimulus Colorimetry
English language
4 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

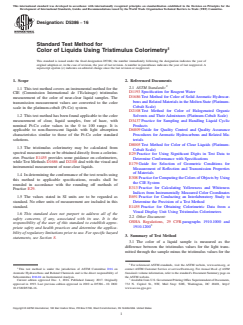

Designation: D5386 − 16
Standard Test Method for
1
Color of Liquids Using Tristimulus Colorimetry
This standard is issued under the fixed designation D5386; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2. Referenced Documents
2
2.1 ASTM Standards:
1.1 This test method covers an instrumental method for the
D1193 Specification for Reagent Water
CIE (Commission International de l’Eclairage) tristimulus
D1686 Test Method for Color of Solid Aromatic Hydrocar-
measurement of the color of near-clear liquid samples. The
bons and Related Materials in the Molten State (Platinum-
transmission measurement values are converted to the color
Cobalt Scale)
scale in the platinum-cobalt (Pt-Co) system.
D2108 Test Method for Color of Halogenated Organic
1.2 This test method has been found applicable to the color
Solvents and Their Admixtures (Platinum-Cobalt Scale)
measurement of clear, liquid samples, free of haze, with
D3437 Practice for Sampling and Handling Liquid Cyclic
nominal Pt-Co color values in the 0 to 100 range. It is Products
applicable to non-fluorescent liquids with light absorption D6809 Guide for Quality Control and Quality Assurance
Procedures for Aromatic Hydrocarbons and Related Ma-
characteristics similar to those of the Pt-Co color standard
terials
solutions.
D8005 Test Method for Color of Clear Liquids (Platinum-
1.3 The tristimulus colorimetry may be calculated from
Cobalt Scale)
spectral measurements or be obtained directly from a colorim-
E29 Practice for Using Significant Digits in Test Data to
eter. Practice E1455 provides some guidance on colorimeters,
Determine Conformance with Specifications
whileTest Methods D1686 and D2108 deal with the visual and
E179 Guide for Selection of Geometric Conditions for
instrumental measurement of near-clear liquids.
Measurement of Reflection and Transmission Properties
of Materials
1.4 In determining the conformance of the test results using
E308 PracticeforComputingtheColorsofObjectsbyUsing
this method to applicable specifications, results shall be
the CIE System
rounded in accordance with the rounding off methods of
E313 Practice for Calculating Yellowness and Whiteness
Practice E29.
Indices from Instrumentally Measured Color Coordinates
1.5 The values stated in SI units are to be regarded as
E691 Practice for Conducting an Interlaboratory Study to
standard. No other units of measurement are included in this
Determine the Precision of a Test Method
standard. E1455 Practice for Obtaining Colorimetric Data from a
Visual Display Unit Using Tristimulus Colorimeters
1.6 This standard does not purport to address all of the
2.2 Other Document:
safety concerns, if any, associated with its use. It is the
OSHA Regulations, 29 CFR paragraphs 1910.1000 and
responsibility of the user of this standard to establish appro-
3
1910.1200
priate safety and health practices and determine the applica-
bility of regulatory limitations prior to use. For specific hazard
3. Summary of Test Method
statements, see Section 8.
3.1 The color of a liquid sample is measured as the
difference between the tristimulus values for the light trans-
mitted through the sample minus the tristimulus values for the
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
1
This test method is under the jurisdiction of ASTM Committee D16 on contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Aromatic Hydrocarbons and Related Chemicals and is the direct responsibility of Standards volume information, refer to the standard’s Document Summary page on
Subcommittee D16.04 on Instrumental Analysis. the ASTM website.
3
Current edition approved Dec. 1, 2016. Published January 2017. Originally AvailablefromU.S.GovernmentPrintingOfficeSuperintendentofDocuments,
approved in 1993. Last previous edition approved in 2010 as D5386 – 10. DOI: 732 N. Capitol St., NW, Mail Stop: SDE, Washington, DC 20401, http://
10.1520/D5386-16. www.access.gpo.gov.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

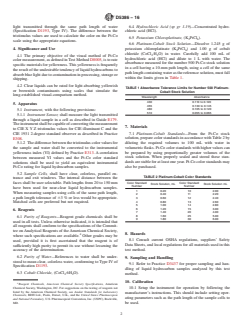

D5386 − 16
light transmitted through the same path length of water 6.4 Hydrochloric Acid (sp gr 1.19)—Concentrated hydro-
(Specification D1193, Type IV). The difference between the chloric acid (HCl).
tristimulus values are used to calculate the color on the Pt-Co
6.5 Potassium Chloroplatinate, (K
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

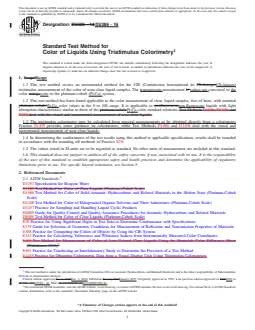

Designation: D5386 − 10 D5386 − 16
Standard Test Method for
1
Color of Liquids Using Tristimulus Colorimetry
This standard is issued under the fixed designation D5386; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*Scope
1.1 This test method covers an instrumental method for the CIE (Commission International de l’Eclairage)l’Eclairage)
tristimulus measurement of the color of near-clear liquid samples. The transmission measurement is values are converted to the
color ratingsscale in the platinum-cobalt (Pt-Co) system.
1.2 This test method has been found applicable to the color measurement of clear, liquid samples, free of haze, with nominal
platinum cobalt Pt-Co color values in the 0 to 100 range. It is applicable to nonfluorescentnon-fluorescent liquids with light
absorption characteristics similar to those of the platinum cobalt Pt-Co color standard solutions. Test Methods D1686, D2108, and
E450 deal with the visual and instrumental measurement of near-clear liquids.
1.3 The tristimulus colorimetry may be calculated from spectral measurements or be obtained directly from a colorimeter.
Practice E1455 provides some guidance on colorimeters, while Test Methods D1686 and D2108 deal with the visual and
instrumental measurement of near-clear liquids.
1.4 In determining the conformance of the test results using this method to applicable specifications, results shall be rounded
in accordance with the rounding off methods of Practice E29.
1.5 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory
limitations prior to use. For specific hazard statements, see Section 8.
2. Referenced Documents
2
2.1 ASTM Standards:
D1193 Specification for Reagent Water
D1209 Test Method for Color of Clear Liquids (Platinum-Cobalt Scale)
D1686 Test Method for Color of Solid Aromatic Hydrocarbons and Related Materials in the Molten State (Platinum-Cobalt
Scale)
D2108 Test Method for Color of Halogenated Organic Solvents and Their Admixtures (Platinum-Cobalt Scale)
D3437 Practice for Sampling and Handling Liquid Cyclic Products
D6809 Guide for Quality Control and Quality Assurance Procedures for Aromatic Hydrocarbons and Related Materials
D8005 Test Method for Color of Clear Liquids (Platinum-Cobalt Scale)
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
E179 Guide for Selection of Geometric Conditions for Measurement of Reflection and Transmission Properties of Materials
E308 Practice for Computing the Colors of Objects by Using the CIE System
E313 Practice for Calculating Yellowness and Whiteness Indices from Instrumentally Measured Color Coordinates
E450 Test Method for Measurement of Color of Low-Colored Clear Liquids Using the Hunterlab Color Difference Meter
3
(Withdrawn 1993)
E691 Practice for Conducting an Interlaboratory Study to Determine the Precision of a Test Method
E1455 Practice for Obtaining Colorimetric Data from a Visual Display Unit Using Tristimulus Colorimeters
1
This test method is under the jurisdiction of ASTM Committee D16 on Aromatic Hydrocarbons and Related Chemicals and is the direct responsibility of Subcommittee
D16.04 on Instrumental Analysis.
Current edition approved Jan. 1, 2010Dec. 1, 2016. Published January 2010January 2017. Originally approved in 1993. Last previous edition approved in 20052010 as
D5386 – 05.D5386 – 10. DOI: 10.1520/D5386-10.10.1520/D5386-16.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
D5386 − 16
2.2 Other Document:
3
OSHA Regulations, 29 CFR paragraphs 1910.1000 and 1910.1200
3. Summary of T
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM E1064-23(Test Method)
Standard Test Method for Water in Organic Liquids by Coulometric Karl Fischer Titration

SIGNIFICANCE AND USE
4.1 The coulometric technique is especially suited for determining low concentrations of water in organic liquids that would yield small titers by the Karl Fischer volumetric procedure. The precision and accuracy of the coulometric technique decreases for concentrations of water much greater than 2.0 % because of the difficulty in measuring the small size of sample required. The test method assumes 100 % efficiency of coulombs in iodine production. Provision is made for verifying this efficiency. (See Table 1 and Note 5.)
SCOPE
1.1 This test method covers the determination of water from 0 % to 2.0 % mass in most liquid organic chemicals, with Karl Fischer reagent, using an automated coulometric titration procedure. Use of this test method is not applicable for liquefied gas products such as Liquid Petroleum Gas (LPG), Butane, Propane, Liquid Natural Gas (LNG), etc.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 Review the current Safety Data Sheets (SDS) for detailed information concerning toxicity, first-aid procedures, handling, and safety precautions.
1.4 This standard does not purport to address all of the safety problems, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Specific precautionary statements are given in Section 8.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    5 pages
    English language
    sale 15% off
  • Standard
    5 pages
    English language
    sale 15% off
ASTM
ASTM E324-23(Test Method)
Standard Test Method for Relative Initial and Final Melting Points and the Melting Range of Organic Chemicals

SIGNIFICANCE AND USE
5.1 It has long been recognized that narrow melting range and high final melting point are good indications of high purity in crystalline organic compounds. Several ASTM test methods use these criteria to assay the purity of organic compounds (Note 1).
Note 1: Other ASTM test methods using melting (or freezing point) data to indicate sample purity are Test Methods D852 and D6875.
5.2 The relatively simple and rapid test prescribed in this test method shows the sample under test to be either more or less pure than the standard sample. For specification purposes, a minimum allowable purity can be assured by setting limits on the differences in final melting points and the melting ranges between the standard sample and the sample under test.
SCOPE
1.1 This test method covers the determination, by a capillary tube method, of the initial melting point and the final melting point, which define the melting range, of samples of organic chemicals whose melting points without decomposition fall between 30 °C and 250 °C.
1.2 This test method is applicable only to crystalline materials that are sufficiently stable in storage to met the requirements of a satisfactory standard sample as defined in Section 7.
1.3 This test method is not directly applicable to opaque materials or to noncrystalline materials such as waxes, fats, and fatty acids.
1.4 Review the current Safety Data Sheets (SDS) for detailed information concerning toxicity, first aid procedures, handling, and safety precautions.
1.5 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    4 pages
    English language
    sale 15% off
  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM D6875-23(Test Method)
Standard Test Method for Solidification Point of Industrial Organic Chemicals by Thermistor

SIGNIFICANCE AND USE
5.1 This test method may be used for process control during the manufacture of organic chemicals described in Section 1, for setting specifications, for development and research work, and to determine if contamination was introduced during shipment.
SCOPE
1.1 This test method covers a general procedure for determining the solidification point of most organic chemicals having appreciable heats of fusion and solidification points between 4 °C and 41 °C.
Note 1: Other test methods for determining freeze point and solidification point of aromatic hydrocarbons include Test Methods D852, D1015, D1016, D3799, D4493, and D6269.
1.2 This test method is applicable to relatively pure compounds only. Solidification point depression is dependent on impurity concentrations.
1.3 The following applies to all specified limits in this test method: for purposes of determining conformance with applicable specifications using this test method, an observed value or a calculated value shall be rounded off “to the nearest unit” in the last right hand digit used in expressing the specification limit, in accordance with the “rounding-off method” of Practice E29.
1.4 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. For a specific hazard statement, see Section 8, Hazards.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    4 pages
    English language
    sale 15% off
  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM E1547-09(2023)(Terminology)
Standard Terminology Relating to Industrial and Specialty Chemicals

SCOPE
1.1 This standard covers terminology relating to industrial and specialty chemicals. It is intended to provide an understanding of terms commonly used in test methods, practices, and specifications throughout the industry.
Note 1: The boldface numbers following each definition refer to E15 standards in which the definition appears. Lightface numbers refer to the E15 subcommittee having jurisdiction.
1.2 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM E300-03(2022)(Practice)
Standard Practice for Sampling Industrial Chemicals

SIGNIFICANCE AND USE
5.1 Representative samples of industrial chemicals are required for the determination of chemical and physical properties which are used to establish standard volumes, prices, and compliance with commercial and regulatory specifications.
5.2 The objective of sampling is to obtain a small portion (spot sample) of material from a selected area within a container which is representative of the material in the area or, in the case of running or all-level samples, a sample whose composition is representative of the total material in the container. A series of spot samples may be combined to create a representative sample.
5.3 Manual and Automatic Sampling Considerations—The selection of manual or automatic sampling devices is part of establishing a sampling plan applied under all conditions within the scope of this practice provided that the proper sampling procedures are followed. Both types of sampling are commonly used for liquid, solid, and slurry sampling and require adherence to the following:
5.3.1 An adequate frequency of sampling must be selected.
5.3.2 The equipment to support manual or automatic sampling systems may be obtained commercially, fabricated from the designs presented in this practice, or constructed as needed to satisfy process design or other specific requirements.
5.3.3 The sampling equipment must be maintained on a regular basis, and the sampling plan adopted must be strictly followed.
SCOPE
1.1 This practice covers procedures for sampling several classes of industrial chemicals. It also includes recommendations for determining the number and location of such samples, to ensure their being representative of the lot in accordance with accepted probability sampling principles.
1.2 Although this practice describes specific procedures for sampling various liquids, solids, and slurries, in bulk or in packages, these recommendations only outline the principles to be observed. They should not take precedence over specific sampling instructions contained in other ASTM product or method standards.
1.3 These procedures are covered as follows:
Sections
Statistical Considerations
7 – 11
Simple Liquids
12 – 27
Solids
28 – 35
Slurries
36 – 41
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Specific precautionary statements are given in Sections 6, 19, 20, 30, 34 and 37.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    24 pages
    English language
    sale 15% off
ASTM
ASTM D5871-19(Specification)
Standard Specification for Benzene for Cyclohexane Feedstock

ABSTRACT
This specification covers benzene for cyclohexane feedstock. Different tests shall be performed in order to determine the following properties of cyclohexane feedstock: benzene content, sulfur content, thiophene content, toluene plus methylcyclohexane content, methylcyclopentane content, N-hexane content, acid wash color, appearance, color, water content, and solidification point with anhydrous basis.
SCOPE
1.1 This specification covers benzene for cyclohexane feedstock.
1.2 The following applies to all specified limits in this standard: for purposes of determining conformance with this standard, an observed value or a calculated value shall be rounded off “to the nearest unit” in the last right-hand digit used in expressing the specification limit, in accordance with the rounding-off method of Practice E29.
1.3 The values stated in SI units are to be regarded as the standard. The values given in parentheses are for information only.
1.4 Consult current OSHA regulations supplier’s Safety Data Sheets for all materials used in this specification.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    2 pages
    English language
    sale 15% off
  • Technical specification
    2 pages
    English language
    sale 15% off
ASTM
ASTM E1064-23(Test Method)
Standard Test Method for Water in Organic Liquids by Coulometric Karl Fischer Titration

SIGNIFICANCE AND USE
4.1 The coulometric technique is especially suited for determining low concentrations of water in organic liquids that would yield small titers by the Karl Fischer volumetric procedure. The precision and accuracy of the coulometric technique decreases for concentrations of water much greater than 2.0 % because of the difficulty in measuring the small size of sample required. The test method assumes 100 % efficiency of coulombs in iodine production. Provision is made for verifying this efficiency. (See Table 1 and Note 5.)
SCOPE
1.1 This test method covers the determination of water from 0 % to 2.0 % mass in most liquid organic chemicals, with Karl Fischer reagent, using an automated coulometric titration procedure. Use of this test method is not applicable for liquefied gas products such as Liquid Petroleum Gas (LPG), Butane, Propane, Liquid Natural Gas (LNG), etc.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 Review the current Safety Data Sheets (SDS) for detailed information concerning toxicity, first-aid procedures, handling, and safety precautions.
1.4 This standard does not purport to address all of the safety problems, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Specific precautionary statements are given in Section 8.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    5 pages
    English language
    sale 15% off
  • Standard
    5 pages
    English language
    sale 15% off
ASTM
ASTM D1722-09(2023)(Test Method)
Standard Test Method for Water Miscibility of Water-Soluble Solvents

SIGNIFICANCE AND USE
4.1 Water-insoluble materials present in a solvent expected to be completely water miscible may interfere with many uses of the solvent. This test method provides a measure of the miscibility of water-soluble solvents with a polar medium-water. It also provides a qualitative indication of the presence or absence of water-immiscible contaminants.
4.2 The results of this test method may be used in assessing compliance with a specification. Prior to agreeing to this test method as the basis of a specification requirement, it may be desirable that the interpretation of what constitutes cloudiness or turbidity be agreed upon between the supplier and the purchaser.
SCOPE
1.1 This test method covers the determination of the miscibility of water-soluble solvents with water. While written specifically for testing acetone, isopropyl alcohol (isopropanol), and methyl alcohol (methanol), the method is suitable for testing most water-soluble solvents.
1.2 This test method serves to detect water-immiscible contaminants qualitatively; the level of detection of these impurities varies widely with both the type of solvent and the type of impurity.
1.3 The level of detection of water-insoluble materials depends upon the solvent tested and the type of impurity or impurities present, that is paraffin, olefin, aromatic, high molecular weight alcohol, or ketone, etc. There is, therefore, no specific level of impurity detected by this procedure.
Note 1: This test method is normally performed at ambient, but other temperatures may be used as specified by the consumer and supplier.
1.4 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5 For specific hazard information and guidance, consult the supplier’s Safety Data Sheet for materials listed in this test method.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    2 pages
    English language
    sale 15% off
ASTM
ASTM D611-23(Test Method)
Standard Test Methods for Aniline Point and Mixed Aniline Point of Petroleum Products and Hydrocarbon Solvents

SIGNIFICANCE AND USE
5.1 The aniline point (or mixed aniline point) is useful as an aid in the characterization of pure hydrocarbons and in the analysis of hydrocarbon mixtures. Aromatic hydrocarbons exhibit the lowest, and paraffins the highest values. Cycloparaffins and olefins exhibit values that lie between those for paraffins and aromatics. In homologous series the aniline points increase with increasing molecular weight. Although it occasionally is used in combination with other physical properties in correlative methods for hydrocarbon analysis, the aniline point is most often used to provide an estimate of the aromatic hydrocarbon content of mixtures.
SCOPE
1.1 These test methods cover the determination of the aniline point of petroleum products and hydrocarbon solvents. Test Method A is suitable for transparent samples with an initial boiling point above room temperature and where the aniline point is below the bubble point and above the solidification point of the aniline-sample mixture. Test Method B, a thin-film method, is suitable for samples too dark for testing by Test Method A. Test Methods C and D are for samples that may vaporize appreciably at the aniline point. Test Method D is particularly suitable where only small quantities of sample are available. Test Method E describes a procedure using an automatic apparatus suitable for the range covered by Test Methods A and B.
1.2 These test methods also cover the determination of the mixed aniline point of petroleum products and hydrocarbon solvents having aniline points below the temperature at which aniline will crystallize from the aniline-sample mixture.
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 WARNING—Mercury has been designated by many regulatory agencies as a hazardous substance that can cause serious medical issues. Mercury, or its vapor, has been demonstrated to be hazardous to health and corrosive to materials. Use caution when handling mercury and mercury-containing products. See the applicable product Safety Data Sheet (SDS) for additional information. The potential exists that selling mercury or mercury-containing products, or both, is prohibited by local or national law. Users must determine legality of sales in their location.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Specific warning statements are given in Section 7.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    8 pages
    English language
    sale 15% off
  • Standard
    8 pages
    English language
    sale 15% off
ASTM
ASTM E659-15(2023)(Test Method)
Standard Test Method for Autoignition Temperature of Chemicals

SIGNIFICANCE AND USE
5.1 Autoignition, by its very nature, is dependent on the chemical and physical properties of the material and the method and apparatus employed for its determination. The autoignition temperature by a given method does not necessarily represent the minimum temperature at which a given material will self-ignite in air. The volume of the vessel used is particularly important since lower autoignition temperatures will be achieved in larger vessels. (See Appendix X2.) Vessel material can also be an important factor.
5.2 The temperatures determined by this test method are those at which air oxidation leads to ignition. These temperatures can be expected to vary with the test pressure and oxygen concentration.
5.3 This test method is not designed for evaluating materials which are capable of exothermic decomposition. For such materials, ignition is dependent upon the thermal and kinetic properties of the decomposition, the mass of the sample, and the heat transfer characteristics of the system.
5.4 This test method can be employed for solid chemicals which melt and vaporize or which readily sublime at the test temperature. No condensed phase, liquid or solid, should be present when ignition occurs.
5.5 This test method is not designed to measure the autoignition temperature of materials which are solids or liquids at the test temperature (for example, wood, paper, cotton, plastics, and high-boiling point chemicals). Such materials will thermally degrade in the flask and the accumulated degradation products may ignite.
5.6 This test method can be used, with appropriate modifications, for chemicals that are gaseous at atmospheric temperature and pressure.
5.7 This test method was developed primarily for liquid chemicals but has been employed to test readily vaporized solids. Responsibility for extension of this test method to solids of unknown thermal stability, boiling point, or degradation characteristics rests with the operator.
SCOPE
1.1 This test method covers the determination of hot- and cool-flame autoignition temperatures of a liquid chemical in air at atmospheric pressure in a uniformly heated vessel.
Note 1: Within certain limitations, this test method can also be used to determine the autoignition temperature of solid chemicals which readily melt and vaporize at temperatures below the test temperature and for chemicals that are gaseous at atmospheric pressure and temperature.
Note 2: After a round robin study, Test Method D2155 was discontinued, and replaced by Test Method E659 in 1978. See also Appendix X2.
1.2 This standard should be used to measure and describe the properties of materials, products, or assemblies in response to heat and flame under controlled laboratory conditions and should not be used to describe or appraise the fire hazard or fire risk of materials, products, or assemblies under actual fire conditions. However, results of this test may be used as elements of a fire risk assessment which takes into account all of the factors which are pertinent to an assessment of the fire hazard of a particular end use.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    7 pages
    English language
    sale 15% off
