ASTM D6064-03

Standard Specification for HFC-227ea, 1,1,1,2,3,3,3-Heptafluoropropane (CF₃CHFCF₃)

ABSTRACT
This specification covers the requirements for 1,1,1,2,3,3,3-Heptafluoropropane (HFC-227ea) for use as a fire-fighting medium. However, this specification does not include the fire-fighting equipment or hardware that employs HFC-227ea, the conditions for employing such equipment, nor the storage or transportation of HFC-227ea. Material covered by this specification is of two types: Type I (mixtures of HFC-227ea and nitrogen) and Type II (HFC-227ea). Tests for purity, acidity, water content, fluoride ion content, suspended matter and sediment, nonvolatile residue, and fixed gases in the vapor phase shall be performed and shall conform to the requirements specified.
SCOPE
1.1 This specification covers requirements for HFC-227ea as a fire-fighting medium.
1.2 This specification does not address the fire-fighting equipment or hardware that employs HFC-227ea or the conditions of employing such equipment (for example, handhelds, fixed installations, etc.).
1.3 This specification does not address the storage or transportation of HFC-227ea. Storage, handling, and transportation issues may be addressed in future ASTM specifications.
1.4 The values stated in both inch-pound and SI units are to be regarded separately as the standard. The values given in parentheses are for information only.
1.5 The following safety hazards caveat pertains only to the test methods portion, Section 5, of this specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use. Specific hazards statements are given in Note 1.

General Information

• Status: Historical
• Publication Date: 09-Jun-2003
• ICS: 13.220.10 - Fire-fighting
• Technical Committee: D26 - Halogenated Organic Solvents and Fire Extinguishing Agents
• Drafting Committee: D26.09 - Fire Extinguishing Agents

Relations

• Replaces: ASTM D6064-96 - Standard Specification for HFC-227ea, 1,1,1,2,3,3,3-Heptafluoropropane (CF₃CHFCF₃)
• Effective Date: 10-Jun-2003
• Replaced By: ASTM D6064-11 - Standard Specification for HFC-227ea, 1,1,1,2,3,3,3-Heptafluoropropane (CF₃CHFCF₃)
• Effective Date: 01-Aug-2011
• Referred By: ASTM D6065-21 - Standard Practice for Handling, Transportation, and Storage of HFC-227ea 1,1,1,2,3,3,3-Heptafluoropropane (CF<inf>3</inf>CHFCF<inf>3</inf>)
• Effective Date: 10-Jun-2003

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

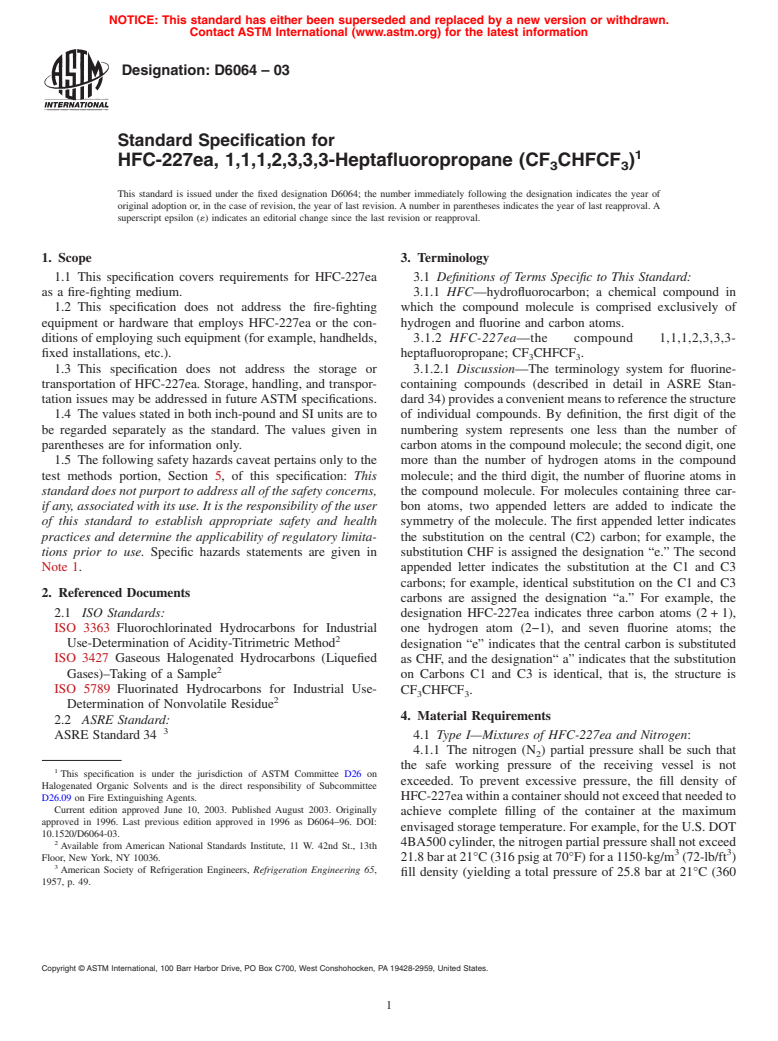

Designation: D6064 – 03
Standard Specification for
1
HFC-227ea, 1,1,1,2,3,3,3-Heptafluoropropane (CF CHFCF )
3 3
This standard is issued under the fixed designation D6064; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 3. Terminology
1.1 This specification covers requirements for HFC-227ea 3.1 Definitions of Terms Specific to This Standard:
as a fire-fighting medium. 3.1.1 HFC—hydrofluorocarbon; a chemical compound in
1.2 This specification does not address the fire-fighting which the compound molecule is comprised exclusively of
equipment or hardware that employs HFC-227ea or the con- hydrogen and fluorine and carbon atoms.
ditions of employing such equipment (for example, handhelds, 3.1.2 HFC-227ea—the compound 1,1,1,2,3,3,3-
fixed installations, etc.). heptafluoropropane; CF CHFCF .
3 3
1.3 This specification does not address the storage or 3.1.2.1 Discussion—The terminology system for fluorine-
transportation of HFC-227ea. Storage, handling, and transpor- containing compounds (described in detail in ASRE Stan-
tation issues may be addressed in futureASTM specifications. dard34)providesaconvenientmeanstoreferencethestructure
1.4 The values stated in both inch-pound and SI units are to of individual compounds. By definition, the first digit of the
be regarded separately as the standard. The values given in numbering system represents one less than the number of
parentheses are for information only. carbon atoms in the compound molecule; the second digit, one
1.5 The following safety hazards caveat pertains only to the more than the number of hydrogen atoms in the compound
test methods portion, Section 5, of this specification: This molecule; and the third digit, the number of fluorine atoms in
standard does not purport to address all of the safety concerns, the compound molecule. For molecules containing three car-
if any, associated with its use. It is the responsibility of the user bon atoms, two appended letters are added to indicate the
of this standard to establish appropriate safety and health symmetry of the molecule. The first appended letter indicates
practices and determine the applicability of regulatory limita- the substitution on the central (C2) carbon; for example, the
tions prior to use. Specific hazards statements are given in substitution CHF is assigned the designation “e.” The second
Note 1. appended letter indicates the substitution at the C1 and C3
carbons; for example, identical substitution on the C1 and C3
2. Referenced Documents
carbons are assigned the designation “a.” For example, the
2.1 ISO Standards:
designation HFC-227ea indicates three carbon atoms (2+1),
ISO 3363 Fluorochlorinated Hydrocarbons for Industrial one hydrogen atom (2−1), and seven fluorine atoms; the
2
Use-Determination of Acidity-Titrimetric Method
designation “e” indicates that the central carbon is substituted
ISO 3427 Gaseous Halogenated Hydrocarbons (Liquefied as CHF, and the designation“ a” indicates that the substitution
2
Gases)–Taking of a Sample
on Carbons C1 and C3 is identical, that is, the structure is
ISO 5789 Fluorinated Hydrocarbons for Industrial Use- CF CHFCF .
3 3
2
Determination of Nonvolatile Residue
4. Material Requirements
2.2 ASRE Standard:
3
ASRE Standard34 4.1 Type I—Mixtures of HFC-227ea and Nitrogen:
4.1.1 The nitrogen (N ) partial pressure shall be such that
2
the safe working pressure of the receiving vessel is not
1
This specification is under the jurisdiction of ASTM Committee D26 on
exceeded. To prevent excessive pressure, the fill density of
Halogenated Organic Solvents and is the direct responsibility of Subcommittee
HFC-227eawithinacontainershouldnotexceedthatneededto
D26.09 on Fire Extinguishing Agents.
Current edition approved June 10, 2003. Published August 2003. Originally
achieve complete filling of the container at the maximum
approved in 1996. Last previous edition approved in 1996 as D6064–96. DOI:
envisagedstoragetemperature.Forexample,fortheU.S.DOT
10.1520/D6064-03.
2
4BA500cylinder,thenitrogenpartialpressureshallnotexceed
Available from American National Standards Institute, 11 W. 42nd St., 13th
3 3
Floor, New York, NY 10036. 21.8barat21°C(316psigat70°F)fora1150-kg/m (72-lb/ft )
3
American Society of Refrigeration Engineers, Refrigeration Engineering 65,
fill density (yielding a total pressure of 25.8 bar at 21°C (360
1957, p. 49.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959, United States.
1

---------------------- Page: 1 ----------------------
D6064 – 03
psig at 70°F). For this example, the safe working pressure of
...
