ASTM C1467/C1467M-00(2021)

(Specification)

Standard Specification for Installation of Molded Glass Fiber Reinforced Gypsum Parts

Standard Specification for Installation of Molded Glass Fiber Reinforced Gypsum Parts

ABSTRACT
This specification covers the installation of molded glass fiber reinforced gypsum (GRG) parts. Molded glass fiber reinforced gypsum parts shall conform to environment conditions, substrate preparation, installation, and finishing requirements specified.
SCOPE
1.1 This specification covers the installation of molded glass fiber reinforced gypsum (GRG) parts.
1.2 The values stated in either inch-pound units or SI (metric) are to be regarded separately as the standard. Within the text, SI units are shown in brackets. The values stated in each shall be used independent of the other. Values from the two systems shall not be combined.
1.3 All references to finishes, dimensions and tolerances shall refer to the finished surface of the part.
1.4 The text of this standard references notes and footnotes that provide explanatory material. These notes and footnotes (excluding those in tables and figures) shall not be considered as requirements of the standard.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

Status
Published
Publication Date
31-Mar-2021
ICS
81.040.20 - Glass in building
Technical Committee
C11 - Gypsum and Related Building Materials and Systems
Drafting Committee
C11.03 - Specifications for the Application of Gypsum and Other Products in Assemblies
Current Stage
Ref Project

Relations

Refers
ASTM C840-23 - Standard Specification for Application and Finishing of Gypsum Board
Effective Date
01-Oct-2023
Refers
ASTM C754-20 - Standard Specification for Installation of Steel Framing Members to Receive Screw-Attached Gypsum Panel Products
Effective Date
01-May-2020
Refers
ASTM C1007-20 - Standard Specification for Installation of Load Bearing (Transverse and Axial) Steel Studs and Related Accessories
Effective Date
01-May-2020
Refers
ASTM C840-19b - Standard Specification for Application and Finishing of Gypsum Board
Effective Date
01-Nov-2019
Refers
ASTM C840-19a - Standard Specification for Application and Finishing of Gypsum Board
Effective Date
01-Oct-2019
Refers
ASTM C840-19 - Standard Specification for Application and Finishing of Gypsum Board
Effective Date
01-Jun-2019
Refers
ASTM C840-18b - Standard Specification for Application and Finishing of Gypsum Board
Effective Date
15-Nov-2018
Refers
ASTM C11-18a - Standard Terminology Relating to Gypsum and Related Building Materials and Systems
Effective Date
01-Oct-2018
Refers
ASTM C840-18a - Standard Specification for Application and Finishing of Gypsum Board
Effective Date
01-Oct-2018
Refers
ASTM C840-18 - Standard Specification for Application and Finishing of Gypsum Board
Effective Date
01-Jul-2018
Refers
ASTM C11-18 - Standard Terminology Relating to Gypsum and Related Building Materials and Systems
Effective Date
01-Jun-2018
Refers
ASTM C754-18 - Standard Specification for Installation of Steel Framing Members to Receive Screw-Attached Gypsum Panel Products
Effective Date
01-Apr-2018
Refers
ASTM C840-17a - Standard Specification for Application and Finishing of Gypsum Board
Effective Date
01-Oct-2017
Refers
ASTM C11-17a - Standard Terminology Relating to Gypsum and Related Building Materials and Systems
Effective Date
01-Oct-2017
Refers
ASTM C11-17 - Standard Terminology Relating to Gypsum and Related Building Materials and Systems
Effective Date
15-May-2017

Buy Standard

ASTM C1467/C1467M-00(2021) - Standard Specification for Installation of Molded Glass Fiber Reinforced Gypsum PartsASTM C1467/C1467M-00(2021) - Standard Specification for Installation of Molded Glass Fiber Reinforced Gypsum Parts
PreviousNext
Technical specification
ASTM C1467/C1467M-00(2021) - Standard Specification for Installation of Molded Glass Fiber Reinforced Gypsum Parts
English language
2 pages
sale 15% off
Preview
sale 15% off
Preview

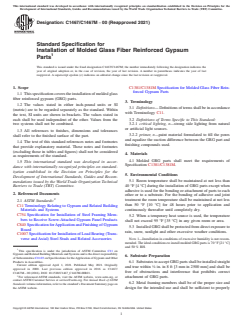

Standards Content (Sample)


This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: C1467/C1467M −00 (Reapproved 2021)
Standard Specification for
Installation of Molded Glass Fiber Reinforced Gypsum
Parts
This standard is issued under the fixed designation C1467/C1467M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope C1381/C1381M Specification for Molded Glass Fiber Rein-
forced Gypsum Parts
1.1 Thisspecificationcoverstheinstallationofmoldedglass
fiber reinforced gypsum (GRG) parts.
3. Terminology
1.2 The values stated in either inch-pound units or SI
3.1 Definitions—Definitionsoftermsshallbeinaccordance
(metric) are to be regarded separately as the standard. Within
with Terminology C11.
the text, SI units are shown in brackets. The values stated in
each shall be used independent of the other. Values from the 3.2 Definitions of Terms Specific to This Standard:
two systems shall not be combined. 3.2.1 critical lighting, n—strong side lighting from natural
or artificial light sources.
1.3 All references to finishes, dimensions and tolerances
3.2.2 primer, n—paint material formulated to fill the pores
shall refer to the finished surface of the part.
and equalize the suction difference between the GRG part and
1.4 The text of this standard references notes and footnotes
finishing compounds used.
that provide explanatory material. These notes and footnotes
(excluding those in tables and figures) shall not be considered
4. Materials
as requirements of the standard.
4.1 Molded GRG parts shall meet the requirements of
1.5 This international standard was developed in accor-
Specification C1381/C1381M.
dance with internationally recognized principles on standard-
ization established in the Decision on Principles for the
5. Environmental Conditions
Development of International Standards, Guides and Recom-
5.1 Room temperature shall be maintained at not less than
mendations issued by the World Trade Organization Technical
40 °F [4 °C] during the installation of GRG parts except when
Barriers to Trade (TBT) Committee.
adhesive is used for the bonding or attachment of parts to each
2. Referenced Documents
other or to a substrate. For the bonding of adhesive and joint
treatment the room temperature shall be maintained at not less
2.1 ASTM Standards:
than 50 °F [10 °C] for 48 hours prior to application and
C11 Terminology Relating to Gypsum and Related Building
continuously thereafter until completely dry.
Materials and Systems
C754 Specification for Installation of Steel Framing Mem-
5.2 When a temporary heat source is used, the temperature
bers to Receive Screw-Attached Gypsum Panel Products
shall not exceed 95 °F [35 °C] in any given room or area.
C840 SpecificationforApplicationandFinishingofGypsum
5.3 InstalledGRGshallbeprotectedfromdirectexposureto
Board
rain, snow, sunlight and other excessive weather conditions.
C1007 Specification for Installation of Load Bearing (Trans-
verse and Axial) Steel Studs and Related Accessories NOTE 1—Installation in conditions of excessive humidity is not recom-
mended.TheidealconditionstoinstallmoldedGRGpartsis70°F[21°C]
and 50 % RH.
This specification is under the jurisdiction of ASTM Committee C11 on
Gypsum and Related Building Materials and Systems and is the direct responsibility
6. Substrate Preparation
ofSubcommitteeC11.03onSpecificationsfortheApplicationofGypsumandOther
Products in Assemblies.
6.1 SubstratestoacceptGRGpartsshallbeinstalledstraight
Current edition approved April 1, 2021. Published May 2021. Originally
and true within ⁄8
...
