ASTM E2175-01(2013)

(Practice)

Standard Practice for Specifying the Geometry of Multiangle Spectrophotometers

Standard Practice for Specifying the Geometry of Multiangle Spectrophotometers

SIGNIFICANCE AND USE
4.1 This practice is for the use of manufacturers and users of instruments to measure the appearance of gonioapparent materials, those writing standard specifications for such instruments, and others who wish to specify precisely the geometric conditions of multiangle spectrophotometry. A prominent example of industrial usage is the routine application of such measurements by material suppliers and automobile manufacturers to measure the colors of metallic paints and plastics.
SCOPE
1.1 This practice provides a way of specifying the angular and spatial conditions of measurement and angular selectivity of a method of measuring the spectral reflectance factors of opaque gonioapparent materials, for a small number of sets of geometric conditions.
1.2 Measurements to characterize the appearance of retroreflective materials are of such a special nature that they are treated in other ASTM documents and are not included in the scope of this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

General Information

Status
Historical
Publication Date
30-Sep-2013
ICS
17.180.30 - Optical measuring instruments
Technical Committee
E12 - Color and Appearance
Drafting Committee
E12.03 - Geometry
Current Stage
Ref Project

Buy Standard

ASTM E2175-01(2013) - Standard Practice for Specifying the Geometry of Multiangle SpectrophotometersASTM E2175-01(2013) - Standard Practice for Specifying the Geometry of Multiangle Spectrophotometers
PreviousNext
Standard
ASTM E2175-01(2013) - Standard Practice for Specifying the Geometry of Multiangle Spectrophotometers
English language
5 pages
sale 15% off
Preview
sale 15% off
Preview

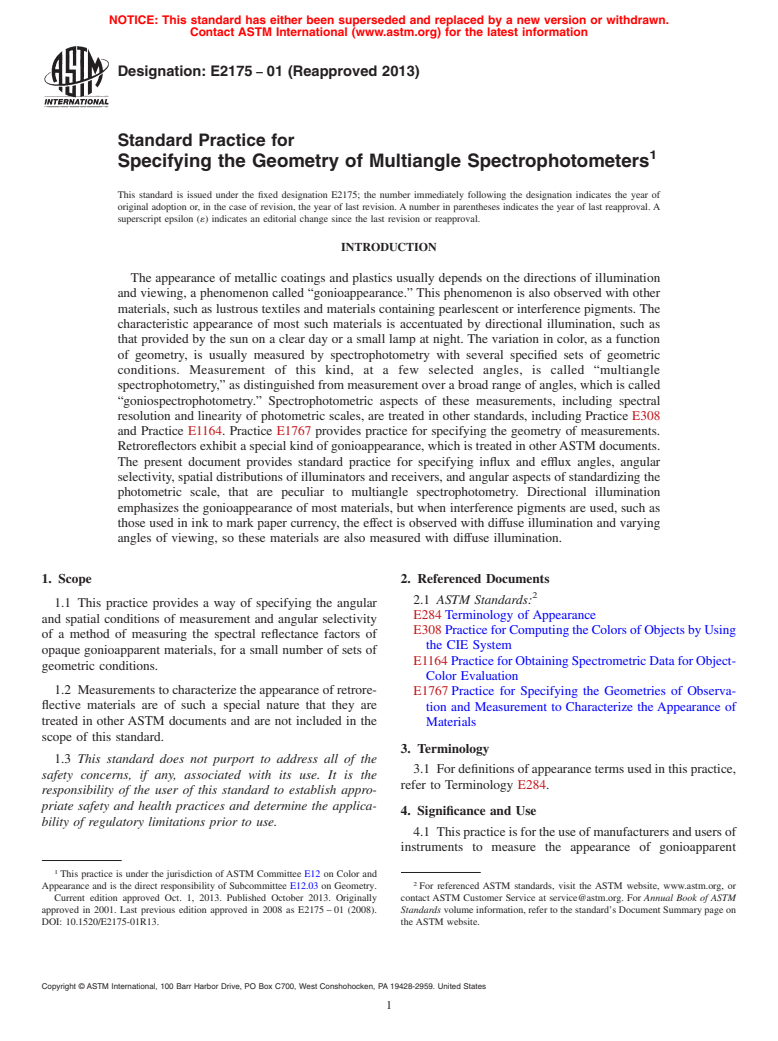

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information
Designation:E2175 −01 (Reapproved 2013)
Standard Practice for
1
Specifying the Geometry of Multiangle Spectrophotometers
This standard is issued under the fixed designation E2175; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
INTRODUCTION
The appearance of metallic coatings and plastics usually depends on the directions of illumination
and viewing, a phenomenon called “gonioappearance.” This phenomenon is also observed with other
materials, such as lustrous textiles and materials containing pearlescent or interference pigments. The
characteristic appearance of most such materials is accentuated by directional illumination, such as
that provided by the sun on a clear day or a small lamp at night. The variation in color, as a function
of geometry, is usually measured by spectrophotometry with several specified sets of geometric
conditions. Measurement of this kind, at a few selected angles, is called “multiangle
spectrophotometry,” as distinguished from measurement over a broad range of angles, which is called
“goniospectrophotometry.” Spectrophotometric aspects of these measurements, including spectral
resolution and linearity of photometric scales, are treated in other standards, including Practice E308
and Practice E1164. Practice E1767 provides practice for specifying the geometry of measurements.
Retroreflectors exhibit a special kind of gonioappearance, which is treated in otherASTM documents.
The present document provides standard practice for specifying influx and efflux angles, angular
selectivity, spatial distributions of illuminators and receivers, and angular aspects of standardizing the
photometric scale, that are peculiar to multiangle spectrophotometry. Directional illumination
emphasizes the gonioappearance of most materials, but when interference pigments are used, such as
those used in ink to mark paper currency, the effect is observed with diffuse illumination and varying
angles of viewing, so these materials are also measured with diffuse illumination.
1. Scope 2. Referenced Documents
2
2.1 ASTM Standards:
1.1 This practice provides a way of specifying the angular
E284 Terminology of Appearance
and spatial conditions of measurement and angular selectivity
E308 PracticeforComputingtheColorsofObjectsbyUsing
of a method of measuring the spectral reflectance factors of
the CIE System
opaque gonioapparent materials, for a small number of sets of
E1164 PracticeforObtainingSpectrometricDataforObject-
geometric conditions.
Color Evaluation
1.2 Measurements to characterize the appearance of retrore-
E1767 Practice for Specifying the Geometries of Observa-
flective materials are of such a special nature that they are
tion and Measurement to Characterize the Appearance of
treated in other ASTM documents and are not included in the
Materials
scope of this standard.
3. Terminology
1.3 This standard does not purport to address all of the
3.1 Fordefinitionsofappearancetermsusedinthispractice,
safety concerns, if any, associated with its use. It is the
refer to Terminology E284.
responsibility of the user of this standard to establish appro-
priate safety and health practices and determine the applica-
4. Significance and Use
bility of regulatory limitations prior to use.
4.1 Thispracticeisfortheuseofmanufacturersandusersof
instruments to measure the appearance of gonioapparent
1
This practice is under the jurisdiction of ASTM Committee E12 on Color and
2
Appearance and is the direct responsibility of Subcommittee E12.03 on Geometry. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved Oct. 1, 2013. Published October 2013. Originally contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
approved in 2001. Last previous edition approved in 2008 as E2175 – 01 (2008). Standards volume information, refer to the standard’s Document Summary page on
DOI: 10.1520/E2175-01R13. the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
E2175−01 (2013)
materials, those writing standard specifications for such specular reflection by an ideal plane mirror at the sampling
instruments, and others who wish to specify precisely the aperture.Anglessubtendedattheoriginandmeasuredfromthe
geometric conditions of multiangle spectrophotometry. A specular direction are called“ aspecular angles” and are posi-
prominent example of industrial usage is the routine applica- tive in sign when measured in the direction toward the normal.
...
