Designation:F3169 −16
Standard Test Method for
Leak Detection in Blister Packaging by Vacuum Deflection
Method by Laser Measurement
This standard is issued under the fixed designation F3169; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 1.5 This standard does not purport to address all of the
safety concerns, if any, associated with its use. It is the
1.1 Test Packages—This test method can be applied to
responsibility of the user of this standard to establish appro-
non-porous blister packs sealed with flexible films such as
priate safety and health practices and determine the applica-
those used in pharmaceutical packaging. Such blister packs
bility of regulatory limitations prior to use.
typically consist of thermoformed polymer or cold formed
aluminum trays that contain a number of individual blister
2. Referenced Documents
pockets into which tablets or capsules are placed. The trays are
2.1 ASTM Standards:
then sealed with a polymer, paper-backed or foil-based flexible
D996 Terminology of Packaging and Distribution Environ-
laminate lidding material.
ments
1.2 Leaks Detected—This test method detects leaks in
F17 Terminology Relating to Flexible Barrier Packaging
blister packs by measuring the deflection of the blister pack
surfaceinresponsetoanappliedvacuum.Thisdeflectionofthe
3. Terminology
blister pack surface results from the difference in pressure
3.1 For definitions used in this test method, see Terminolo-
betweenthegasinsidetheblisterpackandtheappliedvacuum.
gies D996 and F17.
Air loss from within a blister pocket as a result of a leak will
3.2 Definitions of Terms Specific to This Standard:
alter this pressure differential causing a measureable variation
3.2.1 blister pack, n—forming material, encapsulated
in blister pocket deflection. This test method requires that the
product, and sealed lidding material.
blister packs are held in appropriate tooling inside a suitable
test chamber.
3.2.2 blister pocket, n—sealed cavity in the forming mate-
rial that contains product.
1.3 Test Results—Test results are reported qualitatively
(pass/fail). Appropriate acceptance criteria for deflection, 3.2.3 collapse, n—difference in height of the blister pocket
height, and collapse values are established by comparing
profile in one plane before and after the reduced vacuum has
non-leaking packs with those containing defects of a known been applied.
size. Suitably sized defects in the laminate, tray material, and
3.2.4 deflection, n—difference in height of the blister pocket
seal can be detected using this test method. The sensitivity of
profileinoneplanebeforeandaftertheinitialvacuumhasbeen
this test method depends upon a range of factors including
applied.
blister pocket headspace, blister pocket size, lidding material
3.2.5 height, n—difference in height of the blister pocket
type, lidding material thickness, lidding material tension,
profile in one plane after initial vacuum when compared
printing, surface texture, test conditions, and the values se-
against blister pack surface height.
lected for the pass/fail acceptance criteria. The ability of the
3.2.6 profile, n—surface of the lidding material measured at
testtodetect15µm,50µm,andcatastrophicsizedholesinfour
regular intervals across the blister pocket.
blister pack designs was demonstrated in a study.
1.4 The values stated in SI units are to be regarded as
4. Summary of Test Method
standard and no other units of measurement are included in this
4.1 The test blister packs are located in the test chamber in
test method.
appropriate tooling to prevent them from moving under
vacuum. The chamber is then sealed and the profile of every
This test method is under the jurisdiction ofASTM Committee F02 on Primary
Barrier Packaging and is the direct responsibility of Subcommittee F02.40 on For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Package Integrity. contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
Current edition approved Dec. 1, 2016. Published January 2017. DOI: 10.1520/ Standards volume information, refer to the standard’s Document Summary page on
F3169-16 the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F3169−16

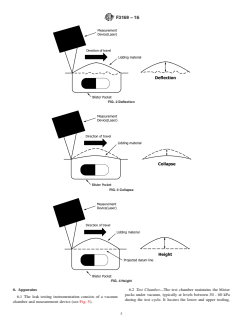

blister pocket is measured using an appropriate measurement by comparing the deflection and collapse values of good blister
device such as a laser and actuator (see Fig. 1). packs and those containing defects of the required size. Such
defectscanbeproducedbyusingawire,bylaserdrilling,orby
4.2 A vacuum is then applied to the test chamber and each
applying self-adhesive predrilled holes.
blister pocket measured again. Sealed blister pockets can be
identified by the change in measurement between the first and 4.6 Where blister pockets appear pre-swollen the flat sealed
surface of the blister pack is used to project a datum line across
second profiles. This is known as deflection and is caused by
the pressure difference between the air inside the blister pocket the blister pocket from which a change in height under vacuum
can be observed. If this height value is small or negative it can
and the air in the chamber caused by the application of vacuum
(see Fig. 2). be understood that the blister pocket has a gross hole, as the
blister pocket has not deflected due to vacuum or positive
4.3 The deflection of a blister pocket with a gross hole will
pressure before testing (see Fig. 4).
be minimal as the pressure difference between the air inside
4.7 Any blister pocket that falls outside the acceptance
and outside of the blister pocket will equalize through the hole.
criteria for deflection, collapse,or height is recorded as a fail.
4.4 The sensitivity of the test can be increased by holding
The ability of the test to detect 15 and 50 µm sized laser drilled
the test samples under vacuum for a period of time and then
holes was verified using four blister pack designs. This method
reducing the vacuum level. After reducing the vacuum, the
was also used to find large catastrophic defects demonstrated
surface profile of the blister pockets can be measured again and
witha5mm slit in the lidding material.
compared with the profiles recorded after the initial vacuum
4.8 Background noise may occur due to movement of the
was applied. Reducing the vacuum level causes blister pockets
blister pack under vacuum. Such noise can be minimized by
with small holes to have a collapse measurement greater than
selection of an appropriate measurement device, proper reten-
blister pockets with no defects. This is due to air leaking from
tion of the blister pack, and careful selection of pressures used
any small defects (see Fig. 3).
for testing.
4.5 The sensitivity of the test is a function of the test
parameters chosen, namely vacuum levels, hold time, and the
5. Significance and Use
pass/fail criteria selected. Blister pack design including head-
5.1 Leaks in blister packs may affect product quality and
space and blister pocket size, lidding material, lidding material
such defects can arise from imperfections in the packaging
thickness, lidding material tension, printing, and surface tex-
material or bond between the sealed surfaces.
ture can affect test sensitivity. The vacuum levels used are
5.2 This method of leak testing is a useful tool as it allows
typically in the range of 30 - 60 KPa and are chosen based on
non-destructive and non-subjective leak testing of blister
setup tests conducted using good blister packs and those
packs. It allows the operator to evaluate how different pack-
containing defects of known size. The required vacuum level
aging materials and packaging machine conditions affect the
depends upon the blister pack design and materials. For
integrity of the packaging. It can also provide indication of
example, detecting sub-15 µm defects in small blister pockets
unwanted changes in the packaging conditions.
sealed with a stiff lidding material typically requires vacuum
levels towards the higher end of the standard range. The 5.3 This type of testing is typically used in pharmaceutical
vacuum level is then reduced and the packs are rescanned after
packaging production, during stability trials and for package
a holding period (typically 10 - 45 s) at this reduced vacuum. research and development operations because of its non-
The test parameters, including the pass/fail criteria, are chosen
destructive nature, cleanliness, and speed.
FIG. 1Profile
F3169−16
FIG. 2Deflection
FIG. 3Collapse
FIG. 4Height
6. Apparatus 6.2 Test Chamber—The test chamber maintains the blister
packs under vacuum, typically at levels between 30 - 60 kPa
6.1 The leak testing instrumentation consists of a vacuum
during the test cycle. It locates the lower and upper tooling,
chamber and measurement device (see Fig. 5).
F3169−16
FIG. 5Leak Testing Instrumentation
allowing the measurement device to accurately pinpoint the 9. Calibr
...
