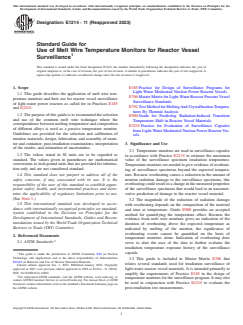

Designation: E1214 − 11 (Reapproved 2023)
Standard Guide for
Use of Melt Wire Temperature Monitors for Reactor Vessel
Surveillance
This standard is issued under the fixed designation E1214; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope E185Practice for Design of Surveillance Programs for
Light-Water Moderated Nuclear Power Reactor Vessels
1.1 This guide describes the application of melt wire tem-
E706MasterMatrixforLight-WaterReactorPressureVessel
perature monitors and their use for reactor vessel surveillance
Surveillance Standards
of light-water power reactors as called for in Practices E185
E794TestMethodforMeltingAndCrystallizationTempera-
and E2215.
tures By Thermal Analysis
1.2 Thepurposeofthisguideistorecommendtheselection
E900Guide for Predicting Radiation-Induced Transition
and use of the common melt wire technique where the
Temperature Shift in Reactor Vessel Materials
correspondence between melting temperature and composition
E2215Practice for Evaluation of Surveillance Capsules
of different alloys is used as a passive temperature monitor.
from Light-Water Moderated Nuclear Power ReactorVes-
Guidelines are provided for the selection and calibration of
sels
monitor materials; design, fabrication, and assembly of moni-
tor and container; post-irradiation examinations; interpretation
3. Significance and Use
of the results; and estimation of uncertainties.
3.1 Temperature monitors are used in surveillance capsules
1.3 The values stated in SI units are to be regarded as
in accordance with Practice E2215 to estimate the maximum
standard. The values given in parentheses are mathematical
value of the surveillance specimen irradiation temperature.
conversions to inch-pound units that are provided for informa-
Temperaturemonitorsareneededtogiveevidenceofoverheat-
tion only and are not considered standard.
ing of surveillance specimens beyond the expected tempera-
ture. Because overheating causes a reduction in the amount of
1.4 This standard does not purport to address all of the
neutron radiation damage to the surveillance specimens, this
safety concerns, if any, associated with its use. It is the
overheatingcouldresultinachangeinthemeasuredproperties
responsibility of the user of this standard to establish appro-
priate safety, health, and environmental practices and deter- of the surveillance specimens that would lead to an unconser-
vative prediction of damage to the reactor vessel material.
mine the applicability of regulatory limitations prior to use.
(See Note 1.)
3.2 The magnitude of the reduction of radiation damage
1.5 This international standard was developed in accor-
with overheating depends on the composition of the material
dance with internationally recognized principles on standard-
and time at temperature. Guide E900 provides an accepted
ization established in the Decision on Principles for the
method for quantifying the temperature effect. Because the
Development of International Standards, Guides and Recom-
evidence from melt wire monitors gives no indication of the
mendations issued by the World Trade Organization Technical
duration of overheating above the expected temperature as
Barriers to Trade (TBT) Committee.
indicated by melting of the monitor, the significance of
overheating events cannot be quantified on the basis of
2. Referenced Documents
temperature monitors alone. Indication of overheating does
2.1 ASTM Standards:
serve to alert the user of the data to further evaluate the
irradiation temperature exposure history of the surveillance
capsule.
This guide is under the jurisdiction of ASTM Committee E10 on Nuclear
Technology and Applications and is the direct responsibility of Subcommittee
3.3 This guide is included in Master Matrix E706 that
E10.02 on Behavior and Use of Nuclear Structural Materials.
relates several standards used for irradiation surveillance of
Current edition approved Jan. 1, 2023. Published January 2023. Originally
light-water reactor vessel materials. It is intended primarily to
approved in 1987. Last previous edition approved in 2018 as E1214–11 (2018).
DOI: 10.1520/E1214-11R23.
amplify the requirements of Practice E185 in the design of
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
temperaturemonitorsforthesurveillanceprogram.Itmayalso
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
be used in conjunction with Practice E2215 to evaluate the
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. post-irradiation test measurements.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
E1214 − 11 (2023)

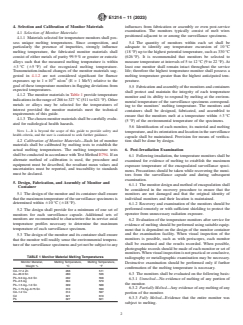

4. Selection and Calibration of Monitor Materials influences from fabrication or assembly or even post-service
examination. The monitors typically consist of melt wires
4.1 Selection of Monitor Materials:
positioned adjacent to or among the surveillance specimens.
4.1.1 Materials selected for temperature monitors shall pos-
sess unique melting temperatures. Since composition, and 5.4 The quantity of monitors within each set shall be
particularly the presence of impurities, strongly influence adequate to identify any temperature excursion of 10°C
melting temperature, the fabricated monitor materials shall (18°F) up to the highest potential temperature, such as 330°C
consist of either metals of purity 99.9% or greater or eutectic (626°F). It is recommended that monitors be selected to
alloys such that the measured melting temperature is within measure temperature at intervals of 5 to 12°C (9 to 22°F).At
63°C (65 °F) of the recognized melting temperature. least one monitor shall remain intact throughout the service
Transmutation-induced changes of the monitor materials sug- life; therefore the highest temperature monitor shall possess a
gested in 4.1.2 are not considered significant for fluence melting temperature greater than the highest anticipated tem-
20 2
exposures up to 1×10 n/cm (E > 1 MeV) relative to the perature.
goal of these temperature monitors in flagging deviations from
5.5 Fabricationandassemblyofthemonitorsandcontainers
expected temperatures.
shall protect and maintain the integrity of each temperature
4.1.2 The monitor materials in Table 1 provide temperature
monitor and its ability to respond by melting at the environ-
indicationsintherangeof266to327°C(511to621°F).Other
mental temperature of the surveillance specimens correspond-
metals or alloys may be selected for the temperatures of
ing to the monitors’ melting temperature. The monitors and
interest provided the monitor materials meet the technical
containers shall be designed, fabricated, and assembled to
requirements of this guide.
ensure that the monitors melt at a temperature within 63°C
4.1.3 Thechosenmonitormaterialsshallbecarefullyevalu-
(5°F) of the environmental temperature of the specimens.
ated for radiological health hazards.
5.6 Identification of each monitor, its material and melting
NOTE 1—It is beyond the scope of this guide to provide safety and
temperature,anditsorientationandlocationinthesurveillance
health criteria, and the user is cautioned to seek further guidance.
capsule shall be maintained. Provision for means of verifica-
4.2 Calibration of Monitor Materials—Each lot of monitor
tion shall be done by des
...
