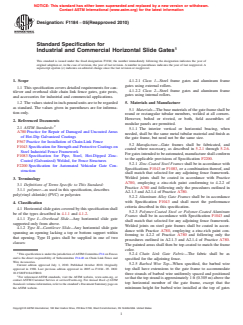

Designation:F1184 −05(Reapproved 2010)
Standard Specification for
Industrial and Commercial Horizontal Slide Gates
This standard is issued under the fixed designation F1184; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 4.1.2.1 Class 1—Steel frame gates and aluminum frame
gates using external rollers.
1.1 This specification covers detailed requirements for can-
4.1.2.2 Class 2—Steel frame gates and aluminum frame
tilever and overhead slide chain link fence gates, gate posts,
gates using internal rollers.
and accessories for industrial and commercial applications.
5. Materials and Manufacture
1.2 The values stated in inch-pound units are to be regarded
as standard. The values given in parentheses are for informa-
5.1 Materials—Thebasematerialsofthegateframeshallbe
tion only.
round or rectangular tubular members, welded at all corners.
However, bolted or riveted, or both, field assemblies of
2. Referenced Documents
modular panels are permitted.
2.1 ASTM Standards:
5.1.1 The interior vertical or horizontal bracing, when
A780 Practice for Repair of Damaged and Uncoated Areas
needed, shall be the same metal tubular material and finish as
of Hot-Dip Galvanized Coatings
the gate frame, but need not be the same size.
F567 Practice for Installation of Chain-Link Fence
5.2 Manufacture—Gate frames shall be fabricated, and
F1043 Specification for Strength and Protective Coatings on
coated where necessary, as described in 5.2.1 through 5.2.6.
Steel Industrial Fence Framework
For gates intended to be automated, manufacture shall conform
F1083 Specification for Pipe, Steel, Hot-Dipped Zinc-
to the applicable provisions of Specification F2200.
Coated (Galvanized) Welded, for Fence Structures
5.2.1 Zinc-Coated Steel Frames shall be in accordance with
F2200 Specification for Automated Vehicular Gate Con-
Specifications F1043 or F1083, or a combination thereof, and
struction
shall match that selected for any adjoining fence framework.
Welded joints shall be coated in accordance with Practice
3. Terminology
A780, employing a zinc-rich paint conforming to 4.2.2 of
3.1 Definitions of Terms Specific to This Standard:
Practice A780 and following only the procedures outlined in
3.1.1 polymer—as used in this specification, describes
A2.1.3 and A2.1.4 of Practice A780.
poly(vinyl chloride) (PVC) or polyester.
5.2.2 Aluminum Alloy Gate Frames shall be in accordance
with Specification F1043 and shall meet the performance
4. Classification
criteria described in this specification.
4.1 Horizontal slide gates covered by this specification shall
5.2.3 Polymer-Coated Steel or Polymer-Coated Aluminum
be of the types described in 4.1.1 and 4.1.2.
Frames shall be in accordance with Specification F1043 and
4.1.1 Type I—Overhead Slide—Any horizontal slide gate
shall match that selected for any adjoining fence framework.
supported only from above.
Welded joints on steel gate frames shall be coated in accor-
4.1.2 Type II—Cantilever Slide—Any horizontal slide gate
dance with Practice A780, employing a zinc-rich paint con-
spanning an opening lacking a top or bottom support within
forming to 4.2.2 of Practice A780 and following only the
that opening. Type II gates shall be supplied in one of two
procedures outlined in A2.1.3 and A2.1.4 of Practice A780.
classes:
The painted areas shall then be top-coated to match the frame
color.
This specification is under the jurisdiction ofASTM Committee F14 on Fences
5.2.4 Chain Link Gate Fabric—The fabric shall be as
and is the direct responsibility of Subcommittee F14.40 on Chain Link Fence and
specified for the adjoining fence.
Wire Accessories.
5.2.5 Barbed Wire Top—When specified, the barbed wire
Current edition approved July 1, 2010. Published October 2010. Originally
top shall have extensions to the gate frame to accommodate
approved in 1988. Last previous edition approved in 2005 as F1184 - 05. DOI:
10.1520/F1184-05R10.
three strands of barbed wire uniformly spaced and positioned
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
so that the top strand is approximately 1 ft (0.305 m) above the
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
top horizontal member of the gate frame, except that the
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. minimum height for barbed wire installed at the top of gates
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F1184−05 (2010)

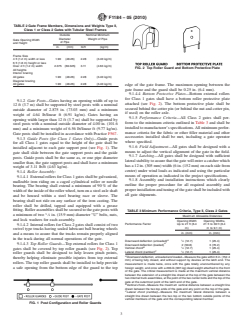

TABLE 1 Type I Gates—Gate Frame Members, Dimensions and
intended to be automated shall be in accordance with Specifi-
Weights
cation F2200. Barbed wire shall be attached by suitable means
A
Outside Dimensions Nominal Weight
to prevent wire from moving out of position and shall be
Gate Fabric Weight
in. (mm) lb/ft (kg/m)
supported by the gate frame extensions at maximum intervals
6ft(1.8m)orless
of 10 ft (3.05 m).
Round tubular (steel) 1.66 (42.2) 1.83 (2.72)
Rectangular tubular (steel) 1.50 (38.1) 1.84 (2.74)
5.2.6 Barbed Tape—The minimum height for barbed tape
Round tubular (aluminum) 1.90 (48.3) 0.91 (1.35)
installed at the top of gates intended to be automated shall be
Rectangular tubular (aluminum) 2.00 (50.8) 0.91 (1.35)
in accordance with Specification F2200. Over 6 ft (1.8 m)
Round tubular (steel) 1.90 (48.3) 2.28 (3.39)
Rectangular tubular (steel) 2.00 (50.8) 2.52 (3.75)
6. Dimensions
Round tubular (aluminum) 1.90 (48.3) 0.91 (1.35)
Rectangular tubular (aluminum) 2.00 (50.8) 0.91 (1.35)
6.1 Width of gate opening shall be measured from one
B
Interior bracing
inside face to the other inside face of the gate posts.
Round pipe (steel) 1.66 (42.2) 1.83 (3.39)
Rectangular pipe (steel) 1.50 (38.1) 1.84 (2.74)
6.2 Heightofgateshallbemeasuredfromthefinishedgrade
Round tubular (aluminum) 1.90 (48.3) 0.91 (1.35)
linetothetopedgeofthegateframe,tomatchtheheightofthe
Rectangular tubular (aluminum) 2.00 (50.8) 0.91 (1.35)
adjoining fence as measured from the finished grade line to the
A
Weight tolerance, ±5 %.
top edge of the top rail or fabric. B
The gate shall have vertical interior bracing at maximum intervals of 8 ft (2.4 m),
and shall have a horizontal interior member if fabric height is 8 ft (2.4 m) or more.
7. Gate Accessories
7.1 All gate hardware shall be of sufficient strength and
length will be permitted. Gate posts shall be installed in
durability to support the gate and repeated open-close cycles.
accordance with Practice F567.
7.2 In addition, latches shall have a provision for locking
8.1.5 Gate Support Member—The overhead track support
devices.
member shall be as indicated in the project specifications. The
support member shall extend over the gate opening span and
8. Additional Specifications for Type I Gates
the adjacent span at the specified ground clearance. The
8.1 The specifications given in 8.1.1 through 8.1.7 shall
support member shall be of adequate length to ensure a clear
apply only to Type I (overhead slide) gates with opening
opening. The track and member shall have proper corrosion
widths up to 40 ft (12.2 m).
protection.
8.1.1 Materials and Manufacture—Inadditiontothewelded
8.1.6 Roller Assembly—The gate shall be suspended from
construction specified in 5.1, the gate frame may be alterna-
the overhead track member by means of suitable internal or
tively assembled with corner fittings. Gates assembled with
external roller assemblies.These roller assemblies shall consist
corner fittings shall have adjustable truss rods of ⁄16 in. (7.9
of at least two swivel type trucks having sealed lubricant ball
mm) minimum diameter on panels 5 ft (1.52 m) wide or wider.
bearing wheels, or roller bearing wheels with grease fittings,
Trussrodsshallbeofthesamebasemetalandfinishasthegate
and include a means to assure that the trucks remain properly
frame.
aligned in or on the track during all normal operations of the
8.1.2 Shape and Size—Shape and size of the gate frame
gate.
shall conform to procurement drawings or shall be of the shape
8.1.7 Gate Extensions—Gate extensions, which consist of
and size as specified. The gate frame width shall be the width
vertical members which span the distance between the top of
of the gate opening plus the diameter of one gate post.
the gate and the overhead track, shall be attached to the gate
8.1.3 Dimension and Weight—Gate frame members shall
frame by means of a threaded or bolted coupling, or a
have dimensions and weights as described in Table 1.
combination of both.
8.1.4 Gate Posts—Gates having an opening width of up to
8.1.8 Gate Extension Bracing—Suitable diagonal or hori-
10 ft (3.05 m) a
...
