ASTM D5801-24
(Test Method)Standard Test Method for Toughness and Tenacity of Asphalt Materials
Standard Test Method for Toughness and Tenacity of Asphalt Materials
SIGNIFICANCE AND USE
4.1 This test method is useful in confirming that an asphalt cement has been modified with a material that provides a significant elastomeric component. Elastomer-modified asphalts can be characterized by their ability to be stretched to a large elongation while at the same time resisting further stretching. Toughness and tenacity are two parameters for measuring this ability.
Note 1: The quality of the results produced by this standard are dependent on the competence of the personnel performing the procedure and the capability, calibration, and maintenance of the equipment used. Agencies that meet the criteria of Specification D3666 are generally considered capable of competent and objective testing, sampling, inspection, etc. Users of this standard are cautioned that compliance with Specification D3666 alone does not completely ensure reliable results. Reliable results depend on many factors; following the suggestions of Specification D3666 or some similar acceptable guideline provides a means of evaluating and controlling some of those factors.
SCOPE
1.1 This test method describes the procedure for measuring the toughness and tenacity of asphalt materials. Typically, the test method has been used to characterize elastomer-modified asphalts, although values for toughness and tenacity may be obtained for any type of polymer-modified or non-modified asphalt.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.2.1 Exception—Sample mass is given only in SI units. Sample mass as given in SI units should be regarded as standard. No other units of sample mass are included in this standard.
1.3 Warning—Mercury has been designated by the United States Environmental Protection Agency and many state agencies as a hazardous material that can cause central nervous system, kidney, and liver damage. Mercury, or its vapor, may be hazardous to health and corrosive to materials. Caution should be taken when handling mercury and mercury-containing products. See the applicable Material Safety Data Sheet (MSDS) for details and EPA’s website—http://www.epa.gov/mercury/index.htm—for additional information. Users should be aware that selling mercury and/or mercury-containing products in your state may be prohibited by state law.
1.4 The text of this standard references notes and footnotes which provide explanatory material. These notes and footnotes (excluding those in tables and figures) shall not be considered as requirements of the standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

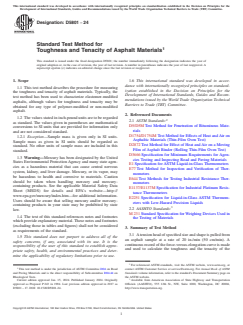

Designation: D5801 − 24
Standard Test Method for
1
Toughness and Tenacity of Asphalt Materials
This standard is issued under the fixed designation D5801; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 1.6 This international standard was developed in accor-
dance with internationally recognized principles on standard-
1.1 This test method describes the procedure for measuring
ization established in the Decision on Principles for the
the toughness and tenacity of asphalt materials. Typically, the
Development of International Standards, Guides and Recom-
test method has been used to characterize elastomer-modified
mendations issued by the World Trade Organization Technical
asphalts, although values for toughness and tenacity may be
Barriers to Trade (TBT) Committee.
obtained for any type of polymer-modified or non-modified
asphalt.
2. Referenced Documents
1.2 The values stated in inch-pound units are to be regarded
2
2.1 ASTM Standards:
as standard. The values given in parentheses are mathematical
D5/D5M Test Method for Penetration of Bituminous Mate-
conversions to SI units that are provided for information only
rials
and are not considered standard.
D1754/D1754M Test Method for Effects of Heat and Air on
1.2.1 Exception—Sample mass is given only in SI units.
Asphaltic Materials (Thin-Film Oven Test)
Sample mass as given in SI units should be regarded as
D2872 Test Method for Effect of Heat and Air on a Moving
standard. No other units of sample mass are included in this
Film of Asphalt Binder (Rolling Thin-Film Oven Test)
standard.
D3666 Specification for Minimum Requirements for Agen-
1.3 Warning—Mercury has been designated by the United
cies Testing and Inspecting Road and Paving Materials
States Environmental Protection Agency and many state agen-
E1 Specification for ASTM Liquid-in-Glass Thermometers
cies as a hazardous material that can cause central nervous
E77 Test Method for Inspection and Verification of Ther-
system, kidney, and liver damage. Mercury, or its vapor, may
mometers
be hazardous to health and corrosive to materials. Caution
E644 Test Methods for Testing Industrial Resistance Ther-
should be taken when handling mercury and mercury-
mometers
containing products. See the applicable Material Safety Data
E1137/E1137M Specification for Industrial Platinum Resis-
Sheet (MSDS) for details and EPA’s website—http://
tance Thermometers
www.epa.gov/mercury/index.htm—for additional information.
E2251 Specification for Liquid-in-Glass ASTM Thermom-
Users should be aware that selling mercury and/or mercury-
eters with Low-Hazard Precision Liquids
containing products in your state may be prohibited by state
3
2.2 AASHTO Standards:
law.
M 231 Standard Specification for Weighing Devices Used in
1.4 The text of this standard references notes and footnotes
the Testing of Materials
which provide explanatory material. These notes and footnotes
(excluding those in tables and figures) shall not be considered
3. Summary of Test Method
as requirements of the standard.

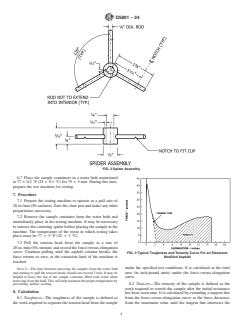

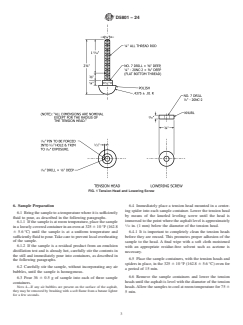

3.1 A tension head of specified size and shape is pulled from
1.5 This standard does not purport to address all of the
an asphalt sample at a rate of 20 in./min (50 cm/min). A
safety concerns, if any, associated with its use. It is the
continuous record of the force-versus-elongation curve is made
responsibility of the user of this standard to establish appro-
and used to calculate the toughness and the tenacity of the
priate safety, health, and environmental practices and deter-
mine the applicability of regulatory limitations prior to use.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
1
This test method is under the jurisdiction of ASTM Committee D04 on Road contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
and Paving Materials and is the direct responsibility of Subcommittee D04.44 on Standards volume information, refer to the standard’s Document Summary page on
Rheological Tests. the ASTM website.
3
Current edition approved Jan. 15, 2024. Published January 2024. Originally Available from American Association of State Highway and Transportation
approved as Proposal P 243 in 1994. Last previous edition approved in 2017 as Officials (AASHTO), 555 12th St., NW, Suite 1000, Washington, DC 20004,
D5801 – 17. DOI: 10.1520/D5801-24. http://www.transportation.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Cons
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

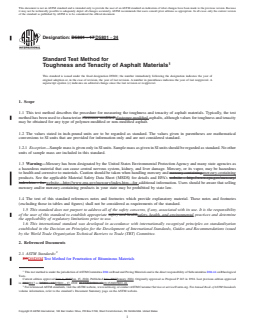

Designation: D5801 − 17 D5801 − 24
Standard Test Method for
1
Toughness and Tenacity of Asphalt Materials
This standard is issued under the fixed designation D5801; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This test method describes the procedure for measuring the toughness and tenacity of asphalt materials. Typically, the test
method has been used to characterize elastomer modified elastomer-modified asphalts, although values for toughness and tenacity
may be obtained for any type of polymer-modified or non-modified asphalt.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.2.1 Exception—Sample mass is given only in SI units. Sample mass as given in SI units should be regarded as standard. No other
units of sample mass are included in this standard.
1.3 Warning—Mercury has been designated by the United States Environmental Protection Agency and many state agencies as
a hazardous material that can cause central nervous system, kidney, and liver damage. Mercury, or its vapor, may be hazardous
to health and corrosive to materials. Caution should be taken when handling mercury and mercury containing mercury-containing
products. See the applicable Material Safety Data Sheet (MSDS) for details and EPA’s website – http://www.epa.gov/mercury/
index.htm – for website—http://www.epa.gov/mercury/index.htm—for additional information. Users should be aware that selling
mercury and/or mercury-containing products in your state may be prohibited by state law.
1.4 The text of this standard references notes and footnotes which provide explanatory material. These notes and footnotes
(excluding those in tables and figures) shall not be considered as requirements of the standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and healthsafety, health, and environmental practices and determine
the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
D5D5/D5M Test Method for Penetration of Bituminous Materials
1
This test method is under the jurisdiction of ASTM Committee D04 on Road and Paving Materials and is the direct responsibility of Subcommittee D04.44 on Rheological
Tests.
Current edition approved June 1, 2017Jan. 15, 2024. Published June 2017January 2024. Originally approved as Proposal P 243 in 1994. Last previous edition approved
in 20122017 as D5801 – 12.D5801 – 17. DOI: 10.1520/D5801-17.10.1520/D5801-24.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------
D5801 − 24
D1754D1754/D1754M Test Method for Effects of Heat and Air on Asphaltic Materials (Thin-Film Oven Test)
D2872 Test Method for Effect of Heat and Air on a Moving Film of Asphalt Binder (Rolling Thin-Film Oven Test)
D3666 Specification for Minimum Requirements for Agencies Testing and Inspecting Road and Paving Materials
E1 Specification for ASTM Liquid-in-Glass Thermometers
E77 Test Method for Inspection and Verification of Thermometers
E644 Test Methods for Testing Industrial Resistance Thermometers
E1137/E1137M Specification for Industrial Platinum Resistance Thermometers
E2251 Specification for Liquid-in-Glass ASTM Thermometers with Low-Hazard Precision Liquids
3
2.2 AASHTO Standards:
M 231 Standard Specification for Weighing Devices Used in the Testing of Materials
3. Summary of Test Method

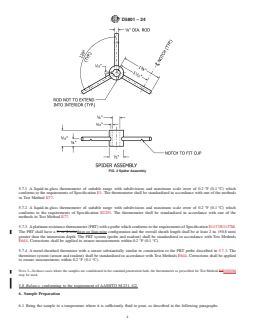

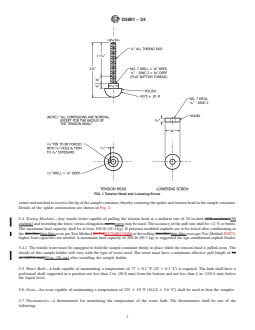

3.1 A tension head of specified siz
...
