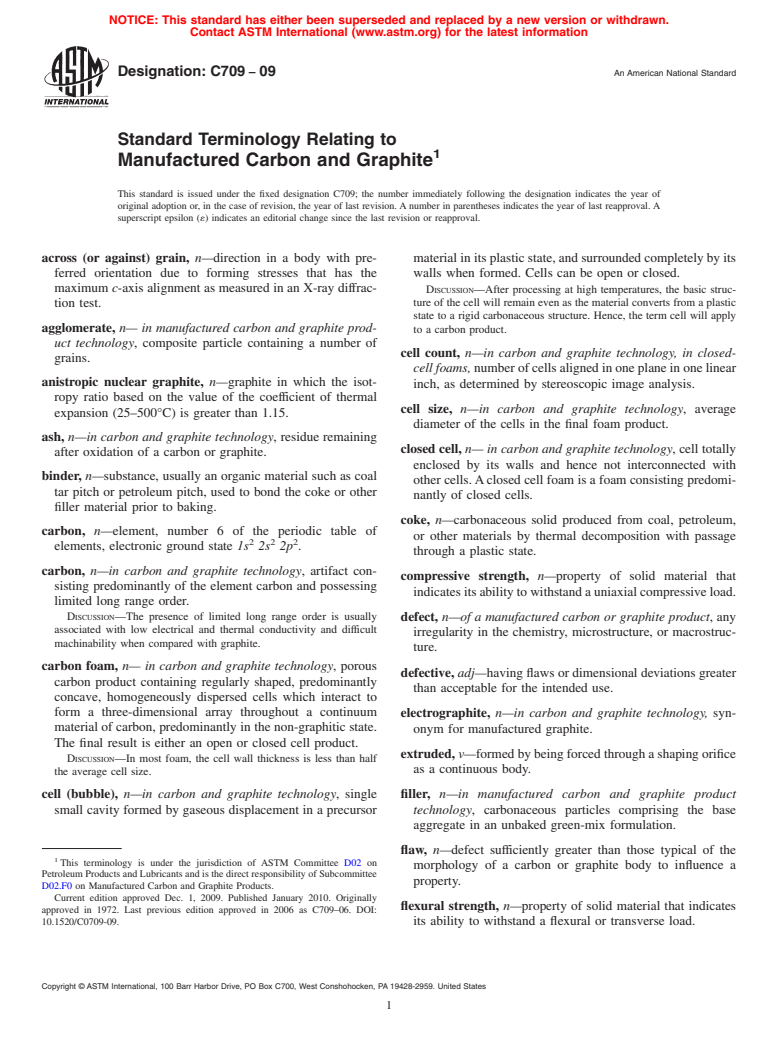

Designation: C709 − 09 An American National Standard
Standard Terminology Relating to
1
Manufactured Carbon and Graphite
This standard is issued under the fixed designation C709; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
across (or against) grain, n—direction in a body with pre- materialinitsplasticstate,andsurroundedcompletelybyits
ferred orientation due to forming stresses that has the walls when formed. Cells can be open or closed.
maximum c-axis alignment as measured in an X-ray diffrac- DISCUSSION—After processing at high temperatures, the basic struc-
ture of the cell will remain even as the material converts from a plastic
tion test.
state to a rigid carbonaceous structure. Hence, the term cell will apply
agglomerate, n— in manufactured carbon and graphite prod- to a carbon product.
uct technology, composite particle containing a number of
cell count, n—in carbon and graphite technology, in closed-
grains.
cell foams,numberofcellsalignedinoneplaneinonelinear
anistropic nuclear graphite, n—graphite in which the isot-
inch, as determined by stereoscopic image analysis.
ropy ratio based on the value of the coefficient of thermal
cell size, n—in carbon and graphite technology, average
expansion (25–500°C) is greater than 1.15.
diameter of the cells in the final foam product.
ash, n—in carbon and graphite technology, residue remaining
closed cell, n— in carbon and graphite technology, cell totally
after oxidation of a carbon or graphite.
enclosed by its walls and hence not interconnected with
binder, n—substance, usually an organic material such as coal
other cells.Aclosed cell foam is a foam consisting predomi-
tar pitch or petroleum pitch, used to bond the coke or other
nantly of closed cells.
filler material prior to baking.
coke, n—carbonaceous solid produced from coal, petroleum,
carbon, n—element, number 6 of the periodic table of
or other materials by thermal decomposition with passage
2 2 2
elements, electronic ground state 1s 2s 2p .
through a plastic state.
carbon, n—in carbon and graphite technology, artifact con-
compressive strength, n—property of solid material that
sisting predominantly of the element carbon and possessing
indicatesitsabilitytowithstandauniaxialcompressiveload.
limited long range order.
DISCUSSION—The presence of limited long range order is usually
defect, n—of a manufactured carbon or graphite product, any
associated with low electrical and thermal conductivity and difficult
irregularity in the chemistry, microstructure, or macrostruc-
machinability when compared with graphite.
ture.
carbon foam, n— in carbon and graphite technology, porous
defective, adj—having flaws or dimensional deviations greater
carbon product containing regularly shaped, predominantly
than acceptable for the intended use.
concave, homogeneously dispersed cells which interact to
form a three-dimensional array throughout a continuum
electrographite, n—in carbon and graphite technology, syn-
material of carbon, predominantly in the non-graphitic state. onym for manufactured graphite.
The final result is either an open or closed cell product.
extruded, v—formedbybeingforcedthroughashapingorifice
DISCUSSION—In most foam, the cell wall thickness is less than half
as a continuous body.
the average cell size.
cell (bubble), n—in carbon and graphite technology, single filler, n—in manufactured carbon and graphite product
small cavity formed by gaseous displacement in a precursor technology, carbonaceous particles comprising the base
aggregate in an unbaked green-mix formulation.
flaw, n—defect sufficiently greater than those typical of the
1
This terminology is under the jurisdiction of ASTM Committee D02 on
morphology of a carbon or graphite body to influence a
Petroleum Products and Lubricants and is the direct responsibility of Subcommittee
property.
D02.F0 on Manufactured Carbon and Graphite Products.
Current edition approved Dec. 1, 2009. Published January 2010. Originally
flexural strength, n—property of solid material that indicates
approved in 1972. Last previous edition approved in 2006 as C709–06. DOI:
10.1520/C0709-09. its ability to withstand a flexural or transverse load.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
C709 − 09
flow line, n—defect induced by discontinuous flow velocities material of carbon, predominantly in the graphitic state.The
during forming of molded or extruded bodies. final result is either an open or closed cell product.
DISCUSSION—In most foam,
...
