ASTM F3576-22

(Practice)

Standard Practice for Recording the Exoskeleton Test Configuration

Standard Practice for Recording the Exoskeleton Test Configuration

SIGNIFICANCE AND USE
5.1 The significance of the information to be recorded in a test report allows for exoskeleton safety and performance to be contextualized with the exoskeleton configuration. Exoskeleton tests can also be replicated across similar or different exoskeletons by using this practice to record the exoskeleton test configuration in a standardized way.
5.2 Limitations of the practice are that not all exoskeletons have the same capabilities or configuration parameters. For example, for capabilities, an exoskeleton that moves the legs with electromyography during rehabilitation may behave differently in repeated use over time or within different gait courses (for example, straight or curved). For configuration, an exoskeleton that moves the legs with electromyography during rehabilitation may have varying signal gain/amplification settings.
SCOPE
1.1 This practice describes a means to record the exoskeleton configuration when testing. This practice provides a method for recording exoskeleton hardware and software control parameters.
1.2 This practice: contextualizes the exoskeleton configuration during a test, including the identification and adjustment of main configuration parameters and the addition of other equipment (for example, cameras, markers) used during tests; provides a basis for comparison of the test circumstances across different exoskeletons or tests, or both (for example, varying power or spring settings, prior exoskeleton use, maximum control settings); and allows a test to be recreated.
1.3 The values stated in SI units are to be regarded as the standard. The values given in parentheses are not precise mathematical conversions to imperial units. They are close approximate equivalents for the purpose of specifying exoskeleton characteristics while maintaining repeatability and reproducibility of the test method results. These values given in parentheses are provided for information only and are not considered standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

Status
Published
Publication Date
30-Nov-2022
ICS
11.180.10 - Aids and adaptation for moving
25.040.30 - Industrial robots. Manipulators
Technical Committee
F48 - Exoskeletons and Exosuits
Drafting Committee
F48.03 - Task Performance and Environmental Considerations
Current Stage
Ref Project

Buy Standard

ASTM F3576-22 - Standard Practice for Recording the Exoskeleton Test ConfigurationASTM F3576-22 - Standard Practice for Recording the Exoskeleton Test Configuration
PreviousNext
Standard
ASTM F3576-22 - Standard Practice for Recording the Exoskeleton Test Configuration
English language
10 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

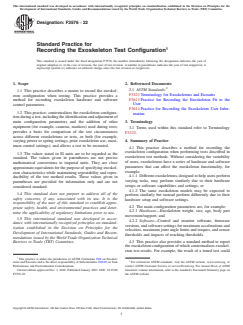

Designation: F3576 −22
Standard Practice for
1
Recording the Exoskeleton Test Configuration
This standard is issued under the fixed designation F3576; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2. Referenced Documents
2
2.1 ASTM Standards:
1.1 This practice describes a means to record the exoskel-
F3323 Terminology for Exoskeletons and Exosuits
eton configuration when testing. This practice provides a
F3613 Practice for Recording the Exoskeleton Fit to the
method for recording exoskeleton hardware and software
User
control parameters.
F3614 Practice for Recording the Exoskeleton User Infor-
1.2 This practice: contextualizes the exoskeleton configura-
mation
tionduringatest,includingtheidentificationandadjustmentof
3. Terminology
main configuration parameters and the addition of other
equipment (for example, cameras, markers) used during tests;
3.1 Terms used within this standard refer to Terminology
provides a basis for comparison of the test circumstances
F3323.
across different exoskeletons or tests, or both (for example,
varying power or spring settings, prior exoskeleton use, maxi- 4. Summary of Practice
mum control settings); and allows a test to be recreated.
4.1 This practice describes a method for recording the
exoskeleton configuration when performing tests described in
1.3 The values stated in SI units are to be regarded as the
exoskeleton test methods. Without considering the variability
standard. The values given in parentheses are not precise
of users, exoskeletons have a series of hardware and software
mathematical conversions to imperial units. They are close
parameters that can affect the exoskeleton functionality, for
approximate equivalents for the purpose of specifying exoskel-
example:
eton characteristics while maintaining repeatability and repro-
4.1.1 Differentexoskeletons,designedtohelpusersperform
ducibility of the test method results. These values given in
varying tasks, may perform similarly due to their hardware
parentheses are provided for information only and are not
setups or software capabilities and settings; or
considered standard.
4.1.2 The same exoskeleton models may be expected to
1.4 This standard does not purport to address all of the
perform similarly but instead perform differently due to their
safety concerns, if any, associated with its use. It is the
hardware setup and software settings.
responsibility of the user of this standard to establish appro-
4.2 The main configuration parameters are, for example:
priate safety, health, and environmental practices and deter-
4.2.1 Hardware—Exoskeleton weight, size, age, body part
mine the applicability of regulatory limitations prior to use.
movement/support; and
1.5 This international standard was developed in accor-
4.2.2 Software—Control and monitor software, firmware
dance with internationally recognized principles on standard-
versions, and software settings for maximum accelerations and
ization established in the Decision on Principles for the
velocities, maximum joint angle limits and torques, and sensor
Development of International Standards, Guides and Recom-
thresholds and impacts of reaching thresholds.
mendations issued by the World Trade Organization Technical
4.3 This practice also provides a standard method to report
Barriers to Trade (TBT) Committee.
the exoskeleton configuration of which contextualizes exoskel-
eton test results. For example, the result of a timed test could
1
This practice is under the jurisdiction of ASTM Committee F48 on Exoskel-
2
etons and Exosuits and is the direct responsibility of Subcommittee F48.03 on Task For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Performance and Environmental Considerations. contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Current edition approved Dec. 1, 2022. Published January 2023. DOI: 10.1520/ Standards volume information, refer to the standard’s Document Summary page on
F3576-22. the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

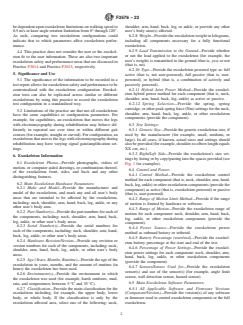

F3576 − 22
bedependentuponexoskeletonlimitationsonwalkingspeedto shoulder, arm, hand, back, leg, or ankle, or provide any other
0.5 m/s or knee angle rotation limitation from 0° through 120°. user’s body area(s) affected.
As such, comparing two exoskeleton configuratio
...
