ASTM A867-03(2013)

(Specification)

Standard Specification for Iron-Silicon Relay Steels

Standard Specification for Iron-Silicon Relay Steels

ABSTRACT
This specification covers wrought iron-silicon (Fe-Si) steels that are generally used in the manufacture of electromechanical devices, such as relays and solenoids, requiring higher electrical resistivity, higher permeability, and lower coercivity and residual magnetism than provided by either carbon steels or soft magnetic low-carbon irons. The steels covered in this specification are Steel type2 1, 1F, 2, 2F, 3. This specification covers steels in the form and condition required for fabrication into parts. The chemical composition requirements shall conform in carbon, manganese, silicon, phosphorus, sulfur, aluminum, and iron. Available forms and conditions are forging billet, hot-rolled product, cold-finished bars, strip, and wire. The material shall undergo heat treatment before performing conventional dc magnetic testing and shall conform to the required coercive force and coercive field strength.
SCOPE
1.1 This specification covers wrought iron-silicon (Fe-Si) steels that are generally used in the manufacture of electromechanical devices, such as relays and solenoids, requiring higher electrical resistivity, higher permeability, and lower coercivity and residual magnetism than provided by either carbon steels or soft magnetic low-carbon irons. The steels covered in this specification are:
Steel Type
Nominal Composition
1
1.1 % Si-Fe
1F
1.1 % Si-Fe free machining
2
2.3 % Si-Fe
2F
2.3 % Si-Fe free machining
3
4.0 % Si-Fe
1.2 This specification covers steels in the form and condition required for fabrication into parts. The fabricated parts typically require a final heat treatment to obtain the desired magnetic performance. The term mill annealed as used in this specification applies to a heat treatment, typically applied by the producer, intended to improve formability. The mill anneal does not provide the optimum magnetic performance and is not intended to replace the need for the finish annealing of parts.
1.3 This specification covers steels in the form of forging billets, hot-rolled bar and strip, cold-finished bar, wire, and cold-rolled strip in thicknesses up to 0.250 in. (6.35 mm).
1.4 This specification does not cover electrical sheet steels used in transformer and motor laminations.
1.5 This specification does not cover powder metallurgy materials capable of being processed into magnetic core components having similar silicon contents.
1.6 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.

General Information

Status
Historical
Publication Date
30-Apr-2013
ICS
77.140.50 - Flat steel products and semi-products
Technical Committee
A06 - Magnetic Properties
Drafting Committee
A06.02 - Material Specifications
Current Stage
Ref Project

Relations

Replaces
ASTM A867-03(2008) - Standard Specification for Iron-Silicon Relay Steels
Effective Date
01-May-2013

Buy Standard

ASTM A867-03(2013) - Standard Specification for Iron-Silicon Relay SteelsASTM A867-03(2013) - Standard Specification for Iron-Silicon Relay Steels
PreviousNext
Technical specification
ASTM A867-03(2013) - Standard Specification for Iron-Silicon Relay Steels
English language
4 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

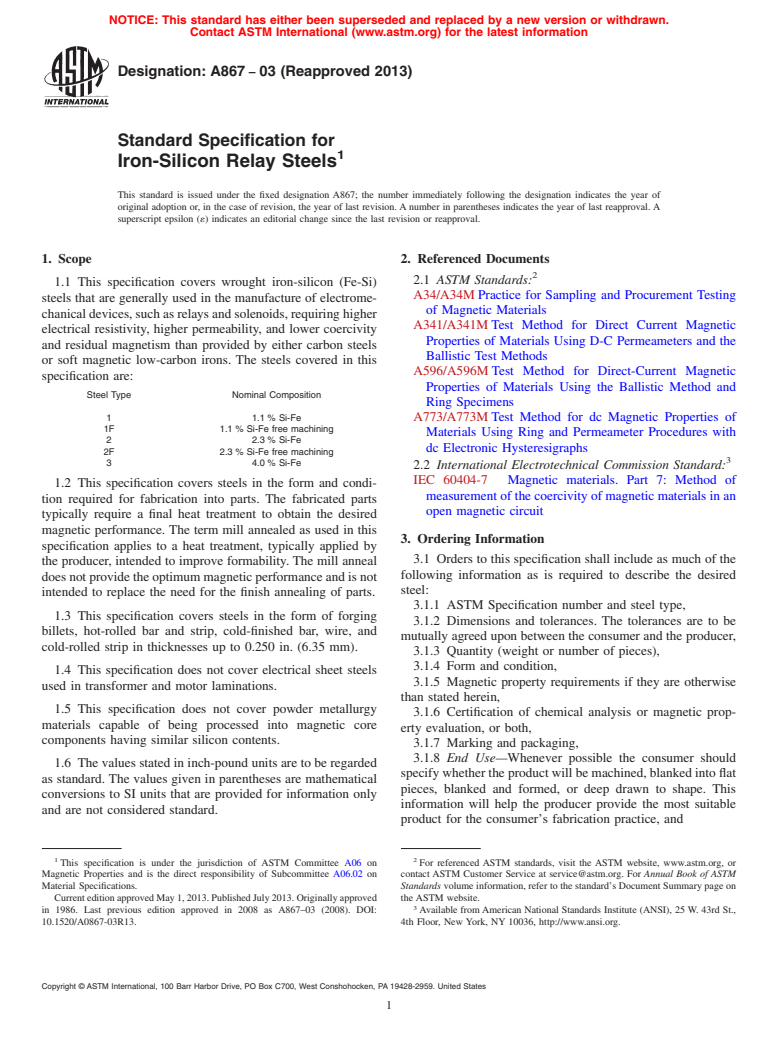

Designation:A867 −03 (Reapproved 2013)
Standard Specification for
1
Iron-Silicon Relay Steels
This standard is issued under the fixed designation A867; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2. Referenced Documents
2
2.1 ASTM Standards:
1.1 This specification covers wrought iron-silicon (Fe-Si)
A34/A34MPractice for Sampling and Procurement Testing
steels that are generally used in the manufacture of electrome-
of Magnetic Materials
chanicaldevices,suchasrelaysandsolenoids,requiringhigher
A341/A341MTest Method for Direct Current Magnetic
electrical resistivity, higher permeability, and lower coercivity
Properties of Materials Using D-C Permeameters and the
and residual magnetism than provided by either carbon steels
Ballistic Test Methods
or soft magnetic low-carbon irons. The steels covered in this
A596/A596MTest Method for Direct-Current Magnetic
specification are:
Properties of Materials Using the Ballistic Method and
Steel Type Nominal Composition
Ring Specimens
1 1.1 % Si-Fe
A773/A773MTest Method for dc Magnetic Properties of
1F 1.1 % Si-Fe free machining
Materials Using Ring and Permeameter Procedures with
2 2.3 % Si-Fe
dc Electronic Hysteresigraphs
2F 2.3 % Si-Fe free machining
3
3 4.0 % Si-Fe
2.2 International Electrotechnical Commission Standard:
IEC 60404-7 Magnetic materials. Part 7: Method of
1.2 This specification covers steels in the form and condi-
measurementofthecoercivityofmagneticmaterialsinan
tion required for fabrication into parts. The fabricated parts
open magnetic circuit
typically require a final heat treatment to obtain the desired
magnetic performance. The term mill annealed as used in this
3. Ordering Information
specification applies to a heat treatment, typically applied by
3.1 Orders to this specification shall include as much of the
the producer, intended to improve formability.The mill anneal
following information as is required to describe the desired
doesnotprovidetheoptimummagneticperformanceandisnot
steel:
intended to replace the need for the finish annealing of parts.
3.1.1 ASTM Specification number and steel type,
1.3 This specification covers steels in the form of forging
3.1.2 Dimensions and tolerances. The tolerances are to be
billets, hot-rolled bar and strip, cold-finished bar, wire, and
mutuallyagreeduponbetweentheconsumerandtheproducer,
cold-rolled strip in thicknesses up to 0.250 in. (6.35 mm).
3.1.3 Quantity (weight or number of pieces),
3.1.4 Form and condition,
1.4 This specification does not cover electrical sheet steels
3.1.5 Magnetic property requirements if they are otherwise
used in transformer and motor laminations.
than stated herein,
1.5 This specification does not cover powder metallurgy
3.1.6 Certification of chemical analysis or magnetic prop-
materials capable of being processed into magnetic core
erty evaluation, or both,
components having similar silicon contents.
3.1.7 Marking and packaging,
3.1.8 End Use—Whenever possible the consumer should
1.6 Thevaluesstatedininch-poundunitsaretoberegarded
specifywhethertheproductwillbemachined,blankedintoflat
as standard. The values given in parentheses are mathematical
pieces, blanked and formed, or deep drawn to shape. This
conversions to SI units that are provided for information only
information will help the producer provide the most suitable
and are not considered standard.
product for the consumer’s fabrication practice, and
1 2
This specification is under the jurisdiction of ASTM Committee A06 on For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Magnetic Properties and is the direct responsibility of Subcommittee A06.02 on contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Material Specifications. Standards volume information, refer to the standard’s Document Summary page on
CurrenteditionapprovedMay1,2013.PublishedJuly2013.Originallyapproved the ASTM website.
3
in 1986. Last previous edition approved in 2008 as A867–03 (2008). DOI: Available fromAmerican National Standards Institute (ANSI), 25 W. 43rd St.,
10.1520/A0867-03R13. 4th Floor, New York, NY 10036, http://www.ansi.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
